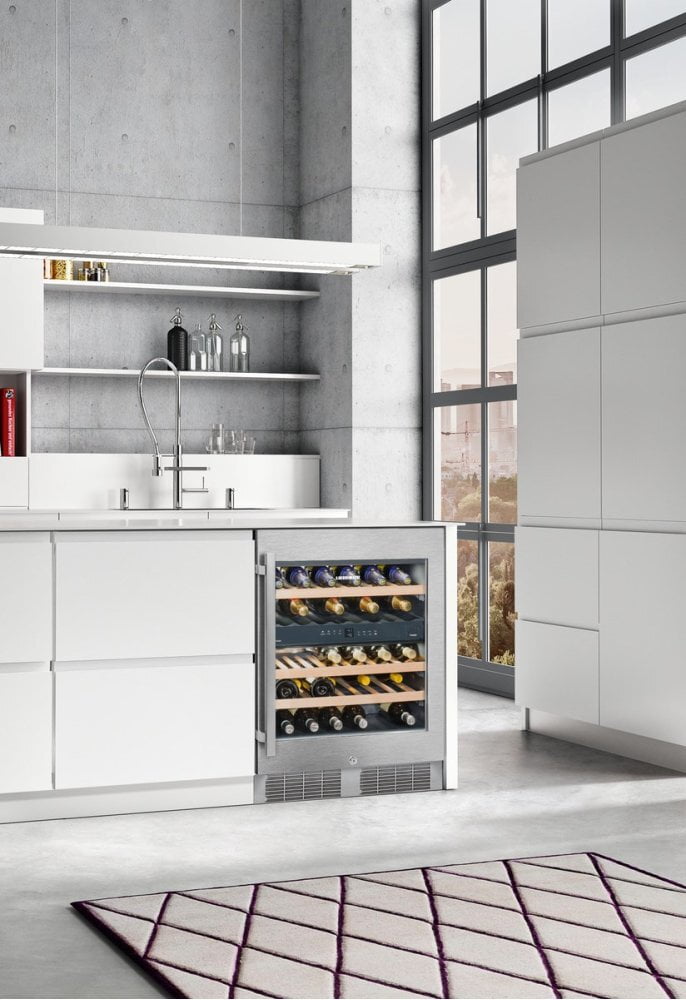

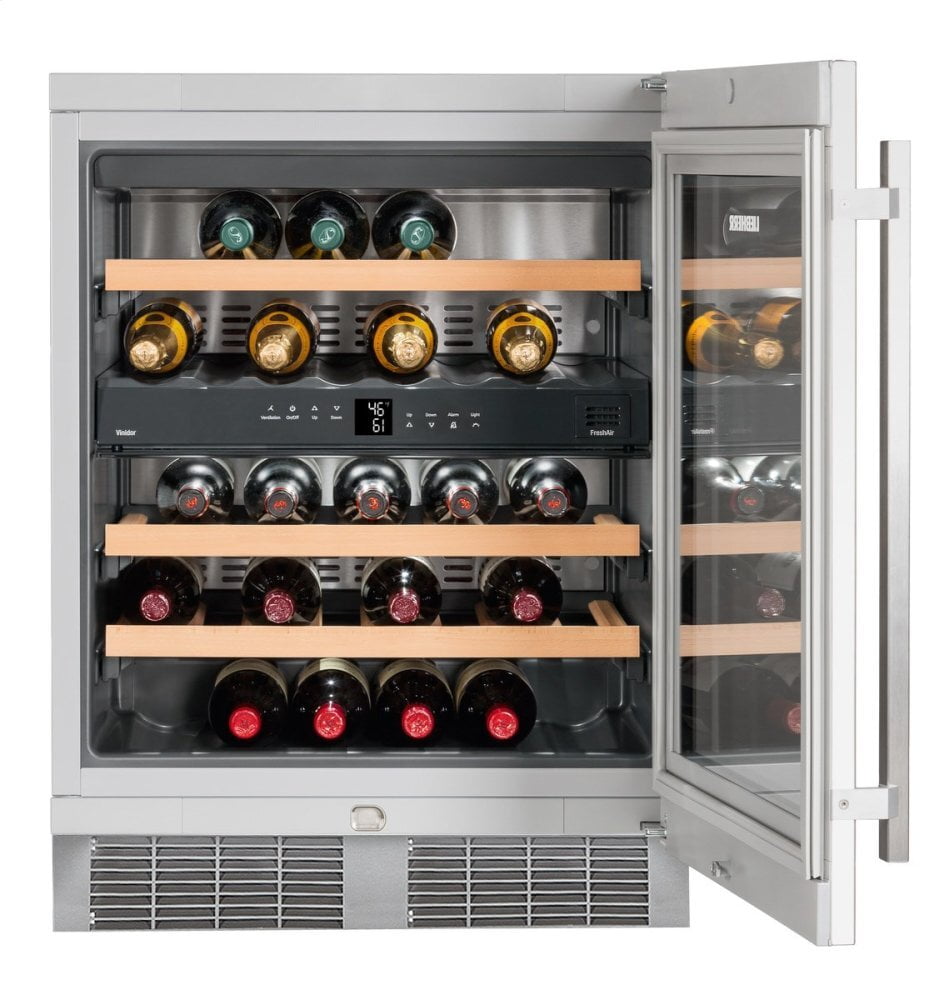

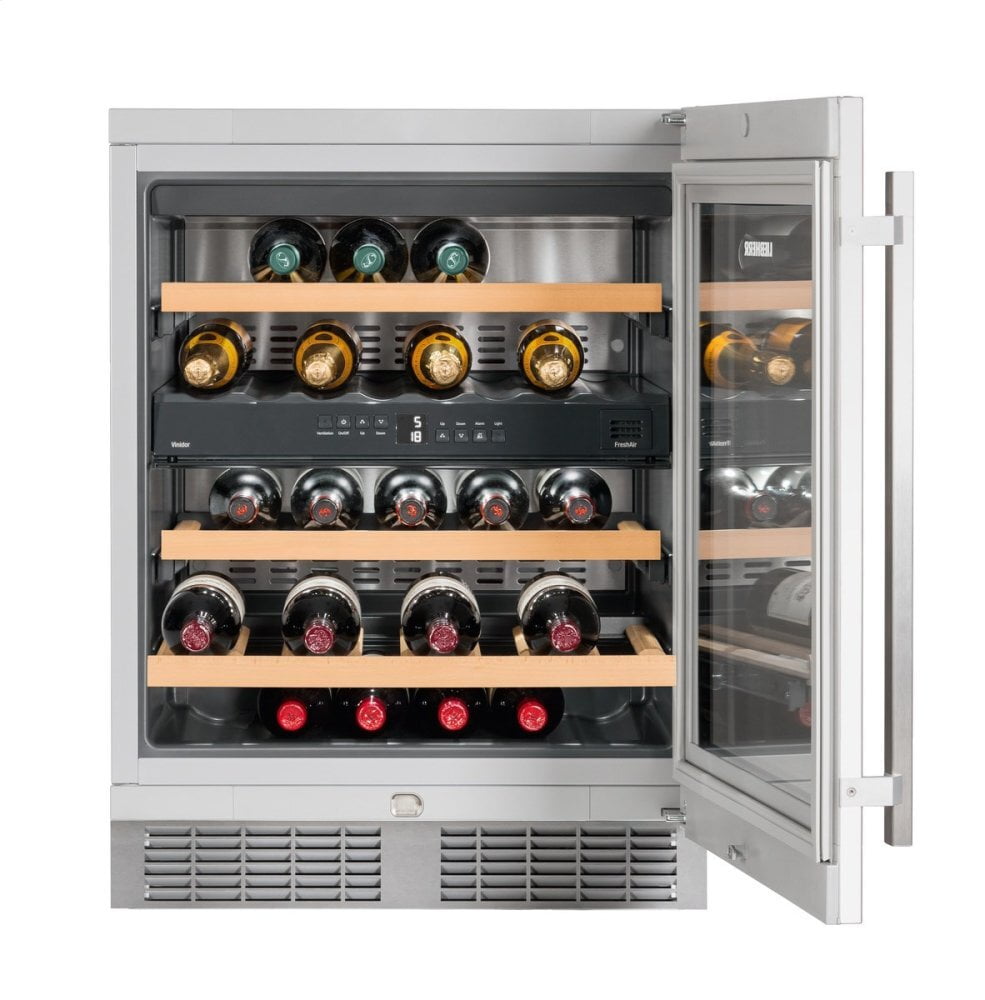

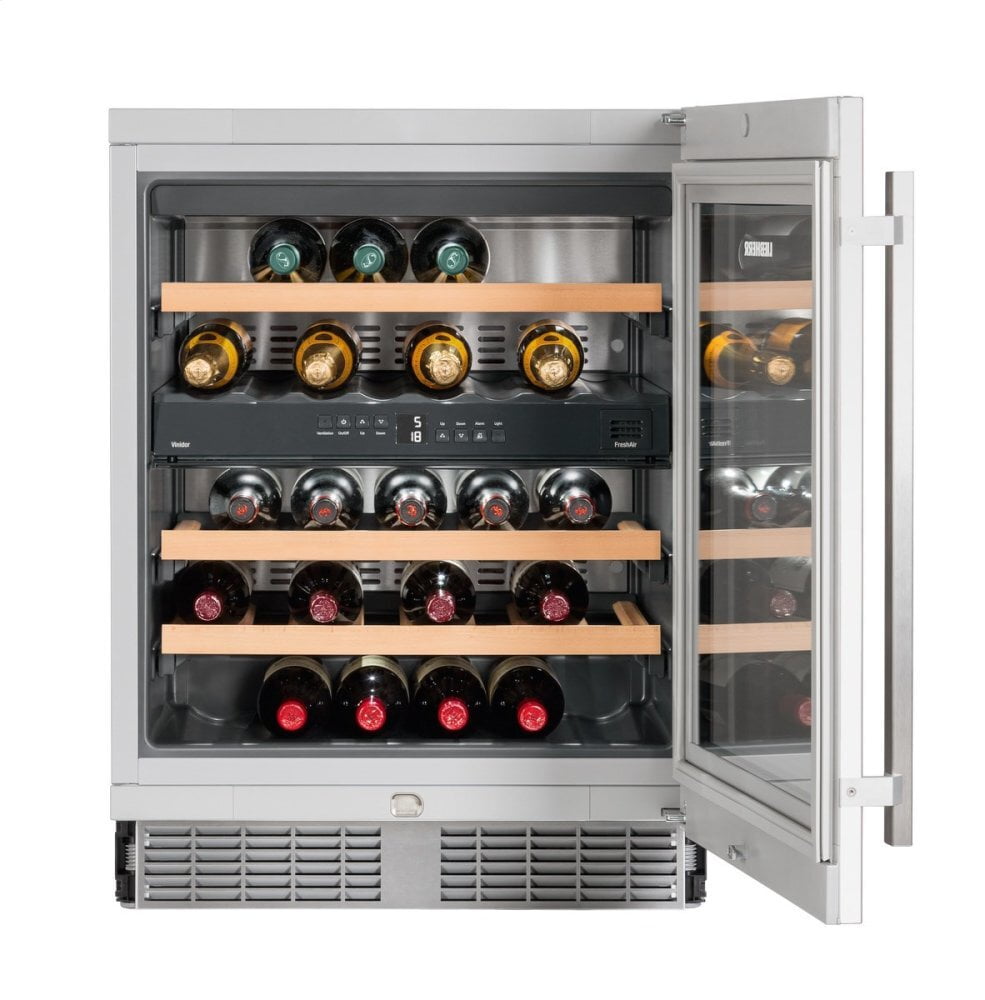

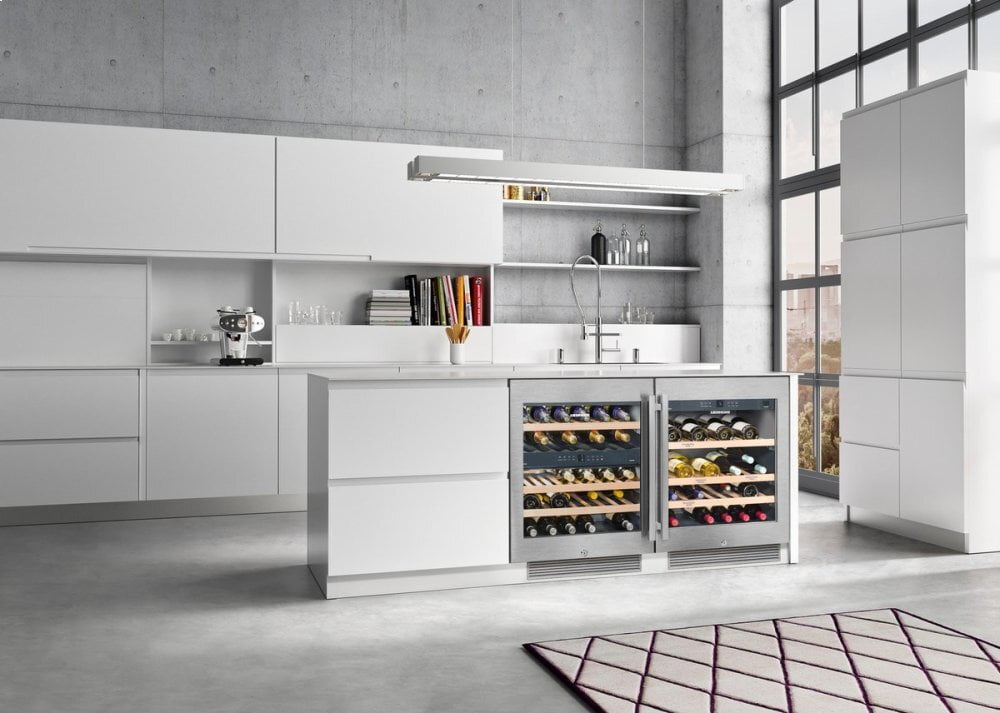

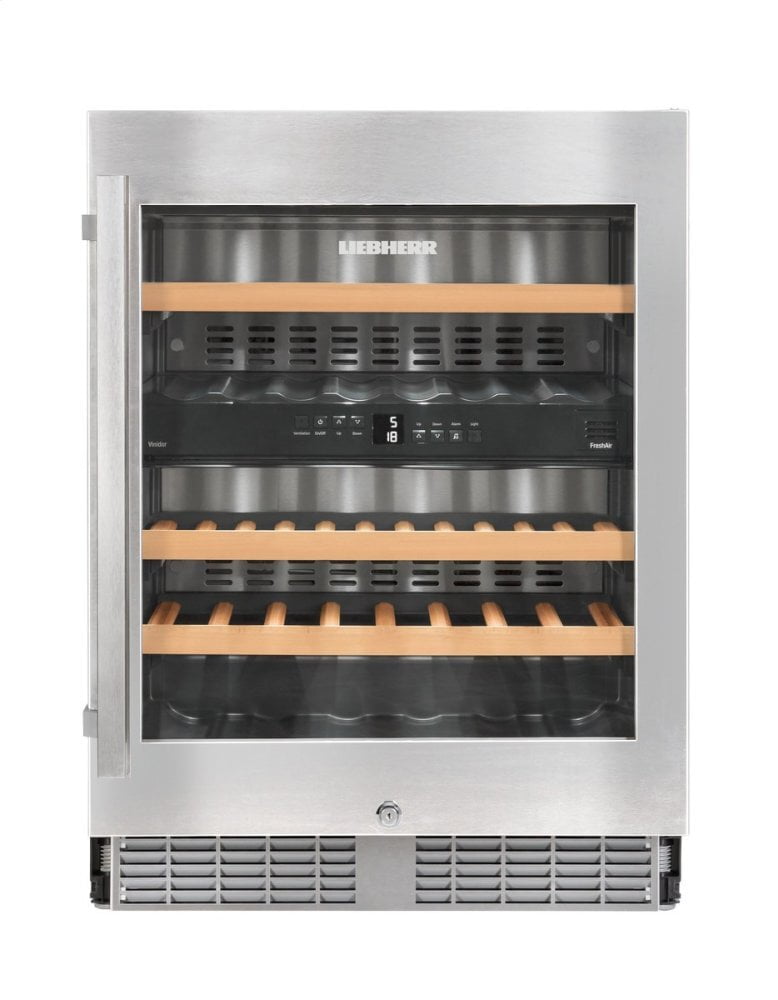

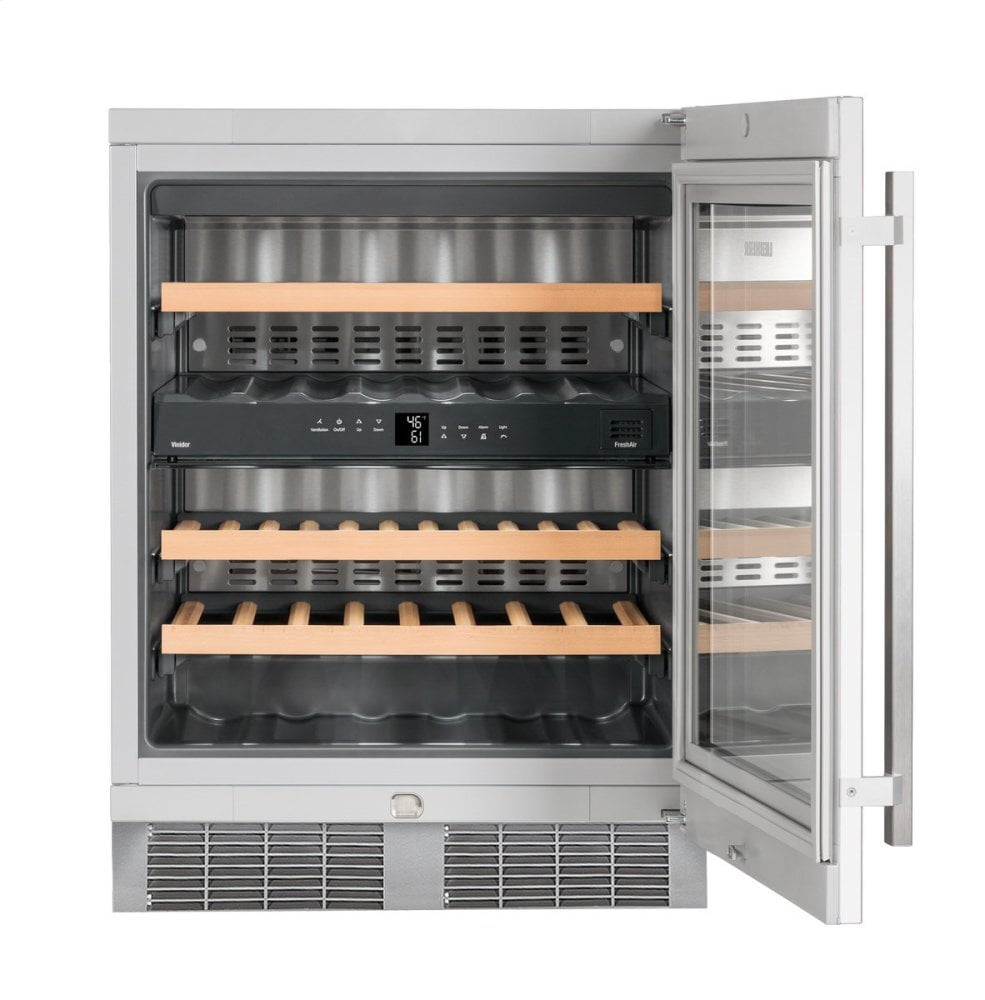

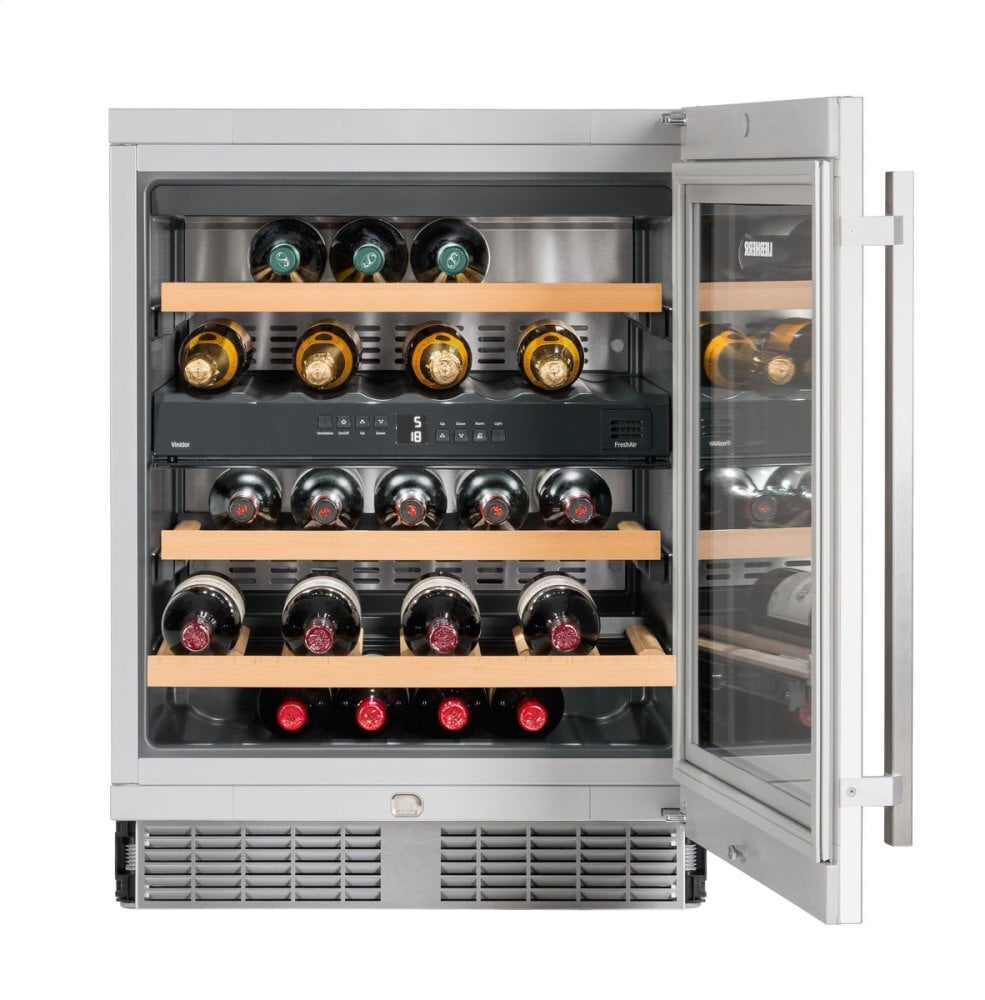

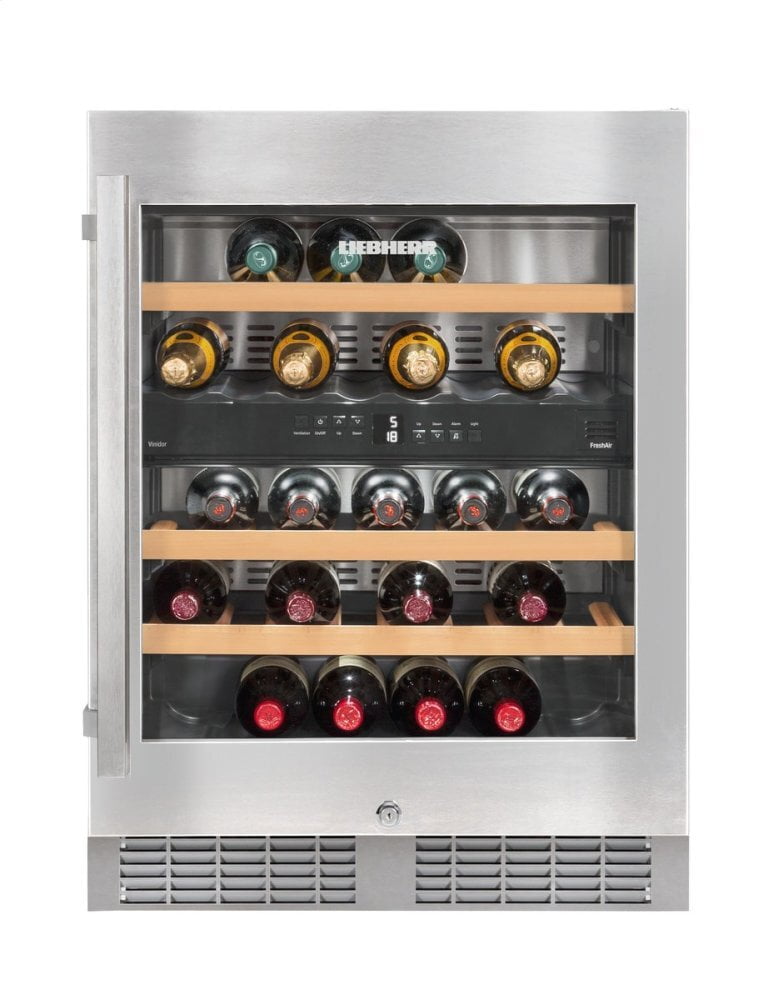

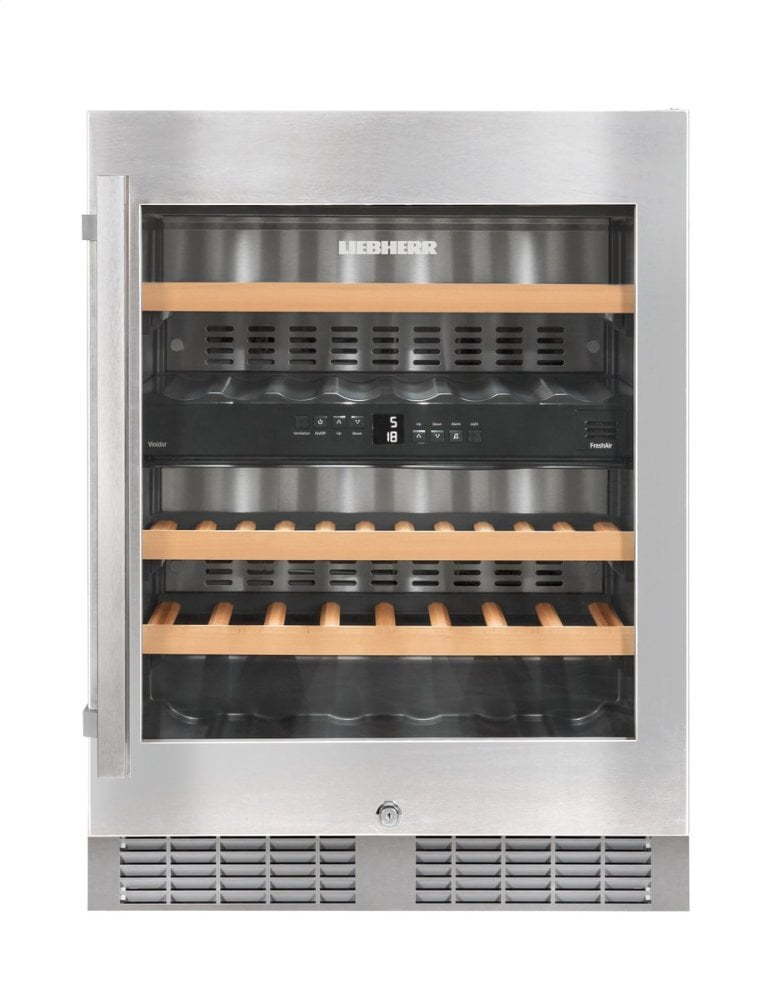

Liebherr WU3400 24" Built-Under Multi-Temperature Wine Cabinet
German Engineering
Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.
SuperQuiet
Noise is kept to a minimum with virtually silent, speed controlled compressors and a low nose cooling circuit; while also ensuring exact performance, energy efficiency and SuperQuiet operation.
Beech wood Shelving
Solid beech wood shelves on telescopic rails for easy wine access.
Activated Charcoal Filter
Liebherr wine cabinets have a permanent supply of odorless fresh air via an easily exchangeable activated charcoal filter.
UV-Resistant
Liebherr uses an insulated glass door with UV protection to safeguard the wine from busy kitchen influences, such as light.
Integrated Lock
A sturdy lock protects your fine wine collection.
Alarm System
p>Liebherr Wine units are equipped with a trustworthy alarm system to alert the homeowner if the door has been left open or the temperature has been compromised
Compressors
p>Specially developed compressors installed in the wine cabinets from Liebherr ensure that the wines are stored in a particularly low vibration environment.
Electronic LCD display
p>Intuitive navigation of touch electronic control system enables tailored storage options. The digital temperature display can be viewed via the UV tinted glass door.
Led Lighting
p>The energy efficient LED ceiling light not only emits virtually no heat, but it is dimmable to cast a cool glow to give a pleasing ambient light inside the appliance as well as the room.
- SuperQuiet
- ADA Compliant
- Electronic Display
- Star-K
- Led Lighting
- Liebherr WU-3400 24-In. Vinidor Dual Temperature Zone Wine Cabinet

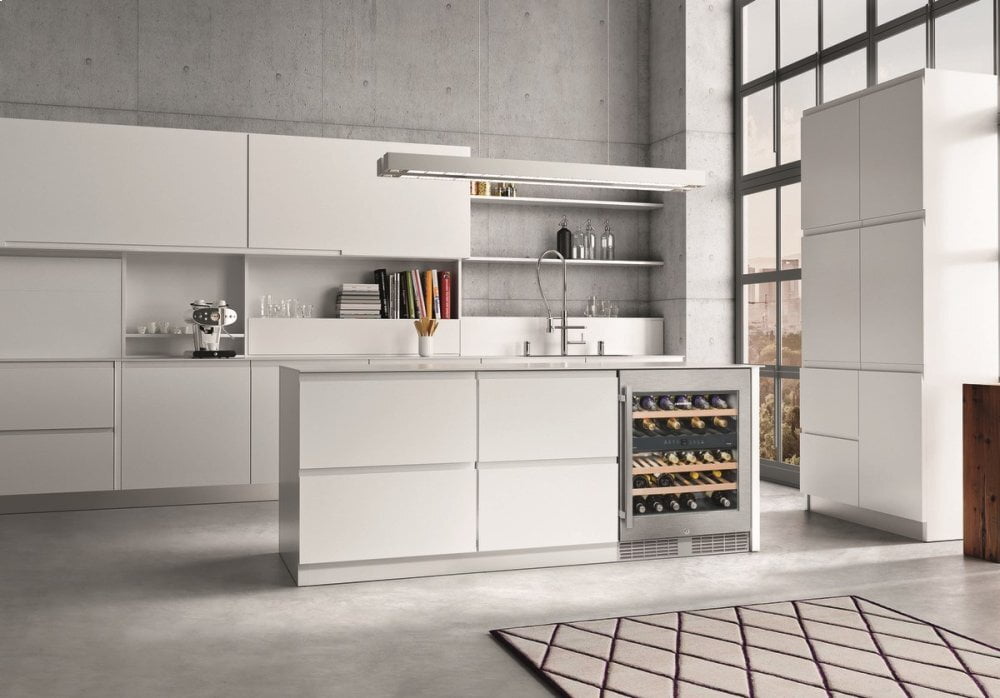

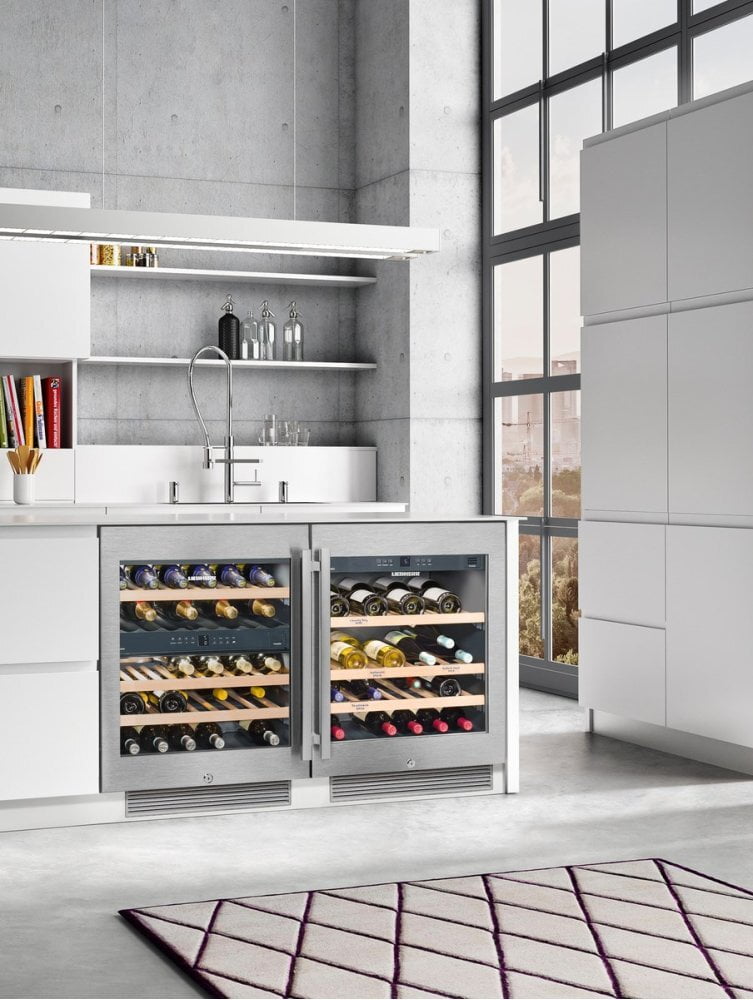

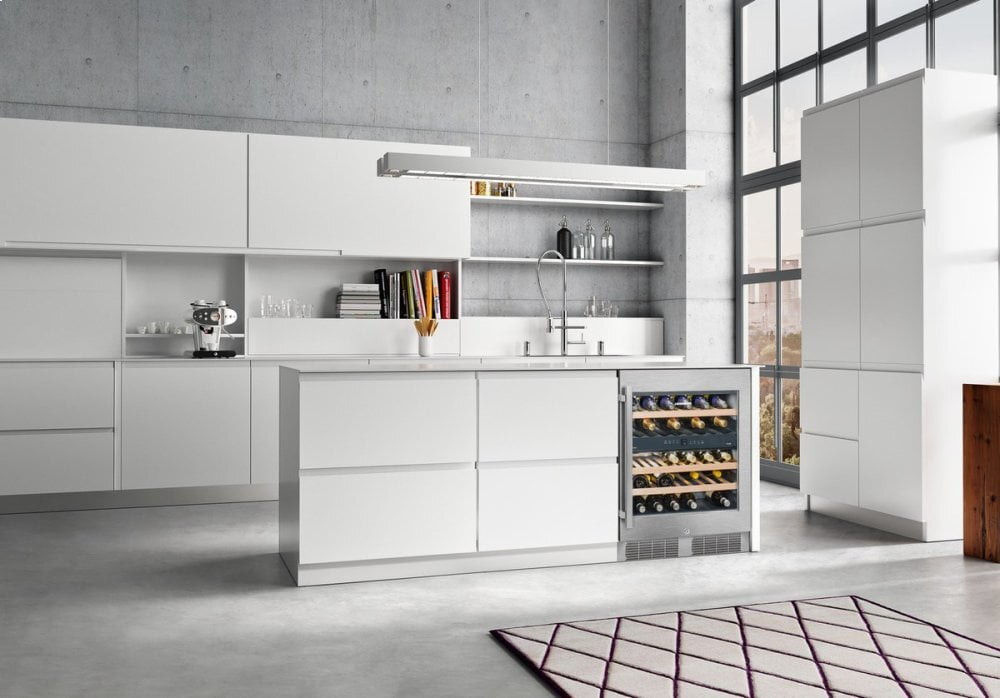

- Elegant stainless steel frame and glass door can be integrated easily and elegantly into your kitchen
- Storage capacity: 94 liters /3.3-cu. ft.; hold 34 Bordeaux bottles
- Set two different temperatures within the unit between +41 degrees Fahrenheit and +68 degrees Fahrenheit
- Controls are integrated into the insulation layer between the temperature zones

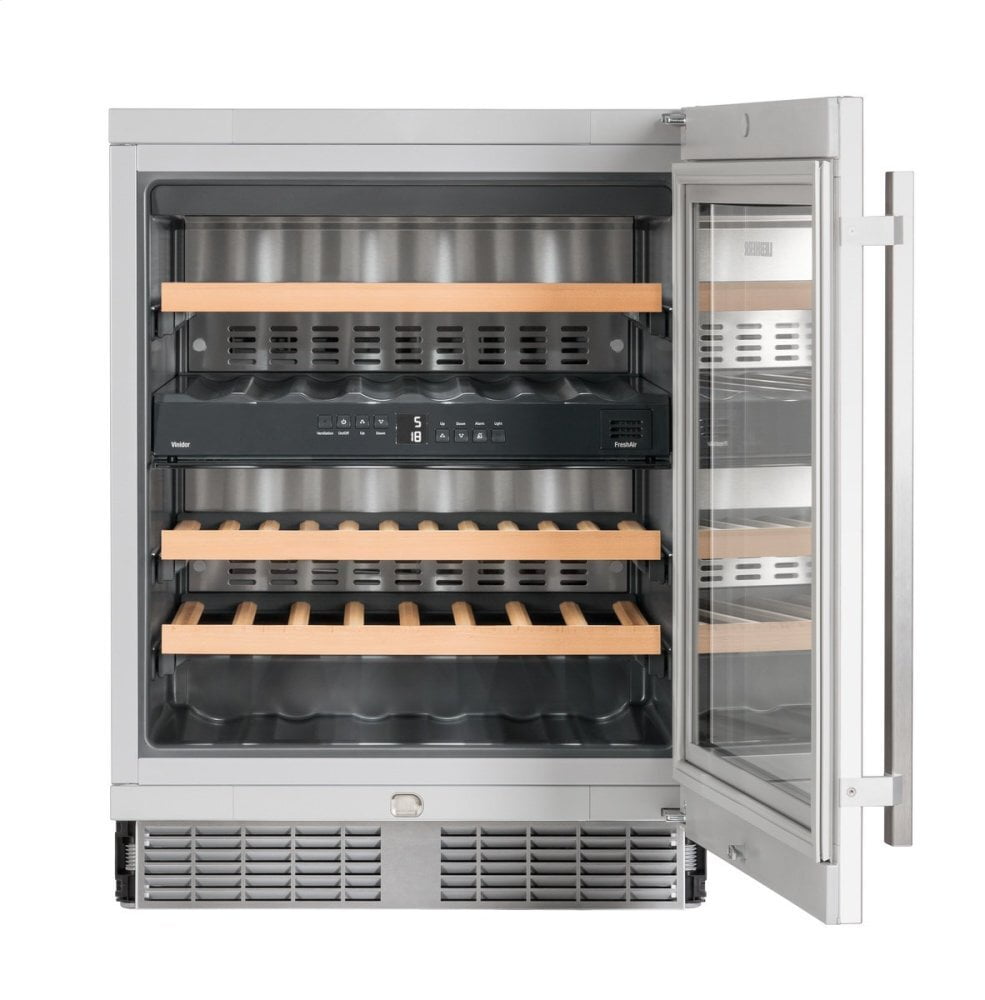

- Right-hand reversible, clear glass door
- Three wooden slide-out shelves
- Hinge kit for door panel available (sold separately)
- Security lock
- LED lighting
General product information | |
Product type | Built-under multi-temperature wine cabinet |
GTIN | 9005382211052 |
Output and consumption | |
Energy consumption in 24h | 0.465 kWh / 24h |
Energy consumption per year | 170 kWh/a |
Climate class | SN-ST |
Noise level | 39 dB |
Net capacity, total | 3.3 cubic feet |
Gross capacity, total | 4.3 cubic feet |
Voltage | 115 V ~ |
Frequency | 60 Hz |
Connection rating | 2.0 A |
Dimensions and weight | |
Aperture height | 32 5/16 - 34 5/16 inch |
Measurements: height of recess in inches | 32 5/16 - 34 5/16 inch |
Measurements: width of recess in inches | 23 5/8 inch |
Measurements: depth of recess (min.) in inches | 22 7/8 inch |
Product dimensions (H/W/D) | 32 1/4 23 9/16 22 3/4 inch |
Height / Width / Depth (with packaging) | 36 1/16 25 13/16 27 1/4 inch |
Weight (without packaging) | 108.0 pounds |
Weight (with packaging) | 125.7 pounds |
Control and functions | |
Type of control | Digital temperature display in the MagicEye |
Control operation | Touch-Electronic |
Individual temperature zones | 2 |
Temperature zones | 2 |
Temperature display | Wine storage compartment |
Malfunction: Warning signal | optical and acoustical |
Door open: Warning signal, wine storage compartment | audible |
Child proofing | |
Forced air cooling | |
Lock | fitted |
Wine storage compartment | |
Temperature range | +41°F to +68°F |
Maximum number of 0.75 l Bordeaux bottles | 34 |
Activated charcoal filter | |
Lighting | LED lighting |
Light is dimmable | |
Light can be switched on permanently | |
Number of storage shelves | 5 |
of which wooden folding shelves | 0 |
Design and materials | |
Storage shelf material, wine storage compartment | Wooden grid shelves |
Colour | silver |
Door material | Glazed door with stainless steel frame |
Side wall material | stainless steel |
Handle | Aluminium handle, solid |
Set-up and installation | |
door assembly | flush |
Door hinges | right interchangeable |
Height-adjustable feet | 4 |
