Liebherr UF501 24" Integrable Under-Worktop Freezer With Nofrost
German Engineering
Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.
Energy Star
Liebherr refrigerators help to produce less energy waste and greenhouse gas emissions with the aim to have the least damaging effect on the environment and offering solutions that help consumers conserve energy.
SuperFrost
SuperFrost generates greater cold reserves so that freshly stored food can be frozen rapidly, in a vitamin-preserving manner. Reversion from the freezing temperature of -26(degree)F (-32(degree)C) to the normal freezer temperature is time or quantity-controlled to help save energy.
SuperQuiet
Noise is kept to a minimum with virtually silent, speed controlled compressors and a low nose cooling circuit; while also ensuring exact performance, energy efficiency and SuperQuiet operation.
SoftSystem
Unique to Liebherr is our patented SoftSystem, often used in high-end cabinetry, ensures that the door closes gently, even when fully loaded. Plus the door opening angle can be reduced to 90 degrees allowing for more design options within kitchen d(eback)cor.
FrostSafe Drawers
The removable FrostSafe Drawers create flexible storage space that can easily expand to accommodate larger items. Advantageously, this spacious and practical transparent drawer system helps you fit more as well as maintain temperature by keeping cold air from escaping when the door is open.
NoFrost
p>Food is frozen with chilled, recirculating air, while expelling humidity. As a result, the freezer is always free of ice, ensuring long-term freshness.
- Energy Star
- SuperFrost
- SuperQuiet
- SoftSystem
- ADA Compliant
- Electronic Display
- NoFrost
- Star-K
- This freezer with 2.79-cu. ft. Capacity is ideal for all your storage needs
- Position the freezer in a space that suits the layout of your kitchen without any restrictions with its reversible door feature
- With 347 kWh annual energy consumption, this freezer helps you save money on your utility bills and helps keep the environment green
- With sound emission rate of 38 dB, this freezer operates very quietly

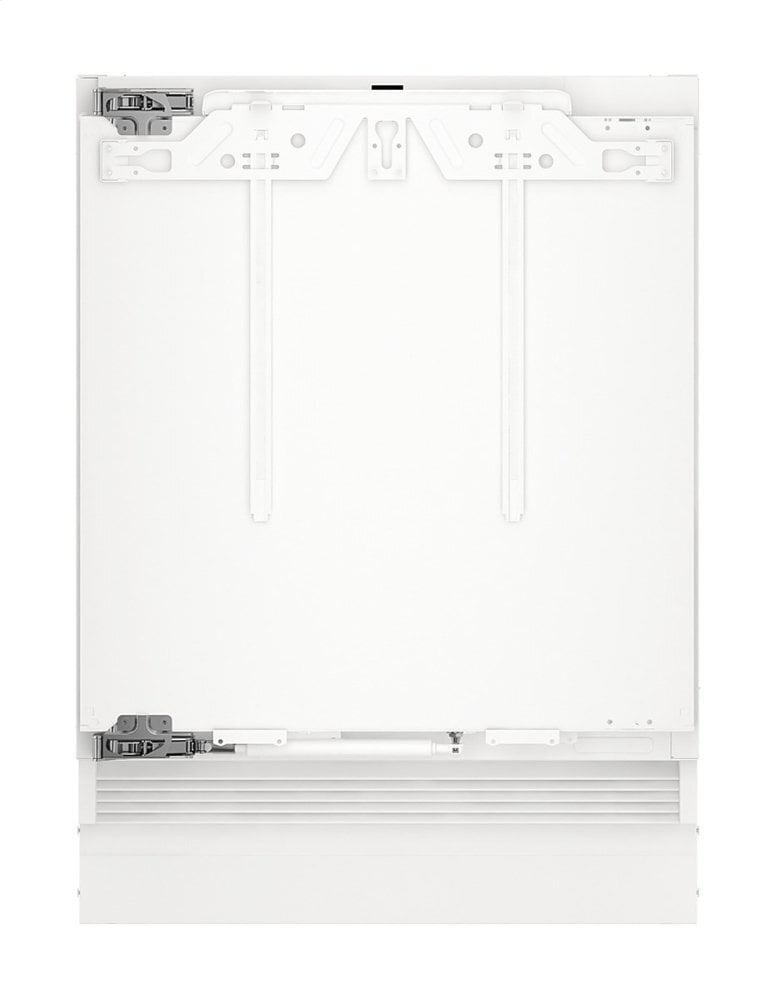

- Door-on-door technology allows custom panels to be affixed directly onto the freezer door
- Vario Toe Kick permits height adjustment to fit perfectly under your counter (32.3-inch to 34.7-inch)
- Energy Star efficiency conserves energy and saves you money
- SuperQuiet operation so noise is kept to a minimum - only 38 dBA
- Intuitive electronic touch control panel ensures all functions are easy and convenient to use
- SuperFrost setting speeds up freezing so that freshly stored food can be frozen rapidly
- LED lighting is integrated in the center of the interior sides
- SoftSystem door closes automatically and gently from a minimum opening angle of approx. 30(degree)
- Certified as Sabbath compliant by the Star-K organization
- ADA compliant
General product information | |
Product type | Integrable under-worktop freezer with NoFrost |
GTIN | 4016803187868 |
Output and consumption | |
Energy consumption in 24h | 0.827 kWh / 24h |
Energy consumption per year | 302 kWh/a |
Climate class | SN-T |
Noise level | 38 dB |
Net capacity, total | 2.8 cubic feet |
Gross capacity, total | 3.4 cubic feet |
Voltage | 115 V ~ |
Frequency | 60 Hz |
Connection rating | 2.3 A 188 W |
Dimensions and weight | |
Product dimensions (H/W/D) | 32 5/16 - 34 11/16 23 9/16 21 11/16 inch |
Measurements: height of recess in inches | 32 5/16 - 34 11/16 inch |
Measurements: width of recess in inches | 23 5/8 inch |
Measurements: depth of recess (min.) in inches | 21 11/16 inch |
Height / Width / Depth (with packaging) | 36 1/2 24 1/4 24 5/16 inch |
Weight (without packaging) | 88.0 pounds |
Weight (with packaging) | 101.6 pounds |
Control and functions | |
Type of control | Magic Eye with LC and digital temperature display |
Position of control unit | behind the door |
Control operation | Touch-Electronic |
Temperature display | Freezer compartment |
Malfunction: Warning signal | optical and acoustical |
FrostControl | |
SuperFrost | quantity-controlled |
Design and materials | |
Door material | Door ready for stainless steel panel |
Set-up and installation | |
door assembly | door-on-door |
Door hinges | left interchangeable |
Door opening angle | 115° |
Vario plinth | |
Height-adjustable feet | 4 |
Ventilation | Plinth ventilation |
