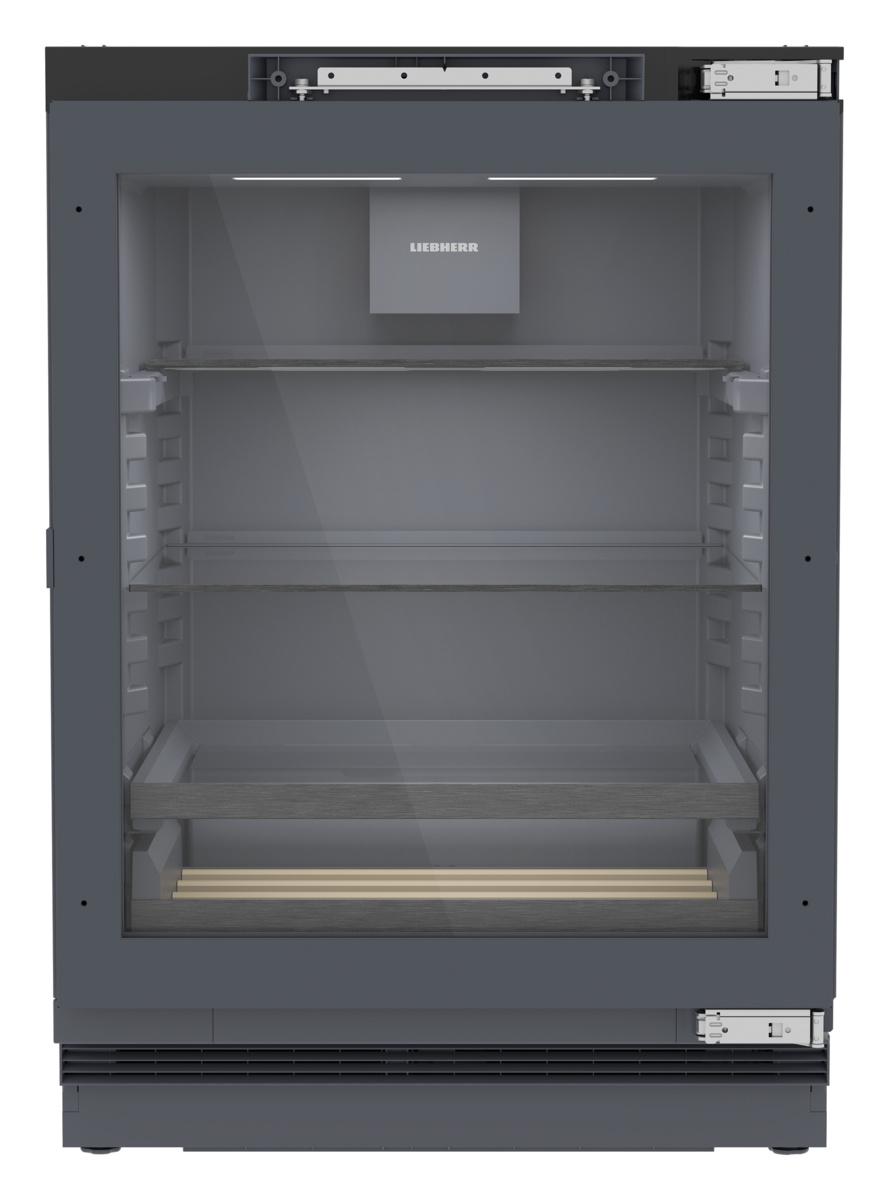

Liebherr UBC3760 Fully Integrated Under Counter Beverage Refrigerator
German engineering
German engineering Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.
Touch & Swipe display
Touch & Swipe display Control of your Liebherr at your fingertips: thanks to the Touch & Swipe display, you can operate your refrigerator intuitively and with ease. Simply select functions such as SuperCool on the color display by tapping and swiping. The temperature is controlled just as easily. And, what if you are not actively using the display? Well, it then shows you the actual temperature.
Integrated SmartDeviceBox
Integrated SmartDeviceBox Your Liebherr may well be standing in the kitchen - but if you want, it can also be connected to the Internet at any time. The integrated SmartDeviceBox opens the door to all the Smart Home benefits. Simply plug it in, switch it on and connect your Liebherr to the network via Wi-Fi.
GlassLine shelves
GlassLine shelves If you store a carafe or tall container in the refrigerator, you don't want to have to remove an entire glass shelf. And why should you? Because there are split glass shelves. Simply slide the front half of the glass shelf under the back half. This allows you to place higher containers at the front and still have enough space for other food.
Convenient height adjustment glass shelves
Convenient height adjustment glass shelves Do you need a large container to go in the refrigerator ? If so, simply adjust the heights at which you insert the glass shelves. The convenient height adjustment means this can be done quickly and individually - even with food stored on the shelves.
FreshAir activated charcoal filter
FreshAir activated charcoal filter The smell of some foods is sometimes less pleasant. However, this is no problem for your Liebherr. Thanks to FreshAir activated carbon filters, there is always fresh air in the interior. The filter is located right on the air flow in the fan housing and neutralizes odors as far as possible. The display reminds you to change the filter.
- Touch & Swipe display
- Integrated SmartDeviceBox
- FreshAir activated charcoal filter
- SoftSystem
- SuperCool
| General product information | |
| Model type | Fully Integrated under counter beverage refrigerator |
| GTIN | 9005382254998 |
| Series | prime |
| Output and consumption | |
| Humidity range | Yes |
| Energy Label | EnergyStar |
| Voltage | 115 V ~ |
| Frequency | 60 Hz |
| Connection rating | 2.0 A |
| Control and functions | |
| Malfunction: Warning signal | optical and acoustical |
| Control | 2.4 TFT color display, Touch & Swipe display |
| Control unit | Touch & Swipe |
| Number of temperature zones | 1 |
| Number of regulated refrigeration circuits | 1 |
| Temperature display | Fridge compartment |
| Door alarm, cooling | Adjustable on appliance and via app |
| BottleTimer | - |
| NightMode | - |
| Display lock | Adjustable on appliance |
| Refrigerator compartment | |
| Refrigerator compartment climate zones | - |
| Number of BioFresh drawers | 0 |
| Forced air cooling | Yes |
| FreshAir filter | in valve |
| SoftSystem | SoftSystem |
| Interior light, fridge compartment | LED ceiling lighting |
| Number of storage shelves, refrigerator compartment | 4 |
| Of which separable | 1 |
| of which height-adjustable | 2 |
| Bottle storage | Pull-out shelf Cross storage Wooden shelf with aluminium front |
| Bottle rack | 0 |
| Number of can racks | 0 |
| Pull-out unit | - |
| Design and materials | |
| Dry rear panel | Yes |
| Material dry rear wall | steel |
| Storage shelf material, fridge compartment | Glass |
| Cabinet Material | Insulated glass |
| Set-up and installation | |
| Type of installation | Undercounter |
| door assembly | Fixed door |
| Door hinges | Right |
| Door hinge replacement | Possible for customer |
| Door opening angle | 115° |
| Door seal | Replaceable |
| Height-adjustable feet | 4 |
| Leveling bars | - |
| Number of levelling bars | 0 |
| Ventilation | Base ventilation |
| Plug type | USA |
| Connector cable (length) | 2,200 mm |
| Specifications | |
| Net capacity, total | 3.5 cubic feet |
| Niche Height | 34 - 36 inch |
| Range of appliance width | 24 inch |
| Min. depth | 22 inch |
| Exterior dimensions: height/width/depth | 33 13/16 23 1/2 22 3/16 inch |
| Exterior dimensions: height/width/depth (with packaging) | 36 5/8 24 3/16 27 15/16 inch |
| Weight (without packaging) | 95.00 lb |
| Weight (with packaging) | 103.60 lb |
