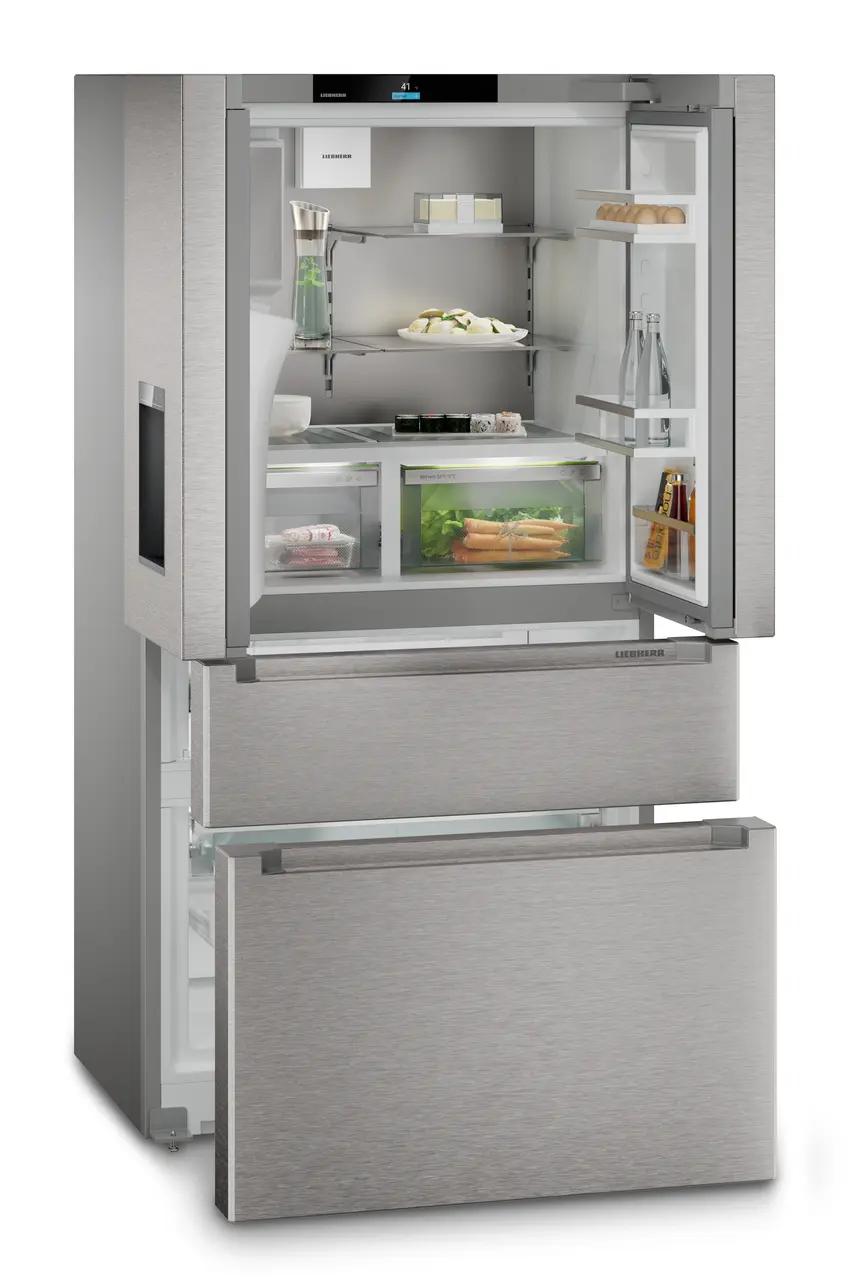

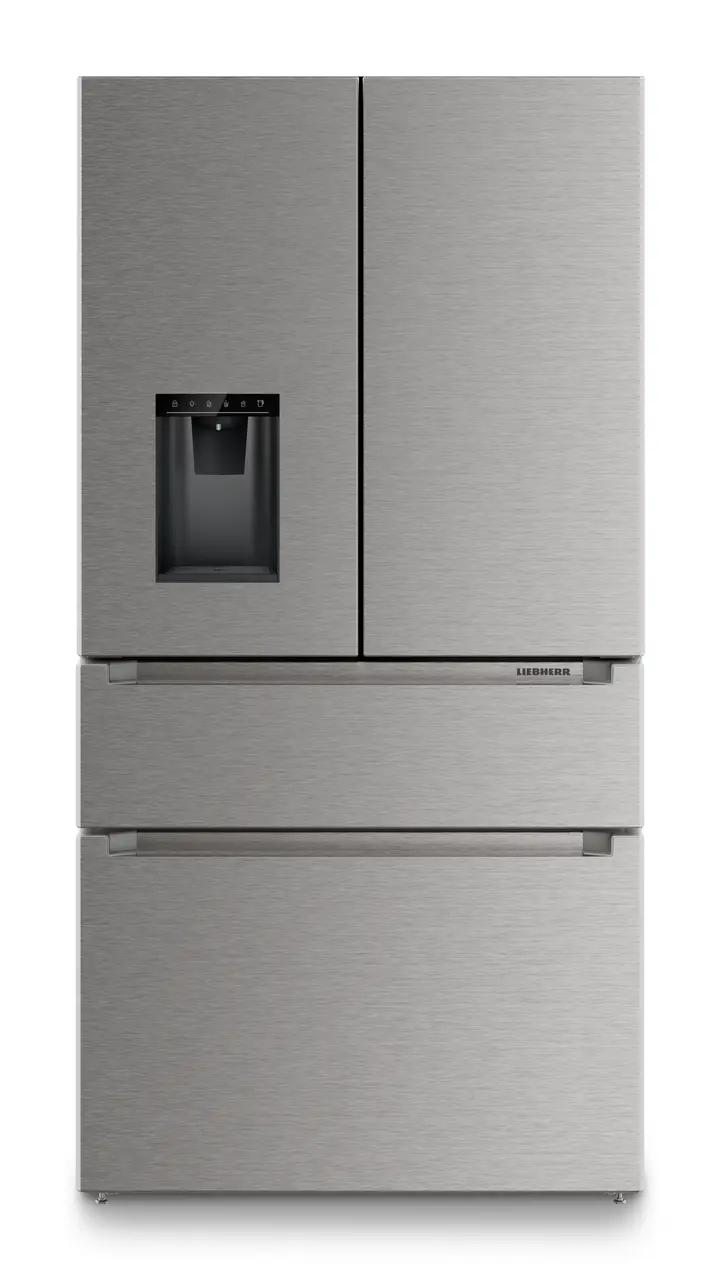

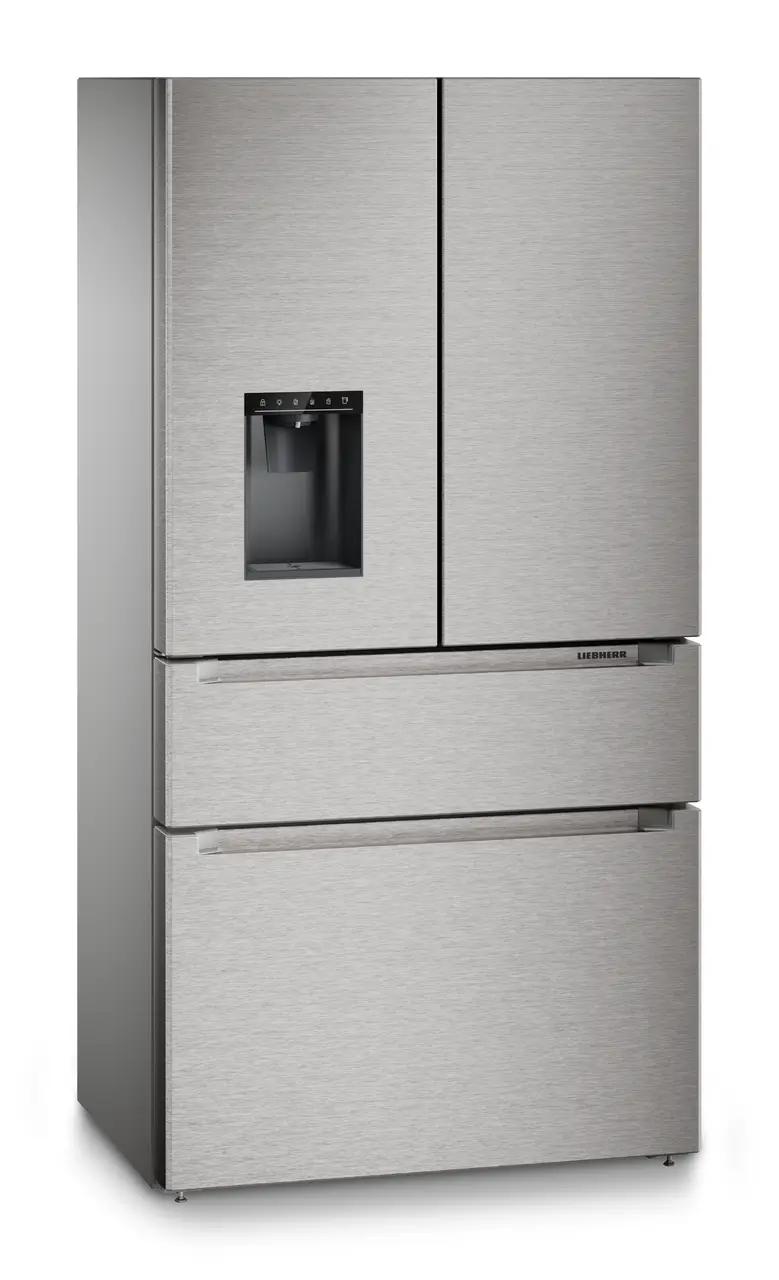

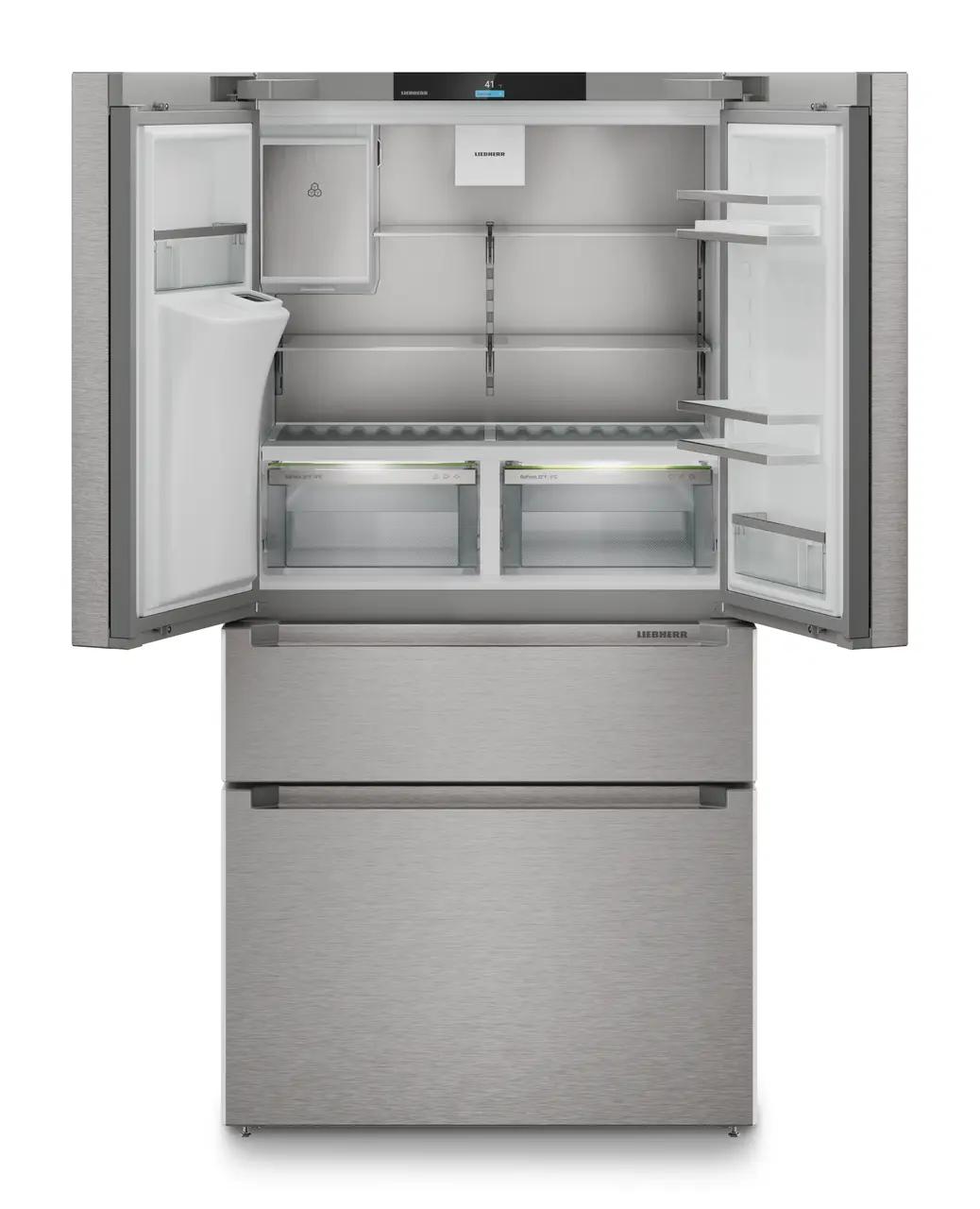

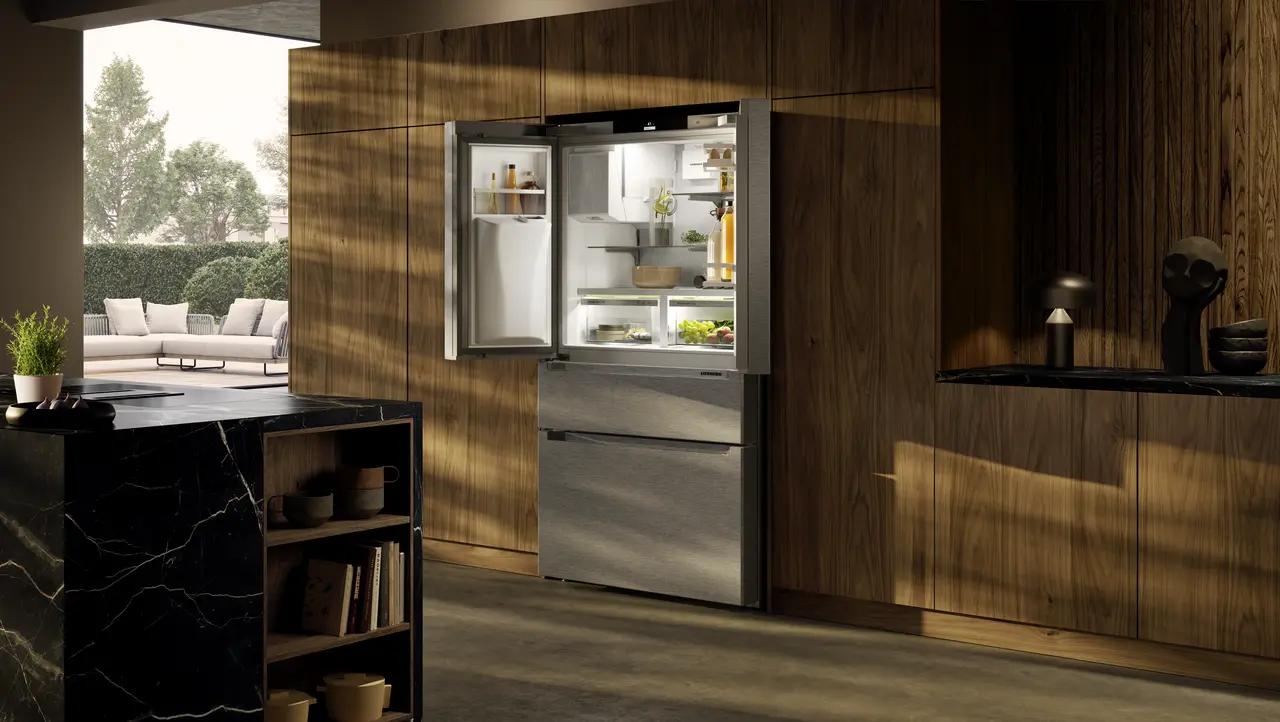

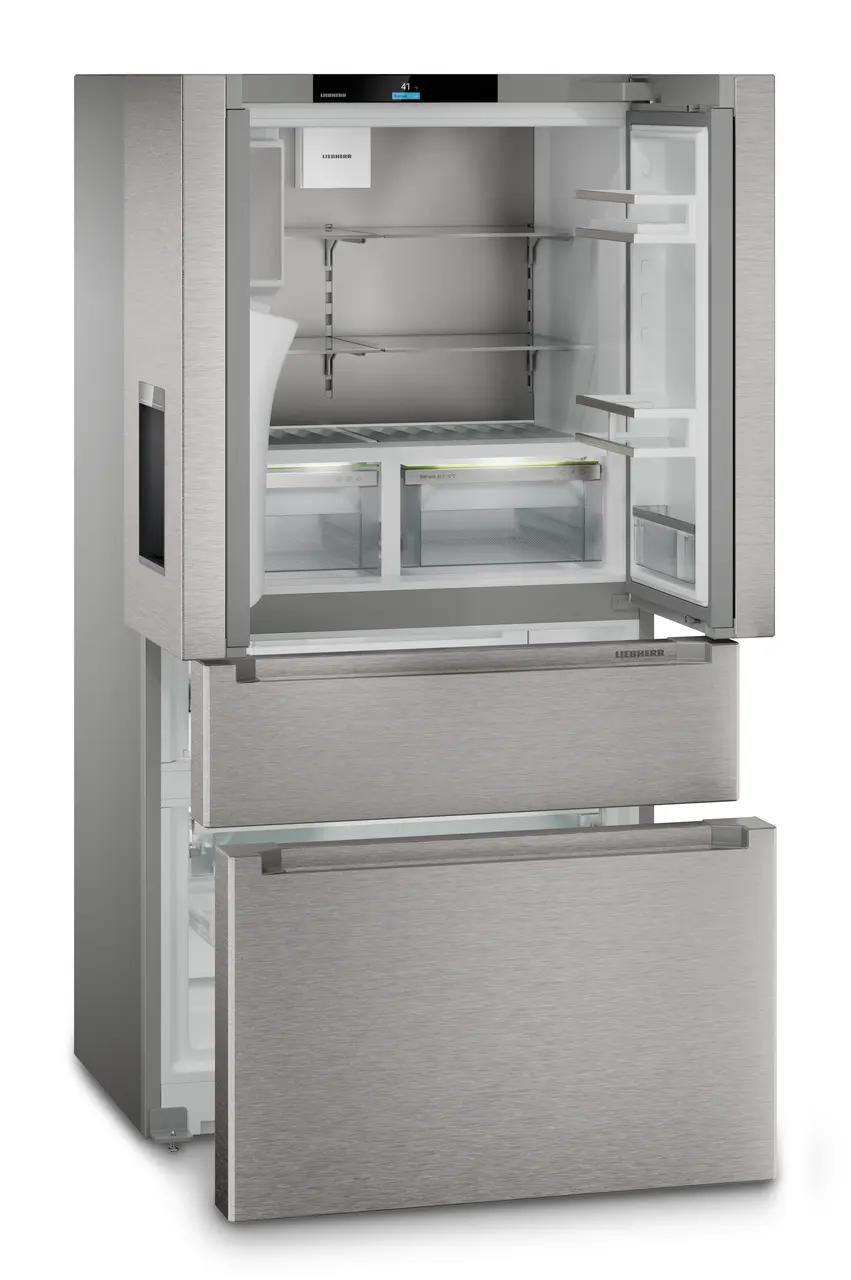

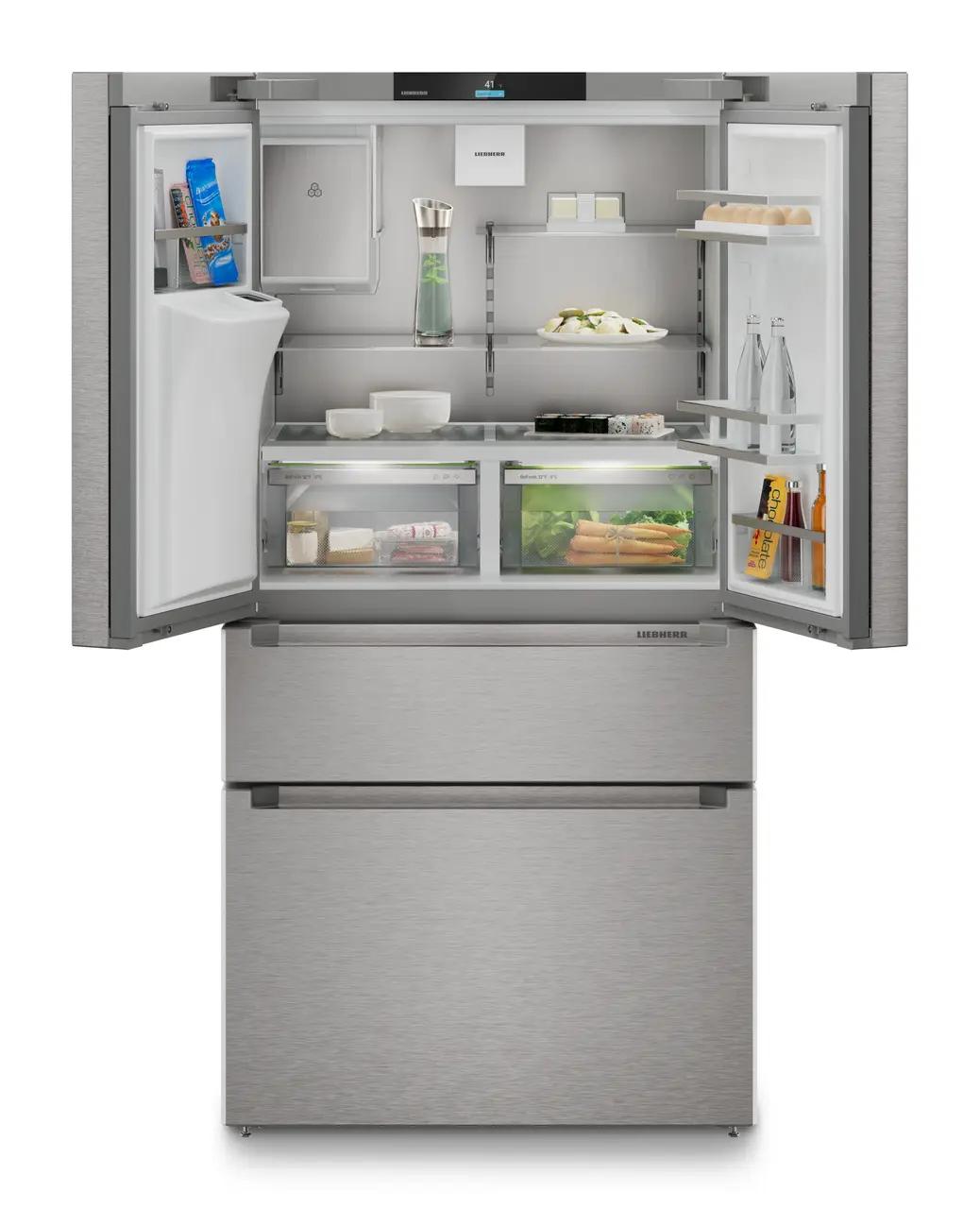

Liebherr FDBC36S French Door Fridge-Freezer With 2 Freezer Drawers And Water And Ice Cube Dispenser
German engineering
German engineering Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.
ENERGY STAR®
ENERGY STAR® The entire line of North American Liebherr appliances meet or exceed ENERGY STAR® rating requirements, greatly reducing greenhouse emissions and energy costs.
Water & Ice center
This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google. By clicking on ACCEPT , you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select Always accept YouTube videos and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.
VarioTempZone
This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google. By clicking on ACCEPT , you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select Always accept YouTube videos and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.
PowerCooling system
This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google. By clicking on ACCEPT , you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select Always accept YouTube videos and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.
BioFresh
This video is provided by Google*. When you load this video, your data, including your IP address, is transmitted to Google, and may be stored and processed by Google, also for its own purposes, outside the EU or the EEA and thus in a third country, in particular in the USA**. We have no influence on further data processing by Google. By clicking on ACCEPT , you consent to the data transmission to Google for this video pursuant to Art. 6 para. 1 point a GDPR. If you do not want to consent to each YouTube video individually in the future and want to be able to load them without this blocker, you can also select Always accept YouTube videos and thus also consent to the respectively associated data transmissions to Google for all other YouTube videos that you will access on our website in the future.
- ENERGY STAR®
- Water & Ice center
- VarioTempZone
- BioFresh
- VarioSpace
- LED ceiling lighting
- LED BioFresh lighting
- SmartSteel interior
- SoftTelescopic
- Touch & Swipe display
- Integrated SmartDeviceBox
- SuperFrost
- SuperCool
- DuoCooling
- LED freezer compartment lighting
- NoFrost
| General product information | |
| Model type | French door fridge-freezer with 2 freezer drawers and water and ice cube dispenser |
| GTIN | 4016803097334 |
| Distribution item no. | 090827451 |
| Series | plus |
| Output and consumption | |
| Energy consumption in 24h | 1.698 kWh / 24h |
| Energy consumption per year | 620 kWh/a |
| Connection rating | 2.1 A 271.5 W |
| Voltage | 115 V ~ |
| Frequency | 60 Hz |
| Control and functions | |
| Control unit | Touch & Swipe |
| Temperature zones | 3 |
| Individual temperature zones | 2 |
| Temperature display | Fridge & freezing compartment |
| SuperCool | Adjustable on appliance and via app |
| SuperFrost | Adjustable on appliance and via app |
| Appliance failure alarm | Adjustable on appliance and via app |
| Door alarm, cooling | Adjustable on appliance and via app |
| Door alarm, freezing | Adjustable on appliance and via app |
| BottleTimer | Adjustable on app |
| CleaningMode | Adjustable on appliance |
| IceCubeTimer | - |
| NightMode | Adjustable on app |
| SabbathMode | Adjustable on appliance and via app |
| HolidayMode | Adjustable on appliance and via app |
| PartyMode | Adjustable on appliance and via app |
| Refrigerator compartment | |
| Moisture regulation | DuoCooling |
| Number of activated charcoal filters | 1 |
| Refrigerator compartment climate zones | Fruit & Vegetable safe / Meat & Dairy safe |
| Number of BioFresh drawers | 2 |
| Interior light of BioFresh safe | LED lighting |
| Pull-out system drawer, refrigerator compartment | Fully extendible telescopic rails with self-closing mechanism and soft stop mechanism |
| Interior light | LED ceiling lighting |
| Number of storage shelves | 5 |
| of which height-adjustable | 3 |
| InfinitySpring | External door |
| Bottle storage | Integrated |
| Number of FlexSystems | 0 |
| Number of FlexCubes | 0 |
| Egg tray | Variable |
| Butter dish | - |
| Height-adjustable inner door shelf | Gradual adjustment |
| Storage rack | Can rack / Gallon rack |
| Number of door shelves with tilt function | 2 |
| Number of storage systems Gallon rack | 0 |
| Freezer compartment | |
| Adjustable temperature range | -15 °C to -24 °C |
| Cooling technology | NoFrost |
| VarioTemp | Partial |
| Synchronized drawer pull-out | Yes |
| Number of exterior drawers | 2 |
| Number of external drawers, adjustable as variable zone | 1 |
| No. of drawers in freezer compartment | 0 |
| of which can be pulled out on telescopic rails | 0 |
| Interior freezer compartment drawer | Yes |
| FrostSafe | - |
| Number of storage shelves | 0 |
| of which adjustable | 0 |
| VarioSpace | - |
| IceMaker safe lighting | - |
| Number of door racks freezer compartment | 0 |
| of which height-adjustable | - |
| Interior light, freezer compartment | LED lighting |
| Ice cubes | Water & Ice center |
| Ice cube production | 4.0 lb |
| Ice cube storage | 4.0 lb |
| Number of water filters | 1 |
| Type of hose | - |
| Number of cold storage accumulators | 0 |
| Star-rating | 4 |
| Design and materials | |
| InteriorFit | - |
| Dry rear panel | Yes |
| Material dry rear wall | SmartSteel look |
| Shelf material | Glass |
| Material of adjustable shelves in the freezer compartment | - |
| Cabinet Material | Stainless steel door with SmartSteel |
| Cabinet Material | silver |
| Side wall material | steel |
| Handle | Recessed grip |
| Recessed handle lighting | No |
| Set-up and installation | |
| Door hinges | Both sides |
| Closing aid | Yes |
| SoftSystem - soft-closing mechanism | Yes |
| Door opening angle | 115° |
| Door seal | Replaceable |
| FrenchDoor sealing system | flapless and self-closing |
| Height-adjustable feet | 4 |
| Transport castors at back | Yes |
| Transport handles | Front and rear |
| Ventilation | Front ventilation |
| Plug type | USA |
| Connector cable (length) | 78 3/4 in |
| Specifications | |
| Exterior dimensions: height/width/depth | 71 1/8 35 11/16 29 5/16 in |
| Exterior dimensions: height/width/depth (with packaging) | 1,919.0 / 974.0 / 837.0 mm |
| Weight (without packaging) | 330.90 lb |
| Weight (with packaging) | 359.40 lb |
| Net capacity, total | 19.0 ft |
| Volume, refrigerator compartment | 8.2 ft |
| of which BioFresh | 3.3 ft |
| of which BioFresh | 3.3 ft |
| Volume, freezer compartment | 7.6 ft |
Energyguide
Assembly and installation instructions
Dimensional drawing
Water connection drawing
Spec Sheet
