Sleek Lines Show Off Your StyleThe Slide-In Design Places The Controls Up Front For A Premium, Built-In Look That Lets The Beauty Of Your Backsplash And Countertops Show Through. Extra Space. Extra Swagger.This 7.3 Cu. Ft. Lg Range Is The Largest Capacity Oven In Its Class*. Go Ahead And Use All The Pots, Pans, Dutch Ovens And Skillets You Need. Whether You'Re Baking Large Batches Of Cookies Or A Roast For The Holidays, This Oven Can Fit It All. Perfect Baking And Roasting For The Meals That Matter MostLg'S Probake® Convection Is The Gold Standard In Convection Technology*. Roast Meats To Perfection And Evenly Bake Your Favorite Cookies And Pies On Every Rack, Every Time. Smoothtouch™ Glass ControlsIntuitive Smoothtouch™ Glass Controls Not Only Look Sleek, But Provide Effortless Operation With Just A Touch Of Your Finger. Brilliant Led KnobsWhite Led Knobs Indicate When Each Burner Is On Or Off With Just A Glance-While Adding A Bit Of Wow With Every Turn. 3-In-1 Heating. Unlimited Flexibility.Go From 12" To 9" To 6" With The Turn Of A Knob, For The Flexibility To Cook Either A Large Pot Of Chili Or A Small Pan Of Sauce On The Same Spot. With This 3-In-1 Element, You'Ll Always Have The Right Size And Power When You Need It. Life'S Better When Your Home Runs SmartDiscover Thinq Care Within The Thinq App - Proactive Smart Alerts To Keep Your Appliances Running Smoothly. Get Notifications About Usage, Maintenance, Plus Early Diagnosis Right On Your Smartphone.* Knock Twice To See What'S CookingCheck On Your Food With Two Quick Knocks. The Lg Instaview® Window Lets You See Inside Your Oven Without Ever Opening The Door And Letting Heat Escape. Crispy Flavor To Feed A CrowdWith Huge Capacity And No Preheat Needed, Air Fry Enough Crispy Favorites Like Wings, Fries And More While Saving Time And Counter Space. Seal In Restaurant-Quality FlavorUsing Low Oven Temperatures And Airflow Around Vacuum-Sealed Ingredients, Air Sous Vide Locks In Moisture To Deliver Meats, Fish And Poultry With Melt-In-Your Mouth Flavor*.

• 7.3 cu ft. Capacity
• InstaView® Window
• ProBake Convection® with Air Fry and Air Sous Vide
• EasyClean® + Self Clean Oven
• UltraHeat™ 3.6kW 3-in-1 Element
• ThinQ® Technology with ThinQ Care

SUMMARY
Series	LG

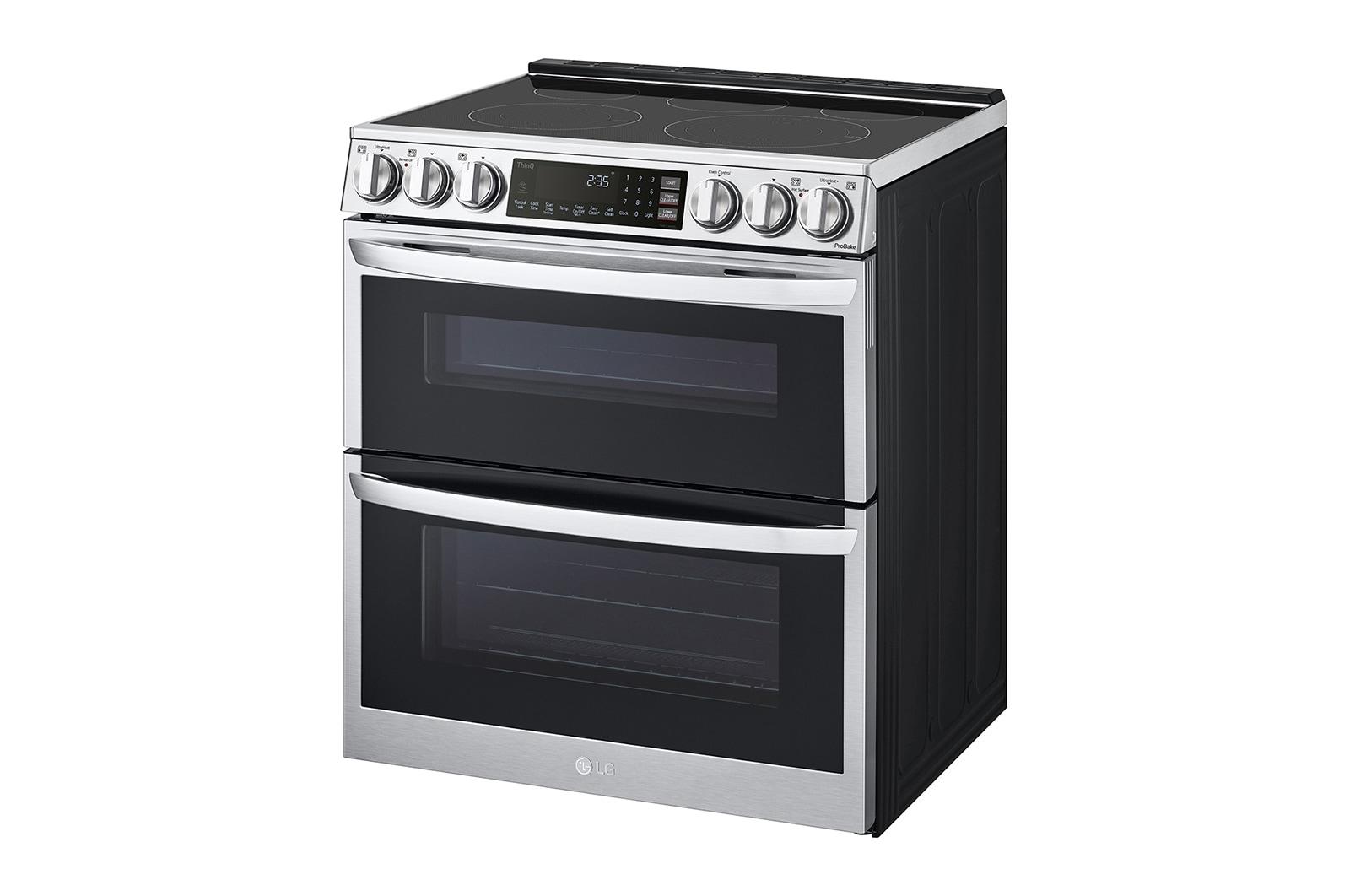

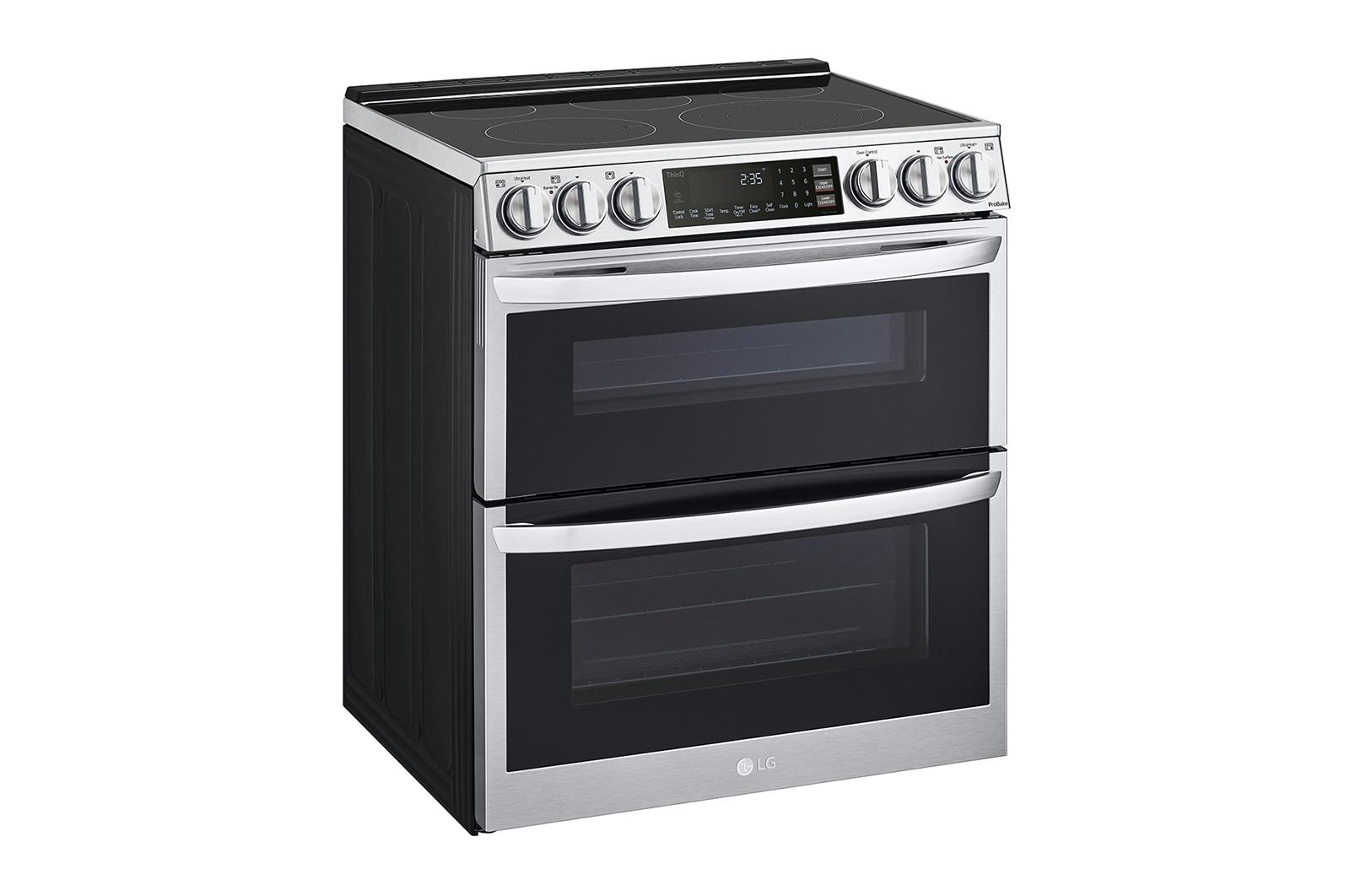

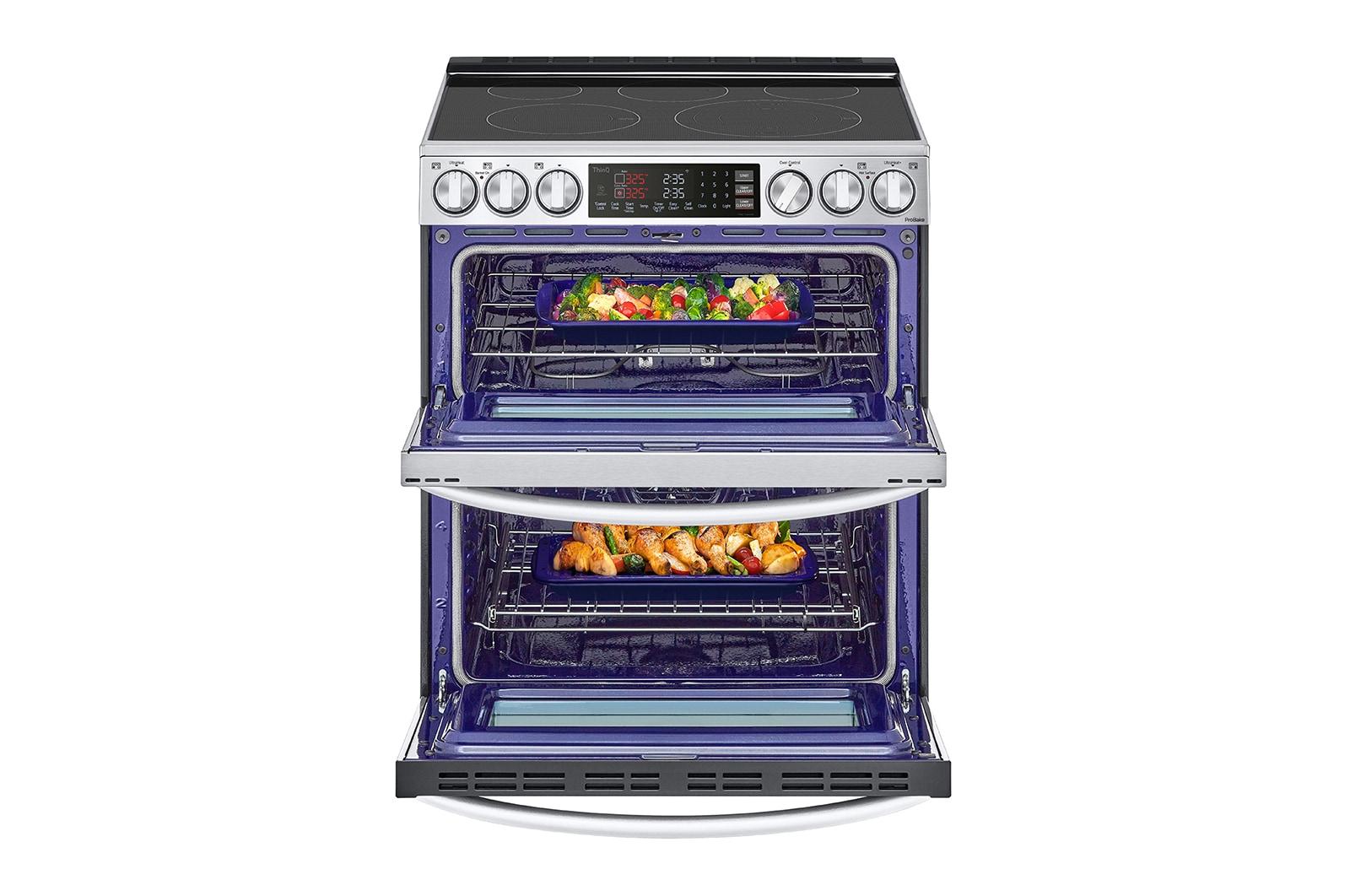

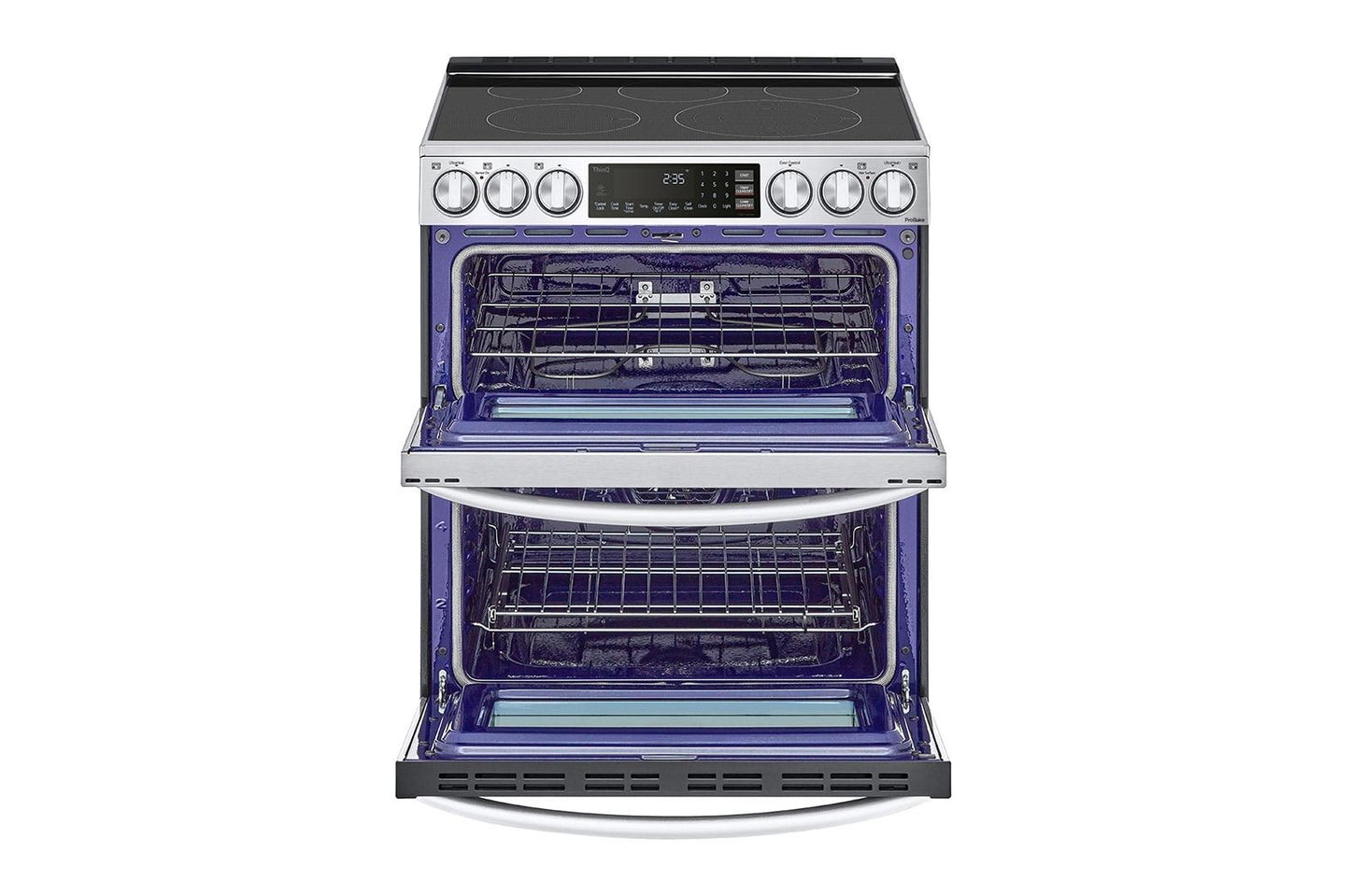

Type	Electric Double Oven Slide-In
Color	PrintProof® Stainless Steel
CAPACITY
Total Oven Capacity (cu.ft.)	7.3
Upper Oven Capacity (cu. ft.)	3.0
Lower Oven Capacity (cu. ft.)	4.3
COOKTOP
Burner/Watts - Left Rear	6' - 1200W
Burner/Watts - Right Rear	6' - 1200W
Burner/Watts - Left Front	9' / 6' - 3200W UltraHeat™
Burner/Watts - Right Front	12' / 9'/ 6' - 3600W UltraHeat™
Burner/Watts - Center	7' - 100W
Hot Surface LED Indicator	Yes
UPPER OVEN FEATURES
Configuration	Electric
Broil Element (Watts/h)	Sheathed Heater 3,800W
Bake Element (Watts/h)	2400W / 4 Pass (Exposed)
Oven Cooking	Conventional
Oven Modes	Bake, Broil, Warm, Self Clean, EasyClean®, Remote Start, Delayed Timed Cook, Timed Cook

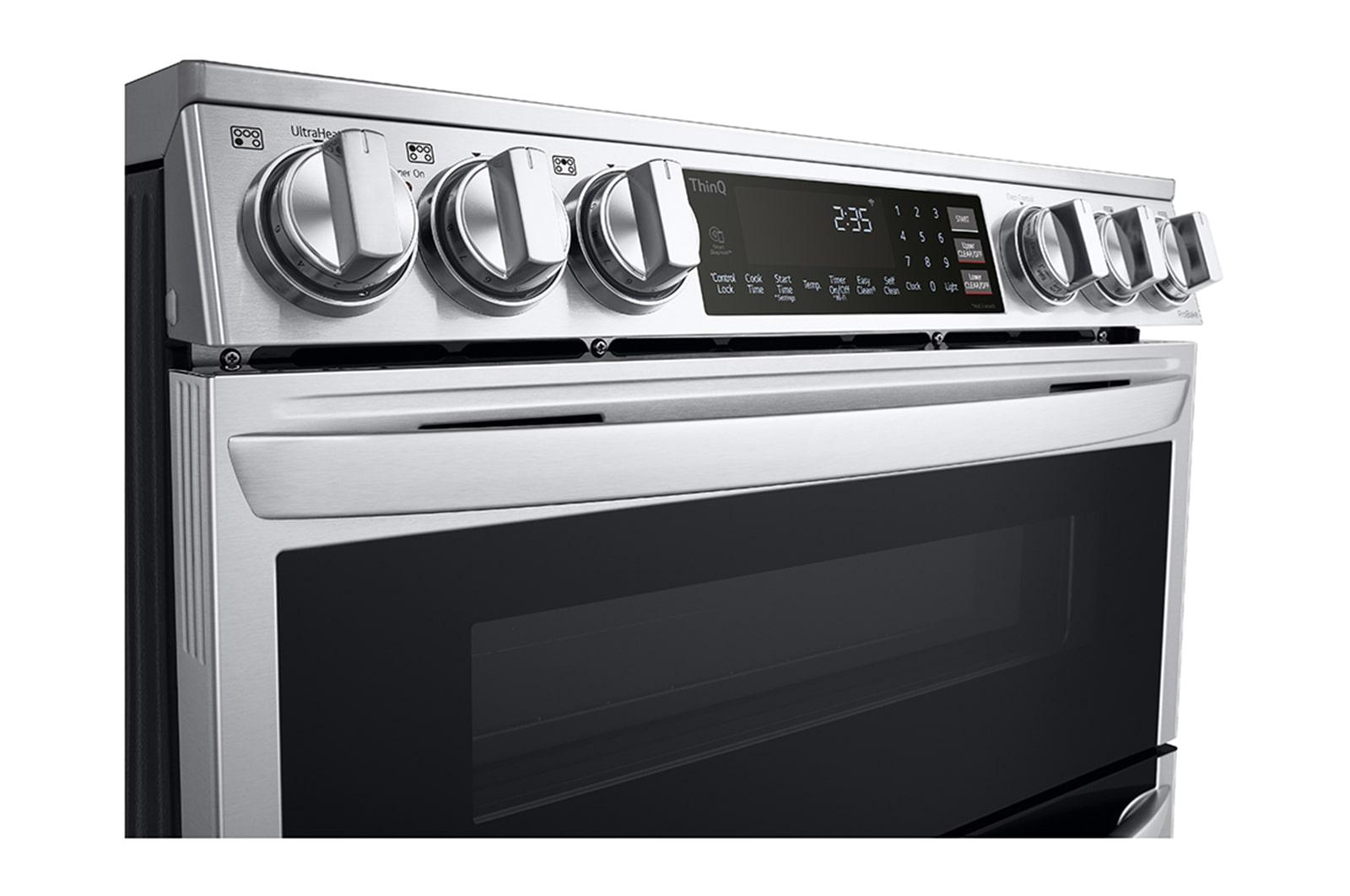

Oven Control Features	Glass Touch (SmoothTouch™)
EasyClean®	Yes
EasyClean® Time	10mins
Self Clean	Yes
GoCook Smart Oven Light	Yes
No. of Rack Positions	2
Door Lock	Yes
LOWER OVEN FEATURES

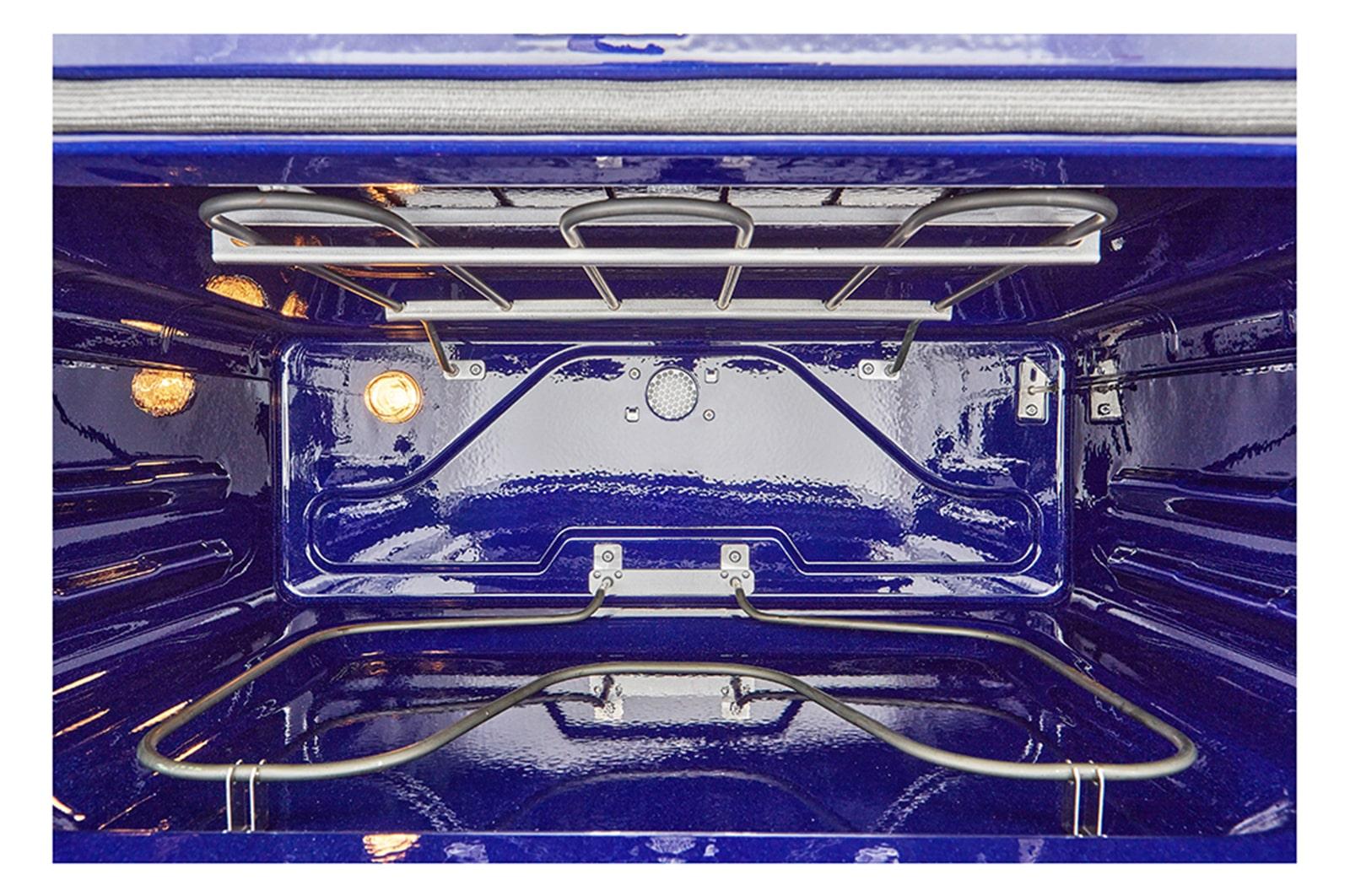

Broil Element (Watts)	3800W / 6 Pass

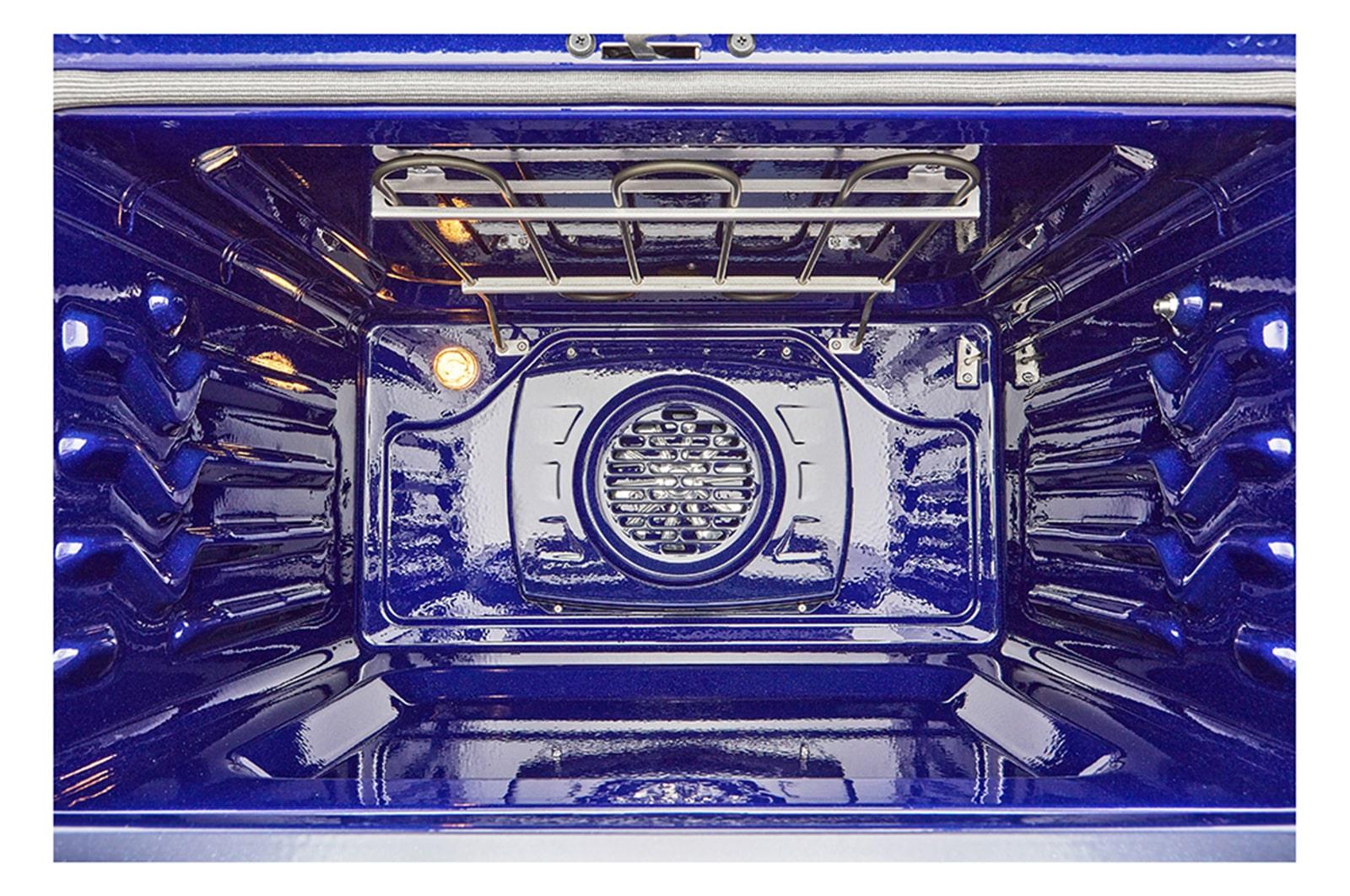

Convection Type	ProBake® Convection
Convection Burner (Watts)	2500W / 2 Turn (ProBake® Convection)
Convection Conversion	Yes
Oven Modes	Bake, Conv. Bake, Conv. Roast, Warm/Proof, Broil, Frozen meal, Air Fry, Air Sous-vide, EasyClean®, Self Clean, Remote Start, Delayed Timed Cook, Timed Cook
Oven Control Features	SmoothTouch™ Glass
EasyClean®	Yes
EasyClean® Time	10mins
Self Clean	Yes
GoCook Smart Oven Light	Yes
No. of Rack Positions	4
Door Lock	Yes
Auto Safety Shut-Down	After 12 Hours
CONTROL
Cooktop Control Type	Front Control Knobs
Oven Control Type	Glass Touch (SmoothTouch™)
Display	LED / White
Language	English
Clock	12 hr or 24 hr (option)
Temperatureerature Unit of Measure	Fahrenheit / Celsius
Cooking Complete Reminder Volume	Beeper (Hi, Lo, Off)
Certified Sabbath mode	Yes
APPEARANCE
All Available Colors	PrintProof® Stainless Steel / PrintProof® Black Stainless Steel
Handle/Knobs Colors	Stainless Steel
Handle/Knobs materials	Aluminum / PC+ABS
Oven Door Feature	InstaView® & WideView™ Window
PrintProof™ Finish	Yes
Cooktop Finish	Black Ceramic
SMART FEATURES
ThinQ® (Wi-Fi Enabled)	Yes
Check & Control	Yes
Voice Control	Google Assistant & Amazon Alexa
Smart Recipe (3rd Party Recipe App)	Sidechef
Proactive Customer Care	Yes
SmartDiagnosis™	Yes
NFC Tag On	No
DIMENSIONS/CLEARANCES/WEIGHT
Shipping Weight (lbs)	231
Product Weight (lbs)	189
Cabinet Width (in)	30'
Overall Depth (in) - without handle	26 7/8'
Overall Depth (in) - including handle	29 17/64'
Overall Width (in)	29 7/8'
Oven Interior Dimensions (Upper) (in) (W x H x D)	24 13/16' x 10 13/16' x 19 13/16'
Oven Interior Dimensions (Lower) (in) (W x H x D)	24 13/16' x 14 1/4' x 19 15/16'
Height to Cooking Surface (in)	36'
Carton Dimensions (in) (W x H x D)	31 31/32' x 42 3/64' x 29 59/64'
POWER/RATINGS
Amp at 208V / 240V	49.5A / 65.8A
kW at 208V / 240V	11.9kW / 15.8kW
Required Power Supply	40A
ACCESSORIES
Gliding Rack	1
Heavy Duty Rack	2

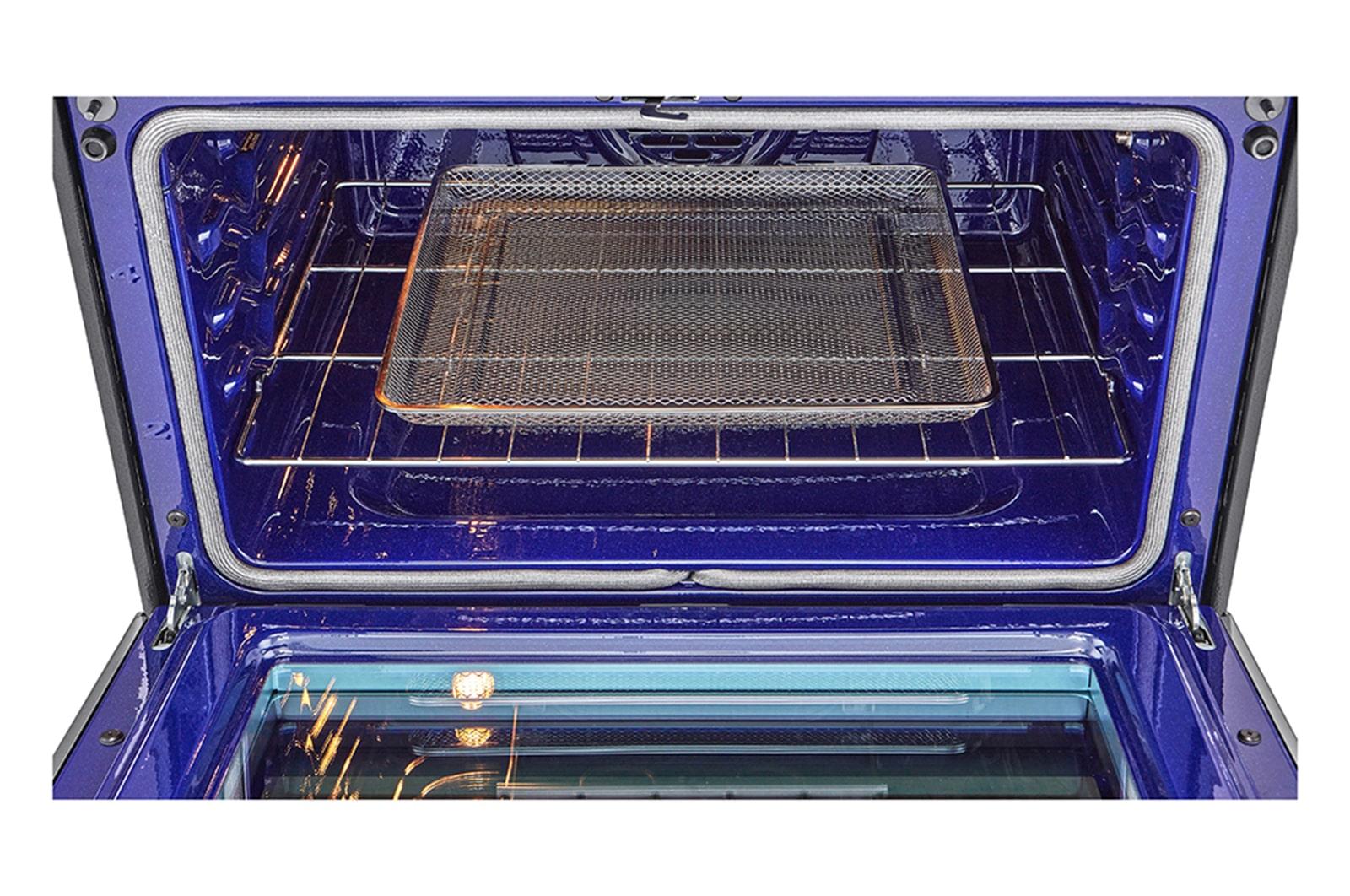

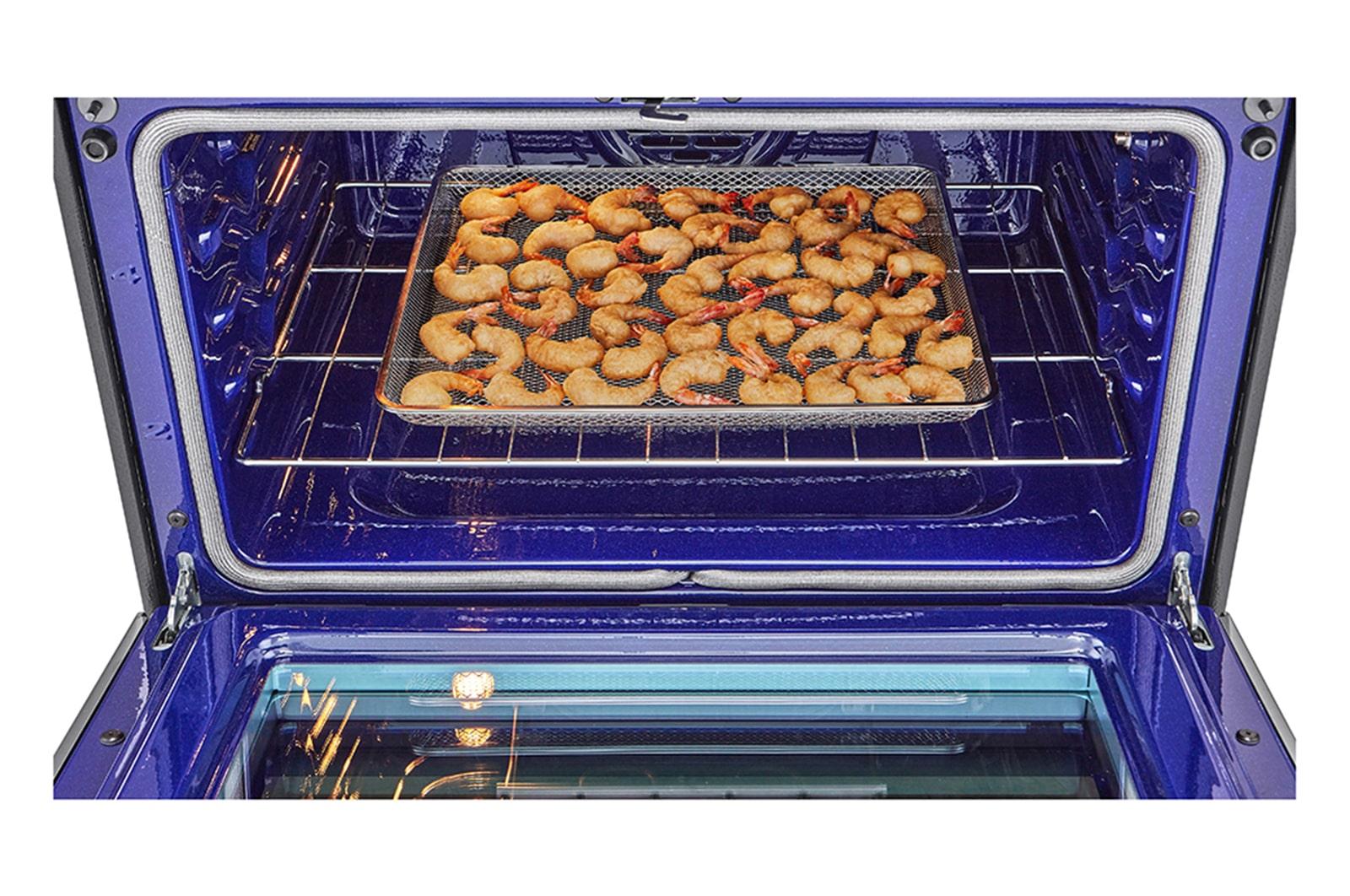

Air Fry Tray	1
Temperature Probe	Yes
Scouring Pad	Yes
Cooktop Cream/ Cleaner	Yes
LIMITED WARRANTY
Parts & Labor	1 Year
UPC
UPC	48231344067
