Induction Technology For Powerful, Precision CookingConsidered One Of The Most Effective Heat Delivery Systems In Cooking, Energy-Efficient Induction Technology Uses Electromagnetic Energy To Transfer Heat Directly To-And Only To-Your Cookware For Faster And Safer Heating, Even Cooking, And Precision Temperature Control. Perfect Baking And Roasting With Probake Convection®Probake Convection® Is The Gold Standard In Convection Technology, Delivering Even Baking Results On Every Rack, Every Time. The Powerful Dual-Speed Fan Evenly Distributes Super-Heated Air, Minimizing Hot And Cold Spots For Mealtime Perfection. Air Fry Crispy FavoritesAir Fry Enough Crispy Favorites To Feed A Crowd, While Saving Counter Space. Enjoy The Flavor And Crunch You Crave With Little To No Oil. Seal In Restaurant-Quality Results With Air Sous VideUsing Low Oven Temperatures And Air Flow Around Vacuum Sealed Ingredients, Air Sous Vide Consistently Delivers Tender And Juicy Meats, Fish And Poultry That Are Cooked To Perfection. Sleek, Slide-In DesignWith A Depth That Fits Standard Countertops, This Range Has A Custom, Built-In Appearance. The Controls Are Placed Up Front To Allow The Beauty Of Your Backsplash And Countertops To Show Through. Smoothtouch® Glass ControlsNot Only Do The Intuitive Smoothtouch® Glass Controls Look Sleek, But They Provide Effortless Operation With Just A Touch Of Your Finger. Printproof® FinishOur Printproof® Fingerprint And Smudge Resistant Finish Easily Wipes Clean With A Soft, Dry Cloth To Keep Your Kitchen Looking Its Best. Use The Thinq® App To Monitor And Control Lg Smart AppliancesUse The Thinq® App To Start The Oven, Set Timers, And Check On Your Appliance From Anywhere. Plus, Use Voice Control With Alexa And Google Assistant. With Thinq Care, You'Ll Get Usage, Maintenance And Diagnostic Alerts On Your Phone To Help Keep Your Lg Smart Appliances Running Smoothly. Meal Prep Is Just A Tap AwayWith The Thinq® App, You Can Use Lg'S Scan-To-Cook Technology Or Smart Cooking Partners To Take The Guesswork Out Meal Prep. Scan The Barcode On The Packaging Of Your Ready-Made Meal, Or Access Thousands Of Recipes From Sidechef And Automatically Send The Cooking Instructions Straight To Your Oven Instaview® WindowCheck On Your Food With Two Quick Knocks. The Instaview® Window Lets You See Inside Your Oven Without Ever Opening The Door And Letting Heat Escape. Keep Your Oven Clean Without The Elbow GreaseSimply Spray The Oven Interior With Water, Press The Easyclean® Button, And Let The Oven Do The Work In Just 10 Minutes-Without Chemicals Or High-Heat. Then, Easily Wipe Away The Leftover Residue.

• ThinQ® Smart Technology with ThinQ Care
• 6.3 cu. ft. Capacity
• ProBake Convection® with Air Fry & Air Sous Vide
• UltraHeat™ 4.3KW Dual Element
• EasyClean® Interior + Self Clean Oven
• InstaView® Window

SUMMARY
Series	LG

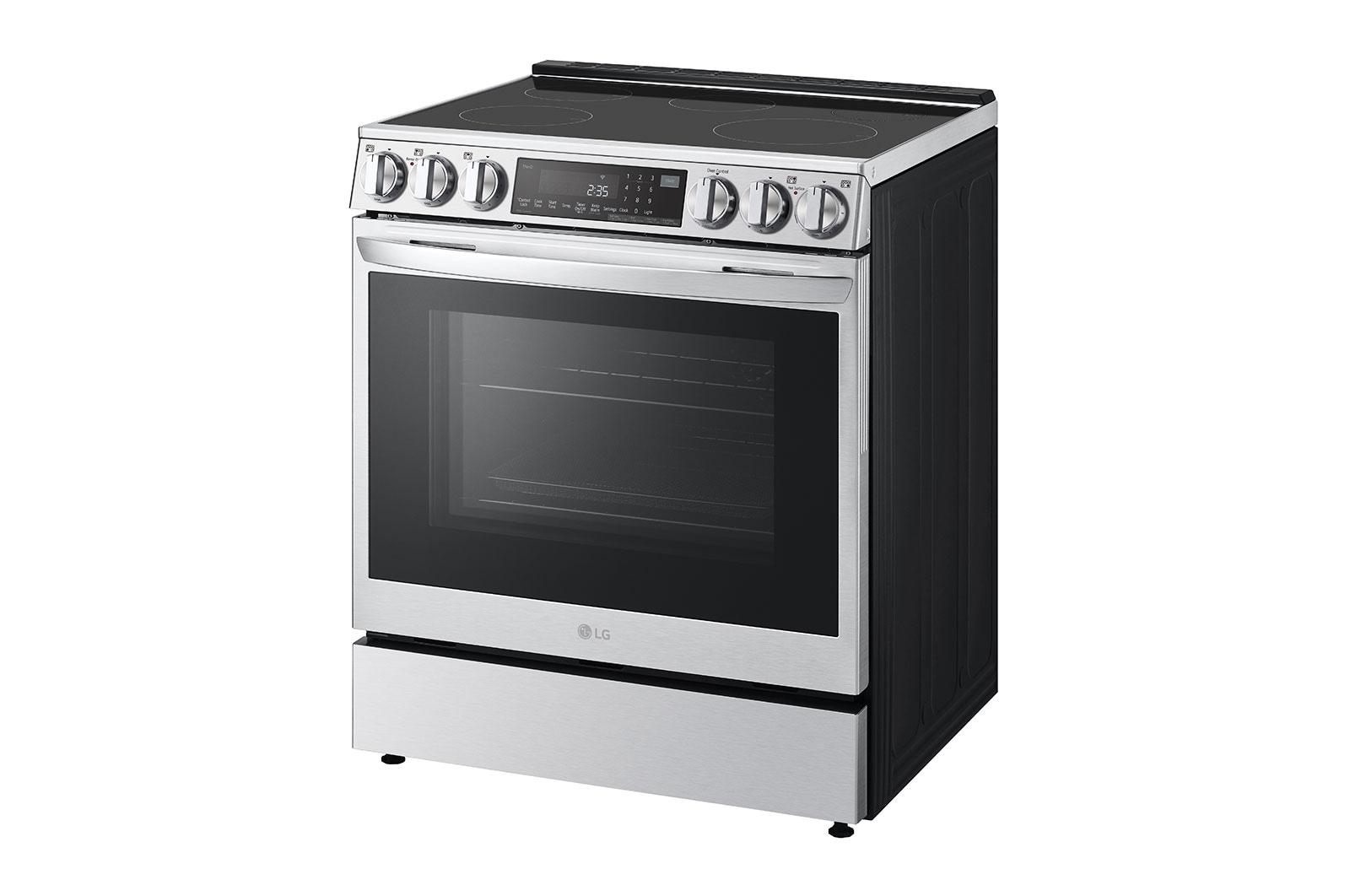

Type	Induction Single Oven Slide-In
Self + EasyClean®	Yes
CAPACITY
Oven Capacity (cu. ft.)	6.3

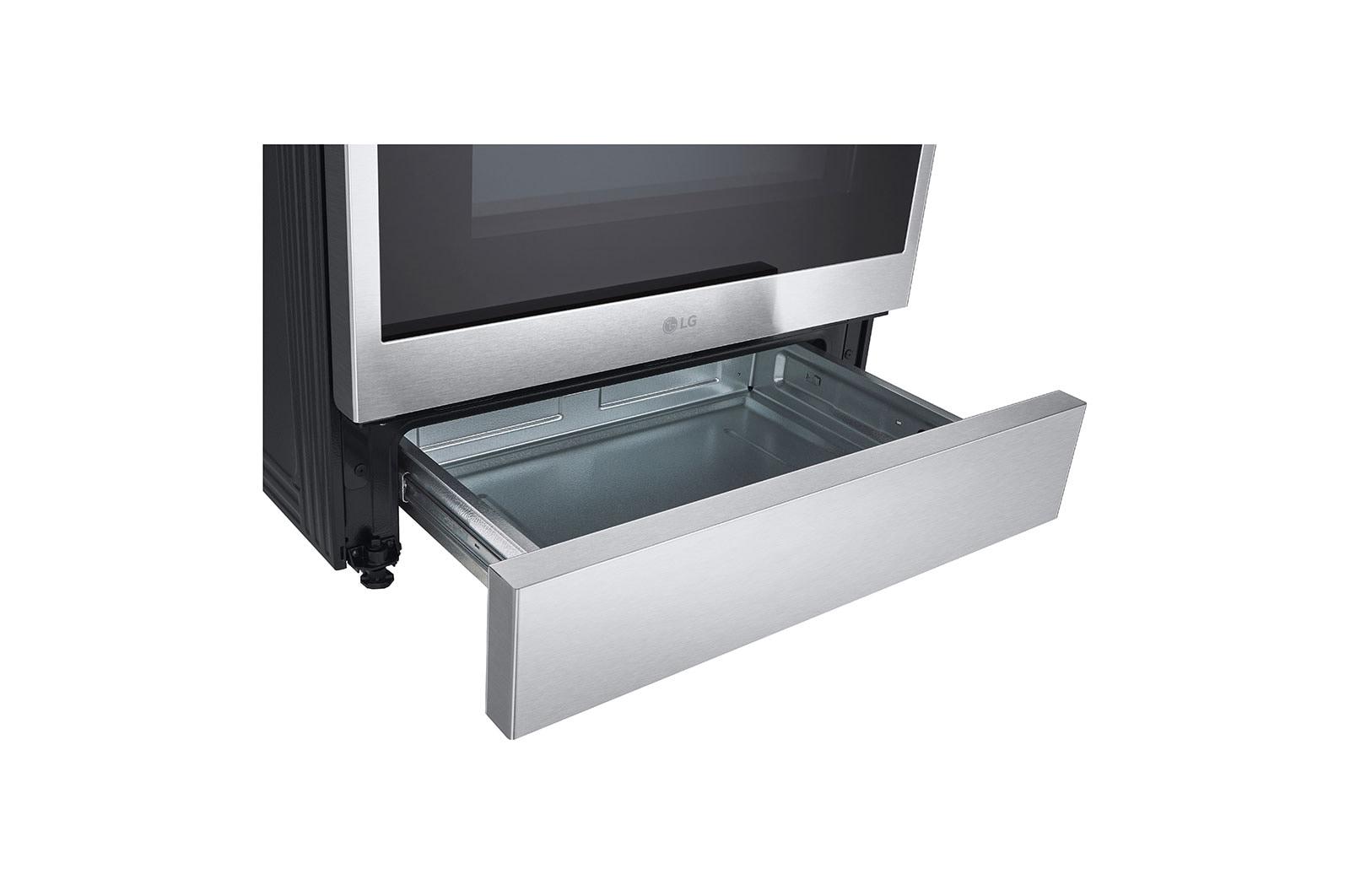

Storage Drawer Capacity (cu. ft.)	Yes

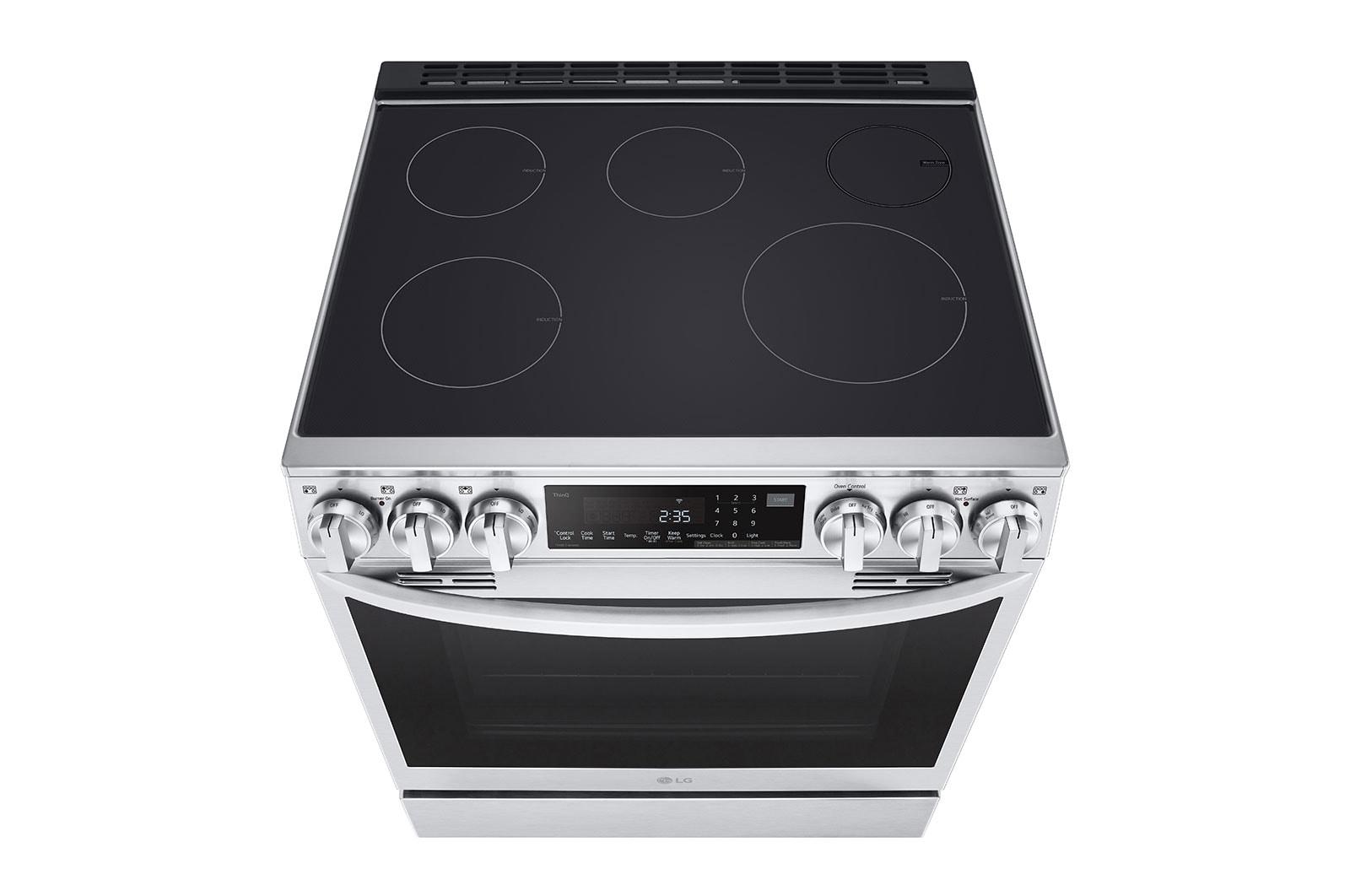

COOKTOP
Type	Induction + Radiant
Element Size/Wattage - Left Rear	1800 (Boost) / 1300 (Normal) (6')
Element Size/Wattage - Right Rear	100 (6')
Element Size/Wattage - Left Front	3200 (Boost) / 2100 (Normal) (8')
Element Size/Wattage - Right Front	4300 (Boost) / 2400 (Normal) (11')
Element Size/Wattage - Center	1800 (Boost) / 1300 (Normal) (6')
Hot Surface LED Indicator	Yes
OVEN FEATURES
Convection Type	ProBake Convection®
Convection Conversion	Yes
Convection element	2500W
Broil Element (BTU)	4200W
InstaView®	Yes
Air Fry	Yes
Self Clean	Yes
Oven Modes	Bake, Convection Bake, Convection Roast, Broil High, Broil Low, Warm, Keep Warm, Proof, Frozen Meal, Air Fry, Air Sous-Vide, EasyClean®, Self Clean
DIMENSIONS/CLEARANCES/WEIGHT
Product (WxHxD)	29 7/8' x 36 3/5' x 26 7/8'
Overall Depth (in) - including handle	29 5/16' (743.9 mm)

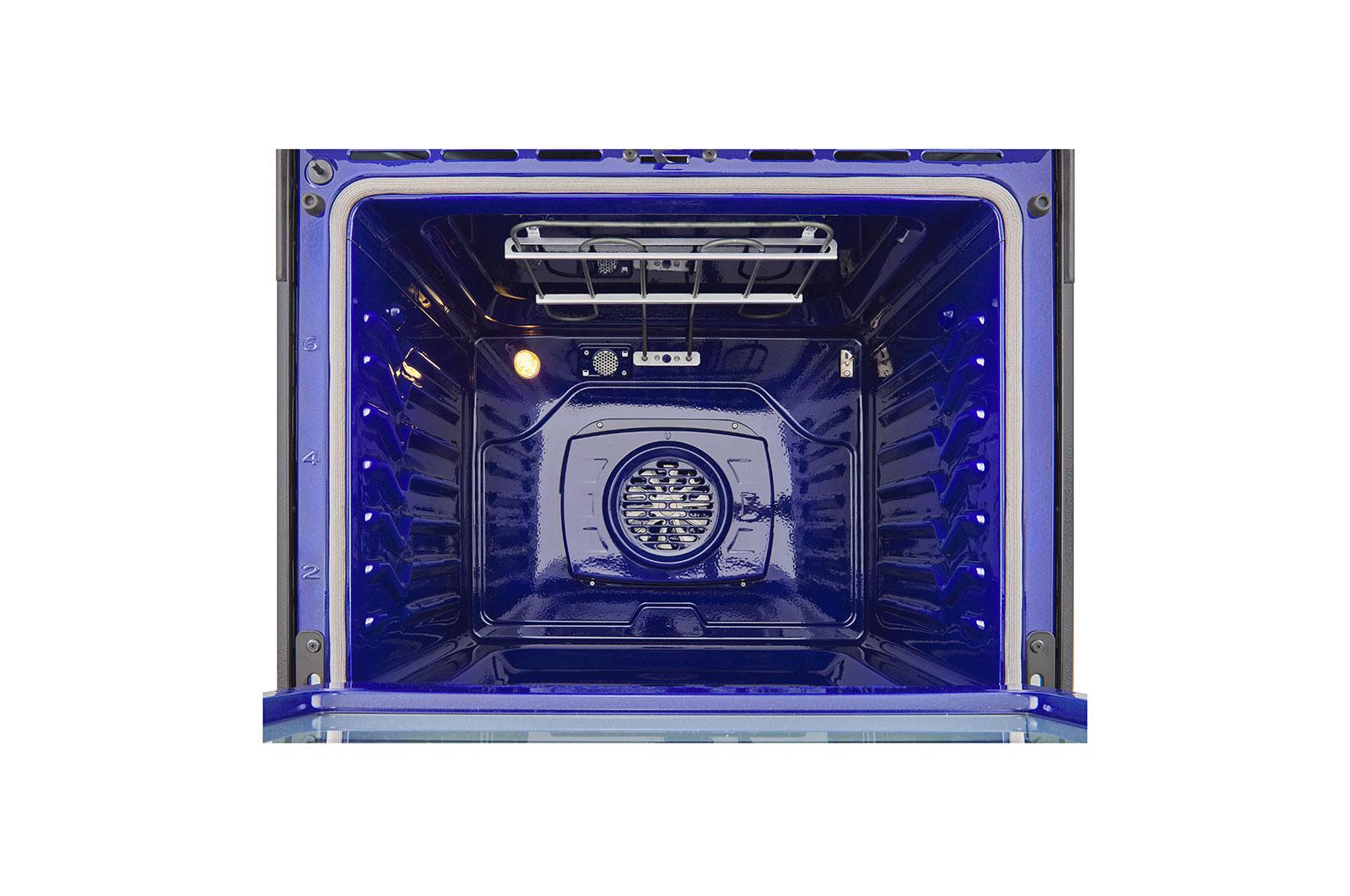

Oven Interior Dimensions (in) (W x H x D)	24 7/8' x 21 3/8' x 20'
Height to Cooking Surface (in)	36 1/2'
Drawer Dimensions (in) (W x H x D)	22 3/16' x 4 1/2' x 16 3/8'
Shipping Dimensions (W x H x D)	32 1/2' x 44' x 30 1/2'
Weight (Product)	187.4lb (85kg)
Shipping Weight (lbs)	246lb (111.6kg)

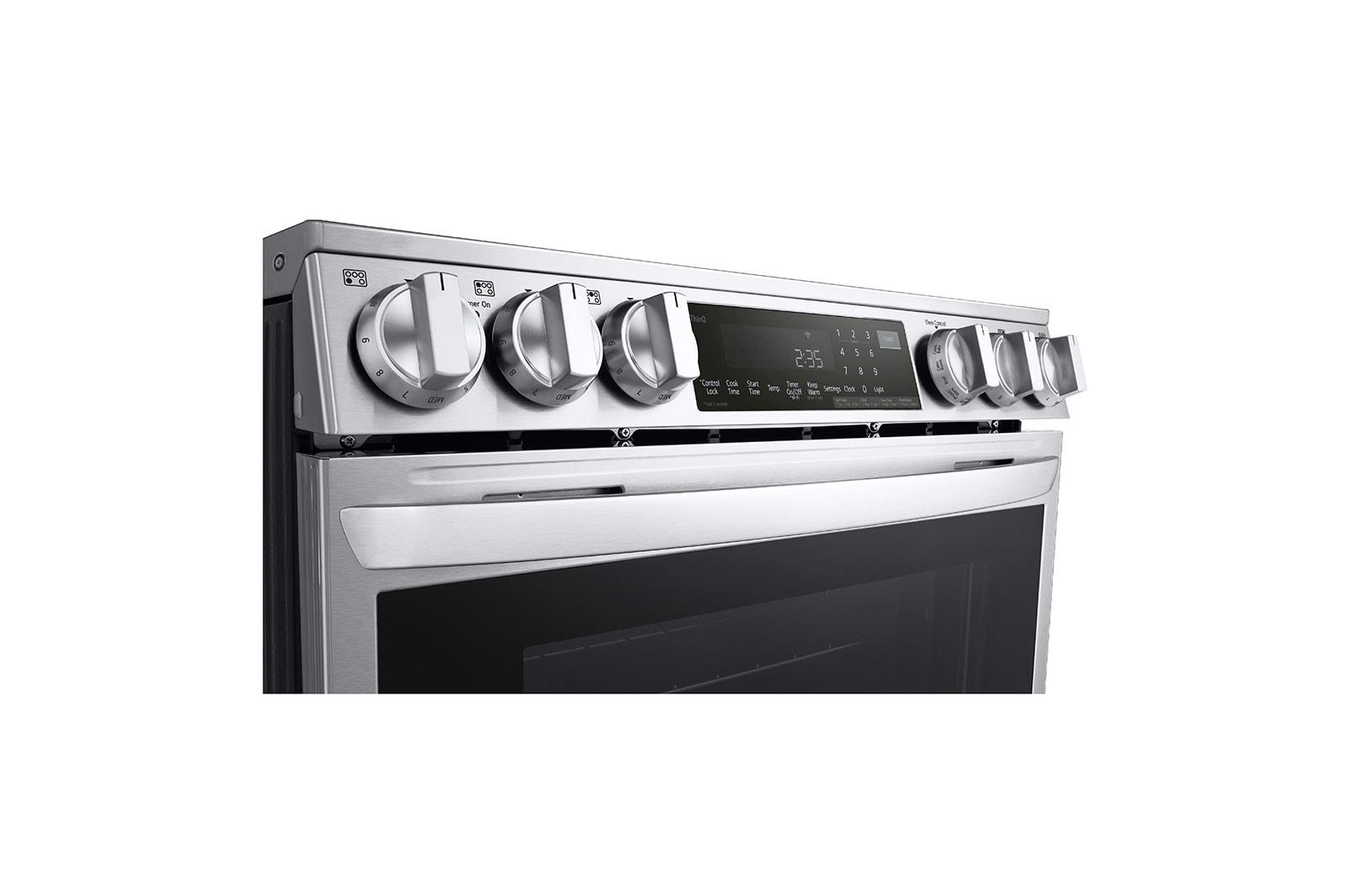

CONTROLS
Kitchen Timer	Yes
Timed Cook	Yes
Oven Control Lock	Yes (Key)
Sabbath Mode	Yes
SmoothTouch® Controls	Yes
POWER/RATINGS
Amp Rating at 208V	49A
Amp Rating at 240V	49.6A
KW Rating at 208V	10.2kW
KW Rating at 240V	11.9kW
Required Power Supply (amp)	40A
APPEARANCE
All Available Colors	PrintProof® Stainless Steel
Handle	Aluminum
Cooktop Finish	Black Ceramic + Grey Pattern
PrintProof™ Finish	Yes
Oven Door Feature	InstaView® + WideView™
THINQ® SMART FEATURES
Check & Control	Yes
3rd Party Recipe App	SideChef
ThinQ Care	Yes
SmartDiagnosis™	Yes
Works with	Yes (Google, Alexa)
ACCESSORIES
Temp Probe	Yes
Heavy Duty Rack	Yes (2)
Air Fry Tray	Yes
Cooktop Cream/Cleaner	Yes
Scouring Pad	Yes
WARRANTY/UPC
Parts & Labor	1 Year
UPC	048231345385
