Max Out Your ChillThe First Refrigerator With Four Types Of Ice.* Touch The Dispenser On The Door To Get Cubed Or Crushed Ice In An Instant. Two Additional Ice Makers In The Freezer Produce Mini Cubed Ice And Lg'S Exclusive Slow-Melting, Round Craft Ice™. Craft Ice™ Helps All Kinds Of Beverages Taste Their Best For Longer, From Craft Cocktails** To Soft Drinks To Iced Coffee. A Generous Supply Of Mini Cubed Ice Is The Perfect Answer For Filling Water Bottles Or Delivering A Quick Chill. Automatically Refreshes For Peace Of MindUvnano™ Kills Up To 99.99% Of Bacteria* On The Built-In Water Dispenser Nozzle After 24 Hours. Filtered Water Flows Through The Clean Nozzle For Fresher, Better-Tasting Water In Every Glass-And Added Peace Of Mind. Consistent Temps From Top To BottomLocated In The Top Of The Fresh Food Section, The Door Cooling + Vent Extends The Reach Of Lg'S Smart Cooling System. Blasts Of Cool Air Reach All Areas Of The Refrigerator-Including The Door-To Help Maintain Consistent Temperatures From Top To Bottom And Help Keep All Foods Fresh And Flavorful. Iceplus™Turn On Iceplus™ To Kick Ice Production Into High Gear By Automatically Lowering Freezer Temperatures To The Coldest Setting For 24 Hours. Max Out Your StyleWith The Capacity You Typically Get In A Standard-Depth Refrigerator Packaged In A Sleek, Counter-Depth Design That Blends Seamlessly With Surrounding Cabinets, You Sacrifice Nothing On Either Front. The Look Is Seamless, The Storage, Spacious-But That'S Just The Beginning. Max Out Your Space. Max Out Your FitBuilt-In Style. Full-Size Capacity. Lg Delivers The Ultra-Large, 26 Cu. Ft. Capacity Of A Standard-Depth Fridge In A Counter-Depth Design For A Seamless, Built-In Look. Knock Twice To See InsideOur Latest Mirror Instaview® Window Has A Sleek Design To Reflect Your Style. With Just Two Quick Knocks On The Glass Panel, You Can Illuminate The Contents Within And See Inside Your Refrigerator Welcome LightingModern, Flat Panel Design Creates A Contemporary Vibe With A Smooth, Minimalist Look. Enhanced With Discreet Led-Lit Pocket Handles That Offer Easy Access And Tech-Forward Style. Built-In Sensors Automatically Illuminate The Pocket Handle Led Lights As You Approach, From 60 Cm Away, So You Can Locate Late-Night Snacks Without Having To Turn On The Lights. Max Out Your ExperienceThe Lg Thinq® App Helps You Manage All Of Your Lg Smart Appliances And More To Make Your Everyday A Little Easier And Keep Your Home Running Smarter. Organize Your Freezer.The 3-Tier Organization™ Freezer System Can Keep Food Organized And Easily Accessible. Now You Can Prioritize What'S In Your Freezer So You Can Find Anything Fast. Fresher Is Better.Multi-Air Flow System Is Designed To Maintain Superior Humidity And Temperature Levels To Help Keep Your Food Fresher, Longer. Digital Sensors Constantly Monitor Conditions Within The Refrigerator And Strategically-Placed Vents In Every Section To Help Surround Your Food With Cool Air No Matter Where You Put It. Serve Ice In StyleMake An Impression As A Master Mixologist With Premium Ice Bins That Let You Serve Up Lg Craft Ice™ And Cubed Mini Ice In Style. Crystal Clear Bins With Metallic Trim Hold Generous Amounts Of Each Ice Type While Offering Take-To-Table Convenience. Located In The Top Tier Of The Freezer For Easy Access, All The Time.

• Industry's Largest Counter-Depth Fridge Capacity (26 cu. ft.)

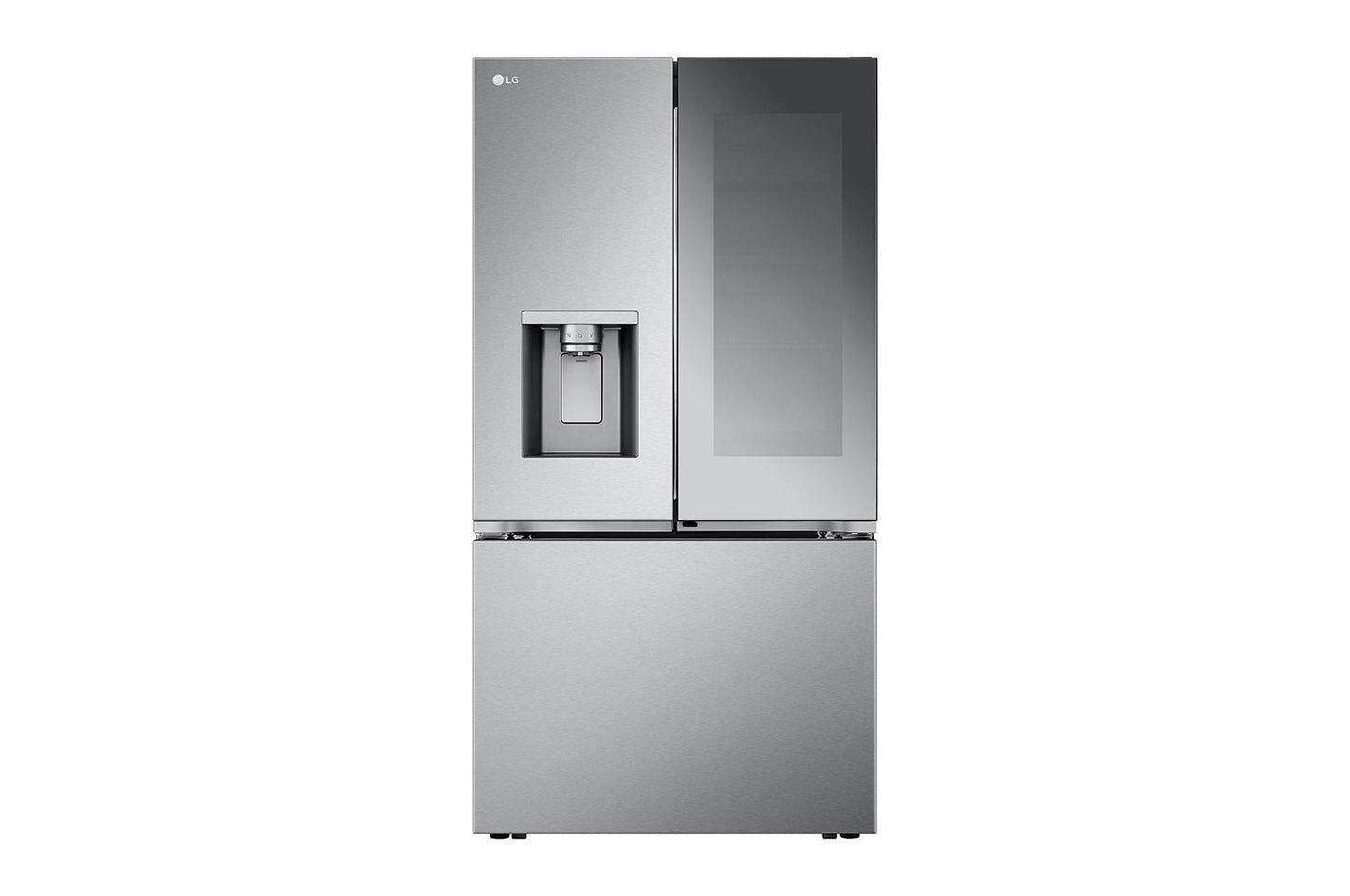

• Mirror InstaView™ Window
• Four types of ice- Craft, Cubed, Crushed and NEW Mini Cubed

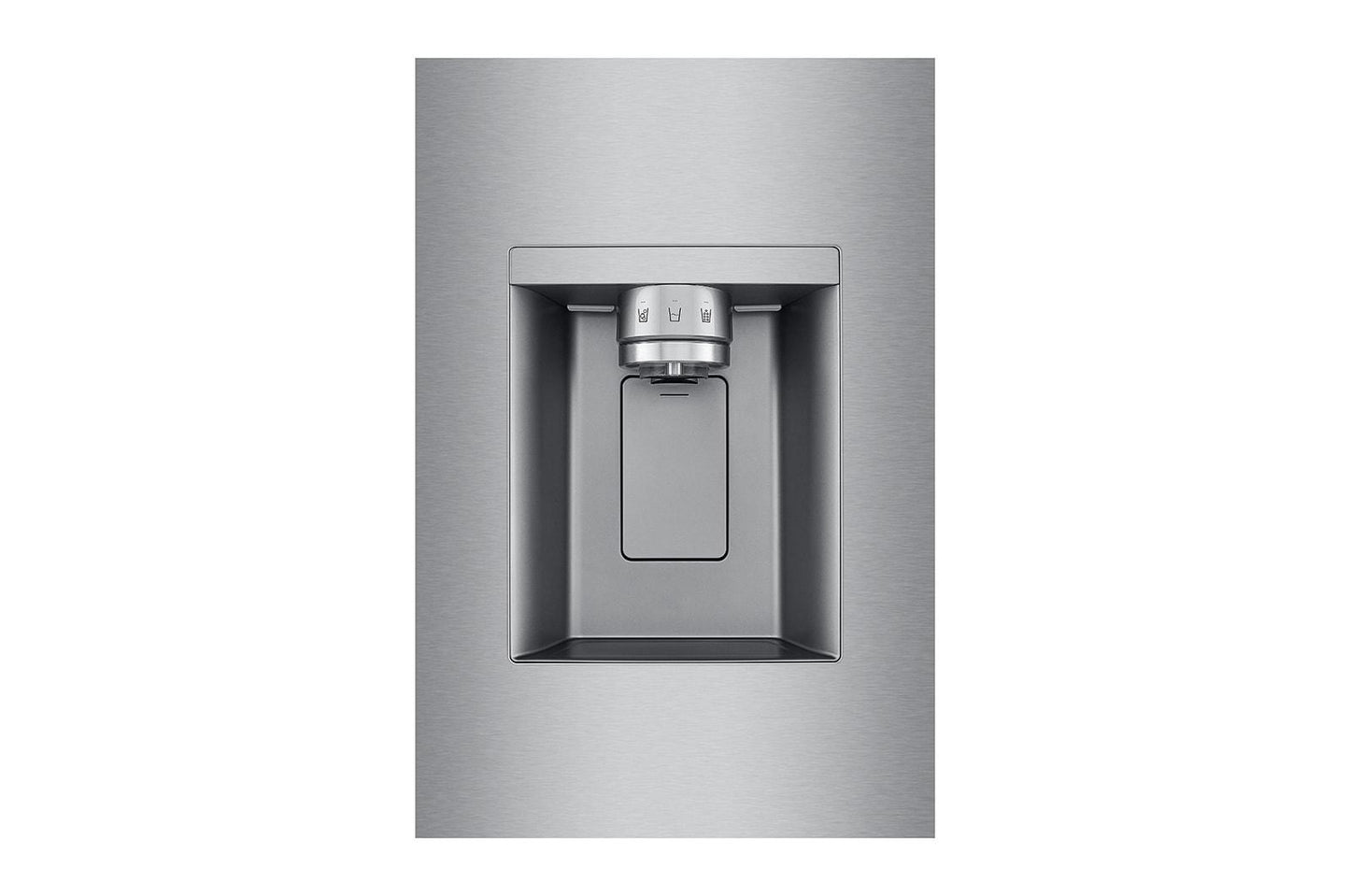

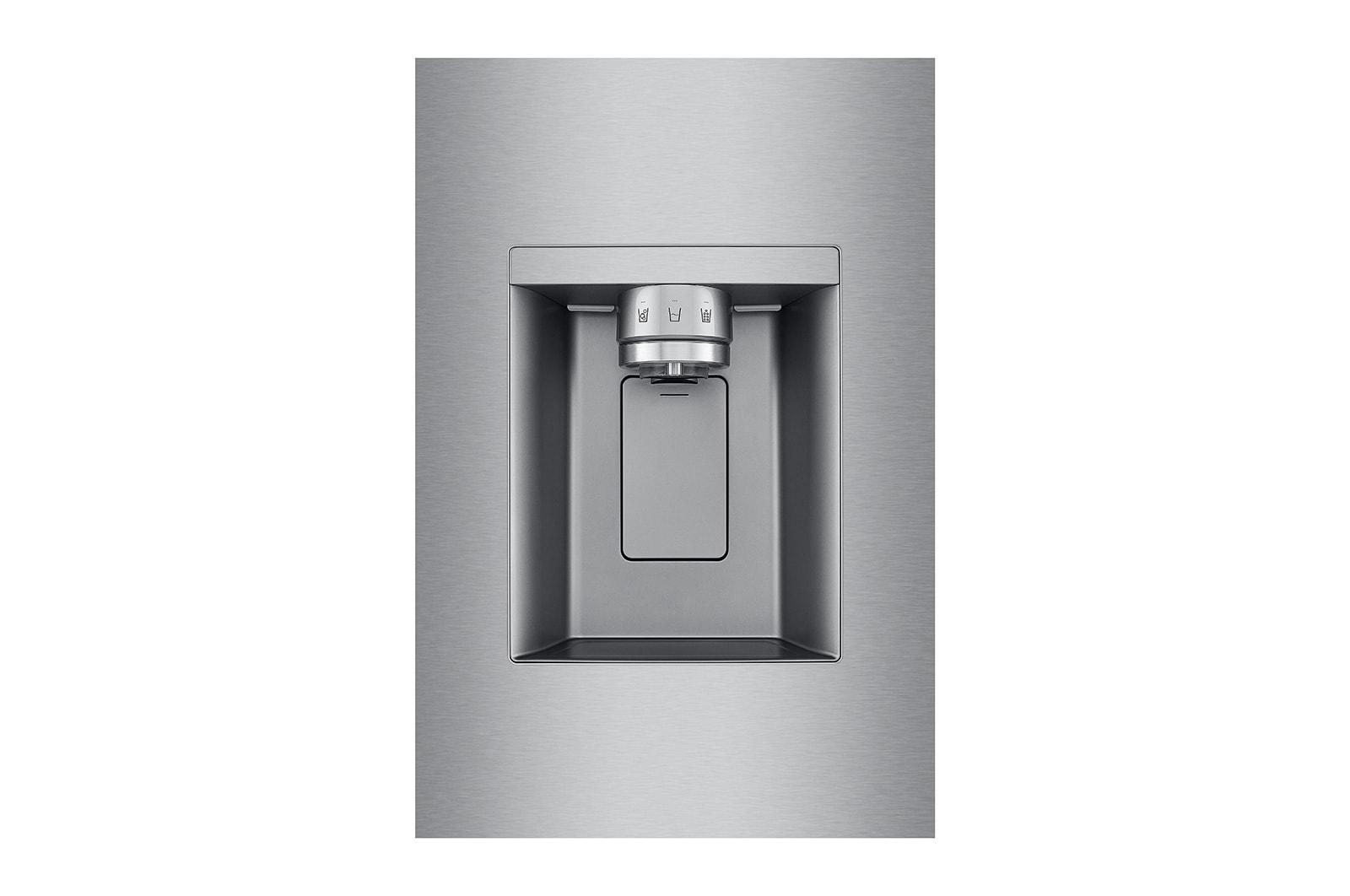

• Integrated Tall Ice & Water Dispenser
• Door Cooling+
• ThinQ® Technology with ThinQ Care

CAPACITY
Refrigerator (cu.ft.)	16.9
CustomChill™ (cu.ft.)	n/a
Freezer (cu.ft.)	8.6
Total Capacity (cu.ft.)	25.50
Ice System :
Dispenser Type	Integrated Tall Ice & Water Dispenser
System Type	Slim SpacePlus®
Daily Ice Production	3.0 lbs / 3.3 (Ice Plus) 0.7 lbs (Clear big ice) 1.5 lbs (Cubed mini ice)
Craft Ice™ Daily Ice Production	6 / 3
Ice Storage Capacity	3.0 + 3.8 + 4.0 lbs
Cube & Crushed Ice	Yes
IcePlus™	Yes
Dual Ice	No
Dual Ice with Craft Ice™	Yes
Water Filter	LT1000P
Measured Fill	No
UVNano™	Yes
WATER & ICE SYSTEM
Dispenser Type	Integrated Tall Ice & Water Dispenser
Ice System	Slim SpacePlus®
Daily Ice Production (lbs)	3.0 lbs.
COOLING
Multi Air Flow Cooling:	Yes
Temperature Sensors	9
Compressor Type	Inverter Linear Compressor
Refrigerant [Name / Amount(g)]:	Low GWP, Zero ODP and More Energy Efficient Refrigerant (R600a / 57g)
Refrigerant [Name / Amount(oz)]:	Low GWP, Zero ODP and More Energy Efficient Refrigerant (R600a / 2.01oz)
Fresh Air Filter	Yes
FRESHShield™:	No
Evaporator	1
Display & Etc.:
Display Type	Smooth Touch Control / White LED
Temperature Controls	Electronic/Digital
Door Alarm	Yes(Default)
Child Lock	Yes
Decibel™ Quiet Operation	Yes
Smart Diagnosis	Yes
Auto Closing Door Hinge	Yes
wi-fi Enabled	Yes
ThinQ®	Yes
PCC (Proactive Customer Care)	Yes
Wifi Eclipse Display	No
Special Features	Door Cooling+
Sabbath	Yes
ADA Compliant	N/A
REFRIGERATOR
Door-in-Door®:	Yes
Door-In-Door® with ColdSaver™ Panel	No
No. of Shelves	4 Split(3 Fixed+1Folding)
Folding Shelf	1
Cantilevered Shelves	Hybrid Cantilevered
Shelf Construction	SpillProof™ Tempered Glass
Crisper Bins	2 Crispers
Full-Convert™ Drawer	No
Glide N' Serve™ Drawer	Yes
Temperature Control Pantry	No
CoolGuard™	Yes
EasyReach™ Bins	No
Auto Open Door™	No
LUMIShelf™	No
Dividers	No
Handle Type	Bar
CUSTOMCHILL™:	No
Glide N' Access™ Shelf	No
No. of Door Bins	8 Total (2 Adjustable Gallon Sized)
Door Bin Construction	1 Piece (Clear)
Dairy Corner/Bin	No
CustomChill:
Dividers	N/A
Temperature Range	N/A
Handle Type	N/A
FREEZER
Door Type	Pull Drawer
Drawers / Shelves:	3-Tier Organization
DuraBase™ Solid Drawer Base	Yes
Drawer Divider	No
Freezer Light Upper:	LED Lighting
Freezer Handle	SmartPull™ Handle
No. of Door Bins / Construction:	N/A
Ice Bin / In Door Ice:	N/A
MATERIALS & FINISHES:
Flat type Door	Yes
Hidden Hinges	Yes
Toe Grille	No
Surface	Smooth
Handles	Matching Commercial Handles
PrintProof™ Finish	Stainless Steel
Insulation	Low GWP and Zero ODP Blowing Agent
DIMENSIONS:
A. Width	35 3/4'
B. Height to Top of Hinge	70 1/4'
C. Depth with Handles	31 5/8'
D. Width (Door Open 90 without Handle)	40'
F. Width (Door Open 90 with Handle)	44 7/8'
H. Door Edge Clearance with Handle	4 1/4'
I. Door Edge Clearance without Handle	2 1/4'
J. Height to Top of Case	68 7/8'
L. Depth without Door	24 3/4'
M. Depth without Handles	29 1/8'
Q. Depth (Total with Door 90 Open)	43 5/8'
P. Depth (Draw Open Fully without Handle)	48 7/8'
Installation Clearance	Sides 1/8', Top 1', Back 2'
Weight (Unit/Carton)	333 lbs / 363 lbs
Carton Dimensions (WxHxD)	38' x 73' x 32'
UPC:
UPC	S - 195174034828 D - 195174037669
LIMITED WARRANTY
Parts & Labor	1 Year
Sealed System (Parts & Labor)	5 Years
Compressor (Parts & Labor)	5 Years
Linear Compressor (Parts & Labor):	6-10 Years

Download Energy Guide
Owner's Manual English 10,001K 03/20/2023
Owner's Manual Spanish 10,011K 03/20/2023
