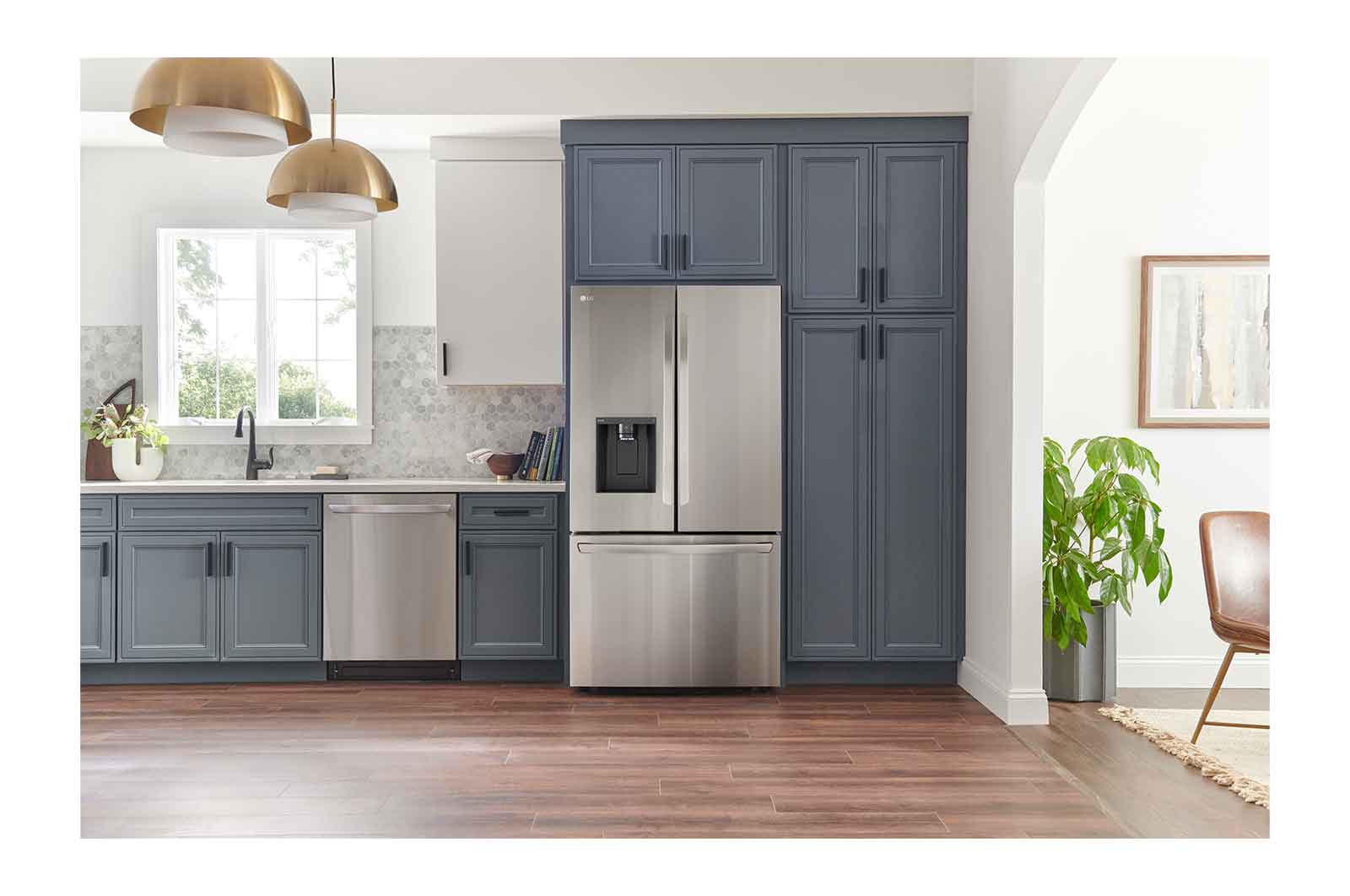

Consistent Temps From Top To BottomLocated In The Top Of The Fresh Food Section, The Door Cooling + Vent Extends The Reach Of Lg'S Smart Cooling System. Blasts Of Cool Air Reach All Areas Of The Refrigerator-Including The Door-To Help Maintain Consistent Temperatures From Top To Bottom And Help Keep All Foods Fresh And Flavorful. Iceplus™Turn On Iceplus™ To Kick Ice Production Into High Gear By Automatically Lowering Freezer Temperatures To The Coldest Setting For 24 Hours. Max Out Your StyleWith The Capacity You Typically Get In A Standard-Depth Refrigerator Packaged In A Sleek, Counter-Depth Design That Blends Seamlessly With Surrounding Cabinets, You Sacrifice Nothing On Either Front. The Look Is Seamless, The Storage, Spacious-But That'S Just The Beginning. Max Out Your Space. Max Out Your FitBuilt-In Style. Full-Size Capacity. Lg Delivers The Ultra-Large, 26 Cu. Ft. Capacity Of A Standard-Depth Fridge In A Counter-Depth Design For A Seamless, Built-In Look. Sophisticated Style & DesignWith Every Feature Thoughtfully Designed, This Appliance Helps You Create The Sophisticated, Distinctive Kitchen You Want-And Deserve. Max Out Your ExperienceThe Lg Thinq® App Helps You Manage All Of Your Lg Smart Appliances And More To Make Your Everyday A Little Easier And Keep Your Home Running Smarter. Organize Your Freezer.The 3-Tier Organization™ Freezer System Can Keep Food Organized And Easily Accessible. Now You Can Prioritize What'S In Your Freezer So You Can Find Anything Fast. Fresher Is Better.Multi-Air Flow System Is Designed To Maintain Superior Humidity And Temperature Levels To Help Keep Your Food Fresher, Longer. Digital Sensors Constantly Monitor Conditions Within The Refrigerator And Strategically-Placed Vents In Every Section To Help Surround Your Food With Cool Air No Matter Where You Put It.

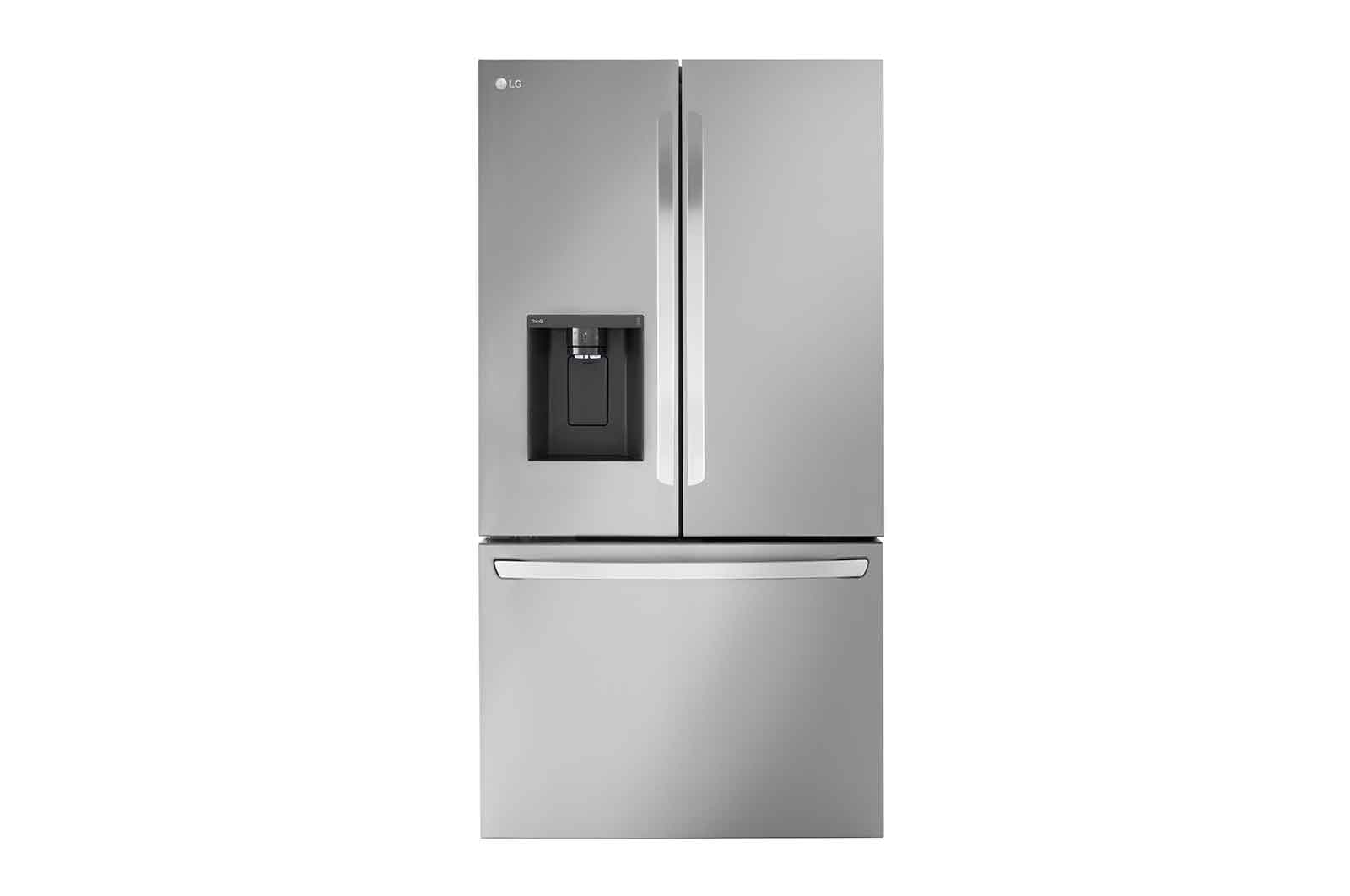

• Counter-Depth MAX (26 cu.ft.)
• Dual Ice Maker
• Cool Guard™
• Door Cooling+
• Flat Door Design with Handle
• Smart Inverter

CAPACITY
Refrigerator (cu.ft.)	16.9 cu. ft.
Freezer (cu.ft.)	8.6 cu. ft.
Total Capacity (cu.ft.)	25.5 cu. ft.
ENERGY
ENERGY STAR® Qualified	Yes
Energy Consumption (kWh/Year)	699

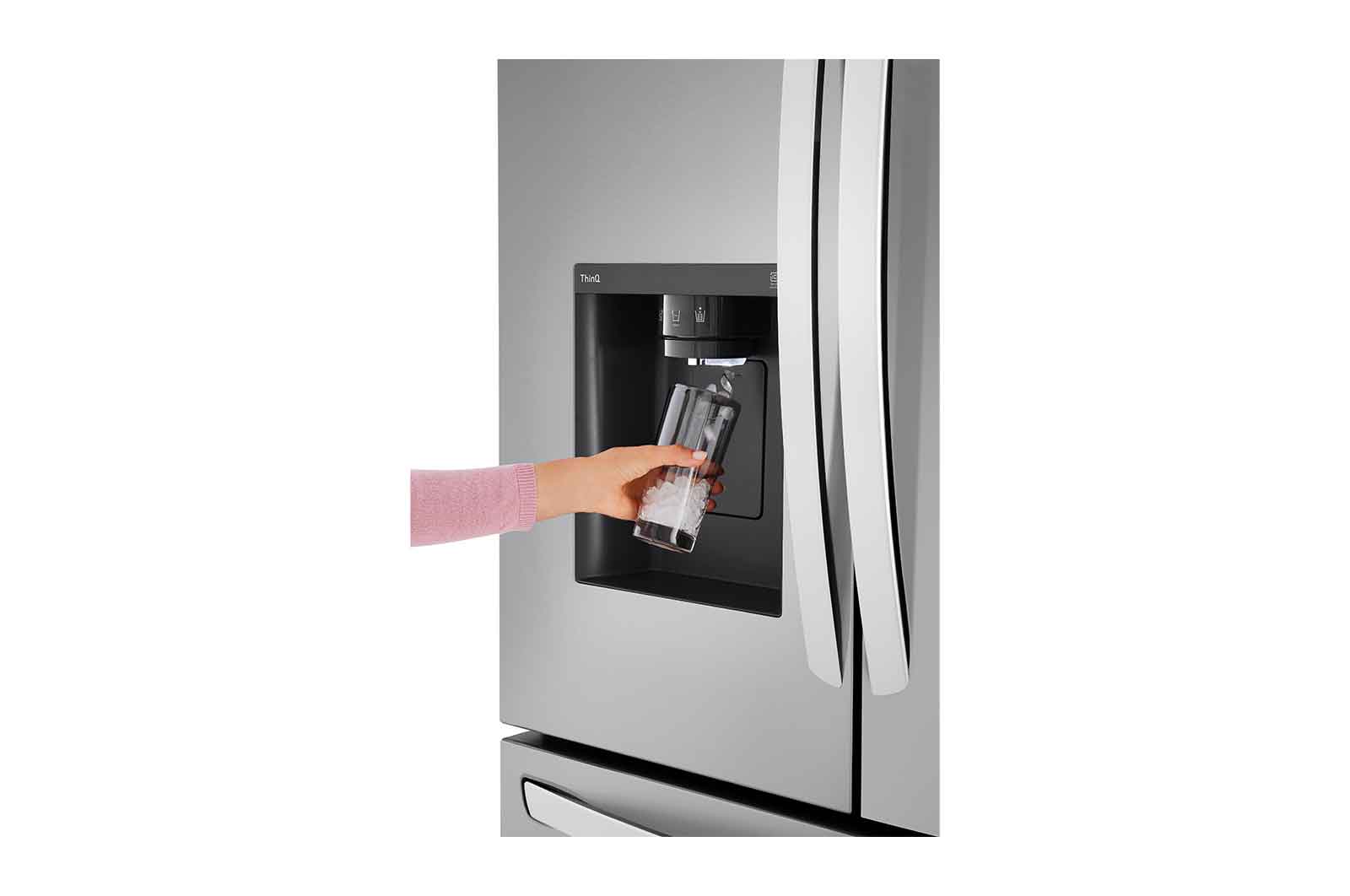

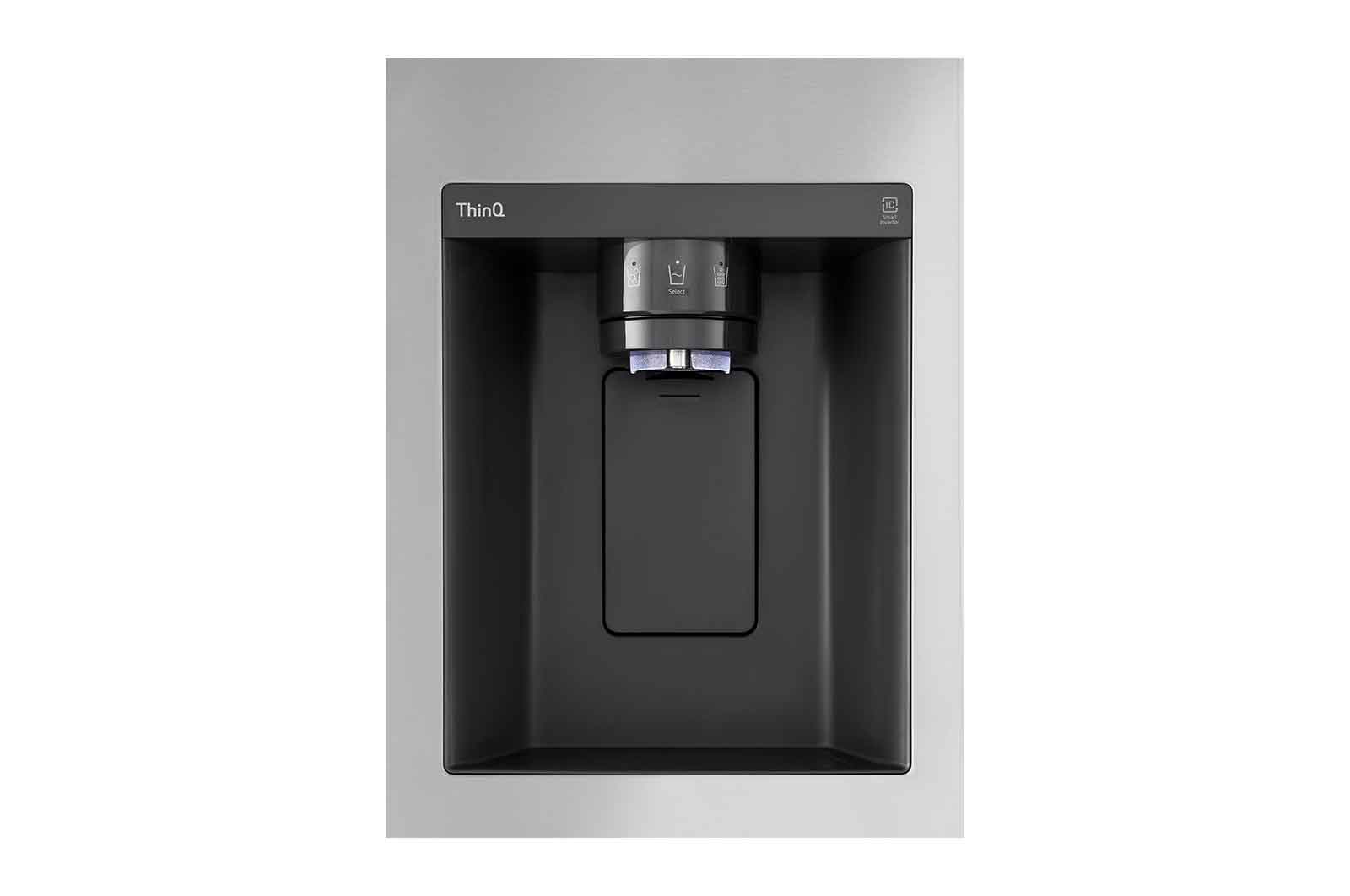

WATER & ICE SYSTEM
Ice & Water Dispenser	Yes
Ice Storage Capacity (lbs)	3.0 lbs.
IcePlus™ Production (lbs)	Yes
Dispenser Light	Yes
Water Filtration System	1 stage
Water Filter	LT1000P
COOLING
Compressor Type	Smart Inverter
Evaporator	Yes (1)
Multi-Air Flow™ System	Yes
Temperature Sensors	2
CONVENIENCE
Display Type	Smooth Touch Control/White LED
Temperature Controls	Electronic/Digital
Door Alarm	Yes
Child Lock	Yes
Auto Closing Door Hinge	Yes
Sabbath Mode	Yes
ADA Compliant	Yes

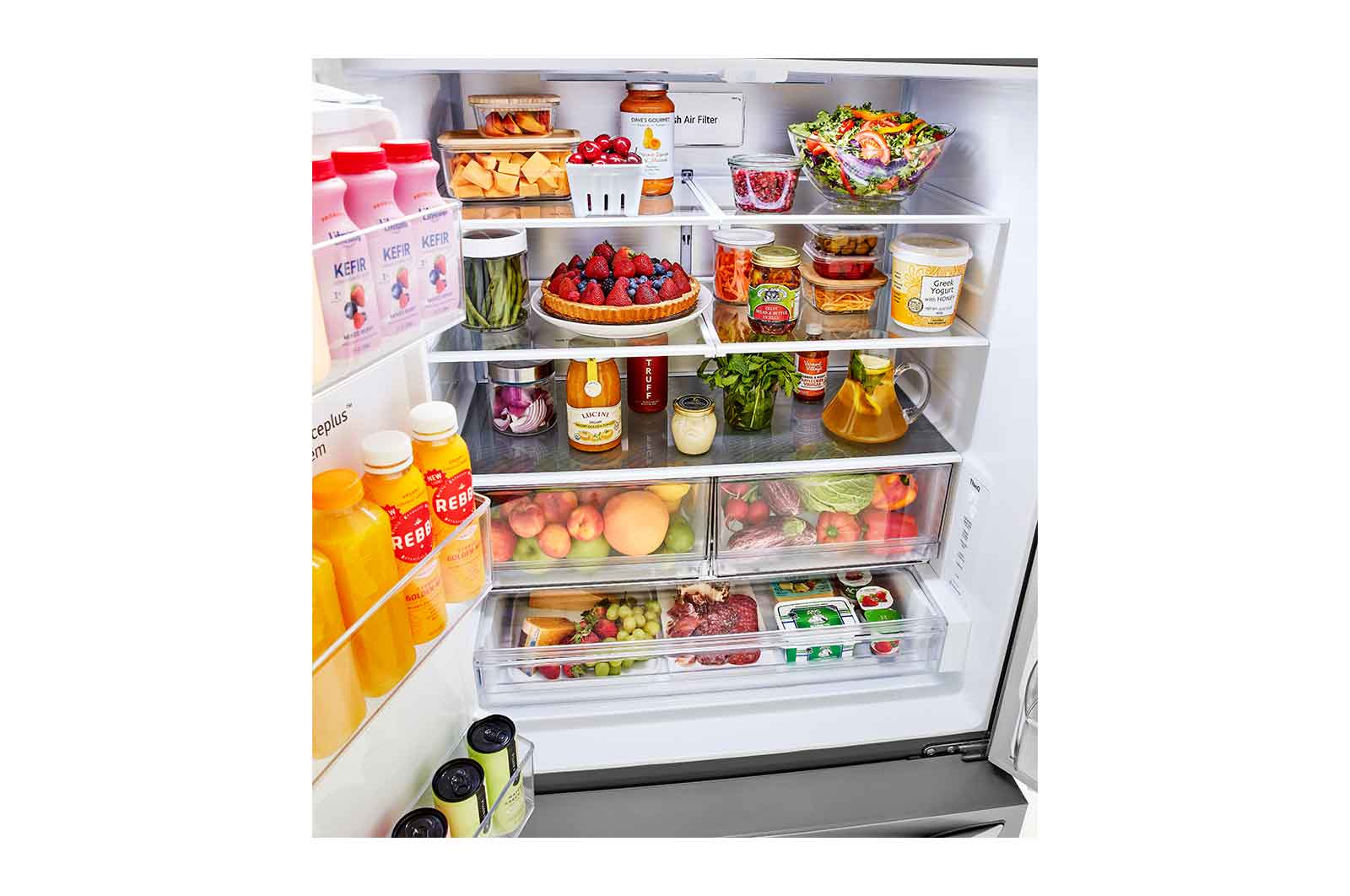

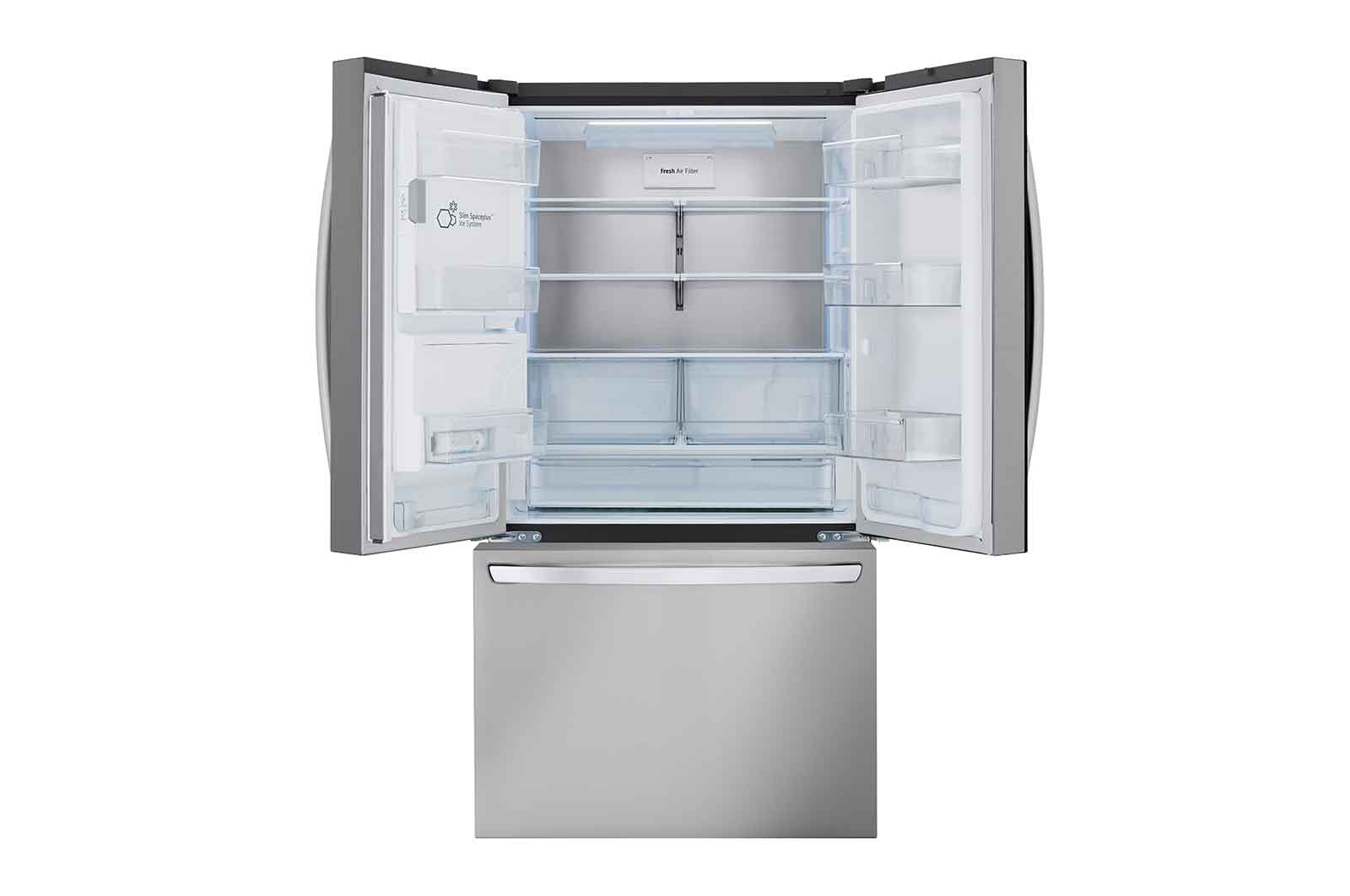

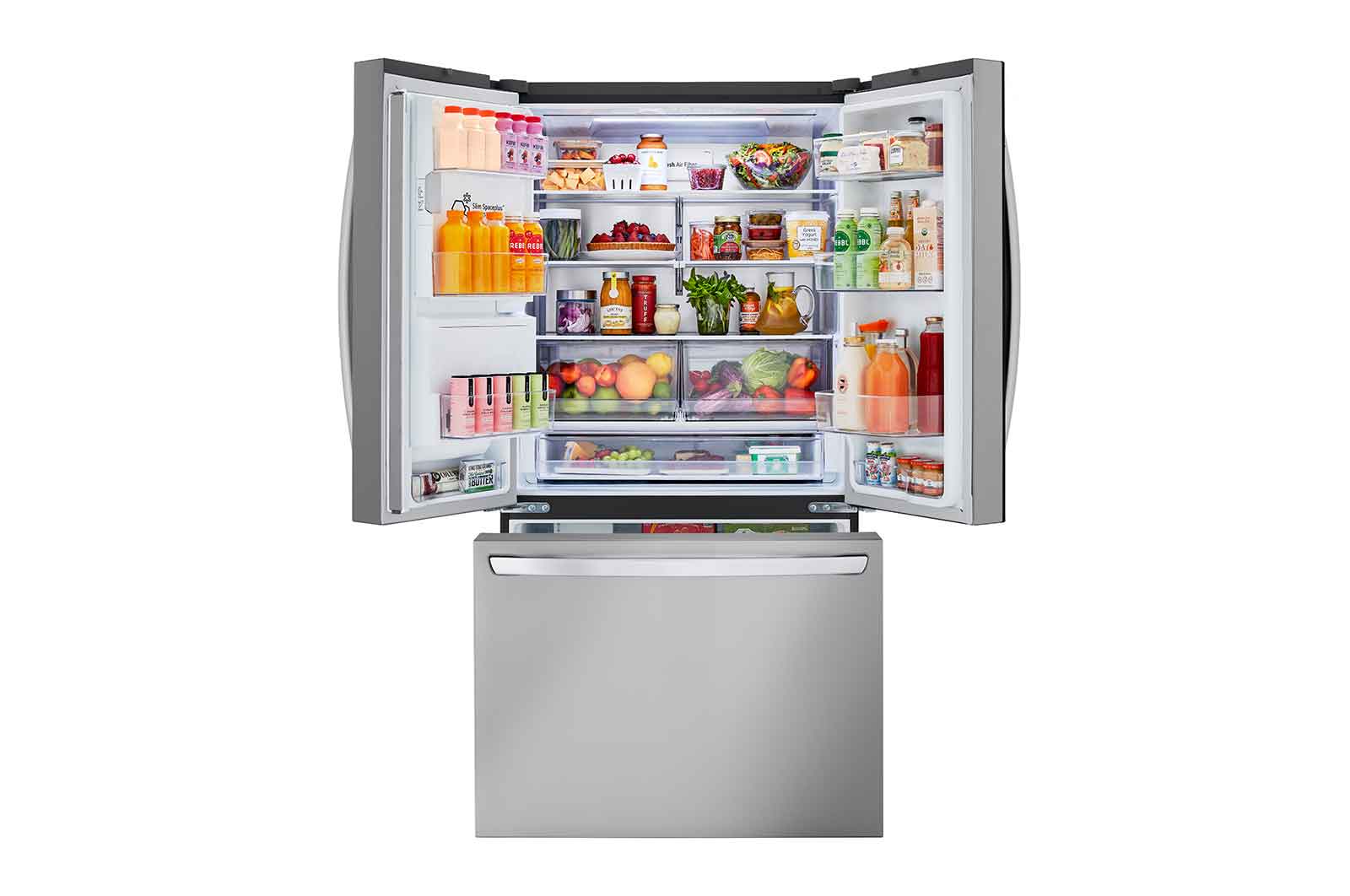

REFRIGERATOR
No. of Shelves	4 Split (4 Fixed)
Shelf Construction	Spill Protector/Tempered Glass
Crisper Bins	2
CoolGuard™	Yes
Refrigerator Light	Yes

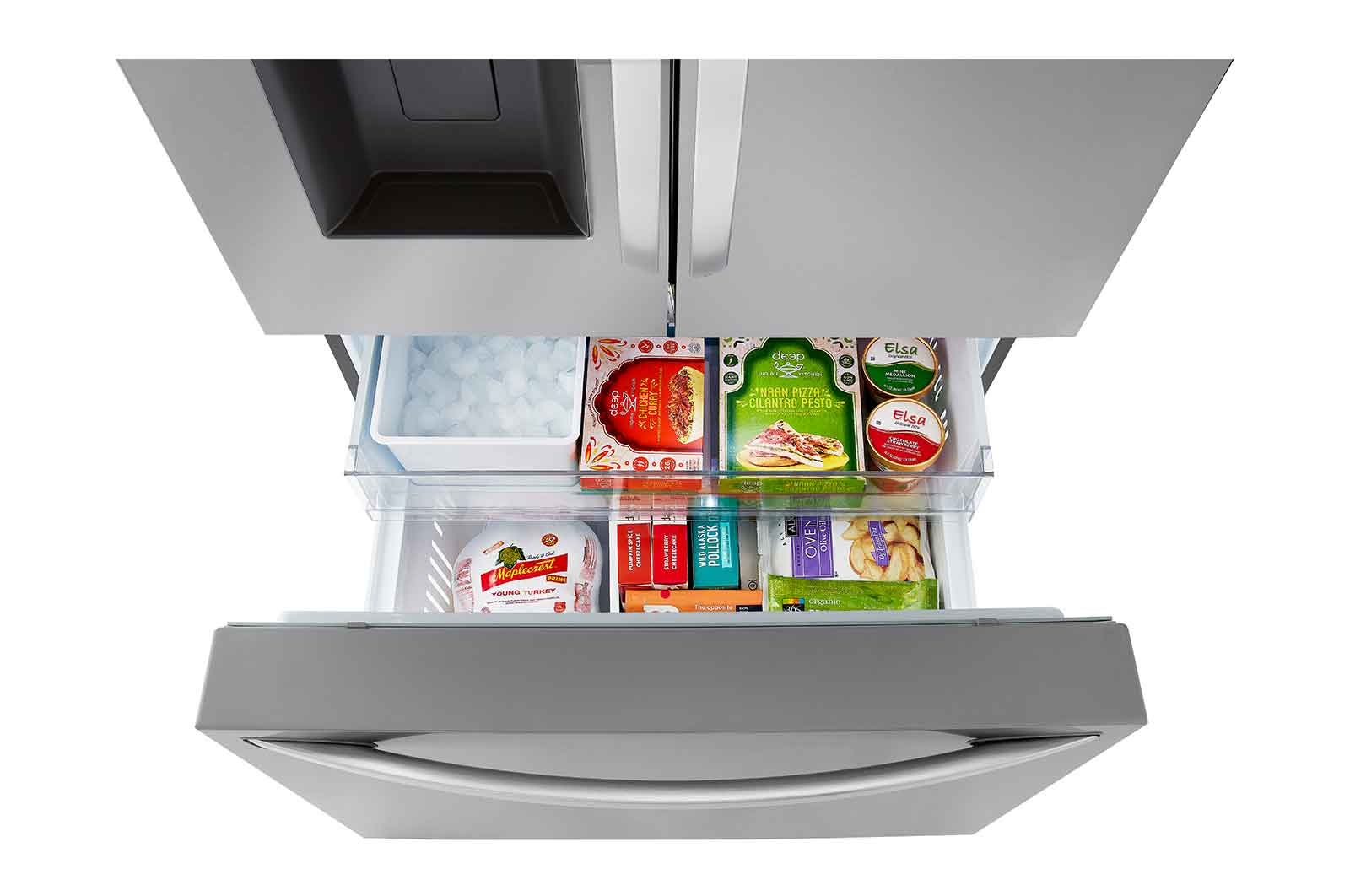

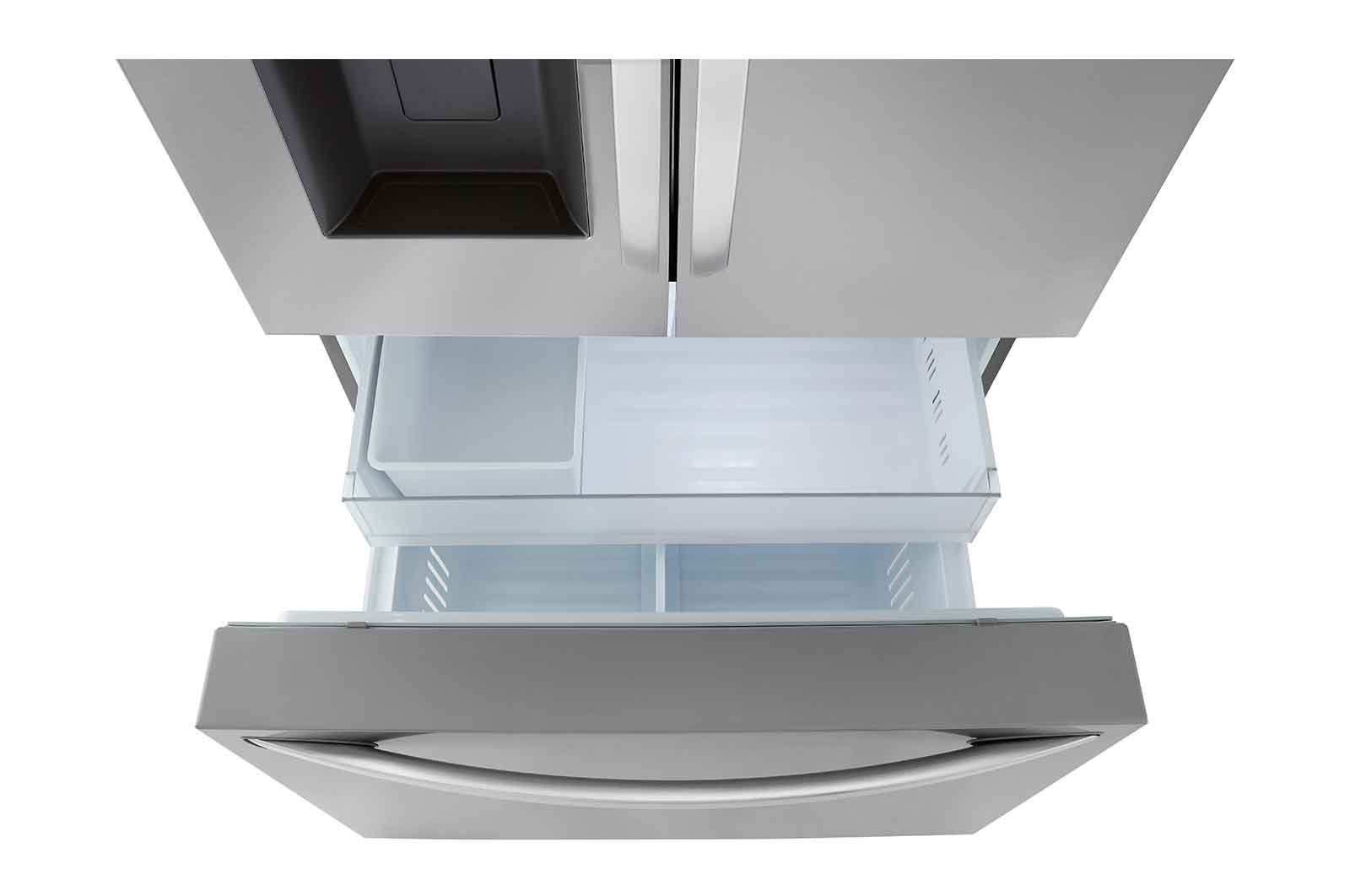

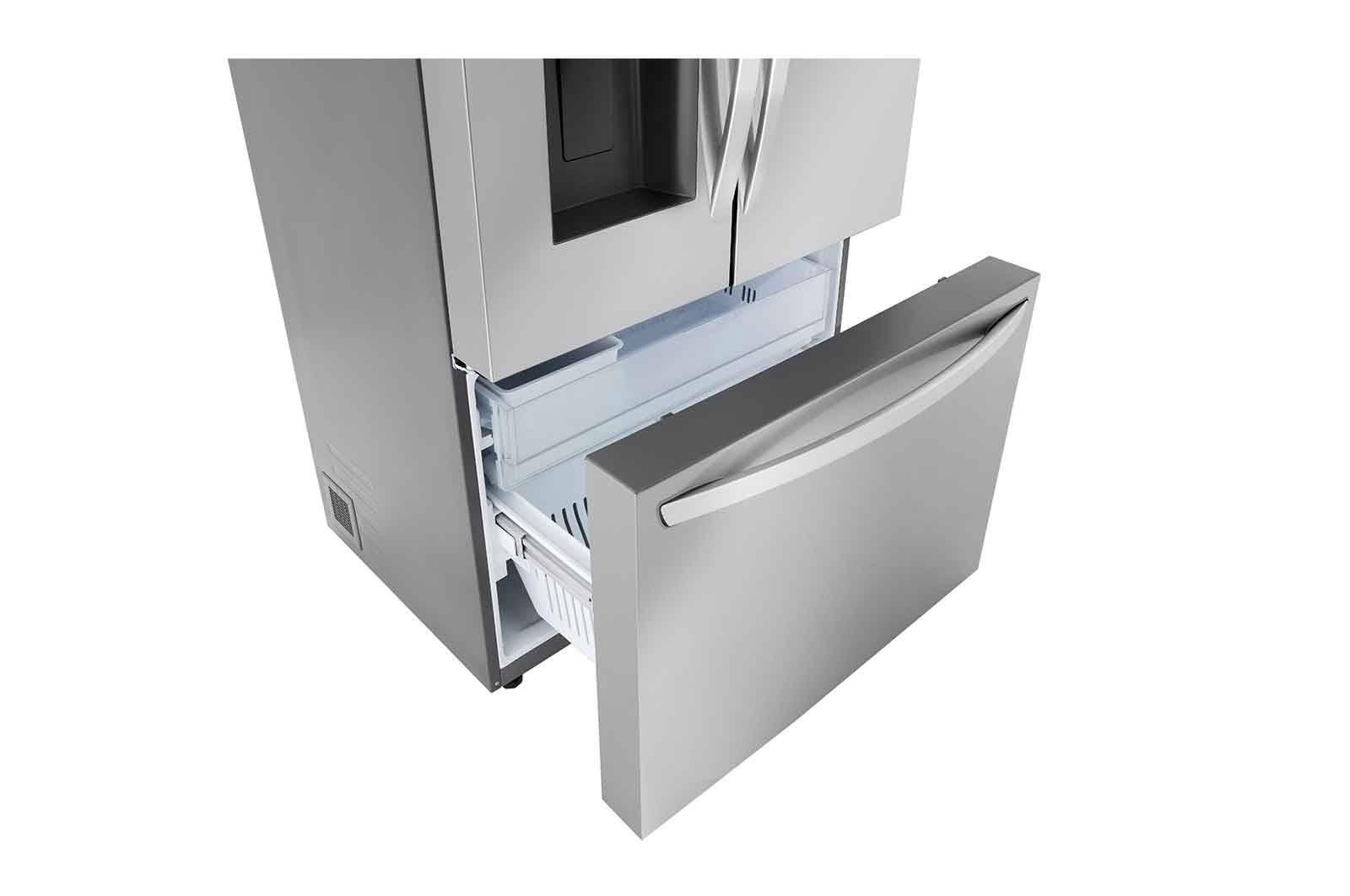

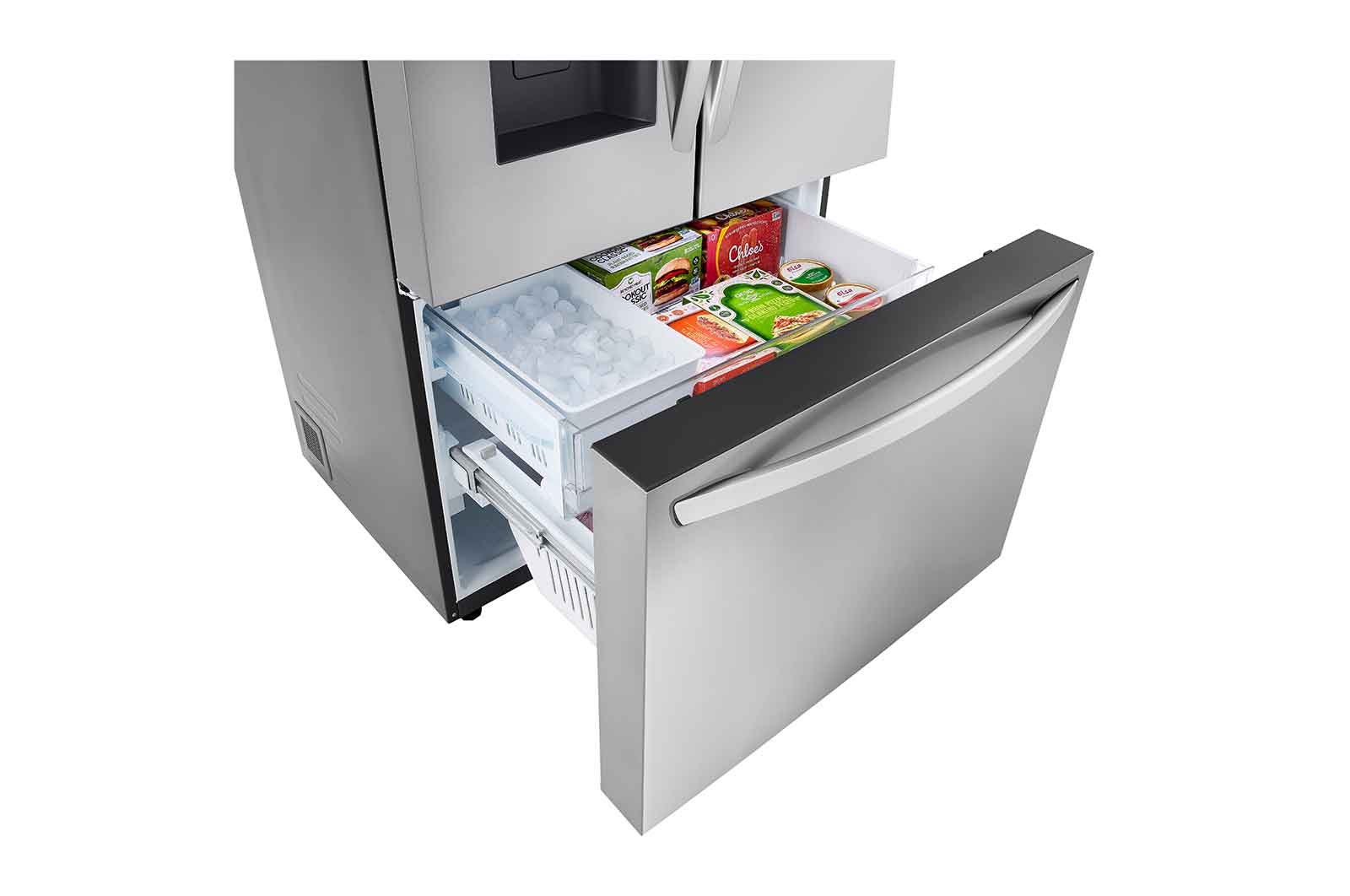

FREEZER
Door Type	Pull Drawer
Freezer Handle	SmartPull™ Handle
Drawers	2-Tier Organization
Freezer Light	Upper (LED Lighting) / Lower (No)
THINQ® SMART FEATURES
SmartDiagnosis™	Yes
Wi-Fi Enabled	Yes
ThinQ®	Yes
MATERIALS AND FINISHES
Hidden Hinges	Yes
Handles	Matching Commercial Handles
All Available Colors	PrintProof™ Stainless Steel
DIMENSIONS/CLEARANCES/WEIGHTS
Dimensions (W case x H top of hinge x D with handles)	35 3/4' x 70 1/4' x 31 5/8'
Width	35 3/4'
Height to Top of Door Hinge	70 1/4'
Depth with Handles	31 5/8'
Width (Door Open 90 without Handle)	40'
Width (Door Open 90 with Handle)	44 7/8'
Width (Door Fully Open without Handle)	56 3/4'
Height to Top of Case	68 7/8'
Depth without Door	24 3/4'
Depth without Handles	29 1/8''
Depth (to Hinge Cover)	18 1/4'
Depth (Total with Door Open)	43 5/8''
Depth (Draw Open Fully without Handle)	48 7/8'
Installation Clearance	Sides 1/8', Top 1', Back 2'
Carton Dimensions (WxHxD)	38' x 72' x 31'
Weight (Unit/Carton)	291 lbs. / 313 lbs.
LIMITED WARRANTY
Parts & Labor	1 Year
Sealed System (Parts & Labor)	5 Years
Compressor (Parts & Labor)	5 Years
UPC	195174057339
