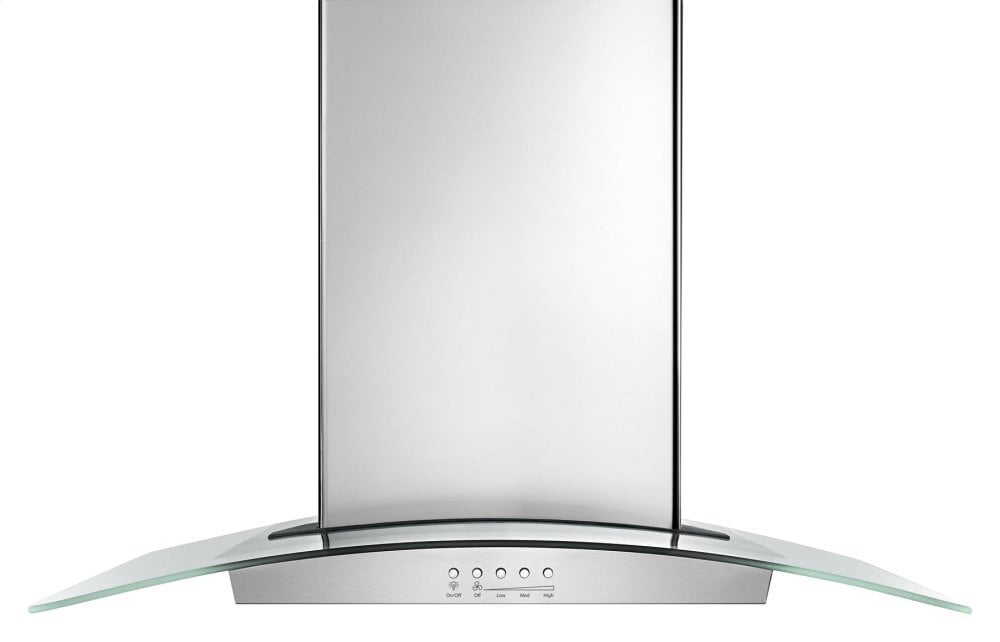

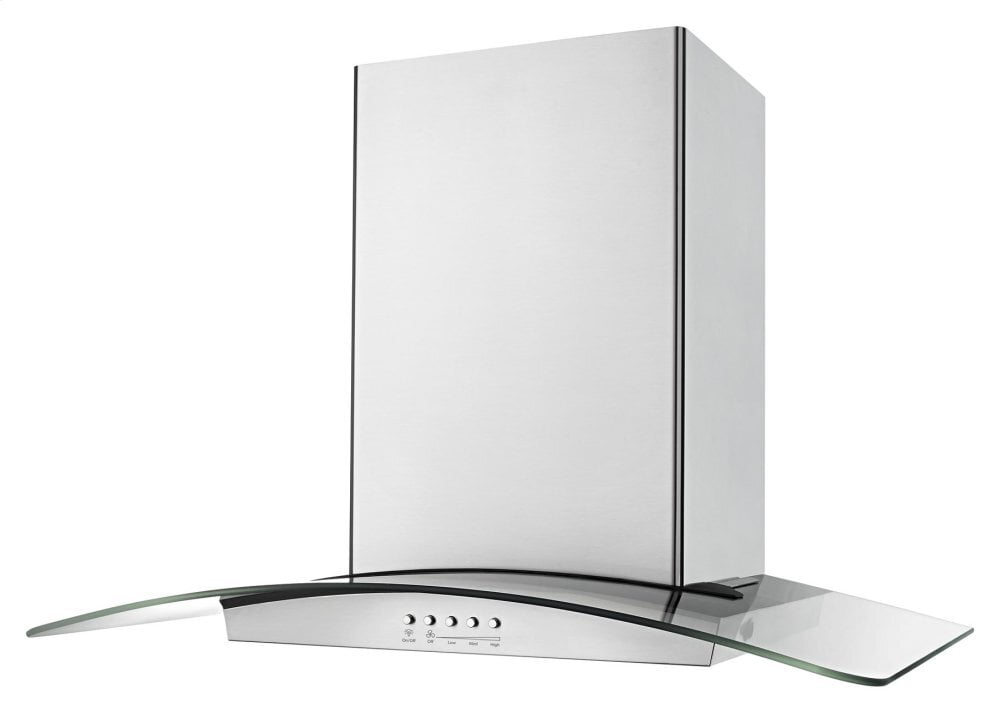

Kitchenaid WVW75UC0DS 30" Modern Glass Wall Mount Range Hood - Stainless Steel
Rebates &
Promotions
KitchenAid Craft Your Dream Kitchen Rebate - Receive up to a $3000 rebate with purchase of qualifying KitchenAid Brand Appliances. Download Valid: 01/01/2025-06/30/2025
This Glass Wall Mount Kitchen Hood Provides A Modern Look. It Helps Remove Smoke And Odors By Concentrating Hood Suction To Targeted Zones On Your Cooktop With Perimetric Venting Technology And A 3-Speed, 400 Cfm Motor Class. Noise Reduction Technology Features Sound Insulation And A Special Chimney Design To Provide A Quiet Kitchen Ventilation System. When Venting At Low Speed, Sound Levels Can Get As Low As 49 Dba. It'S Easy To See What You'Re Cooking With Efficient Led Task Lighting, And The Range Hood'S Glass Edge Led Lighting Acts As A Night-Light By Sensing When Your Kitchen Lights Dim And Automatically Turning On.
- Glass Edge LED Lighting - Glass edge LED lighting senses when your kitchen lights dim and automatically turns on to act as a night-light.
- Perimetric Venting Technology - Helps remove smoke and odors by concentrating hood suction to targeted zones on your cooktop.
- Noise Reduction Technology - Sound insulation and a special chimney design allow for quiet ventilation.
- LED Task Lighting - Bright, long-lasting LED task lighting makes it easy to see what you're cooking.
- Grease filter - The grease filter helps trap unwanted grease and helps remove odors.
- In-Line Smart Blower - The in-line smart blower can be installed as an exhaust motor in a ventilation hood or as an in-line blower in the attic of your home for added noise reduction.
Specifications | |
Dimensions | |
Depth | 20.0 in |
Height | 28-7/8 in |
Width | 30.0 in |
Configuration and Overview | |
Hood Type | Wall Canopy |
Size | 30 in |
UL | UL |
Details | |
Night Light | Yes |
Night Light Type | LED |
Number of Night Light Settings | 2 |
Number of Task Light Settings | 1 |
Task Light Type | LED |
Task Lighting | Yes |
Ventilation System | |
Auto Function | Auto On |
Blower Type | Centrifugal |
Duct Direction | Vertical |
Duct Outlet Size | 6 |
Duct Type | Round |
Filters | Grease Filters |
Number of Speeds | 3 |
Sound Max Speed Sones | 5.0 |
Sound Max Speed Sound Max Speed dBA | 64.0 |
Sound Min Speed Sones | 0-1/20 |
Sound Min Speed dBA | 31-1/10 |
Certifications | |
Energy Star® Qualified | No |
GDS | |
GPC Code | 10005322 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100642102 |
isBaseUnit | true |
isConsumerUnit | true |
