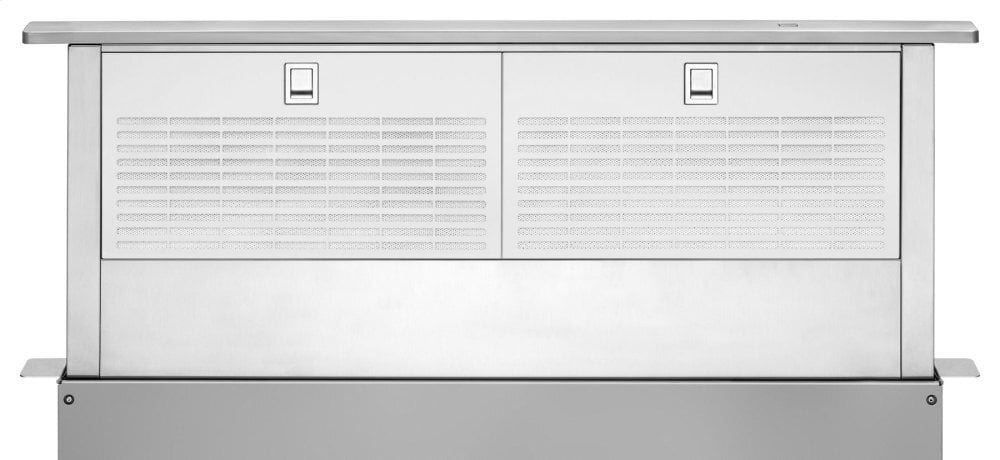

• Kitchenaid UXD8630DYS 30" Retractable Downdraft System With Interior Blower Motor - Stainless Steel
1 1

Kitchenaid UXD8630DYS 30" Retractable Downdraft System With Interior Blower Motor - Stainless Steel

Kitchenaid UXD8630DYS 30" Retractable Downdraft System With Interior Blower Motor - Stainless Steel

Colors:

Stainless Steel

THIS ITEM QUALIFIES FOR FREE DELIVERY!

List Price: $1,379.00
Our Price: $1,241.00
You save: $138.00 (10%)
EXTENDED PROTECTION

3 year plan

$120.99

5 year plan

$239.00

Available to Order

The shipping timeline will be confirmed after order is placed.
Shipping calculated at checkout.
View full details
Kitchenaid UXD8630DYS 30
Kitchenaid UXD8630DYS 30" Retractable Downdraft System With Interior Blower Motor - Stainless Steel

Rebates &
Promotions

JennAir Curate Your Kitchen Rebate - Receive up to 15% off in Instant Savings with purchase of qualifying JennAir Appliance Package. Download Valid: 07/01/2026-12/31/2026

Retractable Downdraft Systems Remain Flush With The Cooktop Surface Until Needed. A Reversible Motor Box Can Be Installed On Either Side Of The Downdraft, Freeing Up Space Beneath The Cabinet. The 14-Inch Rise Allows For Greater Smoke And Steam Capture.

  • Powerful 600 CFM Interior Blower Motor Included
  • Touch-Activated Telescoping Operation - Keep the fresh air flowing during the peak cooking periods in your kitchen! Whirlpool® ventilation hoods feature variable-speed fan control for maximum relief. Hoods are designed to fit perfectly with today's kitchen layouts and designs and are available in a variety of colors, depending on the model.
  • Dual Centrifugal Blower - A barrel-shaped fan that moves air through a vent hood. A centrifugal fan moves more air, and operates more quietly, than an axial-type (bladed) fan.
  • 6.5 Vertical Sones (3-1/4" x 10")
  • Auto Off When Retracted
  • Aluminum Grease Filters
Specifications
Dimensions
Depth 12-1/8 in
Height 28-1/2 in
Width 30.0 in
Configuration and Overview
Hood Type Retractable Downdraft
Prop 65 CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
Size 30 in
UL UL
Ventilation System
Blower Type Centrifugal
Duct Direction Vertical
Duct Outlet Size 3 1/4 x 10
Duct Type Round
Filters Dishwasher-Safe Grease Filters
Number of Speeds 3
Sound Max Speed Sones 7-9/10
Electrical
Hz 60
Controls
Location of Controls Hidden
