Rebates
Perimeter Ventilation

Increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.
LED Task Lights

Provide extra lighting over the cooking surface to help in the cooking process.
Halogen Night Lights

Enhances the style of the ventilation system by providing soft, accent lighting in the kitchen.
- Automatic Turn On - Helps protect your cabinets from damage by automatically turning the vent on when it senses the presence of heat.
- 600 CFM/65K BTU Threshold - Allows installation over any KitchenAid regular 36- or 30-inch range or cooktop, and some commercial-style cooking surfaces with outputs up to 65K BTU.
- Auto Speed Setting - Takes the guesswork out of protecting cabinets from steam, grease, and moisture by automatically adjusting fan speed to ventilation needs depending on the heat being produced.
- Dishwasher Safe Grease Filters - Filter reduces steam, grease, and odor to help avoid contact with ceilings and countertops. The design increases filtration by obstructing the path of vented air to help capture more steam, grease, and odors as they are drawn through the vent.
- Easy In-line Conversion - Converts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
- Whisper Quiet(R) System @ 49 dBA (1.5 sones) at Low Speed - Ensures that the ventilation system operates at a quiet level so it can be used while entertaining. At maximum speed, sound level is 65 dBA (5.4 sones).
Specifications | |
Dimensions | |
Depth | 27.0 in |
Height | 32-1/2 in |
Width | 36.0 in |
Configuration and Overview | |
Hood Type | Island Mount |
Size | 36 in |
UL | UL |
Details | |
Night Light | Yes |
Night Light Type | Halogen |
Number of Night Light Settings | 1 |
Number of Task Light Settings | 1 |
Task Light Type | LED |
Task Lighting | Yes |
Ventilation System | |
Auto Function | Auto On and Speed Adjust |
Blower Type | Centrifugal |
Duct Direction | Vertical |
Duct Outlet Size | 6 |
Duct Type | Round |
Filters | Grease Filters |
Number of Speeds | 3 |
Sound Max Speed Sones | 5-2/5 |
Sound Max Speed Sound Max Speed dBA | 65.0 |
Sound Min Speed Sones | 1-1/2 |
Sound Min Speed dBA | 49-1/2 |
GDS | |
GPC Code | 10005322 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100642102 |
isBaseUnit | true |
isConsumerUnit | true |
Overview
Perimeter Ventilation

Increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.
LED Task Lights

Provide extra lighting over the cooking surface to help in the cooking process.
Halogen Night Lights

Enhances the style of the ventilation system by providing soft, accent lighting in the kitchen.
Description
Features
- Automatic Turn On - Helps protect your cabinets from damage by automatically turning the vent on when it senses the presence of heat.
- 600 CFM/65K BTU Threshold - Allows installation over any KitchenAid regular 36- or 30-inch range or cooktop, and some commercial-style cooking surfaces with outputs up to 65K BTU.
- Auto Speed Setting - Takes the guesswork out of protecting cabinets from steam, grease, and moisture by automatically adjusting fan speed to ventilation needs depending on the heat being produced.
- Dishwasher Safe Grease Filters - Filter reduces steam, grease, and odor to help avoid contact with ceilings and countertops. The design increases filtration by obstructing the path of vented air to help capture more steam, grease, and odors as they are drawn through the vent.
- Easy In-line Conversion - Converts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
- Whisper Quiet(R) System @ 49 dBA (1.5 sones) at Low Speed - Ensures that the ventilation system operates at a quiet level so it can be used while entertaining. At maximum speed, sound level is 65 dBA (5.4 sones).
Specifications
Specifications | |
Dimensions | |
Depth | 27.0 in |
Height | 32-1/2 in |
Width | 36.0 in |
Configuration and Overview | |
Hood Type | Island Mount |
Size | 36 in |
UL | UL |
Details | |
Night Light | Yes |
Night Light Type | Halogen |
Number of Night Light Settings | 1 |
Number of Task Light Settings | 1 |
Task Light Type | LED |
Task Lighting | Yes |
Ventilation System | |
Auto Function | Auto On and Speed Adjust |
Blower Type | Centrifugal |
Duct Direction | Vertical |
Duct Outlet Size | 6 |
Duct Type | Round |
Filters | Grease Filters |
Number of Speeds | 3 |
Sound Max Speed Sones | 5-2/5 |
Sound Max Speed Sound Max Speed dBA | 65.0 |
Sound Min Speed Sones | 1-1/2 |
Sound Min Speed dBA | 49-1/2 |
GDS | |
GPC Code | 10005322 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100642102 |
isBaseUnit | true |
isConsumerUnit | true |
Rebates
Manuals / Guides
Reviews
Your Selected Items

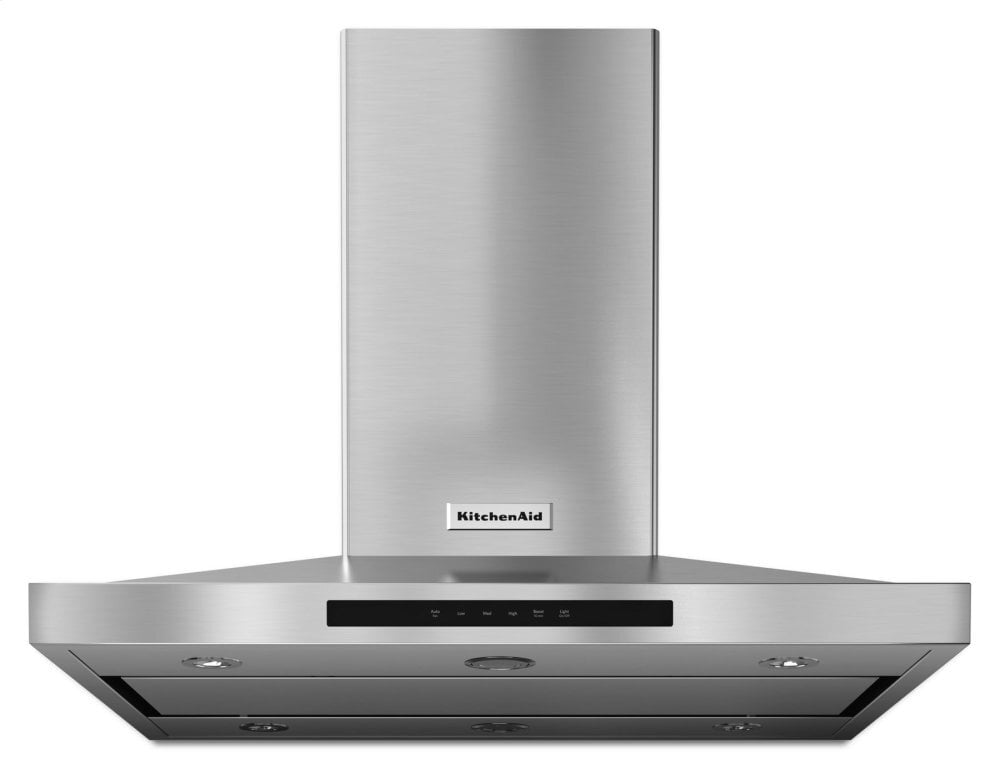

Kitchenaid KVIB606DSS 36" Island-Mount, 3-Speed Canopy Hood - Stainless Steel
