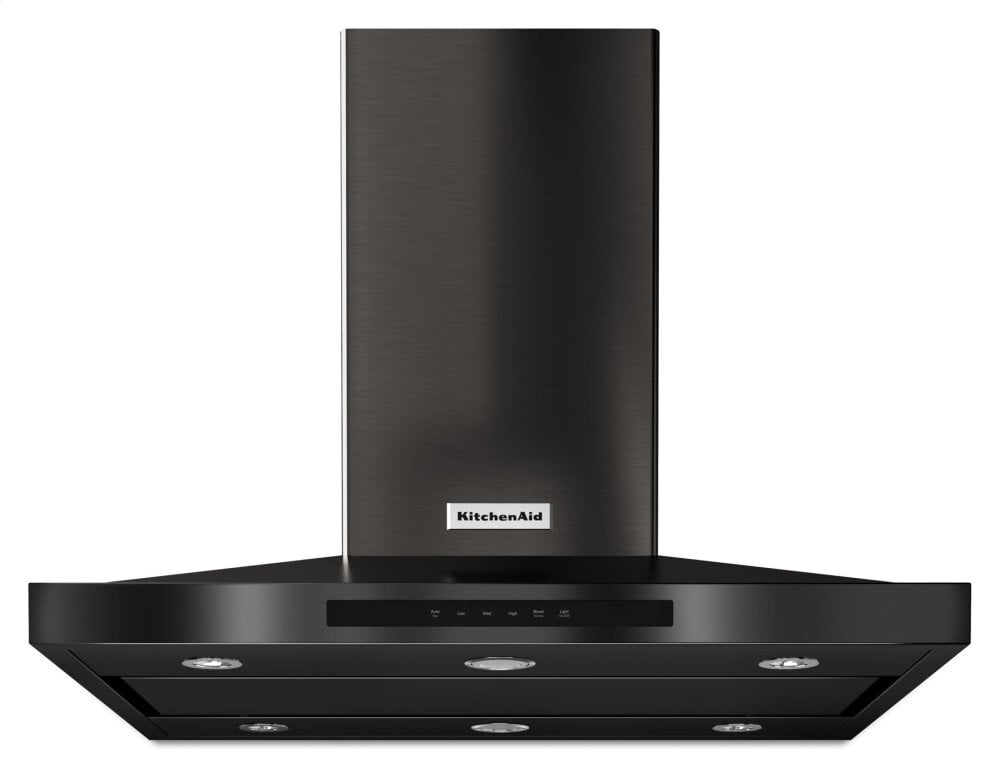

Kitchenaid KVIB606DBS 36" Island-Mount, 3-Speed Canopy Hood - Black Stainless Steel With Printshield™ Finish
Rebates &
Promotions
KitchenAid Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying KitchenAid appliances. Download Valid: 10/28/2024-12/09/2024
Perimeter Ventilation
Increases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.
LED Task Lights
Provide extra lighting over the cooking surface to help in the cooking process.
Halogen Night Lights
Enhances the style of the ventilation system by providing soft, accent lighting in the kitchen.
This 36-Inch Canopy Hood Provides The Coverage Necessary Over A 30- Or 36-Inch Cooking Surface. Features Like Auto Speed Sensing Ensure That The Ventilation System Will Provide The Power Needed To Protect Your Cabinets From Steam, Grease, And Moisture. Four Led Task Lights Provide Ample Light When Cooking And Two Halogen Night Lights Provide Ambient Light For The Kitchen.
- Automatic Turn On - Helps protect your cabinets from damage by automatically turning the vent on when it senses the presence of heat.
- 600 CFM/65K BTU Threshold - Allows installation over any KitchenAid regular 36- or 30-inch range or cooktop, and some commercial-style cooking surfaces with outputs up to 65K BTU.
- Auto Speed Setting - Takes the guesswork out of protecting cabinets from steam, grease, and moisture by automatically adjusting fan speed to ventilation needs depending on the heat being produced.
- Dishwasher Safe Grease Filters - Filter reduces steam, grease, and odor to help avoid contact with ceilings and countertops. The design increases filtration by obstructing the path of vented air to help capture more steam, grease, and odors as they are drawn through the vent.
- Easy In-line Conversion - Converts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
- Whisper Quiet(R) System @ 49 dBA (1.5 sones) at Low Speed - Ensures that the ventilation system operates at a quiet level so it can be used while entertaining. At maximum speed, sound level is 65 dBA (5.4 sones).
Specifications | |
Dimensions | |
Depth | 27.0 in |
Height | 32-1/2 in |
Width | 36.0 in |
Configuration and Overview | |
Hood Type | Island Mount |
Size | 36 in |
UL | UL |
Details | |
Night Light | Yes |
Night Light Type | Halogen |
Number of Night Light Settings | 1 |
Number of Task Light Settings | 1 |
Task Light Type | LED |
Task Lighting | Yes |
Ventilation System | |
Auto Function | Auto On and Speed Adjust |
Blower Type | Centrifugal |
Duct Direction | Vertical |
Duct Outlet Size | 6 |
Duct Type | Round |
Filters | Grease Filters |
Number of Speeds | 3 |
Sound Max Speed Sones | 5-2/5 |
Sound Max Speed Sound Max Speed dBA | 65.0 |
Sound Min Speed Sones | 1-1/2 |
Sound Min Speed dBA | 49-1/2 |
Product Hierarchy | |
Flooring Program Codes | USKADBL |
