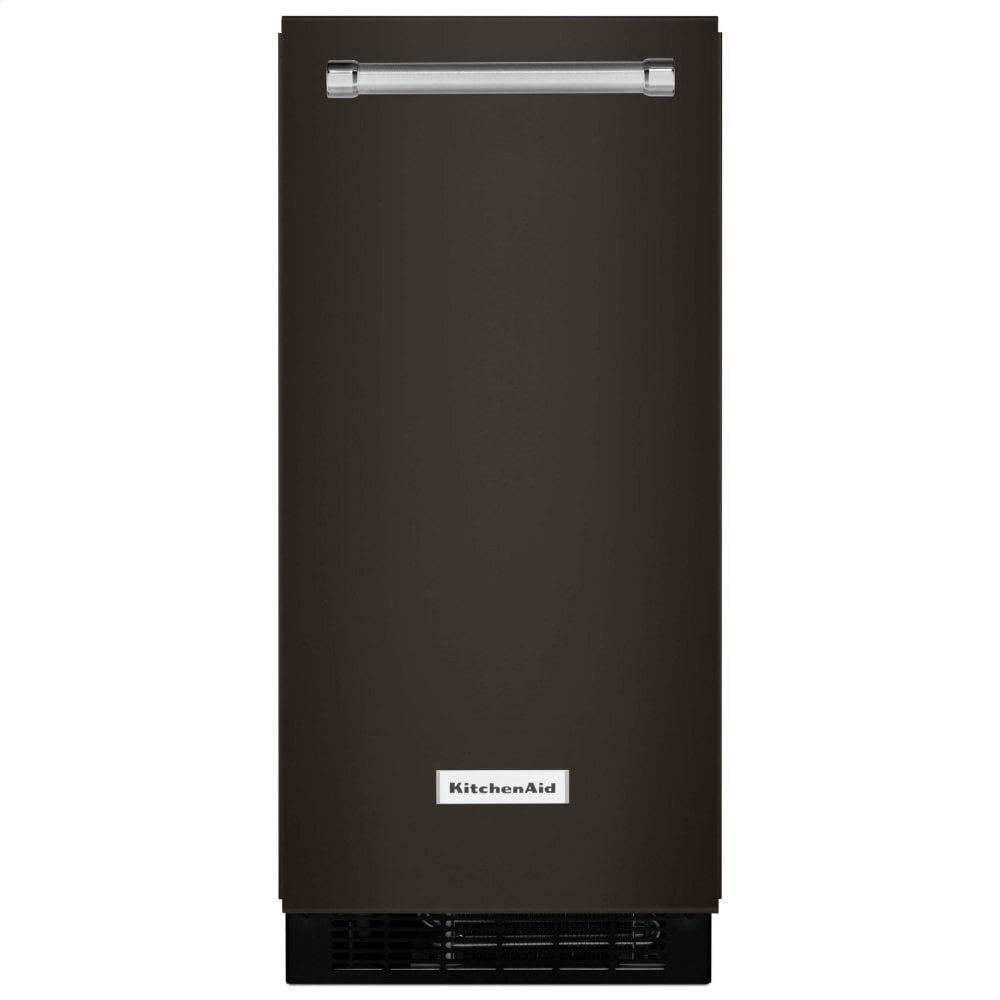

Kitchenaid KUIX535HBS Kitchenaid® 15'' Automatic Ice Maker With Printshield™ Finish - Black Stainless Steel With Printshield™ Finish
Rebates &
Promotions
KitchenAid Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying KitchenAid appliances. Download Valid: 03/01/2025-04/30/2025
Fully Flush Installation with Articulating Hinge

allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
Self-Cleaning Cycle

makes routine maintenance easy using a "clean cycle" and Affresh(R) ice maker cleaner.
PrintShield Finish

resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
Filter-Ready

provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
This 15" Automatic Ice Maker Uses Clear Ice Technology To Help Produce Cubes Of Uniform Shape And Clarity For Every Occasion. Distinctive Styling Makes It An Appealing Complement To Other Kitchenaid® Appliances, With Fully Flush Installation For A Built-In Look. The Signature Handle Design Opens The Door To Reveal A Storage Bin That Holds Up To 25 Pounds Of Ice.
- Clear Ice Technology - provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.
- Factory Installed Drain Pump
- Holds 25 Pounds of Ice - ensures a generous supply of fresh ice is conveniently at your fingertips.
- Max Ice
- Reversible Door - offers flexible installation options by allowing hinge installation on either side of the door.
Specifications | |
Dimensions | |
Cabinet Width | 14-7/8 in |
Cutout Depth | 25.0 in |
Cutout Height | 34-1/2 in |
Cutout Width | 15.0 in |
Depth Closed Excluding Handles | 24.0 in |
Depth Closed Including Handles | 25-3/8 in |
Depth Excluding Doors | 22-1/8 in |
Depth With Door Open 90 Degree | 39-1/2 in |
Height To Top Of Cabinet | 33-5/8 in |
Height To Top Of Door Hinge | 34-1/16 in |
Appearance | |
Cabinet Finish | Textured |
Handle Location | Horizontal |
Handle Material | Metal |
Reversible Door | Yes |
Controls | |
Defrost Type | Automatic Defrost |
Ice Maker On/Off | Yes |
Location of Controls | Interior Up Front |
Filter Details | |
Water Filter Indicator/Reset | Yes |
Water Filter Location | Interior |
Details | |
Ambient Temperature Range | 55F to 110F |
Drain Connection | Rear Access 5/8'' OD |
Drain Pump | Pump Included |
Ice Capacity Storage | 25 |
Interior Light | LED |
Certifications | |
Energy Star® Qualified | No |
Ice Maker Features | |
Selections | Ice Scoop, Max Ice, Articulating Hinge, Clear Ice Technology, True Flush Installable, Easy Access Filter Install |
Filters | |
Water Filter Part Number | F2WC9I1 |
