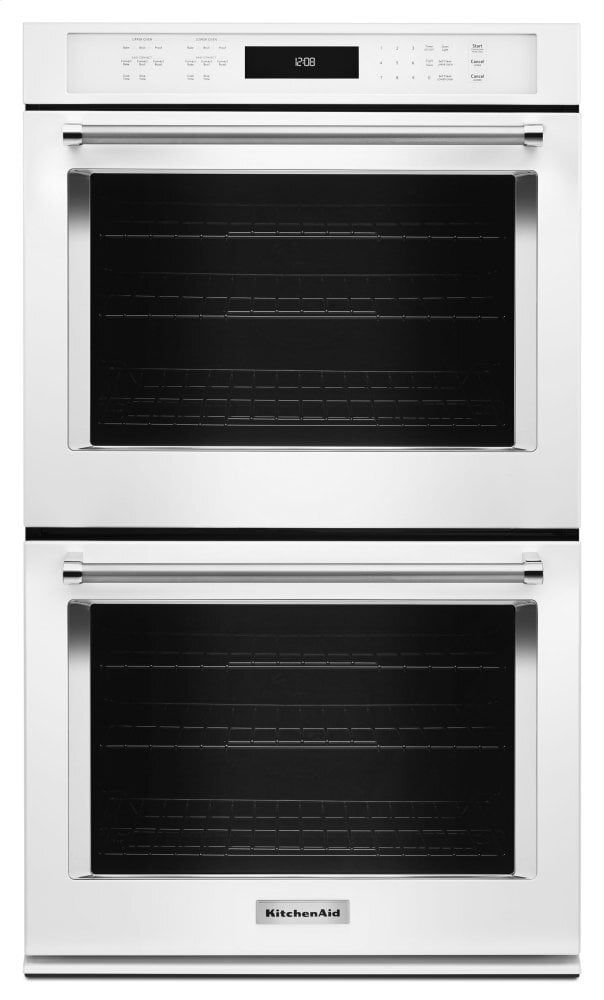

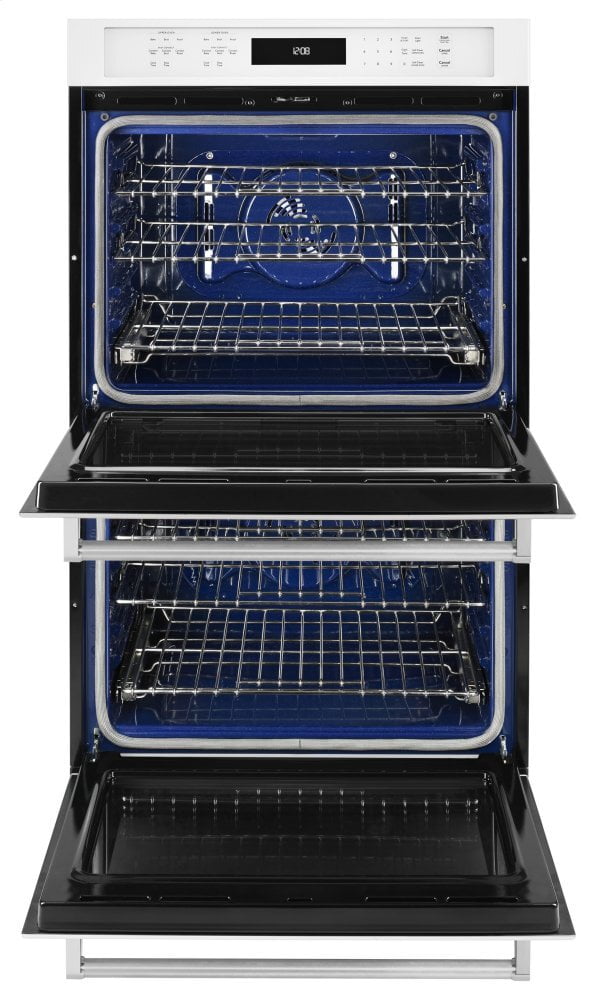

Kitchenaid KODE507EWH 27" Double Wall Oven With Even-Heat™ True Convection - White
Kitchenaid KODE507EWH 27" Double Wall Oven With Even-Heat™ True Convection - White
White
Black Stainless Steel
Stainless Steel
BlackWhen Will I Get My Order?
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
EXTENDED PROTECTION
5 year plan
$479.003 year plan
$236.99Couldn't load pickup availability
When Will I Get My Order?
x
Kitchenaid KODE507EWH 27" Double Wall Oven With Even-Heat™ True Convection - White
Even-Heat True Convection Oven (both ovens)
produces flawless results. The unique bow-tie design and convection fan ensure the inside of the oven is heated to, and stays at, the perfect temperature.
Temperature Probe (both ovens)
Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door.
Professionally-Inspired Design
Combines a bold blend of professionally-inspired styling with sleek touches for the home. This beautiful built-in wall oven features Satin Textured Handles, Precision Touch Controls, a stunning Chrome Inlaid Frame, the KitchenAid(R) Badge and Brand Medallion.
FIT System Guarantee
Allows for customization of wall oven installation to match the height of existing cabinets through flexible design elements.
Even-Heat Preheat
Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.
- EasyConvect Conversion System - Takes the guesswork out of convection cooking by ensuring exceptional results when experimenting with new recipes or familiar favorites.
- 4.3 Cu. Ft. Capacity - The spacious capacity simultaneously accommodates multiple dishes.
- SatinGlide Roll-Out Extension Rack (both ovens) - Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes.
- Glass-Touch Display with Control Lock Function - Gives an intuitive glass touch screen experience that's easy to wipe clean.
- Self Cleaning Cycle - Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
| Specifications | |
| Dimensions | |
| Capacity | 8-3/5 |
| Cutout Depth | 24.0 in |
| Cutout Height | 50-1/4 in |
| Cutout Width | 25-1/2 in |
| Depth | 27-1/8 in |
| Depth With Door Open 90 Degree | 46-3/4 in |
| Height | 51-1/4 in |
| Lower Oven Capacity | 4.3 cu. ft. |
| Upper Oven Capacity | 4.3 cu. ft. |
| Width | 27.0 in |
| Configuration and Overview | |
| ADA Compliant | No |
| CUL | Yes |
| Fuel Type | Electric |
| Installable Under Cooktop | No |
| LP Convertible | No |
| Oven Type | Double |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
| Size | 27 in |
| UL | UL |
| Oven Details | |
| Automatic Shut-Off | Yes |
| Bake Element Power | 2800W Both |
| Broiler Location | Top of Oven |
| Convection Element Type | True |
| Convection Functions | Bake Broil Roast Both |
| Delay Clean | Yes |
| Door Broil Position | Closed |
| Door Lock | Yes |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Interior Coating | Porcelain |
| Interior Color | Black |
| Language Conversion | English/French |
| Light Control | Oven Light Touch Pad |
| Light Type | Halogen |
| Lower Oven Interior Depth | 19.0 in |
| Lower Oven Interior Height | 18.0 in |
| Lower Oven Interior Width | 22.0 in |
| Lower Oven Number of Oven Lights | 2 |
| Number of Bake Elements | 1 |
| Number of Broil Elements | 1 |
| Number of Lower Oven Racks | 3 |
| Number of Lower Rack Guides | 6 |
| Number of Upper Oven Racks | 3 |
| Number of Upper Rack Guides | 6 |
| Oven Cooking System | Convection Both |
| Oven Rack 1 Type | Standard |
| Oven Rack 2 Type | Standard |
| Oven Rack 3 Type | Gliding Roll-Out |
| Power On Indicator Light | Yes |
| Self-Cleaning Oven Racks | No |
| Temperature Conversion | Yes |
| Upper Oven Interior Depth | 19.0 in |
| Upper Oven Interior Height | 18.0 in |
| Upper Oven Interior Width | 22.0 in |
| Upper Oven Number of Oven Lights | 2 |
| Appearance | |
| Door Type | Metal & Glass |
| Flush Installation Approved | Yes |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Details | |
| Bake Element Power | 2800W |
| Broiler Element Power | 4000W Both |
| Convection Element Type | True |
| Oven Cleaning Type | Adjustable Self Cleaning |
| Exterior | |
| Oven Window Size | Extra Large |
| Energy | |
| Annual Energy Usage [kWh] | 410.0 |
Owner's Manual
Warranty Page - W10643471-W
Dimension Guide
Parts List
Label
Guarantee Fit System
Care Guide
Installation Flush Oven Installation
