12 Heat Level Settings

Provide various levels of heat to fine tune cooking techniques ranging from melting chocolate and simmering a sauce to searing meat or achieving a rapid boil.
4 Elements with Bridge Functions

Allows the flexibility to convert four cooking zones into two large cooking zones which provides additional space to accommodate specialty cookware.
5-Element Cooktop

Provides five independent cooking surface areas.
- 12''/9'', 4800/2500-Watt Element - Offers two element sizes in one space to accommodate a variety of pan sizes without changing elements and allows you the power needed to cook at high heat.
- Control Lock - Helps prevent unintended use and makes it easier to clean the control panel
- Melt and Hold - Uses low power levels for melting delicate ingredients or keeping cooked food warm without scorching.
- Pan Size Detection - Provides feedback on whether pan size is suitable for the selected element.
- Performance Boost - Allows you to exceed the maximum heat-level setting for up to 10 minutes, perfect for rapid boiling
- Simmer Function - Automatically selects a low power level to help maintain a constant simmer without boiling over.
Specifications | |
Dimensions | |
Cutout Depth | 19-5/16 in |
Cutout Width | 33-1/16 in |
Depth | 21-5/16 in |
Height | 3-1/8 in |
Width | 36-5/16 in |
Configuration and Overview | |
ADA Compliant | No |
Cooktop Type | Standard |
Installs Over Built-In Oven | Yes |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Size | 36 in |
UL | UL |
Controls | |
Infinite Heat Controls | No |
Knob Color | NA |
Location of Controls | Front |
Cooktop Details | |
Automatic Pan Detection | Yes |
Center Front Element-Burner Size | 12'' |
Center Front Element-Burner Type | Dual |
Center Rear Element-Burner Power | 4800/2800W |
Center Rear Element-Burner Size | 12'' |
Cooktop Element Style | Induction |
Cooktop Surface Color | Black |
Cooktop Surface Material | Ceramic Glass |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Left Front Element-Burner Power | 2500W/1800W |
Left Front Element-Burner Size | 7'' |
Left Front Element-Burner Type | Bridge |
Left Rear Element-Burner Power | 2500W/1800W |
Left Rear Element-Burner Size | 7'' |
Left Rear Element-Burner Type | Bridge |
Number of Cooking Element-Burners | 5 |
Right Front Element-Burner Power | 2500W/1800W |
Right Front Element-Burner Size | 7'' |
Right Front Element-Burner Type | Bridge |
Right Rear Element-Burner Size | 7'' |
Right Rear Element-Burner Type | Bridge |
Appearance | |
Digital Display | Yes |
Electrical | |
Hz | 60 |
Power Cord Included | No |
GDS | |
GPC Code | 10001951 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100400623 |
isBaseUnit | true |
isConsumerUnit | true |
Overview
12 Heat Level Settings

Provide various levels of heat to fine tune cooking techniques ranging from melting chocolate and simmering a sauce to searing meat or achieving a rapid boil.
4 Elements with Bridge Functions

Allows the flexibility to convert four cooking zones into two large cooking zones which provides additional space to accommodate specialty cookware.
5-Element Cooktop

Provides five independent cooking surface areas.
Description
Features
- 12''/9'', 4800/2500-Watt Element - Offers two element sizes in one space to accommodate a variety of pan sizes without changing elements and allows you the power needed to cook at high heat.
- Control Lock - Helps prevent unintended use and makes it easier to clean the control panel
- Melt and Hold - Uses low power levels for melting delicate ingredients or keeping cooked food warm without scorching.
- Pan Size Detection - Provides feedback on whether pan size is suitable for the selected element.
- Performance Boost - Allows you to exceed the maximum heat-level setting for up to 10 minutes, perfect for rapid boiling
- Simmer Function - Automatically selects a low power level to help maintain a constant simmer without boiling over.
Specifications
Specifications | |
Dimensions | |
Cutout Depth | 19-5/16 in |
Cutout Width | 33-1/16 in |
Depth | 21-5/16 in |
Height | 3-1/8 in |
Width | 36-5/16 in |
Configuration and Overview | |
ADA Compliant | No |
Cooktop Type | Standard |
Installs Over Built-In Oven | Yes |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Size | 36 in |
UL | UL |
Controls | |
Infinite Heat Controls | No |
Knob Color | NA |
Location of Controls | Front |
Cooktop Details | |
Automatic Pan Detection | Yes |
Center Front Element-Burner Size | 12'' |
Center Front Element-Burner Type | Dual |
Center Rear Element-Burner Power | 4800/2800W |
Center Rear Element-Burner Size | 12'' |
Cooktop Element Style | Induction |
Cooktop Surface Color | Black |
Cooktop Surface Material | Ceramic Glass |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Left Front Element-Burner Power | 2500W/1800W |
Left Front Element-Burner Size | 7'' |
Left Front Element-Burner Type | Bridge |
Left Rear Element-Burner Power | 2500W/1800W |
Left Rear Element-Burner Size | 7'' |
Left Rear Element-Burner Type | Bridge |
Number of Cooking Element-Burners | 5 |
Right Front Element-Burner Power | 2500W/1800W |
Right Front Element-Burner Size | 7'' |
Right Front Element-Burner Type | Bridge |
Right Rear Element-Burner Size | 7'' |
Right Rear Element-Burner Type | Bridge |
Appearance | |
Digital Display | Yes |
Electrical | |
Hz | 60 |
Power Cord Included | No |
GDS | |
GPC Code | 10001951 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100400623 |
isBaseUnit | true |
isConsumerUnit | true |
Manuals / Guides
Reviews
Your Selected Items

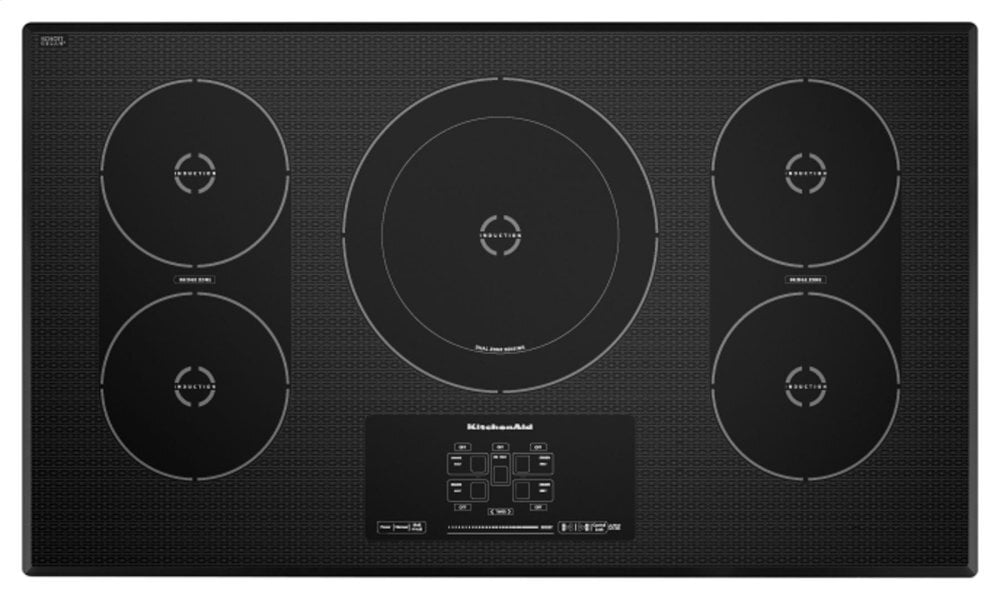

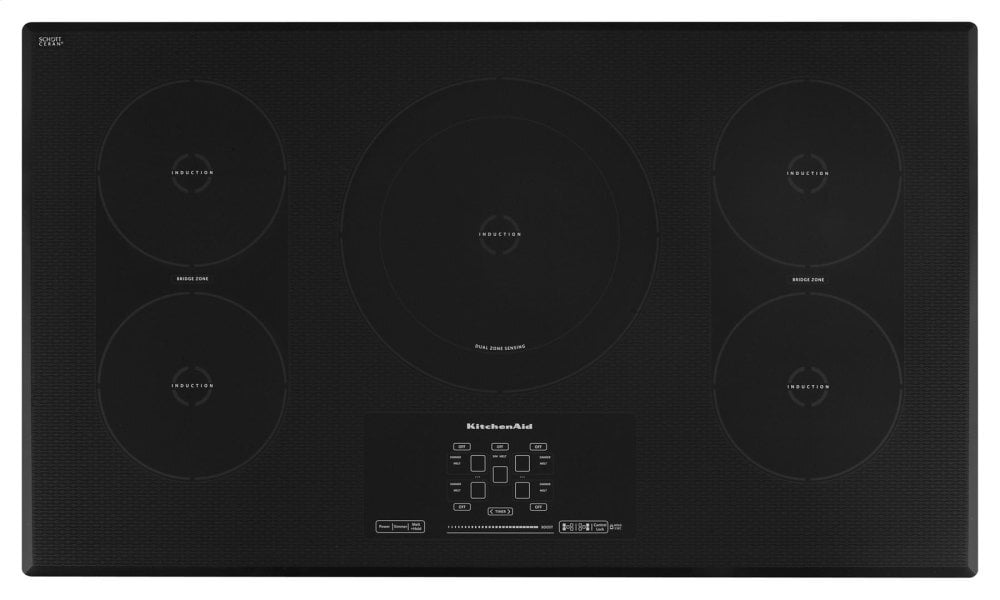

Kitchenaid KICU569XBL 36-Inch 5-Element Induction Cooktop, Architect® Series Ii - Black
X1
$1,955.99
