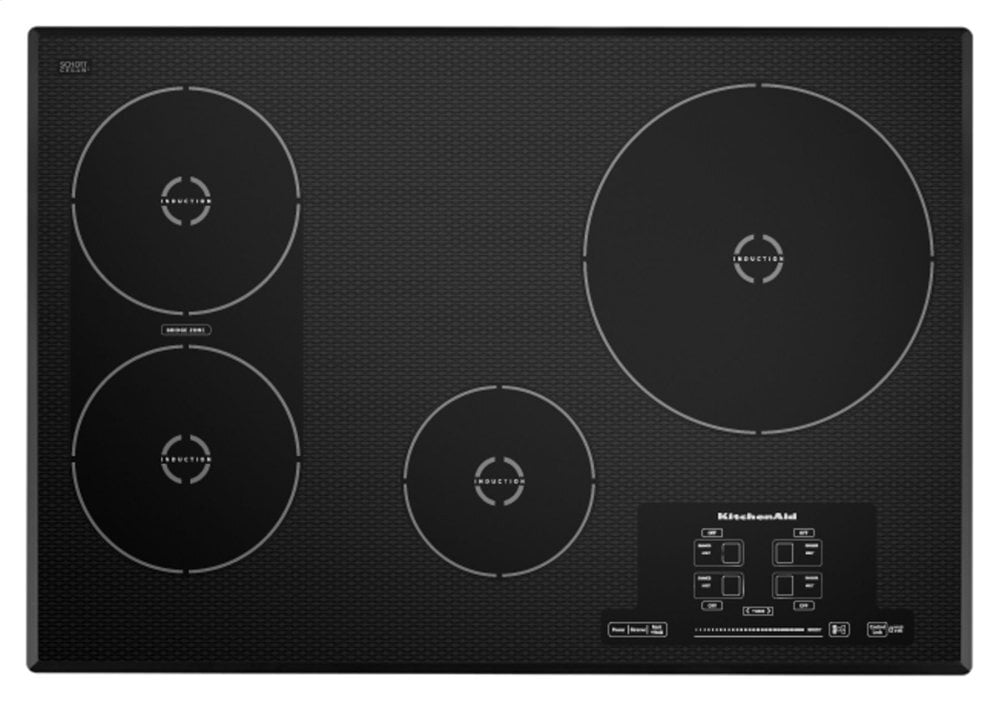

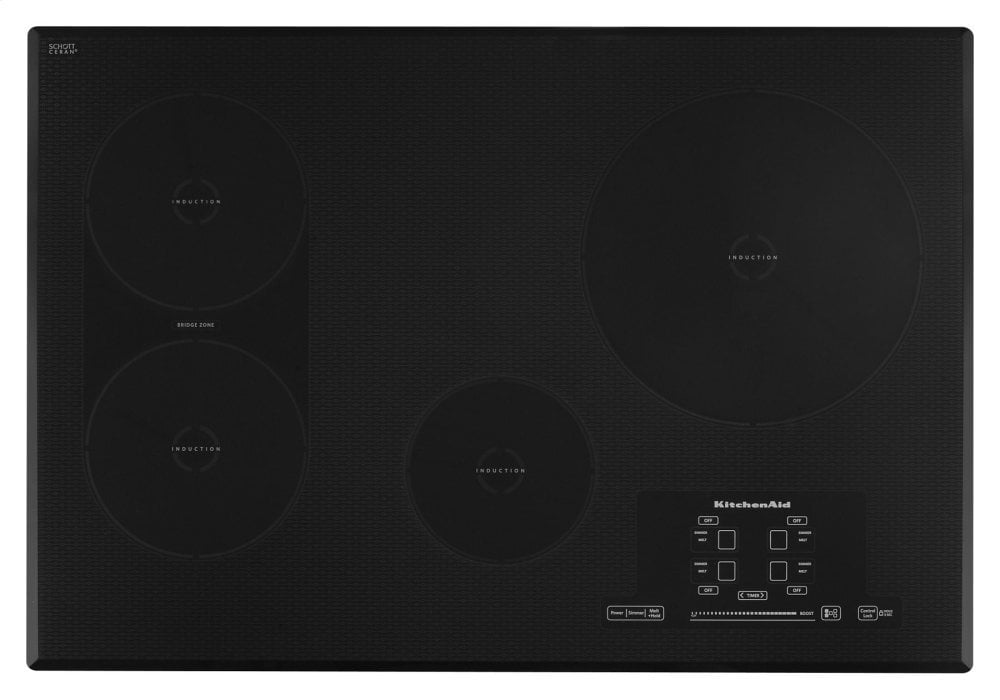

Kitchenaid KICU509XBL 30-Inch 4 Element Induction Cooktop, Architect® Series Ii - Black

Kitchenaid KICU509XBL 30-Inch 4 Element Induction Cooktop, Architect® Series Ii - Black

This 30-inch induction cooktop uses electromagnetic energy to generat... Read more...

When Will I Get My Order?

x

THIS ITEM QUALIFIES FOR FREE DELIVERY!

EXTENDED PROTECTION

5 year plan

$359.99

3 year plan

$188.99
Shipping calculated at checkout.
View full details

When Will I Get My Order?

x

Kitchenaid KICU509XBL 30-Inch 4 Element Induction Cooktop, Architect® Series Ii - Black
Kitchenaid KICU509XBL 30-Inch 4 Element Induction Cooktop, Architect® Series Ii - Black

4-Element Cooktop

Provides four independent cooking surface areas.

2 Elements with Bridge Function

Allows the flexibility to convert two cooking zones into one large cooking zone which provides additional space to accommodate specialty cookware.

12 Heat Level Settings

Provide various levels of heat to fine tune cooking techniques ranging from melting chocolate and simmering a sauce to searing meat or achieving a rapid boil.


This 30-inch induction cooktop uses electromagnetic energy to generate instant heat directly to your cookware without spreading the heat across the entire cooking surface. A bridge function lets you combine the power of two elements into one large cooking zone for specialty cookware such as a griddle or oval pan.

  • Performance Boost - Allows you to exceed the maximum heat-level setting for up to 10 minutes, perfect for rapid boiling
  • Touch-Activated Controls - Integrate seamlessly into the surface and include a slider for heat-level selection
  • Melt and Hold - Uses low power levels for melting delicate ingredients or keeping cooked food warm without scorching.
  • Simmer Function - Automatically selects a low power level to help maintain a constant simmer without boiling over.
  • Pan Size Detection - Provides feedback on whether pan size is suitable for the selected element.
  • Control Lock - Helps prevent unintended use and makes it easier to clean the control panel

Specifications
Dimensions
Cutout Depth 19-5/16 in
Cutout Width 29-1/2 in
Depth 21-5/16 in
Height 3-1/8 in
Width 30-3/4 in
Configuration and Overview
ADA Compliant No
Cooktop Type Standard
Fuel Type Electric Induction
Installs Over Built-In Oven Yes
Prop 65 CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
Size 30 in
UL UL
Cooktop Details
Automatic Pan Detection Yes
Cooktop Element Style Induction
Cooktop Surface Color Black
Cooktop Surface Material Ceramic Glass
Downdraft Vent No
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Left Front Element-Burner Power 2500W/1800W
Left Front Element-Burner Size 7''
Left Front Element-Burner Type Bridge
Left Rear Element-Burner Power 2500W/1800W
Left Rear Element-Burner Size 7''
Left Rear Element-Burner Type Bridge
Number of Cooking Element-Burners 4
Right Front Element-Burner Power 1800W/1400W
Right Front Element-Burner Size 6''
Right Front Element-Burner Type Single
Right Rear Element-Burner Size 11''
Right Rear Element-Burner Type Single
Appearance
Digital Display Yes
Electrical
Hz 60
Power Cord Included No
Controls
Knob Color NA
Location of Controls Front
