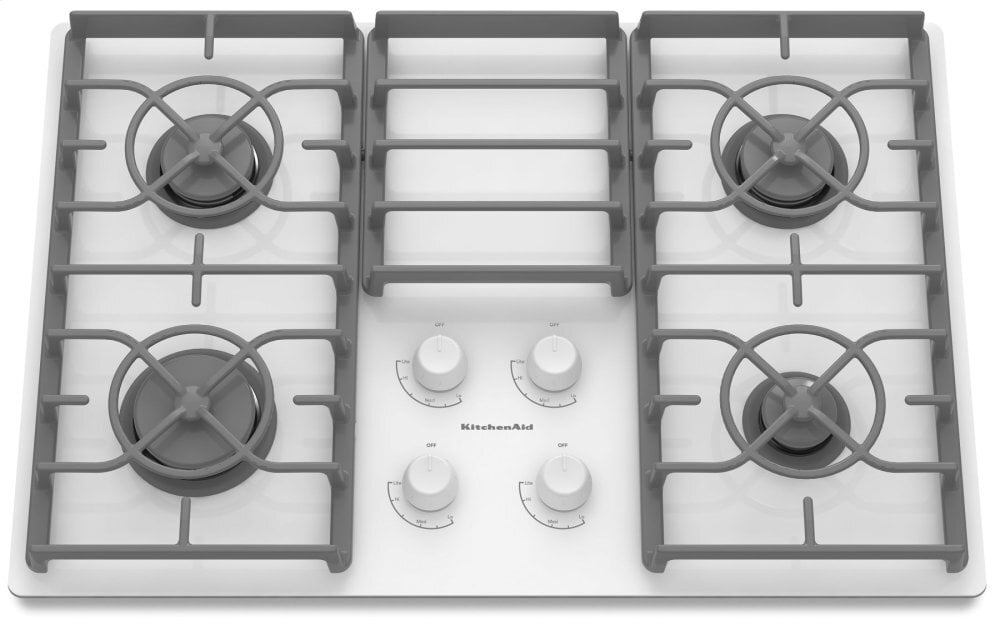

This Sleek, Gas-On-Glass Cooktop Is A Stylish Option That Complements Many Countertop Surfaces. The Easy-To-Clean Surface Features Full-Width Cast-Iron Grates That Allow You To Slide Cookware Across The Cooktop Without Lifting. Powerful Burner Options Range From 6,000 To 17,000 Btu Allowing You To Get Exceptional Results For Simmering A Sauce Or Searing A Steak.
Gas-on-Glass Surface
Offers a stylish appearance and wipes clean easily.
17K BTU Professional Burner
Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
6K BTU Simmer Burner
Allows more accurate simmer control at the lowest setting, and is ideal for cooking smaller quantities of food, using smaller pots and pans.
Full-Width Cast-Iron Grates
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
- Gas-on-Glass Surface
- Offers a stylish appearance and wipes clean easily.
- 17K BTU Professional Burner
- Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
- 6K BTU Simmer Burner
- Allows more accurate simmer control at the lowest setting, and is ideal for cooking smaller quantities of food, using smaller pots and pans.
- Full-Width Cast-Iron Grates
- Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
| Specifications | |
| Dimensions | |
| Cutout Depth | 19.0 in |
| Cutout Height | 2-7/8 in |
| Cutout Width | 29.0 in |
| Depth | 20-5/16 in |
| Height | 2-7/8 in |
| Width | 30-3/16 in |
| Configuration and Overview | |
| ADA Compliant | No |
| Cooktop Type | Standard |
| Fuel Type | Gas |
| Installs Over Built-In Oven | Yes |
| LP Convertible | Yes - Kit Included |
| Power Boost | No |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
| Size | 30 in |
| UL | UL |
| Controls | |
| Infinite Heat Controls | Yes |
| Knob Color | Color Coordinated |
| Knob Type | Dishwasher-Safe Plastic |
| Location of Controls | Front |
| Cooktop Details | |
| Automatic Pan Detection | No |
| Cooktop Element Style | Sealed Burner |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Ceramic Glass |
| Downdraft Vent | No |
| Grate Details | Matte Finish, Continuous, Cast Iron Grates |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Left Front Element-Burner Power | 17,000 BTU |
| Left Front Element-Burner Type | Professional Burner |
| Left Rear Element-Burner Power | 9000 BTU |
| Left Rear Element-Burner Type | Burner |
| Number of Cooking Element-Burners | 4 |
| Number of Grates | 3 |
| Power Outage Compatible | Yes |
| Right Front Element-Burner Power | 6000 BTU |
| Right Front Element-Burner Type | Simmer |
| Right Rear Element-Burner Type | Burner |
| Appearance | |
| Digital Display | No |
| Electrical | |
| Hz | 60 |
| Power Cord Included | Yes |
| Features | |
| Power Outage Compatible | Yes |
| GDS | |
| GPC Code | 10001951 |
| IsInvoiceUnit | true |
| IsOrderableUnit | true |
| Product Type | EA |
| UDEX | 1100400623 |
| isBaseUnit | true |
| isConsumerUnit | true |
Overview
Gas-on-Glass Surface
Offers a stylish appearance and wipes clean easily.
17K BTU Professional Burner
Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
6K BTU Simmer Burner
Allows more accurate simmer control at the lowest setting, and is ideal for cooking smaller quantities of food, using smaller pots and pans.
Full-Width Cast-Iron Grates
Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
Description
This Sleek, Gas-On-Glass Cooktop Is A Stylish Option That Complements Many Countertop Surfaces. The Easy-To-Clean Surface Features Full-Width Cast-Iron Grates That Allow You To Slide Cookware Across The Cooktop Without Lifting. Powerful Burner Options Range From 6,000 To 17,000 Btu Allowing You To Get Exceptional Results For Simmering A Sauce Or Searing A Steak.
Features
- Electronic Ignition - Automatically lights burners so no standing pilot light is needed.
- LP Conversion Kit (not included) - Allows you to convert the cooktop so it can be used with LP gas (sold separately).
Specifications
| Specifications | |
| Dimensions | |
| Cutout Depth | 19.0 in |
| Cutout Height | 2-7/8 in |
| Cutout Width | 29.0 in |
| Depth | 20-5/16 in |
| Height | 2-7/8 in |
| Width | 30-3/16 in |
| Configuration and Overview | |
| ADA Compliant | No |
| Cooktop Type | Standard |
| Fuel Type | Gas |
| Installs Over Built-In Oven | Yes |
| LP Convertible | Yes - Kit Included |
| Power Boost | No |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
| Size | 30 in |
| UL | UL |
| Controls | |
| Infinite Heat Controls | Yes |
| Knob Color | Color Coordinated |
| Knob Type | Dishwasher-Safe Plastic |
| Location of Controls | Front |
| Cooktop Details | |
| Automatic Pan Detection | No |
| Cooktop Element Style | Sealed Burner |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Ceramic Glass |
| Downdraft Vent | No |
| Grate Details | Matte Finish, Continuous, Cast Iron Grates |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Direct Spark Ignition |
| Left Front Element-Burner Power | 17,000 BTU |
| Left Front Element-Burner Type | Professional Burner |
| Left Rear Element-Burner Power | 9000 BTU |
| Left Rear Element-Burner Type | Burner |
| Number of Cooking Element-Burners | 4 |
| Number of Grates | 3 |
| Power Outage Compatible | Yes |
| Right Front Element-Burner Power | 6000 BTU |
| Right Front Element-Burner Type | Simmer |
| Right Rear Element-Burner Type | Burner |
| Appearance | |
| Digital Display | No |
| Electrical | |
| Hz | 60 |
| Power Cord Included | Yes |
| Features | |
| Power Outage Compatible | Yes |
| GDS | |
| GPC Code | 10001951 |
| IsInvoiceUnit | true |
| IsOrderableUnit | true |
| Product Type | EA |
| UDEX | 1100400623 |
| isBaseUnit | true |
| isConsumerUnit | true |
