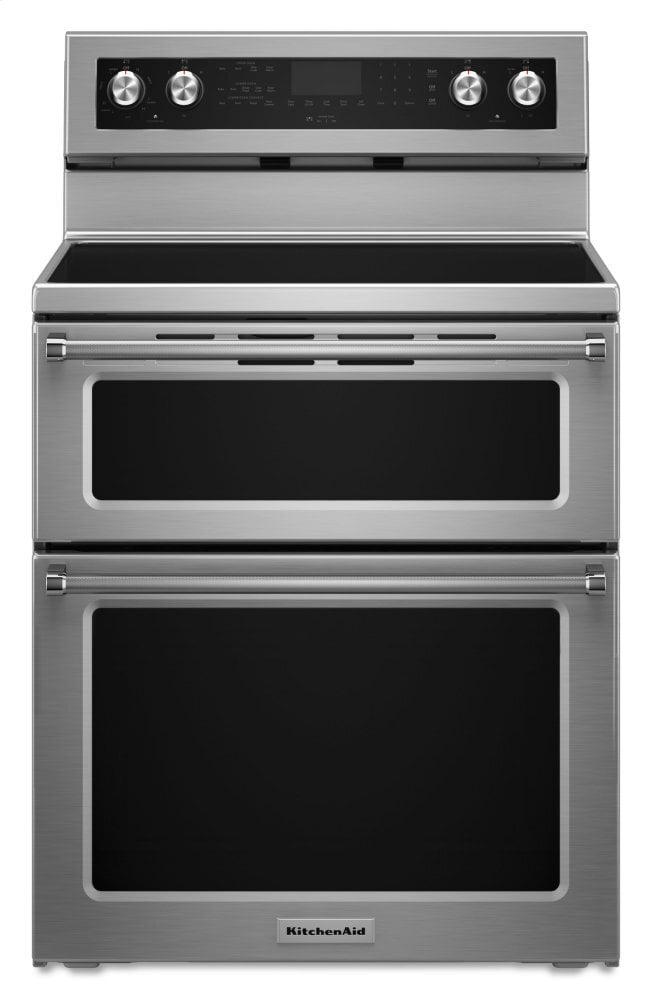

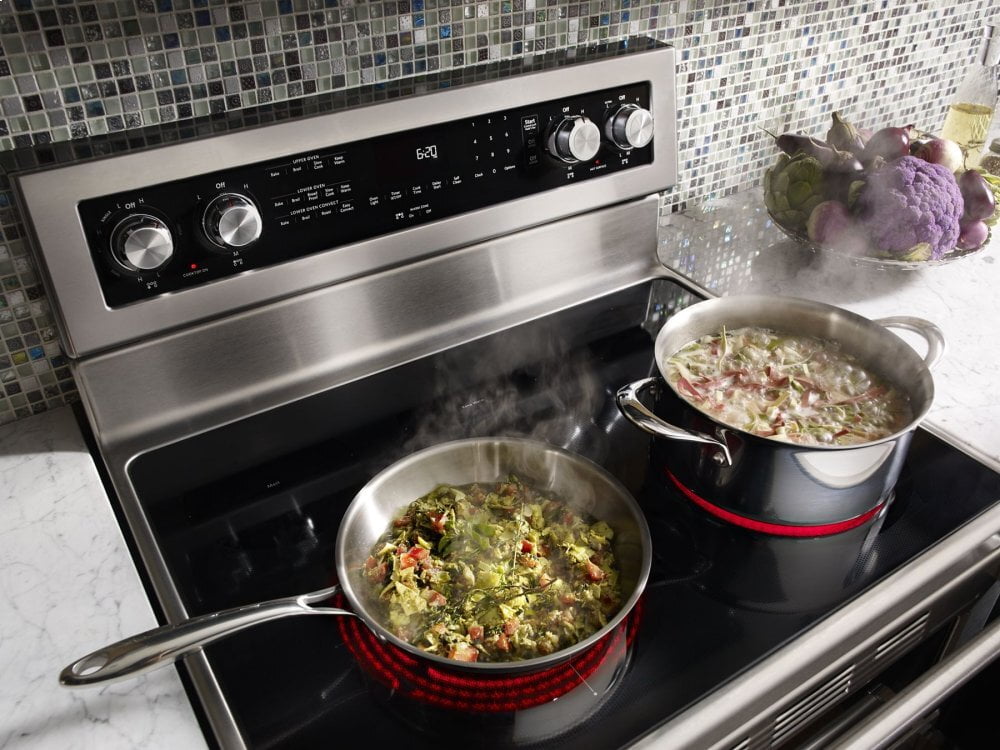

Kitchenaid KFED500ESS 30-Inch 5 Burner Electric Double Oven Convection Range - Stainless Steel
Rebates &
Promotions
KitchenAid Craft Your Dream Kitchen Rebate - Receive up to a $3000 rebate with purchase of qualifying KitchenAid Brand Appliances. Download Valid: 07/01/2024-12/31/2024

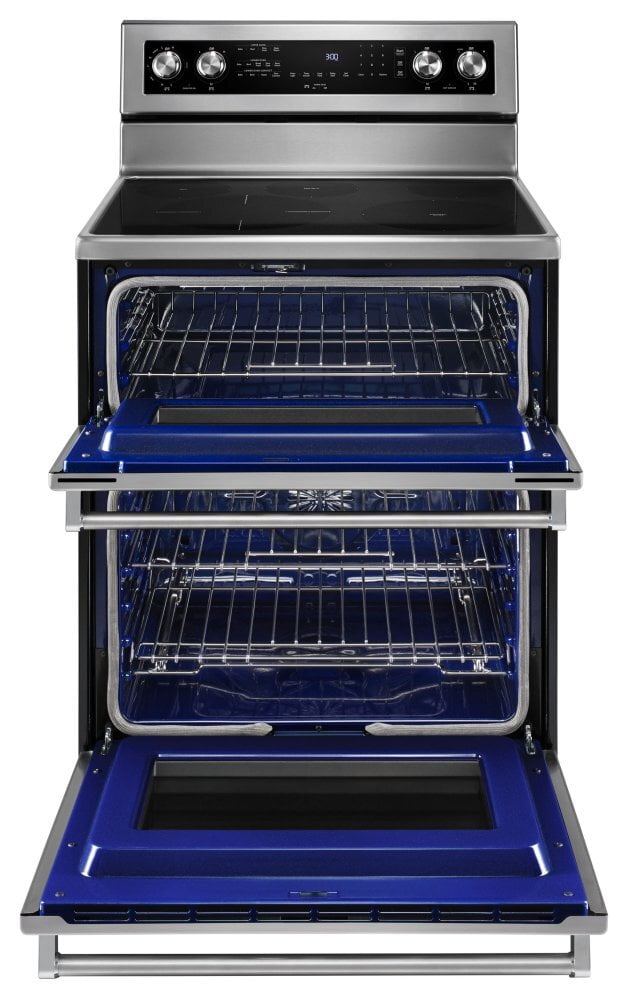

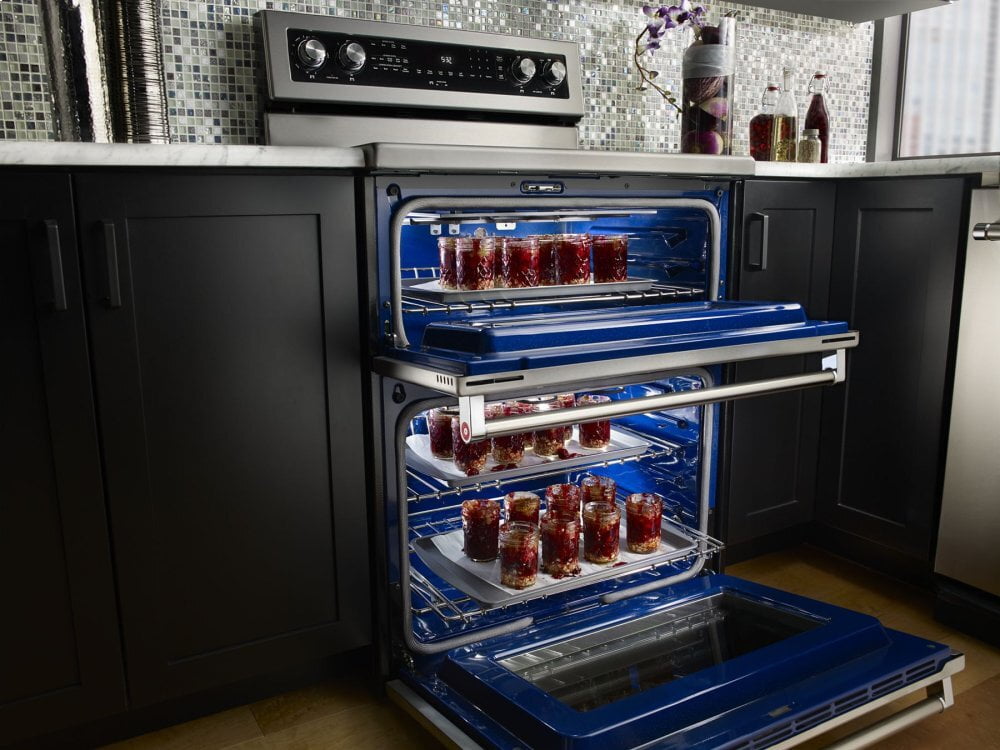

6.7 Cu. Ft. Total Capacity
Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.
Professionally-Inspired Design
Combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid(R) Badge, a symbol of uncompromised quality.
EasyConvect Conversion System
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
Professionally-Inspired Design
combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid(R) Badge, a symbol of uncompromised quality.
- Even-Heat True Convection - features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

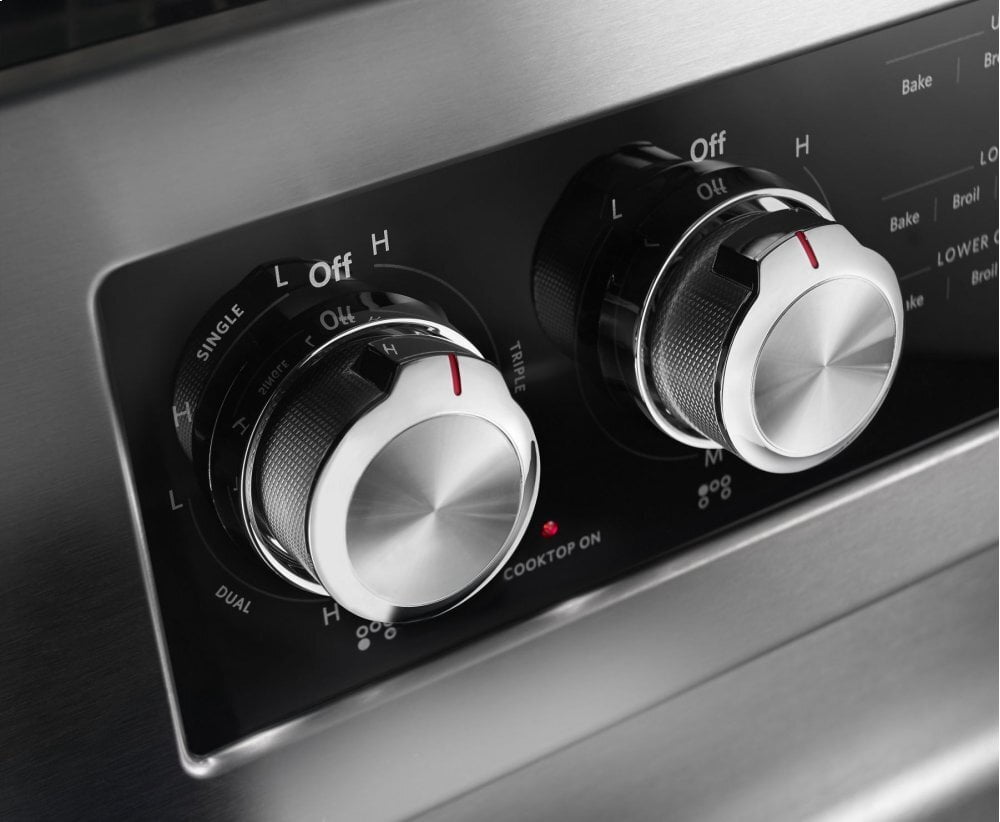

- 5 Cooking Elements Including a Warm Zone - Provides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.

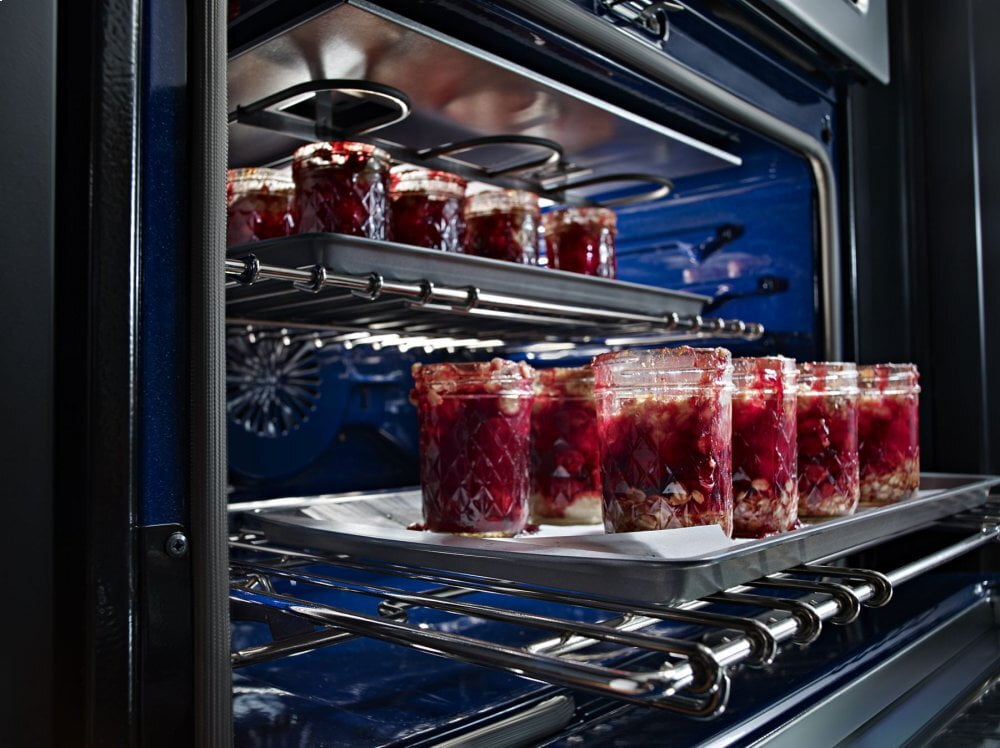

- SatinGlide(R) Rack - Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
- Hidden Bake - Covers up the baking element, making it easier to wipe away spills.
- Triple-Ring Element - With three element sizes at one location, you get the versatility to match cooking surface to cookware size.

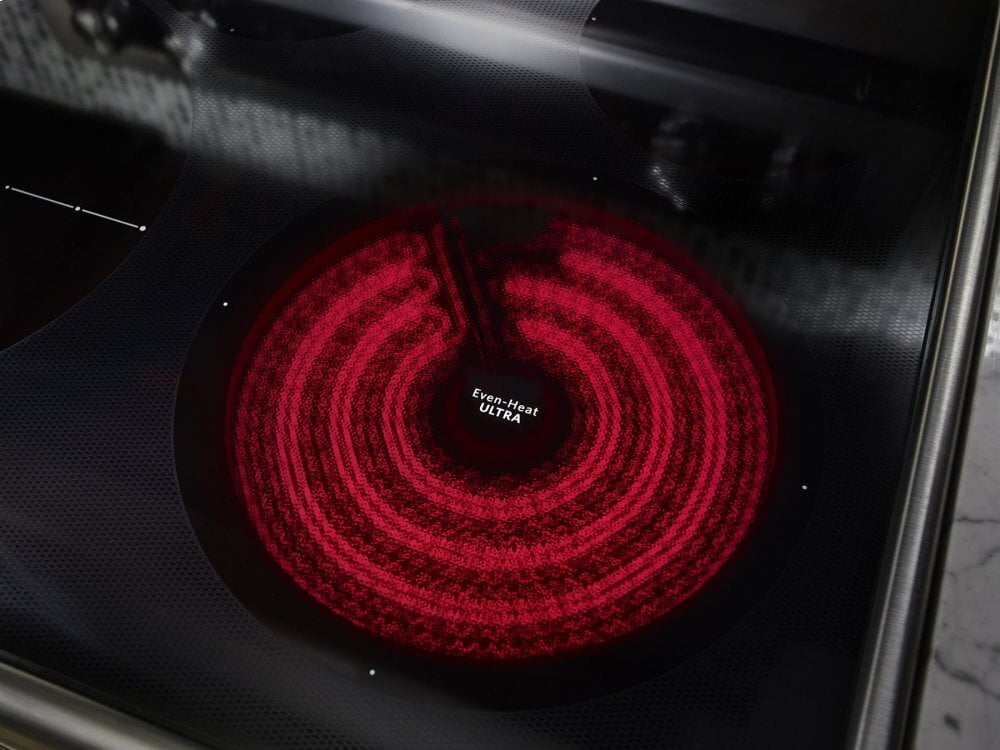

- 10" Even-Heat Ultra Element - Delivers consistent heat across the cooktop, including fast boils, precise simmering and exceptional melting.
Specifications | |
Dimensions | |
Capacity | 6-7/10 |
Depth Closed Including Handles | 28-1/2 in |
Depth With Door Open 90 Degree | 45.0 in |
Height | 47-3/8 in |
Lower Oven Capacity | 4.2 cu. ft. |
Upper Oven Capacity | 2.5 cu. ft. |
Width | 29-15/16 in |
Configuration and Overview | |
Fuel Type | Electric |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Range Type | Freestanding Double Oven |
Size | 30 in |
UL | UL |
Appearance | |
Door Type | Metal & Glass |
Handle Color | Stainless Steel |
Handle Material | Metal |
Oven Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Bake Element Power | 2000W Both |
Broiler Location | Top of Oven |
Convection Element Type | Single-Fan |
Convection Functions | Bake, Broil, Roast |
Drawer Type | None |
Hidden Bake Element | Yes |
Interior Color | Blue |
Lower Oven Interior Depth | 18-3/4 in |
Lower Oven Interior Height | 16.0 in |
Lower Oven Interior Width | 25.0 in |
Number of Oven Lights | 1 |
Number of Oven Racks | 1 Upper-2 Lower |
Number of Rack Guides | 2 Upper-5 Lower |

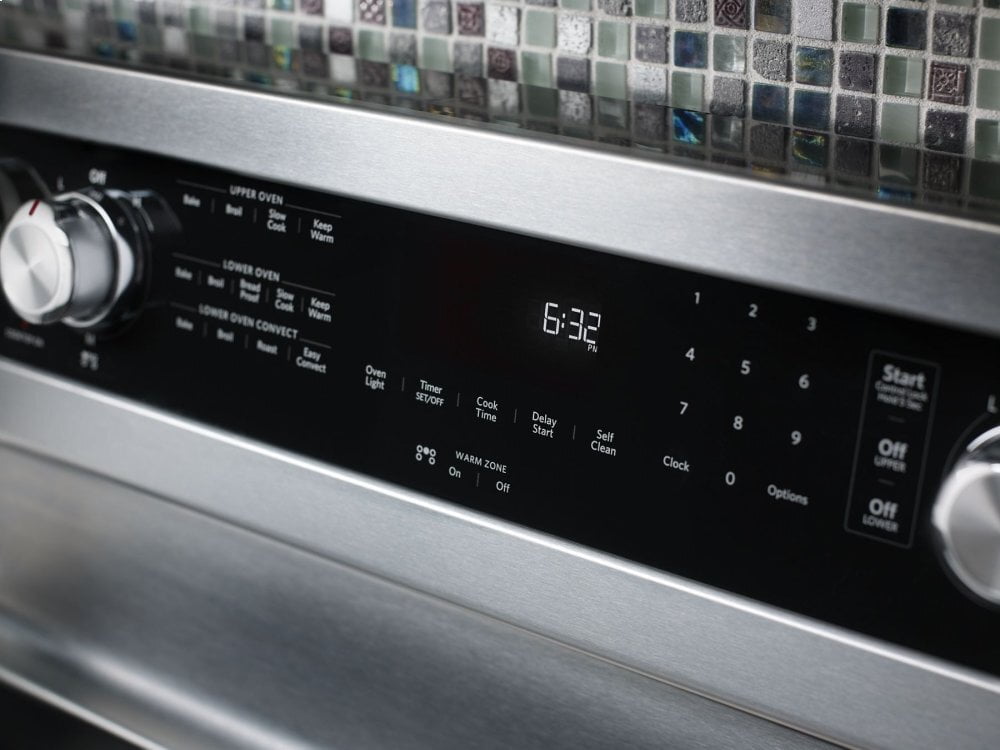

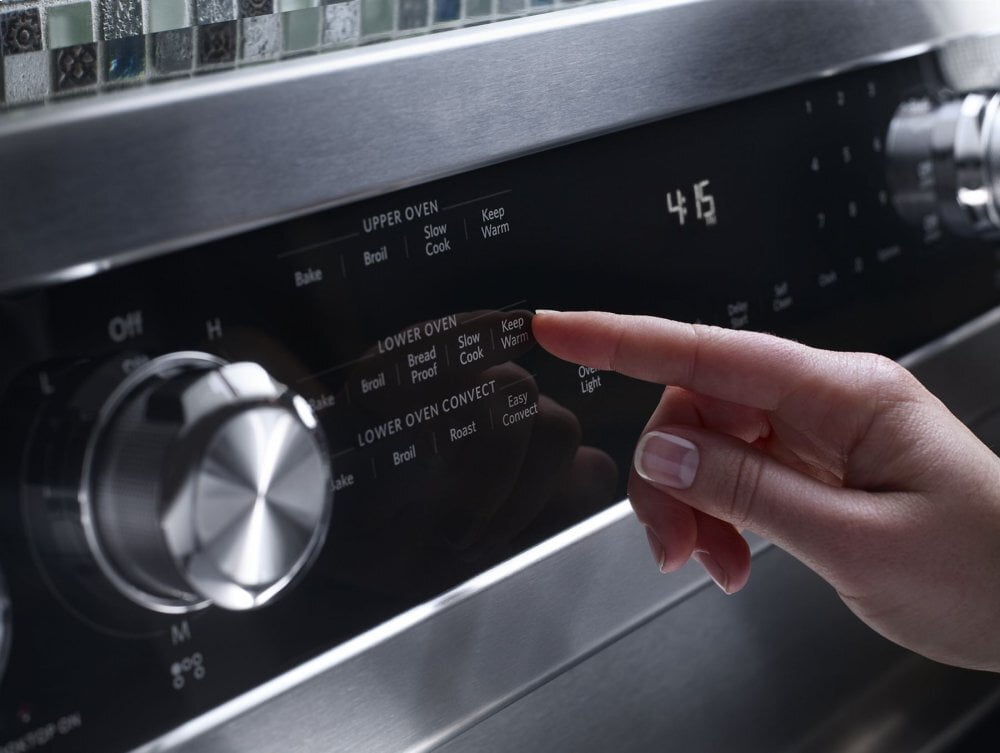

Oven Control Type | Electronic Touch |
Oven Cooking System | Thermal Upper-Convection Lower |
Oven Light Type | Incandescent |
Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
Power On Indicator Light | Yes |
Upper Oven Interior Depth | 19-1/4 in |
Upper Oven Interior Height | 8-1/2 in |
Upper Oven Interior Width | 25.0 in |
Cooktop Details | |
Center Rear Element-Burner Power | 100W |
Center Rear Element-Burner Size | 6'' |

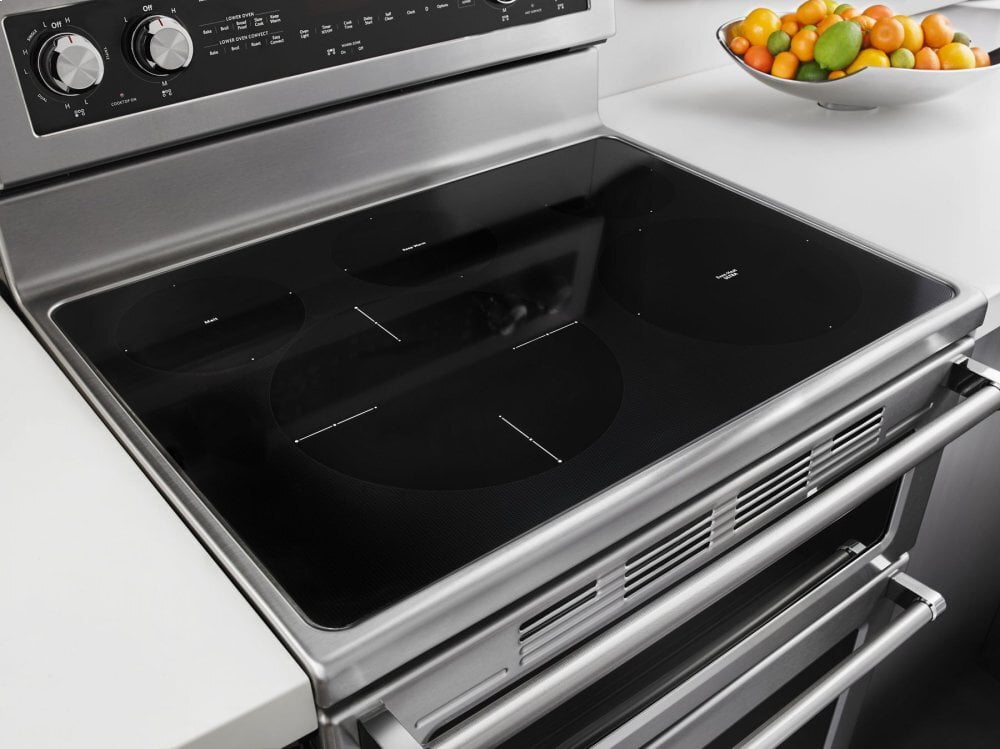

Cooktop Element Style | Radiant |
Cooktop Surface Color | Black |
Cooktop Surface Material | Ceramic Glass |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Left Front Element-Burner Power | 2700W/1950W/1050W |
Left Front Element-Burner Size | 12''/9''/6'' |
Left Front Element-Burner Type | Triple |
Left Rear Element-Burner Power | 700W |
Left Rear Element-Burner Size | 6'' |
Left Rear Element-Burner Type | Single |
Number of Cooking Element-Burners | 5 |
Power Outage Compatible | No |
Right Front Element-Burner Power | 3200W |
Right Front Element-Burner Size | 10'' |
Right Front Element-Burner Type | Radiant Hyper |
Right Rear Element-Burner Size | 6'' |
Right Rear Element-Burner Type | Single |
Details | |
Bake Element Power | 2000W Both |
Broiler Element Power | 3600W Both |
Convection Element Type | Single-Fan |
Number of Rack Guides | 2 Upper-5 Lower |
Oven Cleaning Type | Self-Cleaning |
Electrical | |
Hz | 60 |
Power Cord Included | No |
Controls | |
Knob Color | Stainless Steel |
Knob Type | Metal |
Exterior | |
Oven Window Size | Large |
Features | |
Power Outage Compatible | No |
GDS | |
GPC Code | 10003690 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100400623 |
isBaseUnit | true |
isConsumerUnit | true |
