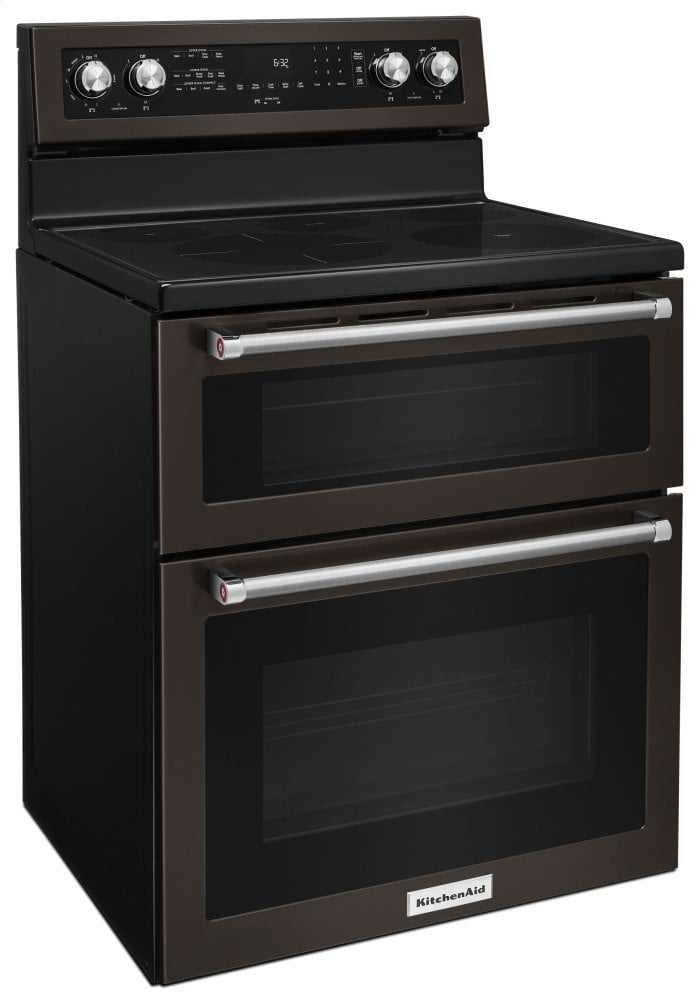

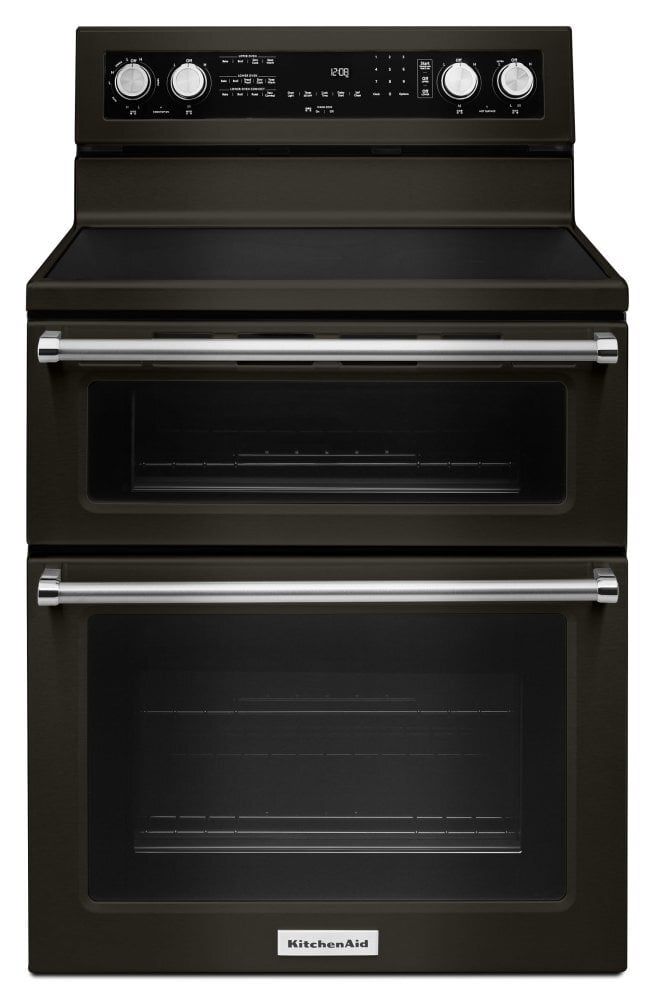

Kitchenaid KFED500EBS 30-Inch 5 Burner Electric Double Oven Convection Range - Black Stainless Steel With Printshield™ Finish
Kitchenaid KFED500EBS 30-Inch 5 Burner Electric Double Oven Convection Range - Black Stainless Steel With Printshield™ Finish
Black Stainless Steel
White
Stainless Steelx
Installation and Removal
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
EXTENDED PROTECTION
3 year plan
$188.995 year plan
$399.00
Available to order
Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x
Kitchenaid KFED500EBS 30-Inch 5 Burner Electric Double Oven Convection Range - Black Stainless Steel With Printshield™ Finish
Rebates &
Promotions
KitchenAid Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying KitchenAid appliances. Download Valid: 03/01/2025-04/30/2025
6.7 Cu. Ft. Total Capacity
Provides an extra-large combined cooking capacity for preparing multiple dishes at once and gives you the flexibility of separate temperature zones.
Professionally-Inspired Design
Combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid(R) Badge, a symbol of uncompromised quality.
EasyConvect Conversion System
Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
Professionally-Inspired Design
combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid(R) Badge, a symbol of uncompromised quality.
- Even-Heat True Convection - features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
- 5 Cooking Elements Including a Warm Zone - Provides five independent cooking surfaces that allow you to do more on your range. It features a triple cooking zone of 6, 9 and 12 inches, one 10 inch zone and two 6 inch cooking zones, plus a dedicated warming zone.
- SatinGlide(R) Rack - Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
- Hidden Bake - Covers up the baking element, making it easier to wipe away spills.
- Triple-Ring Element - With three element sizes at one location, you get the versatility to match cooking surface to cookware size.
- 10" Even-Heat Ultra Element - Delivers consistent heat across the cooktop, including fast boils, precise simmering and exceptional melting.
| Specifications | |
| Dimensions | |
| Capacity | 6-7/10 |
| Depth Closed Including Handles | 28-1/2 in |
| Depth With Door Open 90 Degree | 45.0 in |
| Height | 47-3/8 in |
| Lower Oven Capacity | 4.2 cu. ft. |
| Upper Oven Capacity | 2.5 cu. ft. |
| Width | 29-15/16 in |
| Configuration and Overview | |
| Fuel Type | Electric |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
| Range Type | Freestanding Double Oven |
| Size | 30 in |
| UL | UL |
| Appearance | |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Oven Details | |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Bake Element Power | 2000W Both |
| Broiler Location | Top of Oven |
| Convection Element Type | Single-Fan |
| Convection Functions | Bake, Broil, Roast |
| Drawer Type | None |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Lower Oven Interior Depth | 18-3/4 in |
| Lower Oven Interior Height | 16.0 in |
| Lower Oven Interior Width | 25.0 in |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 1 Upper-2 Lower |
| Number of Rack Guides | 2 Upper-5 Lower |
| Oven Control Type | Electronic Touch |
| Oven Cooking System | Thermal Upper-Convection Lower |
| Oven Light Type | Incandescent |
| Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
| Power On Indicator Light | Yes |
| Upper Oven Interior Depth | 19-1/4 in |
| Upper Oven Interior Height | 8-1/2 in |
| Upper Oven Interior Width | 25.0 in |
| Cooktop Details | |
| Center Rear Element-Burner Power | 100W |
| Center Rear Element-Burner Size | 6'' |
| Cooktop Element Style | Radiant |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Left Front Element-Burner Power | 2700W/1950W/1050W |
| Left Front Element-Burner Size | 12''/9''/6'' |
| Left Front Element-Burner Type | Triple |
| Left Rear Element-Burner Power | 700W |
| Left Rear Element-Burner Size | 6'' |
| Left Rear Element-Burner Type | Single |
| Number of Cooking Element-Burners | 5 |
| Power Outage Compatible | No |
| Right Front Element-Burner Power | 3200W |
| Right Front Element-Burner Size | 10'' |
| Right Front Element-Burner Type | Radiant Hyper |
| Right Rear Element-Burner Size | 6'' |
| Right Rear Element-Burner Type | Single |
| Details | |
| Bake Element Power | 2000W Both |
| Broiler Element Power | 3600W Both |
| Convection Element Type | Single-Fan |
| Number of Rack Guides | 2 Upper-5 Lower |
| Oven Cleaning Type | Self-Cleaning |
| Electrical | |
| Hz | 60 |
| Power Cord Included | No |
| Controls | |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Exterior | |
| Oven Window Size | Large |
| Features | |
| Power Outage Compatible | No |
