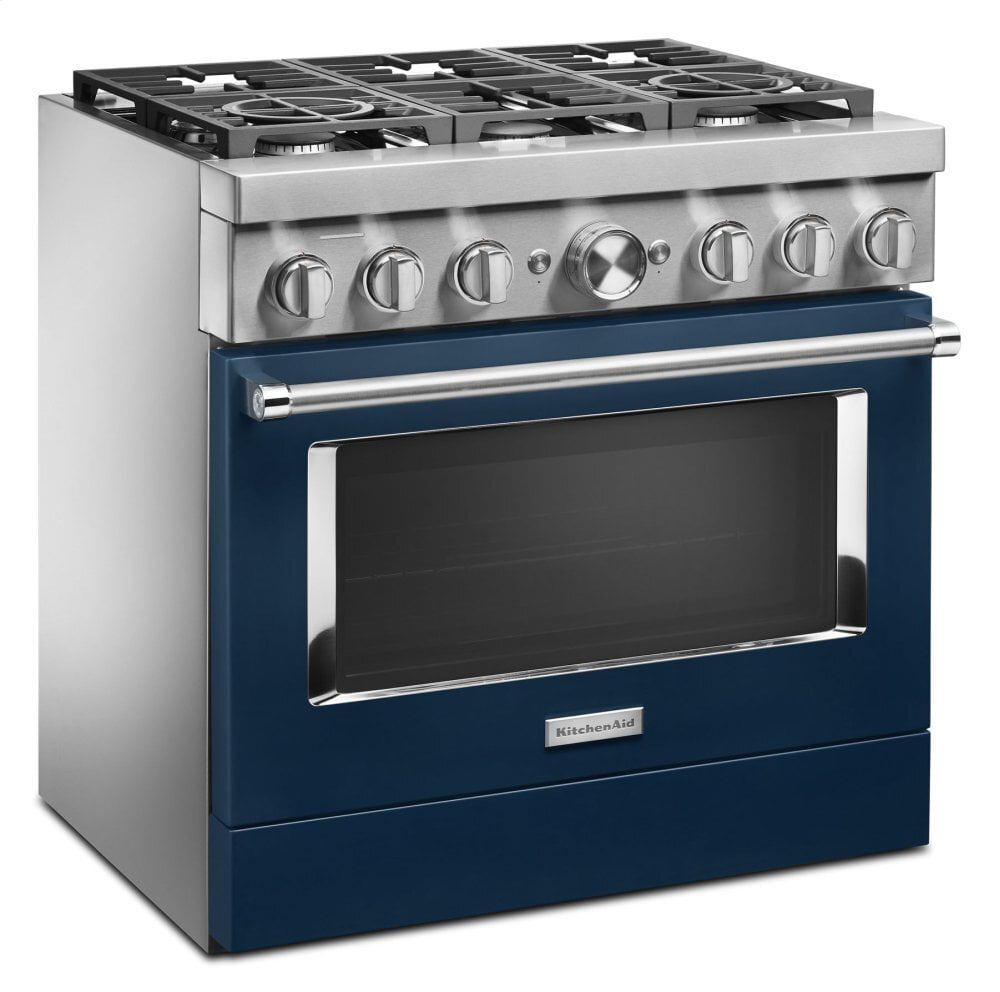

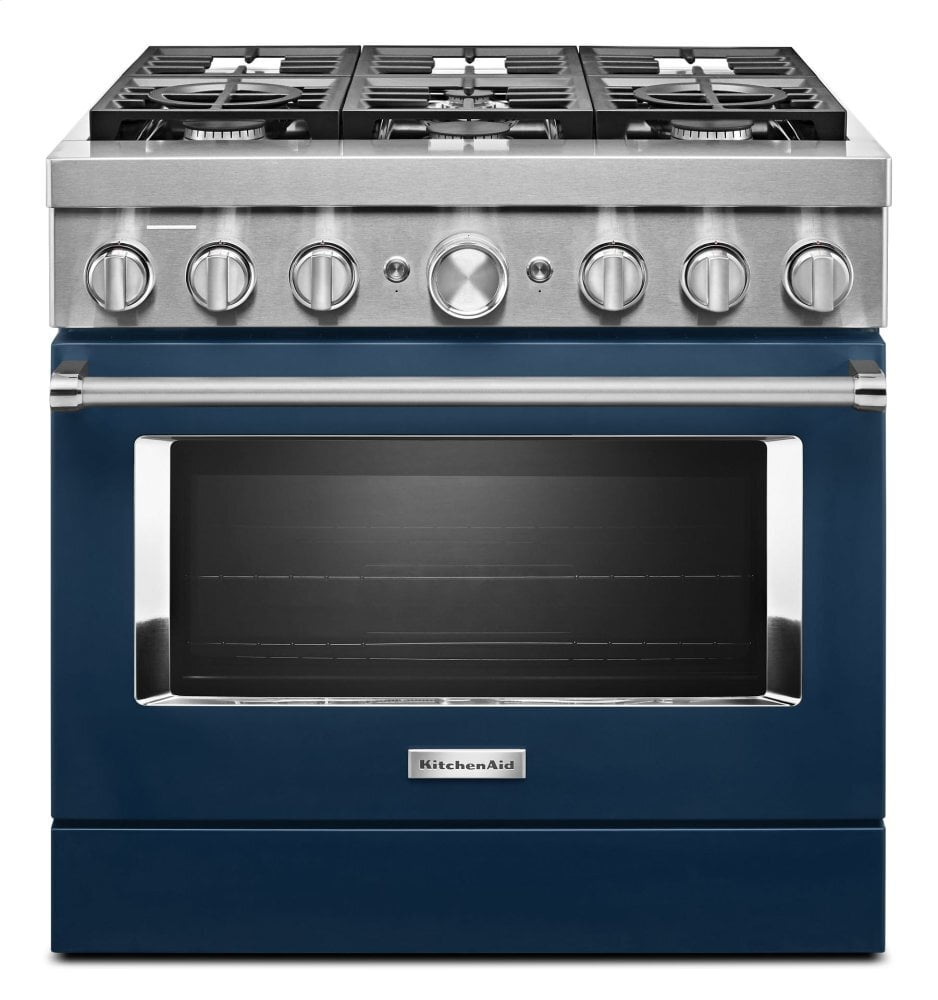

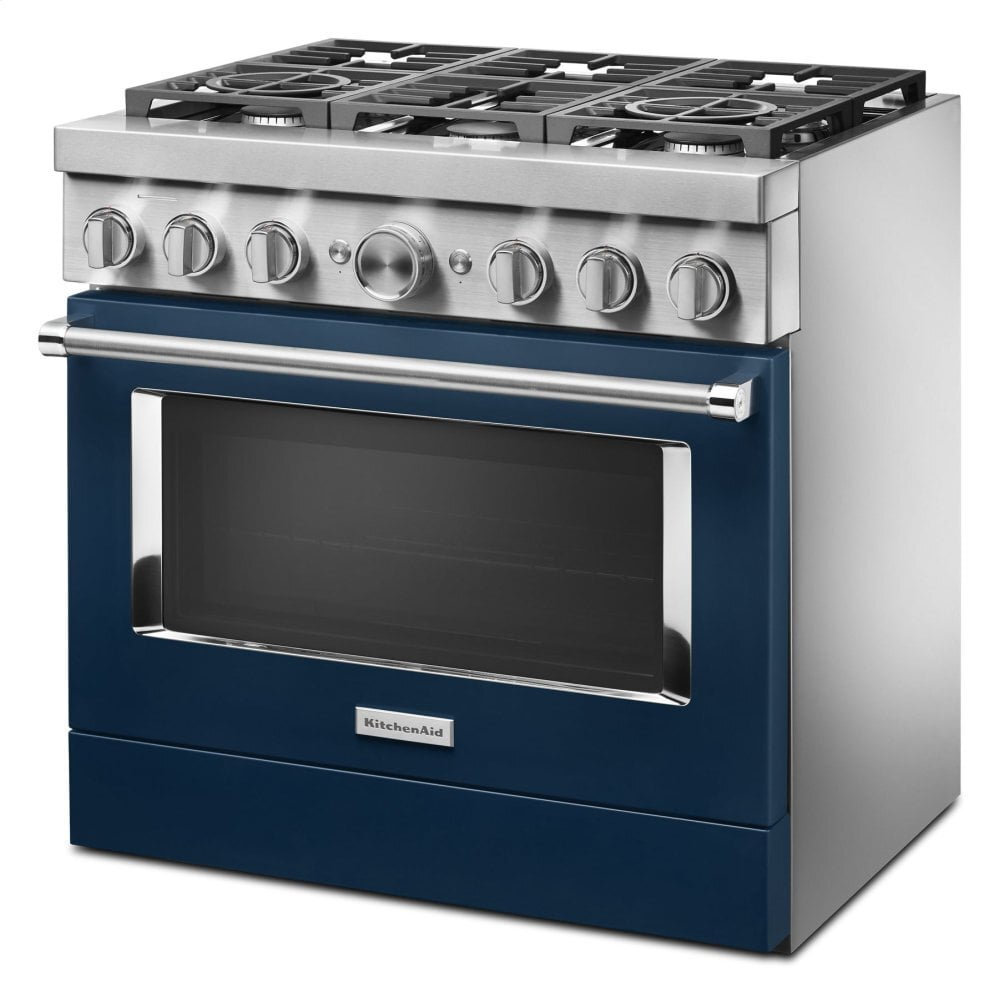

Kitchenaid KFDC506JIB Kitchenaid® 36'' Smart Commercial-Style Dual Fuel Range With 6 Burners - Ink Blue
Rebates &
Promotions
KitchenAid Craft Your Dream Kitchen Rebate - Receive up to a $3000 rebate with purchase of qualifying KitchenAid Brand Appliances. Download Valid: 07/01/2024-12/31/2024
Dual Fuel Range
satisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting and broiling of an electric oven.
Even-Heat True Convection
features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.
Smart Appliance
lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands on or hands off. Use the KitchenAid App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.
Two 20,000 BTU Ultra Power Dual-Flame Burners
give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, saute , simmer and sizzle, all on the same burner.
5,000 BTU Simmer & Melt Burner
with a low flame sized for small saucepans lets you reach and maintain low temperatures. Simmer sauces until they look, feel and taste just right and melt even delicate ingredients.

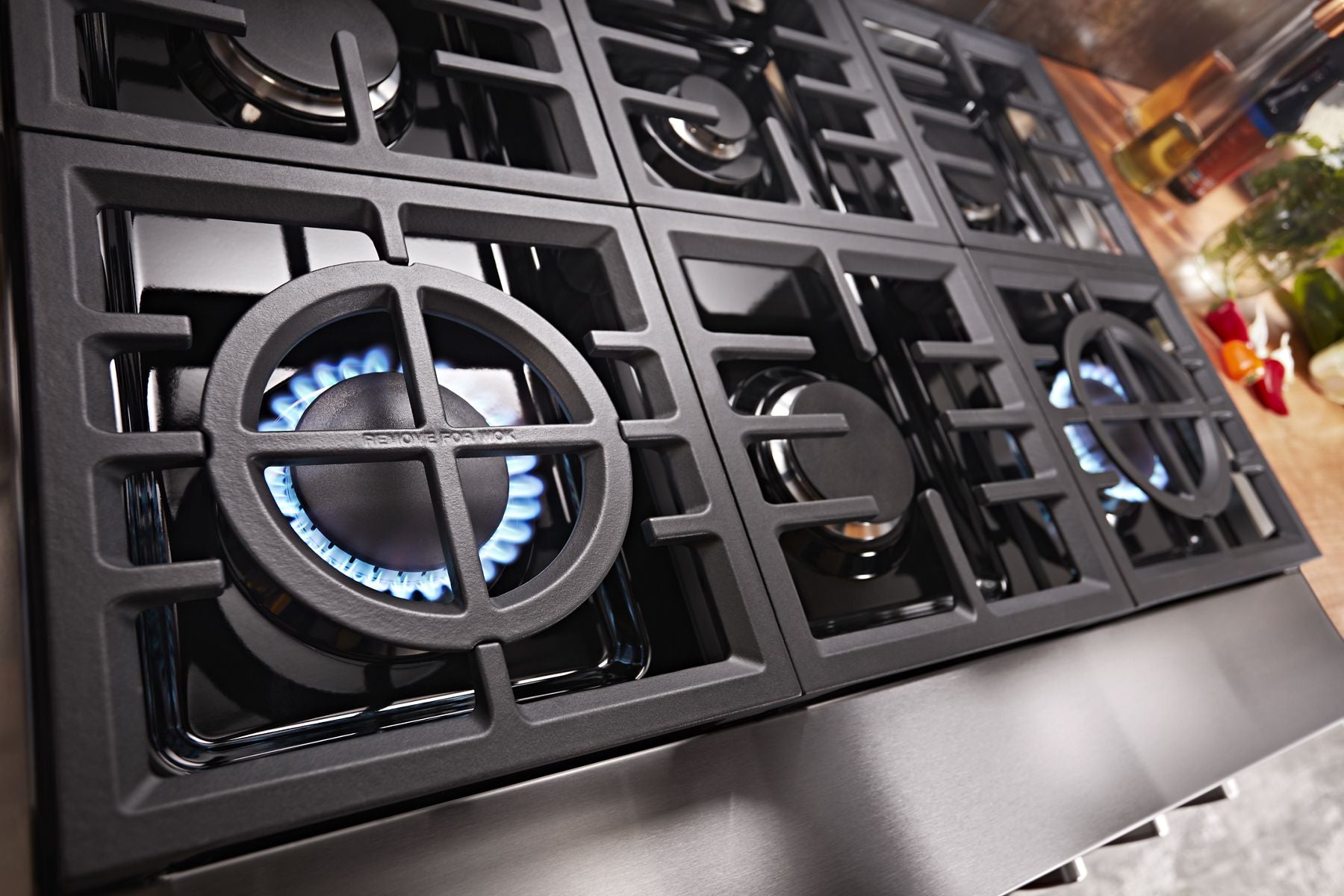

Three-Level Convertible Grates

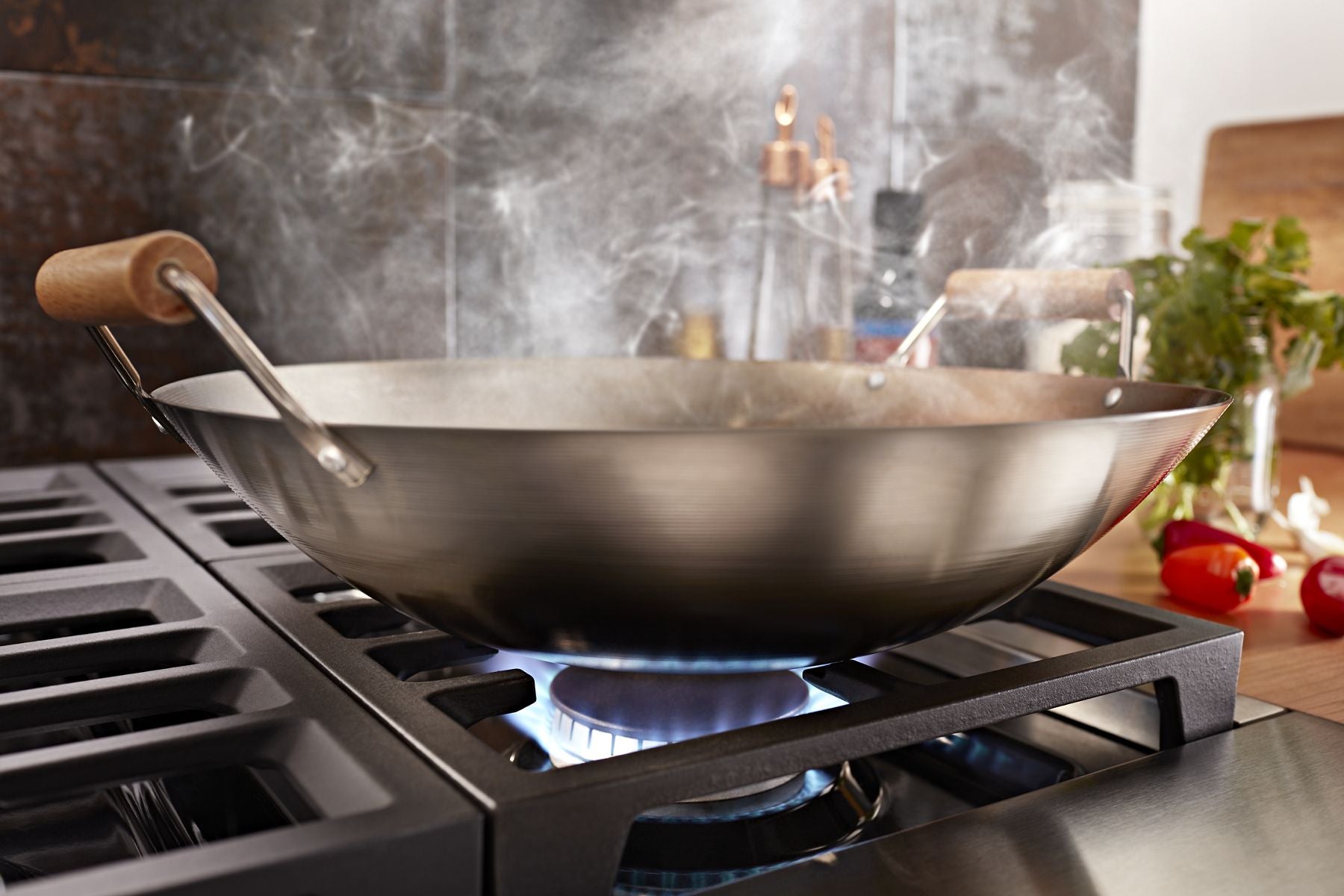

with removable inserts match the heat to your technique. Leave the insert level for high-heat searing and saute ing, flip it over to lift your pan above the flame to simmer and melt or remove it to nestle a round-bottom wok in the flame for stir-fry.

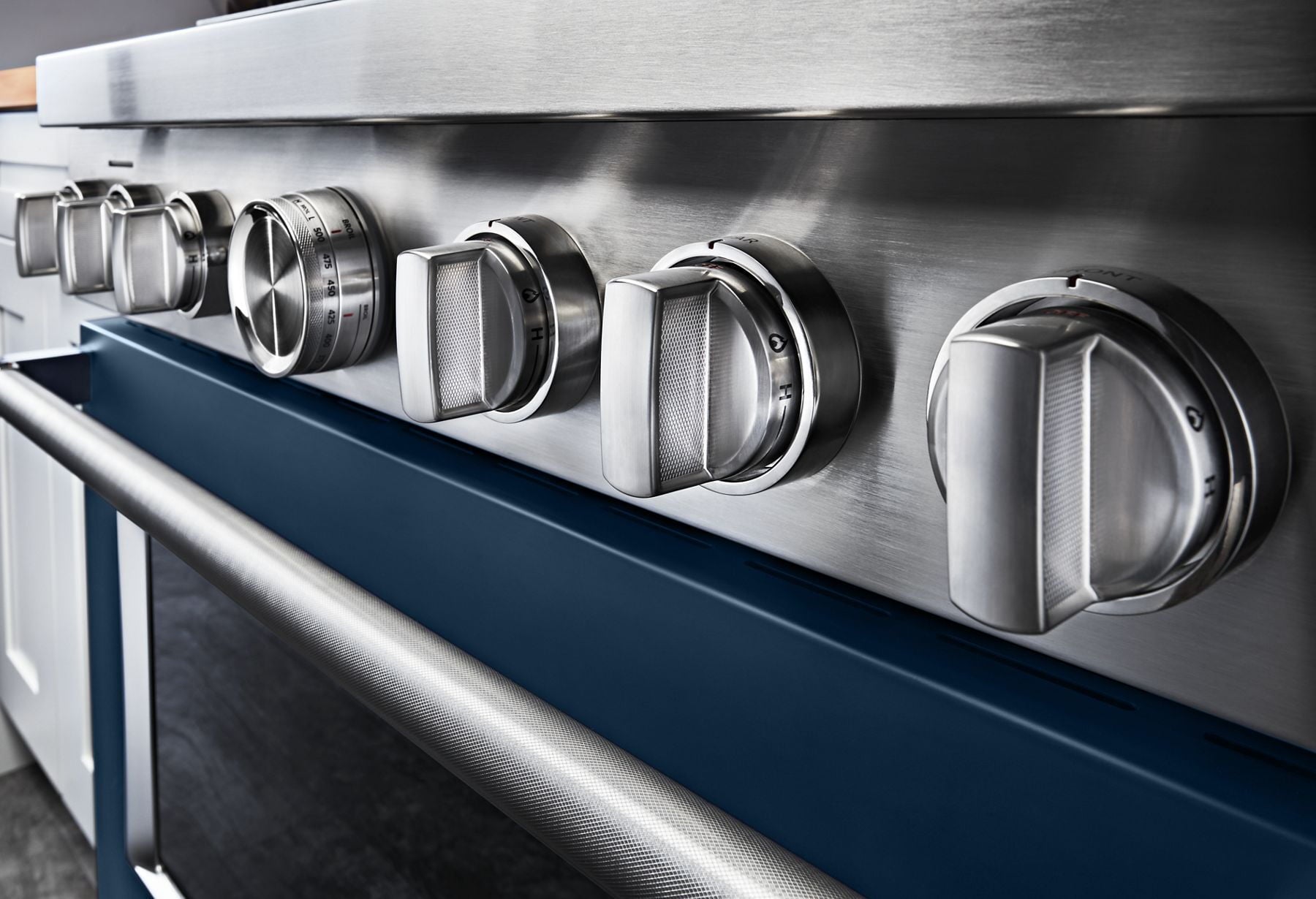

Dual-Concentric Oven Knob
provides one-handed control of both oven mode and temperature. Two knobs in one let you first choose Bake, Broil or Convection, then select the temperature. Responsive backlighting confirms settings are correct or alerts you to needed adjustments.

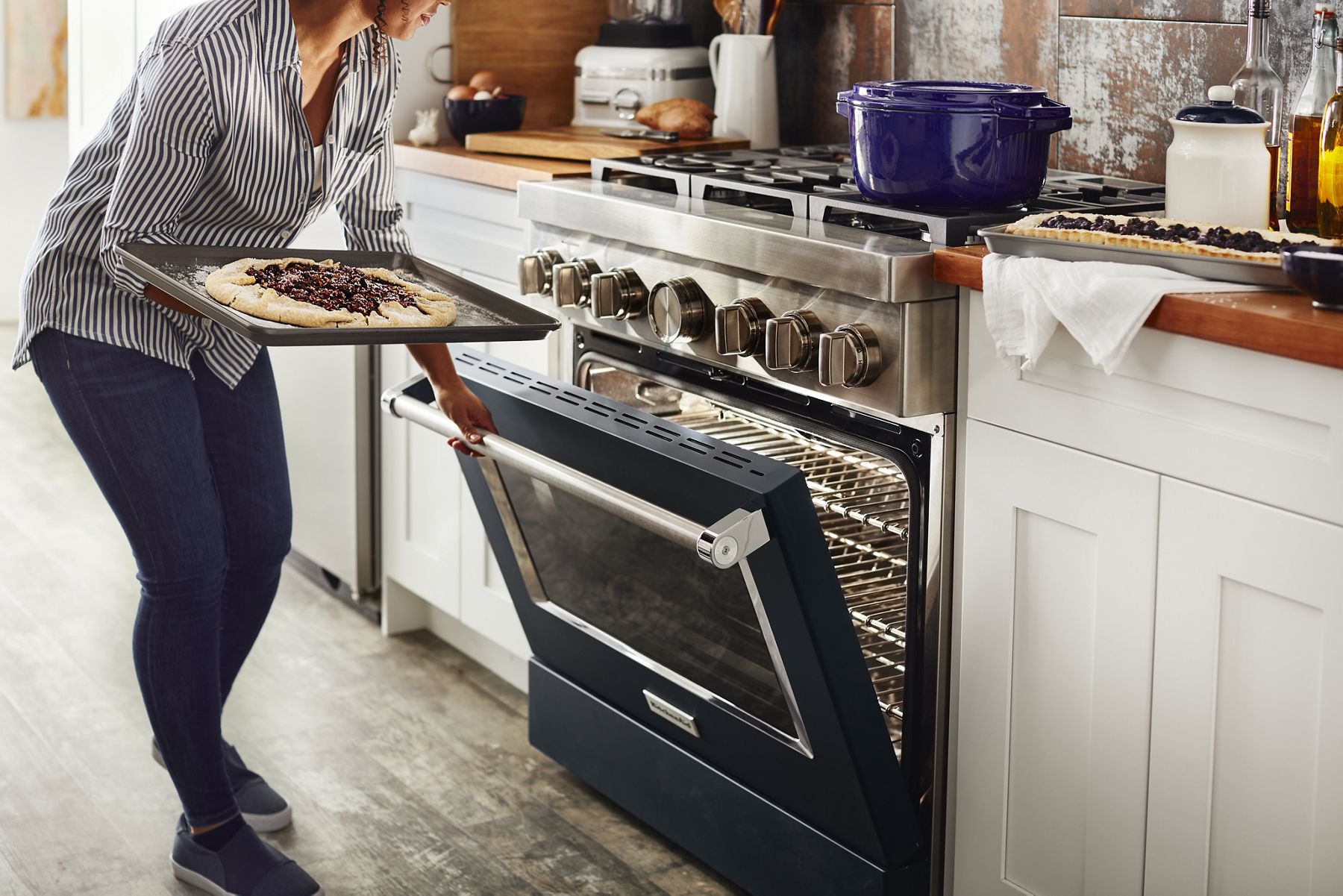

SatinGlide Roll-Out Extension Rack
makes it easier to cook with large or heavy bakeware. Sure-grip handle and smooth roll-out simplify loading and unloading.

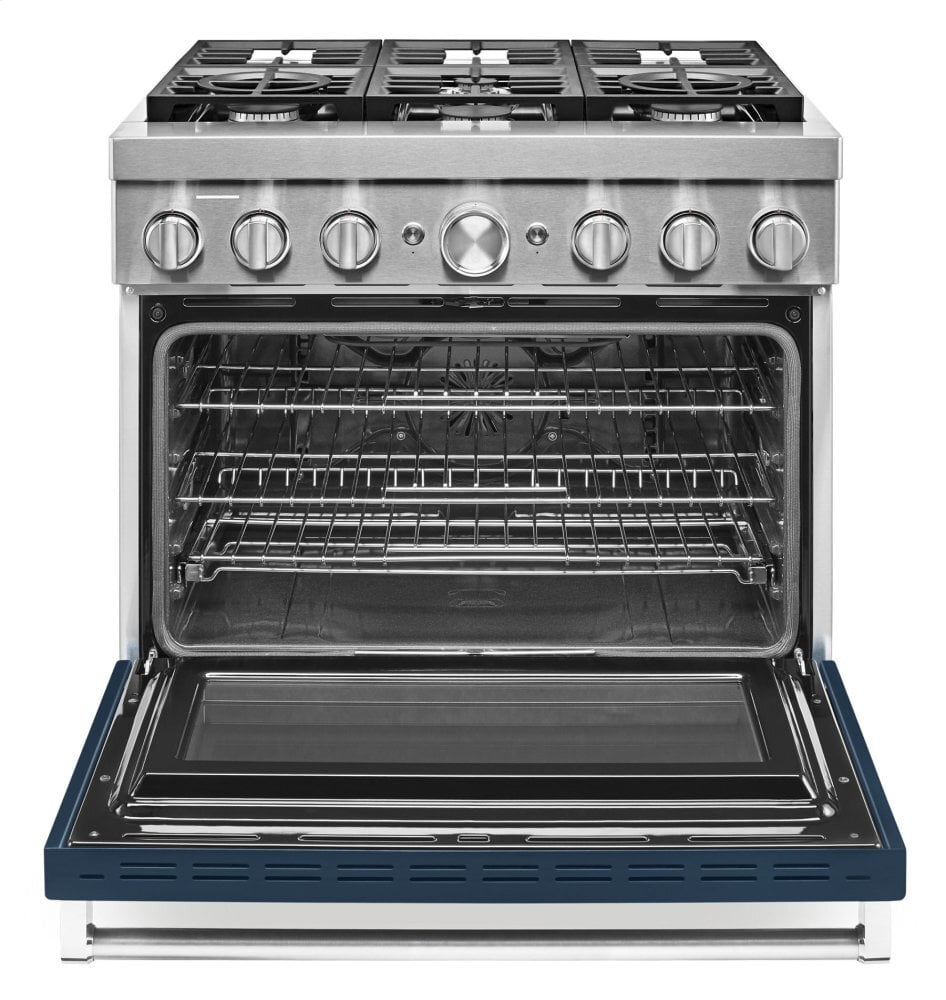

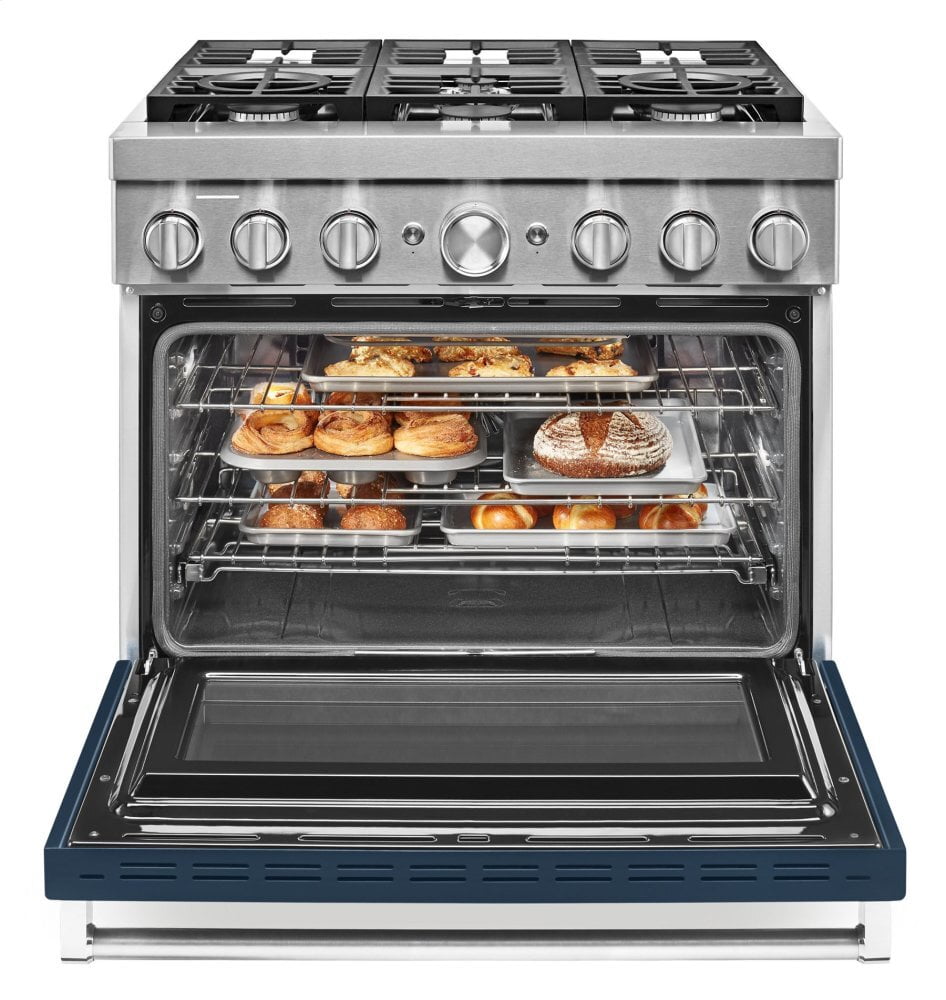

5.1 Cu. Ft. Capacity
provides extra room for multiple dishes, so you can cook a whole turkey or roast and sides all at once.
EasyConvect Conversion System
Automatically adjusts conventional baking temperatures to their convection equivalents from the KitchenAid app, making it effortless to use convection with recipes of all kinds.
- Three 15,000 BTU Burners - deliver the high-heat you need for successful searing, saute ing, stir-frying and quickly bringing large stock pots to a rolling boil.

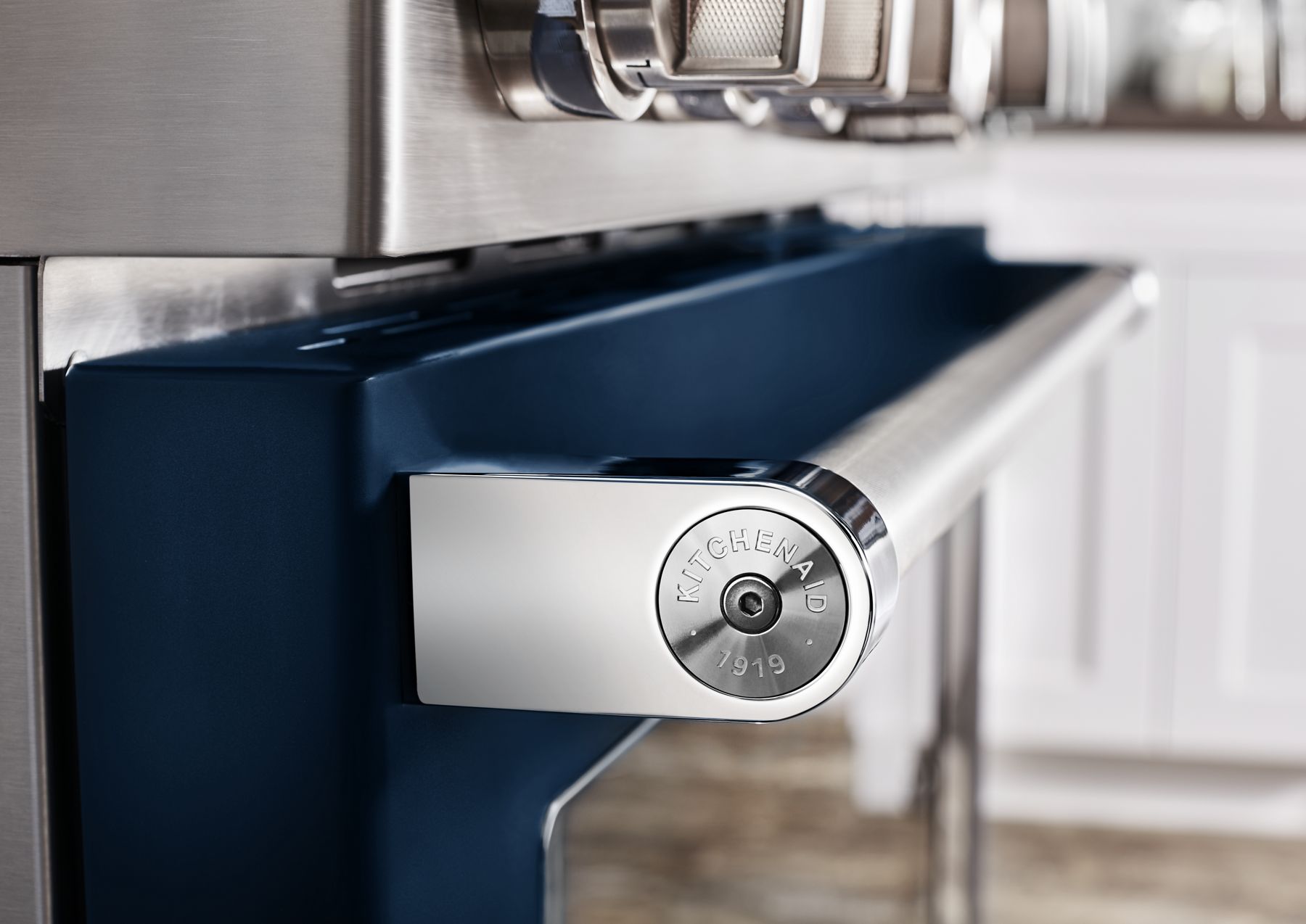

- KitchenAid(R) Handle Medallion Kit (sold separately) - lets you change the color of your commercial-style range handle medallions to add a custom accent. Available in Silver, Dark Blue, Bronze, Black, Copper, Red, New Gold, and Mascarpone. Each kit includes two medallions and a 1/8" hex allen wrench for easy replacement (sold separately)
Oven Details | |
Door Removable | Yes |
Power On Indicator Light | Yes |
Automatic Convection Conversion Temperature Adjust | Yes |
Automatic Shut-Off | Yes |
Oven Cooking System | True Convection |
Interior Color | Black |
Oven Control Location | Front |
Oven Control Type | Knobs |
Broiler Location | Top Center |
Oven Light Switch Location | Oven Control |
Oven Interior Depth | 16-3/10 in |
Oven Interior Height | 14-3/10 in |
Oven Interior Width | 29-9/10 in |
Hidden Bake Element | Yes |
Convection Functions | Bake , Broil , Roast |
Compatibility | |
Connectivity | Amazon Alexa , Android , Google Assistant , iOS |
Works With | WiFi , App , Remote Access , Voice Controlled |
Details | |
Bake Element Power | 3000W |
Broiler Element Power | 5500W |
Oven Cleaning Type | Self-Cleaning |
Convection Element Type | True-Bow Tie |
Number of Rack Guides | 6 |
Appearance | |
Handle Material | Metal |

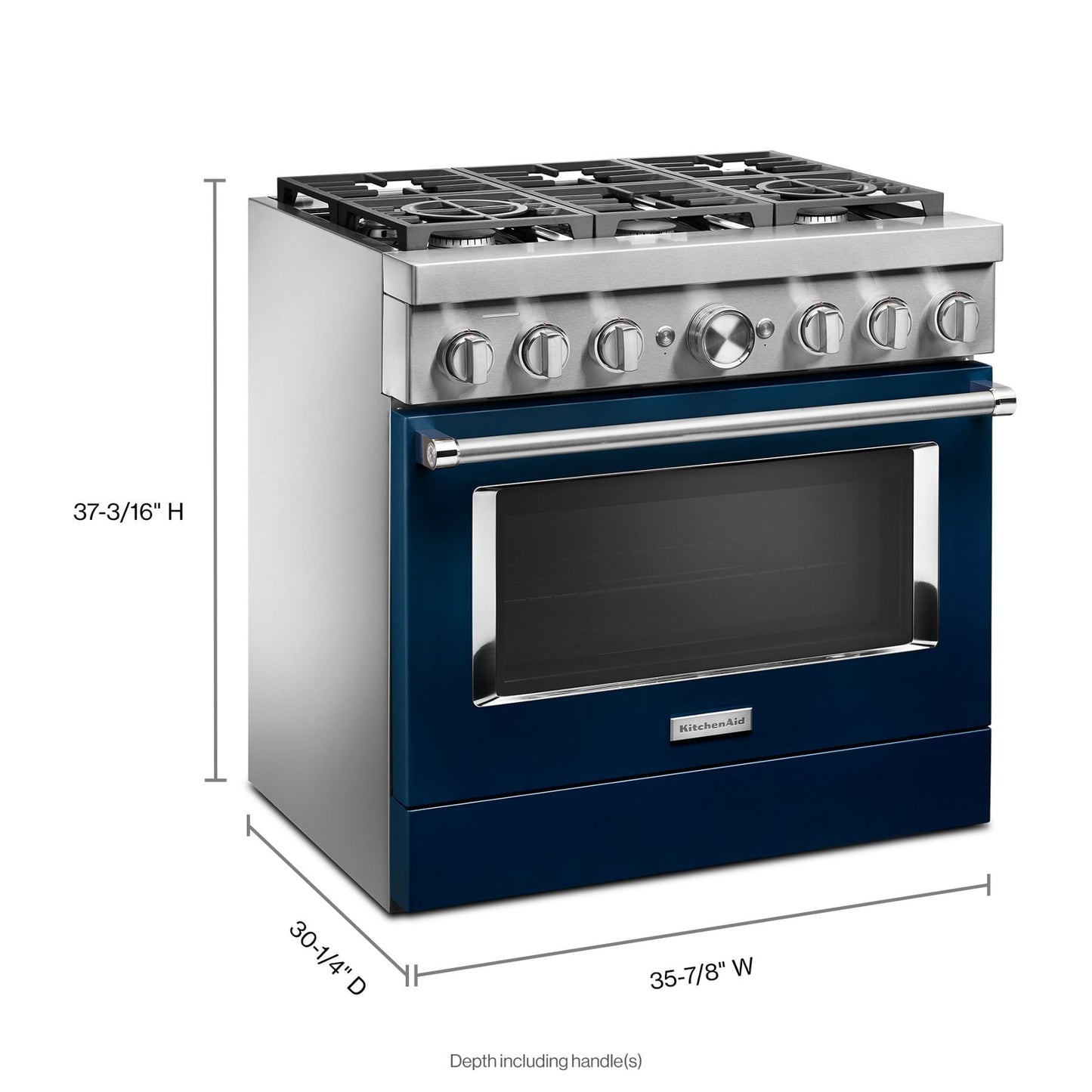

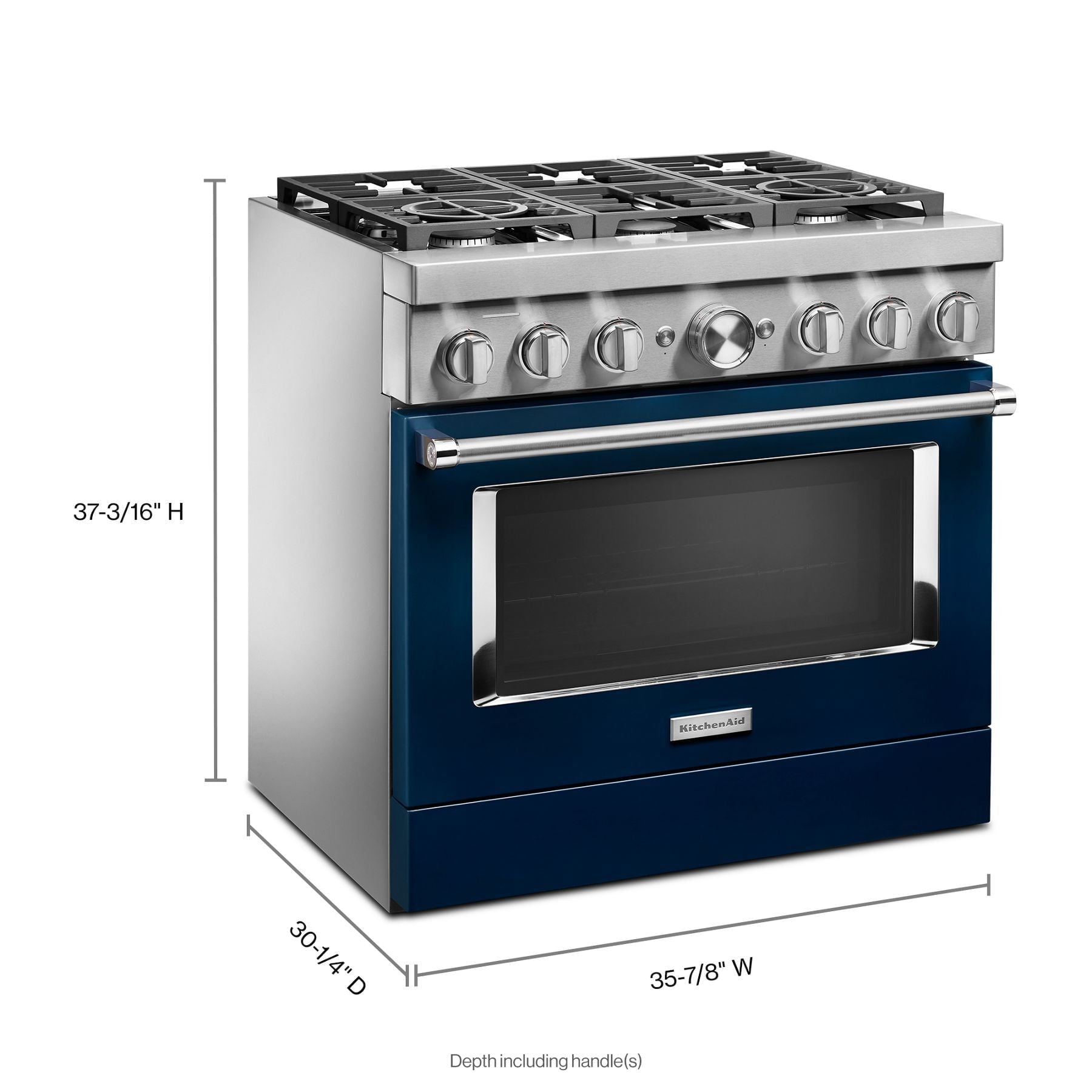

Dimensions | |
Depth Closed Excluding Handles | 27-3/4 in |
Depth Closed Including Handles | 30-1/4 in |
Depth With Door Open 90 Degree | 46-1/2 in |
Height | 36.0 in |
Maximum Height | 37-1/2 in |
Minimum Height | 36.0 in |
Width | 35-7/8 in |
Cutout Depth | 24.0 in |
Cutout Height | 36.0 in |
Cutout Width | 36.0 in |
Capacity | 5-1/10 |
Features | |
Natural Gas Convertible | Yes |
Power Outage Compatible | Yes |
Dimensions | |
Gross Weight | 444.000 lbs |
Cooktop Details | |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Cooktop Element Style | Sealed Burners |
Cooktop Surface Material | Porcelain Coated Steel |
Ignition Type | Flame-Sensing Re-ignition |
Number of Cooking Element-Burners | 6 |
Grate Details | Dishwasher Safe , Matte Finish , Porcelain Coated Cast Grates , Individual |
Number of Grates | 6 |
Auto Re-ignition | Yes |
Cooktop Control Knob Type | Metal |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Surface Color | Black |
Center Front Element-Burner Type | Sealed Burner |
Left Front Element-Burner Type | Dual-Stacked Burner |
Left Rear Element-Burner Type | Sealed Burner |
Center Front Element-Burner Power | 15,000 BTU |
Center Rear Element-Burner Power | 5000 BTU |
Left Rear Element-Burner Power | 15,000 BTU |
Right Front Element-Burner Power | 20,000 BTU |
Right Front Element-Burner Type | Dual-Stacked Burner |
Right Rear Element-Burner Type | Sealed Burner |
Left Front Element-Burner Power | 20,000 BTU |
Configuration and Overview | |
Size | 36 in |
Fuel Type | Dual Fuel |
Range Type | Freestanding |
LP Convertible | Yes - Kit Included |
CUL | Yes |
Exterior | |
Handle Color | Stainless Steel |
Oven Window Size | Large |
Electrical Requirements | |
Hz | |
Power Cord Included |
