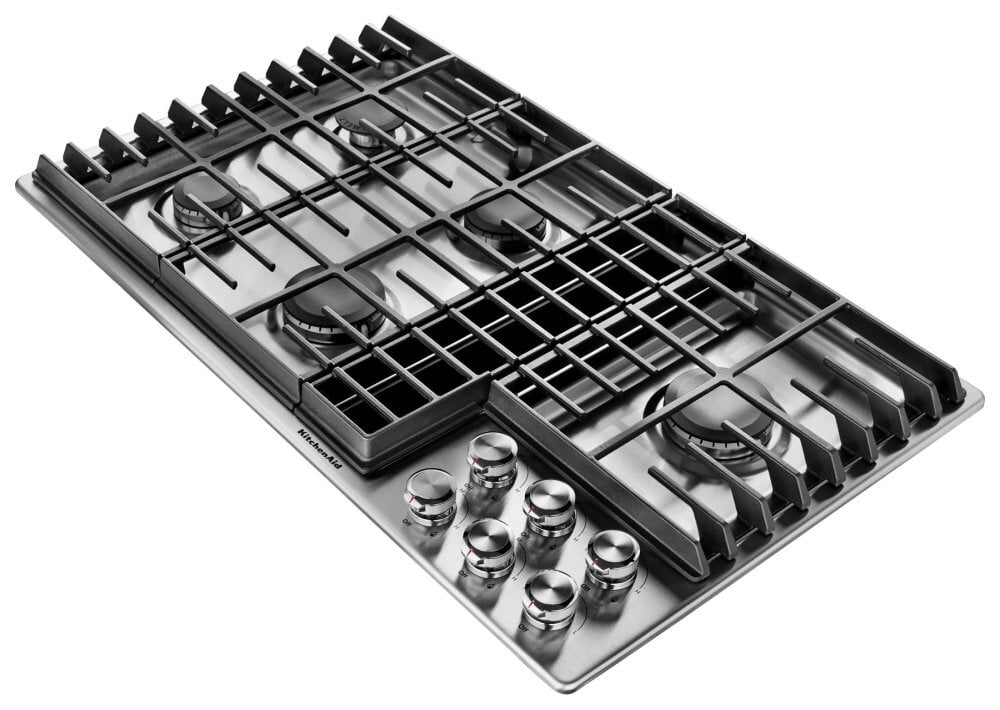

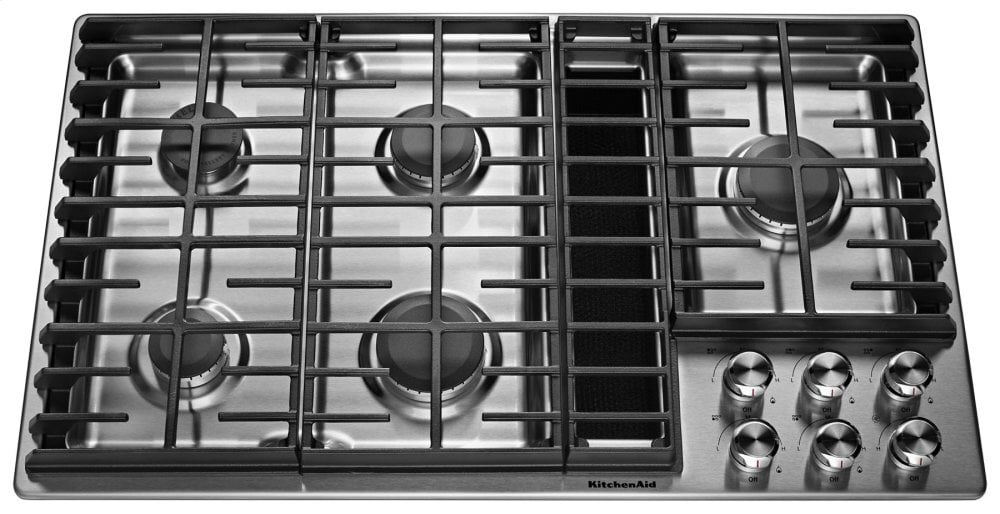

Kitchenaid KCGD506GSS 36" 5 Burner Gas Downdraft Cooktop - Stainless Steel

Kitchenaid KCGD506GSS 36" 5 Burner Gas Downdraft Cooktop - Stainless Steel

Colors:

Stainless Steel

x

    • Installation and Removal

    x

    THIS ITEM QUALIFIES FOR FREE DELIVERY!

    List Price: $2,599.00
    Our Price: $2,339.99
    You save: $259.01 (9%)
    EXTENDED PROTECTION

    3 year plan

    $188.99

    5 year plan

    $399.00

    More Stock Arriving Soon - Expected 12/29

    Shipping calculated at checkout.
    View full details

    x

    • Installation and Removal

    x

    When Will I Get My Order?

    x

    Kitchenaid KCGD506GSS 36
    Kitchenaid KCGD506GSS 36" 5 Burner Gas Downdraft Cooktop - Stainless Steel

    Rebates &
    Promotions

    KitchenAid Craft Your Dream Kitchen Rebate - Receive up to a $3000 rebate with purchase of qualifying KitchenAid Brand Appliances. Download Valid: 07/01/2025-12/31/2025
    Receive up to a $3000 rebate with purchase of qualifying KitchenAid Brand Appliances. - Receive up to a $3000 rebate with purchase of qualifying KitchenAid Brand Appliances. Download Valid: 07/01/2025-12/31/2025

    17K BTU Professional Burner

    Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.

    3-Speed Fan Control

    Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.

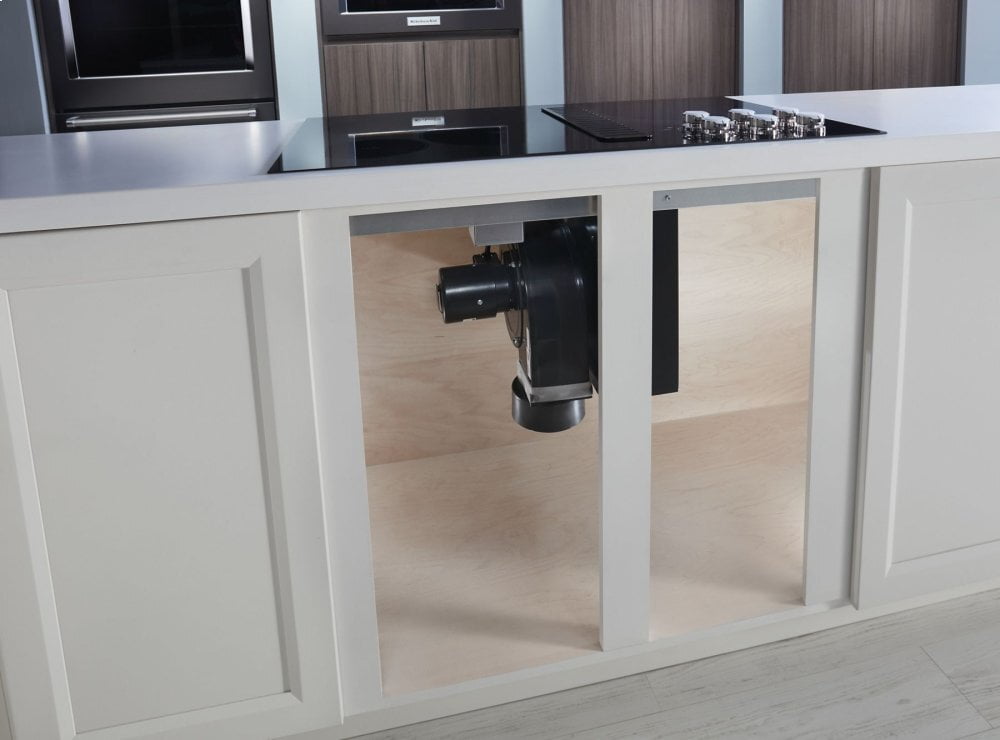

    Convertible to Duct-Free Ventilation

    Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.

    Electronic Ignition and Automatic Re-Ignition

    Lights burners with an electric spark instead of a pilot light. For more reliable performance, burners are relit if the flame is blown out.

    Full-Width Cast-Iron Grates

    Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.

    This 36" Gas Cooktop Includes Downdraft, An Integrated Ventilation System That Doesn'T Require A Separate Hood. The Cooktop Features A 17K Btu Professional Burner To Achieve Both High Heat Needed For Searing And Low Simmer Settings. The 5K Btu Even-Heat Simmer Burner Enables Precise Simmering And Melting While The 300 Cfm Exhaust Rating Means The Venting Can Handle It All.
    • Downdraft Ventilation - Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
    • 5K BTU Even-Heat Simmer Burner - A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
    • 300 CFM Exhaust Rating - Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
    • 15K BTU Professional Burner - Reaches the high temperatures required to quickly get liquids to a boil and for high-temperature cooking techniques including getting a great sear on meat.

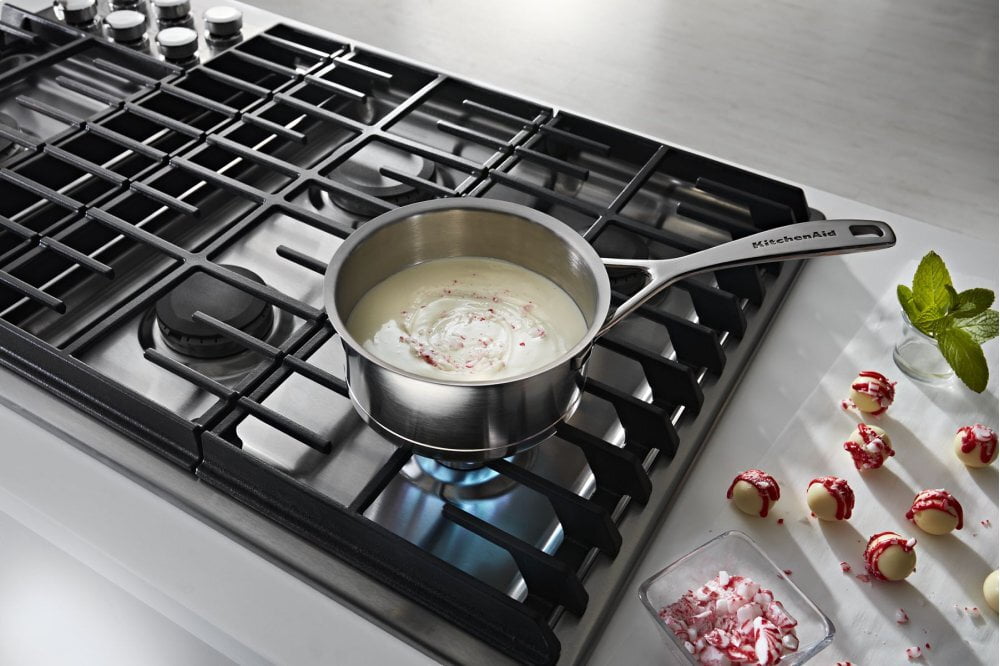

    • Melt Cap - Melt chocolate or butter, simmer delicate sauces, or poach eggs on a low-power burner, thanks to a wider burner cap that shields and diffuses the flame to produce a gentler, low-power heat.
    • Stainless Steel Knobs - Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
    Specifications
    Configuration and Overview
    ADA Compliant No
    Cooktop Type Downdraft
    Fuel Type Gas
    Installs Over Built-In Oven No
    LP Convertible Yes
    Power Boost No
    Prop 65 CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov .
    Size 36 in
    UL UL
    Controls
    Infinite Heat Controls Yes
    Knob Color Stainless Steel
    Knob Type Metal
    Location of Controls Right Side
    Cooktop Details
    Automatic Pan Detection No
    Center Front Element-Burner Power 15,000 BTU
    Center Front Element-Burner Type Sealed Burner
    Center Rear Element-Burner Power 12,500 BTU
    Cooktop Element Style Sealed Burner
    Cooktop Surface Color Color Coordinated
    Cooktop Surface Material Stainless Steel
    Downdraft Vent Yes
    Grate Details Matte Finish, Continuous, Cast Iron Grates
    Heating Element On Indicator Light No
    Hot Surface Indicator Light No
    Ignition Type Flame-Sensing Re-ignition
    Left Front Element-Burner Power 10,000 BTU
    Left Front Element-Burner Type Burner
    Left Rear Element-Burner Power 5000 BTU
    Left Rear Element-Burner Type Even Heat
    Number of Cooking Element-Burners 5
    Number of Grates 3
    Power Outage Compatible Yes
    Right Rear Element-Burner Type Burner
    Appearance
    Digital Display No
    Ventilation System
    Number of Speeds 3
    Electrical
    Hz 60
    Power Cord Included Yes
    Dimensions
    Cutout Depth 19-15/16 in
    Cutout Width 34-3/4 in
    Features
    Power Outage Compatible Yes
