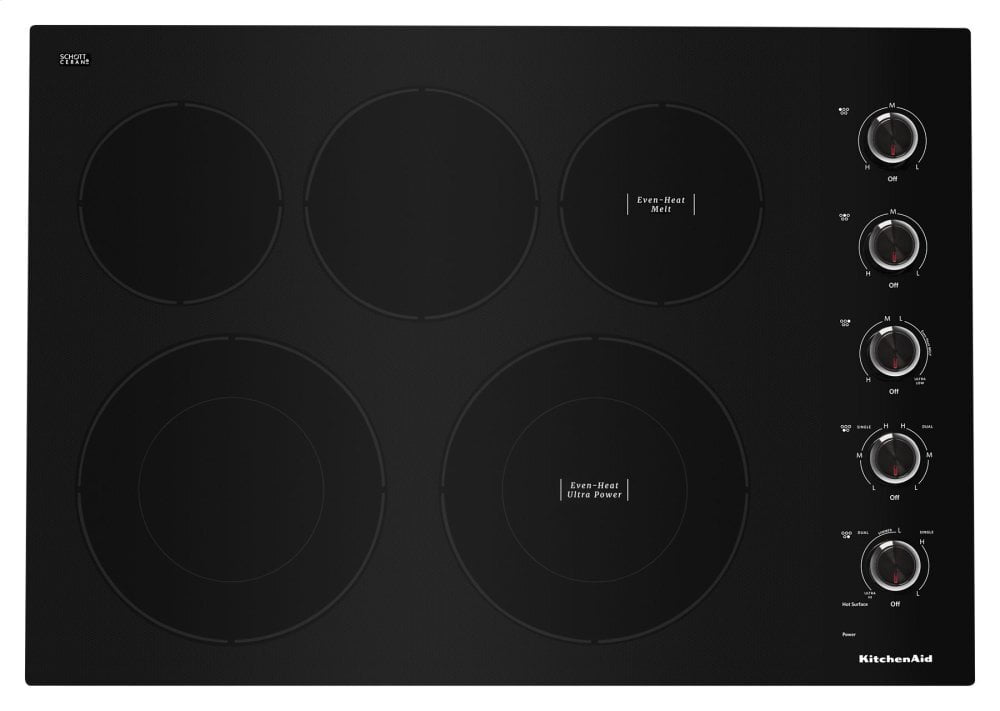

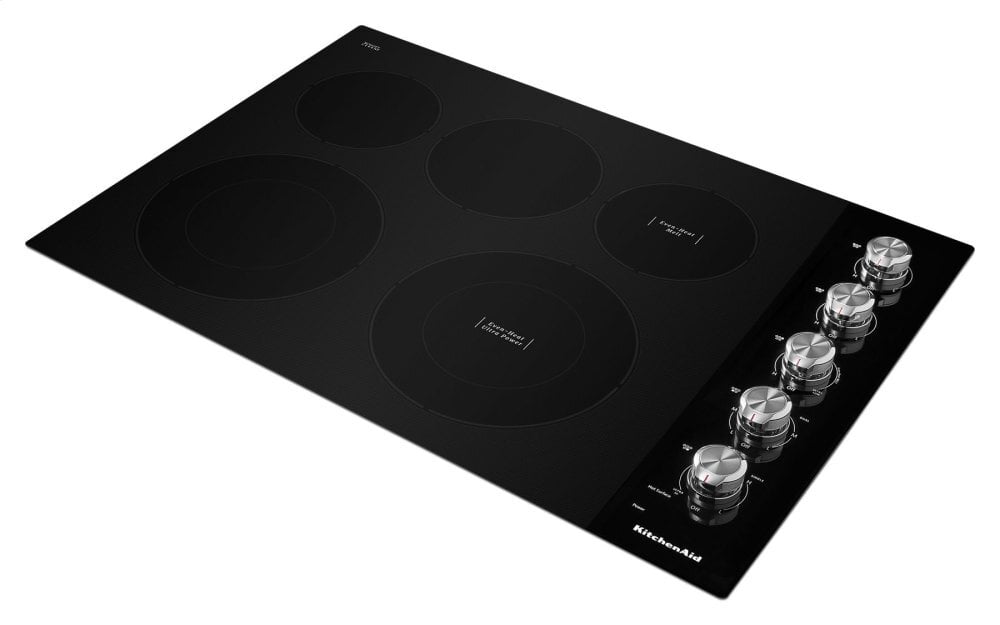

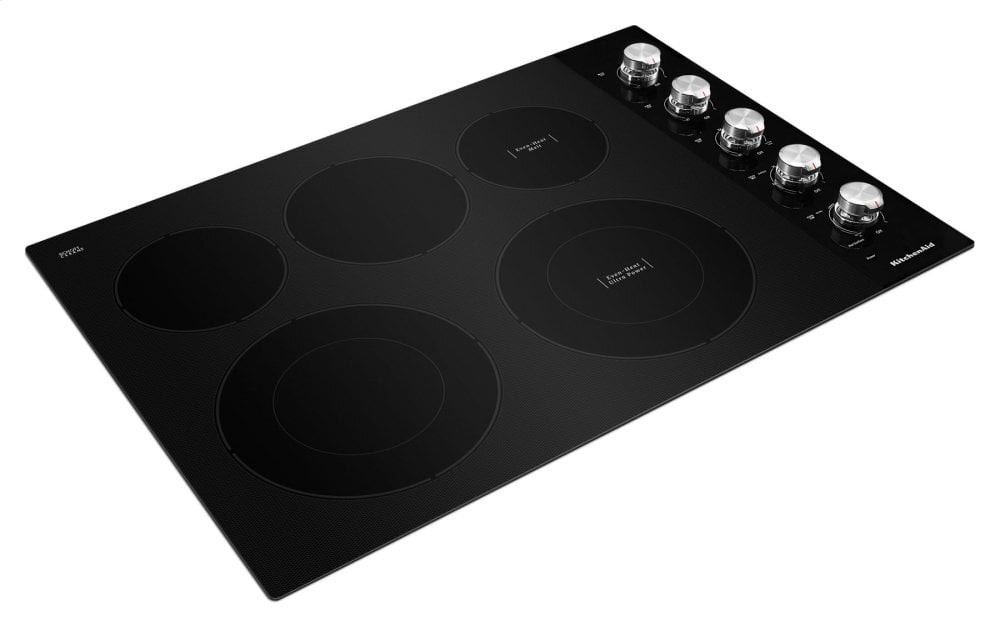

Kitchenaid KCES550HBL 30" Electric Cooktop With 5 Elements And Knob Controls - Black
Rebates &
Promotions
KitchenAid Craft Your Dream Kitchen Rebate - Receive up to a $3000 rebate with purchase of qualifying KitchenAid Brand Appliances. Download Valid: 07/01/2024-12/31/2024
Two 10''/6'' Double-Ring Round Elements
Create two elements in one location. The inner rings are used like standard six-inch elements. The outer rings add size and power for large cookware. A simmer function works on both the inner and outer element.
8'' Round Element
Efficiently heats a commonly used pan size and can reach a power output of up to 1800 watts for every day use.
This 30" Electric Cooktop Has Performance That More Than Backs Up Its Timeless Style. Features Include A 10'' Even-Heat Ultra Power Element With Simmer Setting, A 6'' Even-Heat Element With Melt Setting, And 10"/6" Ultra Power Double-Ring Round Element Designed To Accommodate Both Large Stock Pots And Six-Inch Saute Pans With Ease And Handle Rapid Boiling, Searing And Wok Cooking.
- 10'' Even-Heat Ultra Power Element with Simmer Setting - Provides greater versatility for high and low temperature cooking techniques. Even-Heat Technology maintains a constant supply of power and delivers a range of simmer settings.
- 6'' Even-Heat Element with Melt Setting - Combines the benefits of Even-Heat Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
- 6'' 1200-Watt Round Element - Can reach a power output of up to 1200-watts to handle your daily cooking needs.
- Hot Surface Indicator - Protects you by providing a visual indication if a cooking surface is on or still hot, so you can create with confidence.

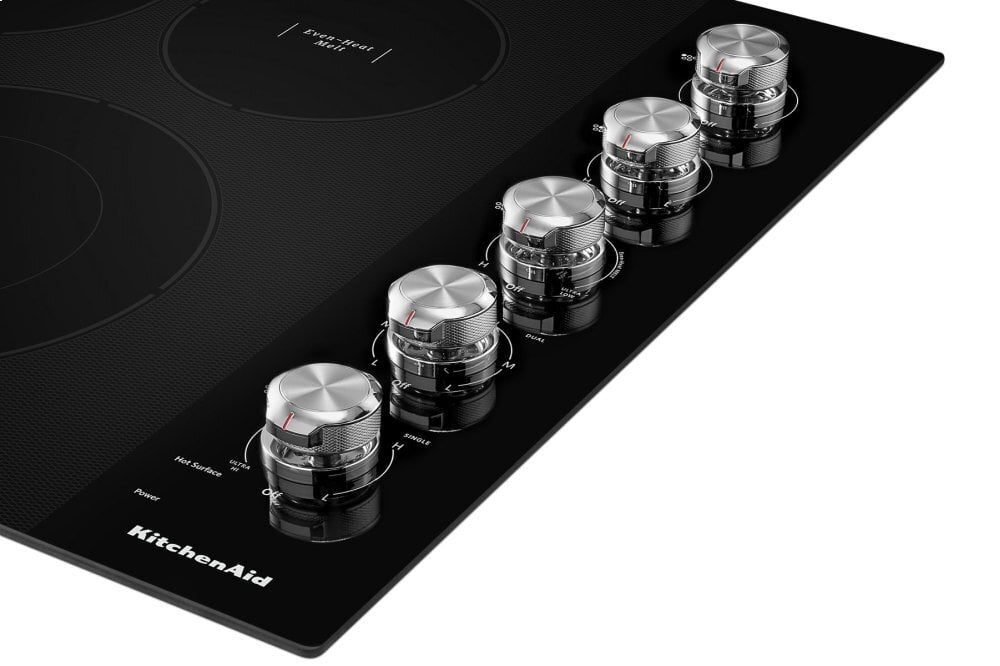

- Metal Control Knobs - Substantial, professionally-inspired stainless steel knobs easily adjust the cooktop's elements through an infinite number of heat settings, offering responsiveness and flexibility in control.
Specifications | |
Dimensions | |
Cutout Depth Max | 20-9/16 in |
Cutout Depth Min | 20-3/8 in |
Cutout Width Max | 29-9/16 in |
Cutout Width Min | 29-1/16 in |
Depth | 21-3/4 in |
Height | 5-1/4 in |
Maximum Height | 5-1/4 in |
Width | 30-13/16 in |
Configuration and Overview | |
ADA Compliant | ADA Height and Operation Compliant |
Cooktop Type | Standard |
Fuel Type | Electric |
Installs Over Built-In Oven | Yes |
LP Convertible | No |
Power Boost | No |
Size | 30 in |
Controls | |
Infinite Heat Controls | Yes |
Knob Type | Metal |
Location of Controls | Right Side |
Cooktop Details | |
Automatic Pan Detection | No |
Center Rear Element-Burner Power | 1800W |
Center Rear Element-Burner Size | 8'' |
Cooktop Element Style | Radiant |
Cooktop Surface Color | Black |
Cooktop Surface Material | Glass |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Left Front Element-Burner Power | 3000W/1900W |
Left Front Element-Burner Size | 10''/6'' |
Left Front Element-Burner Type | Dual |
Left Rear Element-Burner Power | 1200W |
Left Rear Element-Burner Size | 6'' |
Left Rear Element-Burner Type | Standard |
Number of Cooking Element-Burners | 5 |
Power Outage Compatible | No |
Right Front Element-Burner Power | 3200/2300W |
Right Front Element-Burner Size | 10''/6'' |
Right Front Element-Burner Type | Dual |
Right Rear Element-Burner Size | 6'' |
Right Rear Element-Burner Type | Single |
Appearance | |
Digital Display | No |
Certifications | |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Electrical | |
208V Compatible | Yes |
Hz | 60 |
Power Cord Included | No |
Features | |
Power Outage Compatible | No |
Energy | |
Annual Energy Usage [kWh] | 258.0 |
