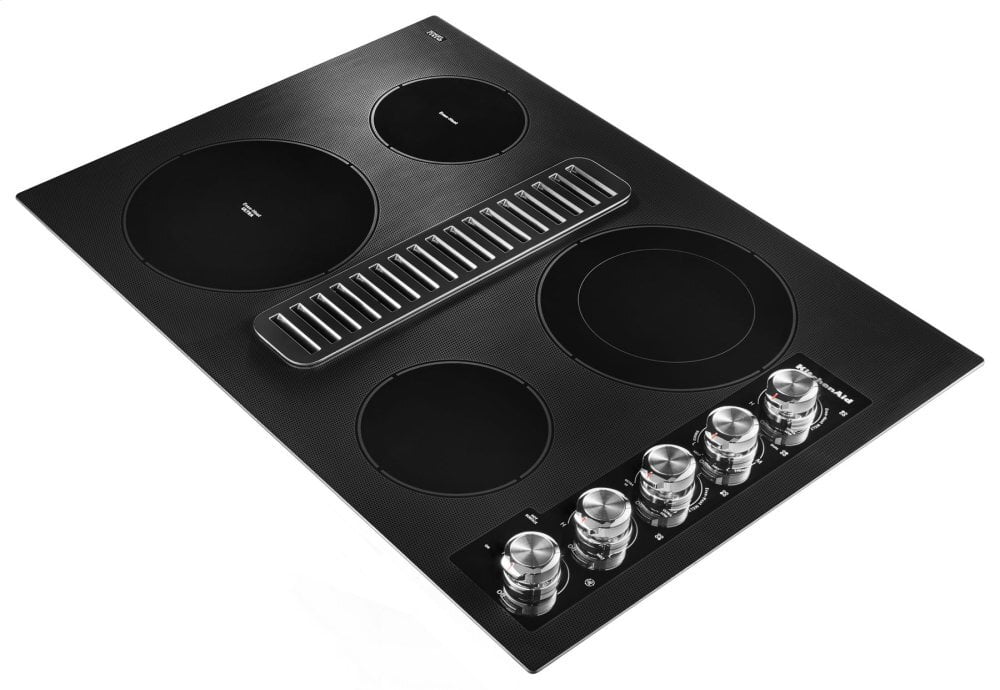

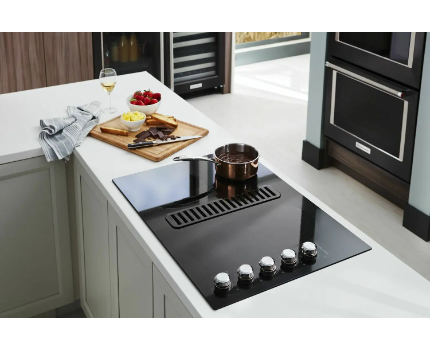

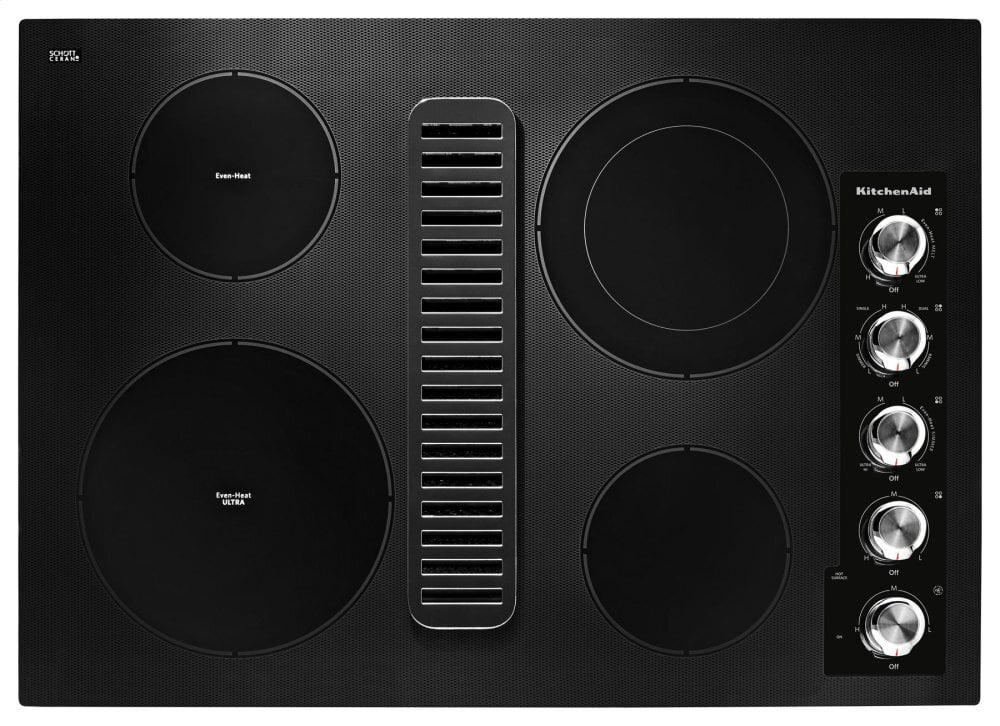

Kitchenaid KCED600GBL 30" Electric Downdraft Cooktop With 4 Elements - Black
Rebates &
Promotions
10'' Even-Heat Ultra Element with Simmer Setting
Provides more versatility for high and low temperature cooking techniques. Even-Heat Technology maintains a constant supply of power and delivers a range of simmer settings.
6'' Even-Heat Element with Melt Setting
Combines the benefits of Even-Heat Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
3-Speed Fan Control
Can be precisely matched to cooking needs, effectively removing steam, grease, and odors from the air.
Convertible to Duct-Free Ventilation
Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Hot-Surface Indicator
Provides a clear indication that lets you know if any cooking surface is on or still hot.
Pure Color Ceramic-Glass Surface
Comes in saturated colors with stainless steel control knobs for a sophisticated, easy-to-clean appearance.
- Downdraft Ventilation - Integrates the ventilation system into the cooking surface so that a separate hood is not needed. Smoke and odors can be removed and taken outside or filtered and recirculated inside. A duct-free kit is available for purchase separately.
- 300 CFM Exhaust Rating - Handles the venting requirements of high temperature cooking techniques like pan searing and stir-frying.
- CookShield Finish for Glass Surface - Protects the cooktop surface from scratches, helping keep it looking pristine even with frequent use.
- 9''/6'' Ultra Power Double-Ring Round Element - Two element sizes in one provide the ability to use it for large stock pots or six-inch saute pans and handle tasks ranging from rapid boiling and searing to wok cooking.
- Power-On Indicator Light - Lets you know at a glance when an element is on.

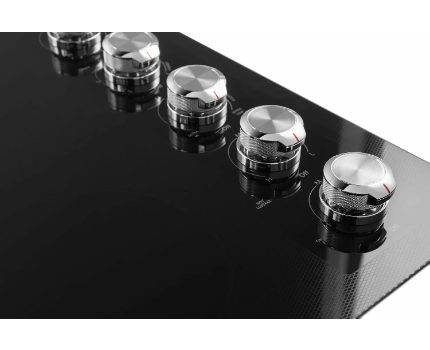

- Stainless Steel Knobs - Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
Specifications | |

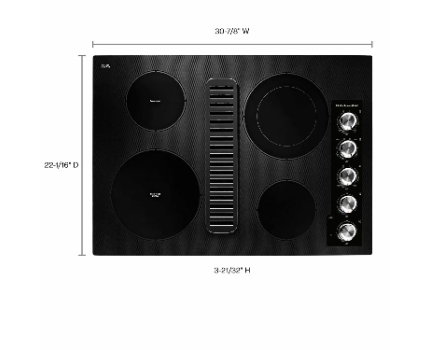

Dimensions | |
Cutout Depth | 21-1/8 in |
Cutout Width | 28-7/8 in |
Depth | 22-1/16 in |
Height | 3-5/8 in |
Maximum Height | 18-3/4 in |
Width | 30-7/8 in |
Configuration and Overview | |
ADA Compliant | No |
Cooktop Type | Downdraft |
Fuel Type | Electric |
Installs Over Built-In Oven | No |
LP Convertible | No |
Power Boost | No |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Size | 30 in |
UL | UL |
Controls | |
Infinite Heat Controls | Yes |
Knob Color | Stainless Steel |
Knob Type | Metal |
Location of Controls | Right Side |
Cooktop Details | |
Automatic Pan Detection | No |
Cooktop Element Style | Radiant |
Cooktop Surface Color | Black |
Cooktop Surface Material | Ceramic Glass |
Downdraft Vent | Yes |
Grate Details | Dishwasher Safe |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Left Front Element-Burner Power | 3200W |
Left Front Element-Burner Size | 10'' |
Left Front Element-Burner Type | Even-Heat Ultra |
Left Rear Element-Burner Power | 1300W |
Left Rear Element-Burner Size | 6'' |
Left Rear Element-Burner Type | Even Heat |
Number of Cooking Element-Burners | 4 |
Power Outage Compatible | No |
Right Front Element-Burner Power | 1200W |
Right Front Element-Burner Size | 6'' |
Right Front Element-Burner Type | Single |
Right Rear Element-Burner Size | 9''/6'' |
Right Rear Element-Burner Type | Dual |
Appearance | |
Digital Display | No |
Ventilation System | |
Number of Speeds | 3 |
Electrical | |
Hz | 60 |
Power Cord Included | No |
Features | |
Power Outage Compatible | No |
Energy | |
Annual Energy Usage [kWh] | 258.0 |
Installation Instructions
Installation Guide
Use & Care Guide
Owner's Manual
Warranty Information
Dimension Guide
