Kenyon B70471 Texan Electric Grill Intelliken Touch™ With Single Piece Lid

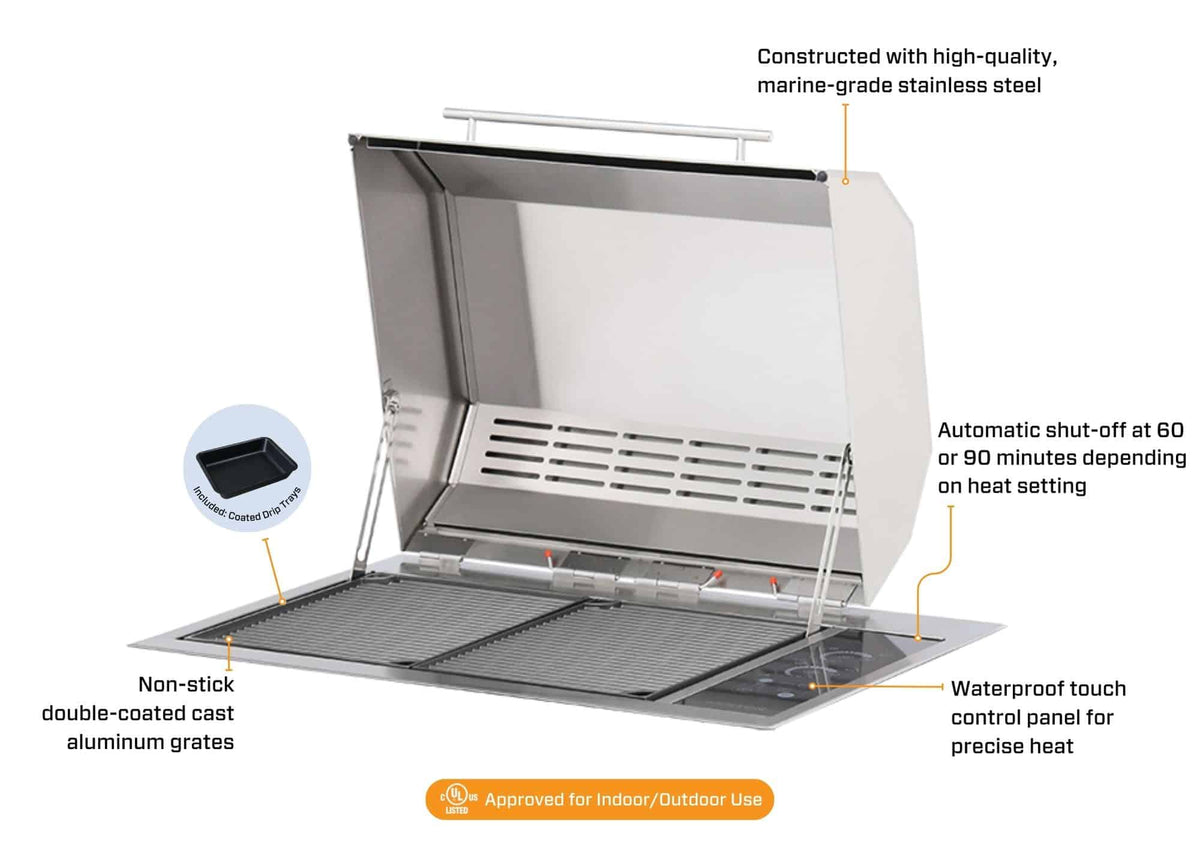

The Texan Electric Grill Is Designed For The Outdoor Kitchens Or Roof Decks Where Gas Or Charcoal Grills Can No Longer Be Used. Two Burner, Built-In Grill Available In 208 Or 240V, With Independently Controlled 1500W Elements And A Max Output Of 3000W. This Powerful Electric Grill Presents Opportunities For Safe Grilling While Still Experiencing Authentic Grilled Food. These Grills Meet Nfpa Fire Code Regulations And Are Ul Approved For Indoor And Outdoor Applications. Automatic Shut-Off At 60 Or 90 Minutes Depending On Heat Setting. Included: Two Coated Drip Trays Overview Waterproof Intelliken Touch™ Control Integrates Swipe Technology With User-Friendly Features Such As Precision Control (Pc) And Direct Temperature Feedback (Dtf). These Features Will Keep The Grill To Within +/-10 At All Times. The Cast Aluminum Grates Are Double Coated In The Longest Lasting Medical Grade Non-Stick Coating Available And Is Pfoa Free. The Lid And Grates Can All Be Easily Cleaned By Placing In The Dishwasher To Keep Your Grill Looking New For Years To Come. Ul Approved For Use Indoors And Out. Constructed With High-Quality, Marine-Grade Stainless Steel. Designed And Produced In The Usa. For More Technical Information, Check Out The Owner S Manual Under The Downloads Tab Below.

• Available in 208 or 240V
• Preheats in less than 7 minutes
• Powerful performance - cooking temperatures exceed 550 F for perfect searing
• Patented concealed electric elements eliminate flare-ups
• Single Piece Lid for Conventional Grill Look and Feel
• No hot or cold zones due to direct contact between element and cooking grate
• Non-stick grates imparts characteristic barbeque grill marks and is dishwasher safe
• Comes standard with 2 grates
• Also included upgraded coated drip trays are located below the elements to trap drippings
• Infuse grilled food with flavor by adding a variety of liquids to the drip trays
• Select between 16 different heat settings for the perfect temperature every time
• IntelliKEN Touch™ Control system that integrates the latest swipe technology
• Precision Control allows the user to select the power setting (1-16) or temperature (150 F - 550 F)
• Switch from Fahrenheit to Celsius with a simple push of a button
• Keep track of kitchen tasks that are independent of cooking activity on the grill with the kitchen timer
• Choose the perfect setting by swiping your finger along the temperature control arc
• Direct Temperature Feedback (DTF) gives the user ability to cook by temperature and time
• Removable insulated lid helps prevent accidental burns and is dishwasher safe
• Independent waterproof digital touch control panel
• Automatic shut-off at 60 or 90 minutes depending on heat setting
• Marine-grade 304 stainless is passivated to be weather resistant and rust proof
• 3-Year product replacement warranty
• UL approved for use indoors and out

CAD Drawing
