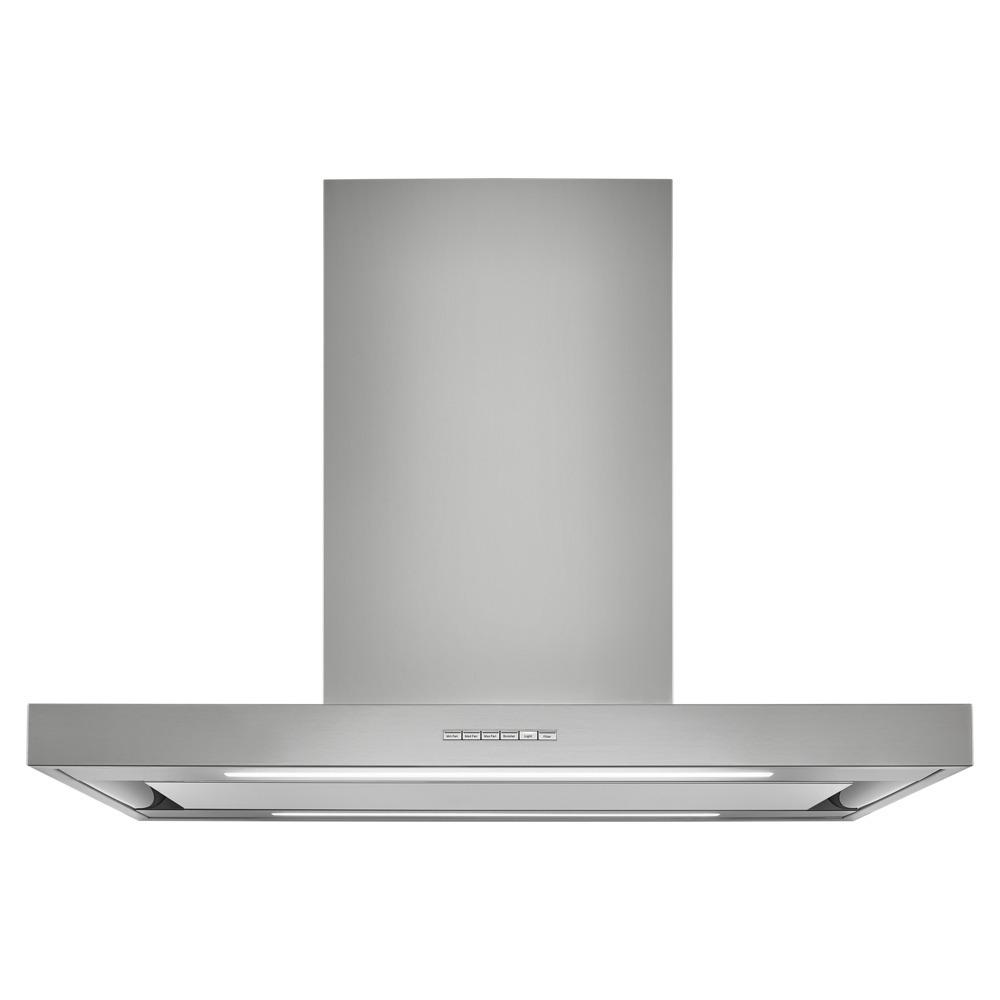

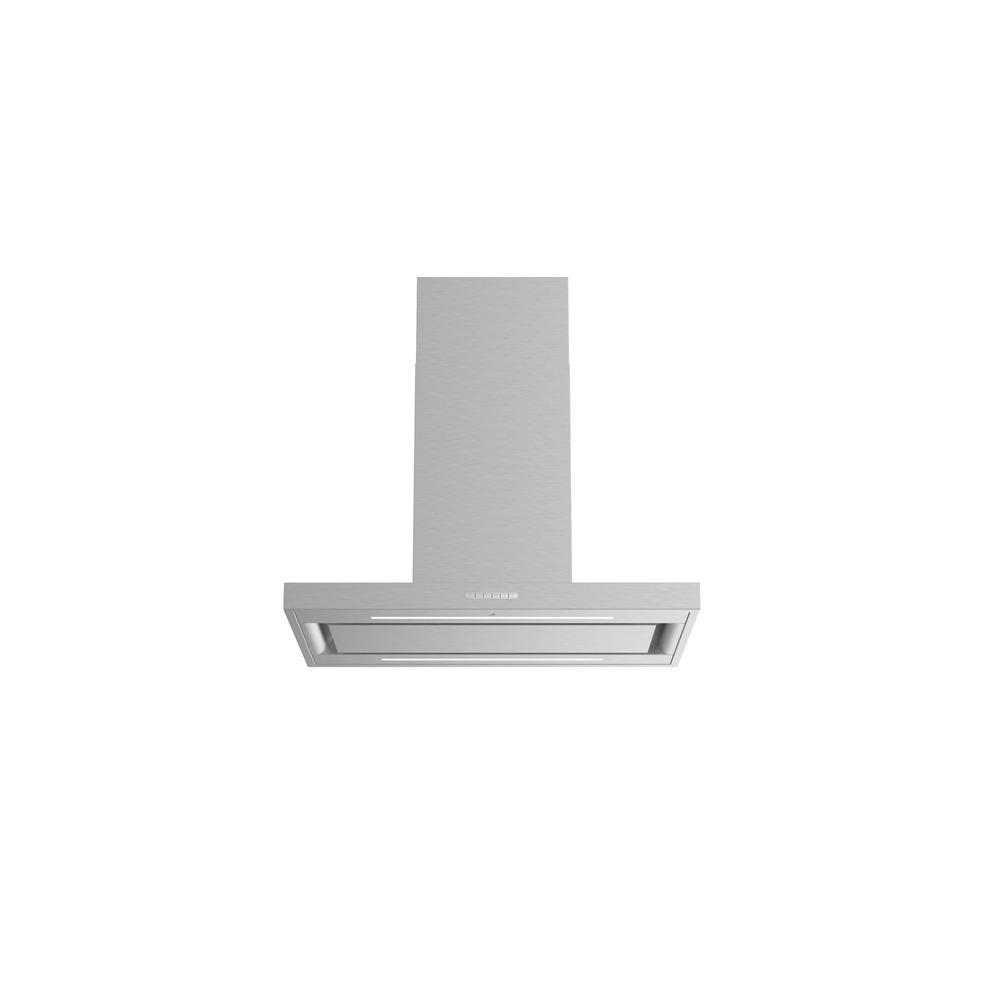

Relish the calm of the kitchen with a hood that helps keep the sound down in the kitchen and illuminates the entire cooking surface with bright LED lighting. This hood brings a subtle, yet strong presence to the kitchen with sleek, seamless design and powerful venting strength. Refuse to compromise with a hood that’s Quieter than the Leading Luxury Hood Brand while helping to strip away smoke, odor and grease so you can hear, see and smell the real riches of the kitchen. Backlit button controls Tactile button controls eagerly respond to your touch, allowing you to change speeds at a push. Each button glows softly when activated. Dishwasher-safe metal filter This filter effectively captures smoke, grease and cooking odors as they're drawn through the hood and can be easily cleaned in the dishwasher. Recirculating installation option A convertible design lets you install without needing to vent outside. When external ventilation isn’t an option, the hood’s fan will recirculate air through filters that help capture grease and cooking odors to help keep the kitchen clean. Booster function Helps clear the air quickly by raising the fan speed to its highest possible setting for 5 minutes, helping to rid the kitchen of smoke and steam. 6’’ round damper Help regulate the flow of air through the chimney with a 6" round damper. 90k btu cooktop threshold This hood is equipped to handle the high heat and cooking power of cooktops up to 90,000 BTUs. Optional chimney extension kit Extend chimney height for ceilings over 9 feet with the optional chimney extension kit. See installation instructions for details. Serviced by a select few We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched. Dimension and Capacity Width:35-43/100 In
Height:13-7/8 In
Depth:23-31/50 In

• Quieter Than The Leading Luxury Hood Brand

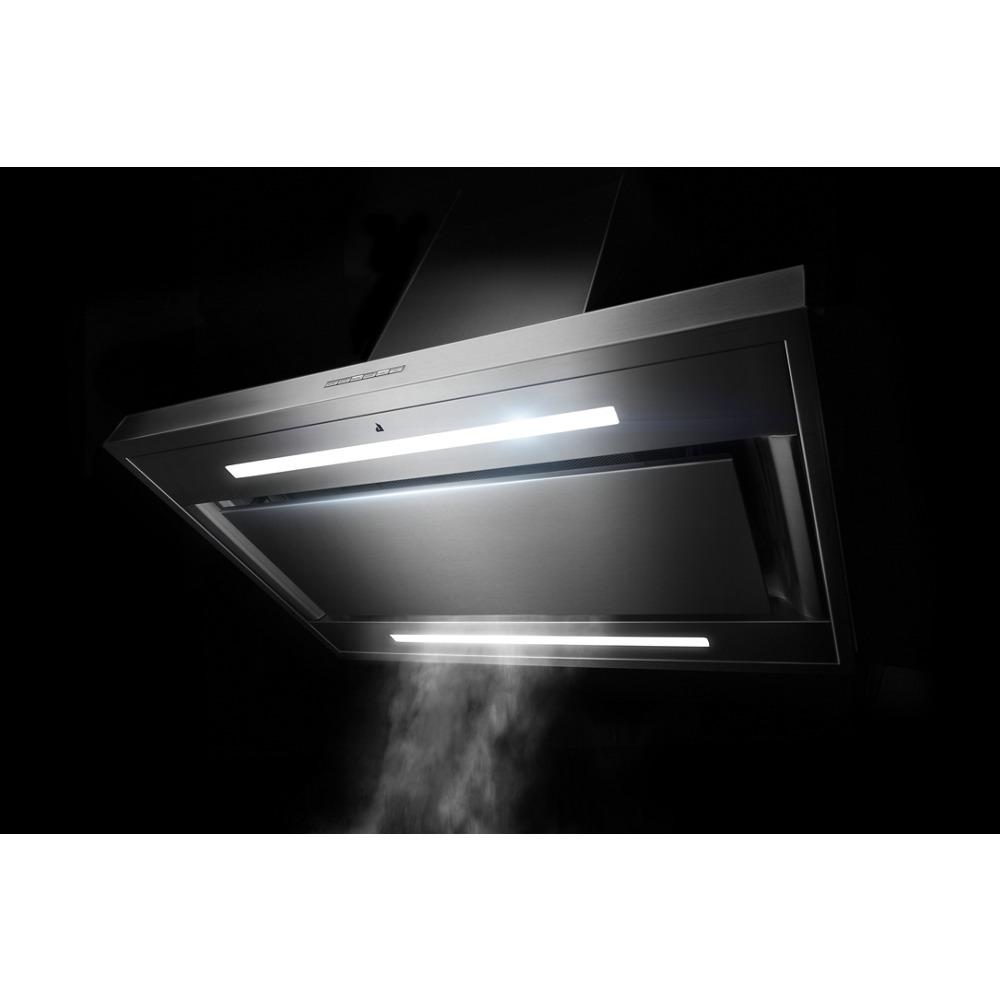

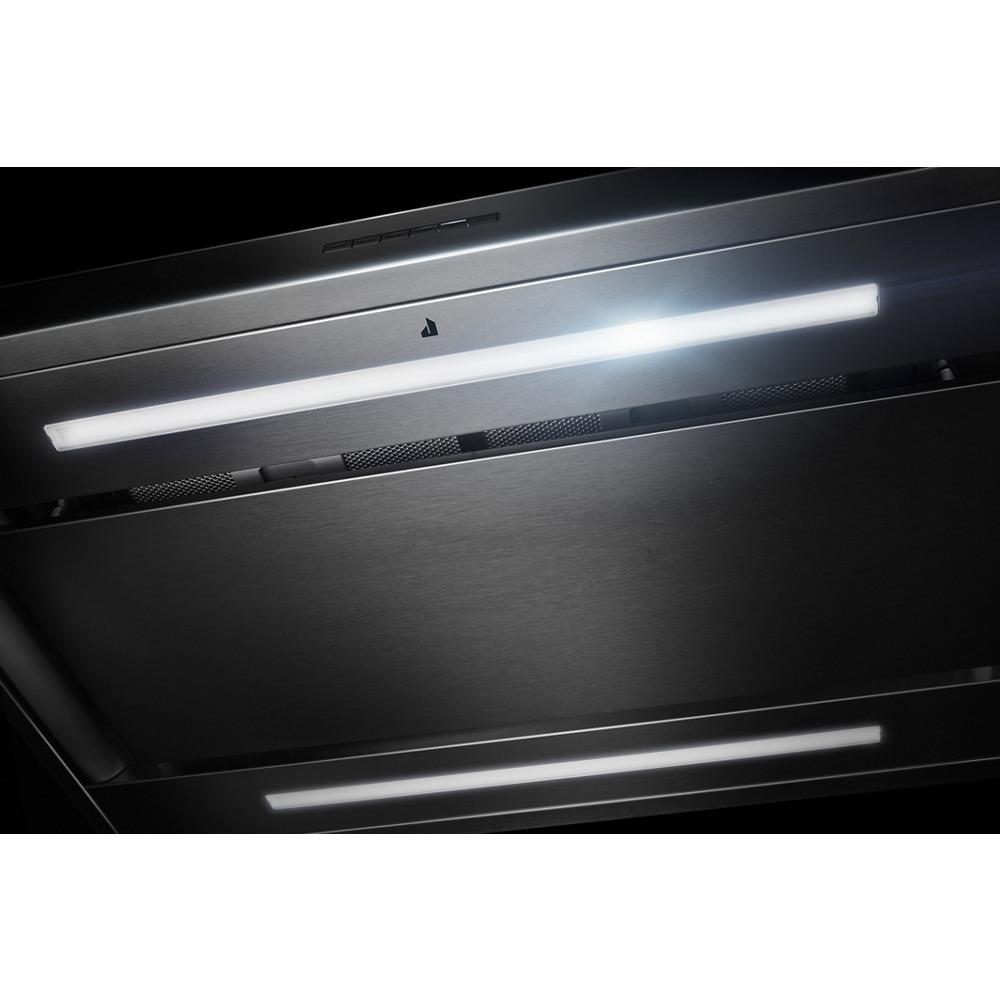

• LED Strip Lighting
• Modern T-Shape Design
• 3-speed, 585 CFM Motor Class
• Island Mount Hood
• Stainless Steel Design

Exterior Width	36"
Depth	23.62"
CFM	585 CFM
Brand	Jenn-Air
SKU	JVI0636LS
UPC	883049610054
Stock Id	1737102
Product Number	JVI0636LS
Warranty Info	Brand New
Type	Hood
Venting Type	Convertible
Style	Chimney Style
Blower Type	Internal
Duct Type	Round
Vent Location	Top
LED Strip Lighting	Yes
Dishwasher Safe Filter	Yes
Boost Function	Yes
Modern T-Shape Design	Yes
Color	Stainless Steel
Width	35.43"
Volts	120 Volts
Amps	15 Amps
Light	Yes
Mounting Type	Island Mount
Filter Type	Mesh
Frequency	60 Hz.
Fan	Yes
Duct Diameter	6"
Number of Light Bulbs	2
Light Bulb Type	LED
Convertible Ducting	Yes
Weight	112.00 lbs
