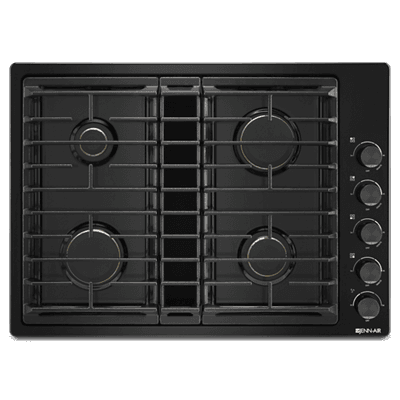

Jennair JGD3430GB Black 30" Jx3 Gas Downdraft Cooktop
Rebates &
Promotions
JennAir Curate Rebate - Receive up to 15% off in instant savings with purchase of 2 or more qualifying JennAir Appliances. Download Valid: 01/01/2025-06/30/2025
This Jenn-AirĀ® Luxury Gas Downdraft Cooktop Features Four Sealed Burners, Including A 17,000 Btu Ultra-High Output Burner. Its Impressive Jx3 Downdraft Ventilation System Quickly And Efficiently Clears The Air Without A Hood.
- JX3 Downdraft Ventilation System with 3 Speeds - Developed and refined by JennAir(R), this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class 1 blower system. 1 Performance varies based on installation. Resources available at aham.org.
- 17,000 BTU Ultra-High Output Burner - Enjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.
- 5,000 BTU Ultra-Low Output Burner with Melt Cap - Provides the optimal temperature for gently cooking delicate sauces and foods.
- DuraFinish(R) Protection - With excellence in every detail, DuraFinish(R) Protection helps keep your cooktop's surface looking like new, resisting yellowing, staining and scratching.
- Brass Burners with Removable Base - Elegant brass burners effectively direct heat for desired cooking results and can be removed for easy cleaning.
- Convertible to Duct-Free Ventilation - Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
Specs | |
Dimensions | |
Depth (in) | 21-1/2 |
Maximum Height (in) | 18-7/16 |
Width (in) | 30.0 |
Configuration and Overview | |
Size (in) | 30 |
Cooktop Type | Downdraft |
Fuel Type | Gas |
LP Convertible | Yes - Kit Included |
Installs Over Built-In Oven | No |
Power Boost | No |
Controls | |
Knob Color | Black |
Infinite Heat Controls | Yes |
Knob Type | Metal |
Location of Controls | Right Side |
Appearance | |
Digital Display | No |
Cooktop Details | |
Downdraft Vent | Yes |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Cooktop Element Style | Sealed Burner |
Cooktop Surface Color | Black |
Ignition Type | Flame-Sensing Re-ignition |
Number of Cooking Element-Burners | 4 |
Number of Grates | 3 |
Grate Details | Dishwasher Safe |
Left Rear Element-Burner Type | Burner |
Right Front Element-Burner Type | Burner |
Ventilation System | |
Number of Speeds | 3 |
Certifications | |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Electrical | |
Power Cord Included | Yes |
Features | |
Power Outage Compatible | Yes |
Design Type | |
Design Expression | Black Glass |
Details | |
Cooktop Surface Material | Porcelain Coated Steel |
