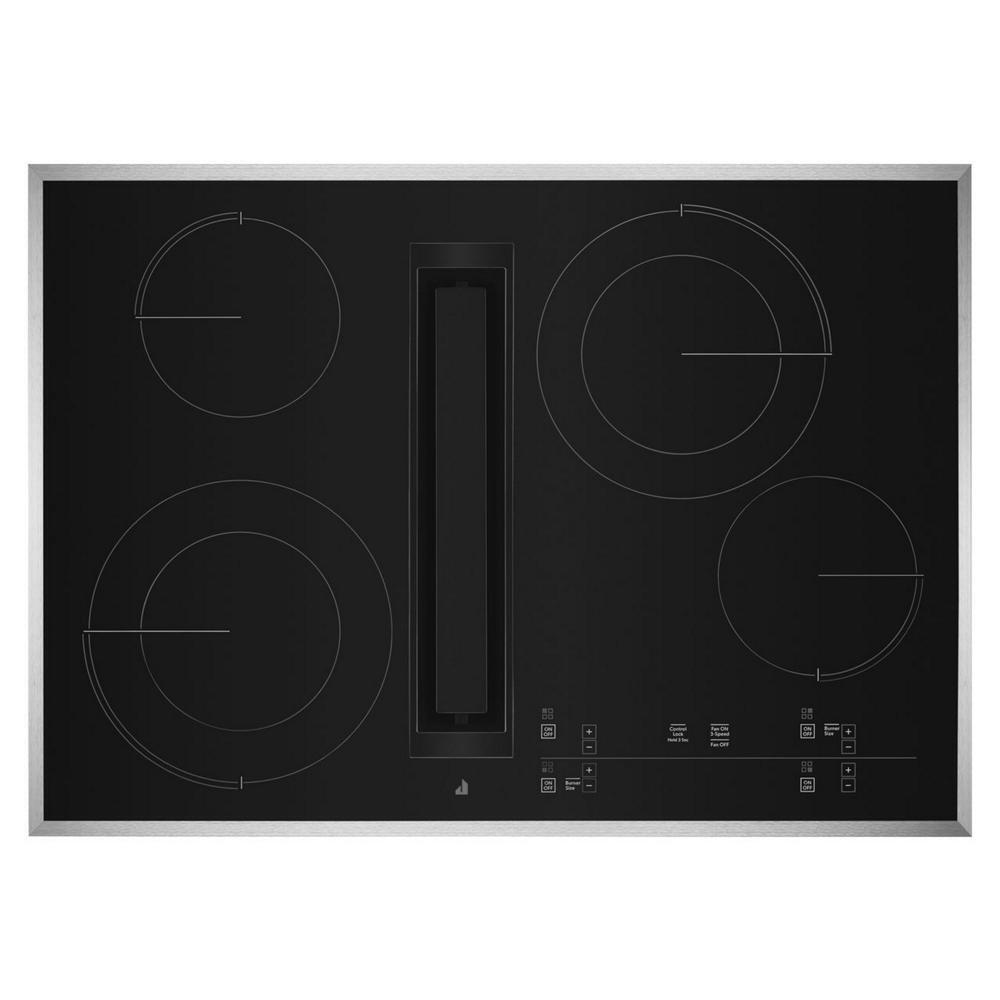

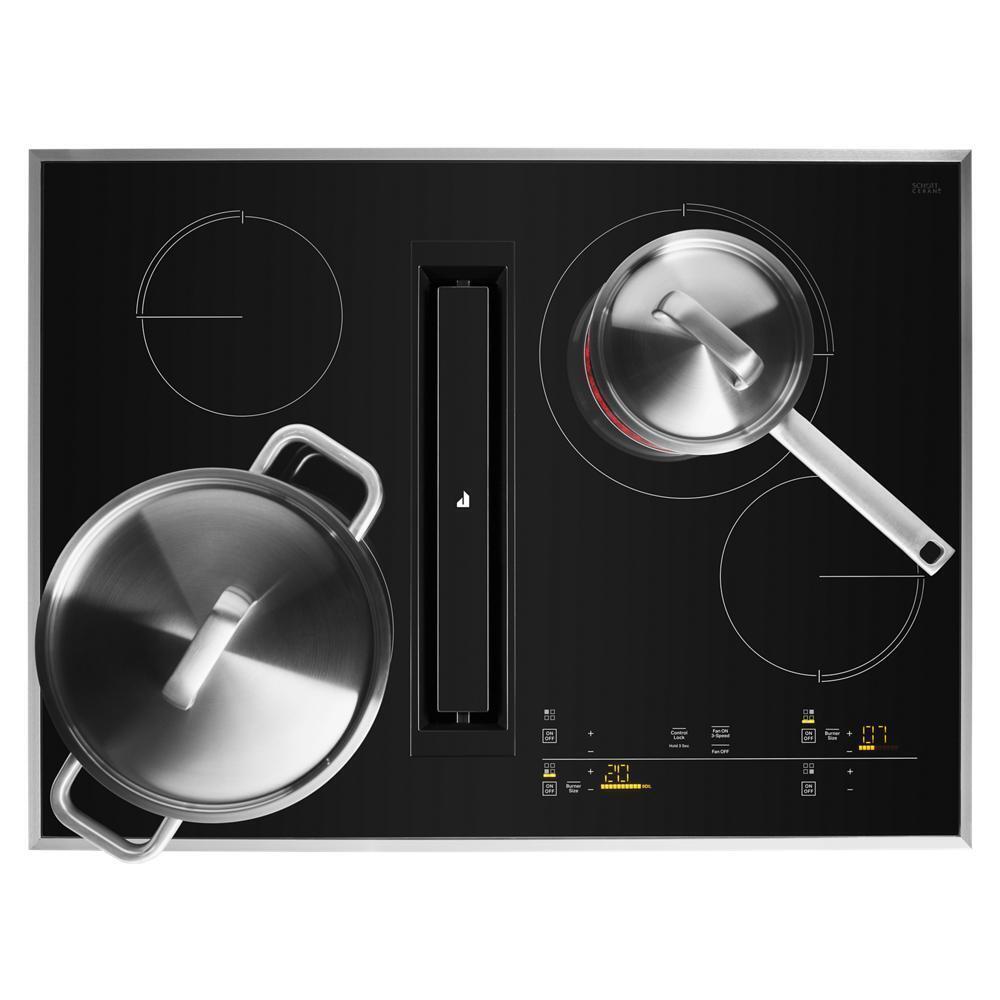

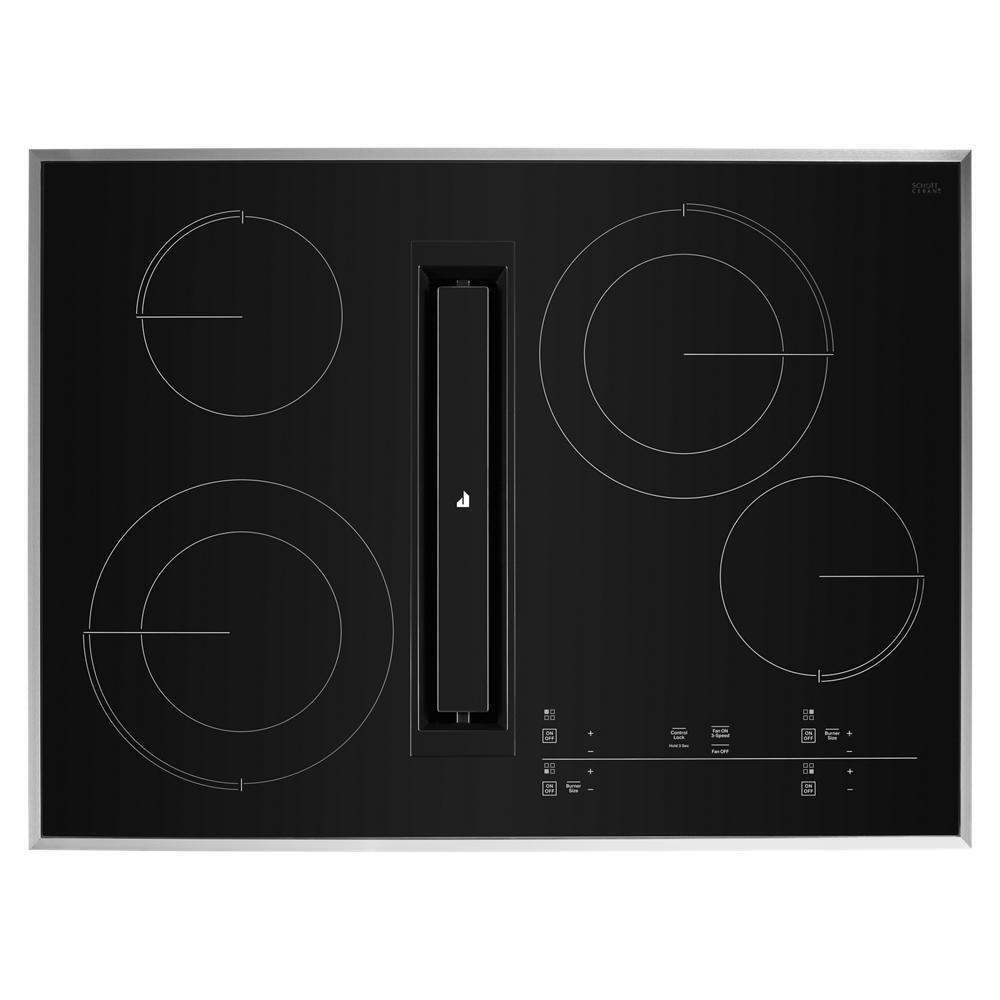

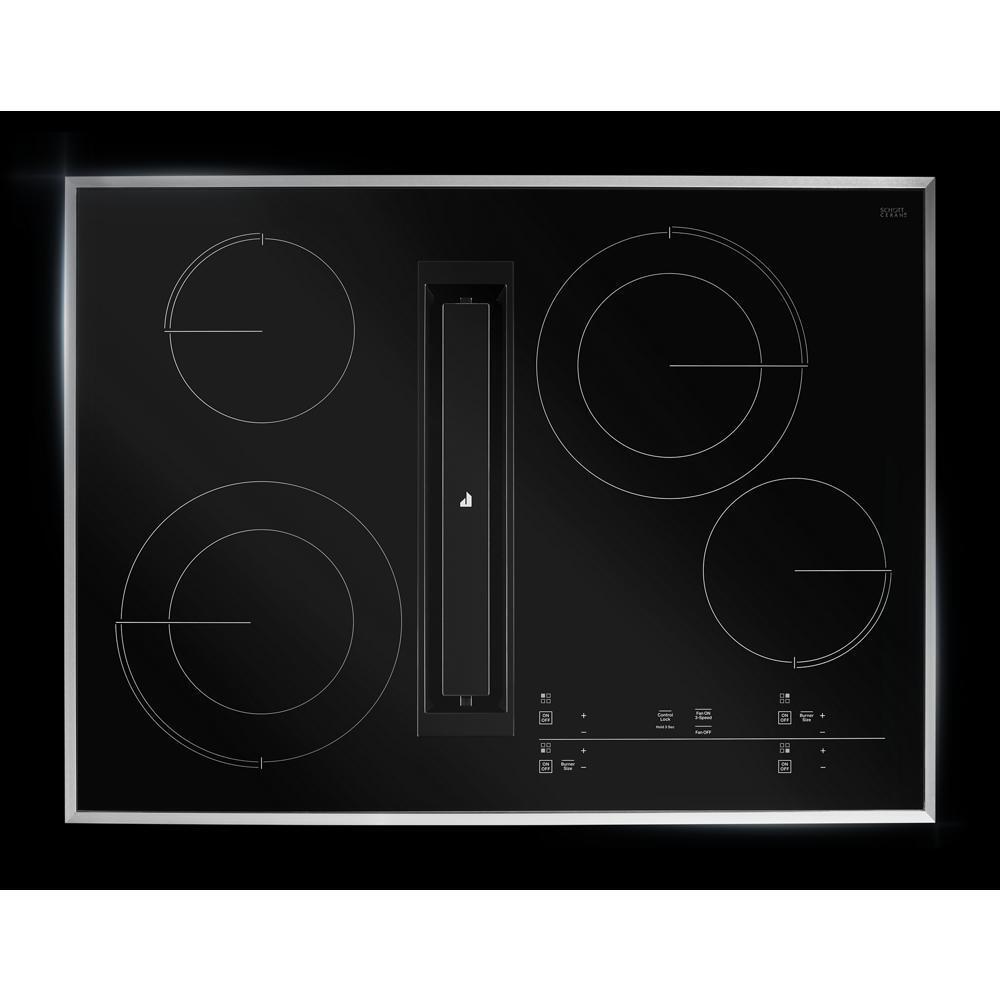

This industry exclusive tap touch radiant downdraft cooktop offers a sleek design and responsive performance. Its glass touch controls and four radiant elements create a smooth, integrated cooktop surface, and the impressive JX3™ downdraft ventilation system quickly helps clear the air without a hood. JX3™ Downdraft Ventilation System with 3 Speeds Developed and refined by JennAir®, this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optim Emotive Controls Striking and inviting controls with LED lighting unleash performance at your touch. Oblivion Glass Surface Sleek black glass with a beveled edge that seizes its surroundings. Lose yourself in the depths of infinite possibilities that dare you to explore your limits. Semi-Flush Installation Subtlety that dares to be ignored. Standing semi-flush at 3mm above the countertop, this precision edge is minimalism magnified. 9"/6" Dual-Choice™ Element An electric element that features two element sizes at one position for greater cooking flexibility. Perimetric Extraction Provides exceptional ventilation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation. Two 6 Inch Elements Heating elements sealed underneath a ceramic glass cooking surface that offers up to 1,200 to 1,300 watts of power. Radiant Elements Waiting expectantly beneath the stillness of obsidian black glass, electric elements are coiled to deliver heat upon command. Hot Surface Indicators Light(s) positioned at the controls instantly show which element is still hot - even if the element has been turned off. Optional Duct-Free Ventilation Kit Downdraft cooktops are manufactured to be used with ductwork, but this option enables conversion of the JX3™ downdraft cooktop to be used with a duct-free system. (Sold separately)more Duct-Free Filter Filter included with the duct-free kit that captures smoke, grease and moisture, and allows air to travel through the filter without a loss of air efficiency. The filter also has a replacement indicator. 297 CFM Motor Class Blower A single centrifugal blower motor combines with a perimetric design, allowing this ventilation system to operate at just 297 CFM Motor Class Dimensions Width: 30 7/8 Inch
Depth: 22 1/16 Inch
Height: 3 21/32 Inch

• Emotive Controls
• Oblivian Glass Design
• Radiant Elements
• Electric Fuel Type
• Hot Surface Indicator Light

Details
Cooktop Surface Material	Ceramic Glass
Certifications
ADA Compliant	Yes
Energy Rating (kWh/year)	258
Prop 65	Standard
UL	Yes
Ventilation System
CFM Motor Class	310
Number of Speeds	3
Design Type
Design Expression	Stainless Steel
Cooktop Details
Left Front Element-Burner Type	Dual
Right Front Element-Burner Power	1200W
Left Rear Element-Burner Size	6in.
Cooktop Element Style	Radiant
Number of Cooking Element-Burners	4
Left Front Element-Burner Power	3000W/1400W
Left Rear Element-Burner Type	Hyper
Right Rear Element-Burner Power	3000W/1400W
Right Rear Element-Burner Type	Dual-Stacked Burner
Right Front Element-Burner Type	Single
Left Front Element-Burner Size	10in./6in.
Right Rear Element-Burner Size	9in./6in.
Left Rear Element-Burner Power	1,300W
Cooktop Surface Color	Black
Right Front Element-Burner Size	6in.
General
Accessory Relationships	Yes
Dimensions
Carton Height(IN,inches)	23 13/16
Depth(IN,inches)	22 1/16
Carton Depth(IN,inches)	26 7/16
Carton Width(IN,inches)	35 1/8
Gross Weight(LB,pounds)	78
Features
Griddle	NA
Installs Over Built-In Oven	No
Power Boost	No
Power Outage Compatible	No
Selection	Convertible to Duct Free Ventilation,JX3™ Downdraft Ventilation System with 3-Speed Fan
Hot Surface Indicator Light	Yes
Heating Element On Indicator Light	Yes
LP Convertible	No
Electrical
Volts	220
Amps	40
Power Cord Included	No

JED4430KS_Dimension Guide_EN.pdf
JED4430KS_Installation Instructions_EN_US.pdf
JED4430KS_Owners Manual_EN_US.pdf
JED4430KS_Warranty_EN_US.pdf
