Jennair JED3430GS Euro-Style 30" Jx3 Electric Downdraft Cooktop

Jennair JED3430GS Euro-Style 30" Jx3 Electric Downdraft Cooktop

THIS ITEM QUALIFIES FOR FREE DELIVERY!

Call us at (800) 288-1647 for expert assistance in finding the perfect alternative.

Shipping calculated at checkout.
View full details

When Will I Get My Order?

x

Jennair JED3430GS Euro-Style 30

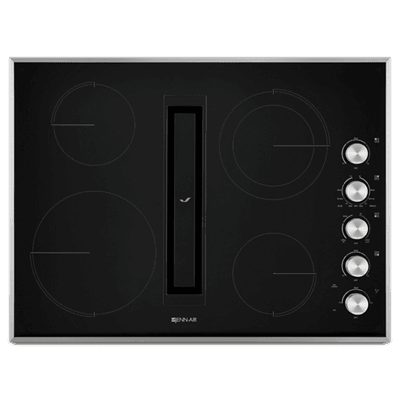

Jennair JED3430GS Euro-Style 30" Jx3 Electric Downdraft Cooktop

This Jenn-Air® Luxury Electric Radiant Downdraft Cooktop Offers A Sleek Cooking Surface With Four Radiant Elements, Which Offer Responsive Performance. It Also Features The Impressive Jx3 Downdraft Ventilation System, Which Quickly And Efficiently Clears The Air Without A Hood.


  • JX3 Downdraft Ventilation System with 3 Speeds - Developed and refined by JennAir(R), this downdraft ventilation system uses proximity ventilation that helps capture smoke, steam and odors at the cooking surface, whisking them down and out for a fresh, clean kitchen. It has been designed to provide optimal cooking performance, relying on a vertically mounted, 297 CFM Motor Class 1 blower system. 1 Performance varies based on installation. Resources available at aham.org.
  • Perimetric Extraction - Provides exceptional ventiliation performance built into an attractive design by capturing cooking vapors through a thin slot and speeding the air, all while maintaining quiet operation.
  • 10"/6" Dual-Choice Element - An electric element that features two element sizes at one position and has a maximum heat output of up to 3,000 watts for greater cooking flexibility.
  • Color-Coordinating Die-Cast Metal Knobs - Robust, die-cast metal knobs offer precise control and color-coordinate with either the Euro-Style Stainless or Black design of these cooktops.
  • DuraFinish(R) Glass Protection - DuraFinish(R) Glass Protection helps keep your ceramic glass cooktop's surface looking like new by resisting scratching.
  • Convertible to Duct-Free Ventilation - Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.

Specs
Dimensions
Depth (in) 22-1/16
Height (in) 3.65625
Maximum Height (in) 18-1797/2500
Width (in) 30-7/8
Configuration and Overview
Size (in) 30
Cooktop Type Downdraft
Fuel Type Electric Radiant
LP Convertible No
Installs Over Built-In Oven No
Power Boost No
Controls
Knob Color Stainless Steel
Infinite Heat Controls Yes
Knob Type Metal
Location of Controls Right Side
Cooktop Details
Automatic Pan Detection No
Downdraft Vent Yes
Heating Element On Indicator Light Yes
Hot Surface Indicator Light Yes
Cooktop Element Style Radiant
Cooktop Surface Color Black
Number of Cooking Element-Burners 4
Left Front Element-Burner Size 10''
Left Rear Element-Burner Size 6''
Left Rear Element-Burner Type Hyper
Right Front Element-Burner Size 6''
Right Front Element-Burner Type Single
Right Rear Element-Burner Size 10''/6''
Appearance
Digital Display No
Ventilation System
Number of Speeds 3
Electrical
Power Cord Included No
Features
Power Outage Compatible No
Design Type
Design Expression Stainless Steel
Details
Cooktop Surface Material Ceramic Glass
Energy
Annual Energy Usage [kWh] 258.0
