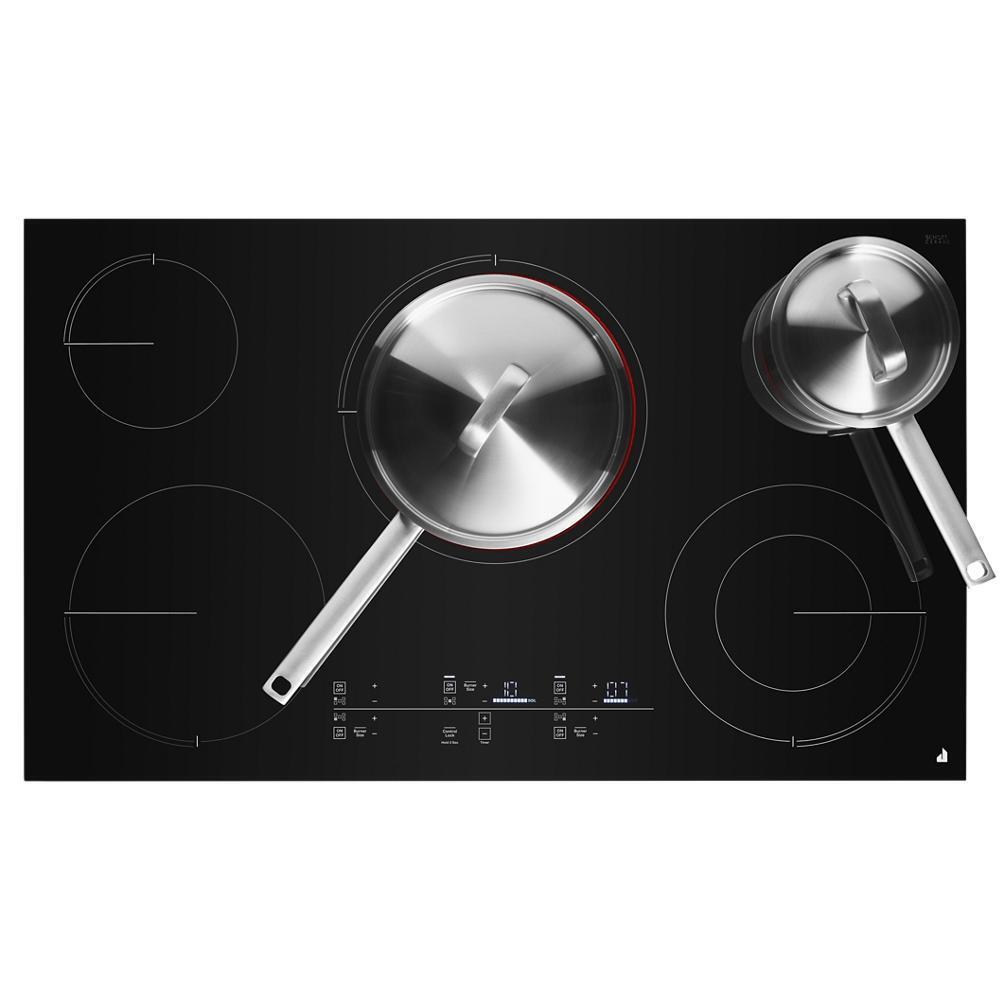

Jennair JEC4536KB Oblivion 36" Electric Radiant Cooktop With Emotive Controls
Rebates &
Promotions
JennAir Curate Rebate - Receive up to 15% off in instant savings with purchase of 2 or more qualifying JennAir Appliances. Download Valid: 07/01/2024-12/31/2024
Indulge your untamed appetites with a fast-heating JennAir® radiant cooktop in sleek glass. The most powerful radiant cooktops in their classes* feature white LED emotive controls and a variety of element sizes and wattages.
6” 1,200-WATT SINGLE ELEMENT
A fast-heating heating element ideally sized for small sauce pans and sauciers that can reach up to 1,200 watts of power.
SIMMER FUNCTION ON ALL ELEMENTS
Provides the optimal temperature for gently cooking delicate sauces and foods.
KEEP WARM™ FUNCTION ON ALL ELEMENTS
Reward anticipation. Low heat at power level 2 keeps tempting dishes at the right temperature until they’re ready to be served.
HOT SURFACE INDICATORS
Light(s) positioned at the controls instantly show which element is still hot—even if the element has been turned off.
KITCHEN TIMER
The kitchen timer can be set in hours, minutes, and seconds and counts down the set time. Setting a kitchen timer will remind you when it's time to check your food, but will not turn your burner element off.
POWER ON INDICATOR LIGHT
See at a glance that power is on for an electric radiant element.
CONTROL LOCK
Control Lock prevents unintended use of the cooktop and ensures complete, simple cleaning of the controls.
COOKTOP POWER OFF FUNCTION
Conveniently turn off all radiant elements at once.
ADA COMPLIANT
Designed to meet ADA standards when installed according to the ADA guidelines.
SERVICED BY A SELECT FEW
We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
DIMENSIONS
WIDTH: 36-5/16 IN
HEIGHT: 5-1/4 IN
DEPTH: 21-3/4 IN
HEIGHT: 5-1/4 IN
DEPTH: 21-3/4 IN
- Emotive Controls
- Oblivion Glass Design
- Versatile Installation
- Most Powerful Radiant Cooktop In Its Class1
- Install Over Single Wall Oven
Details | |
Cooktop Surface Material | Glass |
Certifications | |
Energy Rating (kWh/year) | 258 |
Prop 65 | Standard |
Design Type | |
Design Expression | Oblivian Glass |
Cooktop Details | |
Left Front Element-Burner Type | Dual |
Number of Cooking Element-Burners | 5 |
Left Rear Element-Burner Size | 6in. |
Cooktop Element Style | Radiant |
Cooktop Configuration | All Burners |
Right Front Element-Burner Size | 10in./6in. |
Number of Open Bays | NA |
Right Rear Element-Burner Size | 6in. |
Left Front Element-Burner Size | 10in./6in. |
Right Rear Element-Burner Power | 1,200W |
Left Front Element-Burner Power | 3000W/1900W |
Left Rear Element-Burner Power | 1,200W |
Cooktop Surface Color | Black |
Center Rear Element-Burner Size | 12in./9in./6in. |
Right Front Element-Burner Type | Dual |
Right Rear Element-Burner Type | Standard |
Left Rear Element-Burner Type | Single |
Center Rear Element-Burner Type | Triple |
Center Rear Element-Burner Power | 4500W/3000W/1500W |
Right Front Element-Burner Power | 3000W/1900W |
Dimensions | |
Carton Height(IN,inches) | 9 1/4 |
Cutout Depth Max(IN,inches) | 20 9/16 |
Gross Weight(LB,pounds) | 50 |
Carton Width(IN,inches) | 40 3/4 |
Carton Depth(IN,inches) | 25 |
Features | |
Power Boost | No |
Power Outage Compatible | No |
LP Convertible | No |
Electrical | |
Volts | 240 |
Amps | 40 |
Power Cord Included | No |
208V Compatible | Yes |
Hz | 60 |
