Ge Appliances UDT165SIVII 18" Dishwasher

Custom Panel Model

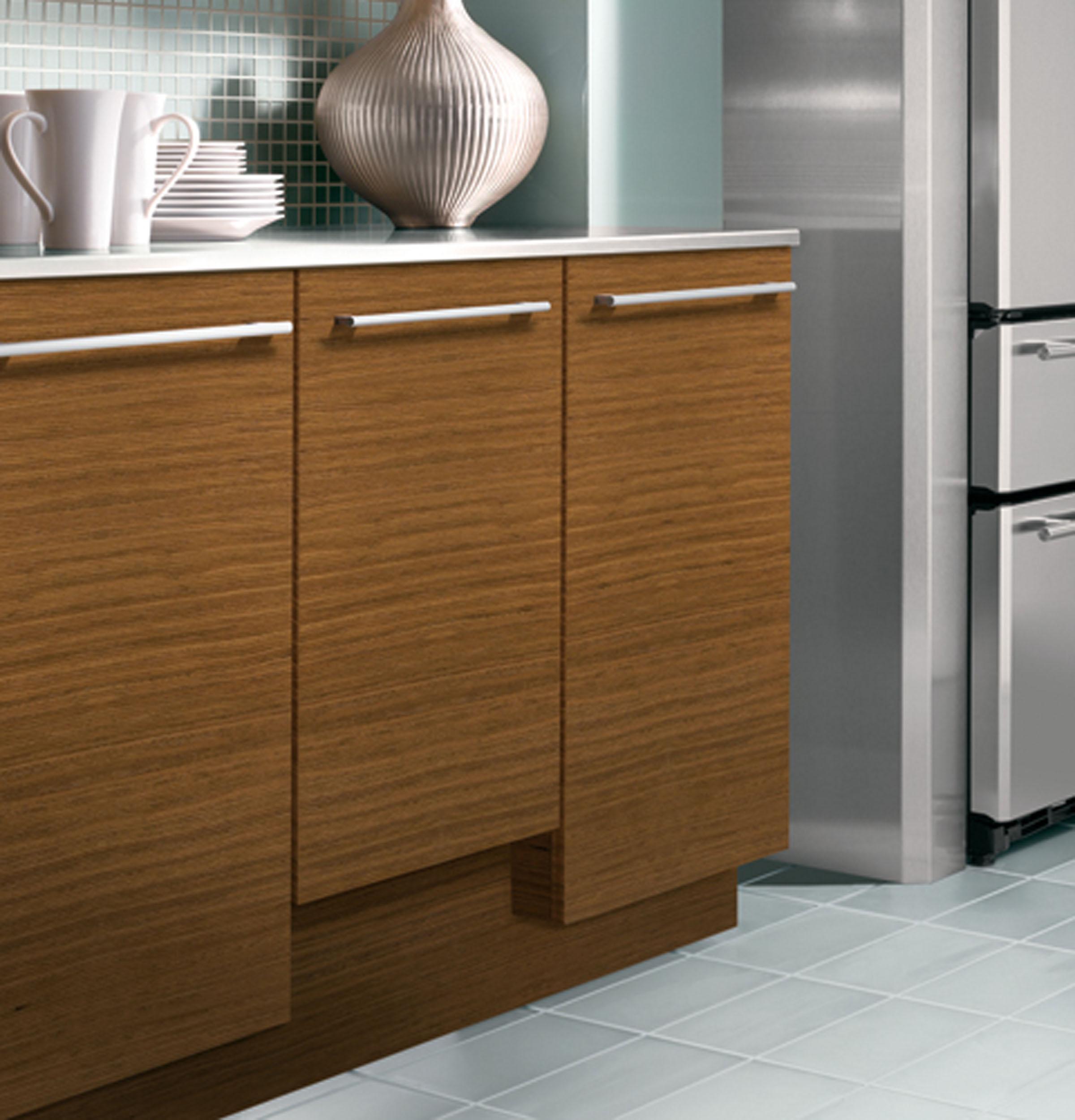

Designed for personalization with customer-supplied cabinet-compatible panel and custom handle

47 dbA
Ultra-quiet operation creates a peaceful kitchen environment even as it delivers powerful wash performance

Hidden, Integrated Electronic Controls
Allow easy activation of wash cycles: heavy wash, light wash and Auto Sense

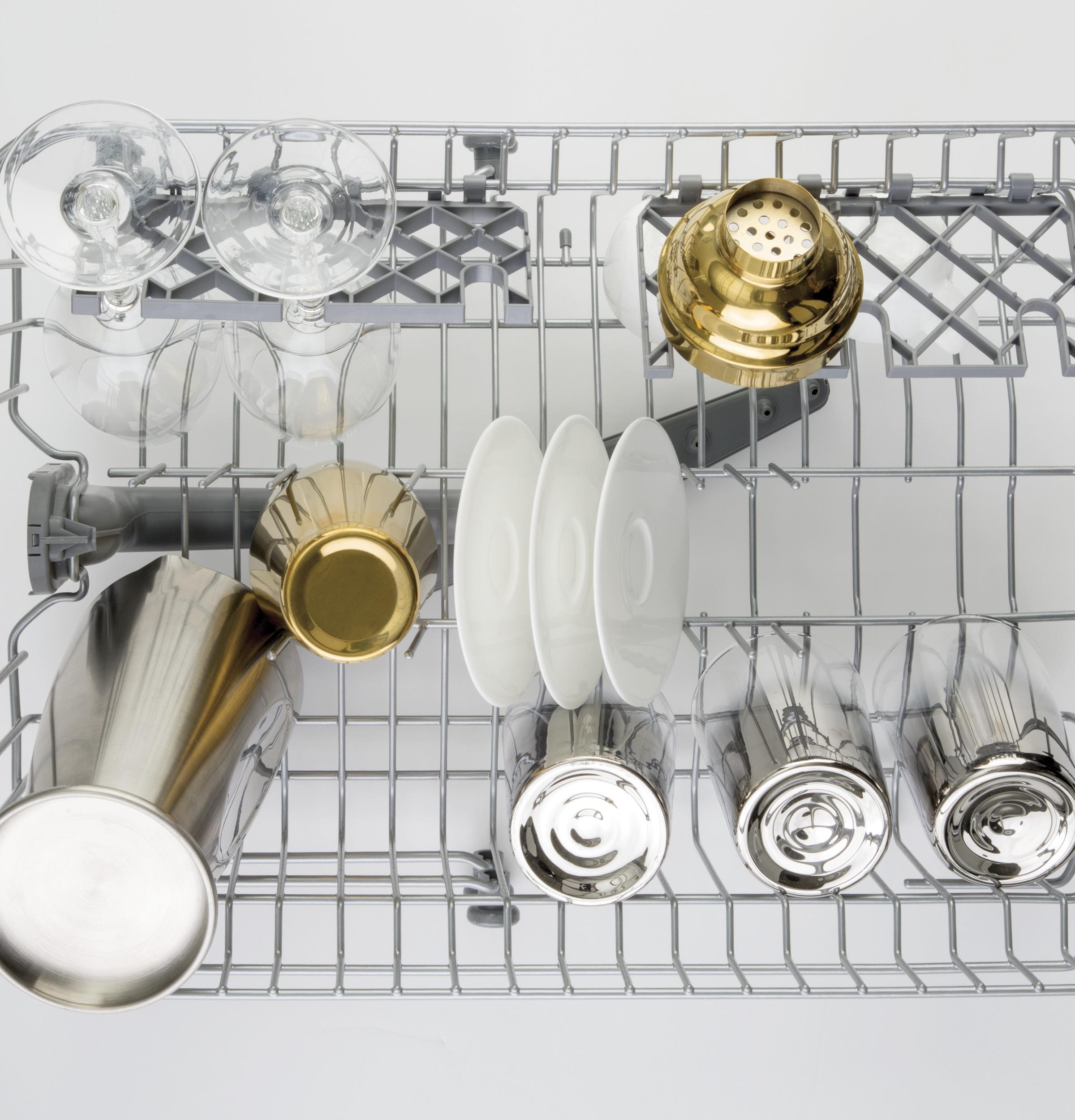

Nylon Gray Racks with Ball-Tipped Tines
Provide plenty of space and loading flexibility

Piranha™ Hard Food Disposer
Grinds food into small particles that are washed away

Three-Level Wash System
Provides effective, yet quiet cleaning power
18 Inch Fully Integrated Dishwasher with 8 Place Settings
Create your own kitchen masterpiece. Add a cabinet-compatible panel and custom handle for a luxurious look and feel that reflects your style. This Built-In Top Control Monogram dishwasher operates at just 47 dBA, ensuring a peaceful kitchen environment. The upper rack may be adjusted to accommodate odd-shape or larger items. The three wash cycles, five options, and three-level wash system provide effective cleaning power for the ultimate clean. This dishwasher also has a Piranha™ Hard Food Disposer and an NSF-Certified Sanitize Option, which kills 99.9% of bacteria while boosting drying results.
Dimensions & Capacity Width: 18"
Height: 33.375"
Depth: 23"
Dimensions & Capacity Width: 18"
Height: 33.375"
Depth: 23"
- Custom Panel Model
- Hidden, Integrated Electronic Controls
- Three-Level Wash System
- Nylon Gray Racks with Ball-Tipped Tines
- Piranha™ Hard Food Disposer
- 47 dbA
APPEARANCE | |
Door Panel Color | Custom Panel Required |
Design Style | European Stainless Steel |
Door Appearance | Fully integrated door for custom panels |
Panel Capability | Integrated |
Color Appearance | Custom Panel and Handle Required |
Handle Design | Handle required |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Labor Warranty | Limited 2-year entire appliance |
Parts Warranty | Limited 2-year entire appliance |
POWER / RATINGS | |
Calrod Heater Watts | 1100 |
Electrical Requirements | 120V ; 60Hz ; 10A |
ECONOMICAL / QUIET | |
Door Insulation | Insulation Mastic |
Quiet Package | 47 dBA |
Outer Wrap | U-Blanket |
Motor Type | Single Speed |
Quiet Features | Sealed Toe Kick Tub Collar Trim |
WEIGHTS & DIMENSIONS | |
Overall Height | 32.375 |
Cabinet Depth | 24 in |
Height w/ Legs Retracted - Minimum Height | 32.375 |
Overall Depth | 23 |
Cabinet Width | 18 |
Net Weight | 71 |
Overall Width | 18 |
Approximate Shipping Weight | 84 |
Height w/Legs Extended - Maximum Height | 34.625 |
FEATURES | |
Wash System | 3-Level Standard |
Sensor | Clean Sensor |
Lower Rack | 1 Rack handle Nylon |
Leveling System | Leveling Legs |
OU Certified | No |
Number of Place Settings | Up to 8 |
Water Filtration System | 3-Stage Manual Clean Filtration |
Rack Features | 1 Piece Mid Silverware Basket w/ 1 Cell Cover 1 Plastic Utility Shelf - Upper Ball-Tipped Tines Fold-Down Tines - Lower |
Custom Panel Ready | Integrated Panels |
Upper Rack | 1 Rack handle Adjustable Nylon |
Dishwasher Options | Automatic Hot Start Child Lock Delay Start 1-12 Hr. Sani (Certified to NSF Standard 184) Start/Reset TempBoost |
Latch | Pull with Handle |
Wash Arms | 2 with Upper Nozzle |
Number of Options | 5 |
Style | Built-In Top Control |
Dishwasher Control Features | 3 Digit Countdown Display with 1 'Clean' light / 1 'Sanitized' light Cycle Progress Indicators Audible End-of-Cycle Signal Cycle Countdown Last Cycle Memory Start/Reset Pad |
Wash System Features | Automatic HotStart Automatic Temperature Control Dual Pump Flood Control System Piranha™ Hard Food Disposer |
Racking Material | Nylon |
Floor Protection | Yes |
Dishwasher Cycles | AutoSense Heavy Wash Light Wash |
Number of Cycles | 3 |
Tub and Door Liner | Stainless Steel |
Sabbath Mode | Yes |
Dispenser | Rinse Aid with Indicator and Adjustment |
Exterior Style | Custom Panel |
Dishwasher Drying Features | Condensate Dry |
Control Type | 4 Pushbuttons Fully Integrated Electronic Top Controls |
