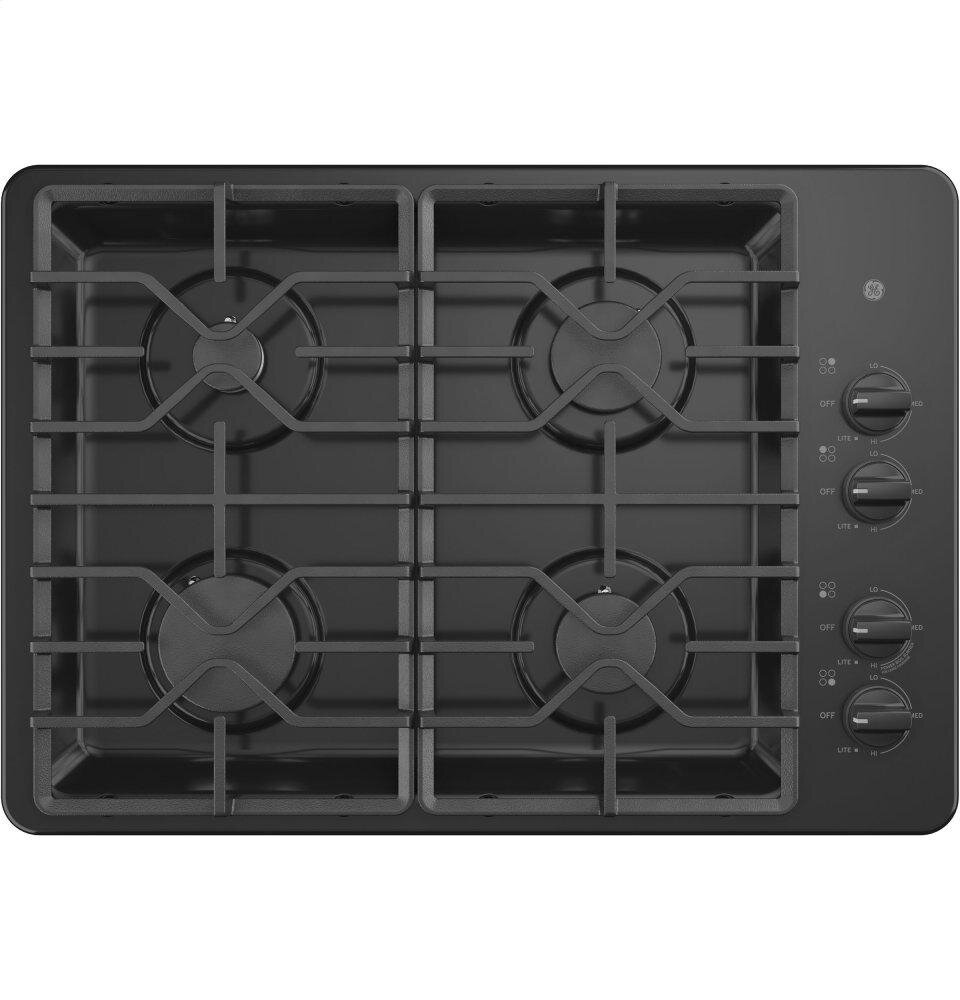

Ge Appliances JGP3530DLBB Ge® 30" Built-In Gas Cooktop

Ge Appliances JGP3530DLBB Ge® 30" Built-In Gas Cooktop

GE® 30" built-in gas cooktop featuring an 18,000 BTU Power Boil burner, a Precise Simmer burne... Read more...

When Will I Get My Order?

x

EXTENDED PROTECTION

3 year plan

$120.99

5 year plan

$228.99
Shipping calculated at checkout.
View full details

When Will I Get My Order?

x

Ge Appliances JGP3530DLBB Ge® 30
Ge Appliances JGP3530DLBB Ge® 30" Built-In Gas Cooktop

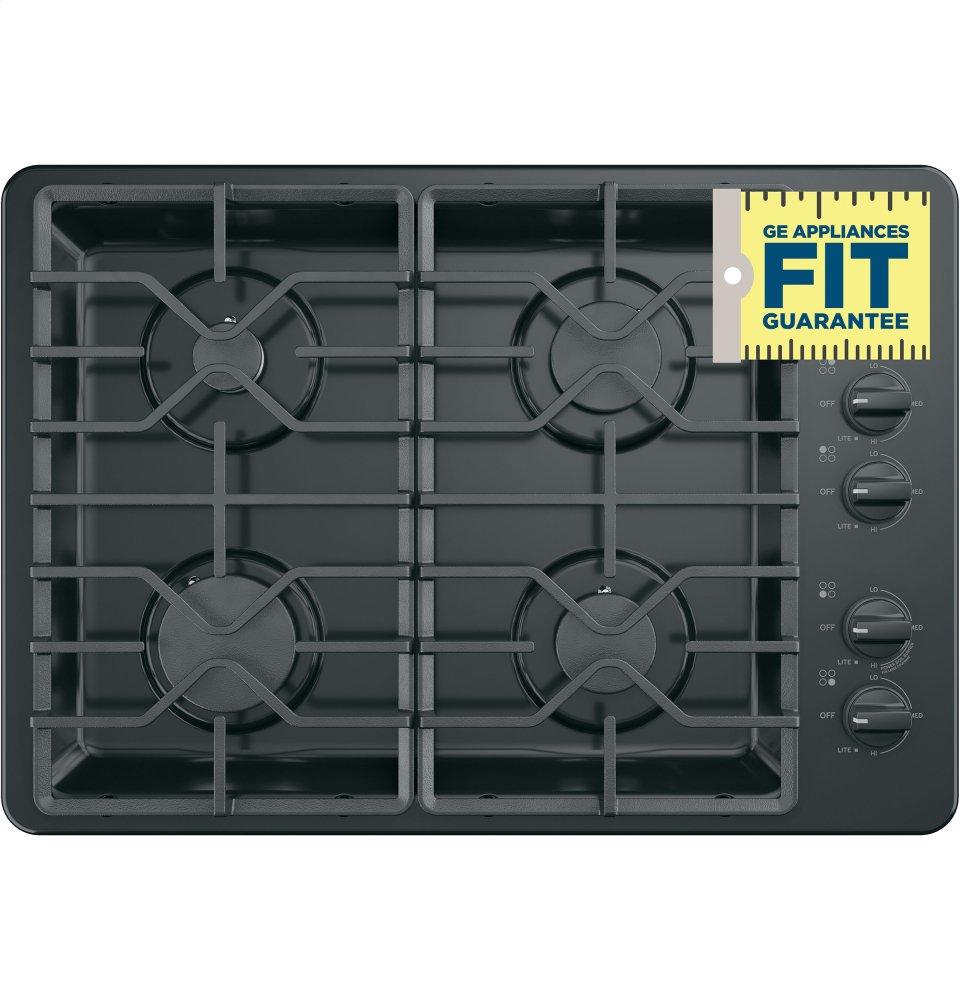

Fit Guarantee

Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

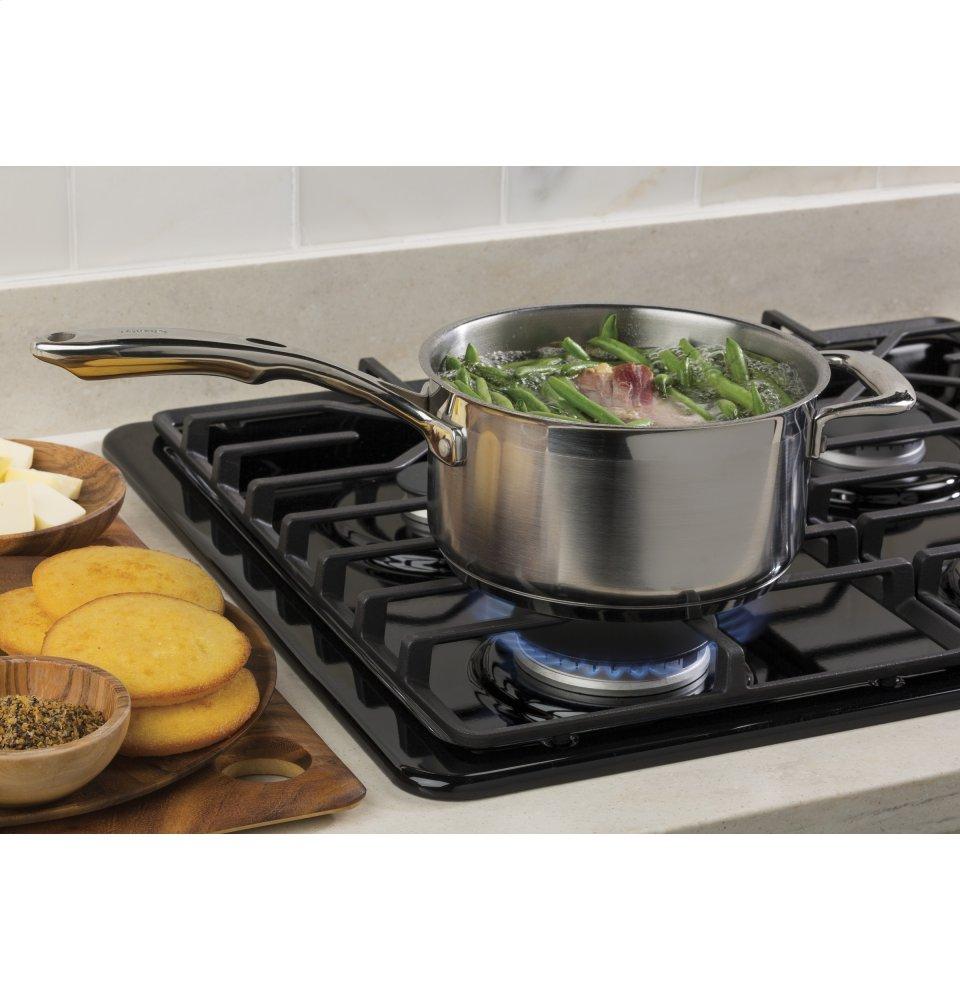

Start Cooking Faster with Power Boil

18,000 BTU Power Boil burner delivers intense heat for faster boiling

Precise Simmer Burner

Protect delicate foods with low, even heating

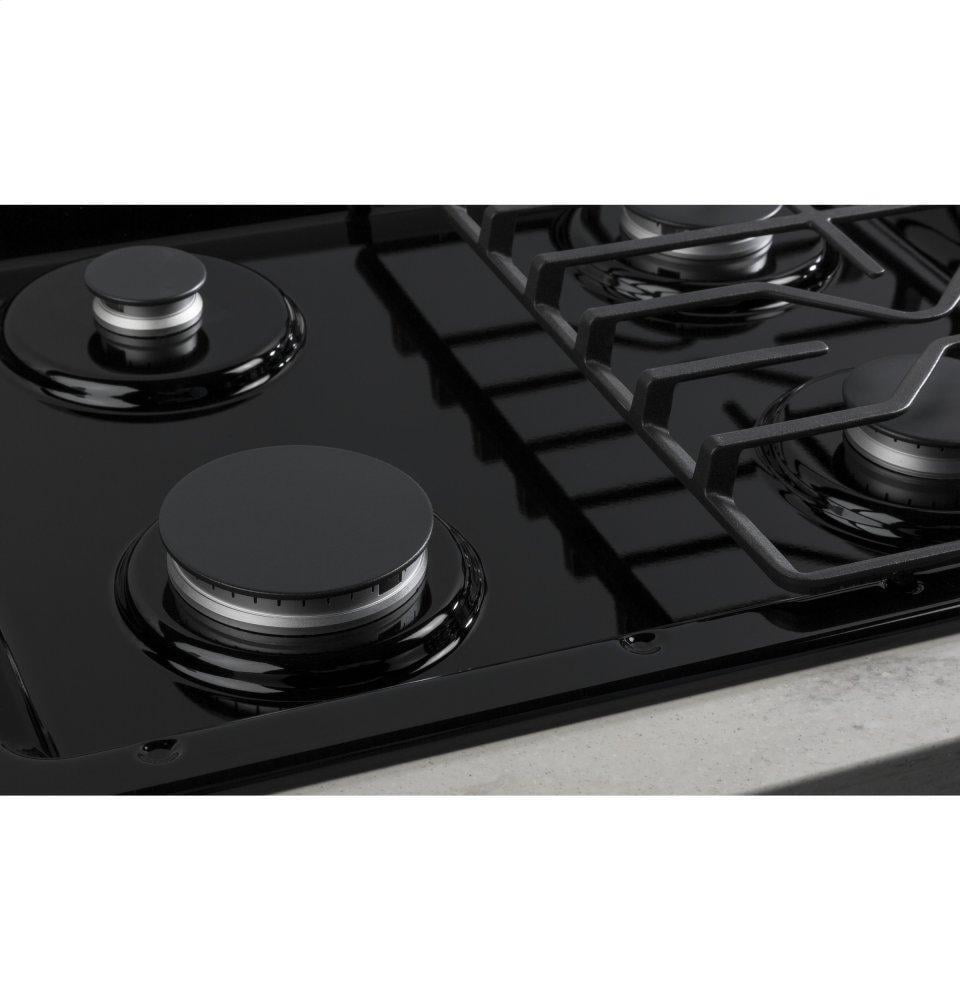

Spend Less Time Cleaning Up

Sealed cooktop burners contain spills and make cleaning quick and easy

Dishwasher-Safe Grates

Heavy-duty grates are easy to clean in the dishwasher

MAX Burner System

Delivers the same maximum BTU power to propane and natural gas cooktops


GE® 30" built-in gas cooktop featuring an 18,000 BTU Power Boil burner, a Precise Simmer burner, and heavy-duty, dishwasher-safe grates.

  • Fit Guarantee: Replacing A Similar Cooktop From Ge Appliances Or Another Brand? Ge Cooktops Are Guaranteed For An Exact Fit Or Ge Appliances Will Pay Up To $100 Toward Modifications. See Offer Criteria And Details
  • Start Cooking Faster With Power Boil: 18,000 Btu Power Boil Burner Delivers Intense Heat For Faster Boiling
  • Precise Simmer Burner: Protect Delicate Foods With Low, Even Heating
  • Spend Less Time Cleaning Up: Sealed Cooktop Burners Contain Spills And Make Cleaning Quick And Easy
  • Dishwasher-Safe Grates: Heavy-Duty Grates Are Easy To Clean In The Dishwasher Designed For Easy Cleaning: Recessed Surface Helps Contain Spills And Make Cleaning Easy
  • Max Burner System: Delivers The Same Maximum Btu Power To Propane And Natural Gas Cooktops

FILTER
App Filter - Control Type Rotary knobs
App Filter - Cooktop Type Continuous Grates
App Filter - Cabinet Width Cooking 30 in. (Standard)
App Filter - Fuel Type Gas
APPEARANCE
Control Knobs Dishwasher Safe
Gloss Black
Cooktop Burner Grate Color Matte Black
Color Appearance Black
POWER / RATINGS
Burner BTU Ratings (000's/BTU) - LP Gas (1) 18.0; (1) 12.0; (1) 9.5; (1) 5.0
Burner BTU Ratings (000's/BTU) - Natural Gas (1) 18.0; (1) 12.0; (1) 9.5; (1) 5.0
Volts/Hertz/Amps 120V; 60Hz; 5A
WARRANTY
Warranty Notes See written warranty for full details
Parts Warranty Limited 1-year entire appliance
Labor Warranty Limited 1-year entire appliance
ACCESSORIES
LP Conversion Kit Included
WEIGHTS & DIMENSIONS
Net Weight 38.0
Overall Depth 21.0
Cutout Dimensions (Width x Depth) (In.) 28-1/2 x 19-5/8
Overall Width 30.0
Overall Height 4.75
Approximate Shipping Weight 44.0
Cabinet Width 30.0
FEATURES
Burner - Right Front 12,000 BTU
Burner - Left Rear 5,000 BTU
Cooktop Burner Type 4 Sealed
Burner - Right Rear 9,500 BTU
Cooktop Burner Grate Features Continuous Grates
Dishwasher Safe
Valves (Degree of Turn) 270
Fuel Type Natural Gas (factory set)
Cooktop Surface Black
Deep Porcelain-Enamel
Burner - Left Front 18,000 BTU Power Boil
Cooktop Burner Grate Material Standard Cast

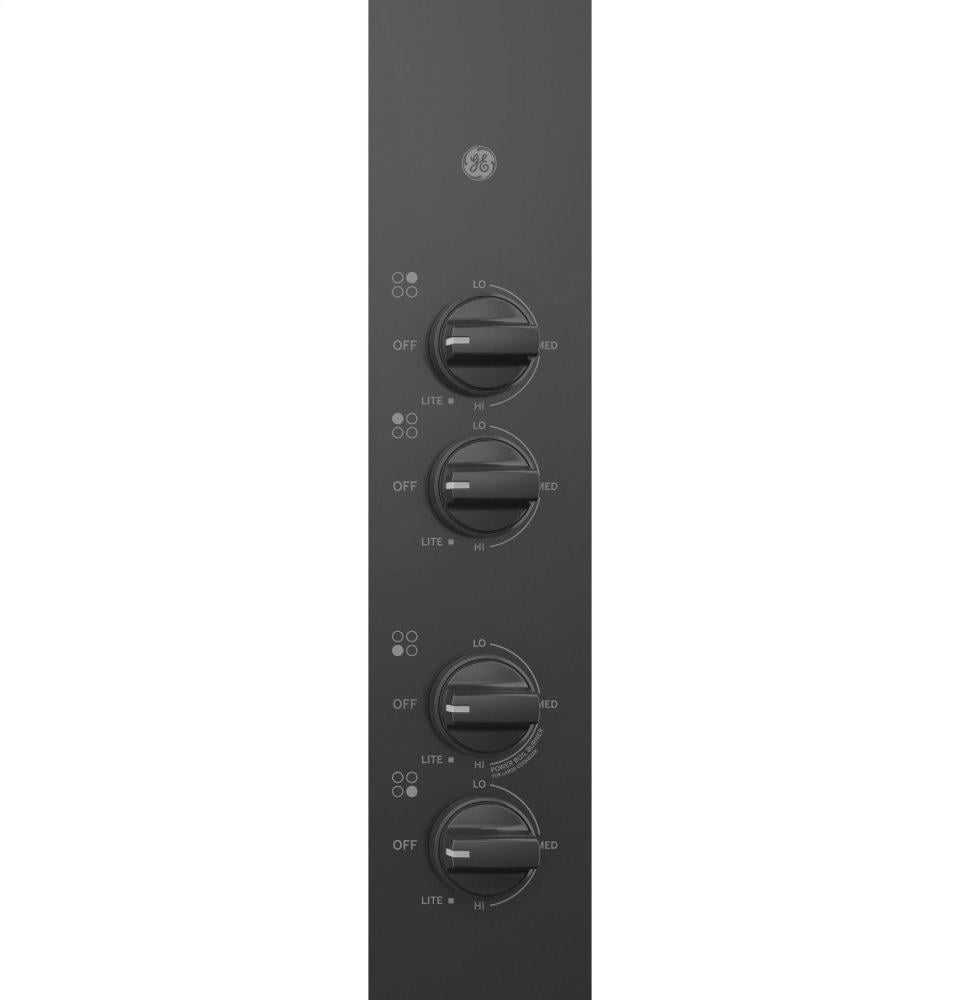

Control Type Knob
Ignition System Electronic
Cooktop Type Continuous Grates
Control Location Right Side
