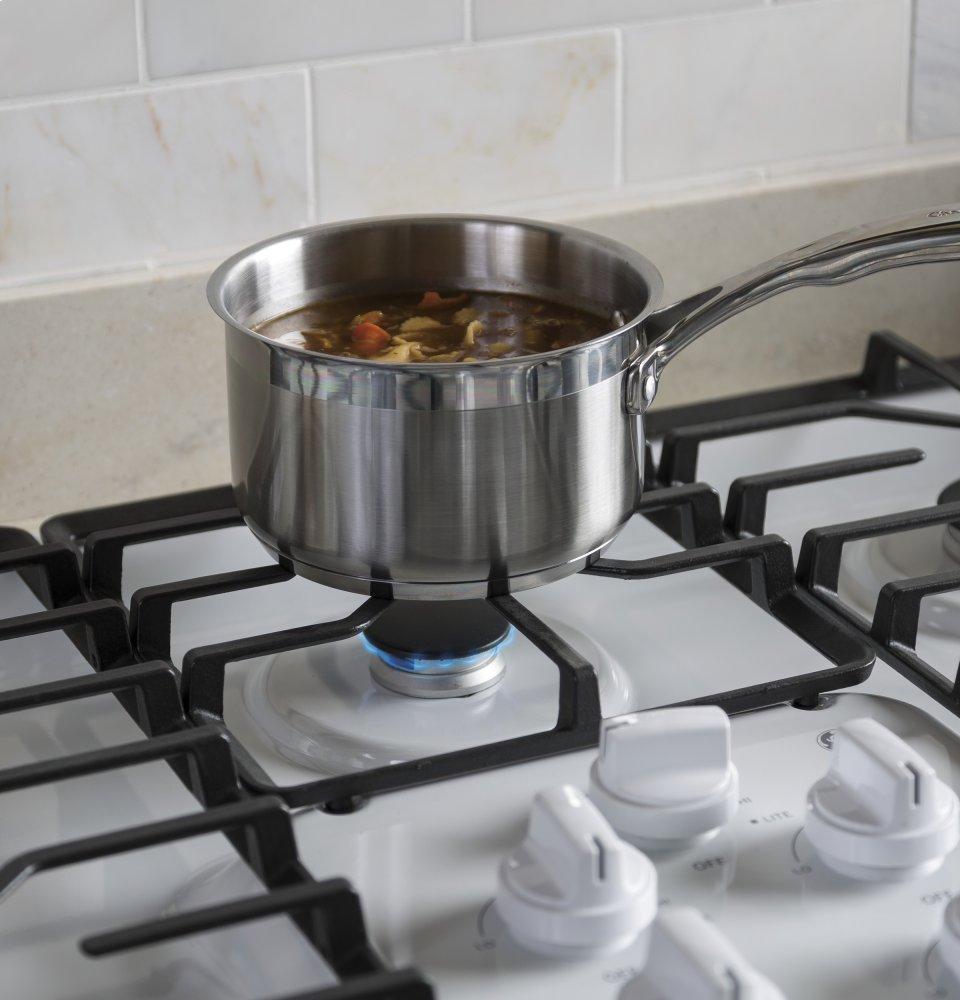

Ge Appliances JGP3036DLWW Ge® 36" Built-In Gas Cooktop With Dishwasher-Safe Grates
Rebates &
Promotions
GE and GE Profile Fit Guarantee - Replace your Cooktop or Wall Oven with a qualifying GE Cooktop, Wall Oven, Advantium Oven, or Slide In Range and receive up to a $300 installation rebate. Download Valid: 07/01/2024-12/31/2024
Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher
Spend Less Time Cleaning Up

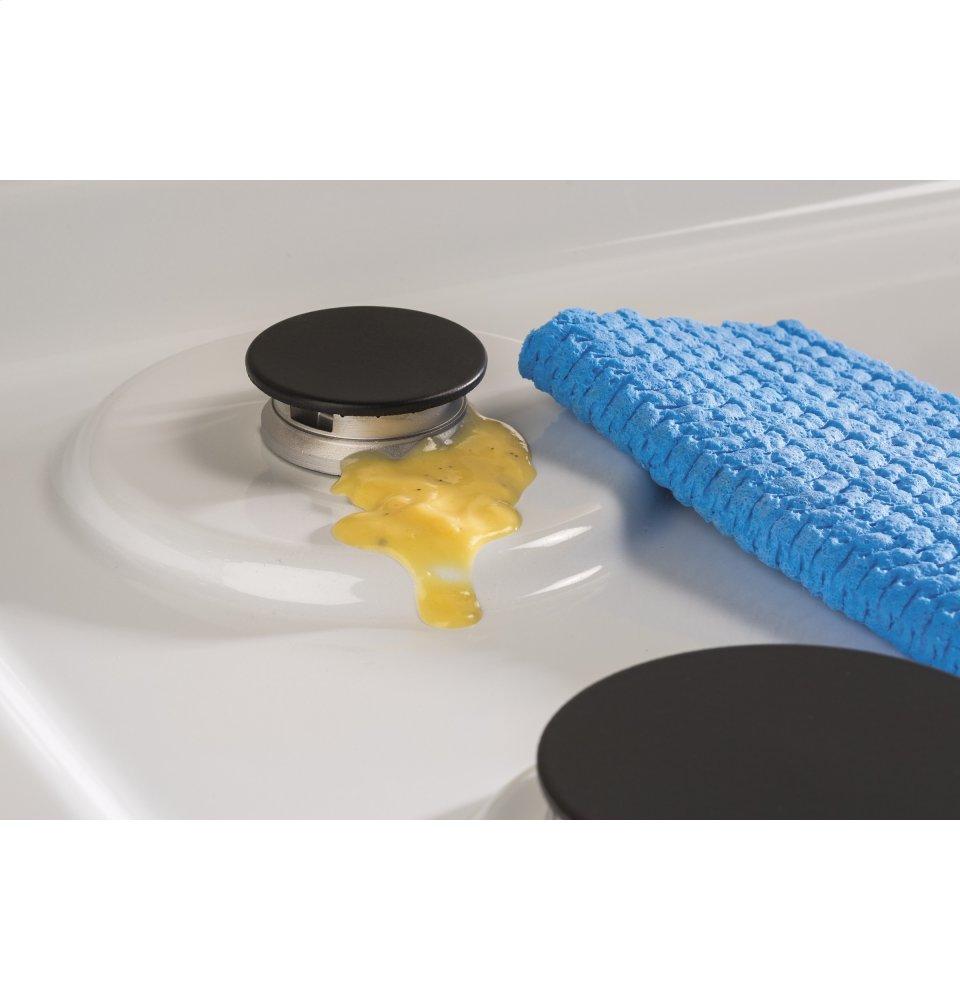

Sealed cooktop burners contain spills and make cleaning quick and easy
Precise Simmer Burner
Protect delicate foods with low, even heating
MAX Burner System
Delivers the same maximum BTU power to propane and natural gas cooktops

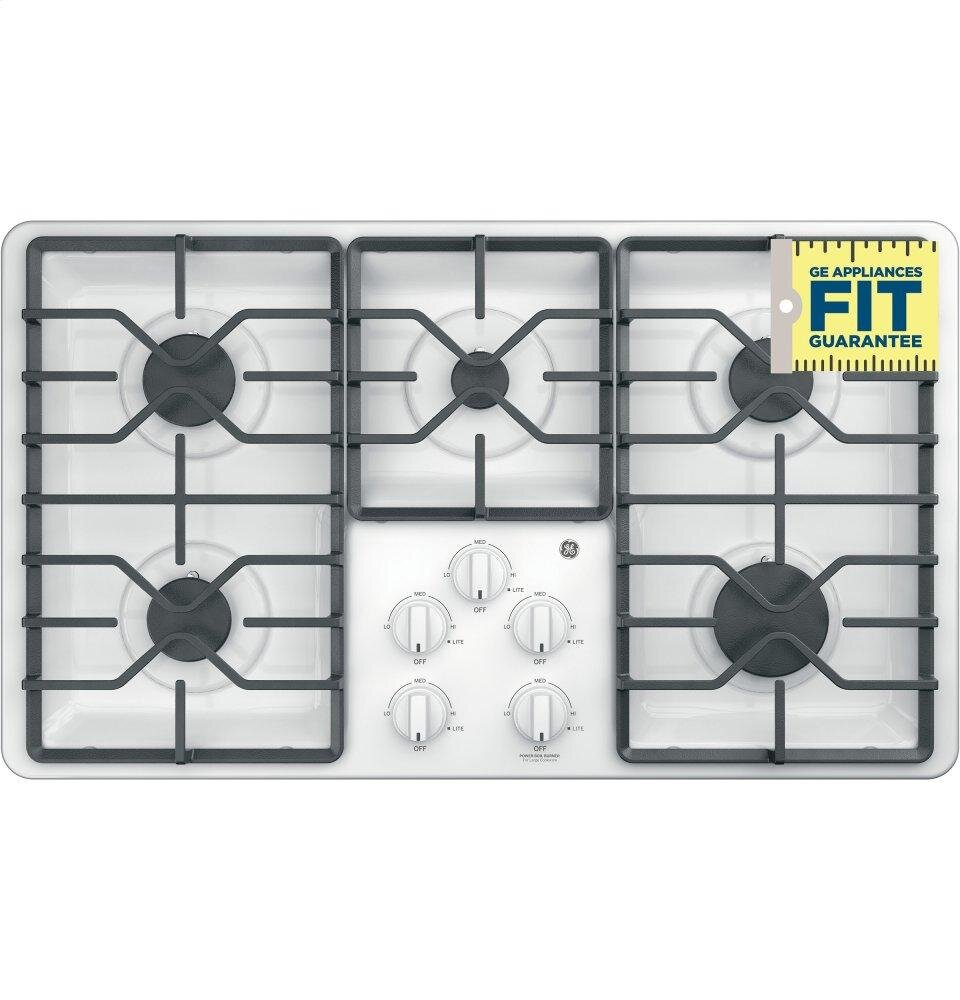

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

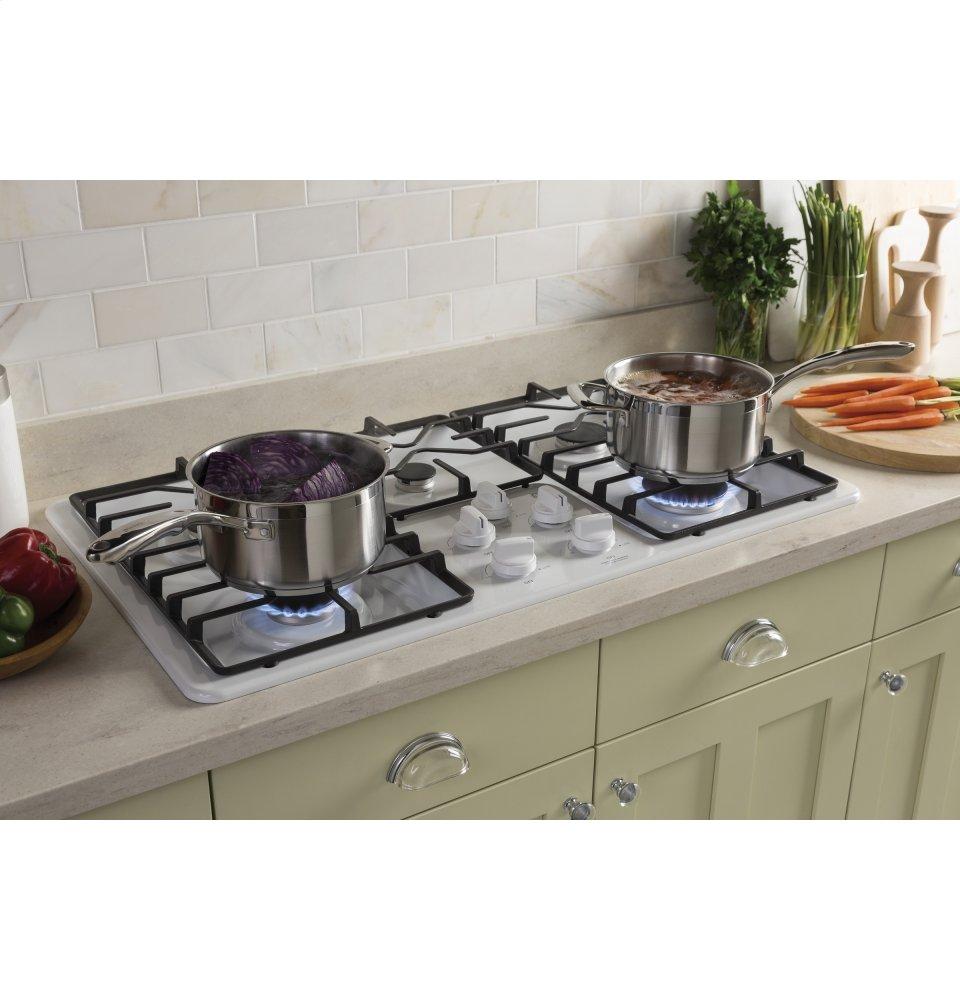

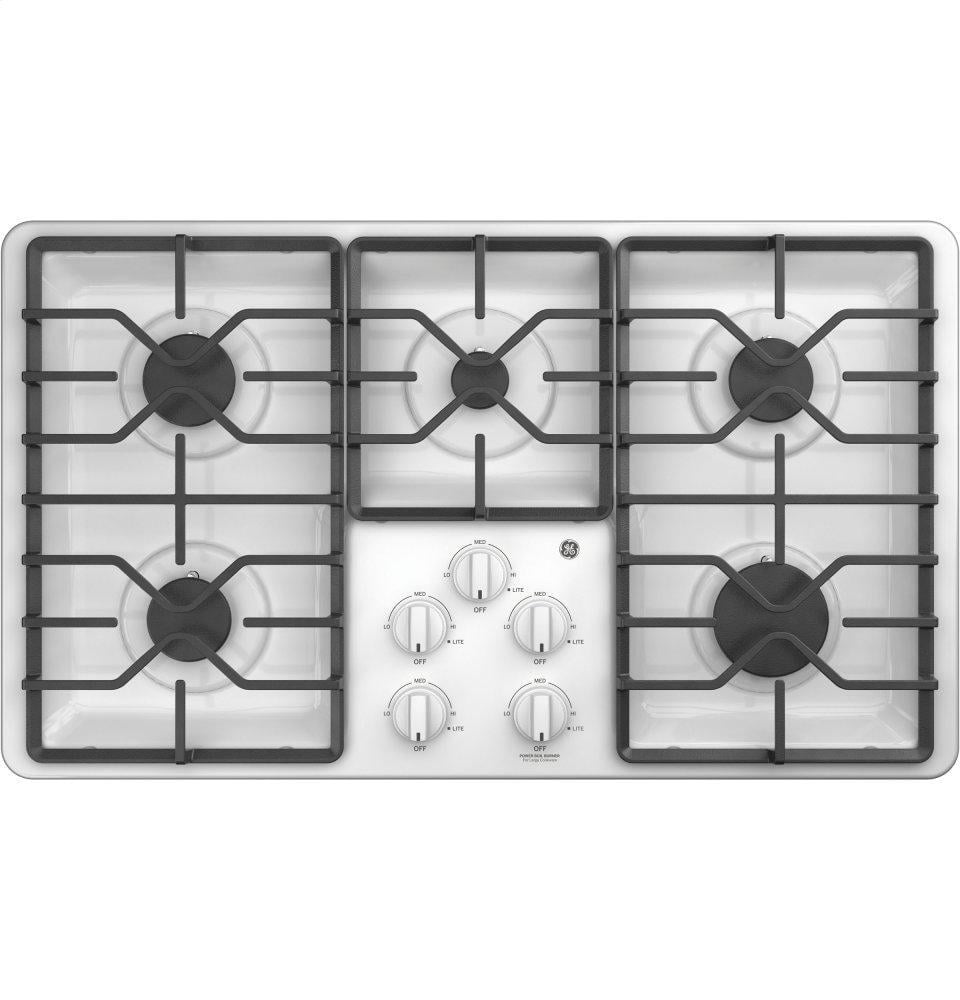

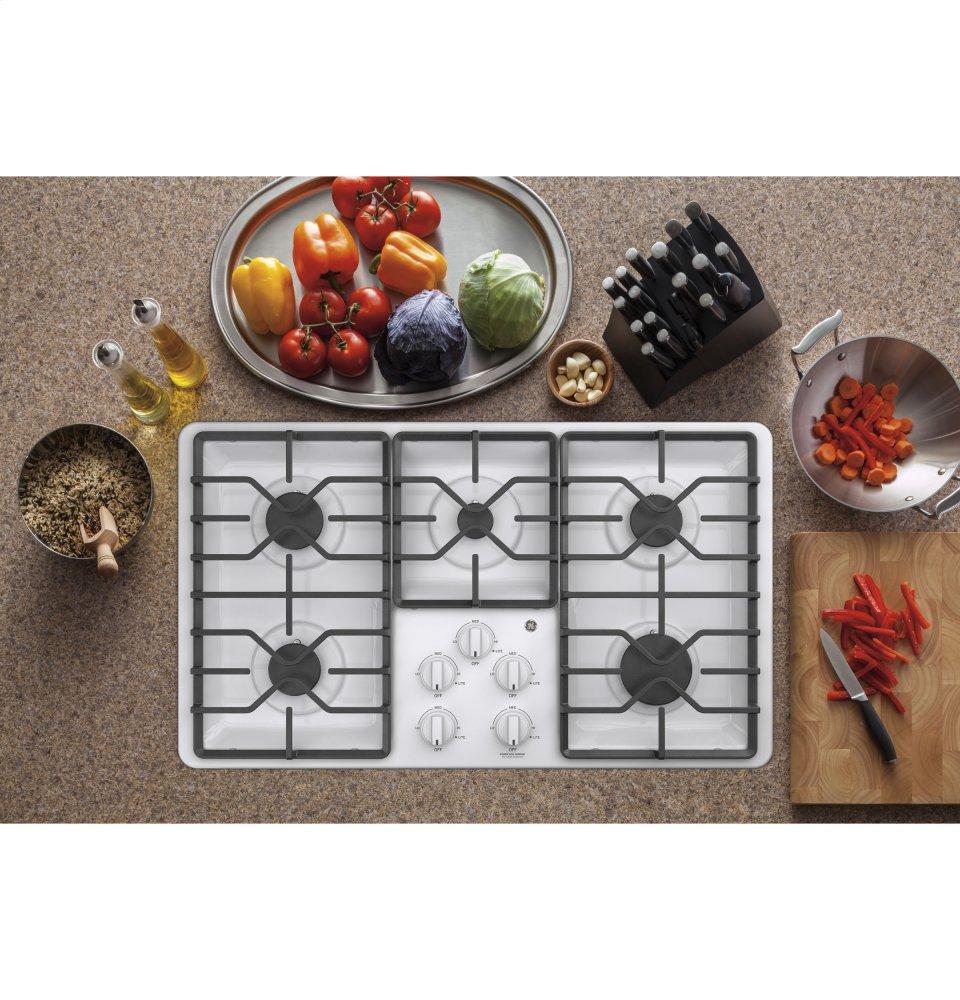

GE 36" gas cooktop features 5 sealed burners, heavy-duty, dishwasher-safe grates, a deeply recessed cooktop, and a MAX burner system.
- Dishwasher-Safe Grates: Heavy-Duty Grates Are Easy To Clean In The Dishwasher
- Spend Less Time Cleaning Up: Sealed Cooktop Burners Contain Spills And Make Cleaning Quick And Easy

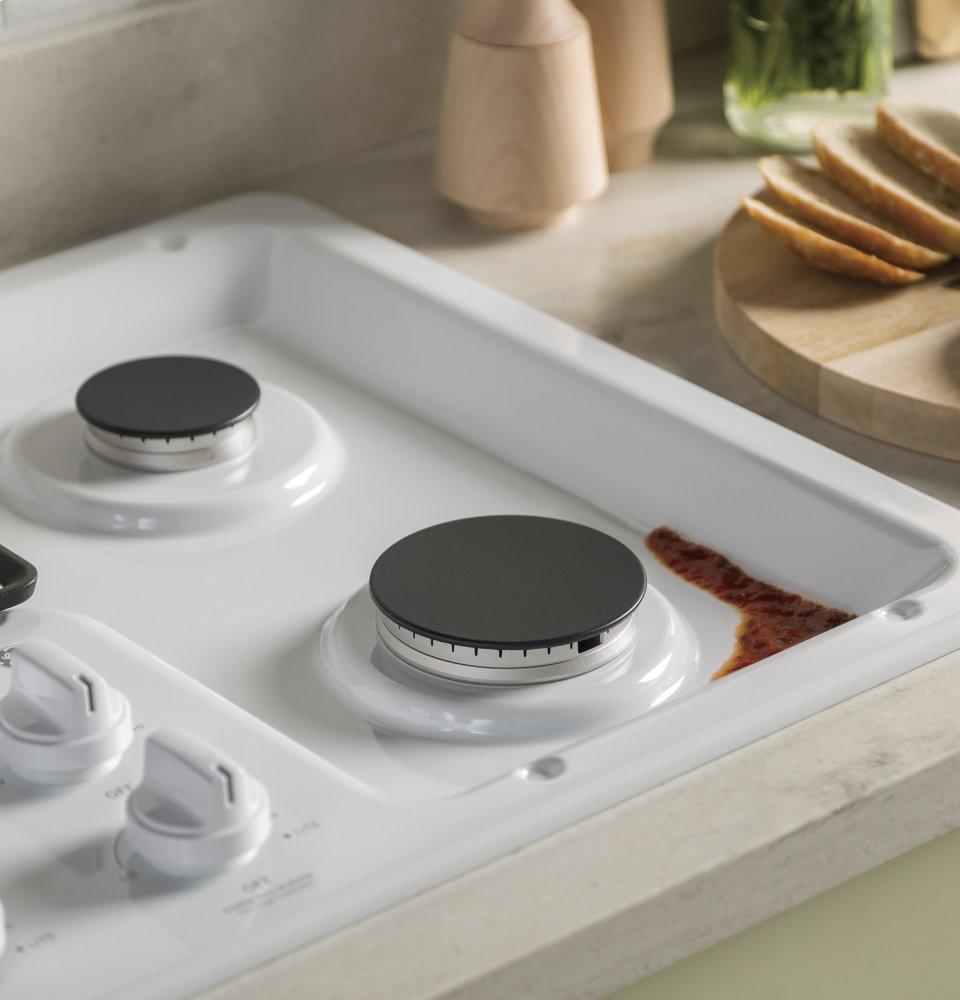

- Designed For Easy Cleaning: Recessed Surface Helps Contain Spills And Make Cleaning Easy

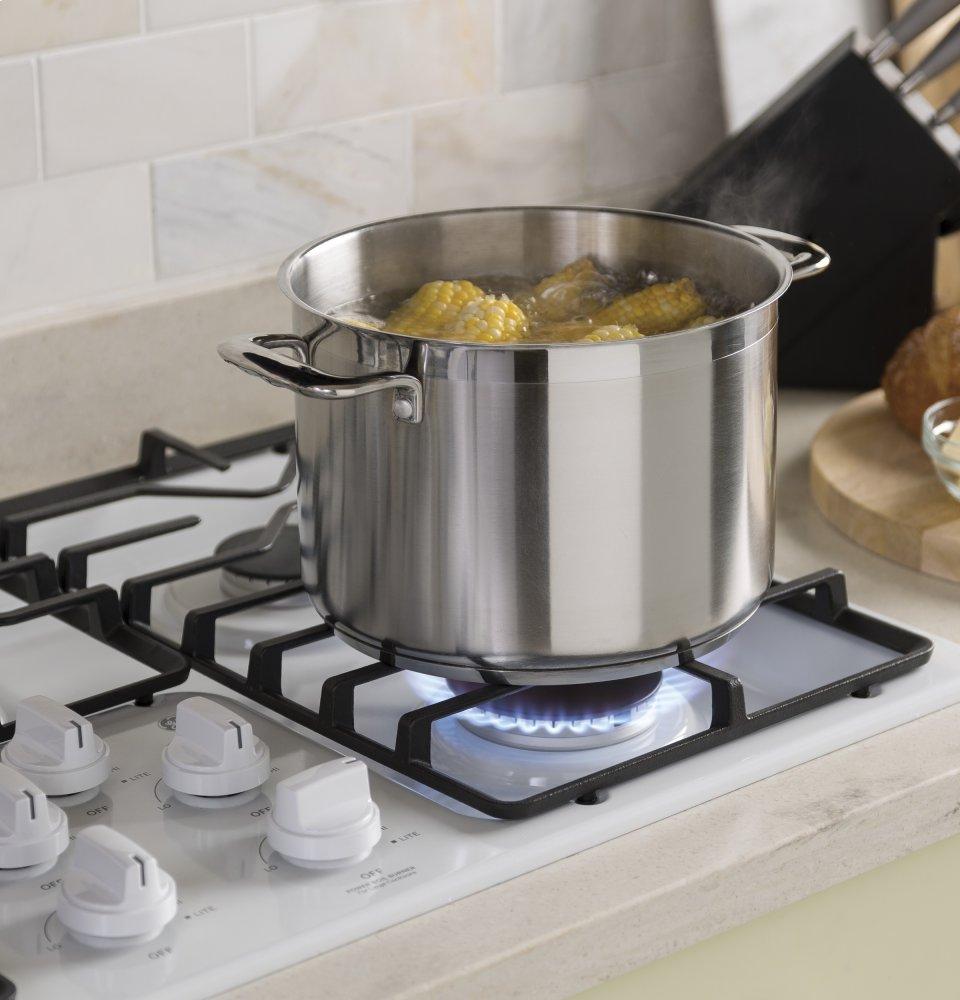

- 15,000 Btu Power Boil Burner: Delivers High Heat For Fast Boiling
- Precise Simmer Burner: Protect Delicate Foods With Low, Even Heating
- Max Burner System: Delivers The Same Maximum Btu Power To Propane And Natural Gas Cooktops
- Fit Guarantee: Replacing A Similar Cooktop From Ge Appliances Or Another Brand? Ge Cooktops Are Guaranteed For An Exact Fit Or Ge Appliances Will Pay Up To $100 Toward Modifications. See Offer Criteria And Details
FILTER | |
App Filter - Control Type | Rotary knobs |
App Filter - Cooktop Type | Continuous Grates |
App Filter - Cabinet Width | Cooking 36 in. |
App Filter - Fuel Type | Gas |
APPEARANCE | |
Control Knobs | Dishwasher Safe Gloss White |
Cooktop Burner Grate Color | Matte Black |
Color Appearance | White |
POWER / RATINGS | |
Burner BTU Ratings (000's/BTU) - LP Gas | (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0 |
Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 15.0; (1) 12.0; (2) 9.5; (1) 5.0 |
Volts/Hertz/Amps | 120V; 60Hz; 5A |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
LP Conversion Kit | Included |
WEIGHTS & DIMENSIONS | |
Net Weight | 38.0 |
Overall Depth | 21.0 |
Cutout Dimensions (Width x Depth) (In.) | 33-7/8 x 19-1/8 |
Overall Width | 36.0 |
Overall Height | 4.75 |
Approximate Shipping Weight | 44.0 |
Cabinet Width | 36.0 |
FEATURES | |
Burner - Right Front | 15,000 BTU Power Boil |
Burner - Left Rear | 9,500 BTU |
Cooktop Burner Type | 5 Sealed |
Burner - Right Rear | 9,500 BTU |
Cooktop Burner Grate Features | Continuous Grates Dishwasher Safe |
Valves (Degree of Turn) | 270 |
Fuel Type | Natural Gas (factory set) |
Burner - Center | 5,000 BTU |
Cooktop Surface | Deep Porcelain-Enamel White |
Burner - Left Front | 12,000 BTU |
Cooktop Burner Grate Material | Standard Cast |

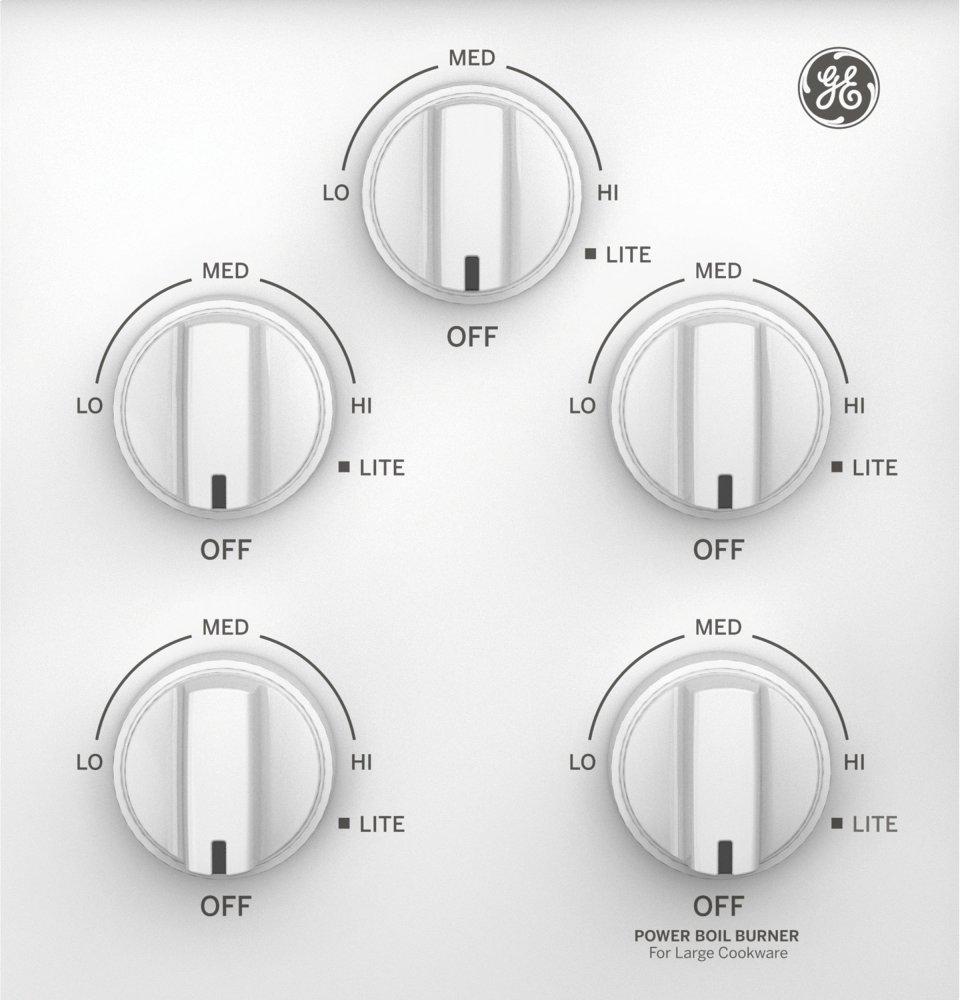

Control Type | Knob |
Ignition System | Electronic |
Cooktop Type | Continuous Grates |
Control Location | Front Center |
JGP3030 JGP3036 JGP3530 JGP5030 JGP5036 JGP5530 JGP5536 PGP7030 PGP7036 PGP9030 PGP9036
