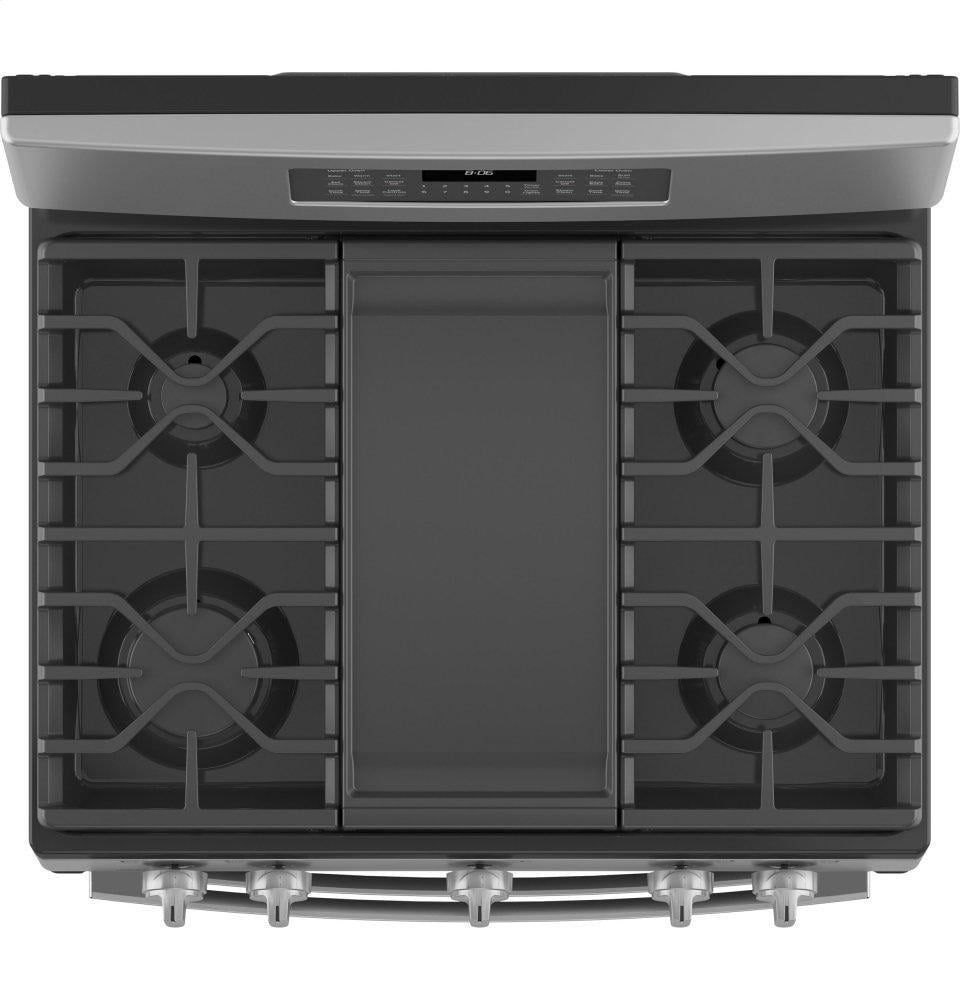

Edge-to-edge cooktop

Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware

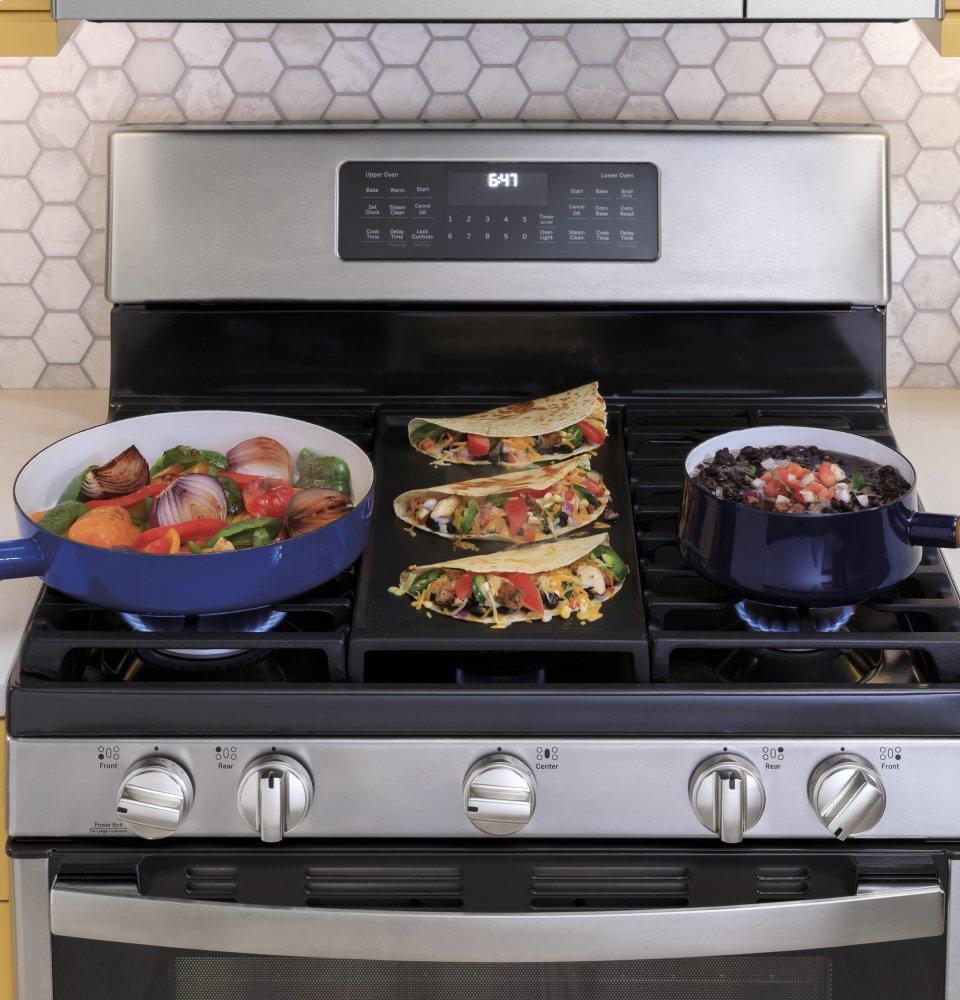

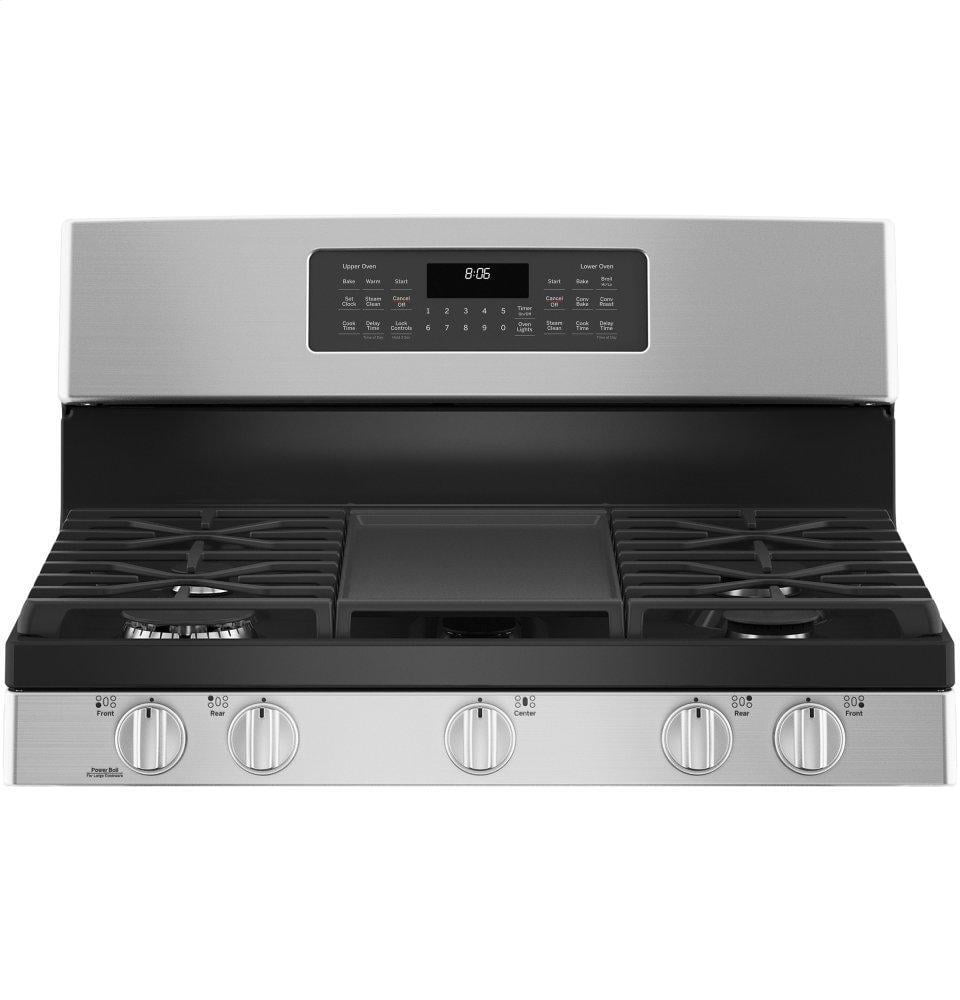

Integrated griddle

This integrated non-stick griddle leads the industry in size and quality, so you can cook a lot of food at once
Power boil burner

This 15,000-BTU power boil element produces intense heat to boil water fast
Center oval burner

This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
Steam clean

A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
Precise simmer burner

This burner setting provides low, even heat so delicate dishes don't burn
- Edge-to-edge cooktop
- Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
- Integrated griddle
- This integrated non-stick griddle leads the industry in size and quality, so you can cook a lot of food at once
- Power boil burner
- This 15,000-BTU power boil element produces intense heat to boil water fast
- Center oval burner
- This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
- Steam clean
- A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
- Precise simmer burner
- This burner setting provides low, even heat so delicate dishes don't burn
- Heavy duty, dishwasher-safe grates
- These cooktop grates can be cleaned one of two ways (TM) either in the dishwasher, or on the bottom of a self-clean oven

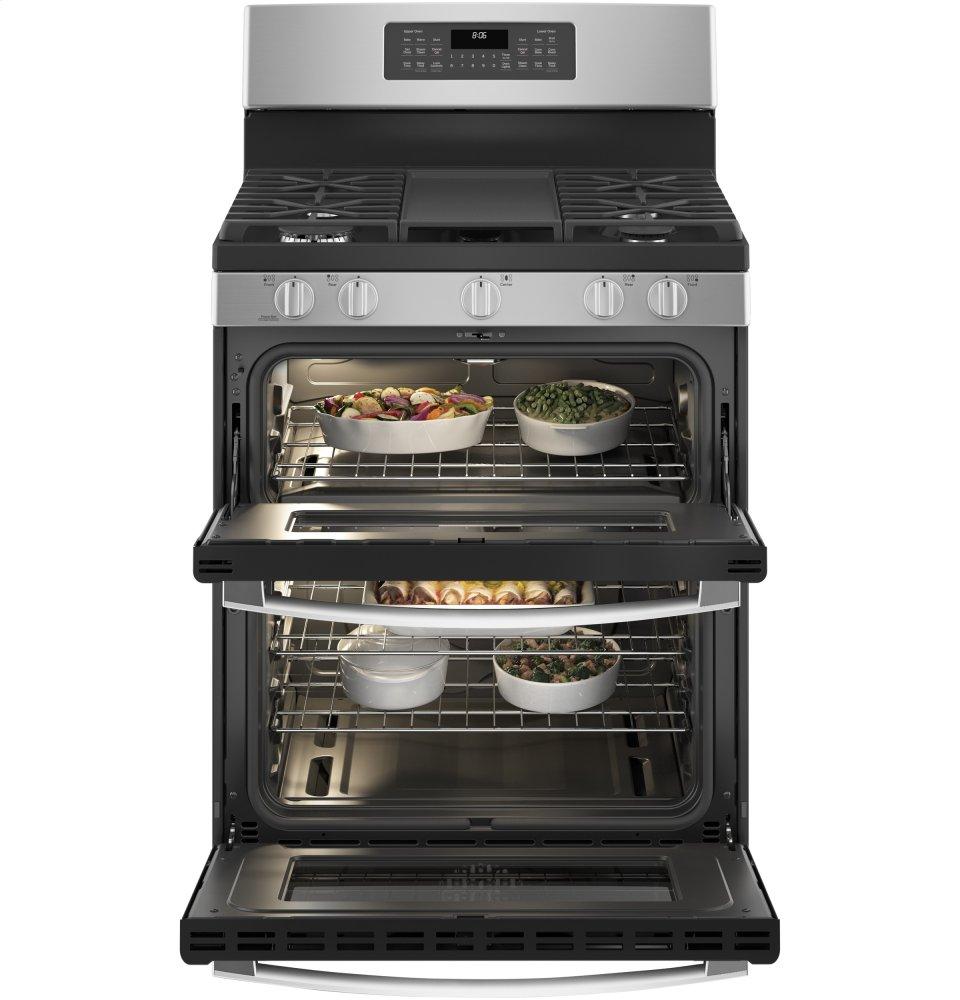

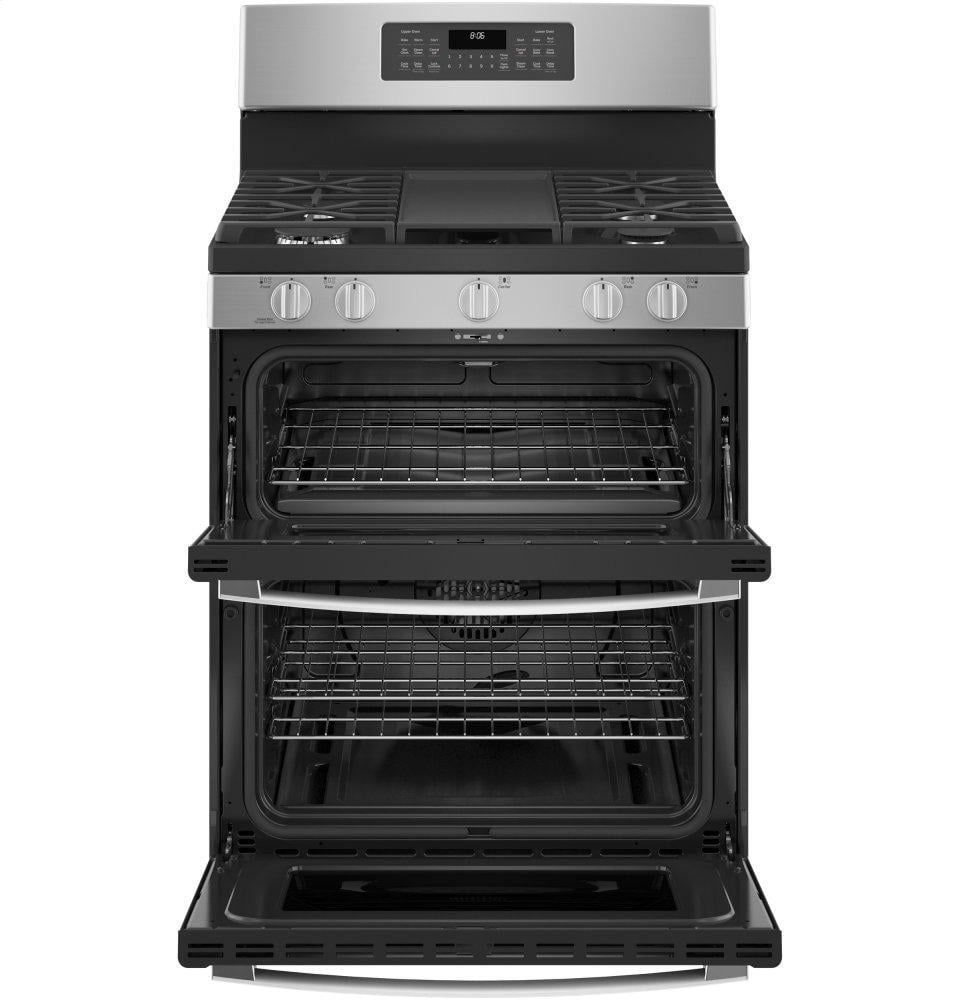

- Large capacity double oven
- Cook an entire meal at once with a 6.8 cubic foot total capacity double oven which provides enough room for multiple dishes
- Sealed cooktop burners
- Sealed cooktop burners contain cooking spills so cleanup is quick and easy
- Deep-recessed cooktop
- This deep-recessed gas cooktop contains cooking spills and makes it easier to clean up
CAPACITY | |
Total Capacity (cubic feet) | 6.8 |
Capacity (Cu. Ft.) | 2.5 Upper / 4.3 Lower |
FILTER | |
App Filter - Cleaning Type | Steam |
App Filter - Control Type | Electronic touchpad |
App Filter - Cooktop Type | Continuous Grates with Griddle |
App Filter - Cooking Technology | Convection Traditional |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Product Type | Ranges Free-Standing Double Oven |
App Filter - Convection | Yes |
App Filter - Fuel Type | Gas |
App Filter - Edge-to-Edge Cooktop | Yes |
APPEARANCE | |
Control Knobs | Weighted Stainless Steel Appearance |
Handle Color | Stainless Steel |
Handle Design | Designer Style |
Cooktop Burner Grate Color | Matte Black |
Oven Door Features | Big View Oven Window |
Color Appearance | Stainless Steel |
POWER / RATINGS | |
Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower) |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0 |
Volts/Hertz/Amps | 120v; 60Hz; 15A |
Bake/Broiler BTU Rating - LP (000's BTU's) | 7.0 / 120V Bake Assist Element (Upper); 13.5 / 13.5 (Lower) |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
Griddle Accessory | Integrated Non-Stick (Included) |
LP Conversion Kit | Included |
Center Grate | Optional |
WEIGHTS & DIMENSIONS | |
Net Weight | 205.0 |
Height to Cooking Surface (in.) | 36 - 36 1/2 |
Depth Without Handle | 26.75 |
Overall Depth | 29.25 |
Depth with Door Open | 43.5 |
Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower |
Overall Width | 30.0 |
Overall Height | 47.25 |
Approximate Shipping Weight | 225.0 |
Cabinet Width | 30.0 |
FEATURES | |
Burner - Right Front | 9,500 BTU |
Burner - Left Rear | 5,000 BTU Precise Simmer |
Oven Cleaning Type | Steam Clean |
Cooktop Burner Type | Sealed |
Burner - Right Rear | 12,000 BTU |
Cooktop Burner Grate Features | Dishwasher Safe |
Oven Rack Features | 2 Upper / 5 Lower Rack Positions 3 Oven Racks |
Fuel Type | Natural Gas (factory set) |
Burner - Center | 10,000 BTU Oval |
Cooking Technology | Traditional Upper; Convection Lower |
Cooktop Surface | Edge-to-Edge Gray One-Piece Upswept Porcelain-Enamel |
Configuration | Double Oven Range |
Burner - Left Front | 15,000 BTU |
Cooktop Burner Grate Material | Heavy Cast Iron |
Control Type | Electronic Touch |
Oven Cooking Modes | Convection Bake Convection Roast |
Ignition System | Electronic |
Griddle | Integrated Non-Stick (Included) |
Oven Control Features | Audible Preheat Signal Certified Sabbath Mode Control Lock Capability |
Product Type | Free-Standing Double Oven |
Interior Oven Light | 1 Auto Incandescent (Both Ovens) |
Cooktop Type | Continuous Grates with Griddle |
Control Location | Front |
Overview
Edge-to-edge cooktop

Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
Integrated griddle

This integrated non-stick griddle leads the industry in size and quality, so you can cook a lot of food at once
Power boil burner

This 15,000-BTU power boil element produces intense heat to boil water fast
Center oval burner

This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
Steam clean

A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
Precise simmer burner

This burner setting provides low, even heat so delicate dishes don't burn
Description
Features
- Edge-to-edge cooktop
- Integrated griddle
- Power boil burner
- Center oval burner
- Steam clean
- Precise simmer burner
- Heavy duty, dishwasher-safe grates
- Large capacity double oven
- Sealed cooktop burners
- Deep-recessed cooktop
Specifications
CAPACITY | |
Total Capacity (cubic feet) | 6.8 |
Capacity (Cu. Ft.) | 2.5 Upper / 4.3 Lower |
FILTER | |
App Filter - Cleaning Type | Steam |
App Filter - Control Type | Electronic touchpad |
App Filter - Cooktop Type | Continuous Grates with Griddle |
App Filter - Cooking Technology | Convection Traditional |
App Filter - Cabinet Width | Cooking 30 in. (Standard) |
App Filter - Product Type | Ranges Free-Standing Double Oven |
App Filter - Convection | Yes |
App Filter - Fuel Type | Gas |
App Filter - Edge-to-Edge Cooktop | Yes |
APPEARANCE | |
Control Knobs | Weighted Stainless Steel Appearance |
Handle Color | Stainless Steel |
Handle Design | Designer Style |
Cooktop Burner Grate Color | Matte Black |
Oven Door Features | Big View Oven Window |
Color Appearance | Stainless Steel |
POWER / RATINGS | |
Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0 |
Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower) |
Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0 |
Volts/Hertz/Amps | 120v; 60Hz; 15A |
Bake/Broiler BTU Rating - LP (000's BTU's) | 7.0 / 120V Bake Assist Element (Upper); 13.5 / 13.5 (Lower) |
WARRANTY | |
Warranty Notes | See written warranty for full details |
Parts Warranty | Limited 1-year entire appliance |
Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES | |
Griddle Accessory | Integrated Non-Stick (Included) |
LP Conversion Kit | Included |
Center Grate | Optional |
WEIGHTS & DIMENSIONS | |
Net Weight | 205.0 |
Height to Cooking Surface (in.) | 36 - 36 1/2 |
Depth Without Handle | 26.75 |
Overall Depth | 29.25 |
Depth with Door Open | 43.5 |
Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower |
Overall Width | 30.0 |
Overall Height | 47.25 |
Approximate Shipping Weight | 225.0 |
Cabinet Width | 30.0 |
FEATURES | |
Burner - Right Front | 9,500 BTU |
Burner - Left Rear | 5,000 BTU Precise Simmer |
Oven Cleaning Type | Steam Clean |
Cooktop Burner Type | Sealed |
Burner - Right Rear | 12,000 BTU |
Cooktop Burner Grate Features | Dishwasher Safe |
Oven Rack Features | 2 Upper / 5 Lower Rack Positions 3 Oven Racks |
Fuel Type | Natural Gas (factory set) |
Burner - Center | 10,000 BTU Oval |
Cooking Technology | Traditional Upper; Convection Lower |
Cooktop Surface | Edge-to-Edge Gray One-Piece Upswept Porcelain-Enamel |
Configuration | Double Oven Range |
Burner - Left Front | 15,000 BTU |
Cooktop Burner Grate Material | Heavy Cast Iron |
Control Type | Electronic Touch |
Oven Cooking Modes | Convection Bake Convection Roast |
Ignition System | Electronic |
Griddle | Integrated Non-Stick (Included) |
Oven Control Features | Audible Preheat Signal Certified Sabbath Mode Control Lock Capability |
Product Type | Free-Standing Double Oven |
Interior Oven Light | 1 Auto Incandescent (Both Ovens) |
Cooktop Type | Continuous Grates with Griddle |
Control Location | Front |
Manuals / Guides
Reviews
Your Selected Items

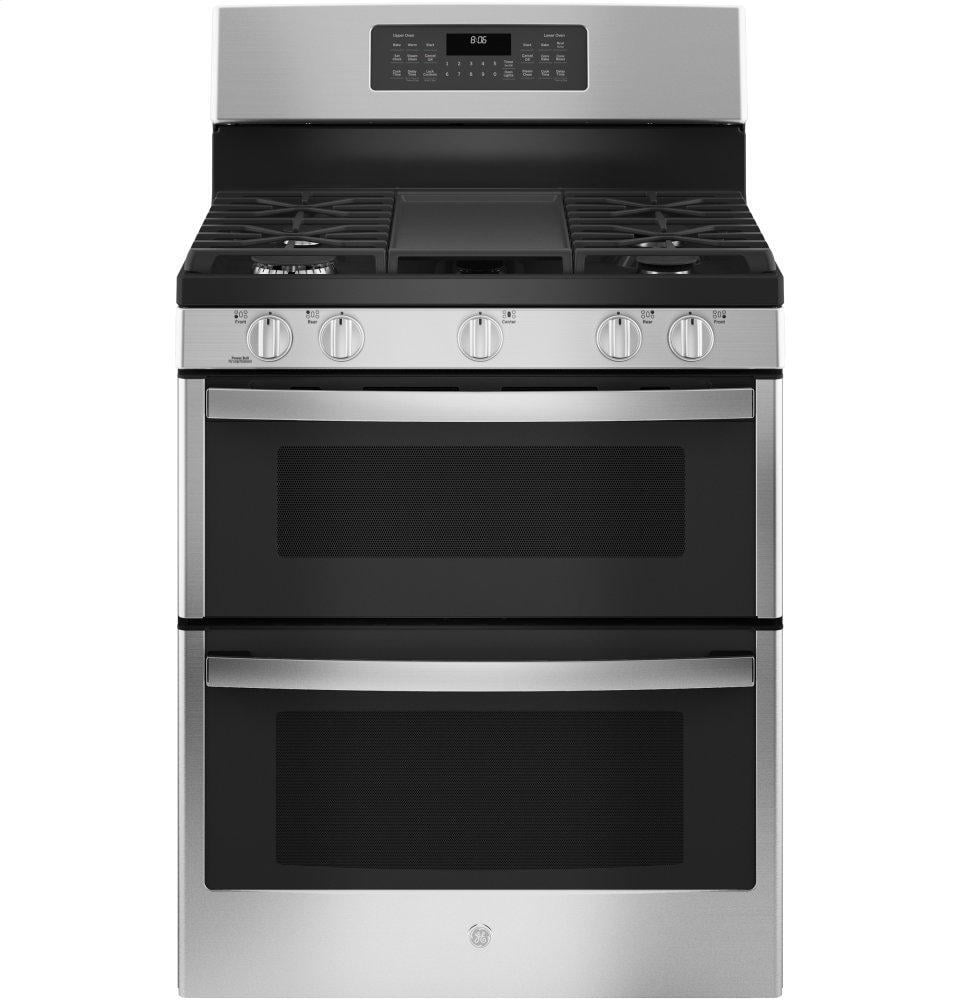

Ge Appliances JGBS86SPSS Ge® 30" Free-Standing Gas Double Oven Convection Range
X1
$1,199.00
