Slate
Edge-To-Edge CooktopContinuous, Edge-To-Edge Cooktop Give You A Large Cooking Space And Can Handle Any Cookware Integrated GriddleThis Integrated Non-Stick Griddle Leads The Industry In Size And Quality, So You Can Cook A Lot Of Food At Once Power Boil BurnerThis 15,000-Btu Power Boil Element Produces Intense Heat To Boil Water Fast Center Oval BurnerThis Center Oval Burner Gives You A Fifth Burner And The Perfect Place To Use Griddles Or Odd-Size Cookware Steam CleanA Steam Cleaning Option Cleans The Oven Cavity In A 30-Minute Cycle With Less Odor And Heat Precise Simmer BurnerThis Burner Setting Provides Low, Even Heat So Delicate Dishes Don'T Burn Heavy Duty, Dishwasher-Safe GratesThese Cooktop Grates Can Be Cleaned One Of Two Ways ™ Either In The Dishwasher, Or On The Bottom Of A Self-Clean Oven Large Capacity Double OvenCook An Entire Meal At Once With A 6.8 Cubic Foot Total Capacity Double Oven Which Provides Enough Room For Multiple Dishes Sealed Cooktop BurnersSealed Cooktop Burners Contain Cooking Spills So Cleanup Is Quick And Easy Deep-Recessed CooktopThis Deep-Recessed Gas Cooktop Contains Cooking Spills And Makes It Easier To Clean Up

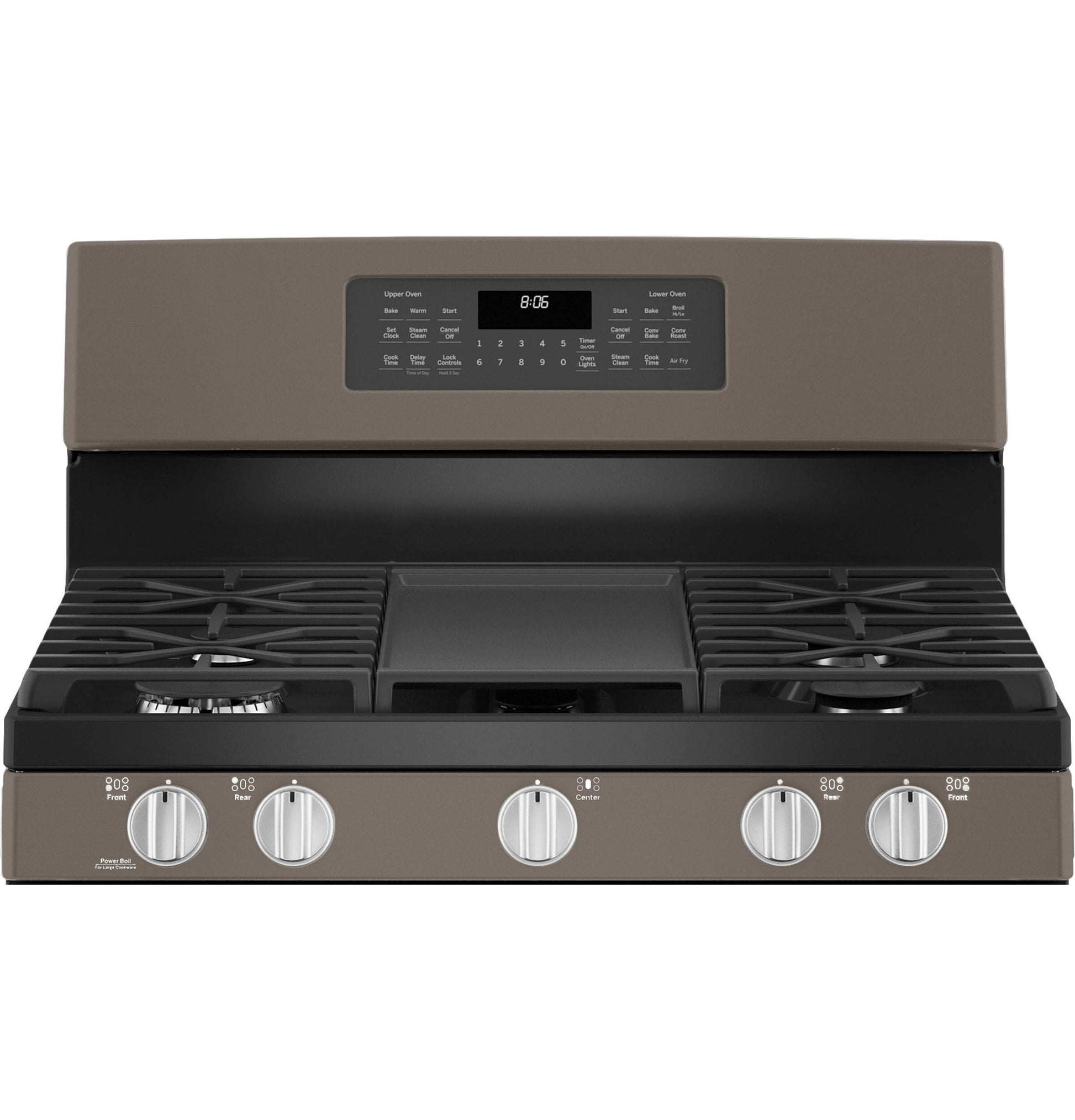

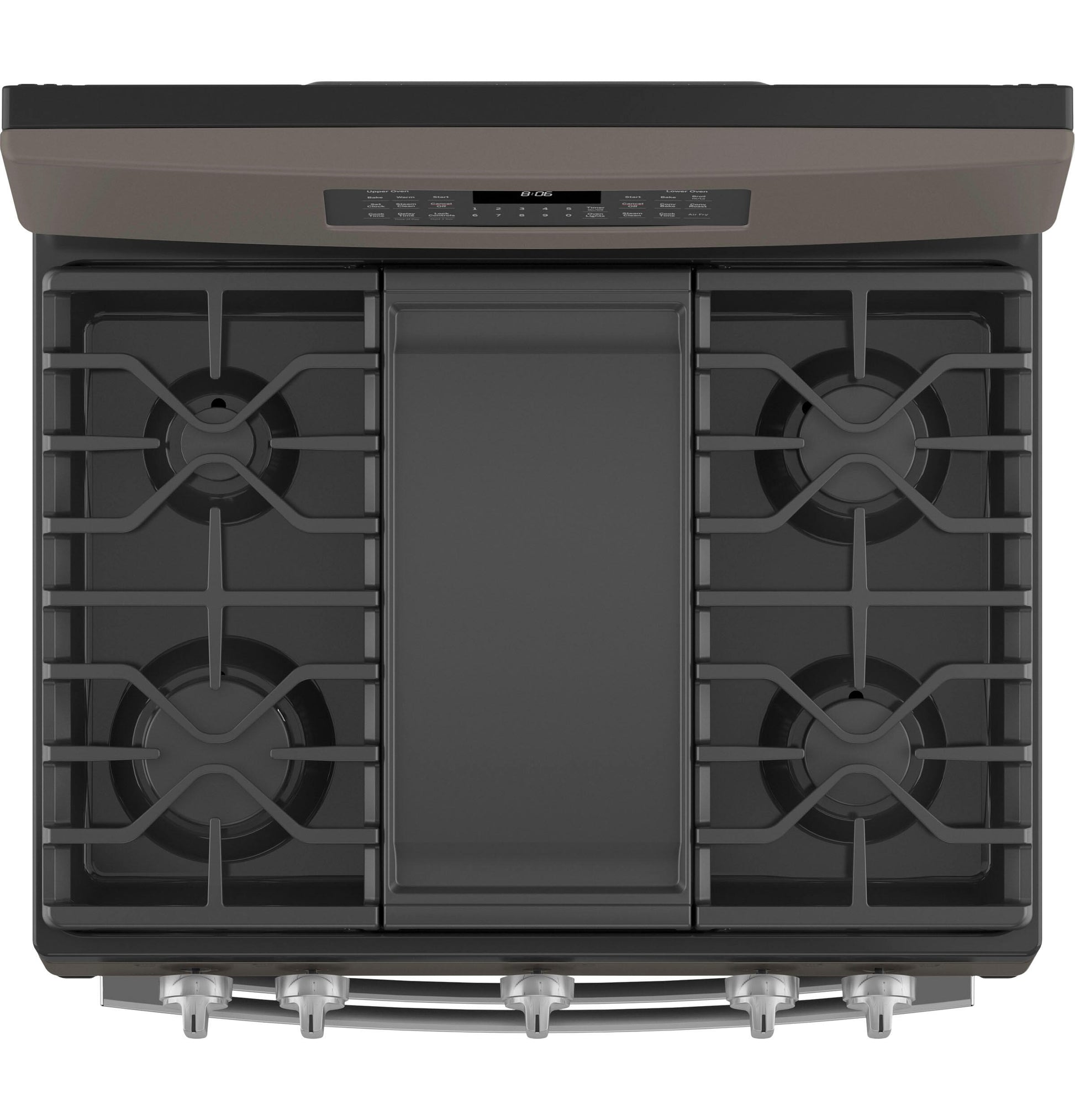

Edge-to-edge cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
Integrated griddle
This integrated non-stick griddle leads the industry in size and quality, so you can cook a lot of food at once
Power boil burner
This 15,000-BTU power boil element produces intense heat to boil water fast
Center oval burner
This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
Steam clean
A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
Precise simmer burner
This burner setting provides low, even heat so delicate dishes don't burn

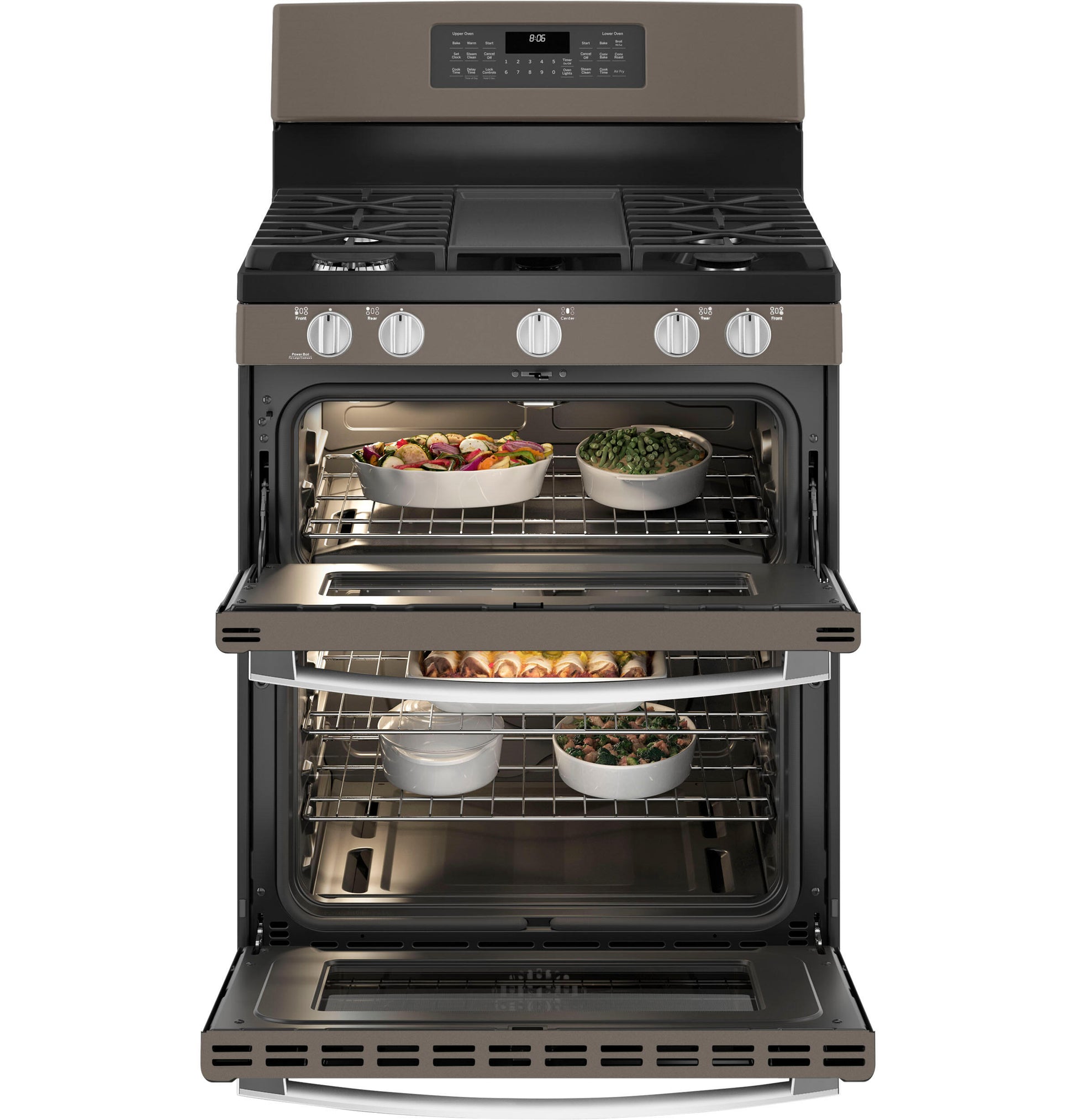

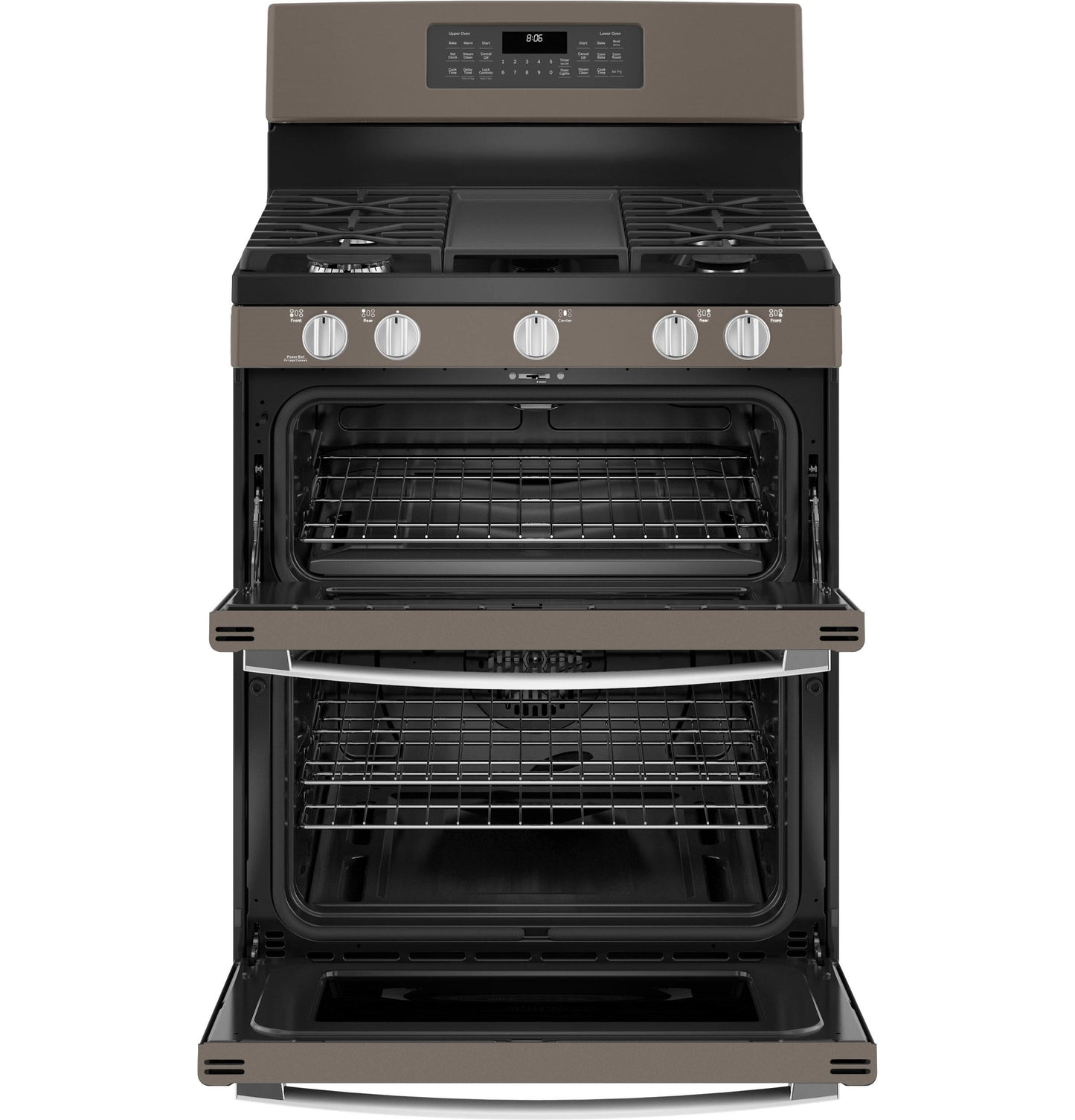

Large capacity double oven
Cook an entire meal at once with a 6.8 cubic foot total capacity double oven which provides enough room for multiple dishes
- Edge-to-edge cooktop
- Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
- Integrated griddle
- This integrated non-stick griddle leads the industry in size and quality, so you can cook a lot of food at once
- Power boil burner
- This 15,000-BTU power boil element produces intense heat to boil water fast
- Center oval burner
- This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
- Steam clean
- A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
- Precise simmer burner
- This burner setting provides low, even heat so delicate dishes don't burn
- Heavy duty, dishwasher-safe grates
- These cooktop grates can be cleaned one of two ways ™ either in the dishwasher, or on the bottom of a self-clean oven
- Large capacity double oven
- Cook an entire meal at once with a 6.8 cubic foot total capacity double oven which provides enough room for multiple dishes
- Sealed cooktop burners
- Sealed cooktop burners contain cooking spills so cleanup is quick and easy
- Deep-recessed cooktop
- This deep-recessed gas cooktop contains cooking spills and makes it easier to clean up
| CAPACITY | |
| Total Capacity (cubic feet) | 6.8 |
| Capacity (Cu. Ft.) | 2.5 Upper / 4.3 Lower |
| FILTER | |
| App Filter - Cleaning Type | Steam and Self-Clean |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Cooktop Type | Continuous Grates with Griddle |
| App Filter - Cooking Technology | Convection Traditional |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Product Type | Ranges Free-Standing Double Oven |
| App Filter - Convection | Yes |
| App Filter - Fuel Type | Gas |
| App Filter - Edge-to-Edge Cooktop | Yes |
| APPEARANCE | |
| Handle Color | Stainless Steel |
| Handle Design | Designer Style |
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Color Appearance | Fingerprint Resistant Slate |
| POWER / RATINGS | |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower) |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 7.0 / 120V Bake Assist Element (Upper); 13.5 / 13.5 (Lower) |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| Griddle Accessory | Integrated Non-Stick (Included) |
| LP Conversion Kit | Included |
| Center Grate | Optional |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 205.0 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Depth Without Handle | 26.75 |
| Overall Depth | 29.25 |
| Depth with Door Open | 43.5 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower |
| Overall Width | 30.0 |
| Overall Height | 47.25 |
| Approximate Shipping Weight | 225.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Burner - Right Front | 9,500 BTU |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Steam Clean |
| Cooktop Burner Type | Sealed |
| Burner - Right Rear | 12,000 BTU |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Oven Rack Features | 2 Upper / 5 Lower Rack Positions 3 Oven Racks |
| Fuel Type | Natural Gas (factory set) |
| Burner - Center | 10,000 BTU Oval |
| Cooking Technology | Traditional Upper; Convection Lower |
| Cooktop Surface | Edge-to-Edge Gray One-Piece Upswept Porcelain-Enamel |
| Configuration | Double Oven Range |
| Burner - Left Front | 15,000 BTU |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Control Type | Electronic Touch |
| Oven Cooking Modes | Convection Bake (Lower Oven) Convection Roast (Lower Oven) No Preheat Air Fry (Lower Oven) |
| Ignition System | Electronic |
| Griddle | Integrated Non-Stick (Included) |
| Oven Control Features | Audible Preheat Signal Certified Sabbath Mode Control Lock Capability |
| Product Type | Free-Standing Double Oven |
| Interior Oven Light | 1 Auto Incandescent (Both Ovens) |
| Cooktop Type | Continuous Grates with Griddle |
| Control Location | Front |
Overview
Edge-to-edge cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
Integrated griddle
This integrated non-stick griddle leads the industry in size and quality, so you can cook a lot of food at once
Power boil burner
This 15,000-BTU power boil element produces intense heat to boil water fast
Center oval burner
This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
Steam clean
A steam cleaning option cleans the oven cavity in a 30-minute cycle with less odor and heat
Precise simmer burner
This burner setting provides low, even heat so delicate dishes don't burn
Large capacity double oven
Cook an entire meal at once with a 6.8 cubic foot total capacity double oven which provides enough room for multiple dishes
Description
Edge-To-Edge CooktopContinuous, Edge-To-Edge Cooktop Give You A Large Cooking Space And Can Handle Any Cookware Integrated GriddleThis Integrated Non-Stick Griddle Leads The Industry In Size And Quality, So You Can Cook A Lot Of Food At Once Power Boil BurnerThis 15,000-Btu Power Boil Element Produces Intense Heat To Boil Water Fast Center Oval BurnerThis Center Oval Burner Gives You A Fifth Burner And The Perfect Place To Use Griddles Or Odd-Size Cookware Steam CleanA Steam Cleaning Option Cleans The Oven Cavity In A 30-Minute Cycle With Less Odor And Heat Precise Simmer BurnerThis Burner Setting Provides Low, Even Heat So Delicate Dishes Don'T Burn Heavy Duty, Dishwasher-Safe GratesThese Cooktop Grates Can Be Cleaned One Of Two Ways ™ Either In The Dishwasher, Or On The Bottom Of A Self-Clean Oven Large Capacity Double OvenCook An Entire Meal At Once With A 6.8 Cubic Foot Total Capacity Double Oven Which Provides Enough Room For Multiple Dishes Sealed Cooktop BurnersSealed Cooktop Burners Contain Cooking Spills So Cleanup Is Quick And Easy Deep-Recessed CooktopThis Deep-Recessed Gas Cooktop Contains Cooking Spills And Makes It Easier To Clean Up
Features
- Edge-to-edge cooktop
- Integrated griddle
- Power boil burner
- Center oval burner
- Steam clean
- Precise simmer burner
- Heavy duty, dishwasher-safe grates
- Large capacity double oven
- Sealed cooktop burners
- Deep-recessed cooktop
Specifications
| CAPACITY | |
| Total Capacity (cubic feet) | 6.8 |
| Capacity (Cu. Ft.) | 2.5 Upper / 4.3 Lower |
| FILTER | |
| App Filter - Cleaning Type | Steam and Self-Clean |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Cooktop Type | Continuous Grates with Griddle |
| App Filter - Cooking Technology | Convection Traditional |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Product Type | Ranges Free-Standing Double Oven |
| App Filter - Convection | Yes |
| App Filter - Fuel Type | Gas |
| App Filter - Edge-to-Edge Cooktop | Yes |
| APPEARANCE | |
| Handle Color | Stainless Steel |
| Handle Design | Designer Style |
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Color Appearance | Fingerprint Resistant Slate |
| POWER / RATINGS | |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 7.0 / 120V Bake Assist Element (Upper); 16.5 / 14.0 (Lower) |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (1) 12.0; (1) 9.5; (1) 5.0; (1) 10.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 7.0 / 120V Bake Assist Element (Upper); 13.5 / 13.5 (Lower) |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| Griddle Accessory | Integrated Non-Stick (Included) |
| LP Conversion Kit | Included |
| Center Grate | Optional |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 205.0 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Depth Without Handle | 26.75 |
| Overall Depth | 29.25 |
| Depth with Door Open | 43.5 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower |
| Overall Width | 30.0 |
| Overall Height | 47.25 |
| Approximate Shipping Weight | 225.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Burner - Right Front | 9,500 BTU |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Steam Clean |
| Cooktop Burner Type | Sealed |
| Burner - Right Rear | 12,000 BTU |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Oven Rack Features | 2 Upper / 5 Lower Rack Positions 3 Oven Racks |
| Fuel Type | Natural Gas (factory set) |
| Burner - Center | 10,000 BTU Oval |
| Cooking Technology | Traditional Upper; Convection Lower |
| Cooktop Surface | Edge-to-Edge Gray One-Piece Upswept Porcelain-Enamel |
| Configuration | Double Oven Range |
| Burner - Left Front | 15,000 BTU |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Control Type | Electronic Touch |
| Oven Cooking Modes | Convection Bake (Lower Oven) Convection Roast (Lower Oven) No Preheat Air Fry (Lower Oven) |
| Ignition System | Electronic |
| Griddle | Integrated Non-Stick (Included) |
| Oven Control Features | Audible Preheat Signal Certified Sabbath Mode Control Lock Capability |
| Product Type | Free-Standing Double Oven |
| Interior Oven Light | 1 Auto Incandescent (Both Ovens) |
| Cooktop Type | Continuous Grates with Griddle |
| Control Location | Front |
