Ge Appliances JGB660FPDS Ge® 30" Free-Standing Gas Range
Edge-To-Edge CooktopContinuous, Edge-To-Edge Cooktop Give You A Large Cooking Space And C... Read more...
SKU:JGB660FPDS
UPC:084691849445
Colors:
Slate
White
Slate
Stainless Steel
Edge-To-Edge CooktopContinuous, Edge-To-Edge Cooktop Give You A Large Cooking Space And Can Handle Any Cookware Power Boil BurnerThis 18,000-Btu Power Boil Element Produces Intense Heat To Boil Water Fast Center Oval BurnerThis Center Oval Burner Gives You A Fifth Burner And The Perfect Place To Use Griddles Or Odd-Size Cookware Precise Simmer BurnerThis Burner Setting Provides Low, Even Heat So Delicate Dishes Don'T Burn Self-Clean OvenThis Self-Cleaning Oven Cleans The Oven Cavity Without The Need For Scrubbing Or Chemical Cleaners Large Capacity OvenCook An Entire Meal At Once With A 5.0 Cubic Foot Oven Which Provides Enough Room For Multiple Dishes Heavy Duty, Dishwasher-Safe GratesThese Cooktop Grates Can Be Cleaned One Of Two Ways ™ Either In The Dishwasher, Or On The Bottom Of A Self-Clean Oven Removable Storage DrawerA Full-Width Drawer Provides Space For Kitchen Accessory And Cookware Storage For Added Convenience In The Kitchen Delay BakeDelay Bake Technology Allows You To Set Up The Oven To Start Preheating And Baking At A Later Time

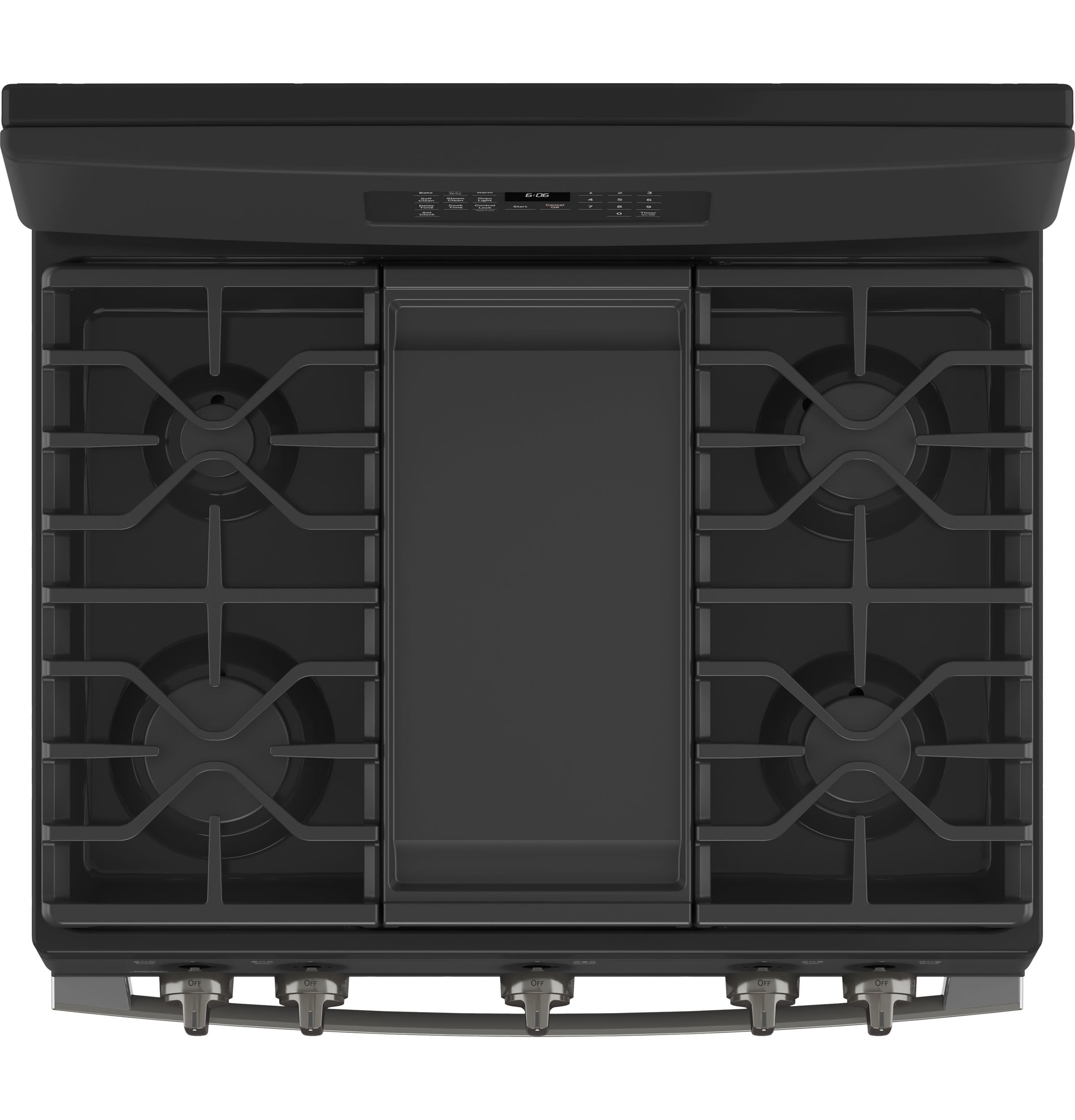

Edge-to-edge cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
Center oval burner
This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
Precise simmer burner
This burner setting provides low, even heat so delicate dishes don't burn
Self-clean oven
This self-cleaning oven cleans the oven cavity without the need for scrubbing or chemical cleaners
- Edge-to-edge cooktop
- Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
- Power boil burner
- This 18,000-BTU power boil element produces intense heat to boil water fast
- Center oval burner
- This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
- Precise simmer burner
- This burner setting provides low, even heat so delicate dishes don't burn
- Self-clean oven
- This self-cleaning oven cleans the oven cavity without the need for scrubbing or chemical cleaners
- Large capacity oven
- Cook an entire meal at once with a 5.0 cubic foot oven which provides enough room for multiple dishes
- Heavy duty, dishwasher-safe grates
- These cooktop grates can be cleaned one of two ways (TM) either in the dishwasher, or on the bottom of a self-clean oven
- Removable storage drawer
- A full-width drawer provides space for kitchen accessory and cookware storage for added convenience in the kitchen
- Delay bake
- Delay bake technology allows you to set up the oven to start preheating and baking at a later time
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 |
| FILTER | |
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Drawer Type | Storage |
| App Filter - Cooktop Type | Continuous Grates |
| App Filter - Cooking Technology | Traditional |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Convection | No |
| App Filter - Fuel Type | Gas |
| App Filter - Edge-to-Edge Cooktop | Yes |
| APPEARANCE | |
| Control Knobs | Black Slate |
| Handle Color | Black Slate |
| Handle Design | Designer Style |
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Color Appearance | Fingerprint Resistant Black Slate |
| POWER / RATINGS | |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| Grates | JXGRATE1 (Optional) |
| Optional Accessories | WB48X21543 Roller Rack |
| Griddle Accessory | JXGRILL1 Cast Iron Reversible Grill/Griddle (Optional) |
| LP Conversion Kit | Included |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 195.0 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Depth Without Handle | 26.25 |
| Overall Depth | 28.75 |
| Depth with Door Open | 46.25 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Width | 30.0 |
| Overall Height | 47.25 |
| Approximate Shipping Weight | 215.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Burner - Right Front | 9,500 BTU |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean |
| Cooktop Burner Type | Sealed |
| Burner - Right Rear | 12,000 BTU |
| Cooktop Burner Grate Features | Continuous Grates |
| Oven Rack Features | 2 Oven Racks |
| Fuel Type | Natural Gas (factory set) |
| Burner - Center | 10,000 BTU Oval |
| Cooking Technology | Traditional |
| Cooktop Surface | Edge-to-Edge Gray One-Piece Upswept Porcelain-Enamel |
| Configuration | Range with Storage Drawer |
| Burner - Left Front | 18,000 BTU Power Boil |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Control Type | Digital Temperature Display Electronic Oven Controls Electronic Touch |
| Ignition System | Electronic |
| Griddle | WB31X24738 Integrated Non-Stick (Included) |
| Oven Control Features | Audible Preheat Signal Auto Self Clean Control Lock Capability Delay Bake Option Sabbath Mode |
| Product Type | Free-Standing Single Oven |
| Drawer Type | Storage |
| Interior Oven Light | 1 Incandescent |
| Cooktop Type | Continuous Grates |
Overview
Edge-to-edge cooktop
Continuous, edge-to-edge cooktop give you a large cooking space and can handle any cookware
Center oval burner
This center oval burner gives you a fifth burner and the perfect place to use griddles or odd-size cookware
Precise simmer burner
This burner setting provides low, even heat so delicate dishes don't burn
Self-clean oven
This self-cleaning oven cleans the oven cavity without the need for scrubbing or chemical cleaners
Description
Edge-To-Edge CooktopContinuous, Edge-To-Edge Cooktop Give You A Large Cooking Space And Can Handle Any Cookware Power Boil BurnerThis 18,000-Btu Power Boil Element Produces Intense Heat To Boil Water Fast Center Oval BurnerThis Center Oval Burner Gives You A Fifth Burner And The Perfect Place To Use Griddles Or Odd-Size Cookware Precise Simmer BurnerThis Burner Setting Provides Low, Even Heat So Delicate Dishes Don'T Burn Self-Clean OvenThis Self-Cleaning Oven Cleans The Oven Cavity Without The Need For Scrubbing Or Chemical Cleaners Large Capacity OvenCook An Entire Meal At Once With A 5.0 Cubic Foot Oven Which Provides Enough Room For Multiple Dishes Heavy Duty, Dishwasher-Safe GratesThese Cooktop Grates Can Be Cleaned One Of Two Ways ™ Either In The Dishwasher, Or On The Bottom Of A Self-Clean Oven Removable Storage DrawerA Full-Width Drawer Provides Space For Kitchen Accessory And Cookware Storage For Added Convenience In The Kitchen Delay BakeDelay Bake Technology Allows You To Set Up The Oven To Start Preheating And Baking At A Later Time
Features
- Edge-to-edge cooktop
- Power boil burner
- Center oval burner
- Precise simmer burner
- Self-clean oven
- Large capacity oven
- Heavy duty, dishwasher-safe grates
- Removable storage drawer
- Delay bake
Specifications
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 |
| FILTER | |
| App Filter - Cleaning Type | Self-Clean |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Drawer Type | Storage |
| App Filter - Cooktop Type | Continuous Grates |
| App Filter - Cooking Technology | Traditional |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Convection | No |
| App Filter - Fuel Type | Gas |
| App Filter - Edge-to-Edge Cooktop | Yes |
| APPEARANCE | |
| Control Knobs | Black Slate |
| Handle Color | Black Slate |
| Handle Design | Designer Style |
| Cooktop Burner Grate Color | Matte Black |
| Oven Door Features | Big View Oven Window |
| Color Appearance | Fingerprint Resistant Black Slate |
| POWER / RATINGS | |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 5.0; (1) 9.5; (1) 12.0; (1) 8.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 10.0; (1) 9.5; (1) 12.0; (1) 5.0; (1) 18.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| Grates | JXGRATE1 (Optional) |
| Optional Accessories | WB48X21543 Roller Rack |
| Griddle Accessory | JXGRILL1 Cast Iron Reversible Grill/Griddle (Optional) |
| LP Conversion Kit | Included |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 195.0 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Depth Without Handle | 26.25 |
| Overall Depth | 28.75 |
| Depth with Door Open | 46.25 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19 x 19 |
| Overall Width | 30.0 |
| Overall Height | 47.25 |
| Approximate Shipping Weight | 215.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Burner - Right Front | 9,500 BTU |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Cleaning Type | Self-Clean |
| Cooktop Burner Type | Sealed |
| Burner - Right Rear | 12,000 BTU |
| Cooktop Burner Grate Features | Continuous Grates |
| Oven Rack Features | 2 Oven Racks |
| Fuel Type | Natural Gas (factory set) |
| Burner - Center | 10,000 BTU Oval |
| Cooking Technology | Traditional |
| Cooktop Surface | Edge-to-Edge Gray One-Piece Upswept Porcelain-Enamel |
| Configuration | Range with Storage Drawer |
| Burner - Left Front | 18,000 BTU Power Boil |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Control Type | Digital Temperature Display Electronic Oven Controls Electronic Touch |
| Ignition System | Electronic |
| Griddle | WB31X24738 Integrated Non-Stick (Included) |
| Oven Control Features | Audible Preheat Signal Auto Self Clean Control Lock Capability Delay Bake Option Sabbath Mode |
| Product Type | Free-Standing Single Oven |
| Drawer Type | Storage |
| Interior Oven Light | 1 Incandescent |
| Cooktop Type | Continuous Grates |
