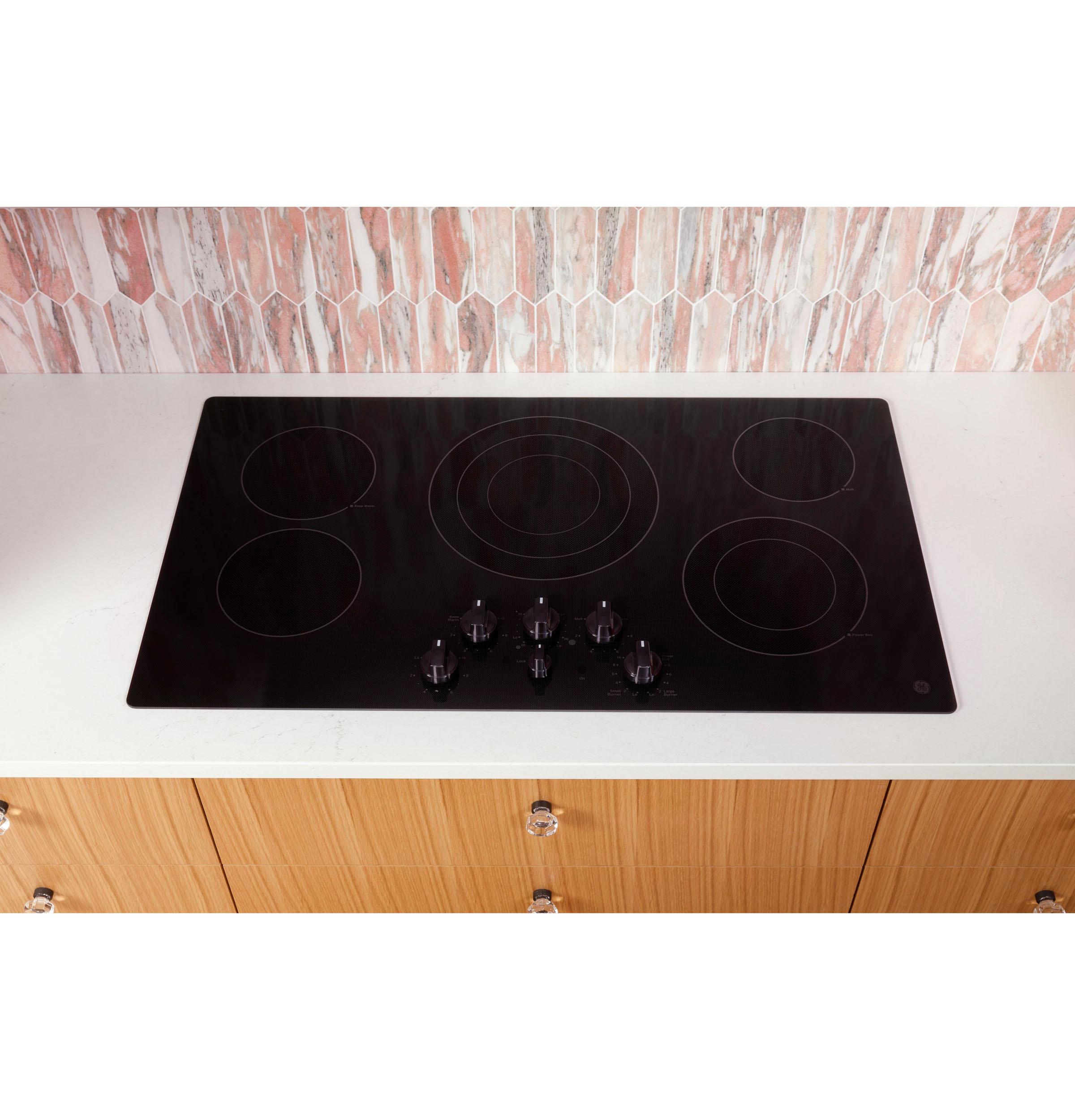

Ge Appliances JEP5030STSS Ge® 30" Built-In Knob Control Electric Cooktop
Ge Appliances JEP5030STSS Ge® 30" Built-In Knob Control Electric Cooktop
x
Installation and Removal
x
EXTENDED PROTECTION
3 year plan
$120.995 year plan
$239.00In Stock
Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x

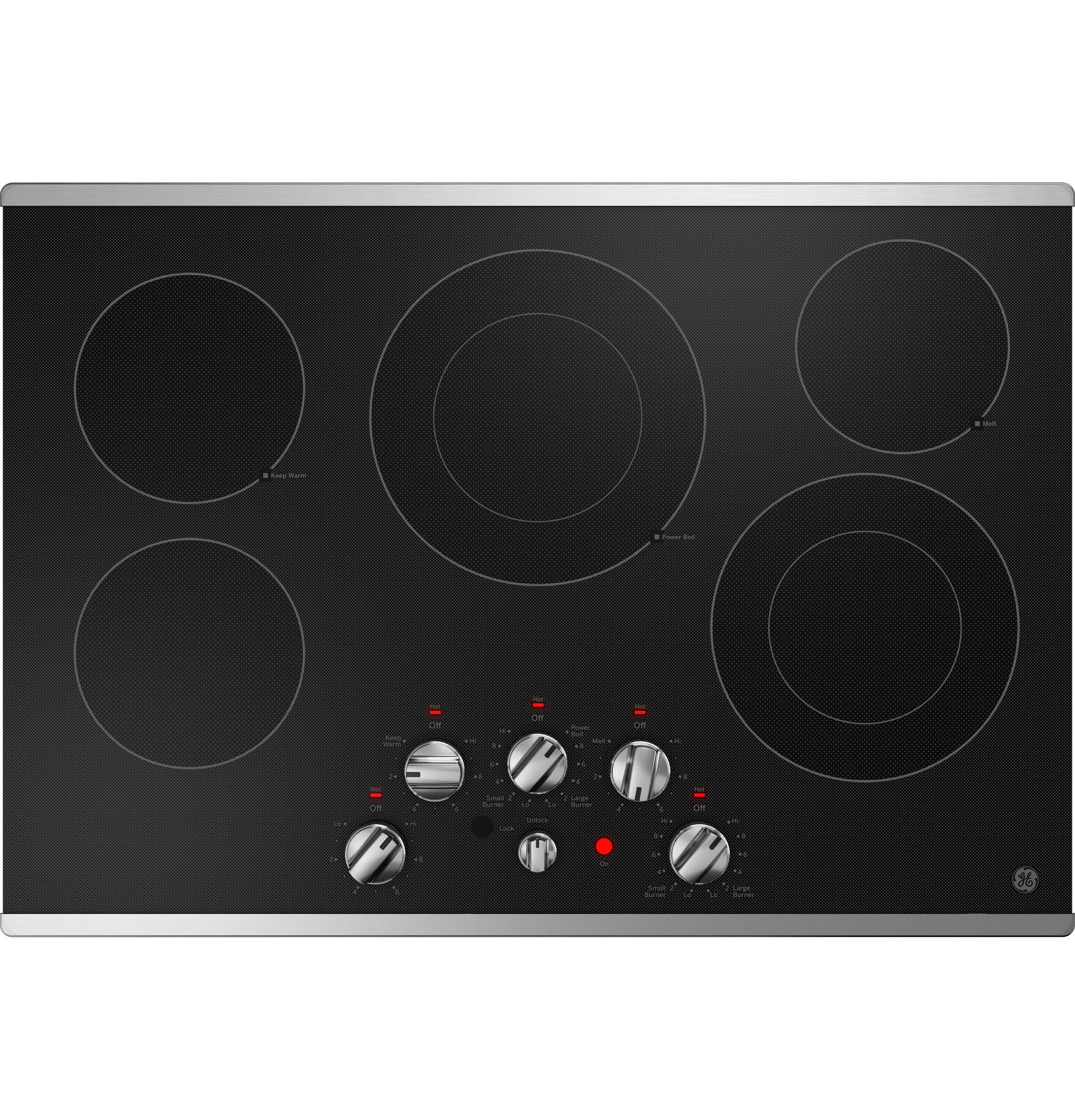

Ge Appliances JEP5030STSS Ge® 30" Built-In Knob Control Electric Cooktop
Rebates &
Promotions
Replace your Cooktop or Wall Oven with a qualifying GE Cooktop, Wall Oven, Advantium Oven, or Slide In Range and receive up to a $300 installation rebate. - Replace your Cooktop or Wall Oven with a qualifying GE Cooktop, Wall Oven, Advantium Oven, or Slide In Range and receive up to a $300 installation rebate. Download Valid: 07/01/2025-12/31/2025

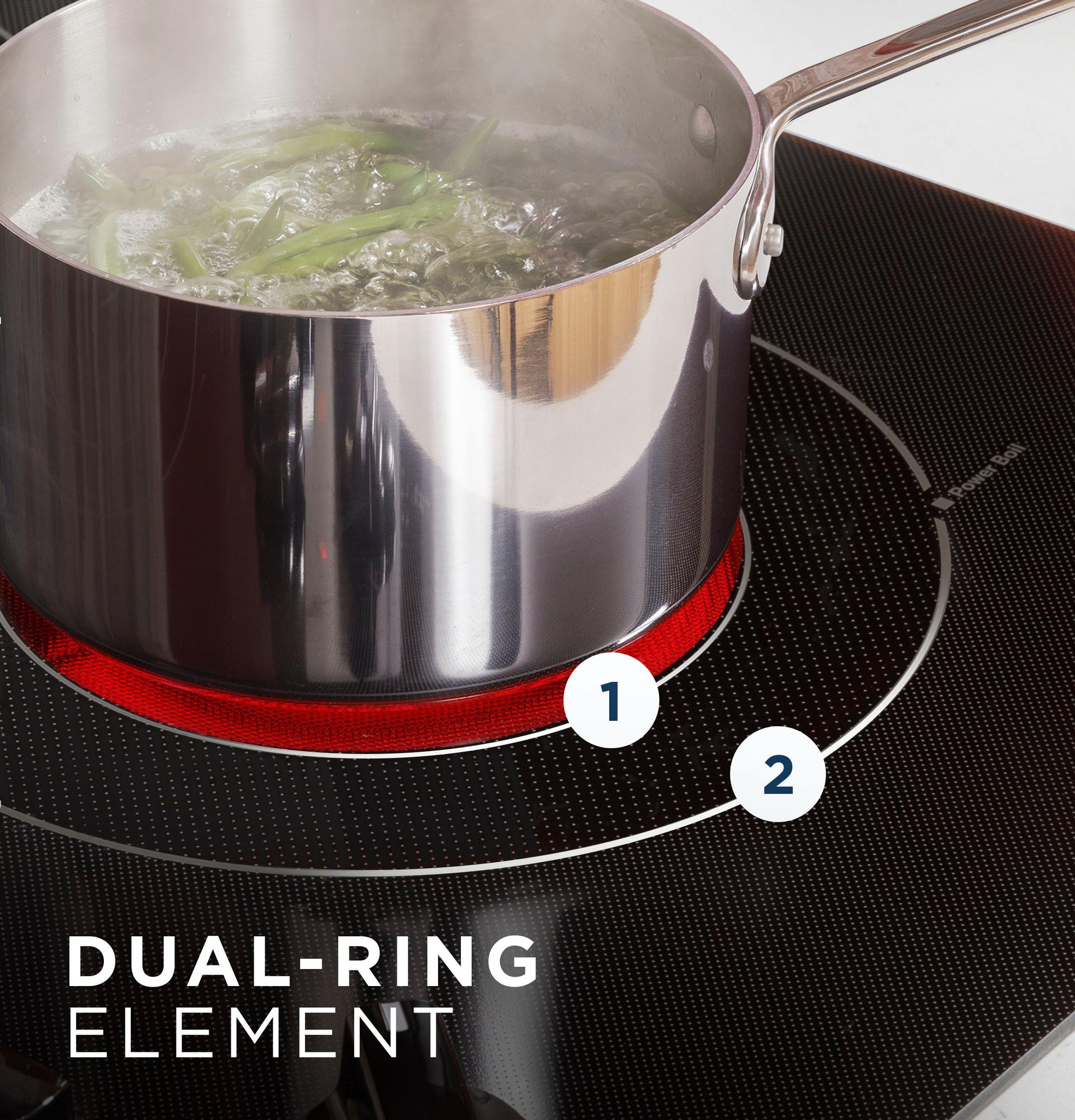

Additional Power Boil Dual-Ring Element (2,200W)

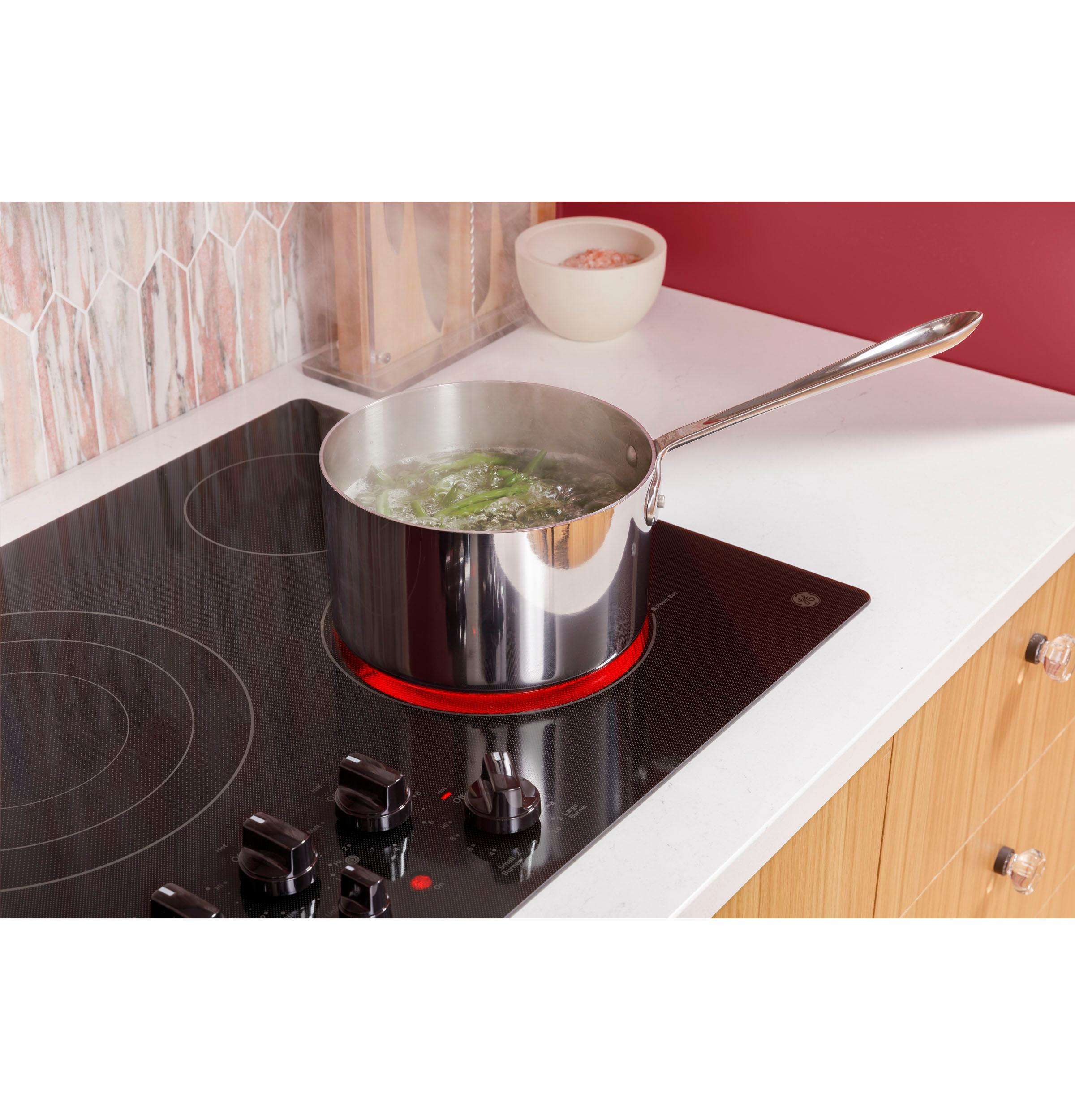

Cook more dishes quickly with an additional 2,200-watt flexible cooking element that rapidly boils water in different pan sizes

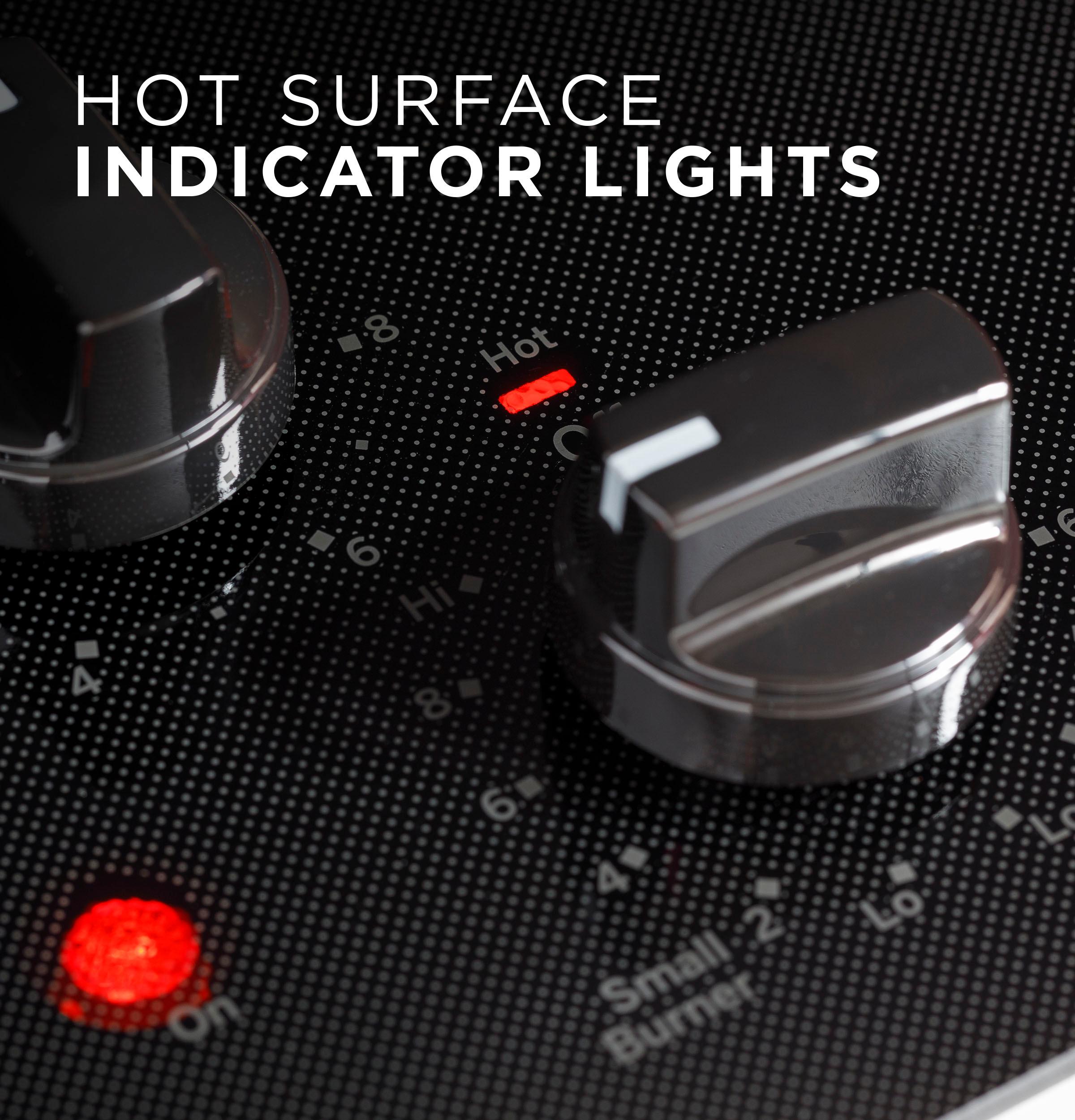

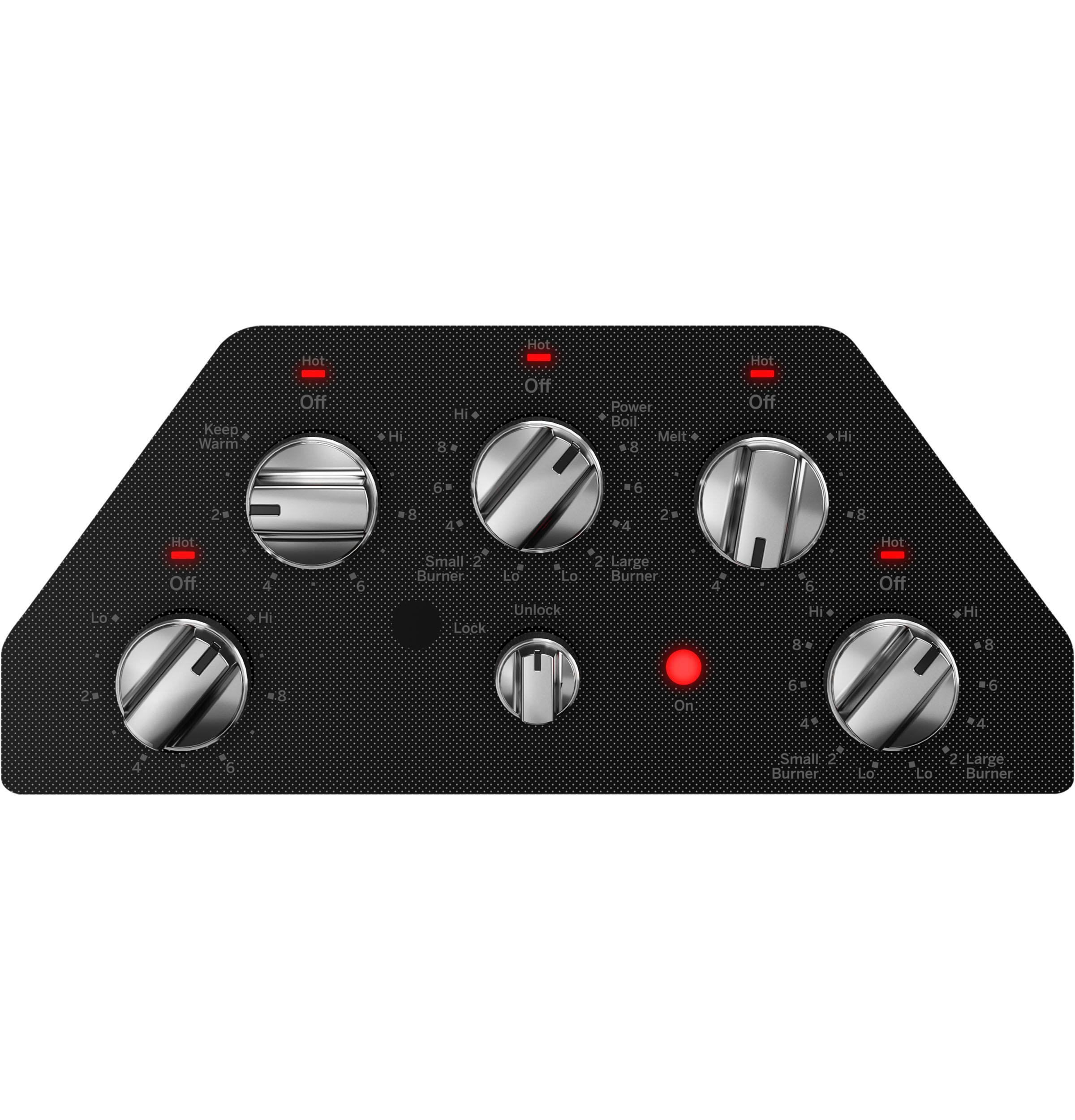

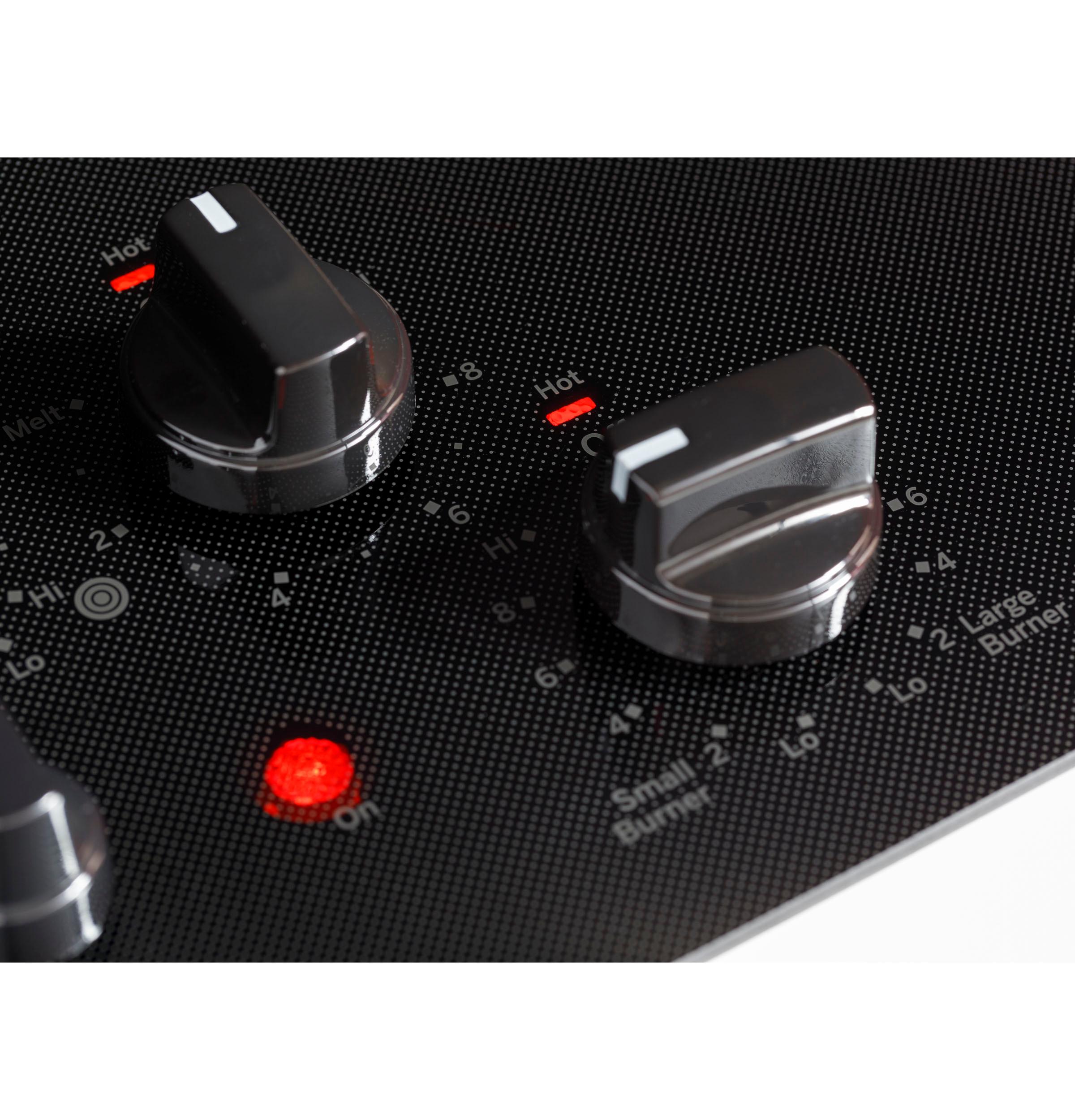

Hot Surface Indicator Lights
A quick glance is all it takes to know when elements are warm on this electric cooktop with hot surface indicator lights

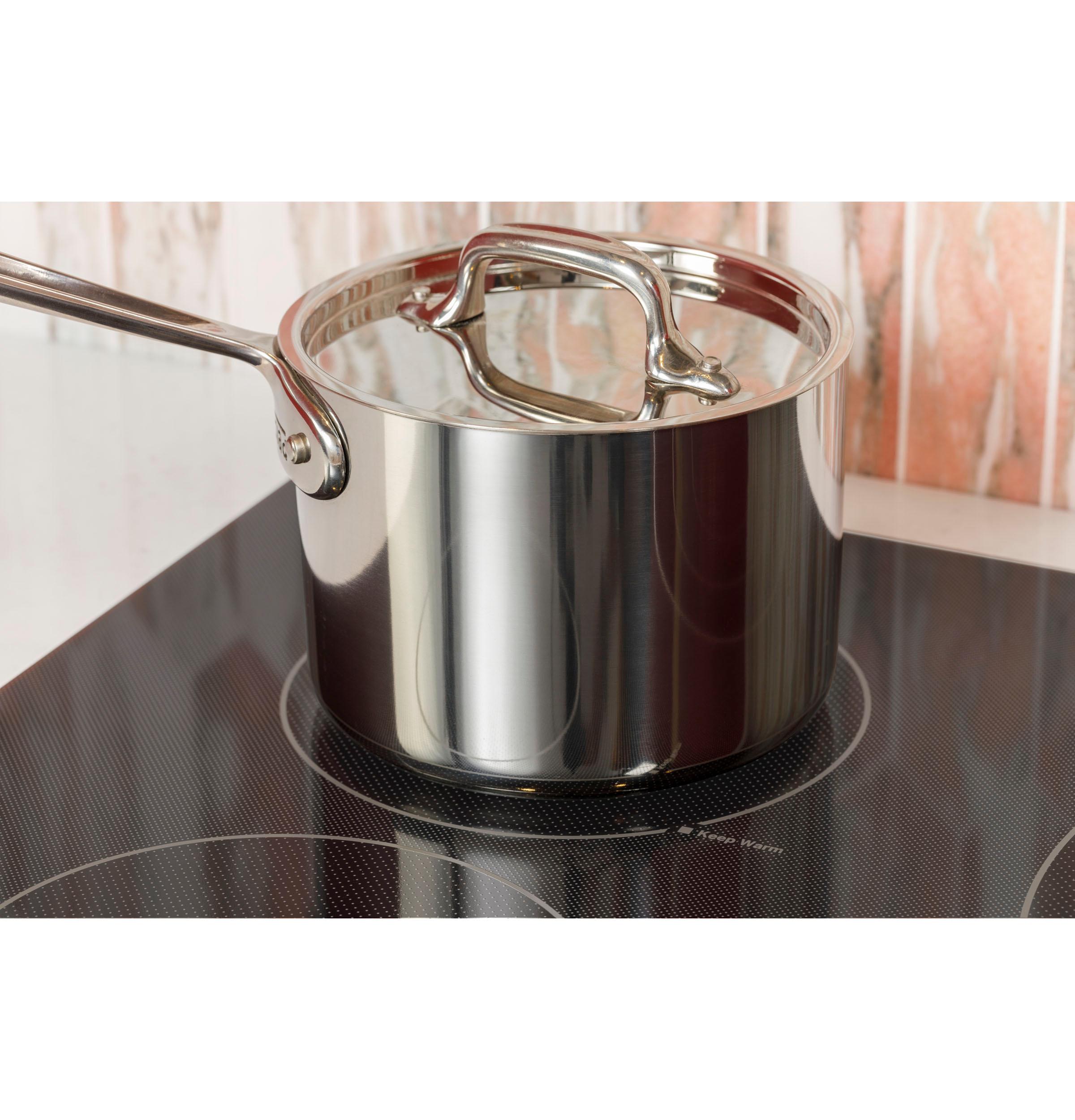

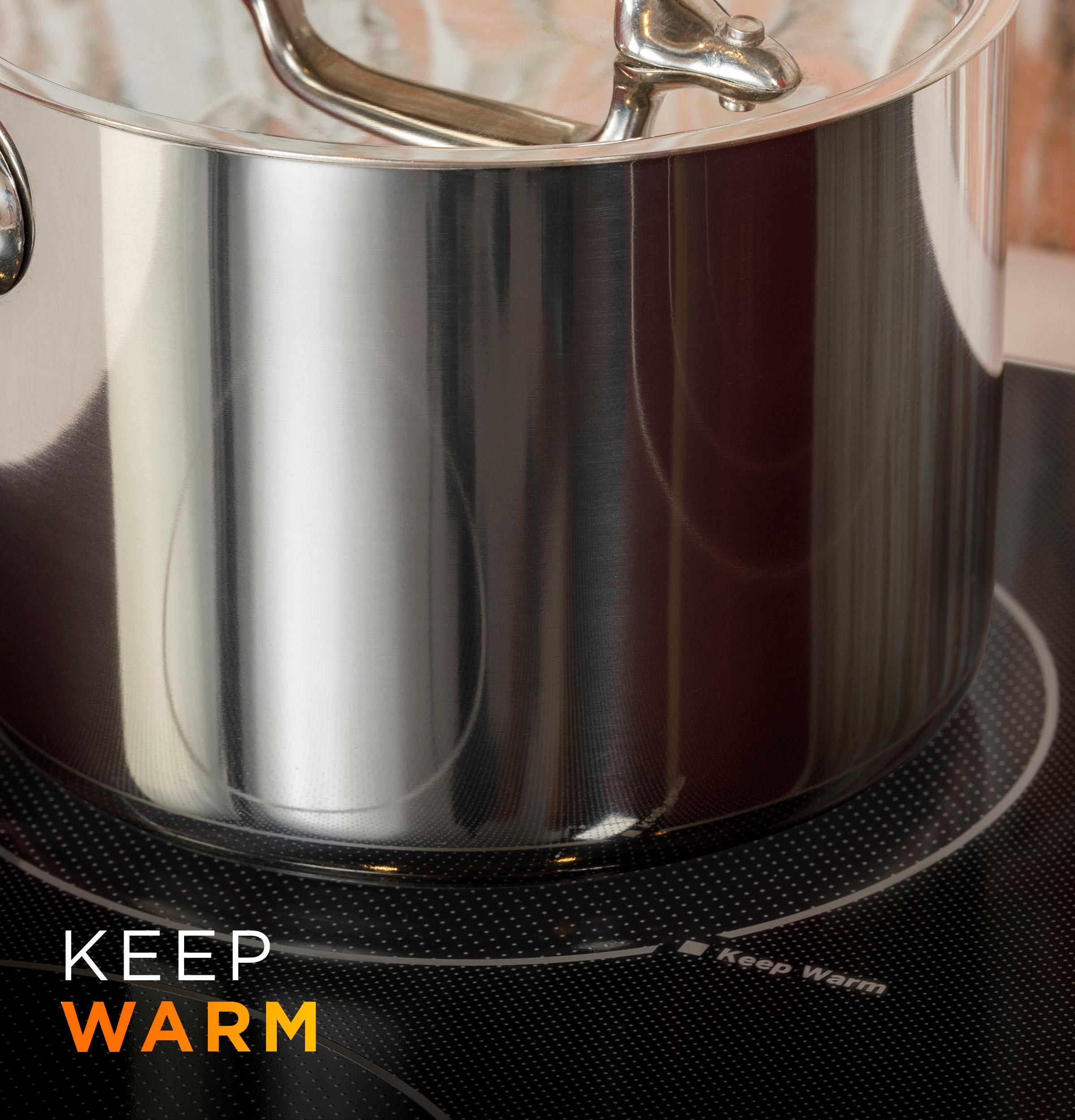

Keep Warm Setting
This electric cooktop's 7" element features a range of heat - from a dedicated "Keep Warm" setting to the power to boil water

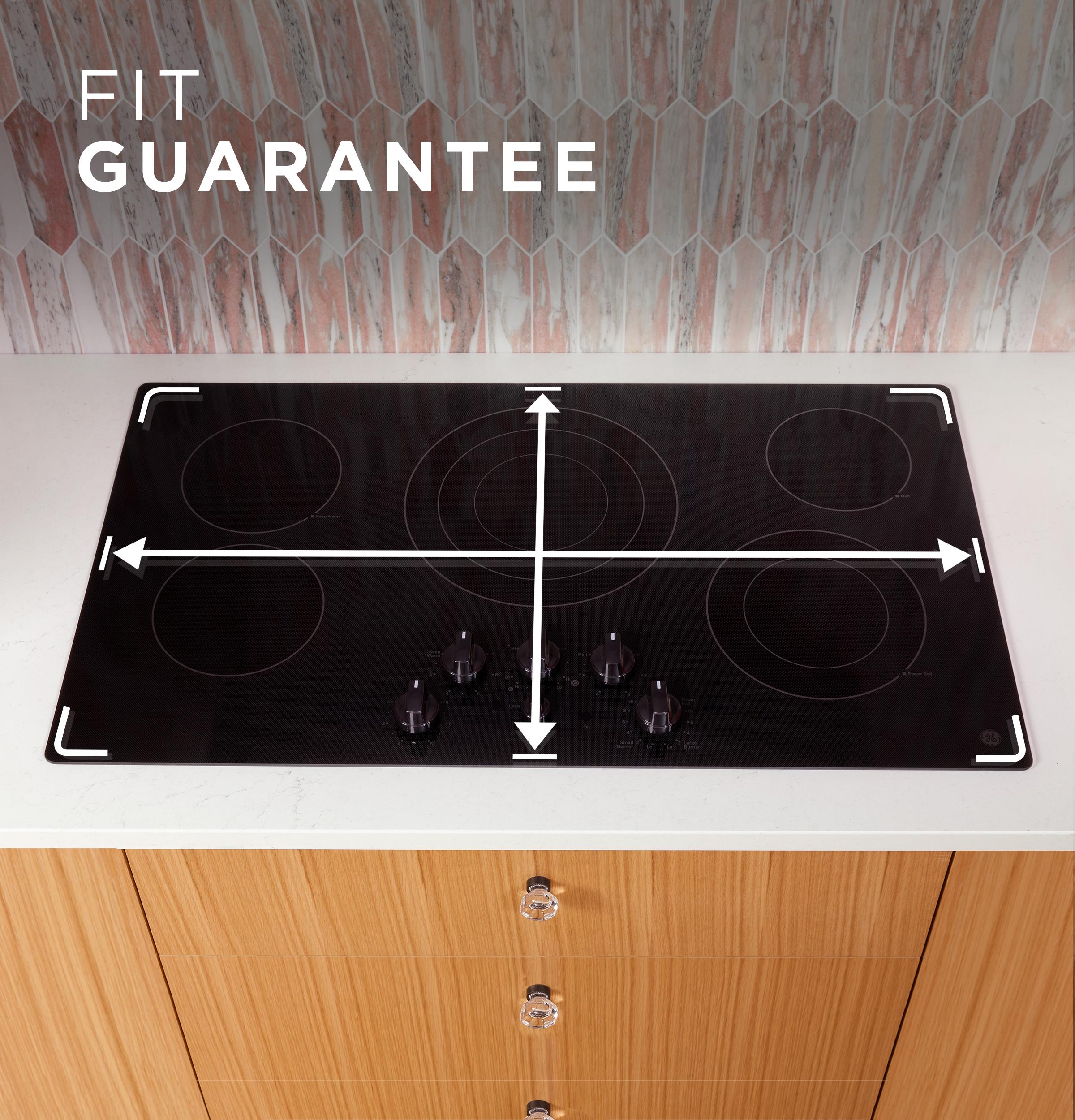

Fit Guarantee
This cooktop will fit your existing 30" cut-out or GE Appliances will help pay for modifications up to $100

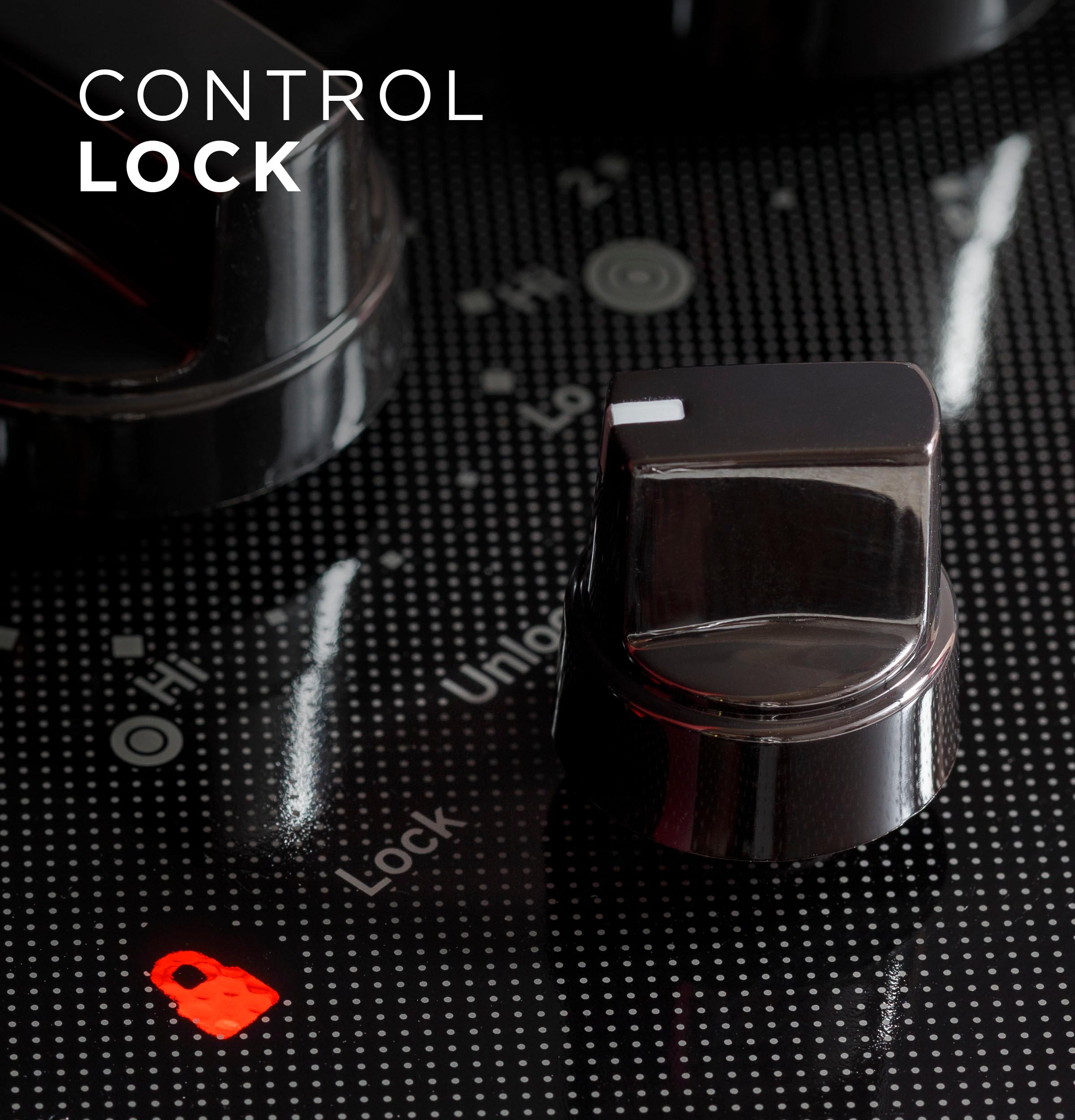

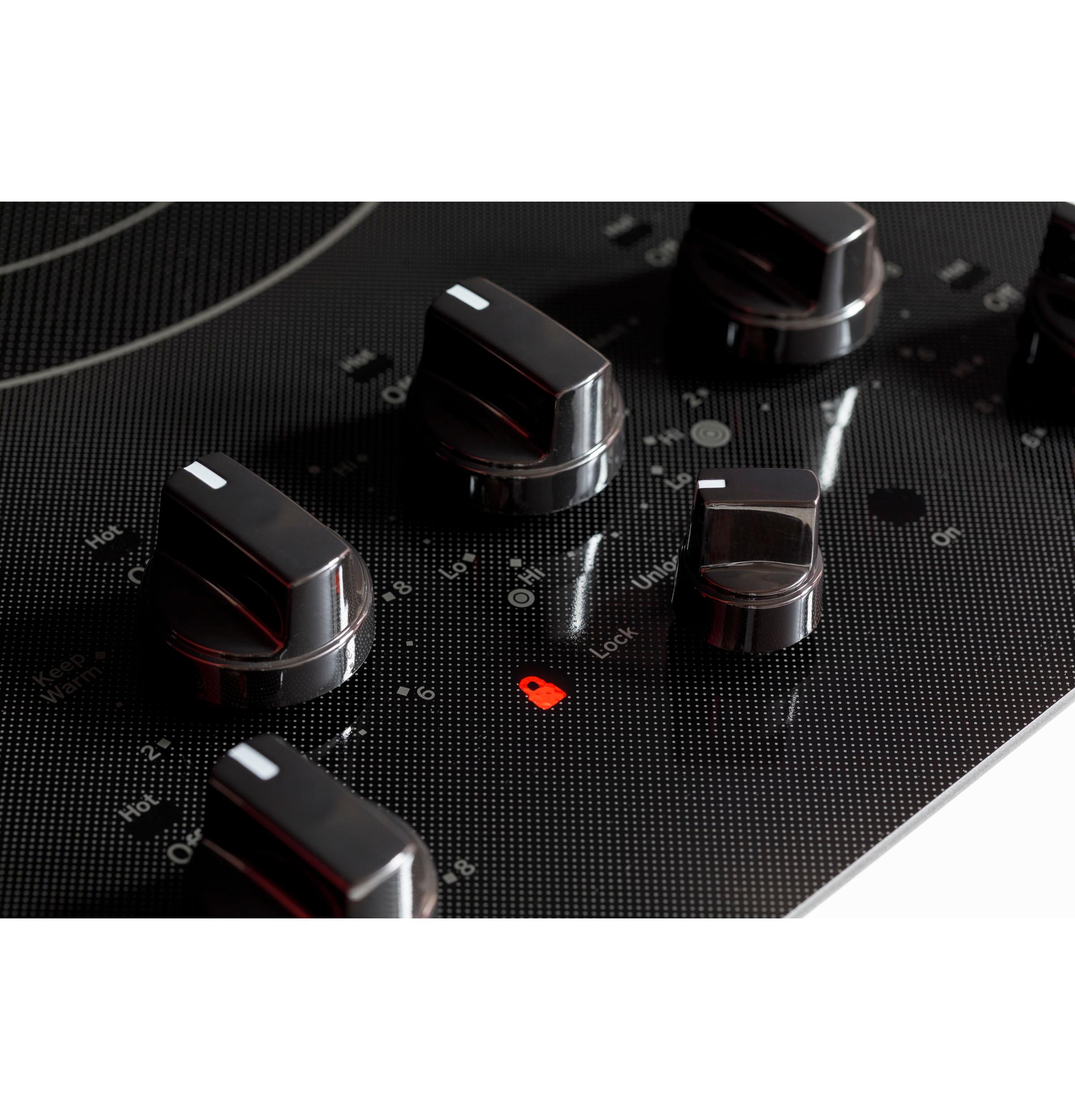

Control Lock
Protect against unintentionally turning your cooktop on with a safety control lock setting

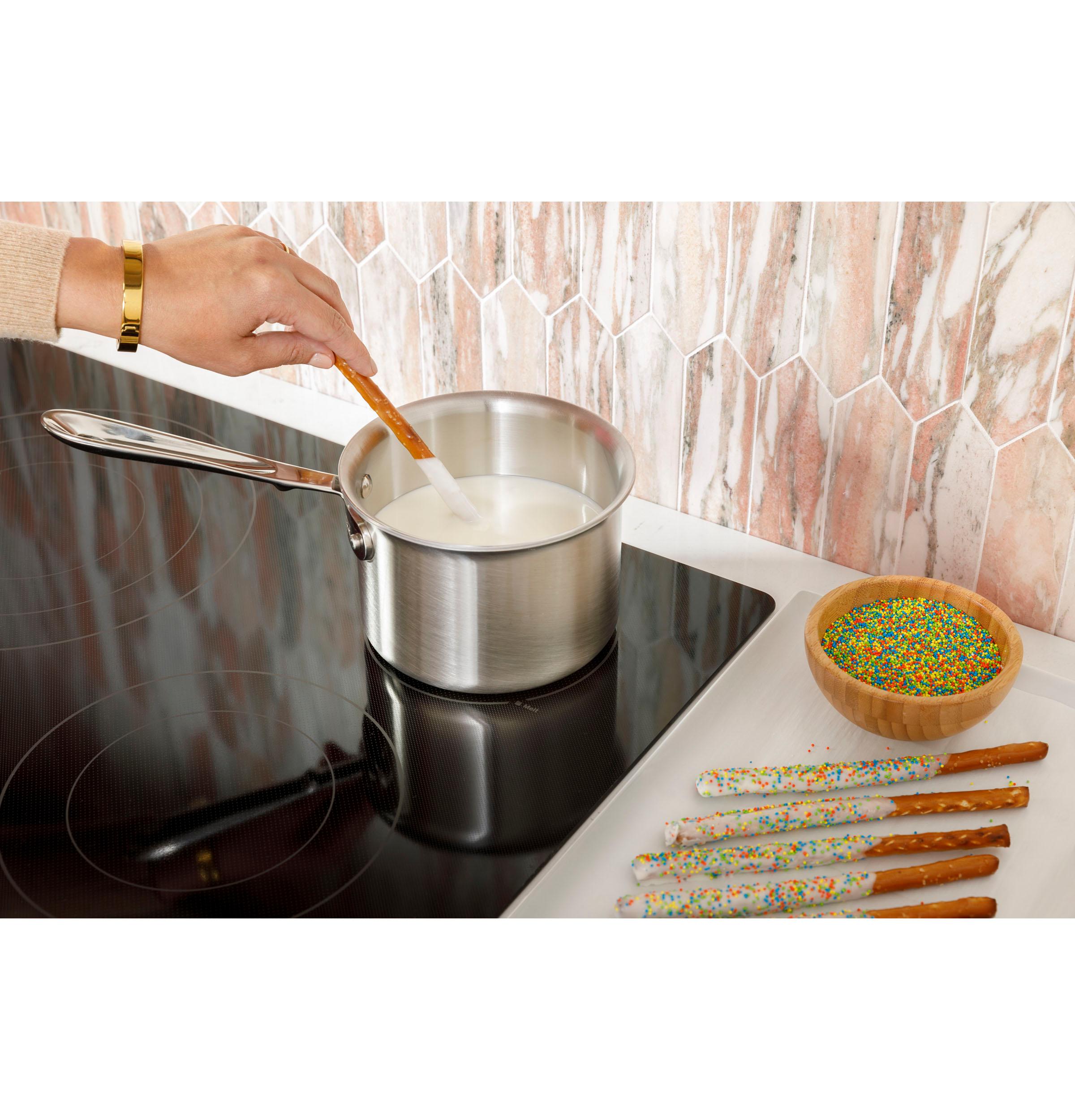

Melt Setting
Gently melt delicate foods without scorching thanks to this optimal melt option cooktop

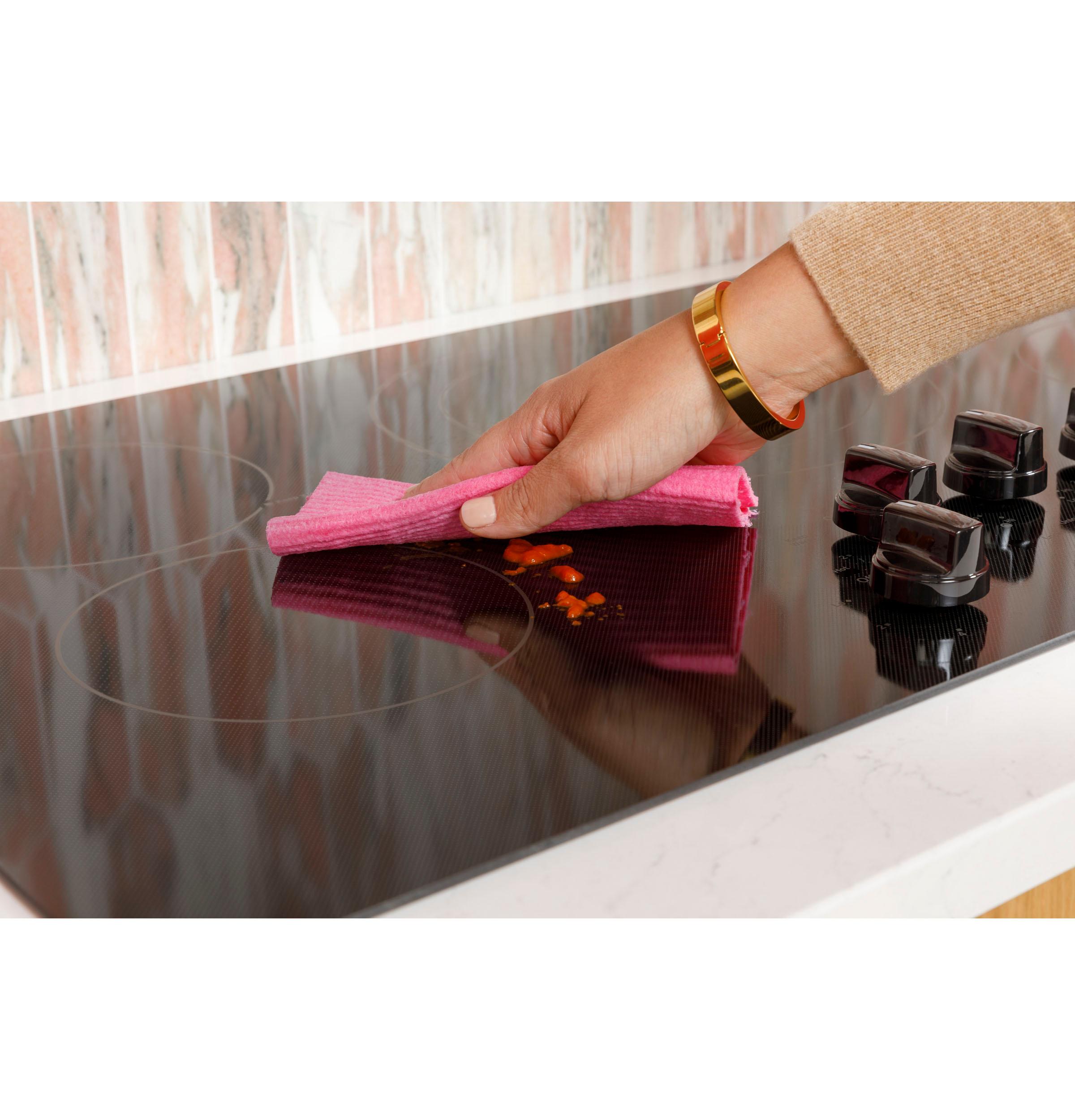

A smooth glass surface makes cleaning up messes simpler than ever on this easy clean electric cooktop
Cook faster with a variety of different pan sizes on this powerful rapid boil electric cooktop with a 3,100-watt flexible element

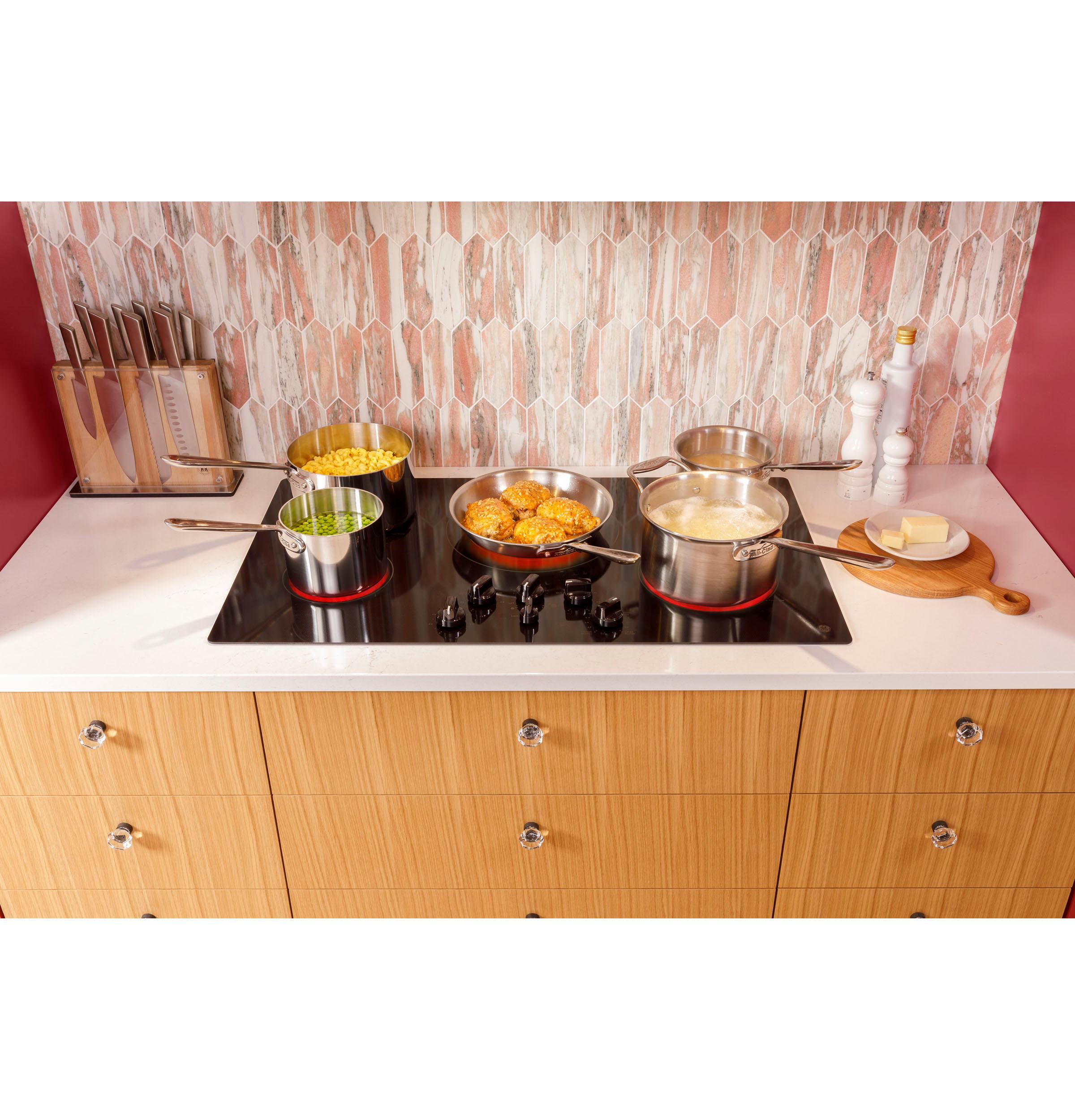

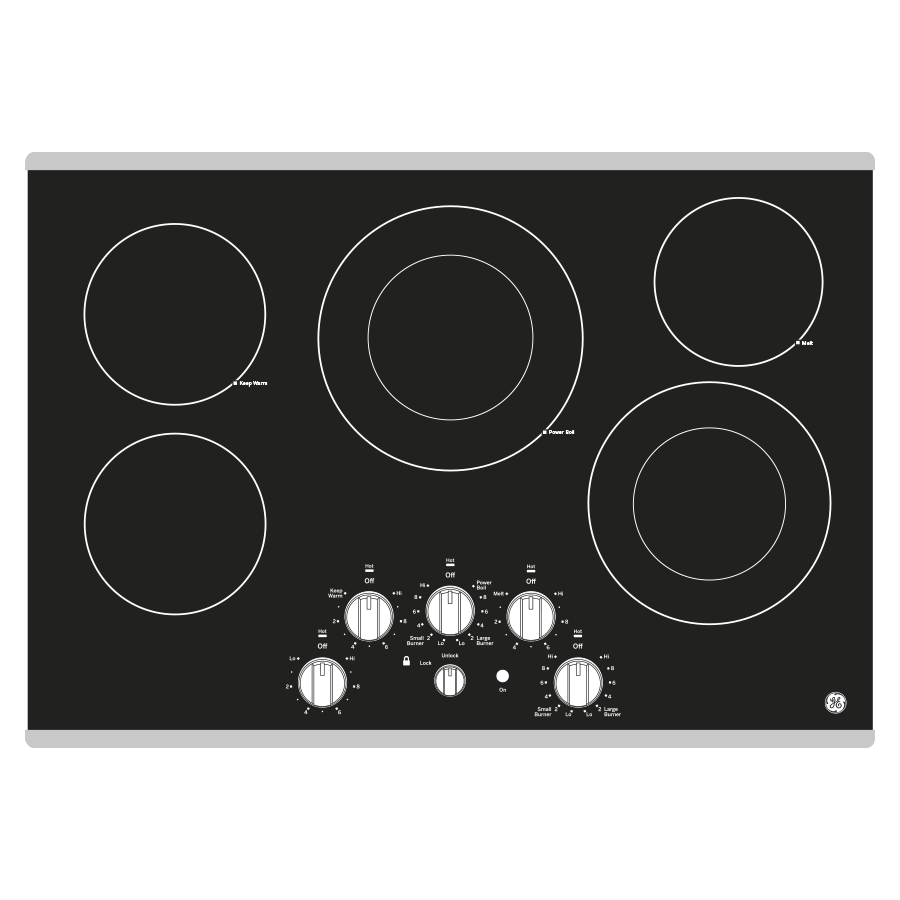

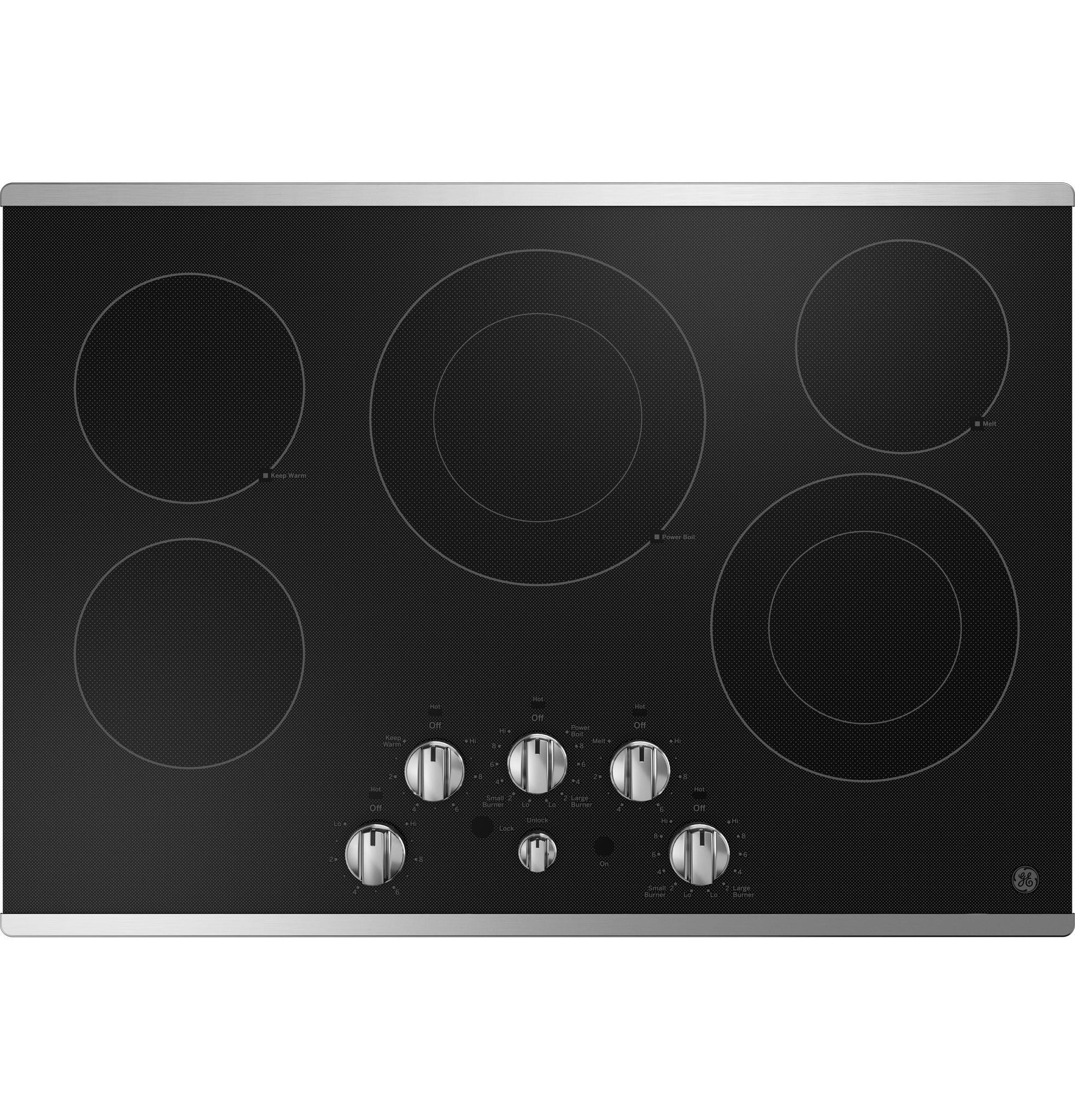

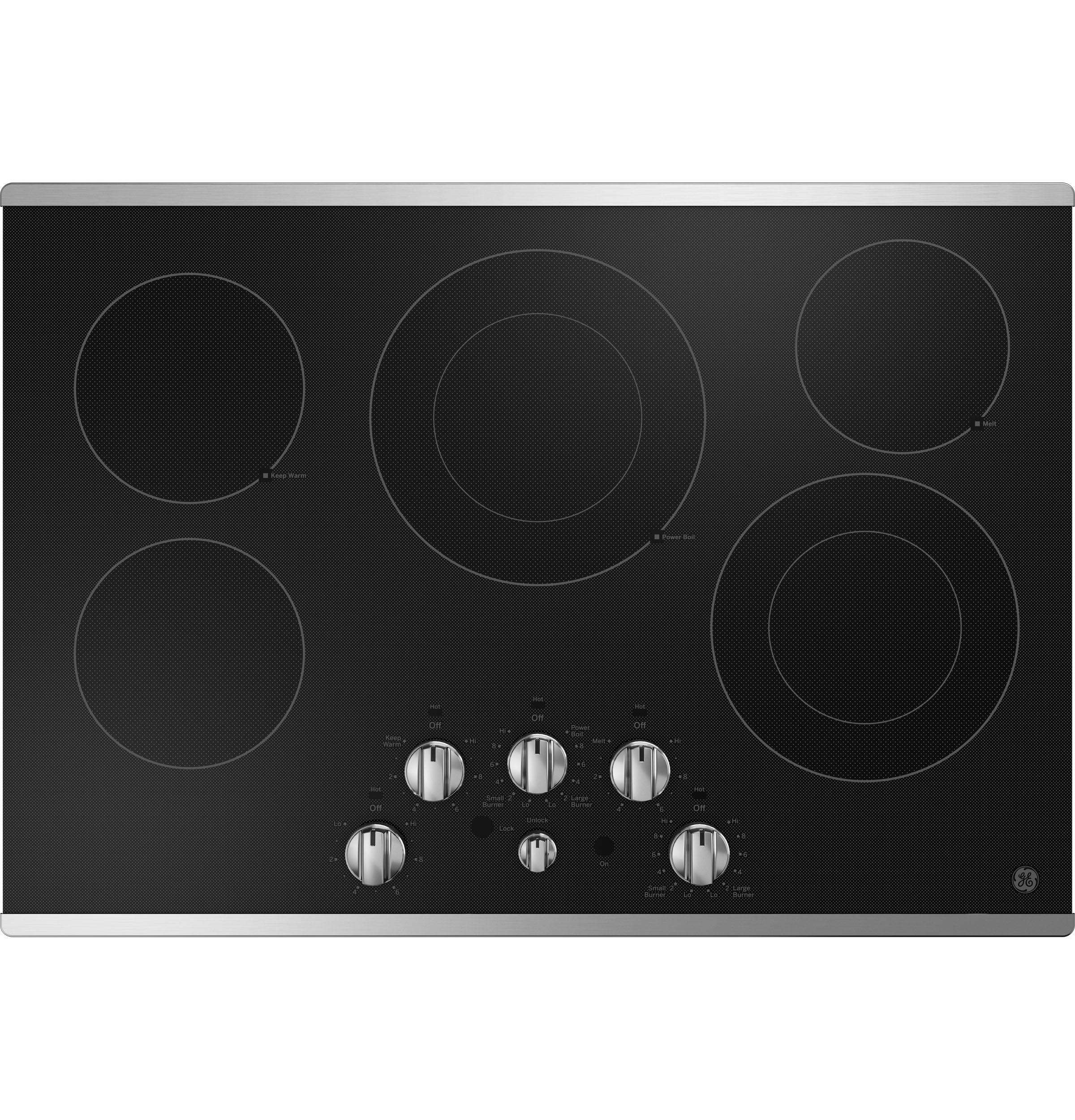

5 variously sized cooking burners on this flexible electric cooktop let you find the perfect fit for your pans and pots

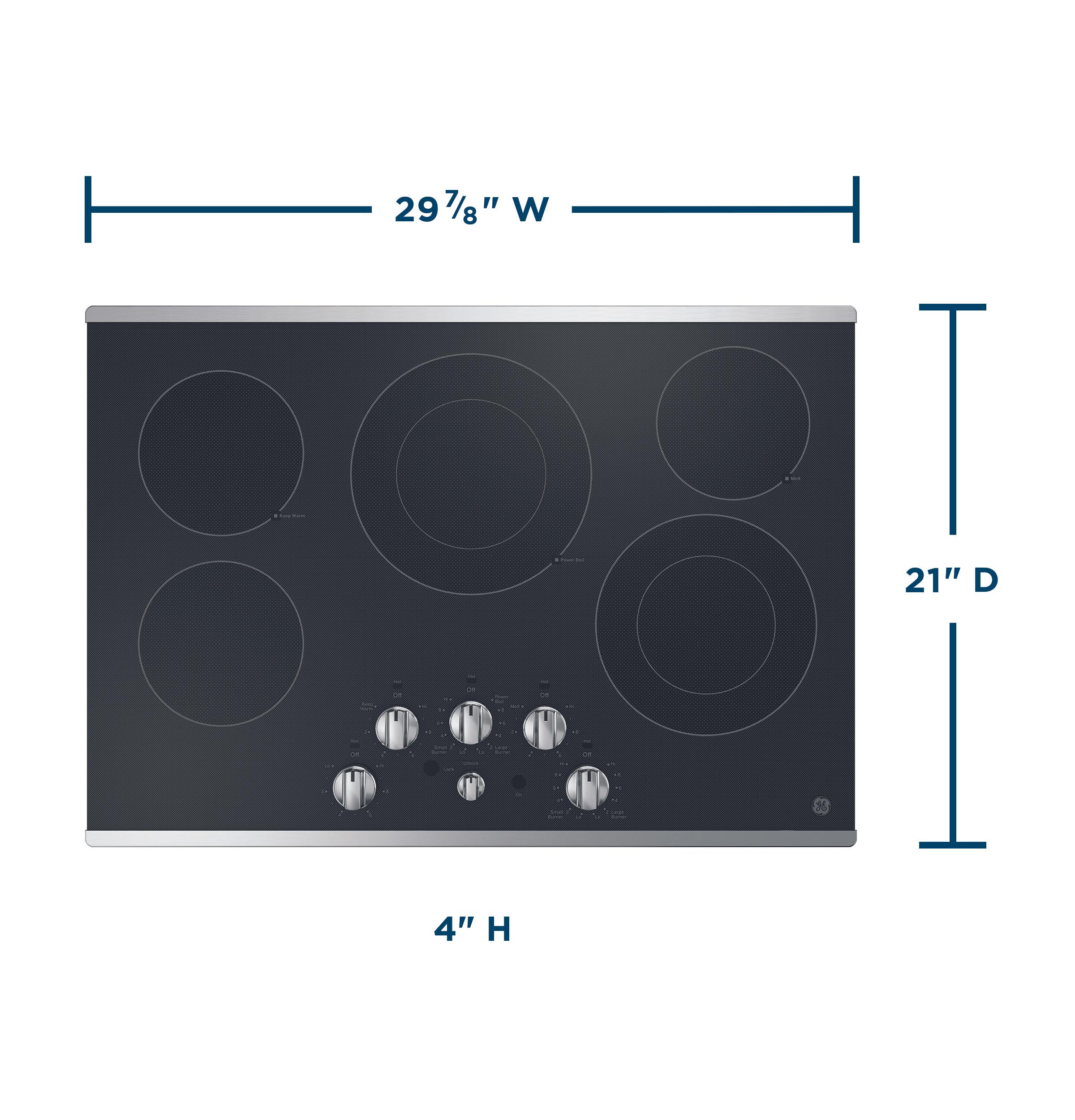

Dimensions & Capacity Width: 29 3/4"
Height: 3 1/4"
Depth: 21 3/8"
- Melt Setting
- Keep Warm Setting
- Power Boil
- Hot Surface Indicator Light
- Simmer Burner
- Power Burner
| FILTER | |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Cooktop Type | Radiant Smoothtop |
| App Filter - Fuel Type | Electric |
| App Filter - SyncBurners | Yes |
| App Filter - Control Type | Digital touch |
| APPEARANCE | |
| Frame Color / Material | Stainless Steel |
| Control Knobs | Stainless Steel Appearance |
| POWER / RATINGS | |
| Recommended Circuit Breaker (Amps) at 240V | 40 |
| Max. Connected Load (kW) at 240V | 9.6 |
| Max. Current Draw (Amps) at 240V | 40.0 |
| Max. Connected Load (kW) at 208V | 7.2 |
| Recommended Circuit Breaker (Amps) at 208V | 40 |
| Max. Current Draw (Amps) at 208V | 34.6 |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Cooktop Size | 30 |
| Overall Height | 3.25 |
| Cabinet Width | 30 |
| Approximate Shipping Weight | 40 |
| Cutout Dimensions (Width x Depth) (In.) | 28-1/2 x 19-5/8 |
| Overall Width | 29.875 |
| Net Weight | 35 |
| Overall Depth | 21.5 |
| FEATURES | |
| Filler trim kit | JXTR32B (not included) |
| Cooktop Burner Type | 5 Ribbon Smoothtop |
| Melt Setting | Yes |
| Fuel Type | Electric |
| Element - Left Front | 7' 1500W |
| Indicator Lights | 5 Hot Surface Red Surface Element 'ON' |
| Element - Right Front | 8'/5' 2200W Dual-ring |
| Control Location | Front Center |
| Cooktop Type | Radiant Smoothtop |
| Cooktop Control Features | Keep-Warm Setting Melt Setting |
| Timer | Yes |
| Element - Left Rear | 7' 1500W (Keep Warm) |

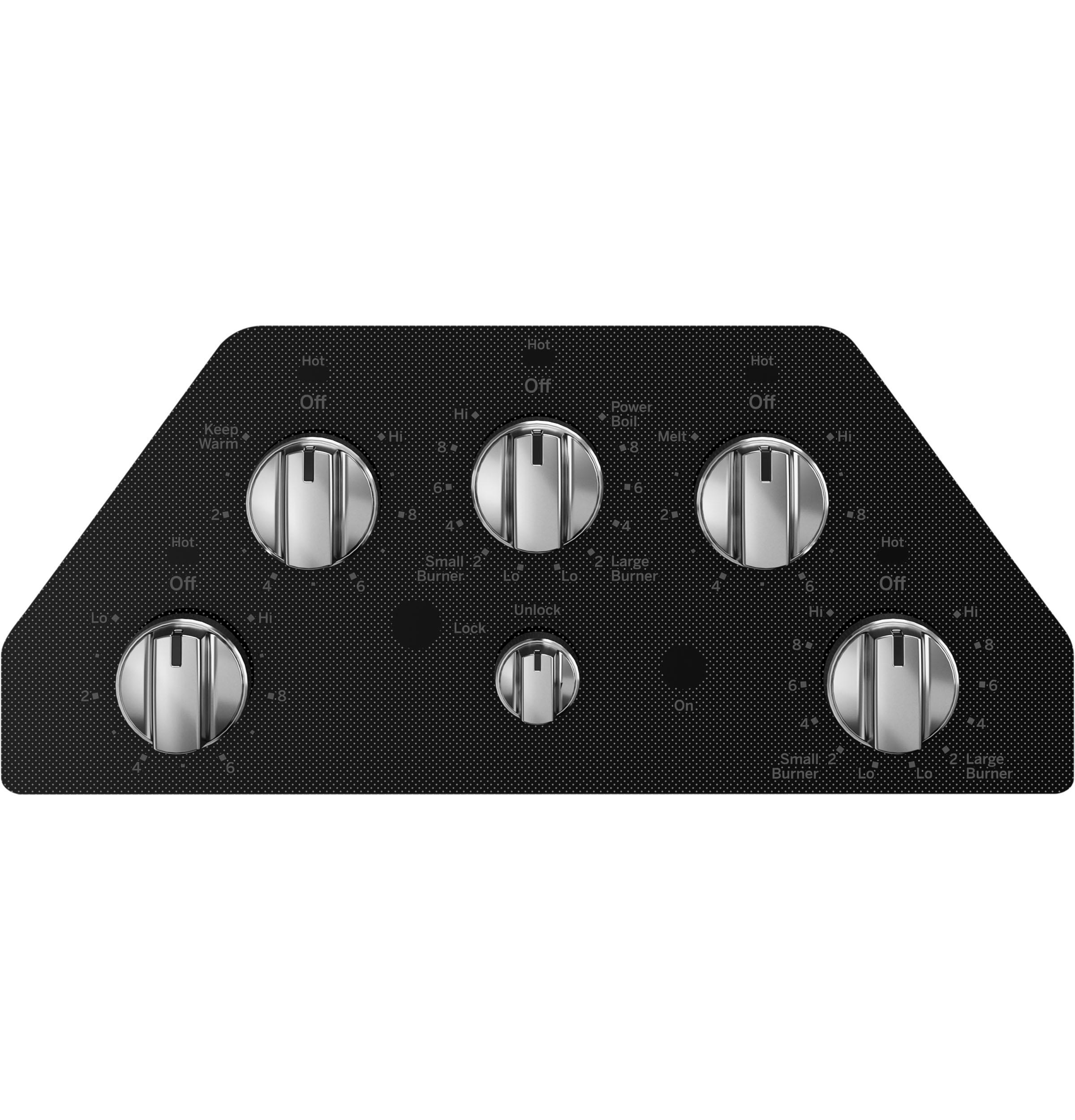

| Control Type | Knob (Infinite switch) |
| Element - Center | 9'/6' 3100W Dual Ring Power Boil |
| Element - Right Rear | 6' 1200W (Melt) |
| Product Type | Cooktop |
