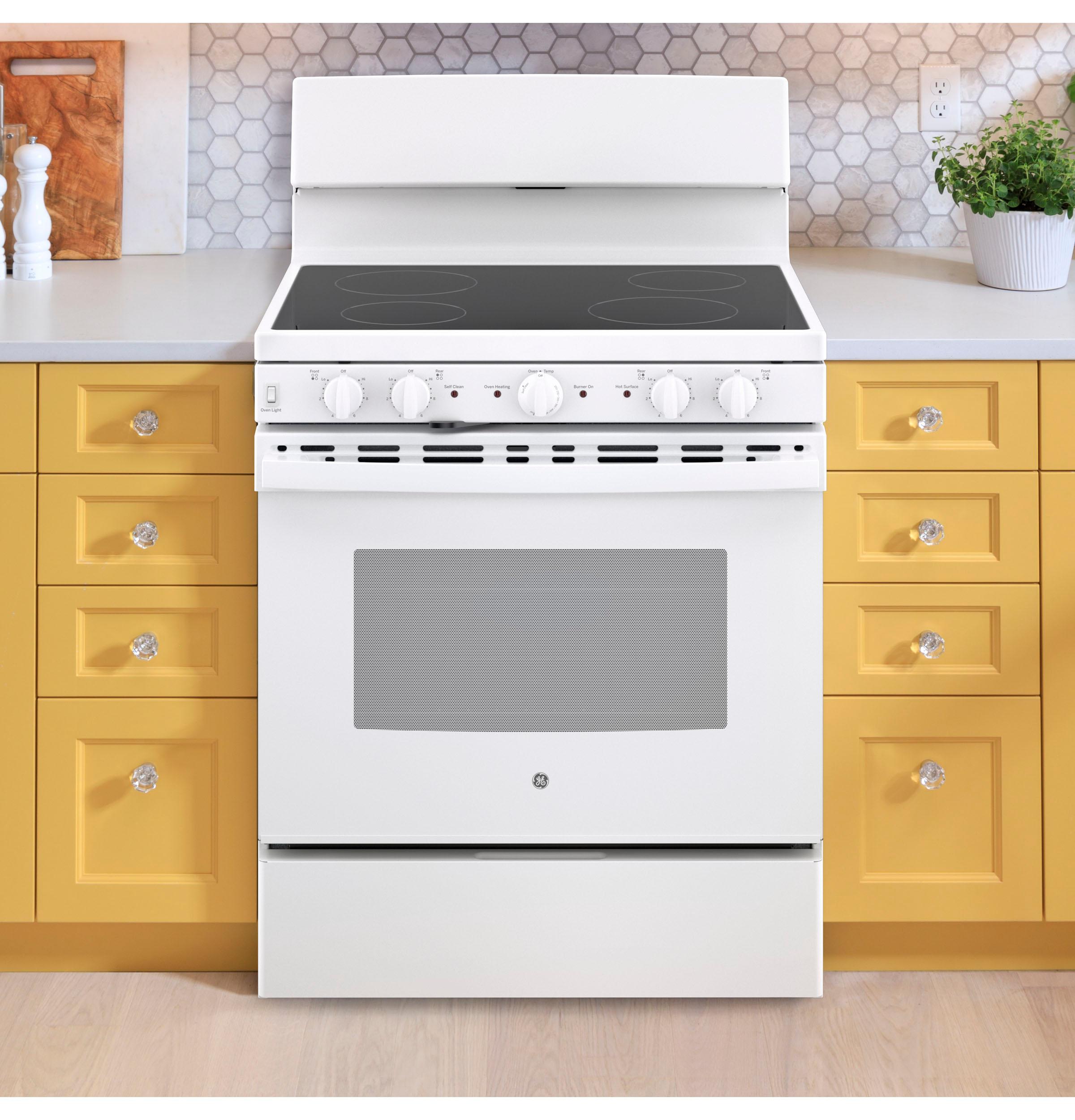

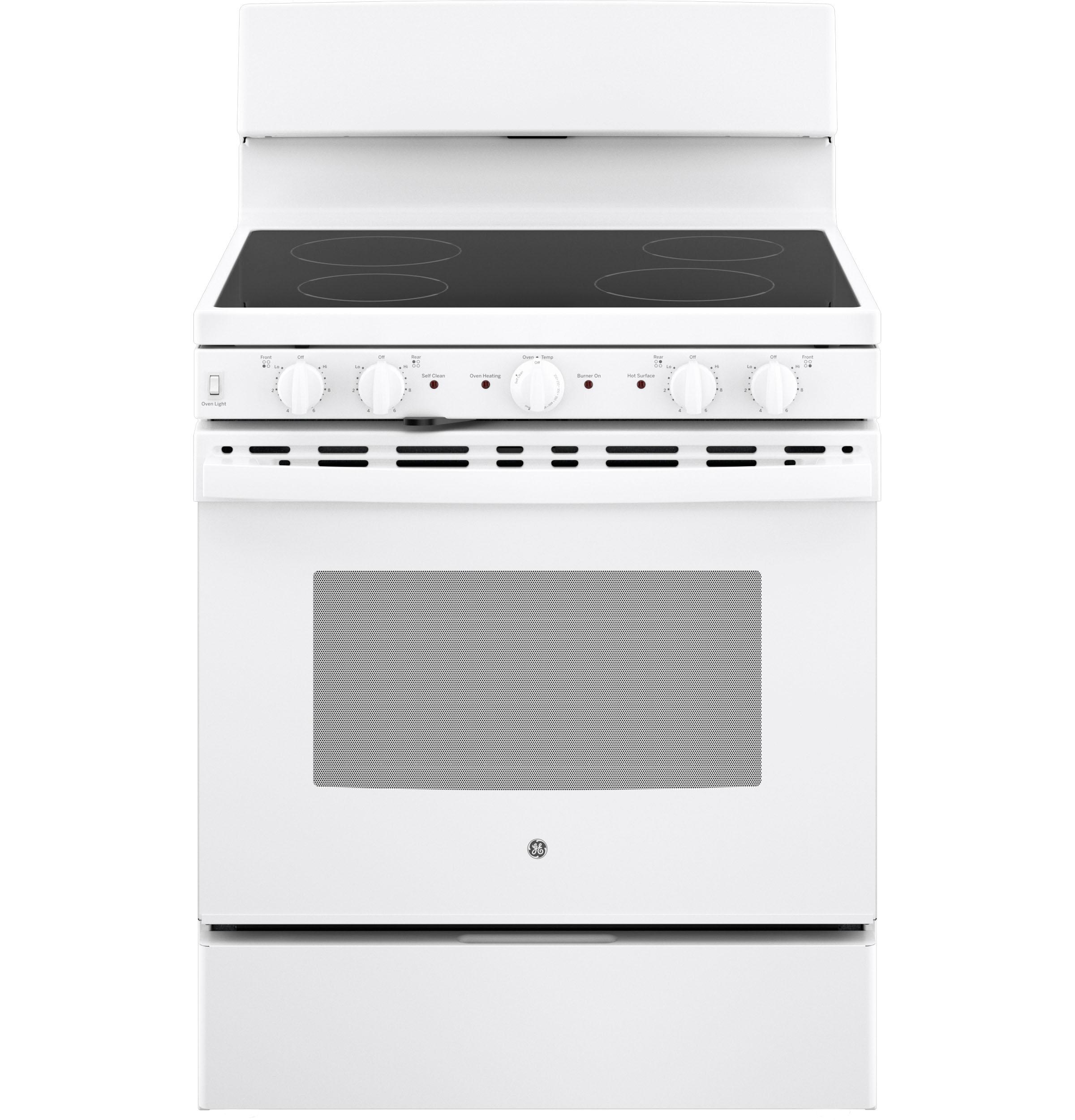

Ge Appliances JB480DTWW Ge 30" Free-Standing Electric Radiant Smooth Cooktop Range
Easily-accessible controls make it simple to control the stovetop and oven Read more...
SKU:JB480DTWW
UPC:084691916055
Colors:
White
Black
Stainless Steel
This Item Qualifies for Free Delivery!
- Regular price
- Sale price
-
List Price: $1,249.00
You save: $124.90 (10%)Our Price: $1,124.10
- Regular price
- Unit price
- per
Extended protection
3 year plan
$120.995 year plan
$228.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?

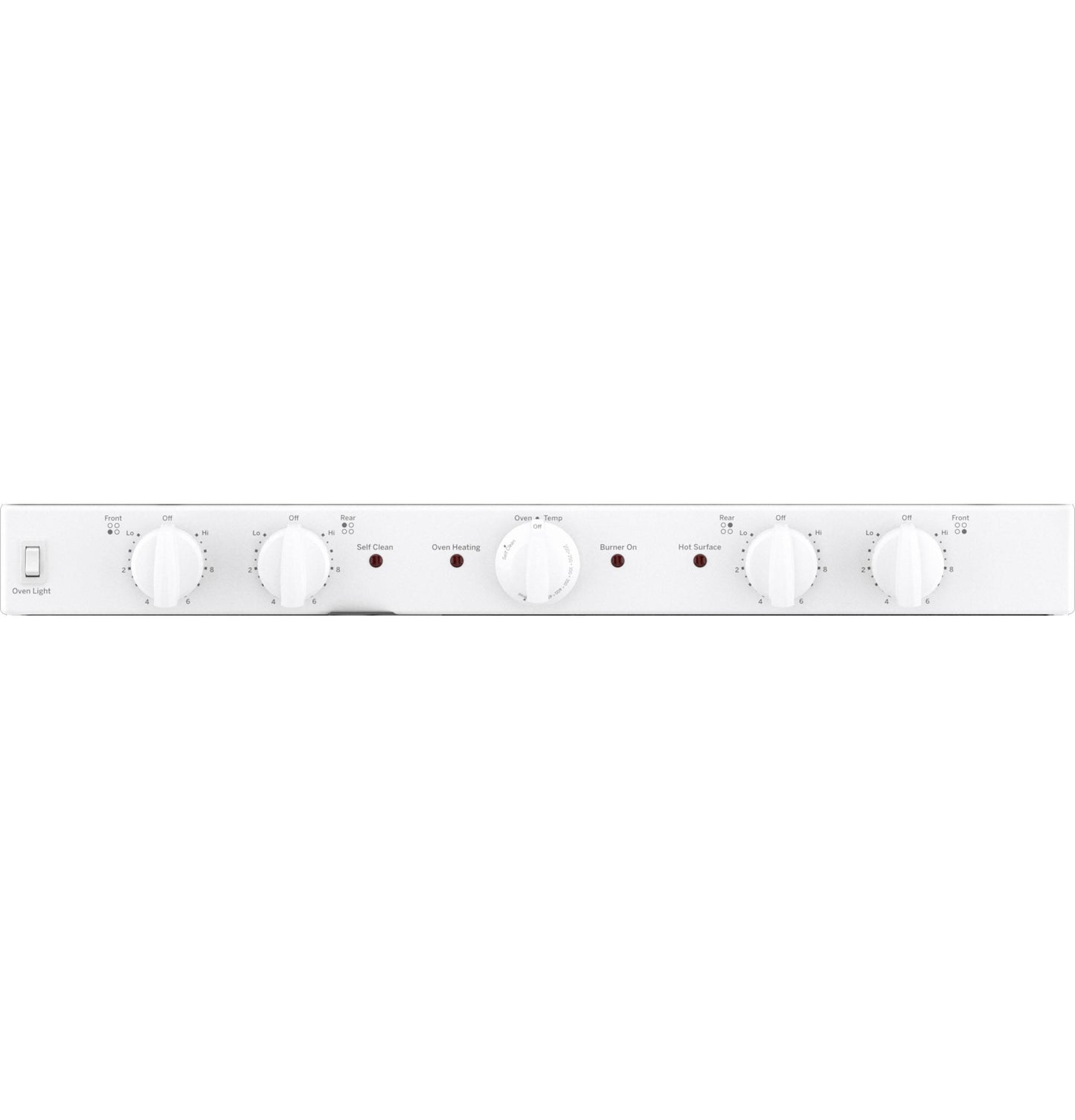

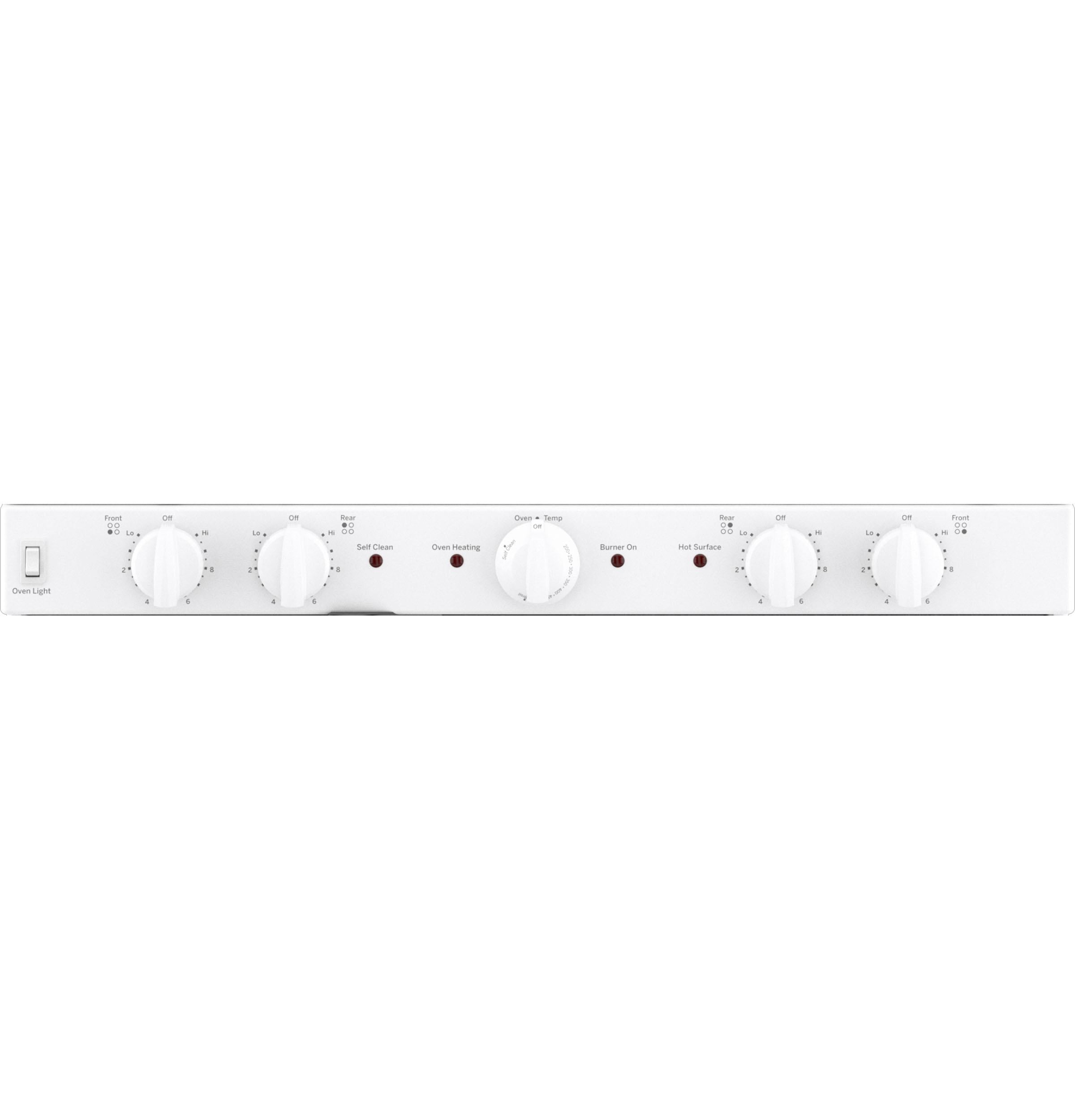

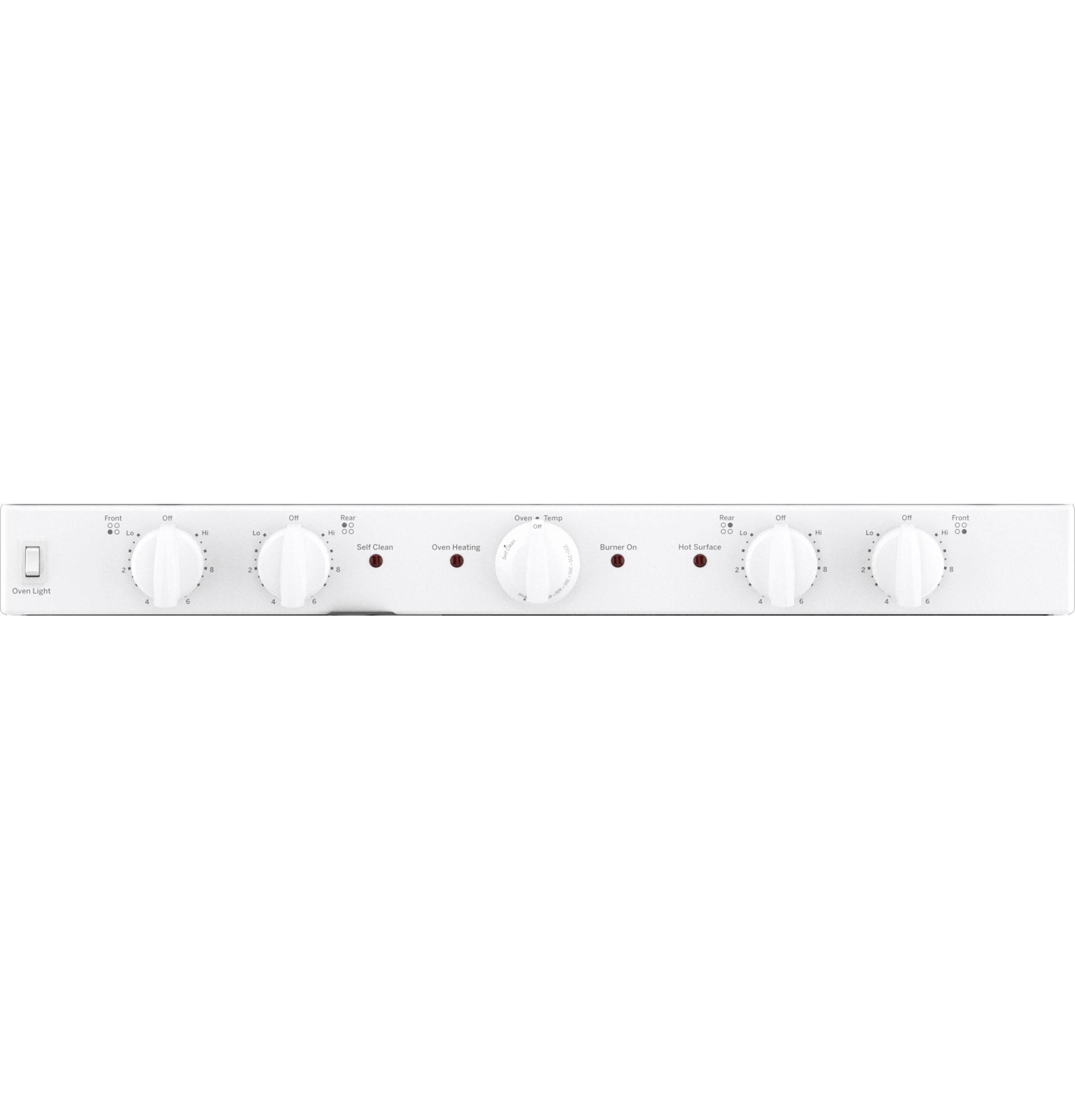

Front controls
Easily-accessible controls make it simple to control the stovetop and oven

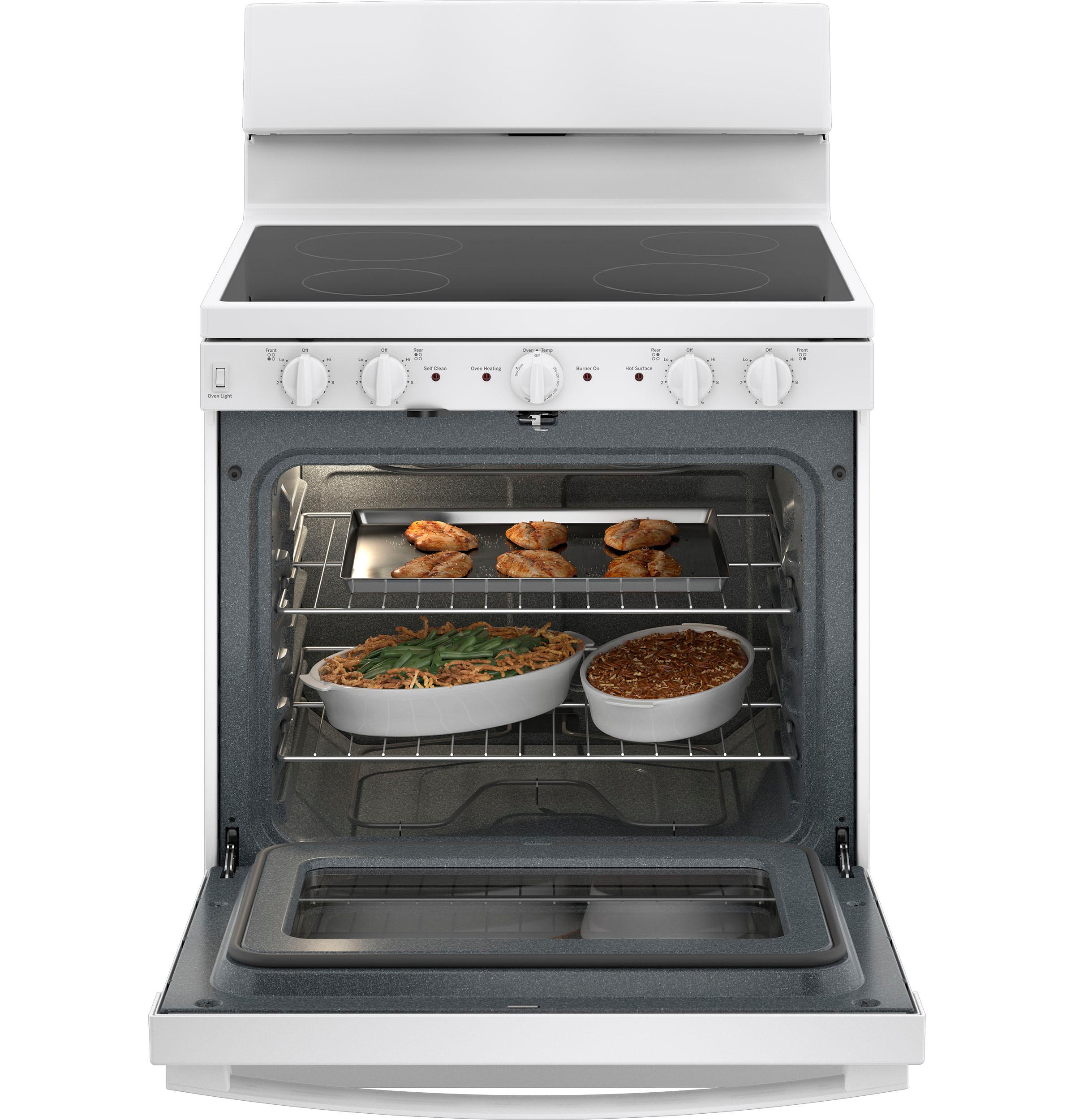

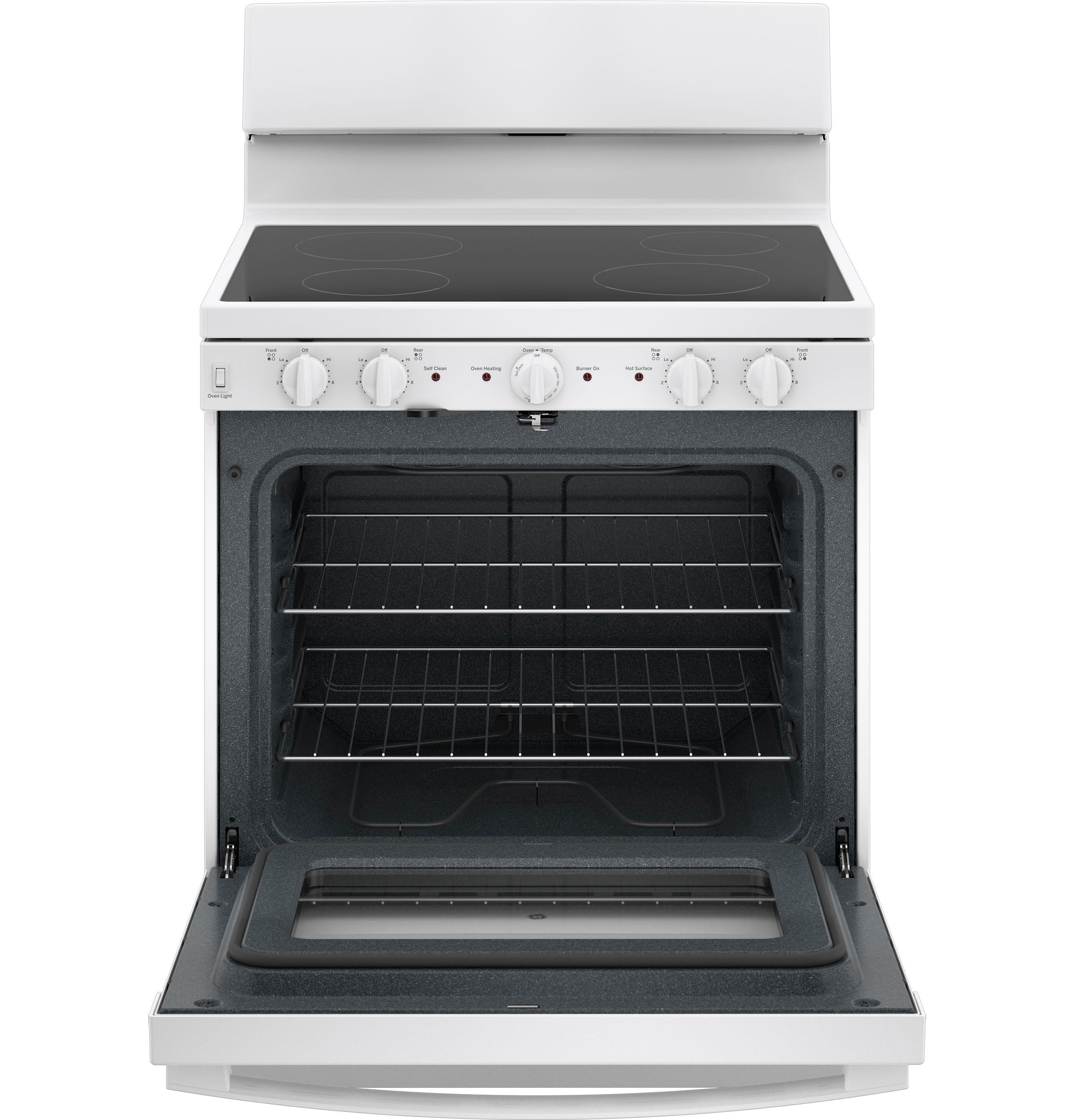

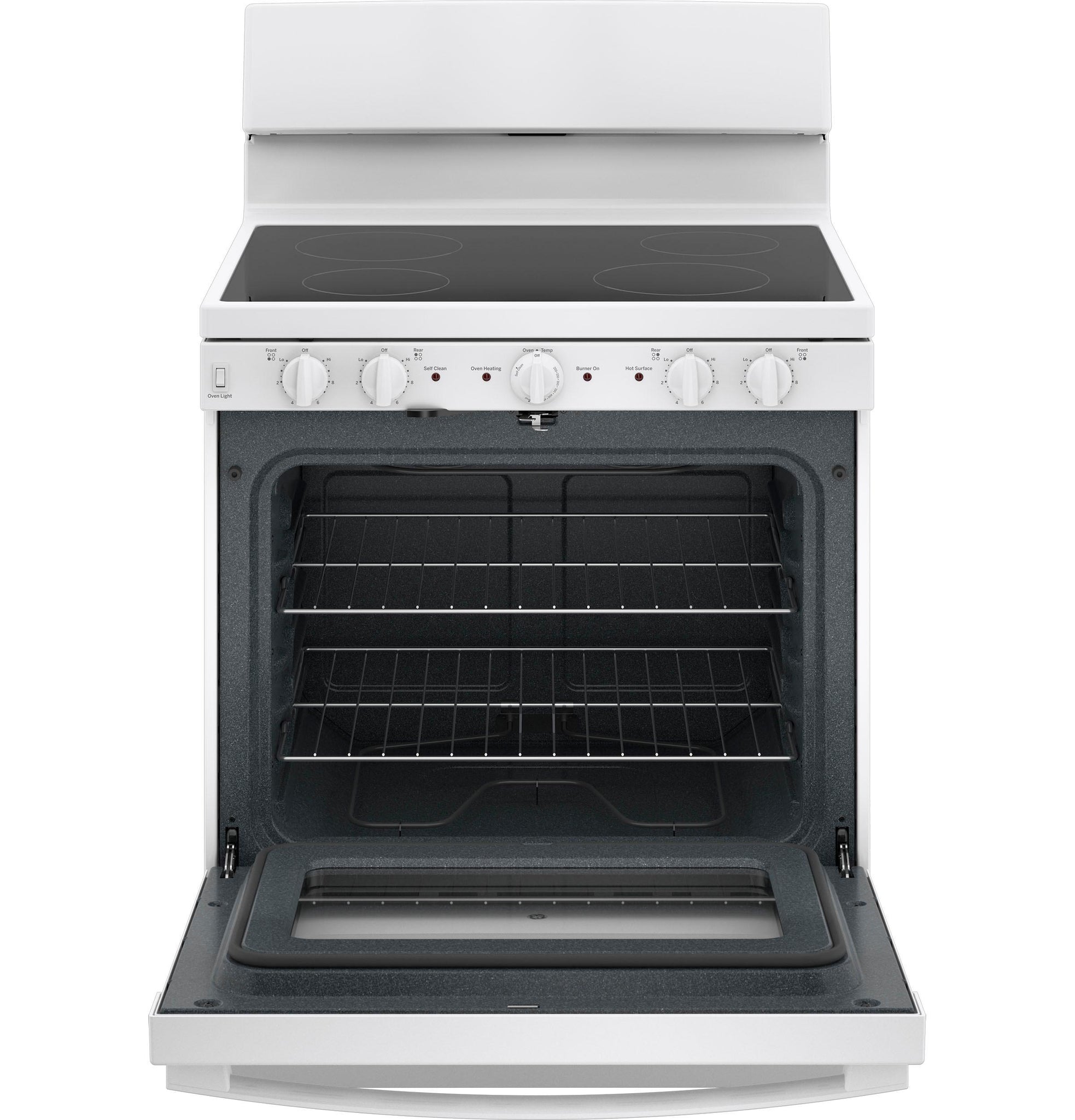

5.0 cu. ft. oven capacity
Cook more dishes at once
Dimensions & Capacity
Width: 30"
Height: 47"
Depth: 29"
First Oven Size: 5 cu. ft.
Height: 47"
Depth: 29"
First Oven Size: 5 cu. ft.
Self-clean oven
Cleans the oven cavity without the need for scrubbing.
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access.
Dual-element Bake
Upper and lower elements produce even heat and great results.
- Front controls
- Easily-accessible controls make it simple to control the stovetop and oven
- 5.0 cu. ft. oven capacity
- Cook more dishes at once
- Self-clean oven
- Cleans the oven cavity without the need for scrubbing
- Dual-element Bake
- Upper and lower elements produce even heat and great results
- Removable full-width storage drawer
- Large trays and other cookware can be conveniently stored for quick access
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 |
| APPEARANCE | |
| Control Knobs | Color-Matched |
| Handle | Color-Matched Designer Style |
| Textured Steel Side Panels | Yes |
| Oven Door Features | Big View Oven Window Glass Door |
| Color Appearance | White |
| POWER / RATINGS | |
| KW Rating at 208V | 7.9 |
| Bake Wattage | 2585W |
| KW Rating at 240V | 10.5 |
| Broiler Wattage | 3410W |
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 141.0 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Depth Without Handle | 26.25 |
| Overall Depth | 29.0 |
| Depth with Door Open | 46.75 |
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Overall Width | 30.0 |
| Overall Height | 47.0 |
| Approximate Shipping Weight | 161.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Hot Surface Indicator Lights | Yes |
| Oven Cleaning Type | Self-Clean |
| Cooktop Burner Type | Radiant Smoothtop |
| Oven Interior | 1 Incandescent Light |
| Element - Left Front | 6' 1500W |
| Oven Rack Features | 2 Oven Racks 6 Rack Positions |
| Oven Features | 4-Pass Bake Element 6-Pass Broil Element |
| Fuel Type | Electric |
| Cooking Technology | Traditional |

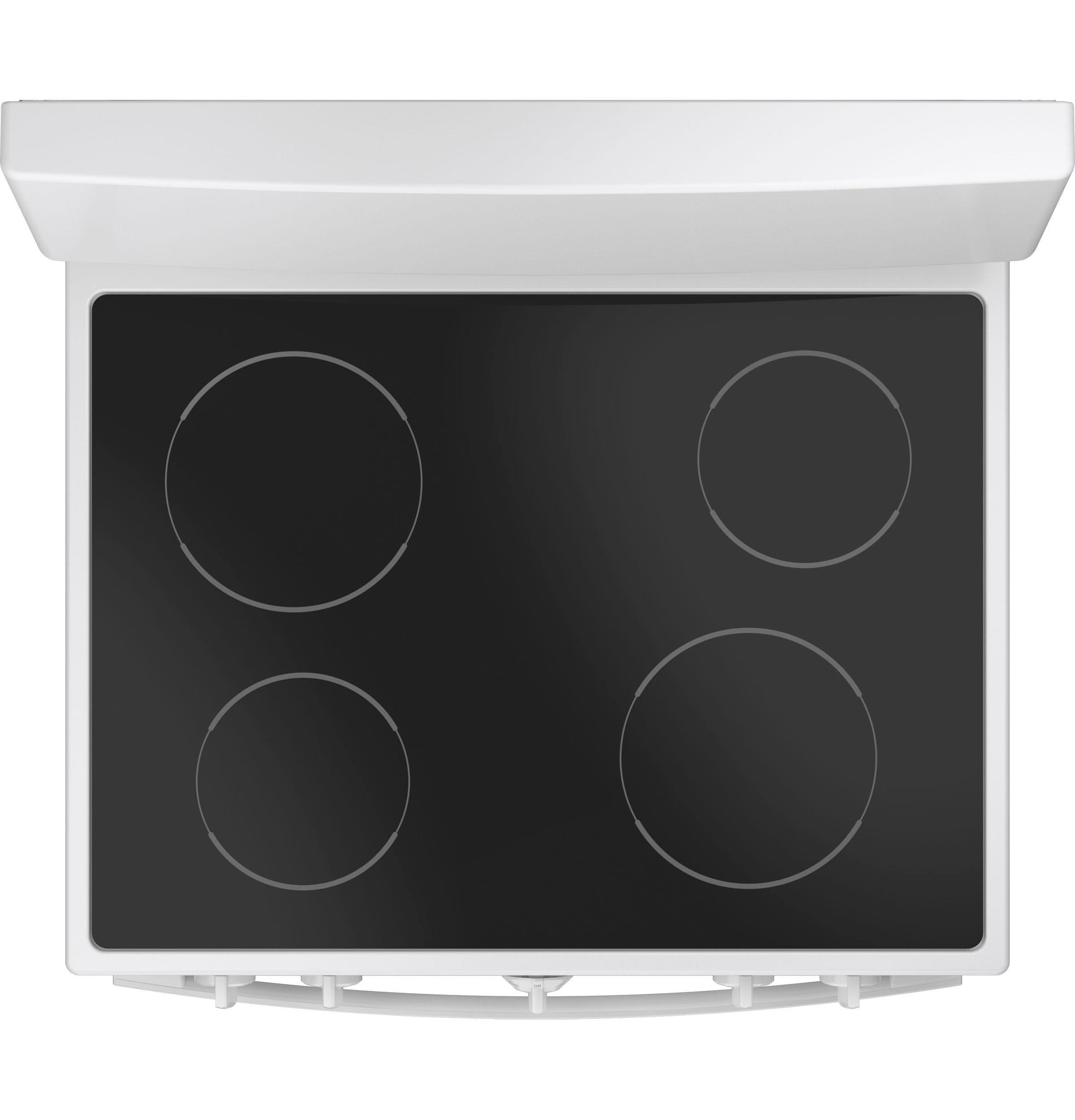

| Cooktop Surface | Black Ceramic Glass |
| Configuration | Range with Storage Drawer |
| Element - Right Front | 8' 2000W |
| Oven Control Features | Oven 'ON' Light Self-Cleaning Cycling Light |
| Product Type | Free-Standing Single Oven |
| Drawer Type | Storage |
| Cooktop Type | Radiant Smoothtop |
| Control Location | Front |
| Element - Right Rear | 6' 1500W |
| Storage Drawer Features | Removable Full-Width |
| Heating Element 'ON' Indicator Light | Yes |
| Element - Left Rear | 8' 2000W |
Dual Element Bake
Overview
Self-clean oven
Cleans the oven cavity without the need for scrubbing.
Removable full-width storage drawer
Large trays and other cookware can be conveniently stored for quick access.
Dual-element Bake
Upper and lower elements produce even heat and great results.
Description
Front controls
Easily-accessible controls make it simple to control the stovetop and oven
5.0 cu. ft. oven capacity
Cook more dishes at once
Dimensions & Capacity
Width: 30"
Height: 47"
Depth: 29"
First Oven Size: 5 cu. ft.
Height: 47"
Depth: 29"
First Oven Size: 5 cu. ft.
Features
- Front controls
- 5.0 cu. ft. oven capacity
- Self-clean oven
- Dual-element Bake
- Removable full-width storage drawer
Specifications
| CAPACITY | |
| Total Capacity (cubic feet) | 5.0 |
| APPEARANCE | |
| Control Knobs | Color-Matched |
| Handle | Color-Matched Designer Style |
| Textured Steel Side Panels | Yes |
| Oven Door Features | Big View Oven Window Glass Door |
| Color Appearance | White |
| POWER / RATINGS | |
| KW Rating at 208V | 7.9 |
| Bake Wattage | 2585W |
| KW Rating at 240V | 10.5 |
| Broiler Wattage | 3410W |
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 141.0 |
| Height to Cooking Surface (in.) | 36 - 36 1/2 |
| Depth Without Handle | 26.25 |
| Overall Depth | 29.0 |
| Depth with Door Open | 46.75 |
| Oven Interior Dimensions (W x H x D) (in.) | 23-3/4 x 19 x 18-1/2 |
| Overall Width | 30.0 |
| Overall Height | 47.0 |
| Approximate Shipping Weight | 161.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Hot Surface Indicator Lights | Yes |
| Oven Cleaning Type | Self-Clean |
| Cooktop Burner Type | Radiant Smoothtop |
| Oven Interior | 1 Incandescent Light |
| Element - Left Front | 6' 1500W |
| Oven Rack Features | 2 Oven Racks 6 Rack Positions |
| Oven Features | 4-Pass Bake Element 6-Pass Broil Element |
| Fuel Type | Electric |
| Cooking Technology | Traditional |
| Cooktop Surface | Black Ceramic Glass |
| Configuration | Range with Storage Drawer |
| Element - Right Front | 8' 2000W |
| Oven Control Features | Oven 'ON' Light Self-Cleaning Cycling Light |
| Product Type | Free-Standing Single Oven |
| Drawer Type | Storage |
| Cooktop Type | Radiant Smoothtop |
| Control Location | Front |
| Element - Right Rear | 6' 1500W |
| Storage Drawer Features | Removable Full-Width |
| Heating Element 'ON' Indicator Light | Yes |
| Element - Left Rear | 8' 2000W |
