• Water Level Control

This top load washer with water level control and Extra Rinse option allows you to use as much or as little water as necessary to get the perfect clean.

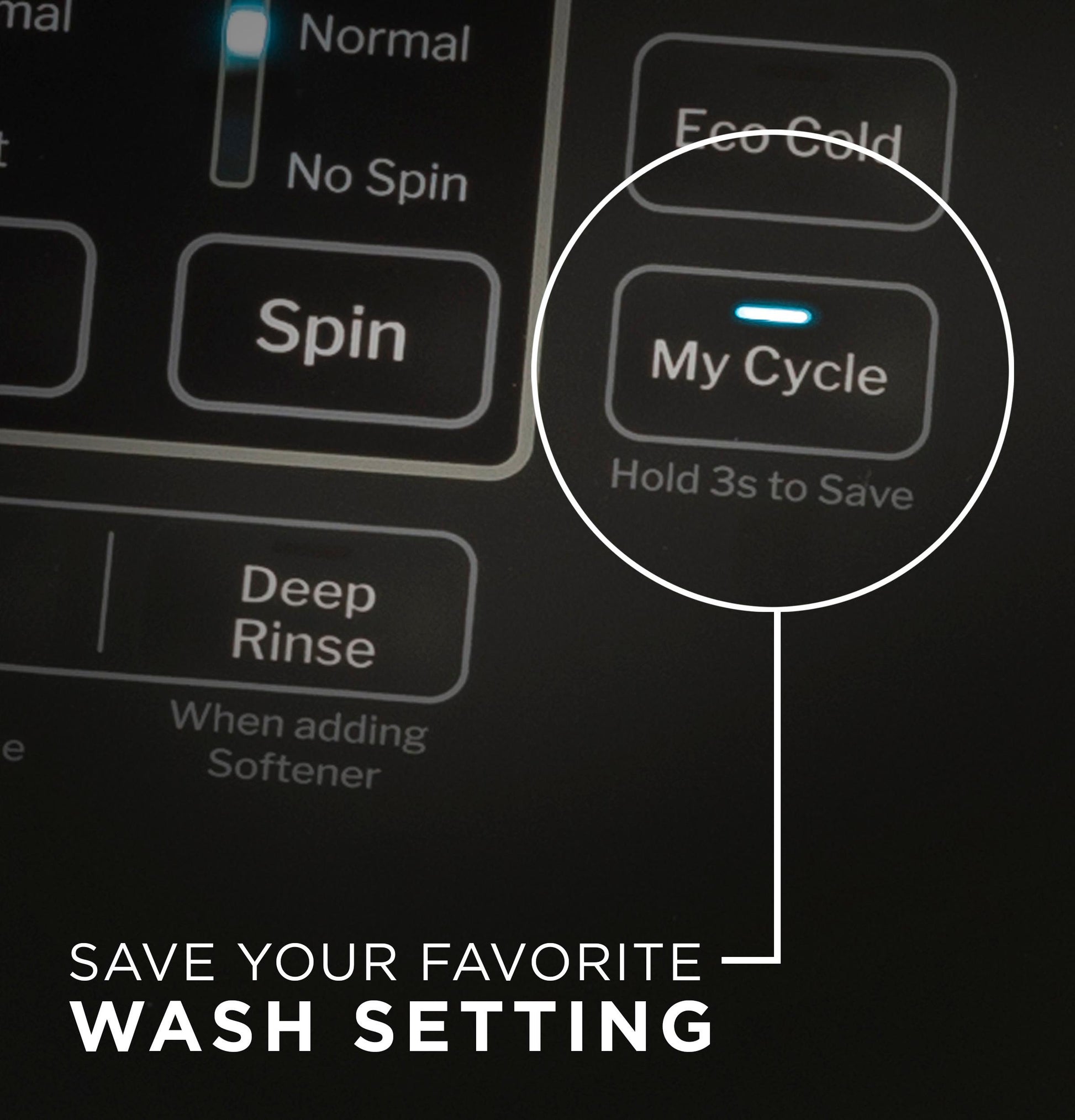

• My Cycle Setting

Make laundry simpler by saving your favorite wash settings as a preset for future use with the My Cycle setting

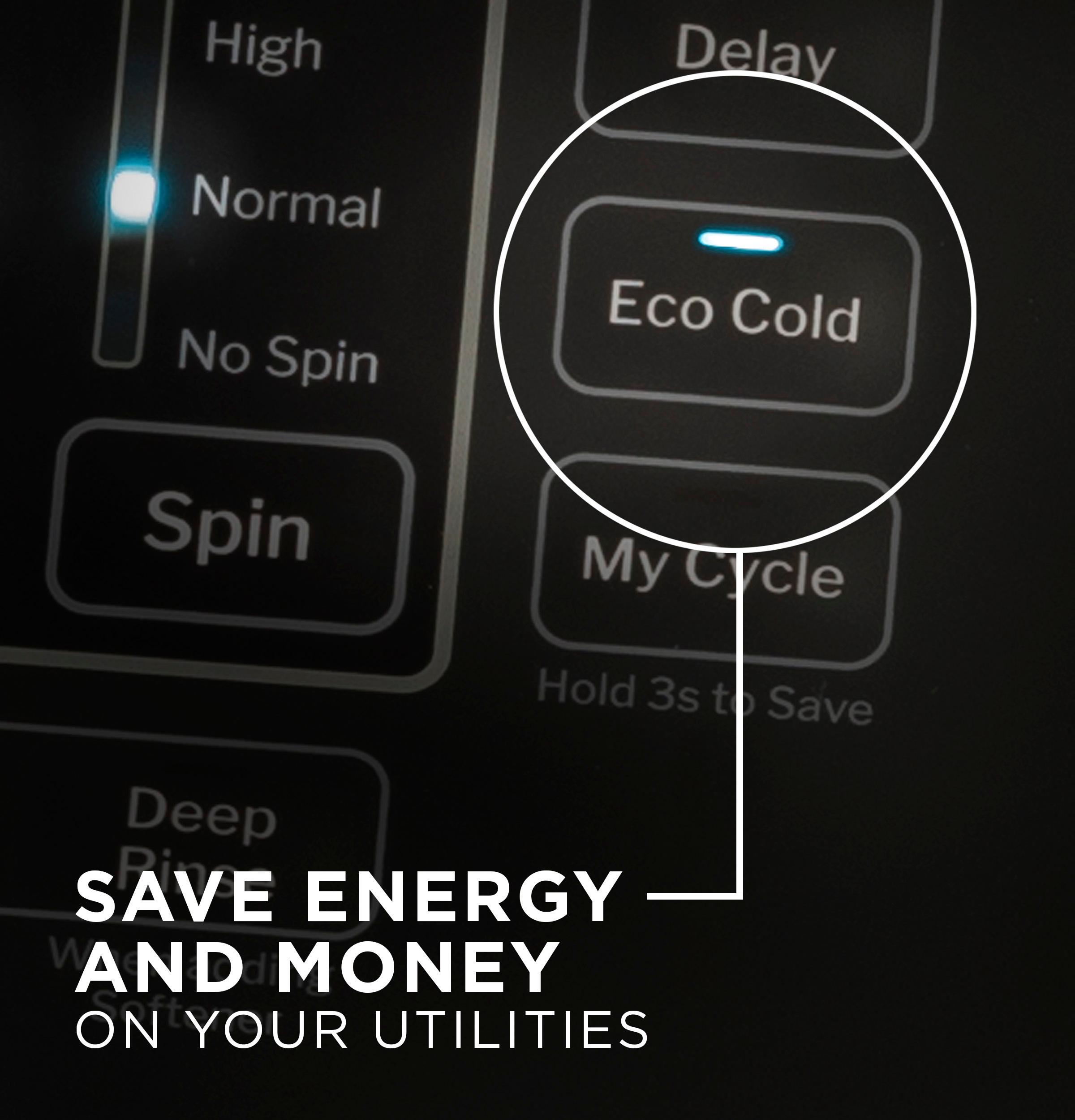

• Eco Cold

Conserve energy and save money on your utilities costs with a convenient Eco Cold laundry setting that adjusts wash action and time while still achieving great results* *Energy savings going to cold water from default temperature settings

• Soak Rinse

Reduces bacteria and viruses with a final cold soaking rinse when using color-safe liquid sanitizers to boost your detergent's cleaning power and remove tough odors on even you most delicate laundry

• Quick Wash

This washer with quick wash allows you to enjoy great wash performance in under 24 minutes. *Using default settings.

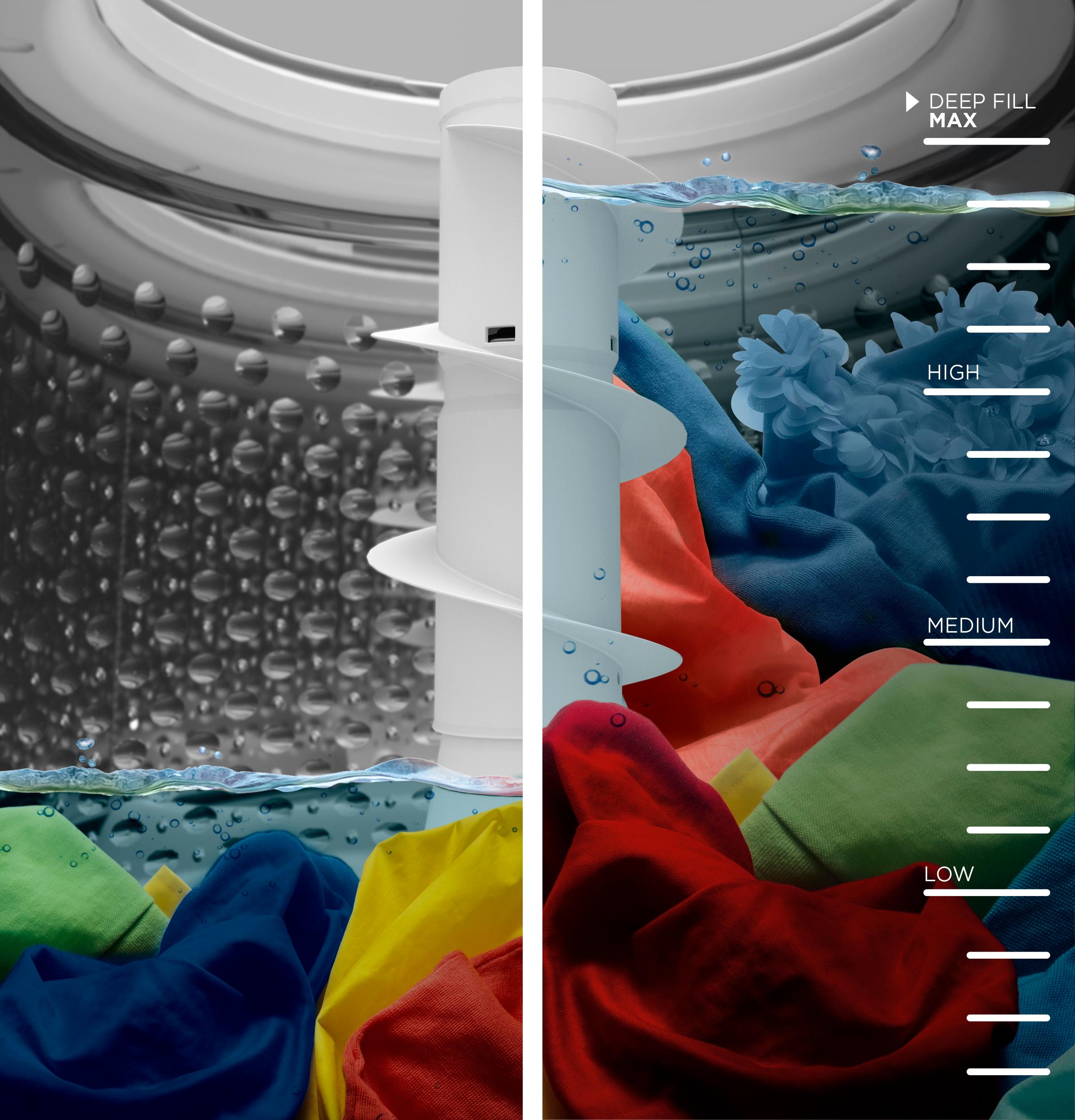

• Deep Fill

This Deep Fill washer give you total control of water level. Press once for an additional 3 gallons or press and hold to fill up a full 26 gallons.

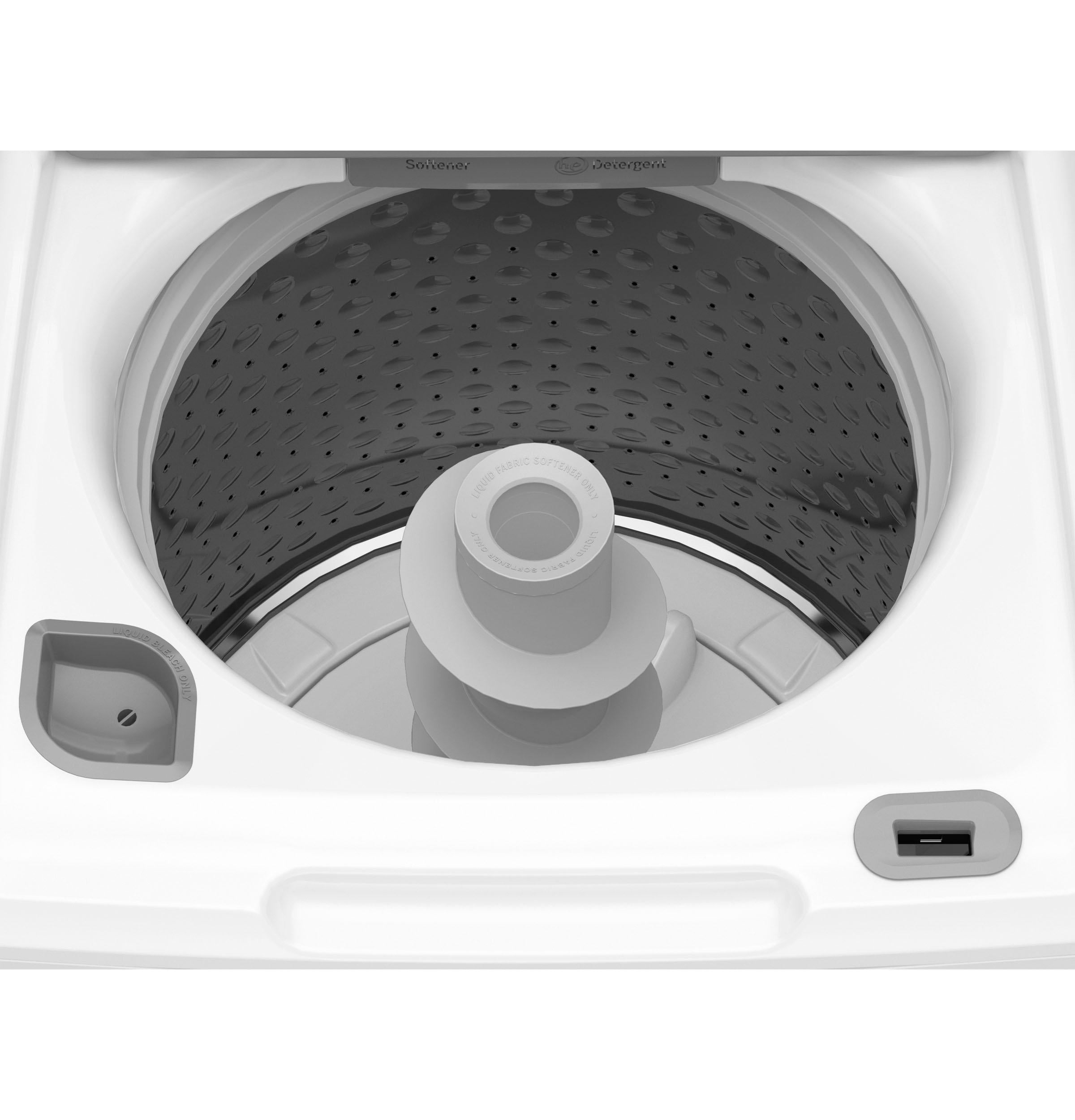

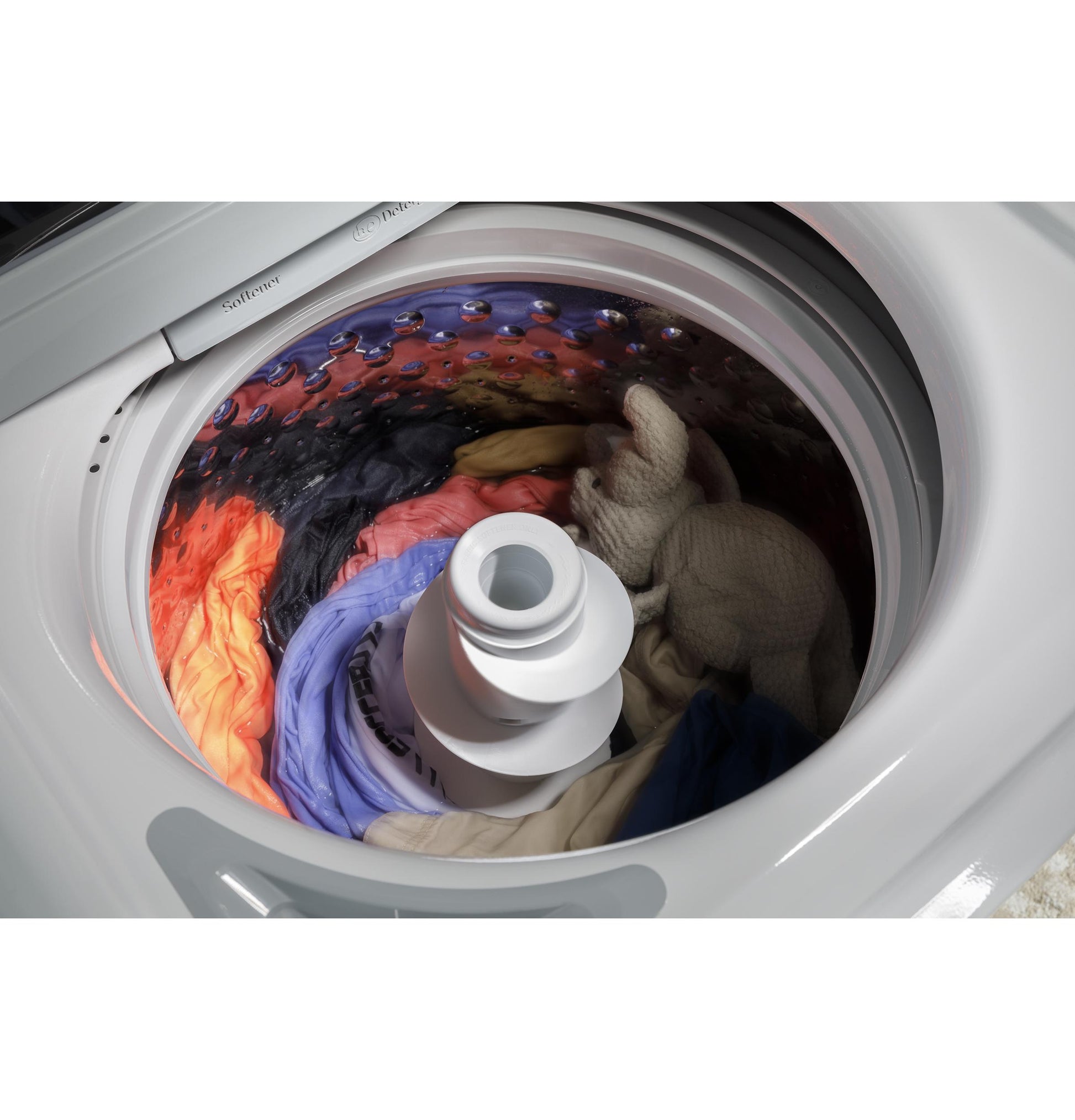

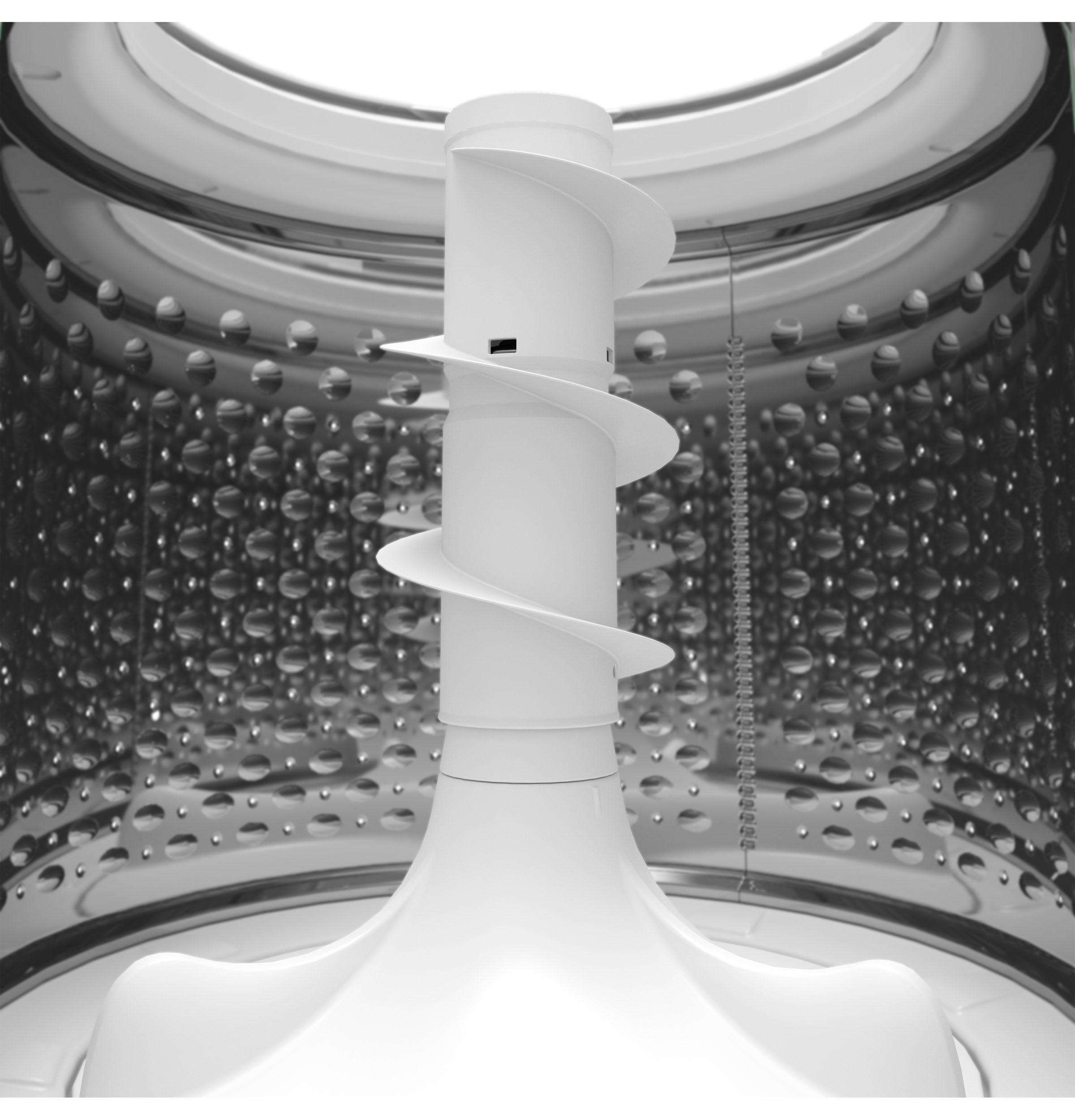

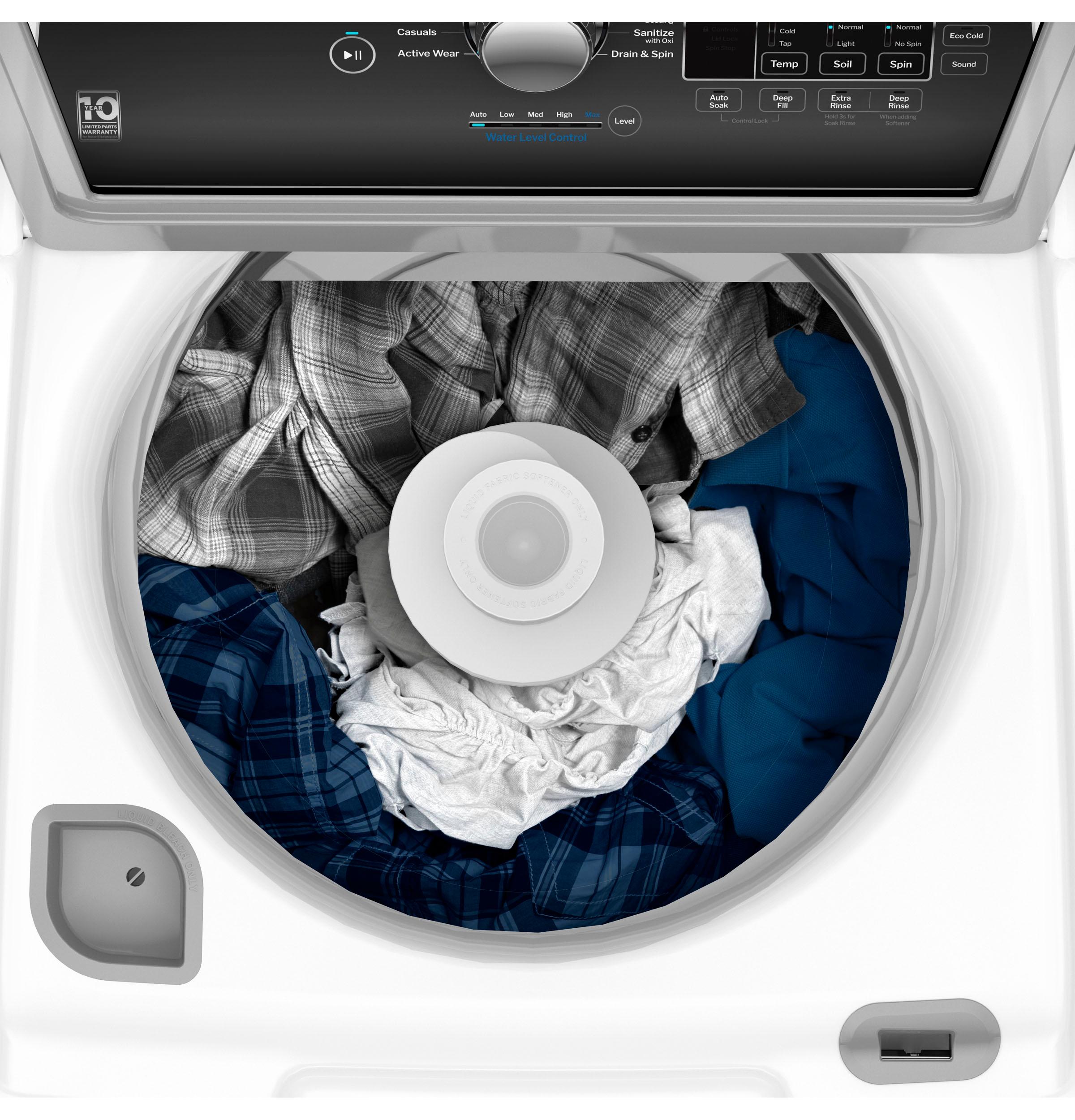

• Dual Action Agitator

This durable, built-in ,Dual Action Agitator provides better circulation and turnover of clothes to achieve a deep clean while being gentle on your clothes. The agitator is comprised of two pieces; the top half which operates independently of the bottom to guide clothes through the water, while the bottom half gently agitates clothing along the bottom of the wash basket for a thorough, even cleaning

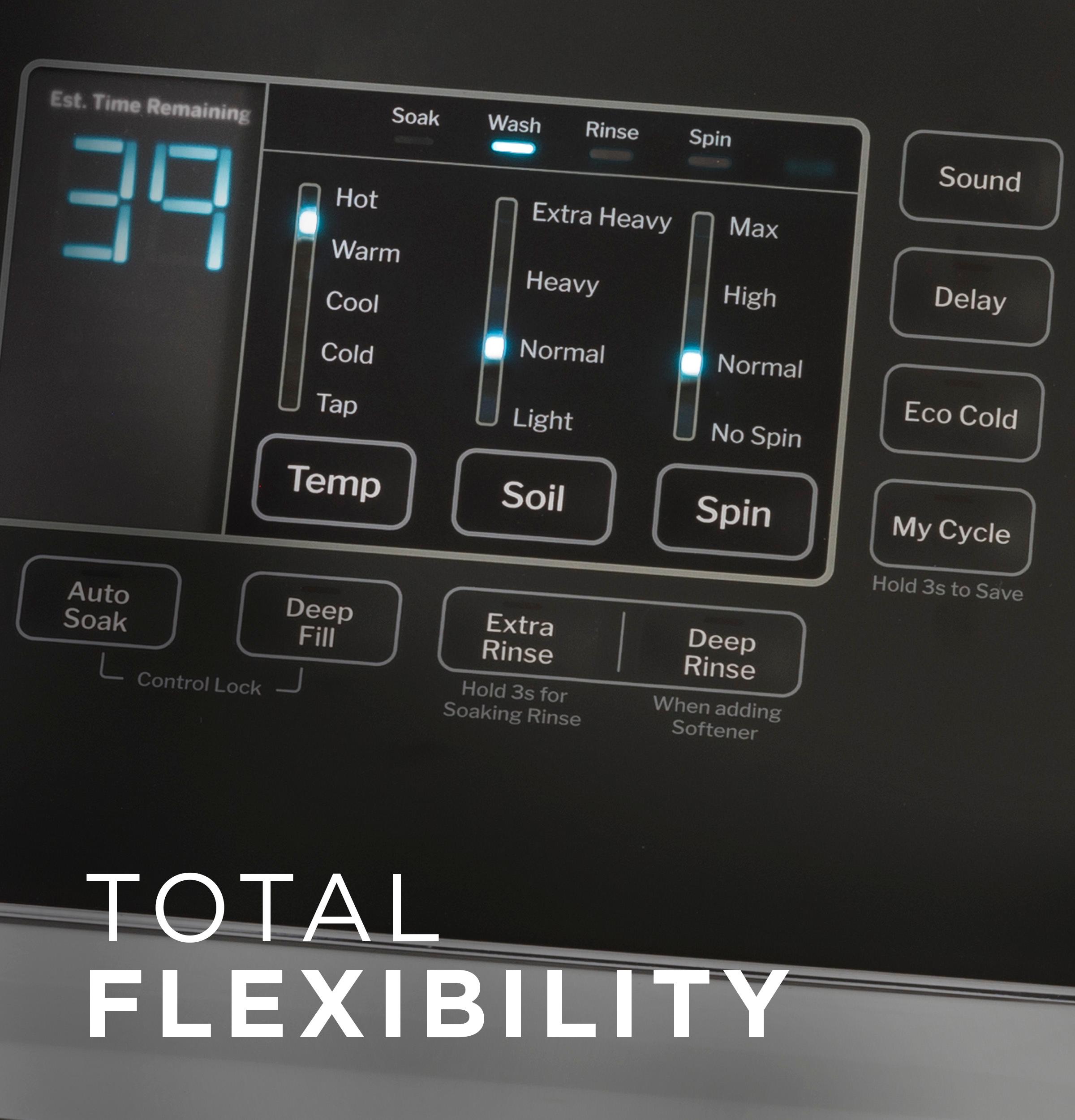

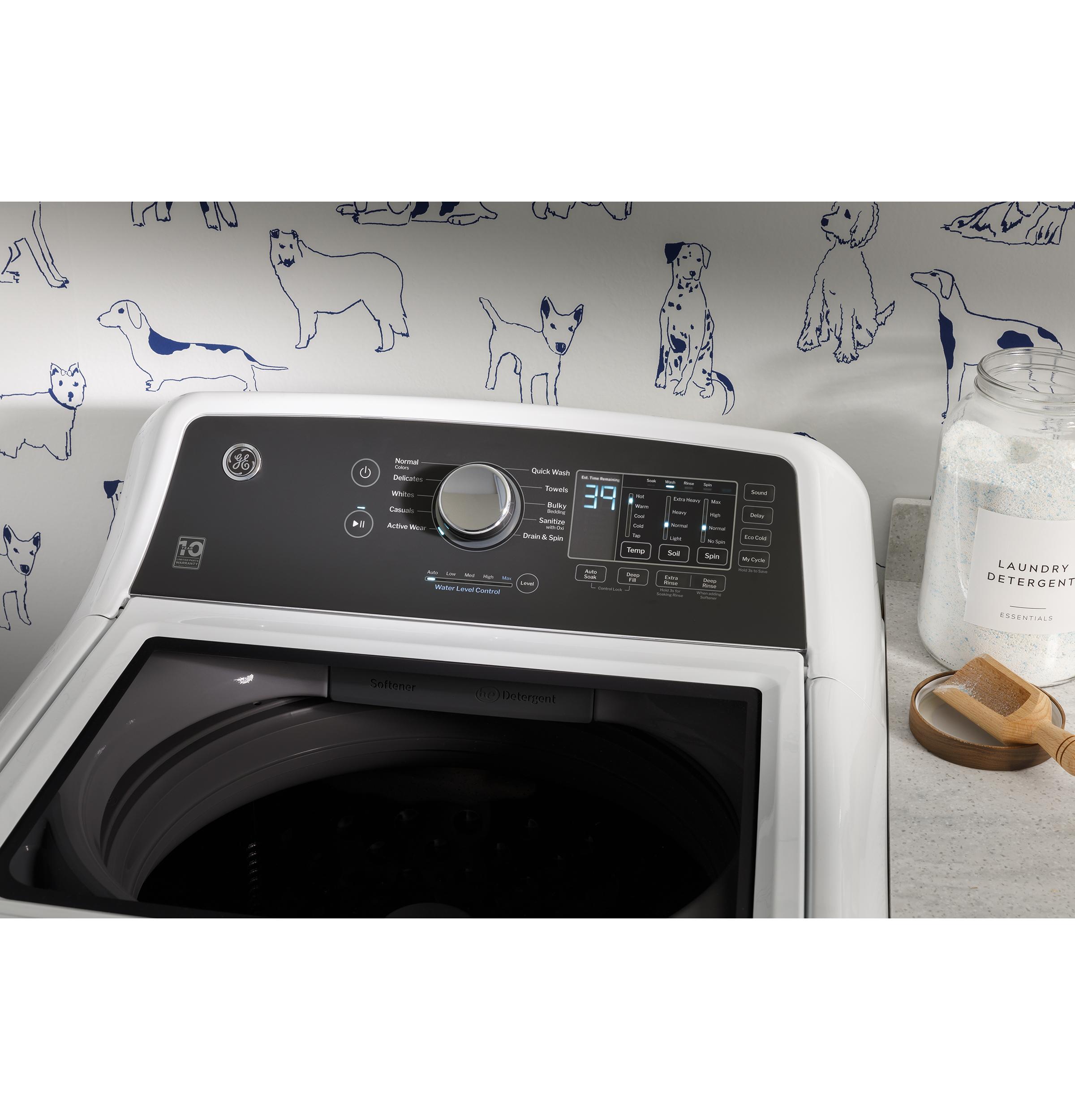

• Custom Wash Settings

Optimize your laundry settings with the total flexibility to adjust rinse, temperature, spin or soil level to get the best clean for each load.

• Auto Soak

This washing machine with Auto Soak option adds a pre- wash soak of up to 2 hours before automatically moving to the wash cycle for optimal stain removal.

CAPACITY
Wash Basket Type	Stainless Steel
Total Capacity (cubic feet)	4.5
APPEARANCE
Color Appearance	White on White with Silver Backsplash
WARRANTY
Parts Warranty	Limited 1-year entire appliance Limited 10-year motor
Warranty Notes	See written warranty for full details
Labor Warranty	Limited 1-year entire appliance
POWER / RATINGS
Volts/Hertz/Amps	120 V; 60 Hz; 10A
ACCESSORIES
Fill Hose	WH14X10011 (sold separately)

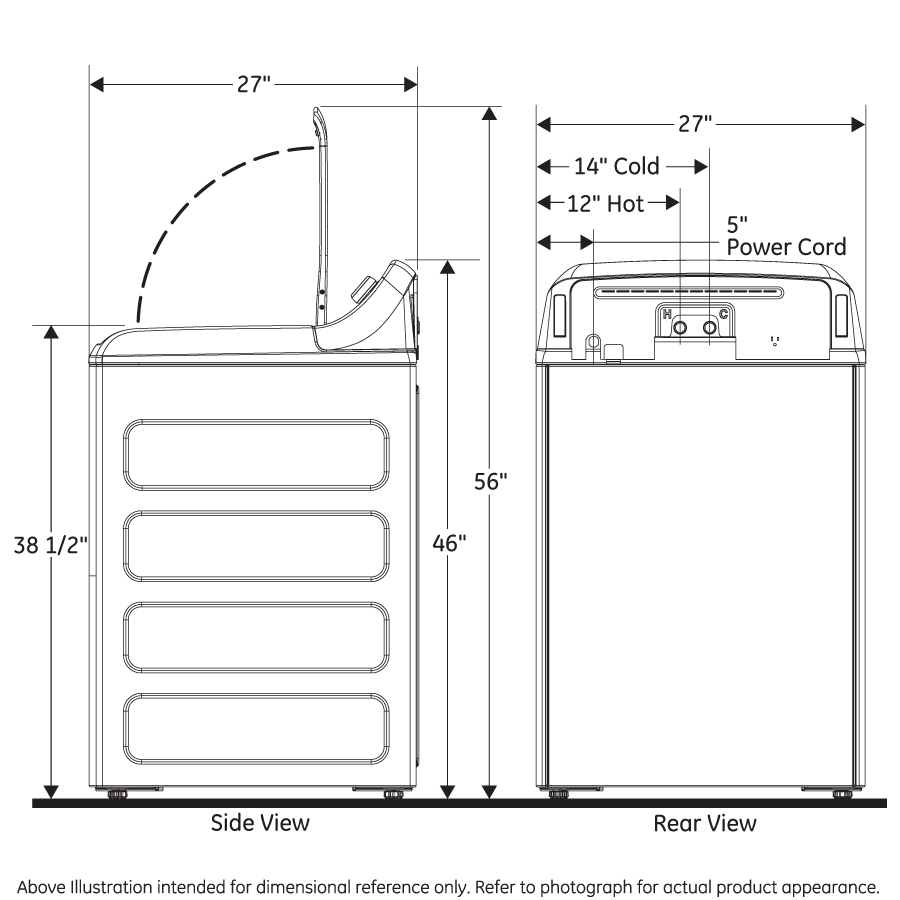

WEIGHTS & DIMENSIONS
Overall Height	46
Overall Width	27
Approximate Shipping Weight	145
Overall Depth	27
Height Needed for Lid to Raise 90 Degrees	56
Net Weight	138
FEATURES
Wash Mechanism	Agitator

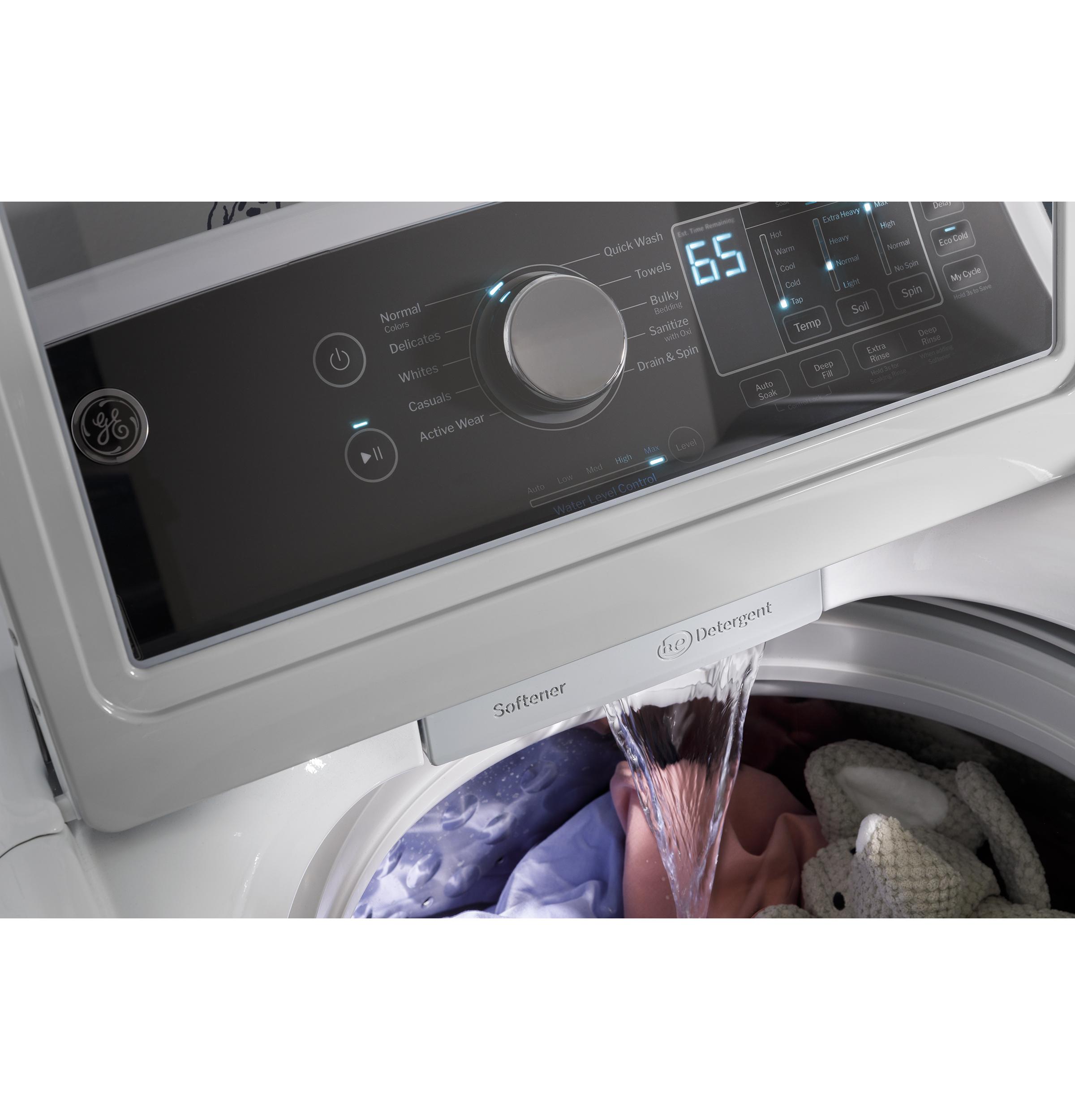

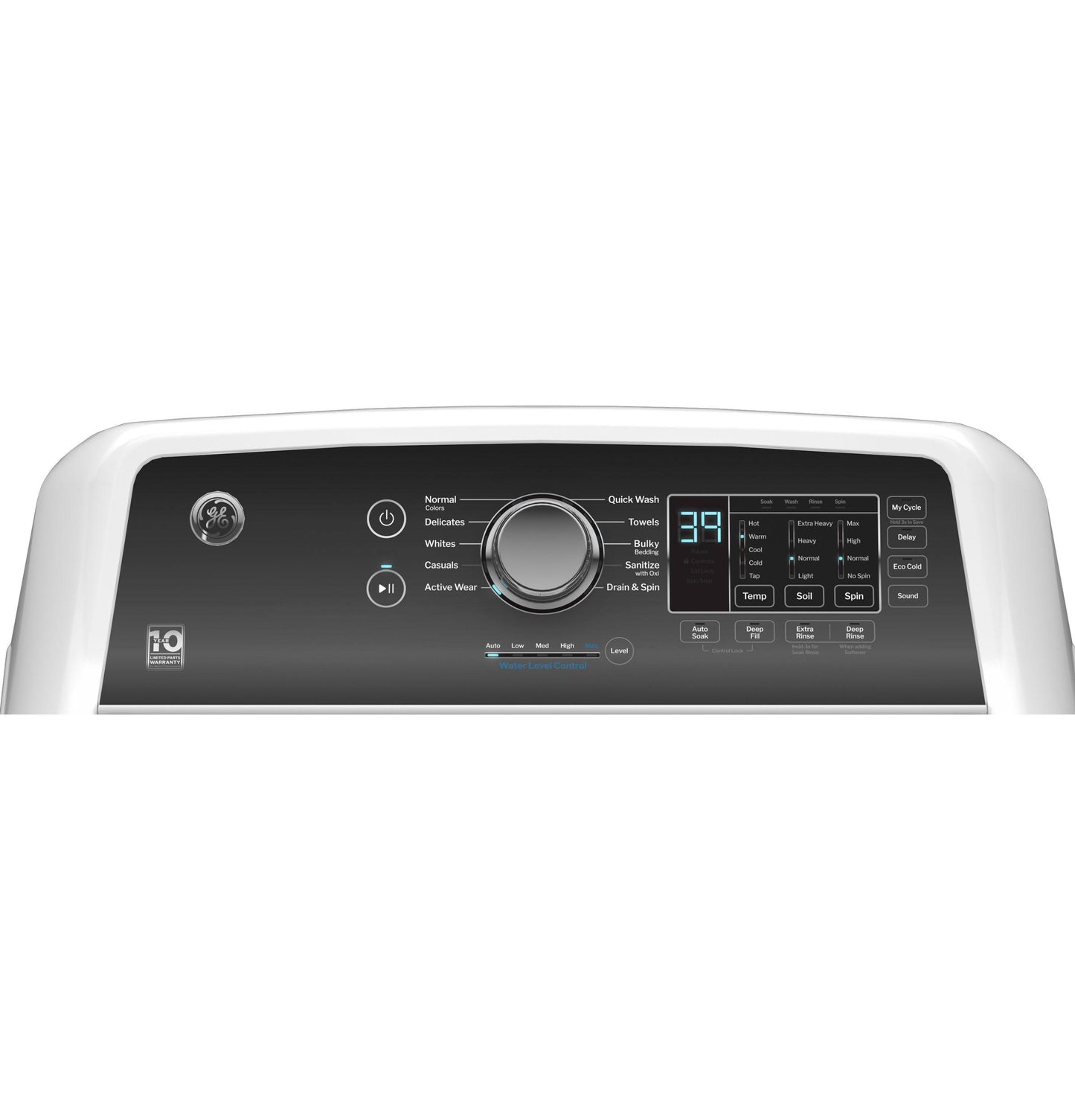

Control Type	Electronic
Water Levels	Adaptive Fill + 4 levels
Washer Options/Settings	Auto Soak Deep Fill Deep Rinse (select when using fabric softener) Delay Wash Eco Cold Extra Rinse My Cycle Soaking Rinse (hold Extra Rinse for 3s) Water Level Control
Additional Washer Features	Auto Balance Suspension System Leveling Legs Soft Close Clear Glass Lid

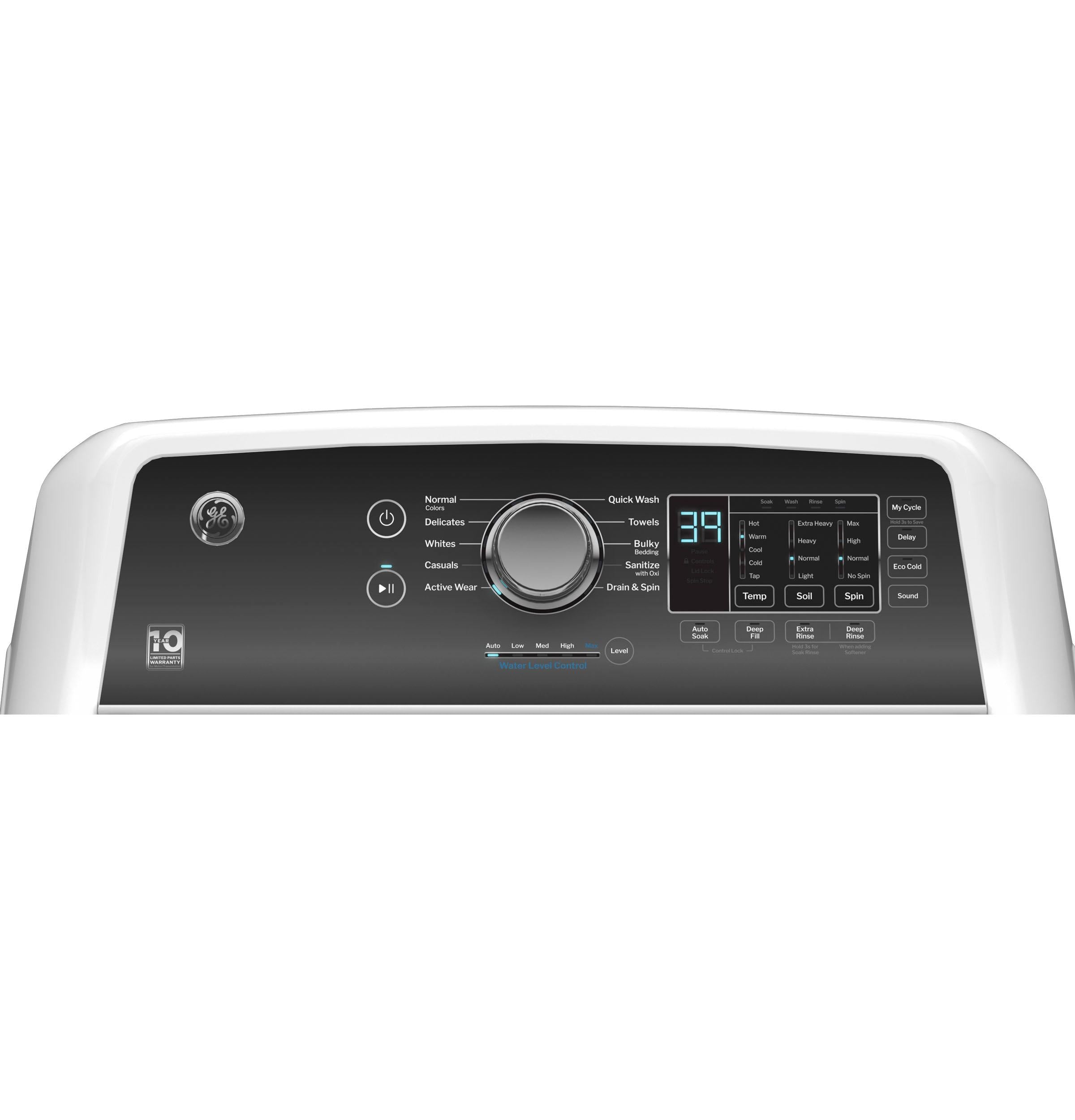

Washer Control Features	Digital Cycle Countdown End-of-Cycle Signal LED Cycle Status Lights
Energy Saving Option	Eco Cold
Washer Cycles	Active Wear Bulky/Bedding Casuals Colors/Normals Delicates Drain & Spin Quick Wash Sanitize with Oxi Towels Whites

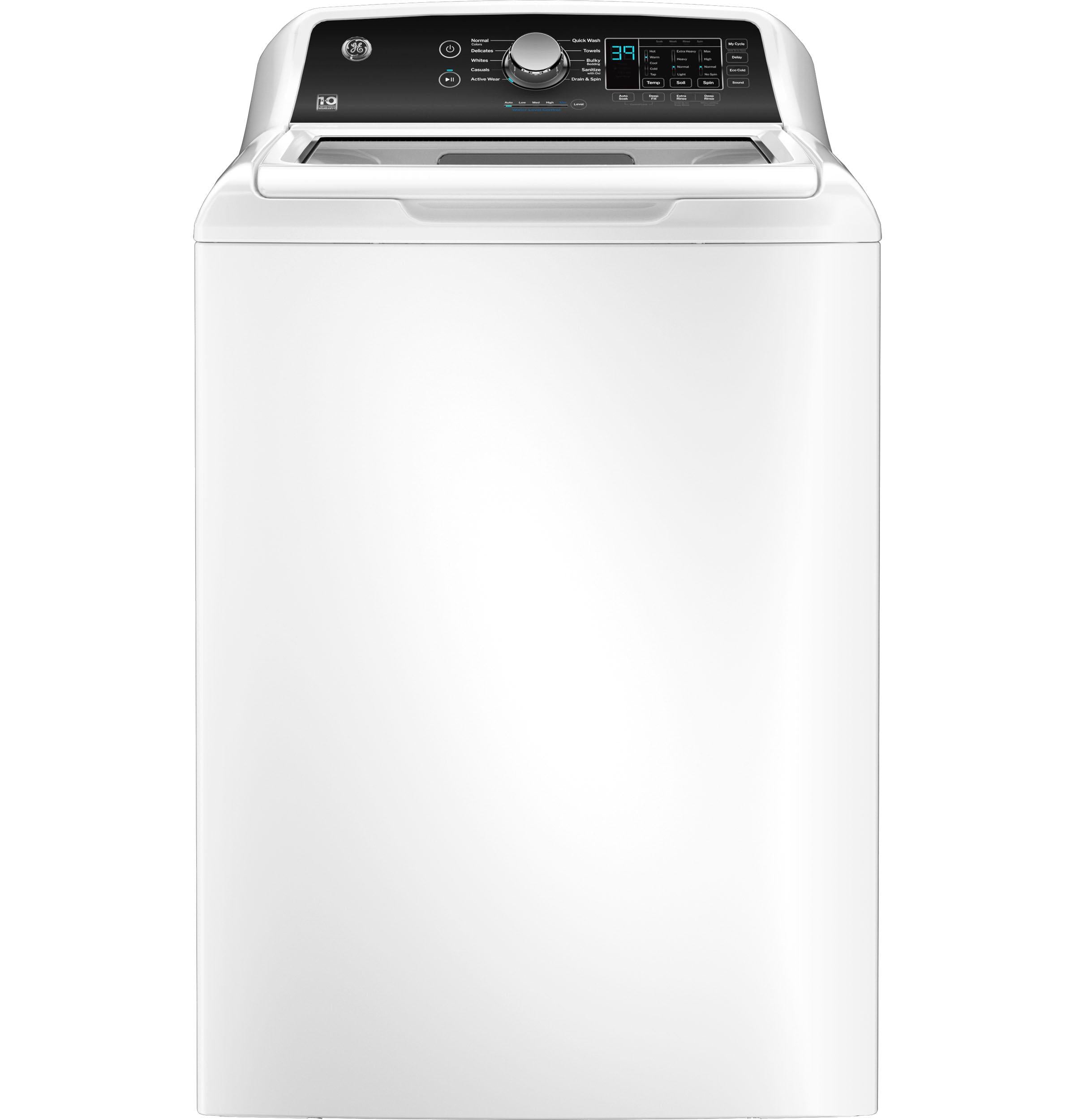

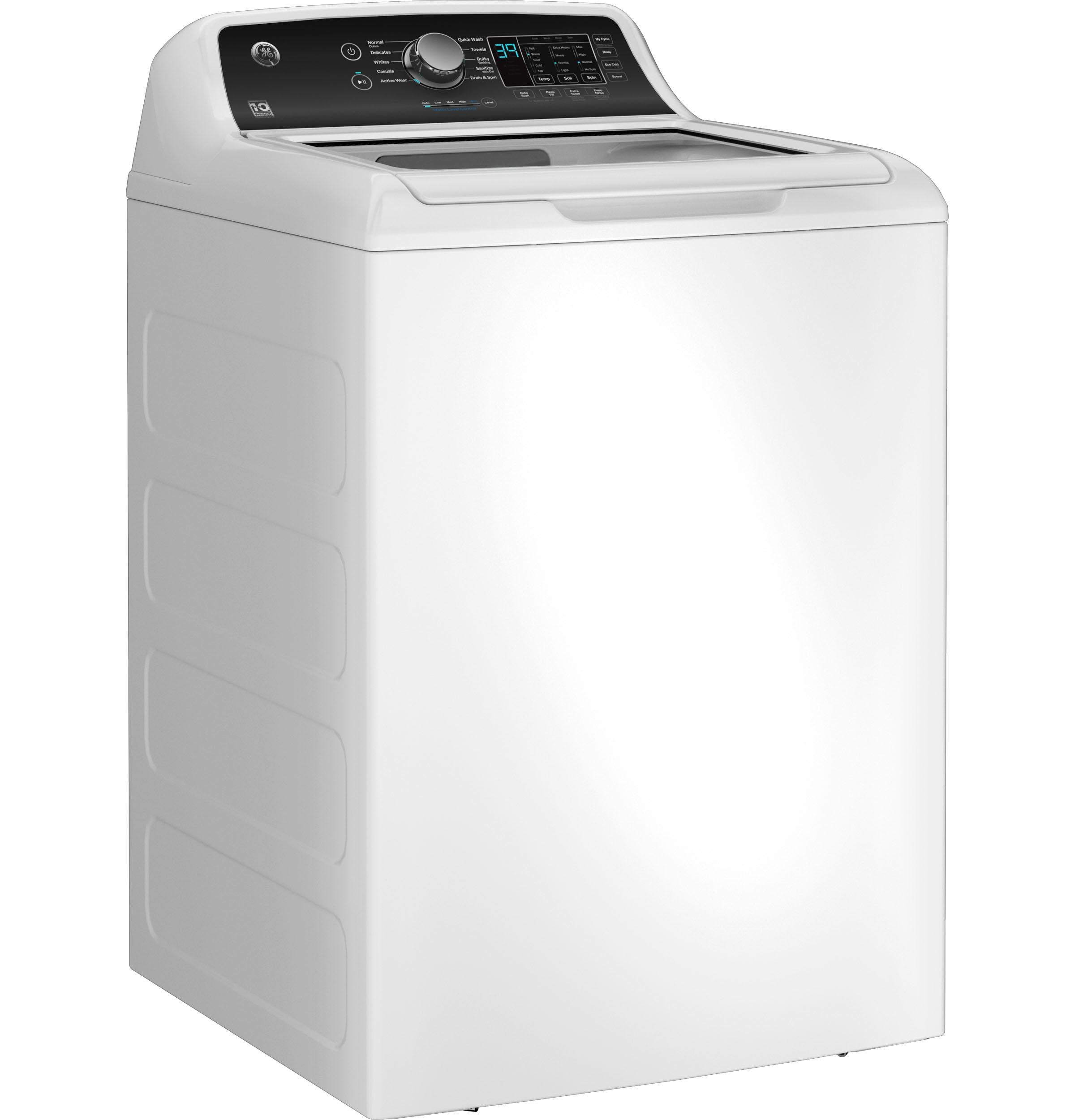

Product Type	Top Load

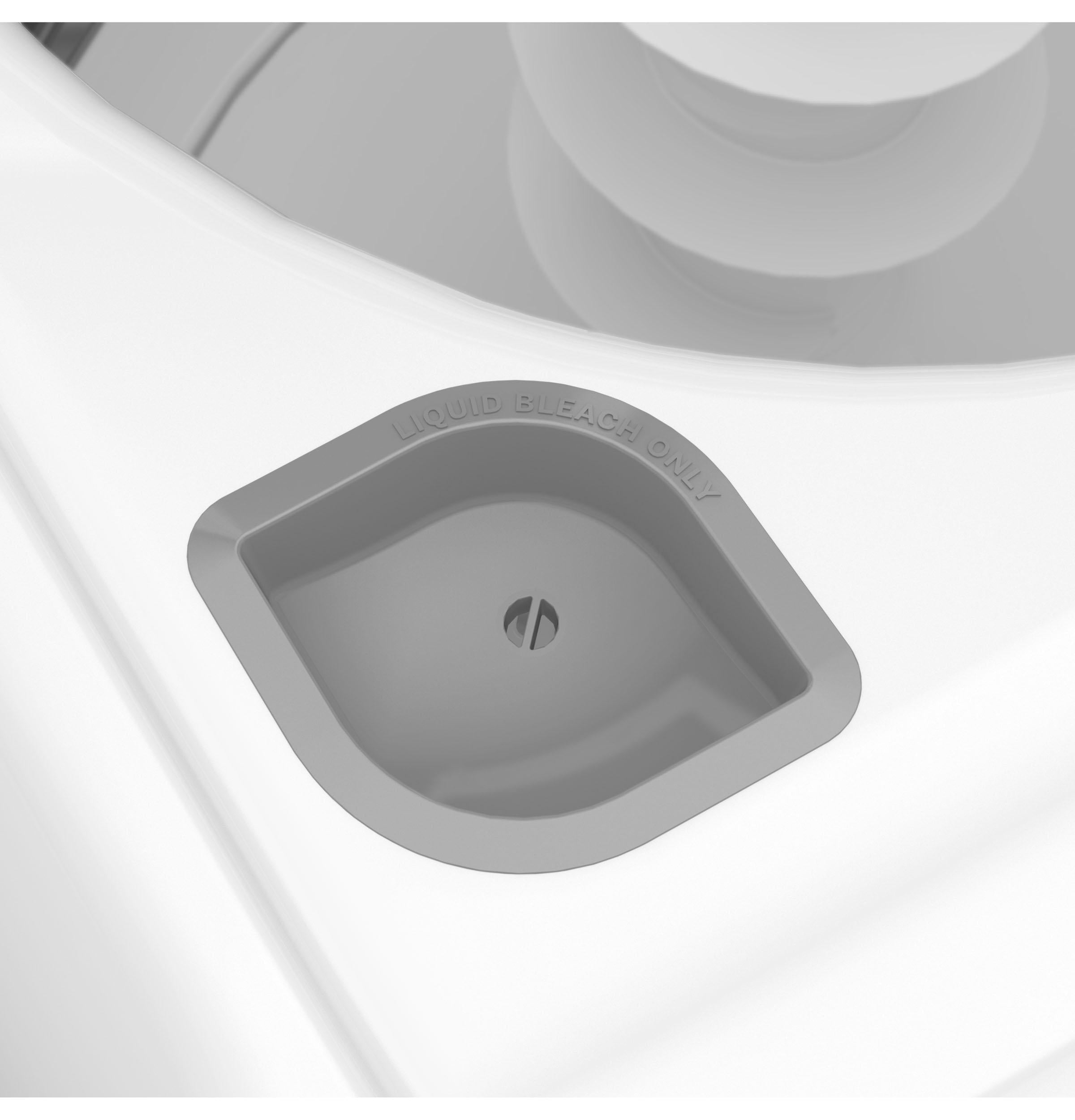

Dispenser	Bleach Detergent (Liquid) Fabric Softener
Wash/Spin Speed Combinations	4 + Variable
Maximum Spin Speed	750 RPM
Water Temp System	Hot, Warmer, Warm, Cool, Cold, Tap Cold
Number of Cycles	10
Agitator Type	Dual-action agitator
WiFi Connect	Optional (Requires part no. PBX23W00Y0)
Wash/Rinse Temperatures	6 + Automatic Temperature Control
Specialty Cycles	Active Wear Casuals Quick Wash Sanitize w/ Oxi Towels
Style	Top-Load High-Efficiency
