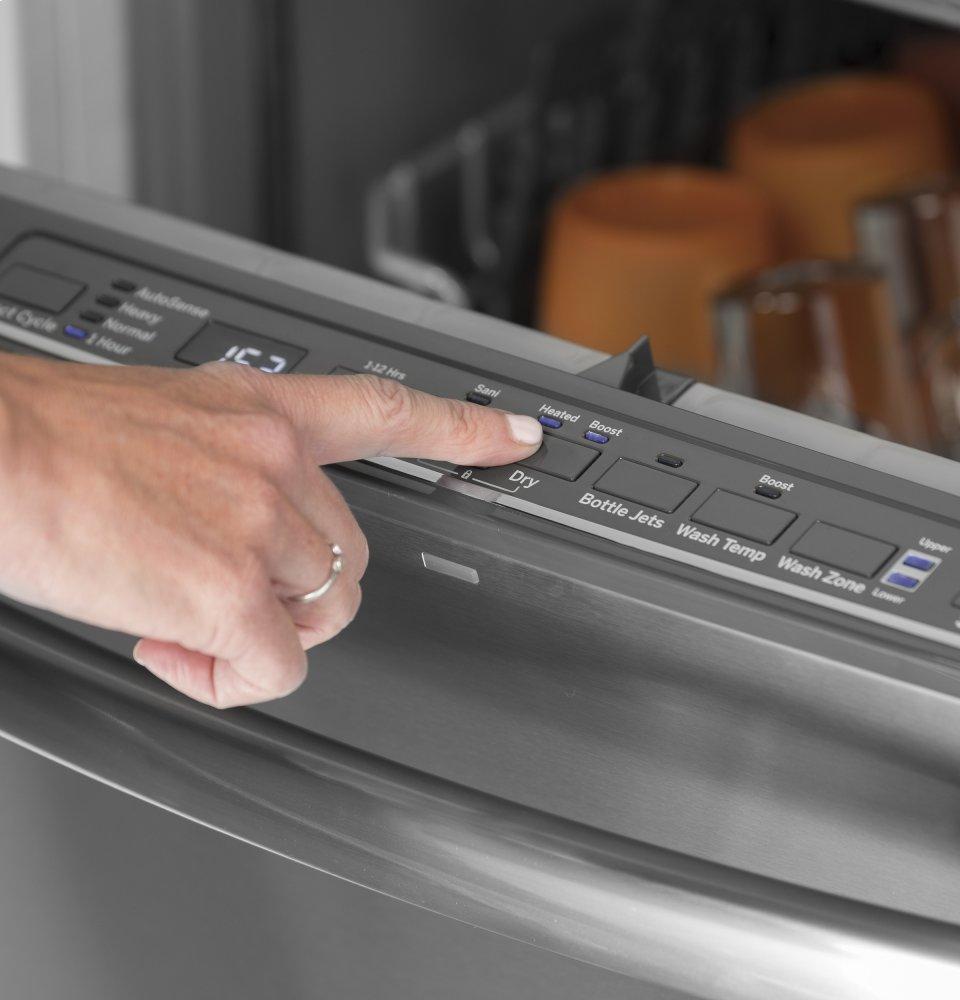

• Dry Boost(TM)

Dry Boost outperforms standard heated dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier when compared to heated dry

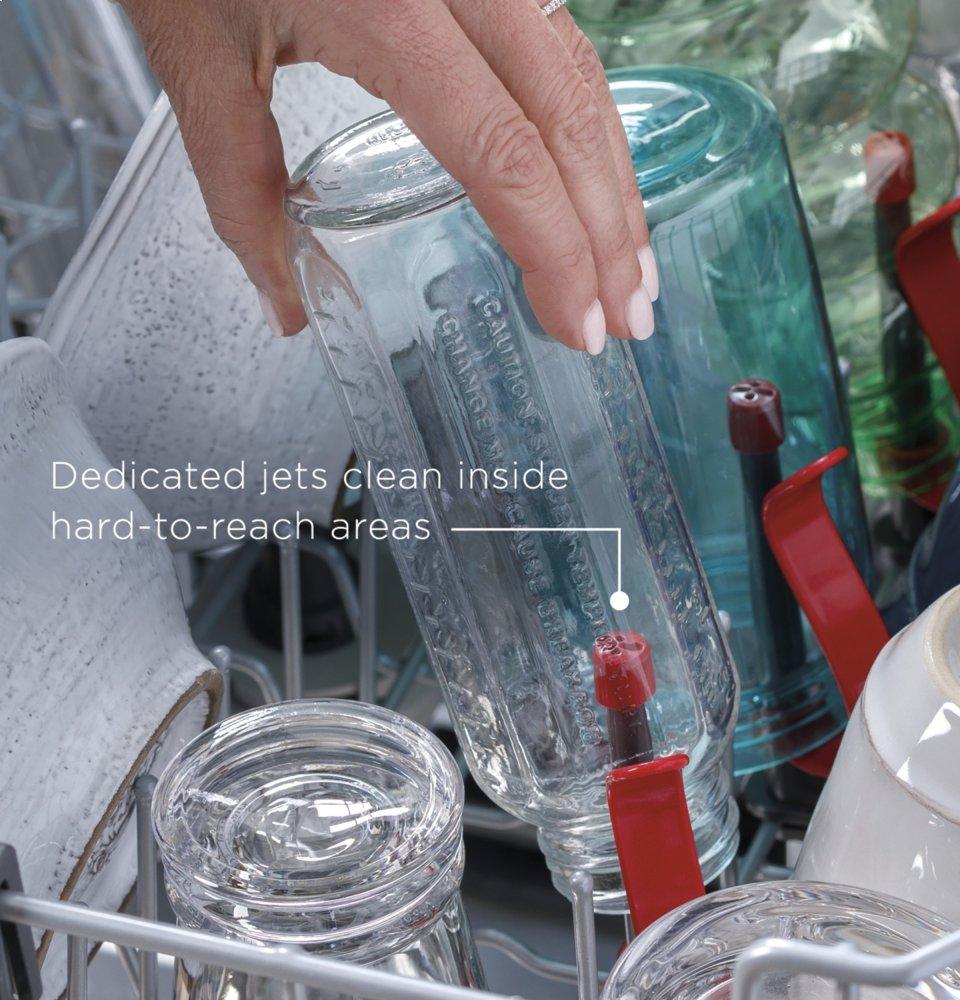

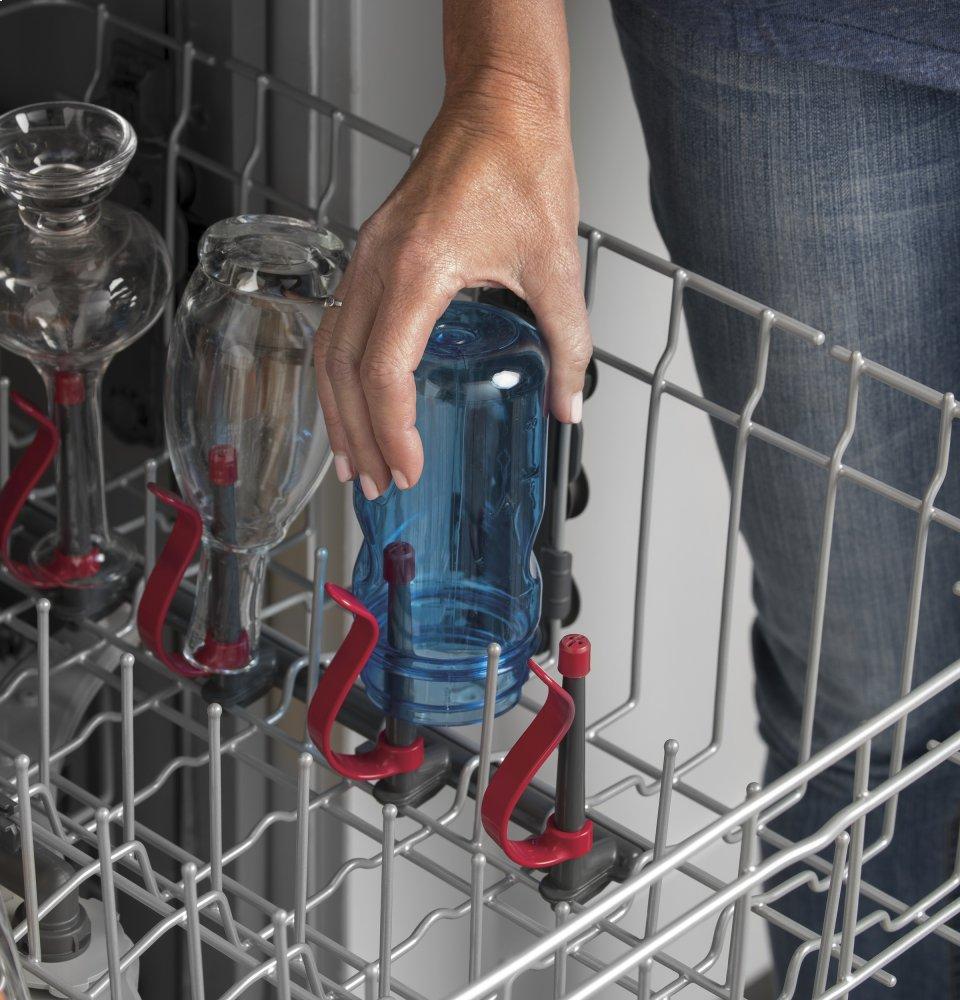

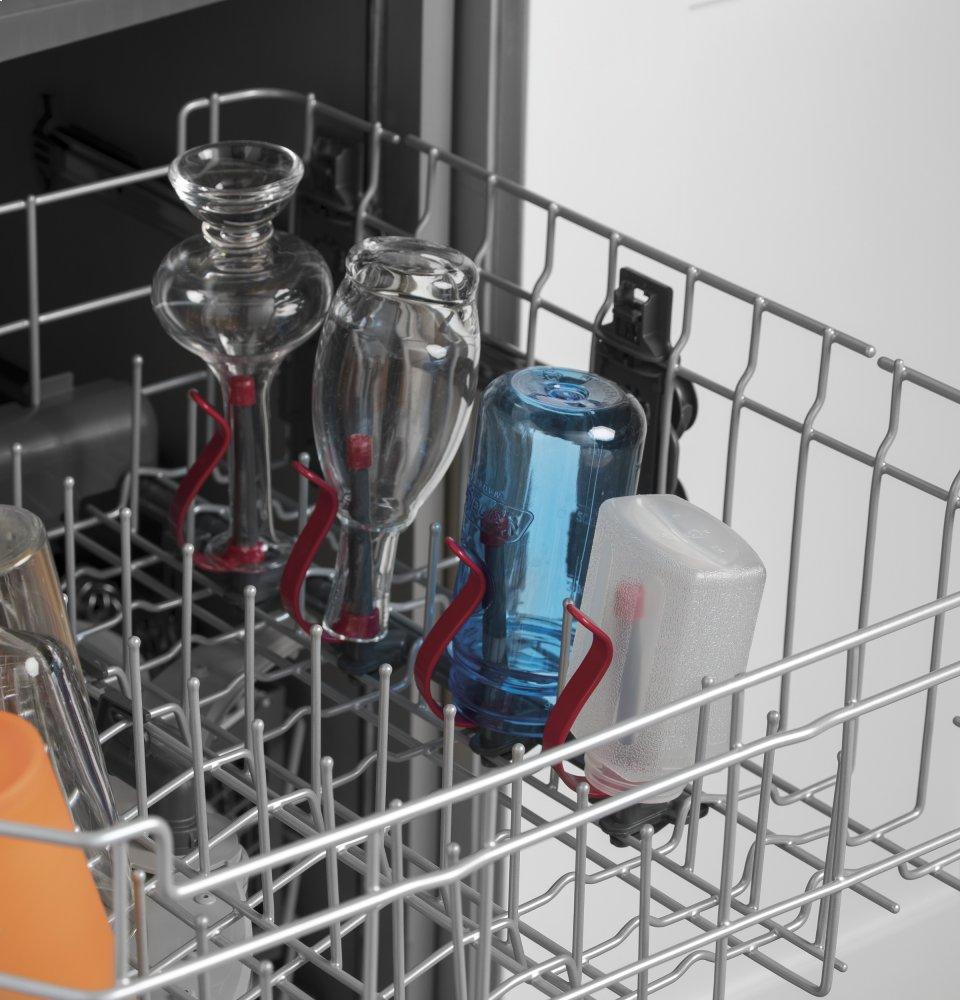

• 4 Bottle Wash Jets

This dishwasher with bottle jets ensures a deep clean for tall items, narrow glasses, jars and more. In the upper rack, each of the four bottle wash jets direct water and detergent inside to effectively wash hard-to-reach areas

• Steam + Sani

Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes

• Water Leak Sensor

This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached

• Reliable Performance

This American made dishwasher is durable, long-lasting and dependable. Its consistent performance will give you totally clean and dry dishes with every cycle

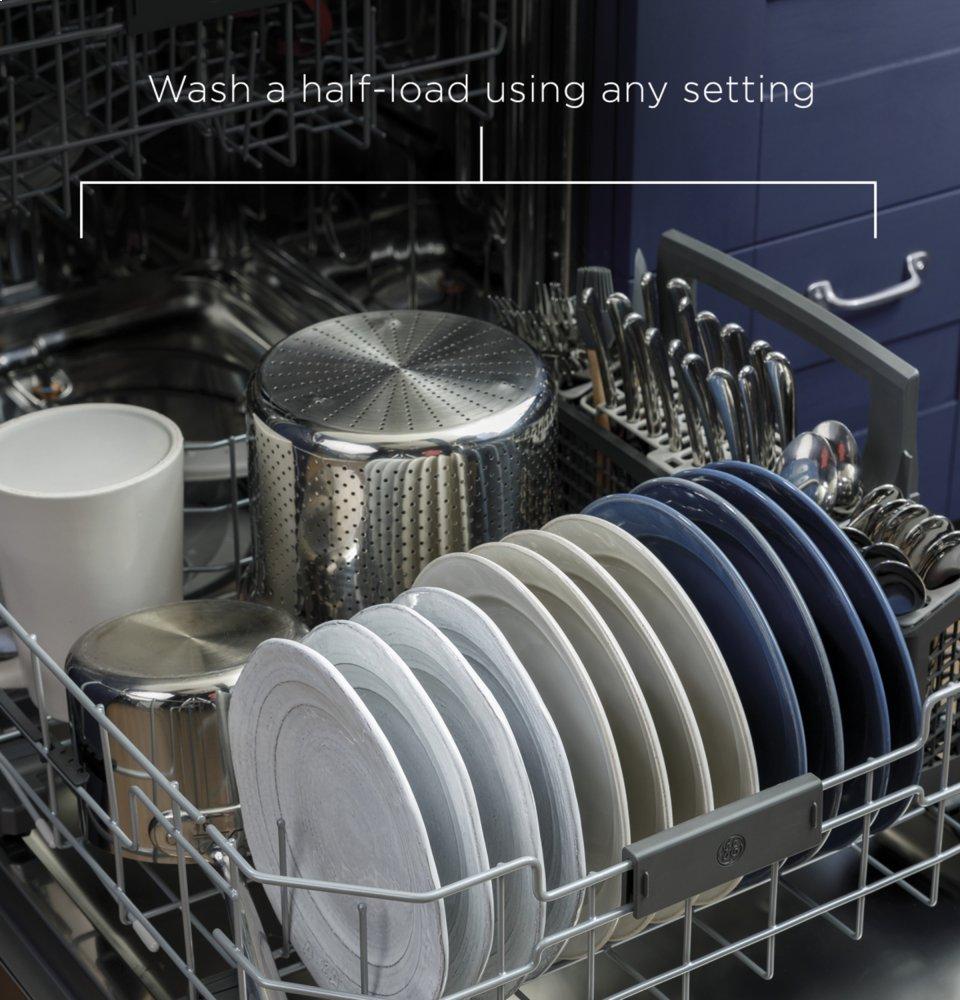

• Wash Zones

This dishwasher half load option lets you wash in the upper or lower rack whenever you need to, instead of waiting on a full load. Just choose your wash zone: upper or lower

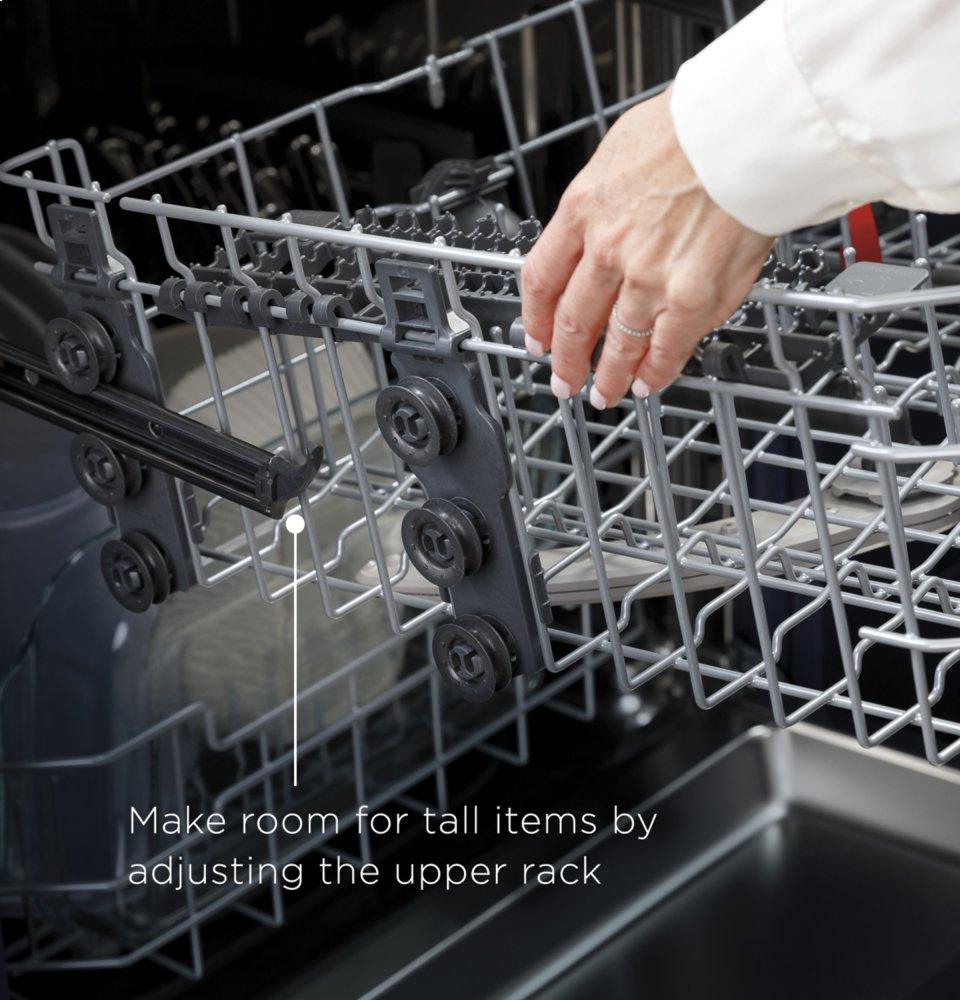

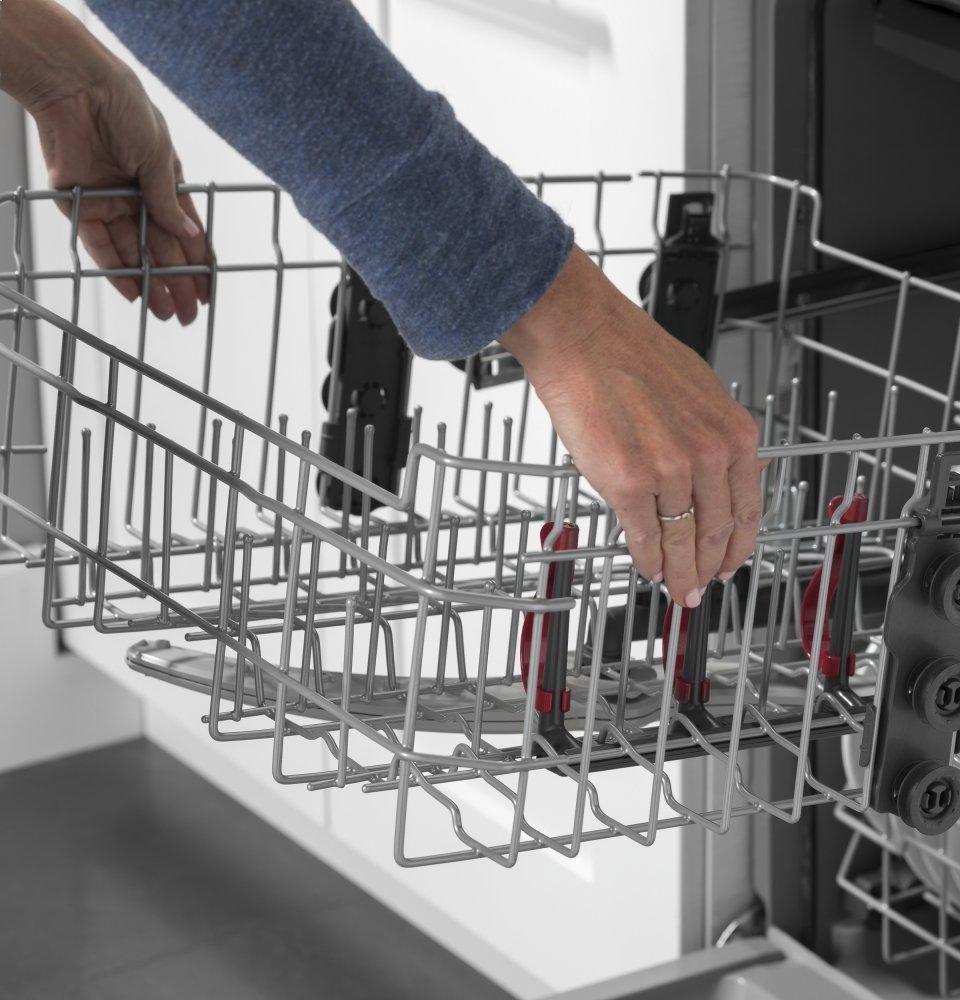

• Adjustable Upper Rack

Enjoy a dishwasher with flexible loading with an adjustable upper rack. Easily move it up or down to fit bottles, large platters and other items as tall as 10.5"

• High Wash Performance

Get a complete wash with no pre-rinse, thanks to a variety of powerful clean wash cycles. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time

• AutoSense Cycle

This energy efficient dishwasher has an AutoSense Cycle that detects the soil level and amount of dishes, then automatically adjusts wash settings for the ultimate clean

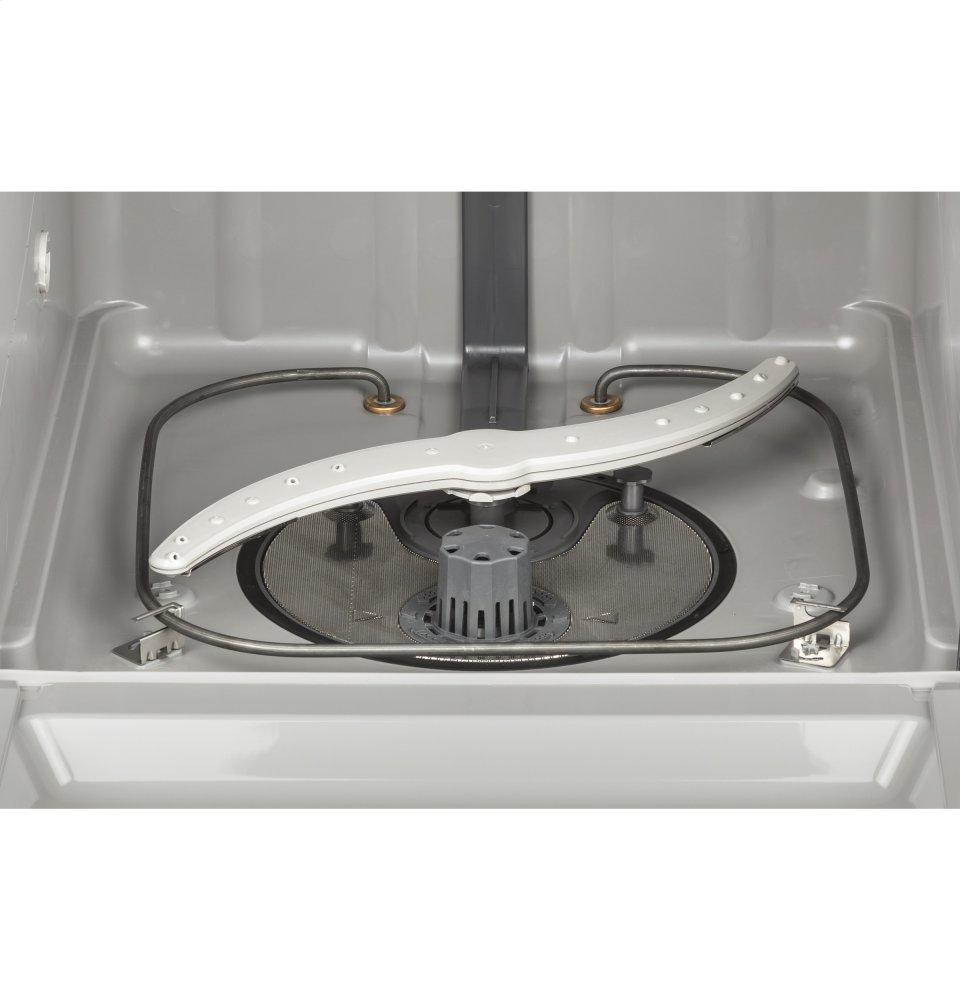

• Hard Food Disposer

The Piranha Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate at 3,600 RPM to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged

• Extra Large Capacity

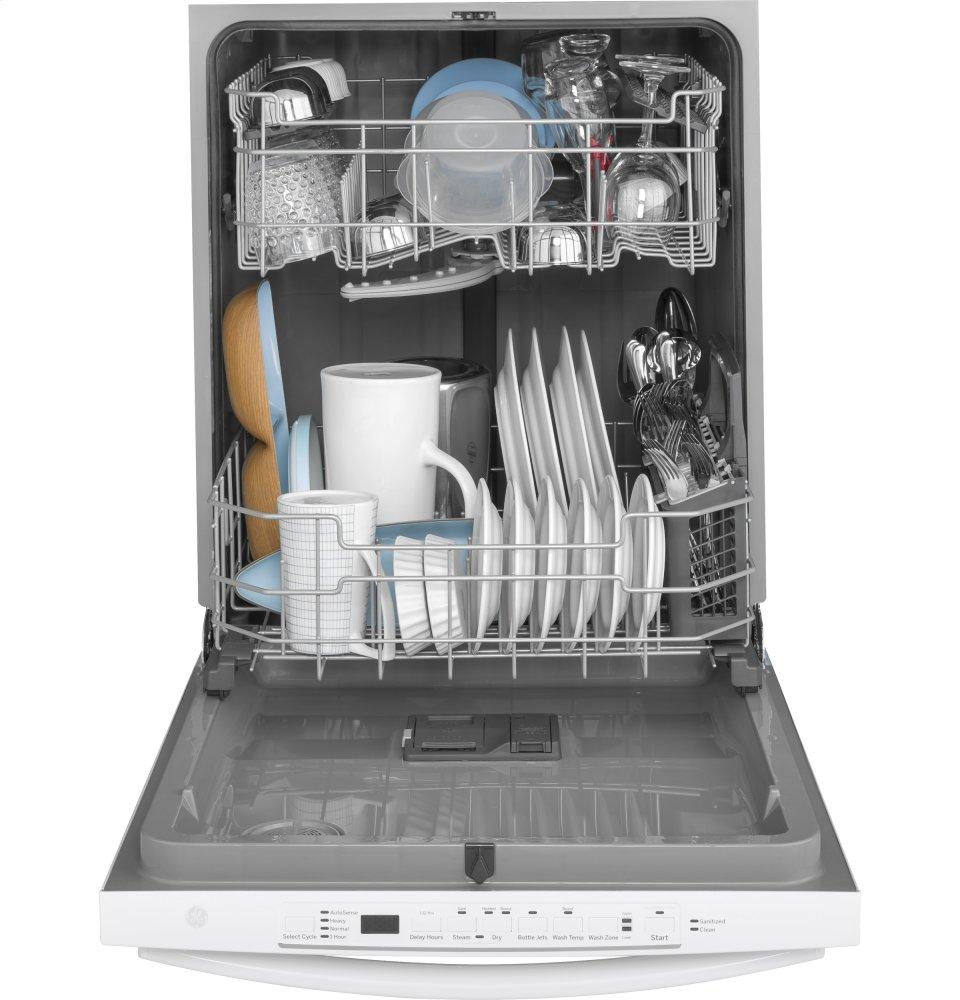

This extra large capacity dishwasher has enough space for 16 place settings and large dishware, making cleanup easy after large gatherings

• 50 dBA Dishwasher

This quiet dishwasher provides a powerful clean without unwanted noise or disturbances. A status light on the door lets you know when it's running

• Optional Third Rack Kit

A third rack kit lets you add extra dishwasher capacity and gives you more loading flexibility, so you can run fewer loads. It's easy to install and offers the perfect place for flatware, serving spoons, lids and more

• Optional WiFi

Turn your appliance into a smart dishwasher with a WiFi adapter (sold separately). Simply attach it and start using the SmartHQ app to control and monitor your unit remotely. You can even reorder detergent

FILTER
App Filter - Bottle Wash	No
App Filter - Food Disposer	Yes
App Filter - Stainless Steel Interior	No
App Filter - Cabinet Width	Dish Traditional 24 in.
App Filter - Product Type	Dish Built-In Top Control
App Filter - WiFi Connect	Optional
APPEARANCE
Handle	Rounded Handle - Color Matched
Installation	Built-Up Floor Capable Flush Cabinet Installation Side or Top Mount Install Brackets Included
Handle Color	Color-Matched
Handle Design	Designer Style
Control Panel Color	White
Door Appearance	Contour door
Door Style	Long Door with Top Controls
Color Appearance	White
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 1-year entire appliance
Labor Warranty	Limited 1-year entire appliance
POWER / RATINGS
Calrod Heater Watts	800/500
Power Connection	Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Volts/Hertz/Amps	120v; 60Hz; 7.1A
ECONOMICAL / QUIET
Quiet Features	Quiet Water Valve Sealed Toe Kick Tub Collar Trim
Quiet Package	50 dBA
Outer Wrap	Insulation Blanket
Motor Type	Single Speed
Door Insulation	Insulation Mastic
WEIGHTS & DIMENSIONS
Net Weight	64.0
Overall Depth	24.0
Overall Depth with Handle	25.6
Height w/Legs Extended - Maximum Height	34.625
Overall Width	23.75
Overall Height	34.0
Approximate Shipping Weight	81.0
Cabinet Width	24.0
Height w/ Legs Retracted - Minimum Height	33.375
FEATURES
Wash System Features	Automatic HotStart Automatic Temperature Control Bottle Jets (4) Dedicated Silverware Jets Drain Pump Dual Pumps and Motors Piranha™ Hard Food Disposer with removable filter
Style	Built-In Top Control
Upper Rack	2 Stem Safe Shelves Ball-Tip Tines Height Adjustable Removable
Door Liner	Clean Design with Plastic

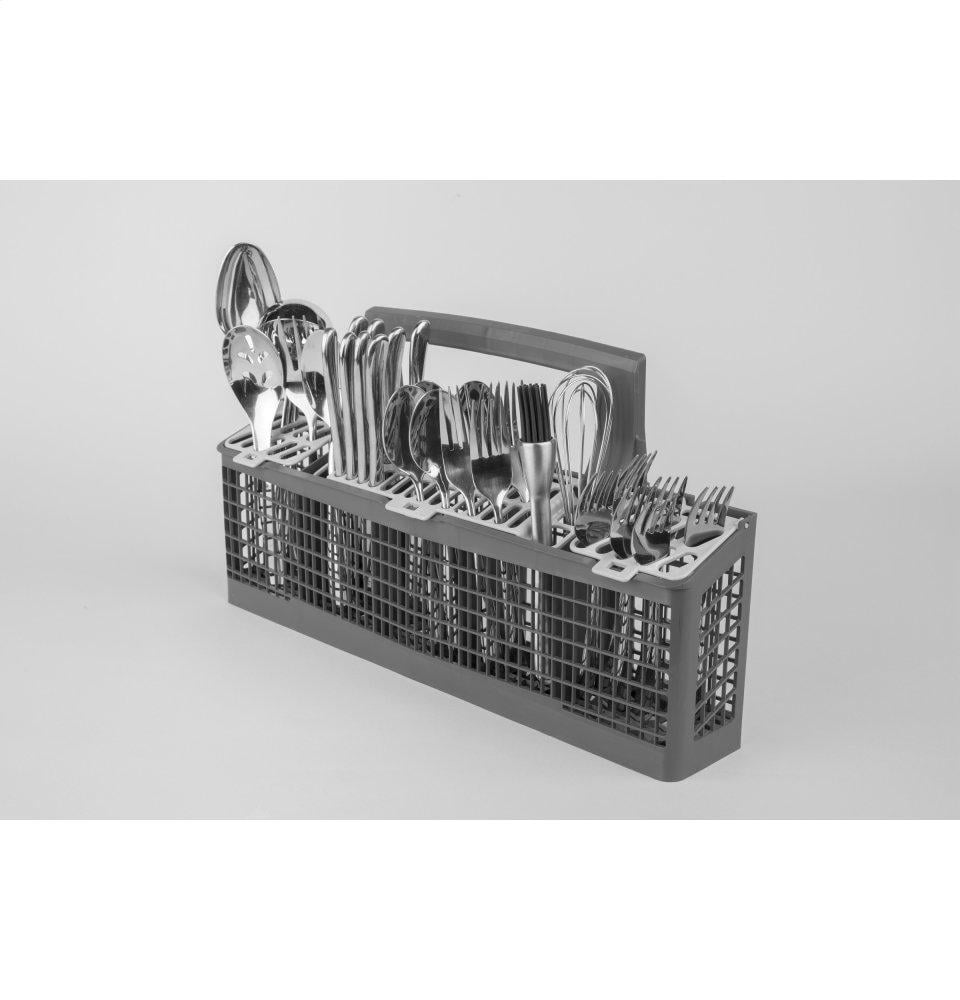

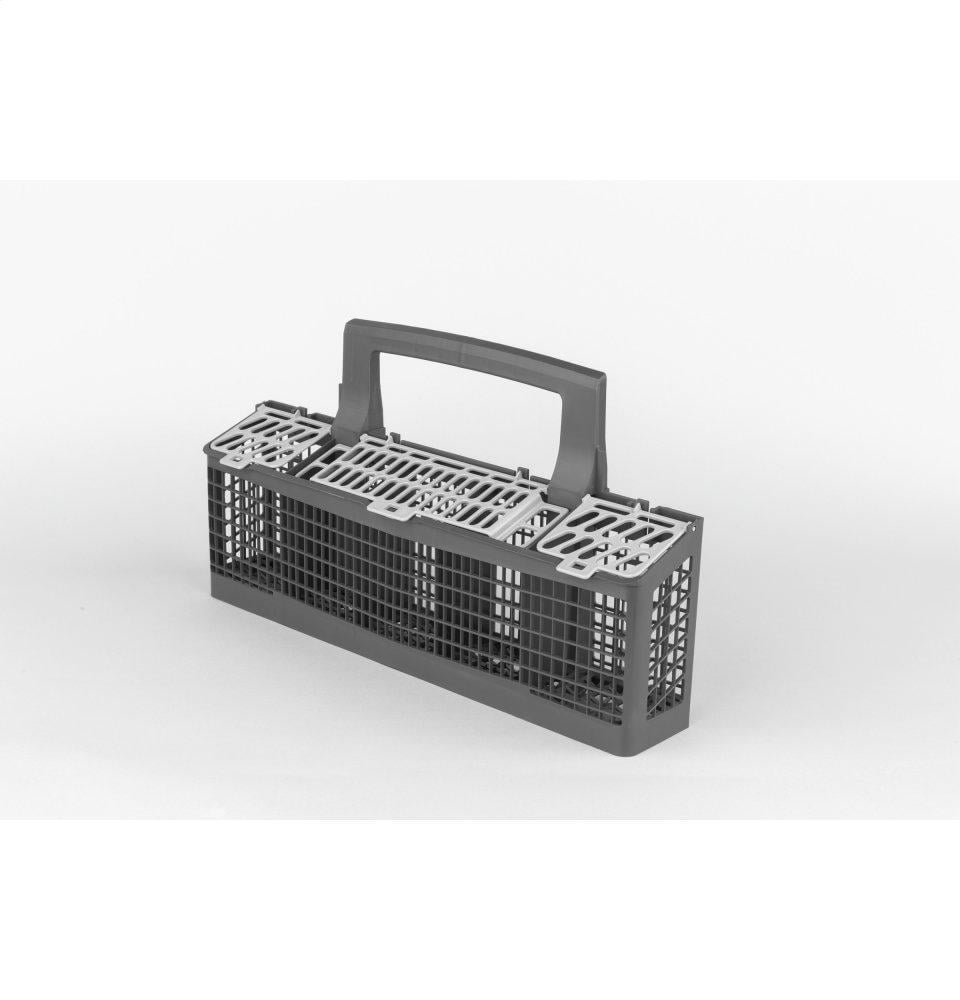

Rack Features	1 Piece Silverware Basket with Cell Covers 2 Utility Shelves with Stem Safe - Upper Ball-Tipped Tines Manual Adjustable Upper Rack
Dishwasher Control Features	1 'Clean' Light, 1 'Sanitized' Light Cycle Progress Indicators 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door Audible End-of-Cycle Signal Control Lock Last Cycle Memory Start/Reset Pad
WiFi Connect	Optional (Requires part no. PBX23W00Y0)
Showroom Power Mode	Yes
Cutlery Tray	Optional 3rd rack (GPF3RACK)
Connected Capabilities	Amazon Alexa Amazon Dash Replenishment IFTTT Sonos The Google Assistant
Dishwasher Drying Features	Dry Boost™ Heated Dry - On/Off
Leveling System	4 Leveling Legs
Tub Liner	Plastic

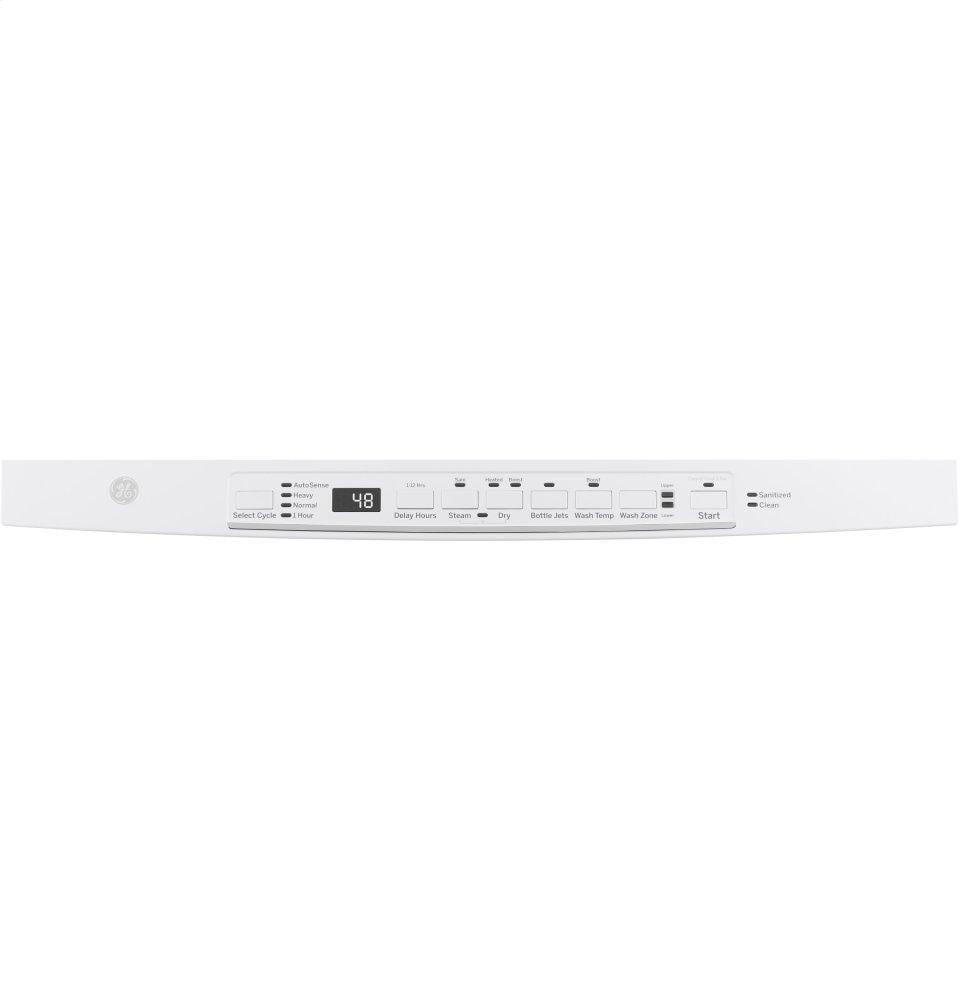

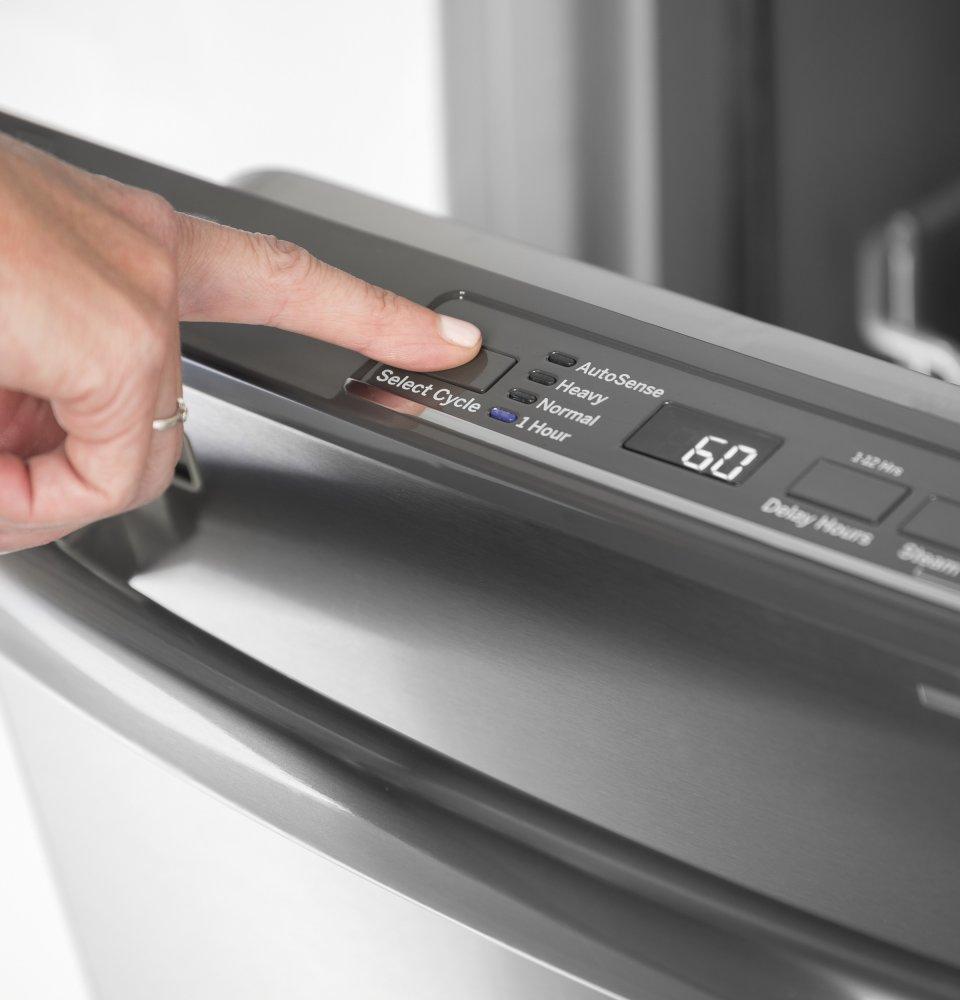

Control Type	8 Touchpads Electronic Tactile Buttons Top Controls
Number of Place Settings	Up to 16
Tub Type	Tall Tub
Rack Color	Silver
Exterior Style	Traditional
Number of Cycles	4
Wash System	600 Series
Racking System	Nylon Towerless
Dishwasher Cycles	1 Hour Wash Auto Sense Heavy Wash Normal Wash
Number of Options	11
Dishwasher Options	Bottle Wash Child Lock Delay Start 1-12 Hr. Dry Boost™ Heated Dry Sani (Certified to NSF Standard 184) Start/Reset Steam PreWash Wash TempBoost Wash Zone Lower Only Wash Zone Upper Only
Tub and Door Liner	Gray Plastic
Latch	Pull with Handle
Wash Arms	3 Wash Levels Lower Middle Upper
Lower Rack	Ball-Tip Tines
Water Filtration System	100% Filtration with Piranha Hard Food Disposer and Removable Filter
Sensor	Clean Sensor
Dispenser	Rinse Aid with Indicator and Adjustment
