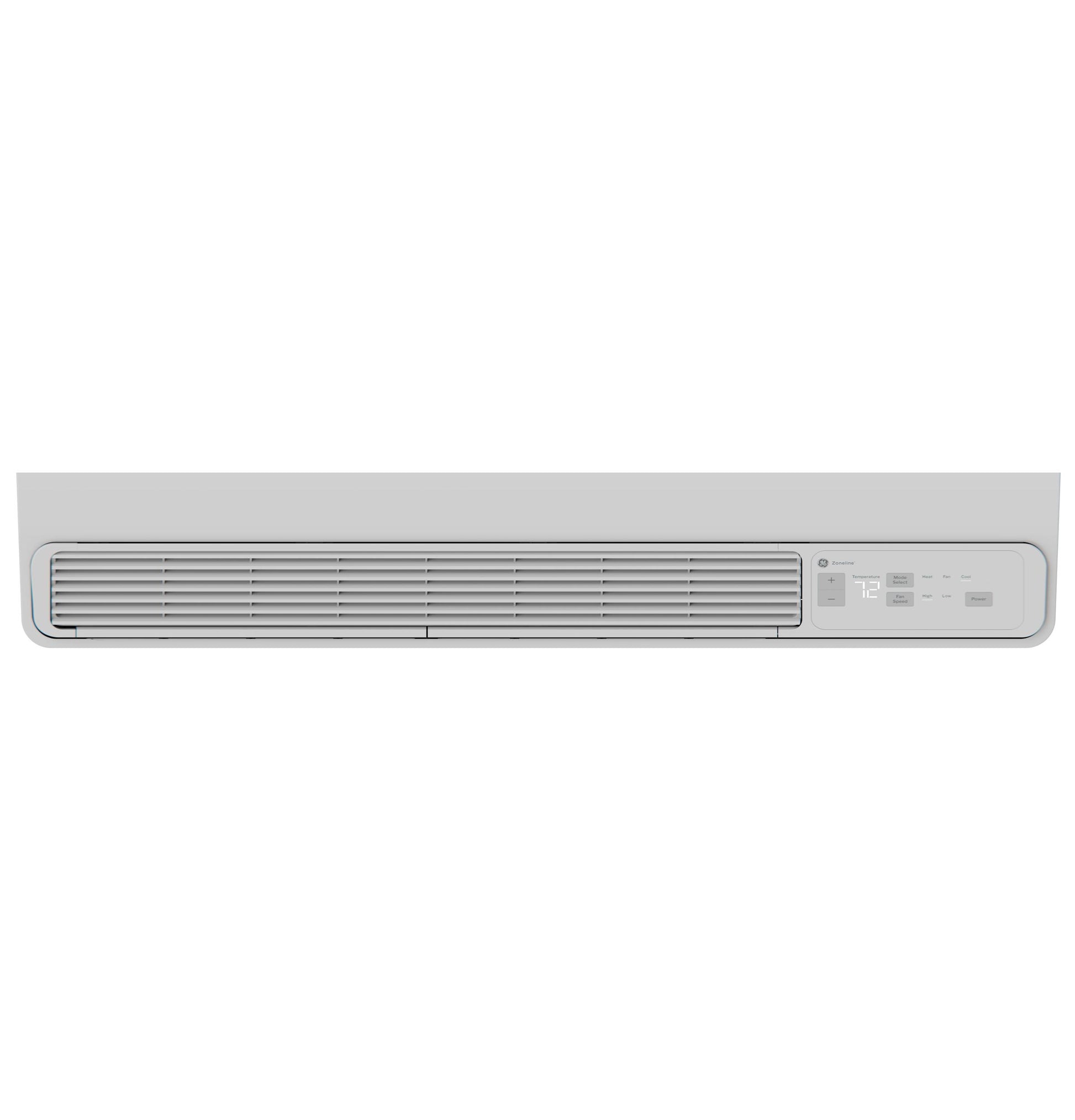

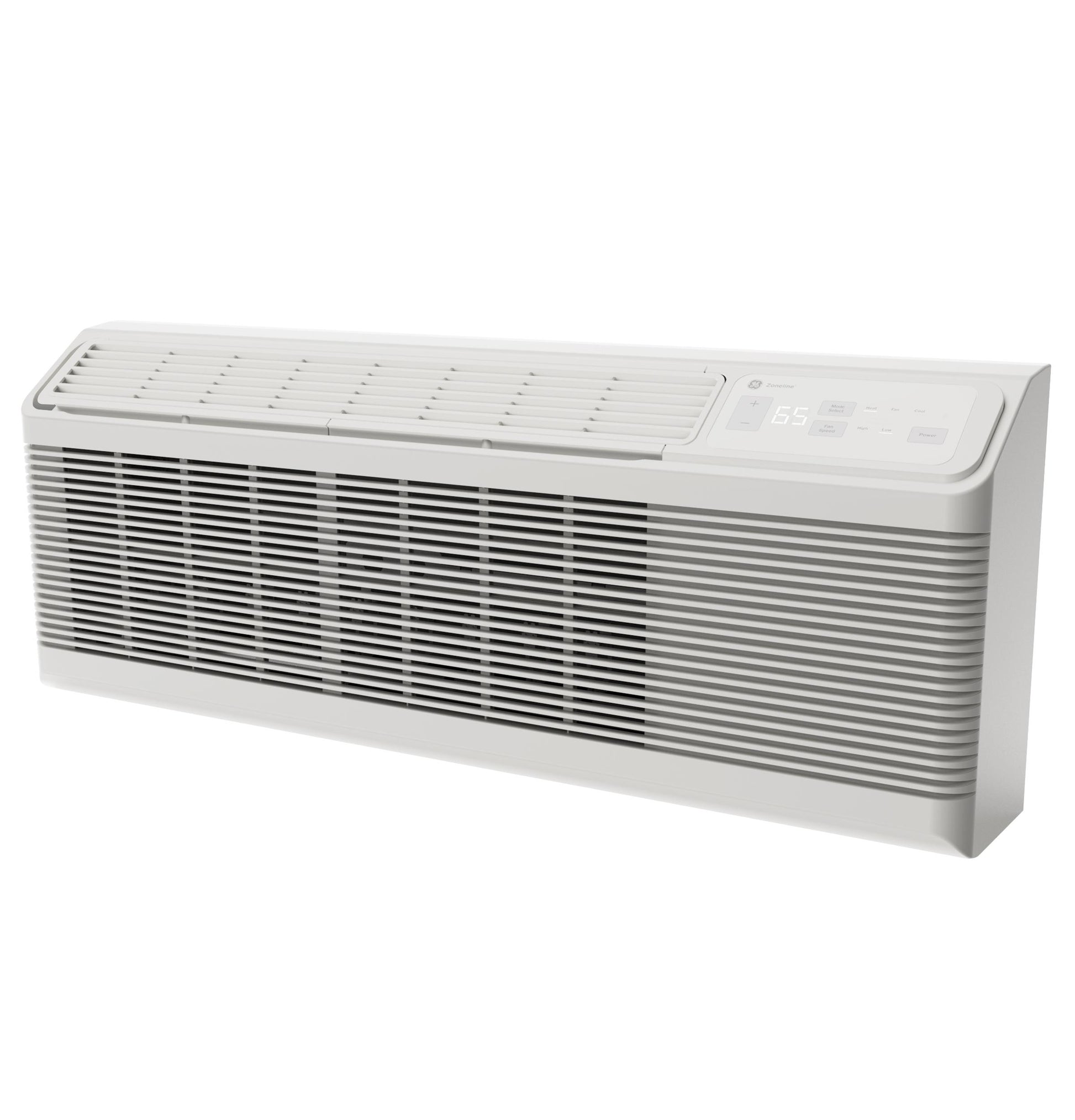

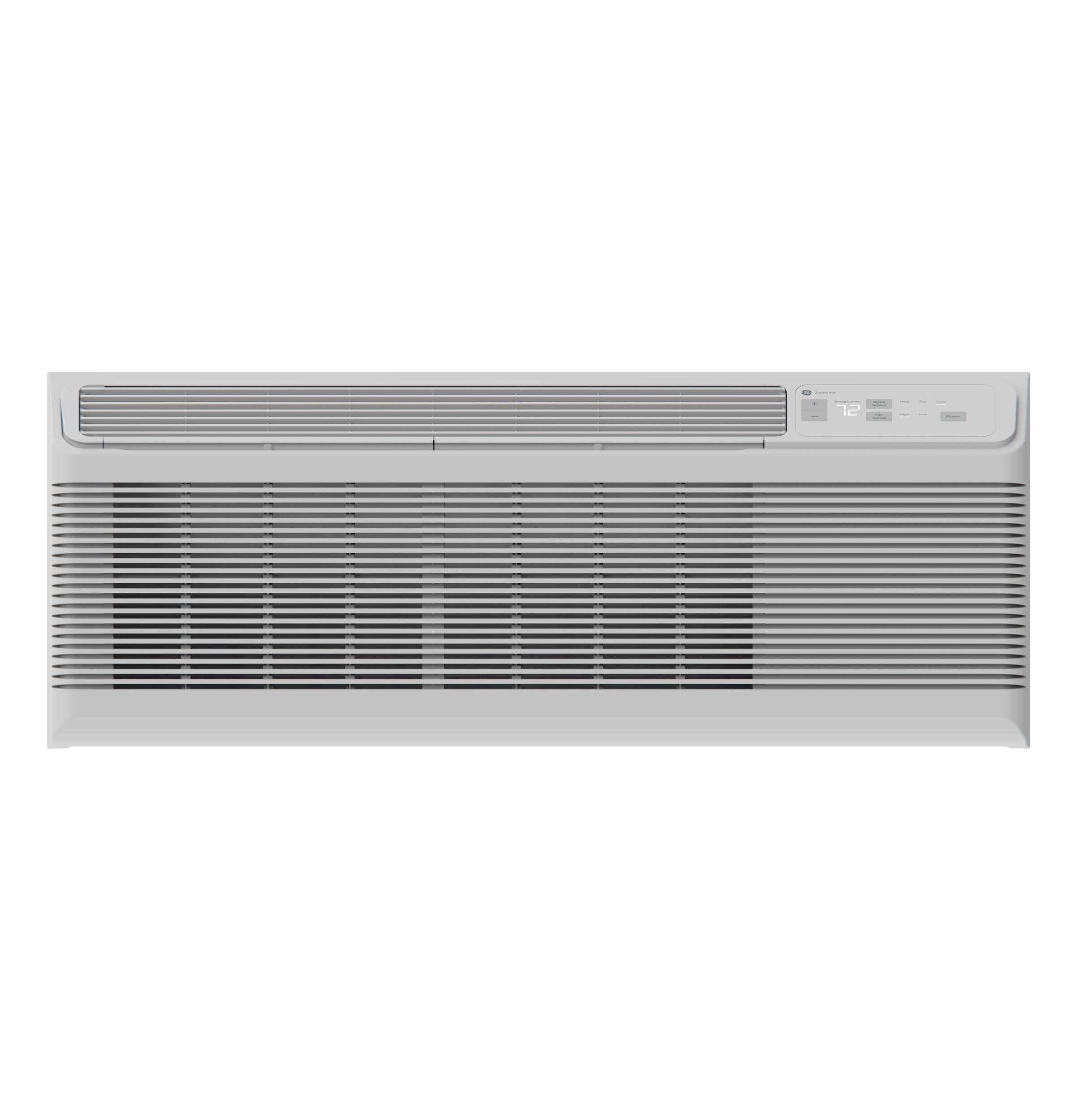

Ge Appliances AZHS12DCXXA Ge Zoneline® Heat Pump Fixed Speed Unit With Corrosion Protection 12,000 Btu, 230/208 Volt

New Arrival

Colors:

Color:

Gray On White

THIS ITEM QUALIFIES FOR FREE DELIVERY!

List Price: $1,570.00

Our Price: $1,407.00

You save: $163.00 (10%)

EXTENDED PROTECTION

3 year plan

$120.99

5 year plan

$239.00

Decline protection

Available to Order

The shipping timeline will be confirmed after order is placed.

Product variants

Shipping calculated at checkout.

View full details

Ge Appliances AZHS12DCXXA Ge Zoneline® Heat Pump Fixed Speed Unit With Corrosion Protection 12,000 Btu, 230/208 Volt

Designed & Assembled in America

Date of Manufacture - 2025 or later

R454B - Most Environmentally Friendly Refrigerant On The Market Heat Pump Down To 25(Degree)F Boost Heat Option Electronic Touch Controls With Led Display Quiet Operation - Baked On Mastic Sound Barrier Corrosion Protection Package Smc Basepan And Bulkhead Electronic Temperature Limiting Fresh Air Vent Designed & Assembled In America Date Of Manufacture - 2025 Or Later

R454B - Most environmentally friendly refrigerant on the market
Heat pump down to 25(degree)F
Boost heat option
Electronic touch controls with LED display
Quiet Operation - baked on mastic sound barrier
Corrosion protection package
SMC basepan and bulkhead
Electronic temperature limiting
Fresh air vent
Designed & Assembled in America

CAPACITY
CFM Indoor Fan Low	305
CFM Indoor Fan High	440
Cooling EER (BTUH / Watt)	11.6/11.6
Cooling BTUH (MIN)	11900 Btu
Cooling BTUH (MAX)	12100 Btu
Dehumidification (pts./hr.)	3.1 (High Speed)
Vent CFM (high fan at zero ESP)	43.2
APPEARANCE
Color Appearance	Grey White
WARRANTY
Warranty Notes	See written warranty for full details
Parts Warranty	Limited 2-year entire appliance
Labor Warranty	Limited 1-year entire appliance Limited 5-year sealed system
POWER / RATINGS
Heating - Reverse Cycle - Watts	835/815
Cooling - Amperes	4.7/5.1
Cooling - Watts	1035/1020
Heating BTUH	10600 / 10600
Heating - Electric - Heater Amps	3.7/3.5
Voltage (MAX)	230 V
Cooling - Amperes; L.R.	29.5
Cooling - Amperes; F.L. - Cooling	4.5/4.9
Voltage (MIN)	208 V
ACCESSORIES
Accessories Required for Installation	Outdoor Grille RAB42 - Wall Case
WEIGHTS & DIMENSIONS
Overall Height	16 in
Overall Depth	20.8125 in
Net Weight	104 lb
Overall Width	42 in
Approximate Shipping Weight	114 lb
FEATURES
Louver Style	Reversible
Refrigerant Charge (oz.)	30.5
Sensible Heat Ratio	0.75
Power Factor	95
Product Type	Packaged Terminal Air Conditioners (PTAC)
Chassis Type	Slide-In
Temperature Limiting	Electronic 24-Step
Filter Type	Rigid Frame Slide-Out
Fan Speed Control	Yes
Freeze Sentinel	Yes
Temperature Range	60 - 85 F
Heat Sentinel	Yes
Heat - Cool	Yes

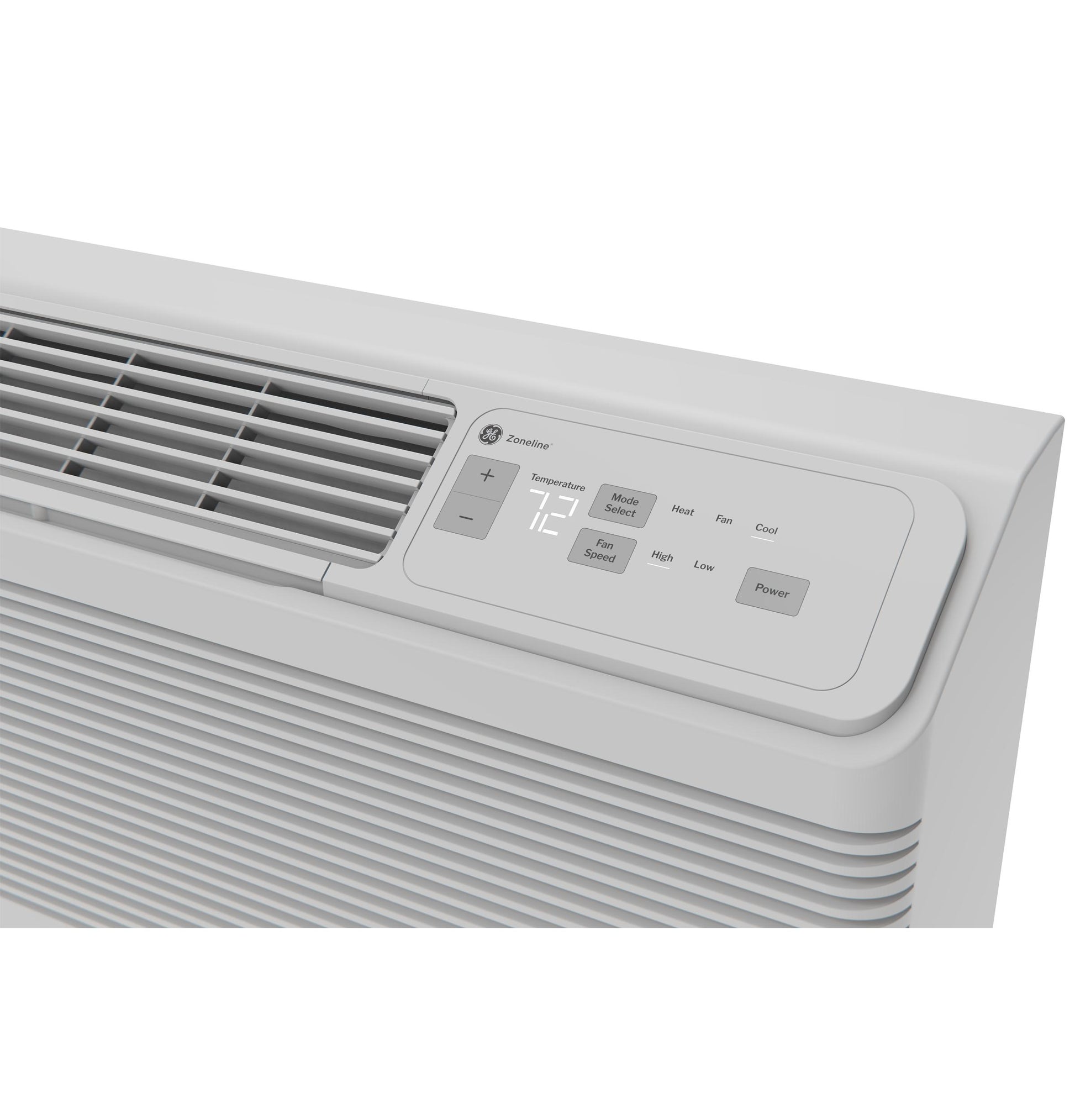

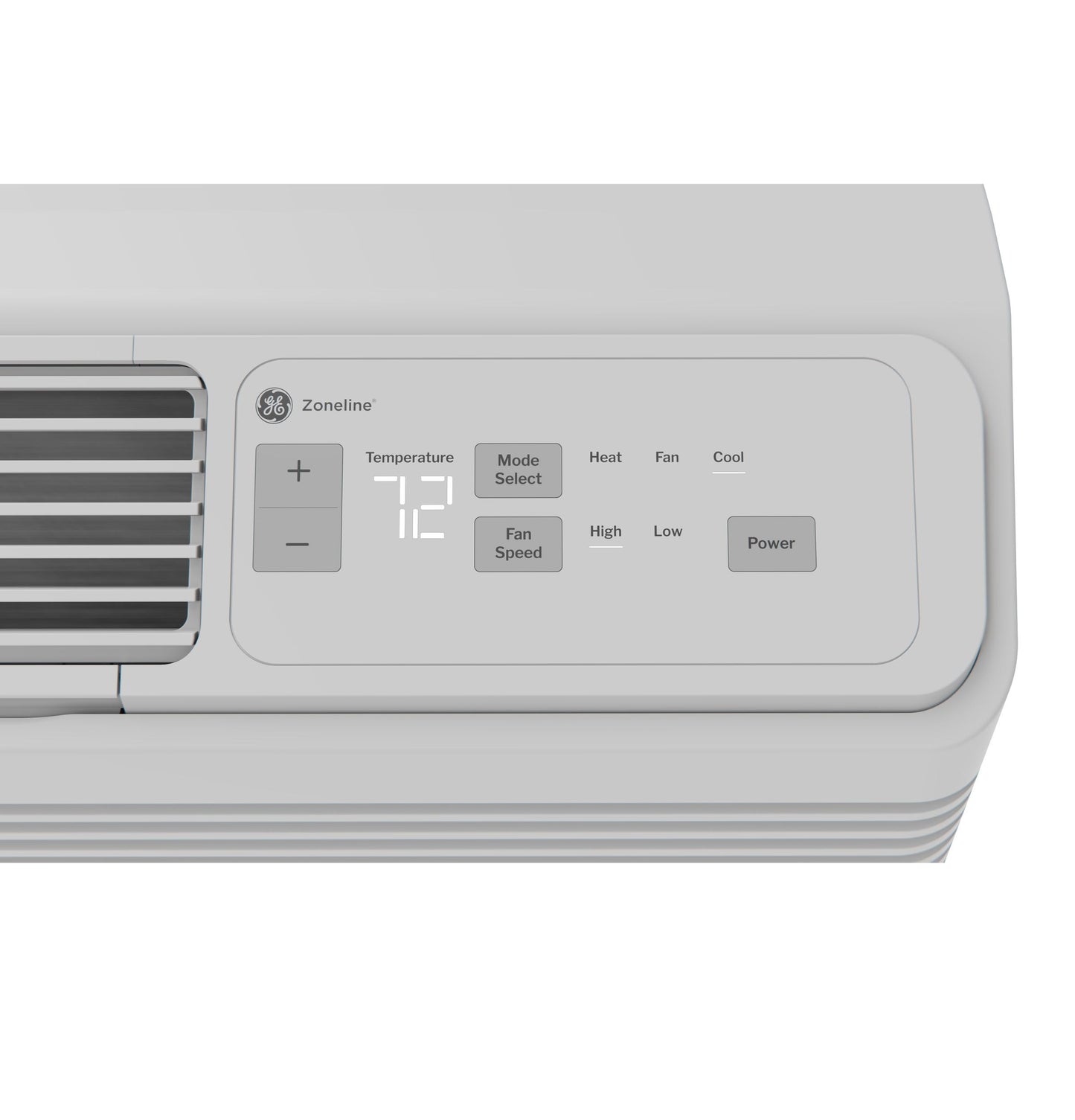

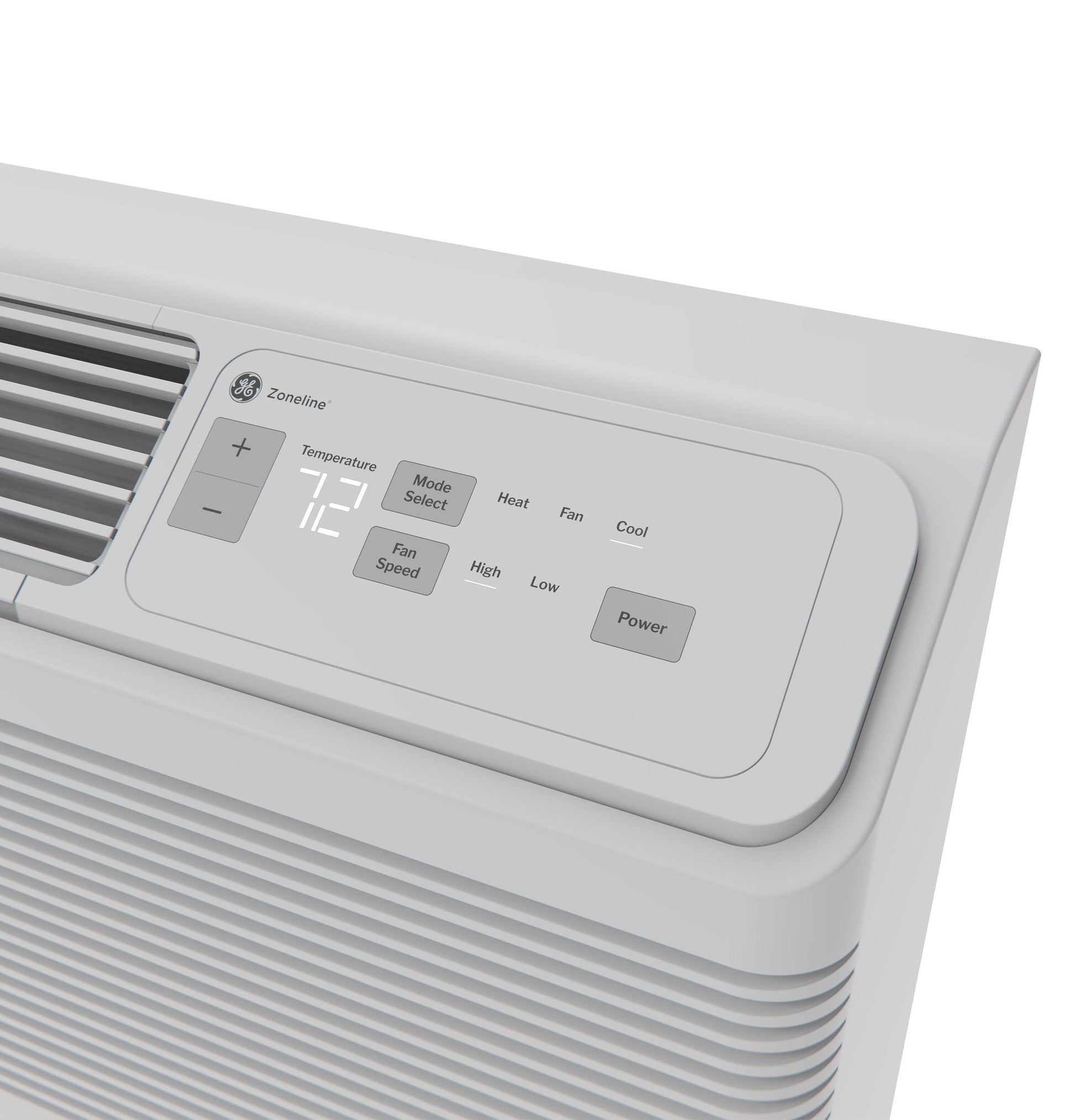

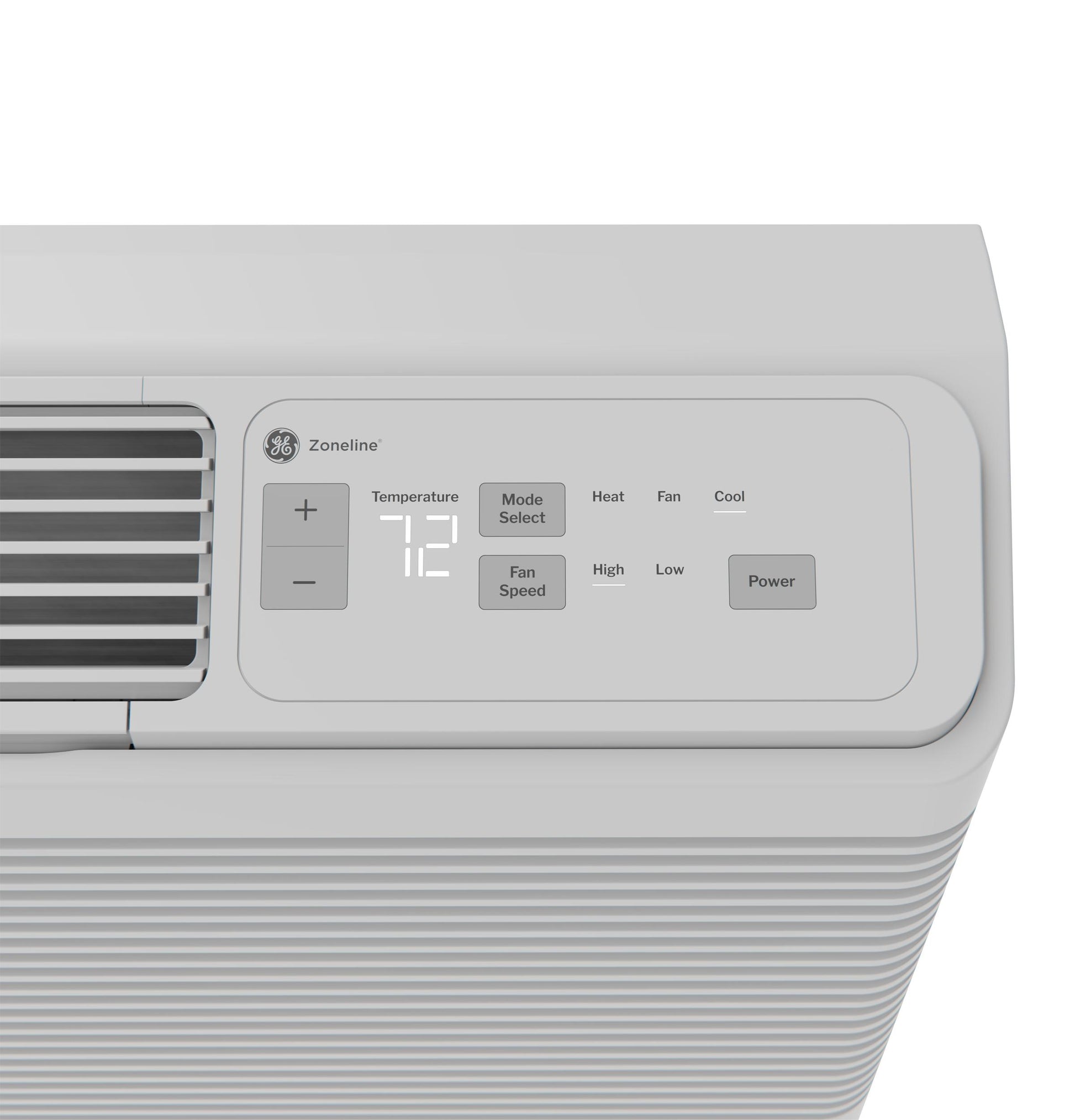

Control Type	Standard Microcomputer Tactile touch pad with LED Display
Electronic Micro Computer Control	Yes
Fan Cycle Switch	Yes
Central Desk Control Compatibility	Yes
Rotary Compressor	Yes
Manual Vent Control	Hidden
Heating - Reverse Cycle - COP	3.6/3.7
Venting Features	Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter
Heating System	Heat Pump With Backup Resistance Heat
Vent Control	3-position
Fan Motor	2
Zoneline Features	'Smart Fan' Fan Cycle Control Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Universal Heaters
Fan Speed Selections	Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating
Discharge Grille	2-position
Refrigerant Type	R454B
Heat Pump	Yes
Corrosion Treated	Yes

Accessory Guide
Architect and Engineering Manual
Installation Instructions
Quick Reference Guide
Quick Specs
Use and Care Manual
