Ge Appliances AZ91H18D3E Ge Zoneline® Heat Pump Single Package Vertical Air Conditioner 20 Amp 230/208 Volt
Energy EfficiencyEnhanced Energy Efficiency With An Eer Of 11.0 Cooling Capacity18,... Read more...
SKU:AZ91H18D3E
UPC:084691848998
Energy EfficiencyEnhanced Energy Efficiency With An Eer Of 11.0 Cooling Capacity18,600/18,000 Btu Vertical Space-Saving DesignOptimizes Usable Floor Space With Hidden Closet Design Reliable & QuietEvery Component Is Engineered To Provide Exceptional Performance Robust Plenum Gasket Seals Keep Dirt Outside And Reduces Chassis Vibration Corrosion Treatment On Outside Coils Standard Filter Size Internal Diagnostic Program Auxiliary Fan Ready Room Air Sampling Feature Maintains A Balanced Temperature Throughout The Room Remote Wall Thermostat Capable
- Energy efficiency
- Enhanced energy efficiency with an EER of 11.0
- Cooling capacity
- 18,600/18,000 BTU
- Vertical space-saving design
- Optimizes usable floor space with hidden closet design
- Reliable & quiet
- Every component is engineered to provide exceptional performance

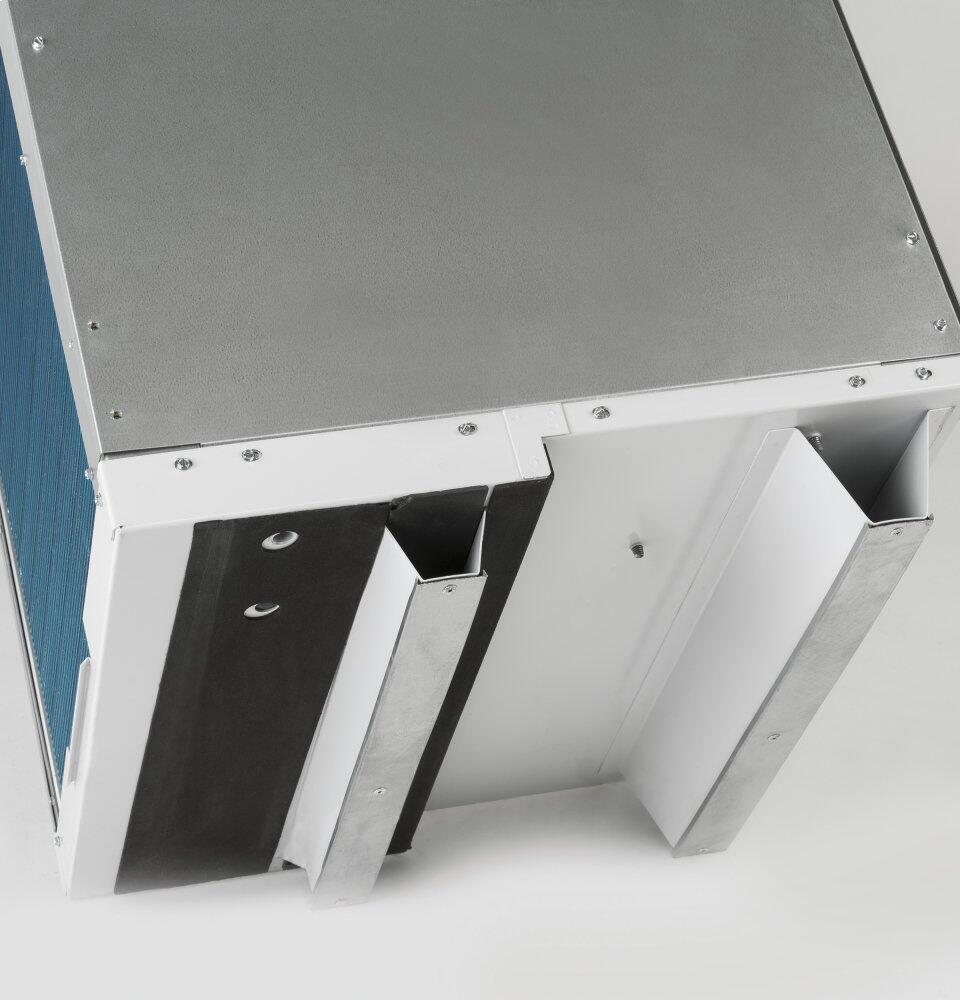

- Robust plenum gasket seals keep dirt outside and reduces chassis vibration
- Corrosion treatment on outside coils

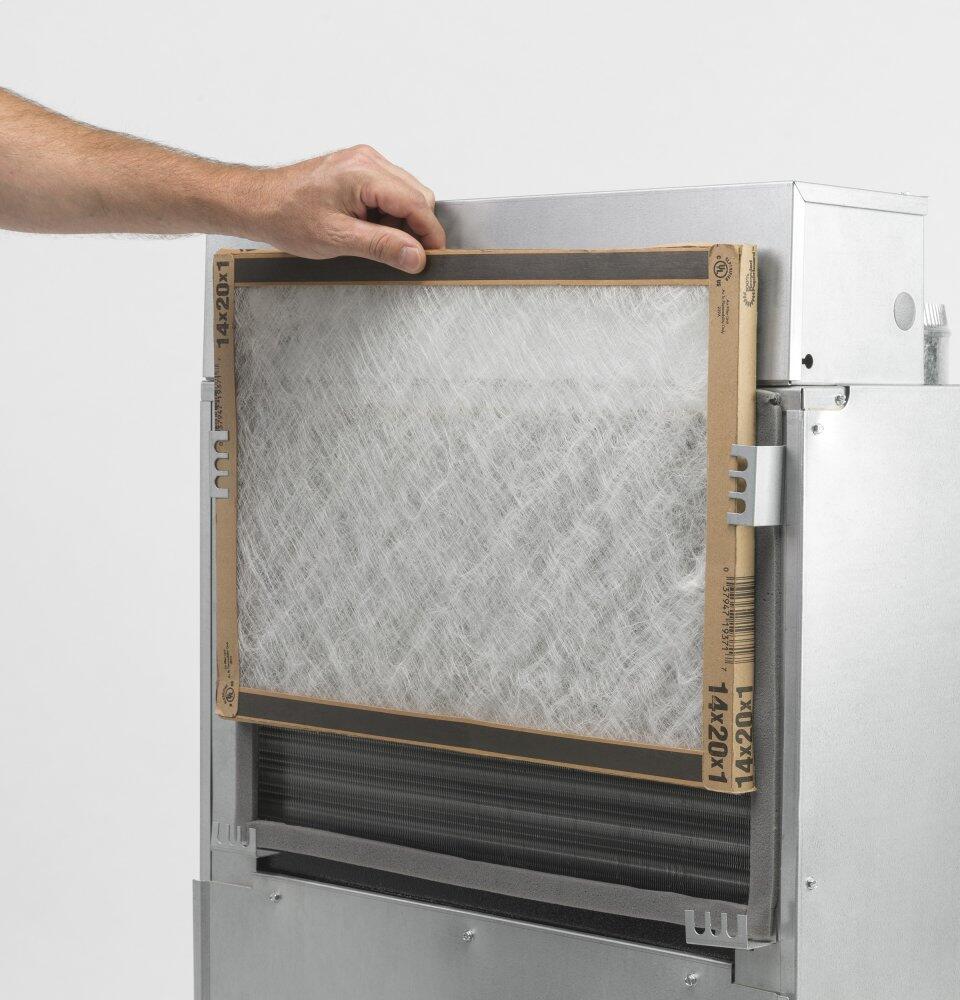

- Standard filter size

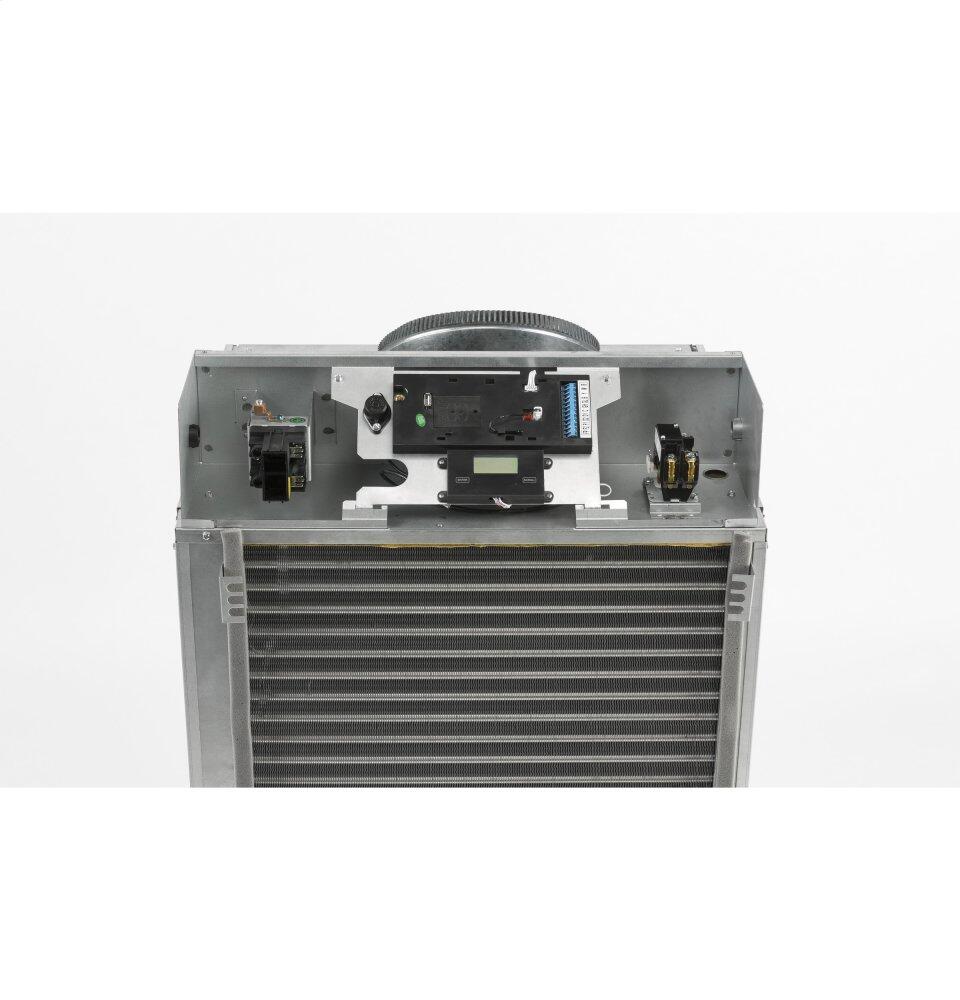

- Internal diagnostic program
- Auxiliary fan ready
- Room air sampling feature maintains a balanced temperature throughout the room
- Remote wall thermostat capable
| ACCESSORIES | |
| External Drain Kit | RAVDP20 |
| CAPACITY | |
| Cooling BTUH (MIN) | 18000.0 Btu |
| Cooling BTUH (MAX) | 18600.0 Btu |
| Cooling EER (BTUH / Watt) | 11.0/11.0 |
| CFM Indoor Fan High | 780 |
| CFM Indoor Fan Low | 600 |
| Dehumidification (pts./hr.) | 4.7 |
| Heating - Reverse Cycle - BTUH | 17000/16500 |
| Vent CFM (high fan at zero ESP) | 60 |
| FEATURES | |
| Central Desk Control Compatibility | Yes |
| Corrosion Treated | Yes |
| Fan Speed Selections | 3 Cooling |
| Freeze Sentinel | Yes |
| Heat Pump | Yes |
| Manual Vent Control | Yes |
| Remote Thermostat | RAK148 |
| Rotary Compressor | Yes |
| Zoneline Features | Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Electronic Error Diagnostics Freeze Sentinel Heat Pump with Resistance Heat Backup Quick Heat Recovery Remote Control Disconnect Kit Solid State Thermostat Weather Protected Electrical Components |
| Heating System | Heat Pump |
| Product Type | Vertical Air Conditioners |
| Refrigerant Type | R-410A |
| Sensible Heat Ratio | 73% |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 7.3/7.8 |
| Cooling - Watts | 1691/1636 |
| Heating - Electric - Heater Watts | 3400/2780 |
| Heating - Electric - Heater Amps | 14.8/13.4 |
| Heating - Reverse Cycle - Amps | 7.0/6.5 |
| Heating - Reverse Cycle - COP | 3.3/3.3 |
| Heating - Reverse Cycle - Watts | 1510/1465 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 168.0 lb |
| Overall Depth | 23.125 in |
| Overall Height | 47.0 in |
| Overall Width | 23.125 in |
Description
Energy EfficiencyEnhanced Energy Efficiency With An Eer Of 11.0 Cooling Capacity18,600/18,000 Btu Vertical Space-Saving DesignOptimizes Usable Floor Space With Hidden Closet Design Reliable & QuietEvery Component Is Engineered To Provide Exceptional Performance Robust Plenum Gasket Seals Keep Dirt Outside And Reduces Chassis Vibration Corrosion Treatment On Outside Coils Standard Filter Size Internal Diagnostic Program Auxiliary Fan Ready Room Air Sampling Feature Maintains A Balanced Temperature Throughout The Room Remote Wall Thermostat Capable
Features
- Energy efficiency
- Cooling capacity
- Vertical space-saving design
- Reliable & quiet
- Robust plenum gasket seals keep dirt outside and reduces chassis vibration
- Corrosion treatment on outside coils
- Standard filter size
- Internal diagnostic program
- Auxiliary fan ready
- Room air sampling feature maintains a balanced temperature throughout the room
- Remote wall thermostat capable
Specifications
| ACCESSORIES | |
| External Drain Kit | RAVDP20 |
| CAPACITY | |
| Cooling BTUH (MIN) | 18000.0 Btu |
| Cooling BTUH (MAX) | 18600.0 Btu |
| Cooling EER (BTUH / Watt) | 11.0/11.0 |
| CFM Indoor Fan High | 780 |
| CFM Indoor Fan Low | 600 |
| Dehumidification (pts./hr.) | 4.7 |
| Heating - Reverse Cycle - BTUH | 17000/16500 |
| Vent CFM (high fan at zero ESP) | 60 |
| FEATURES | |
| Central Desk Control Compatibility | Yes |
| Corrosion Treated | Yes |
| Fan Speed Selections | 3 Cooling |
| Freeze Sentinel | Yes |
| Heat Pump | Yes |
| Manual Vent Control | Yes |
| Remote Thermostat | RAK148 |
| Rotary Compressor | Yes |
| Zoneline Features | Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Electronic Error Diagnostics Freeze Sentinel Heat Pump with Resistance Heat Backup Quick Heat Recovery Remote Control Disconnect Kit Solid State Thermostat Weather Protected Electrical Components |
| Heating System | Heat Pump |
| Product Type | Vertical Air Conditioners |
| Refrigerant Type | R-410A |
| Sensible Heat Ratio | 73% |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 7.3/7.8 |
| Cooling - Watts | 1691/1636 |
| Heating - Electric - Heater Watts | 3400/2780 |
| Heating - Electric - Heater Amps | 14.8/13.4 |
| Heating - Reverse Cycle - Amps | 7.0/6.5 |
| Heating - Reverse Cycle - COP | 3.3/3.3 |
| Heating - Reverse Cycle - Watts | 1510/1465 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 168.0 lb |
| Overall Depth | 23.125 in |
| Overall Height | 47.0 in |
| Overall Width | 23.125 in |
