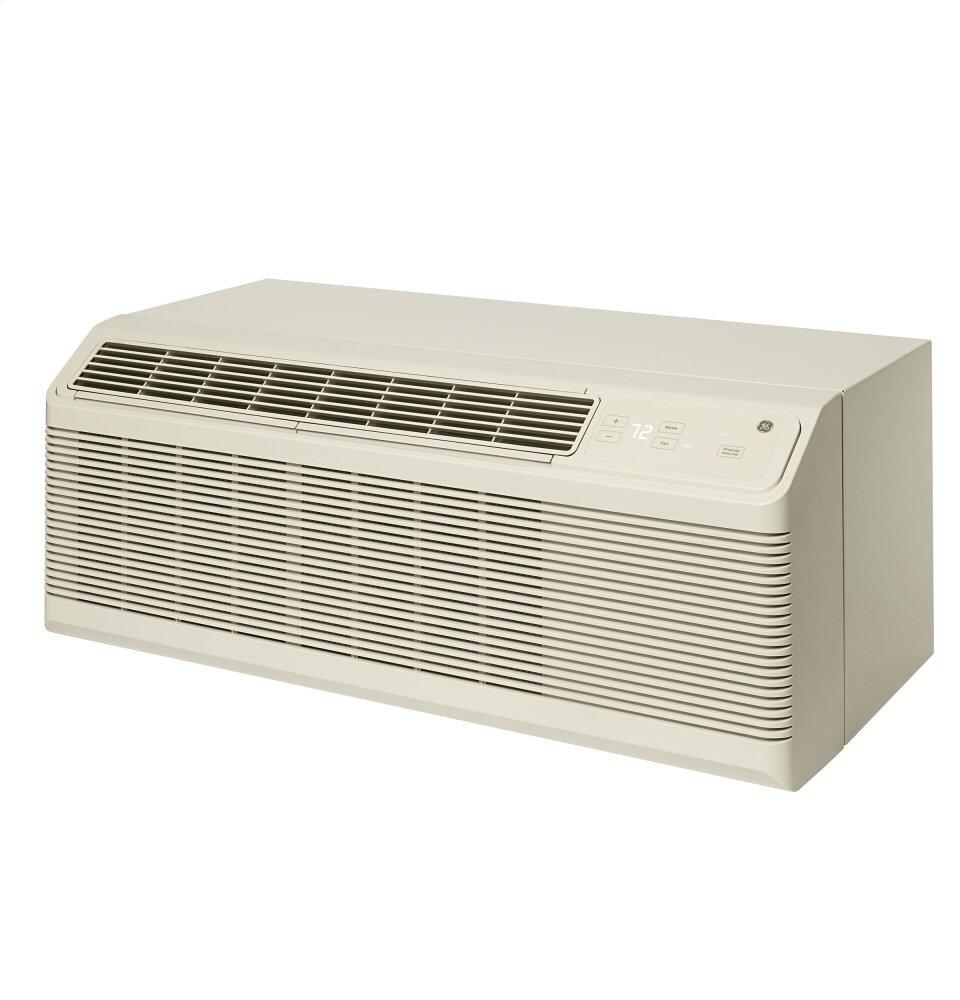

Ge Appliances AZ65H12DBM Ge Zoneline® Heat Pump Unit With Makeup Air, 230/208 Volt
Ge Appliances AZ65H12DBM Ge Zoneline® Heat Pump Unit With Makeup Air, 230/208 Volt
SKU: AZ65H12DBM
UPC: 084691822073
It Is Strongly Recommended To Install Makeup Air With Wall Thermostats Smc Base Pan... Read more...
x
Installation and Removal
x
When Will I Get My Order?
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
List Price: $2,053.00
Our Price: $1,586.00
You save:
$467.00 (22%)
EXTENDED PROTECTION
5 year plan
$359.993 year plan
$188.99Shipping calculated at checkout.
Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x
Ge Appliances AZ65H12DBM Ge Zoneline® Heat Pump Unit With Makeup Air, 230/208 Volt
Simplified structure
Easy to maintain and service
Makeup air
Delivers 25-50 CFM of continuous makeup air whenever the room is occupied
It Is Strongly Recommended To Install Makeup Air With Wall Thermostats Smc Base Pan Simplified StructureEasy To Maintain And Service Product Built To Order, Lead Times May Vary Makeup AirDelivers 25-50 Cfm Of Continuous Makeup Air Whenever The Room Is Occupied Energy EfficiencyWhen Paired With Occupancy Sensing Hardware, Ventilation Can Be Halted During Vacancy DehumidificationDehumidifies At A Rate Of 5-6 Pints Per 24 Hours (Based On Cfm Level) Boost Heat OptionProvides Supplemental Resistance Heat In Heat Pump Mode Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display May Reduce The Need For Individually Ducted Rooftop Systems Because Makeup Air Increases Room Btu Load Requirements And Requires Additional Ptac Cooling Or Heating, The Building'S Electrical Needs May Be Impacted Makeup Air Models Are Not Recommended For Installation Within Two Miles Of Coastal Areas
- It is strongly recommended to install makeup air with wall thermostats
- SMC base pan
- Simplified structure
- Product built to order, lead times may vary
- Makeup air
- Energy efficiency
- Dehumidification
- Boost heat option
- Heat & Freeze Sentinels
- Electronic temperature limiting
- Electronic touch controls with LED display
- May reduce the need for individually ducted rooftop systems
- Because makeup air increases room BTU load requirements and requires additional PTAC cooling or heating, the building's electrical needs may be impacted
- Makeup air models are not recommended for installation within two miles of coastal areas
| CAPACITY | |
| Cooling BTUH (MIN) | 11400.0 Btu |
| Cooling BTUH (MAX) | 11500.0 Btu |
| Cooling EER (BTUH / Watt) | 11.2/11.2 |
| CFM Indoor Fan High | 449 |
| CFM Indoor Fan Low | 300 |
| Dehumidification (pts./hr.) | 3.4 |
| Heating - Reverse Cycle - BTUH | 10200/10000 |
| Vent CFM (high fan at zero ESP) | 25-50 |
| FEATURES | |
| Chassis Type | Slide-In |
| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Louver Style | Reversible |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Zoneline Features | Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Quick Heat Recovery Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Reverse Cycle Defrost Universal Heaters Weather Protected Electrical Components 3-Stage Heating Design Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Heat Pump with Supplemental Resistance Heat |
| Heating System | Heat Pump |
| Product Type | Makeup Air Conditioners |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 69% |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 5.8/6.2 |
| Cooling - Amperes; L.R. | 29.5 |
| Cooling - Watts | 1025/1015 |
| Heating - Reverse Cycle - Amps | 5.0/5.2 |
| Heating - Reverse Cycle - COP | 3.5/3.5 |
| Heating - Reverse Cycle - Watts | 850/835 |
| Power Factor | 97 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 135.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
