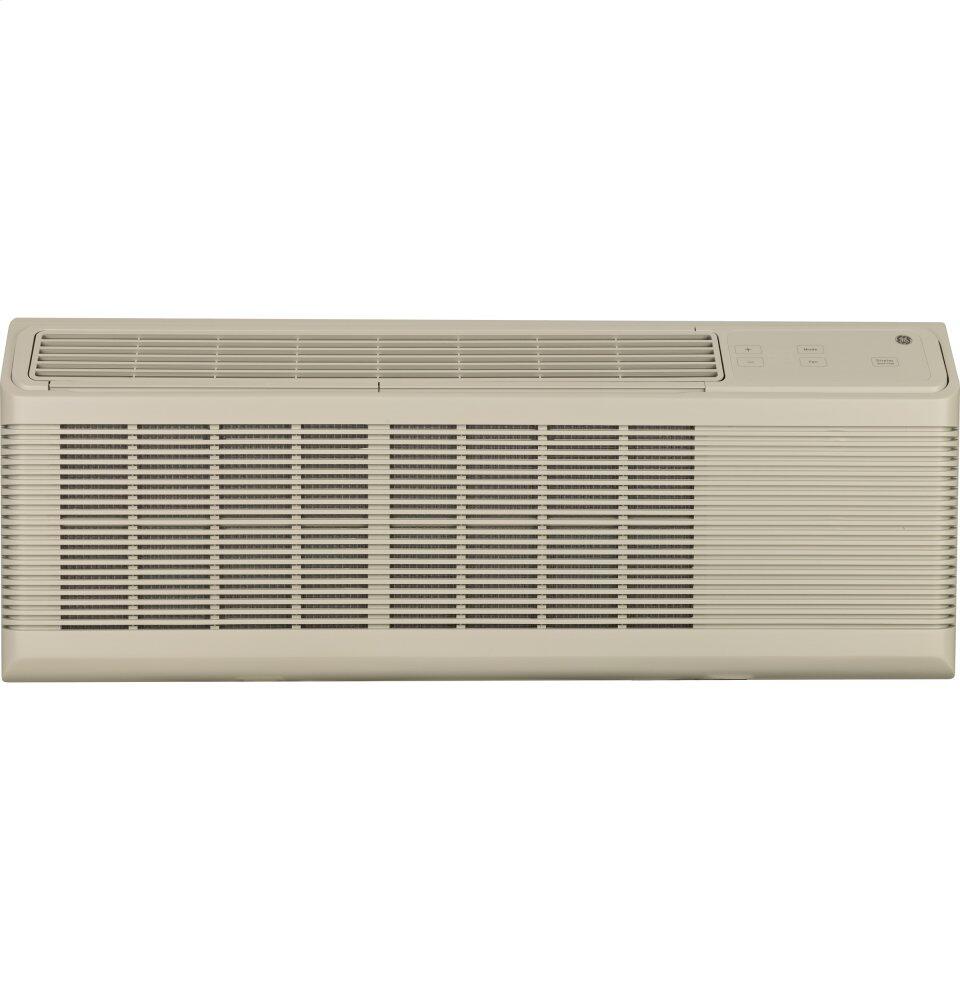

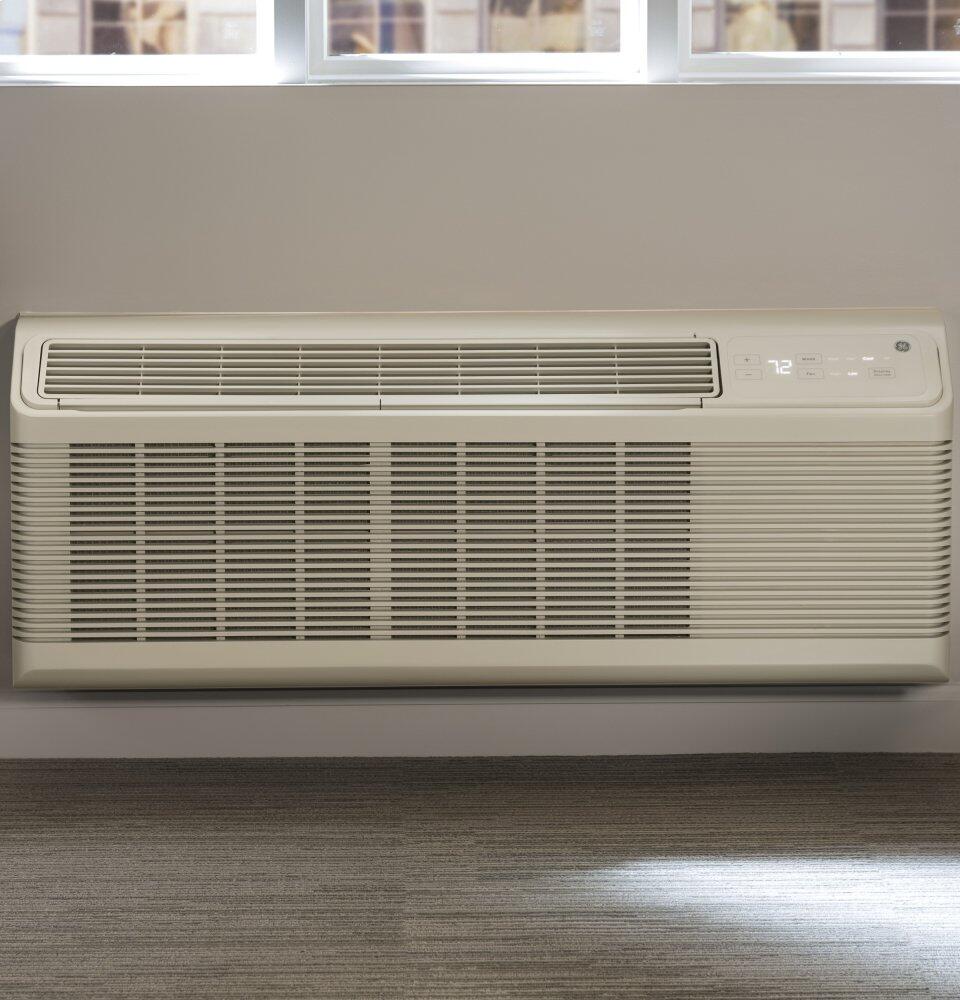

Ge Appliances AZ65H07DAC Ge Zoneline® Heat Pump Unit With Corrosion Protection, 230/208 Volt
Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room... Read more...
SKU:AZ65H07DAC
UPC:084691815716
This Item Qualifies for Free Delivery!
- Regular price
- Sale price
-
List Price: $1,459.00
See Lower Price in Cart
?As retailers we are entitled to the right for setting our own price. However, some manufacturers place restrictions on pricing. Our price on this item is lower than the manufacturer's minimum advertised price. To see our price, simply, place the item in your cart or proceed with the checkout process. This enables us to provide the lowest possible prices for a vast selection of appliances.Our Price: $1,307.10
- Regular price
- Unit price
- per
Extended protection
3 year plan
$120.995 year plan
$228.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?
Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display R-410A Refrigerant Smc Base Pan Simplified StructureEasy To Maintain And Service Cooling Capacity7,100/7,000 Btu Energy Efficiency13.0/13.0 Eer Dehumidification1.6 Pints/Hour Reverse Heat Cycle6,200/6,100 Btu Heat Pump Efficiency4.0/4.0 Cop Indoor Fan Cfm (High/Low)409/250 Fresh Air Vent Cfm (Fully Open High Fan)38 Quiet OperationBaked-On Mastic Sound Barrier, Cross Flow Blower And Two Dc Fan Motors Create Less Noise To Ensure Comfort Corrosion ResistantExtends Life Of The Unit In Sea Coast Areas/Corrosive Environments Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Boost Heat OptionProvides Supplemental Resistance Heat In Heat Pump Mode

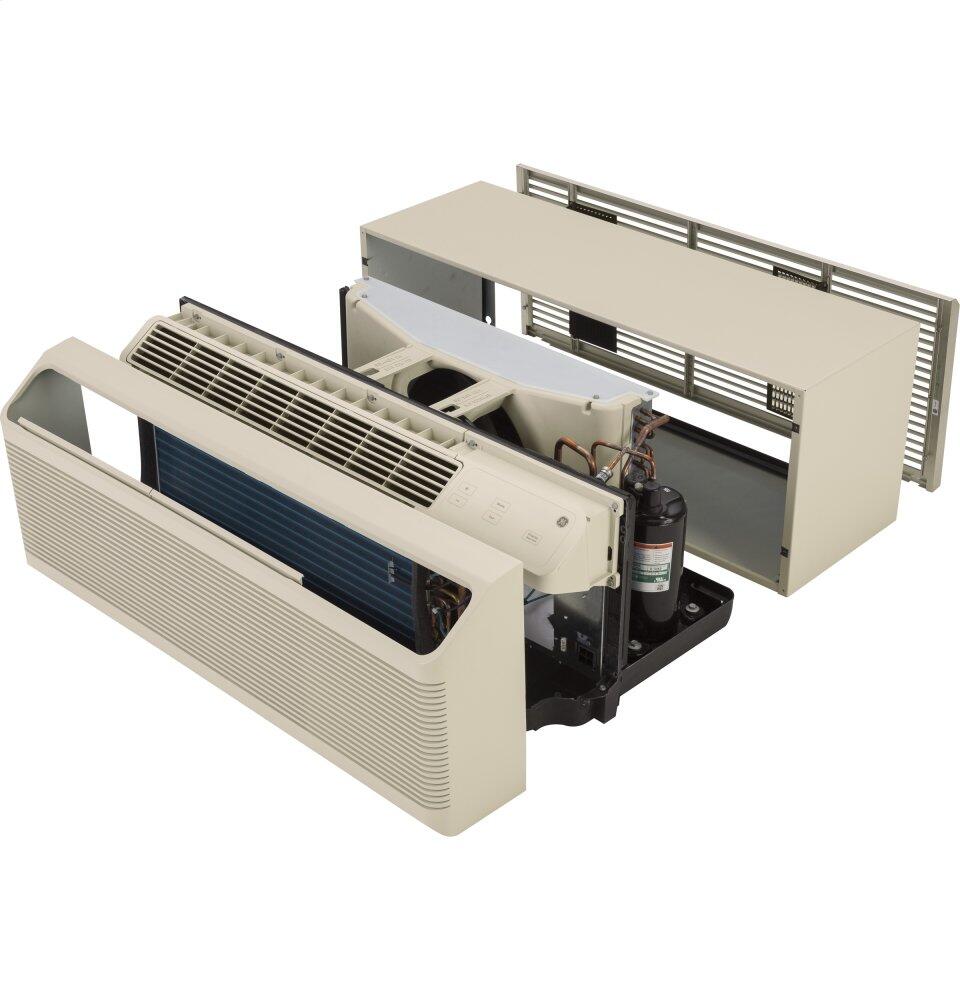

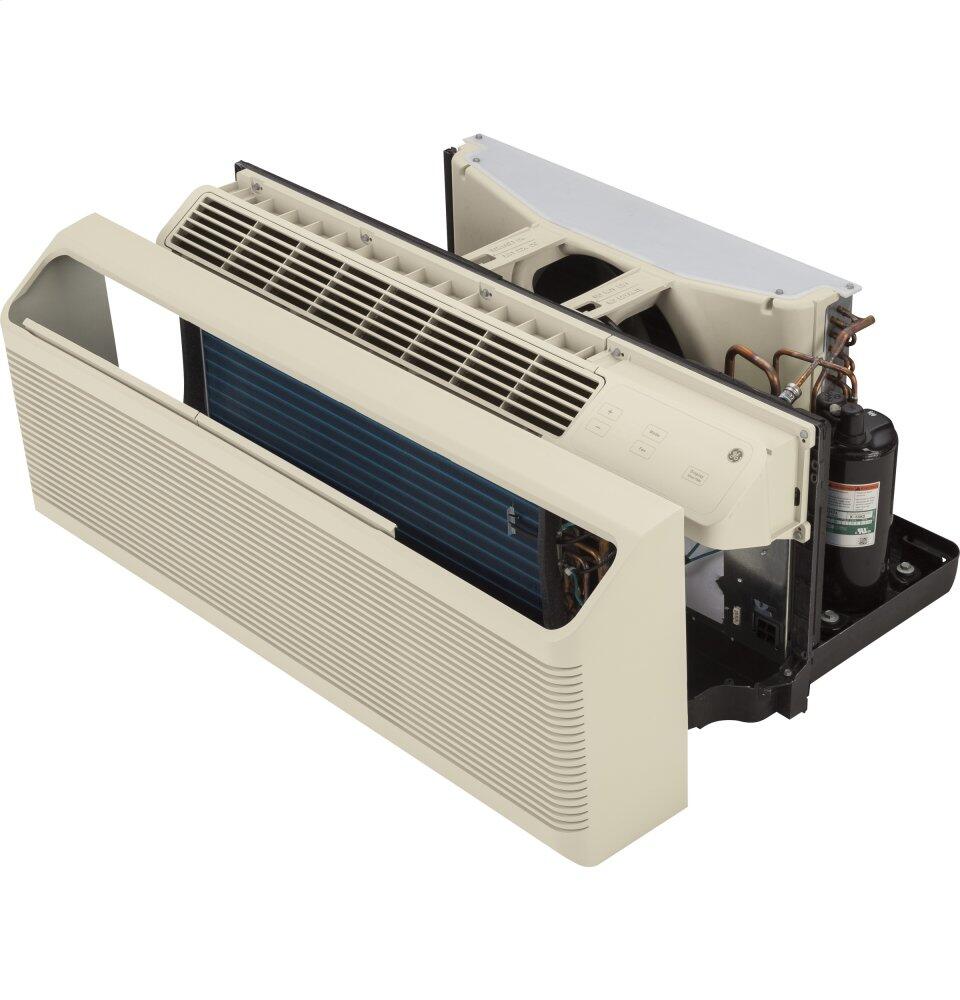

Simplified structure

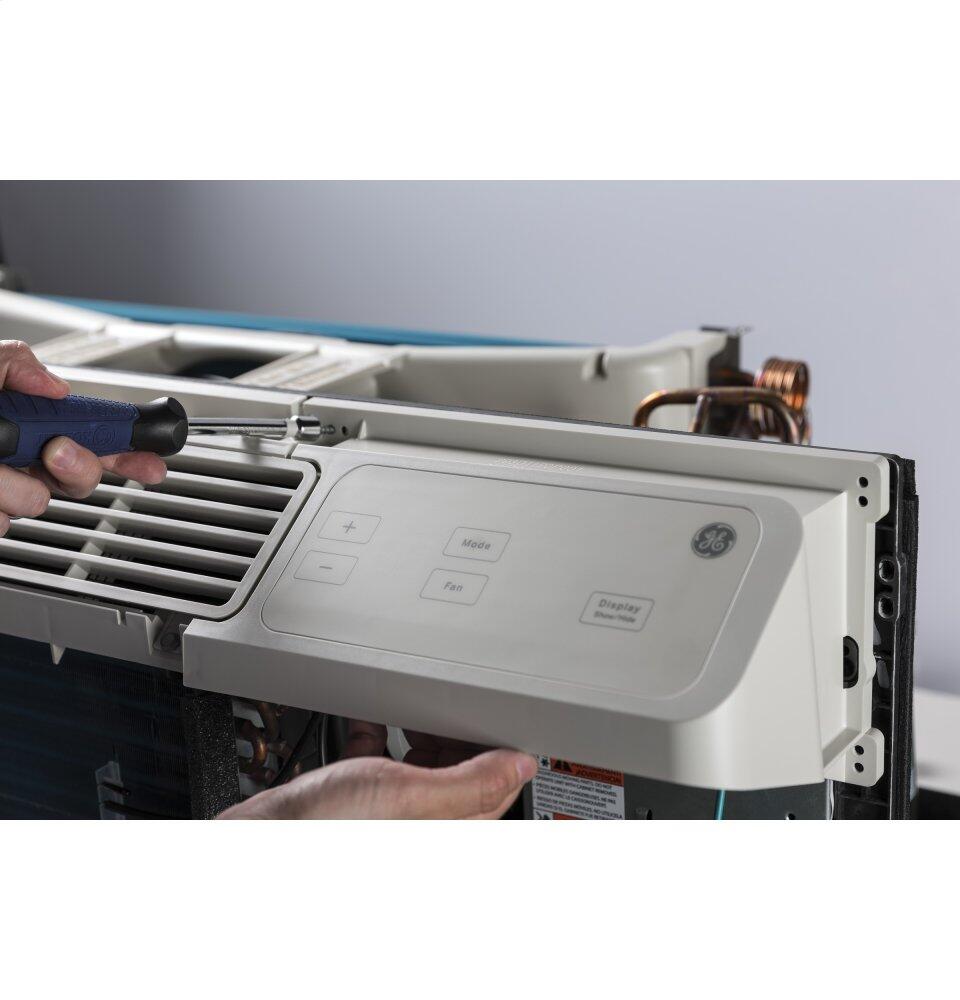

Easy to maintain and service
Energy efficiency
13.0/13.0 EER
Quiet operation

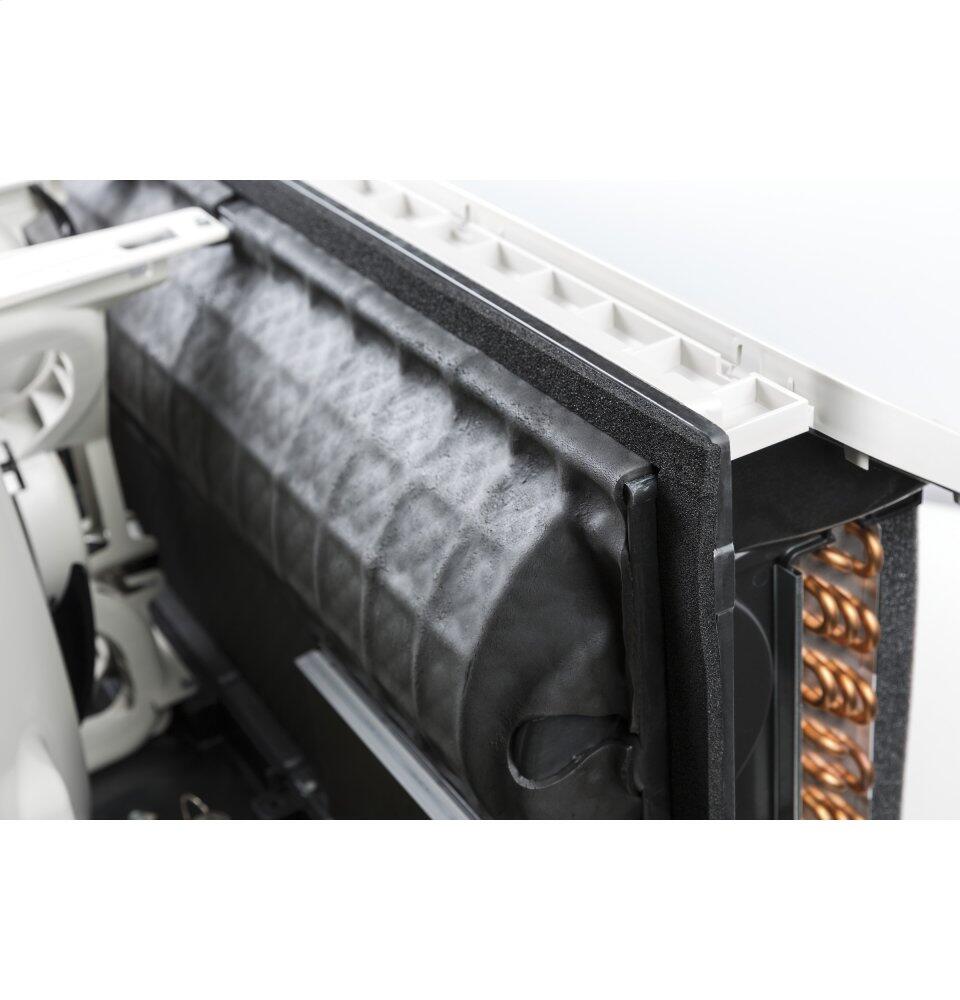

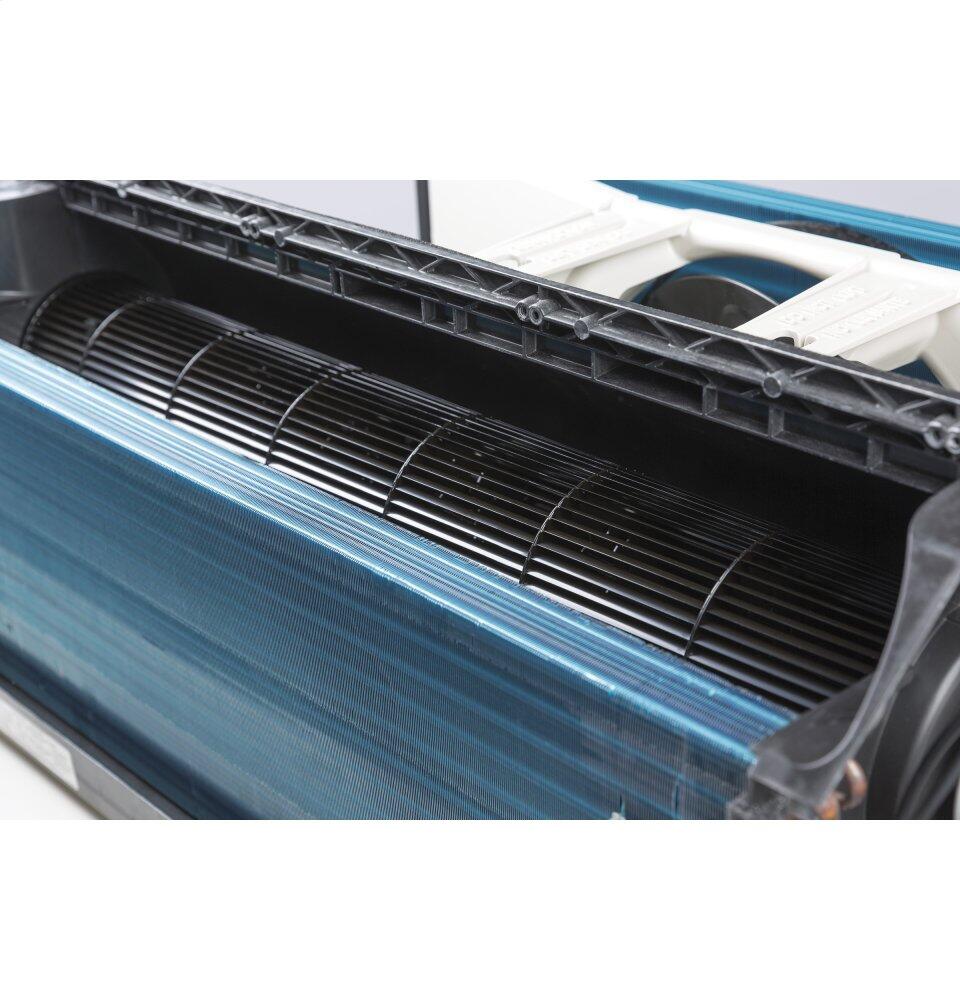

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
- Electronic temperature limiting
- Prevents expensive over-cooling or over-heating of the room

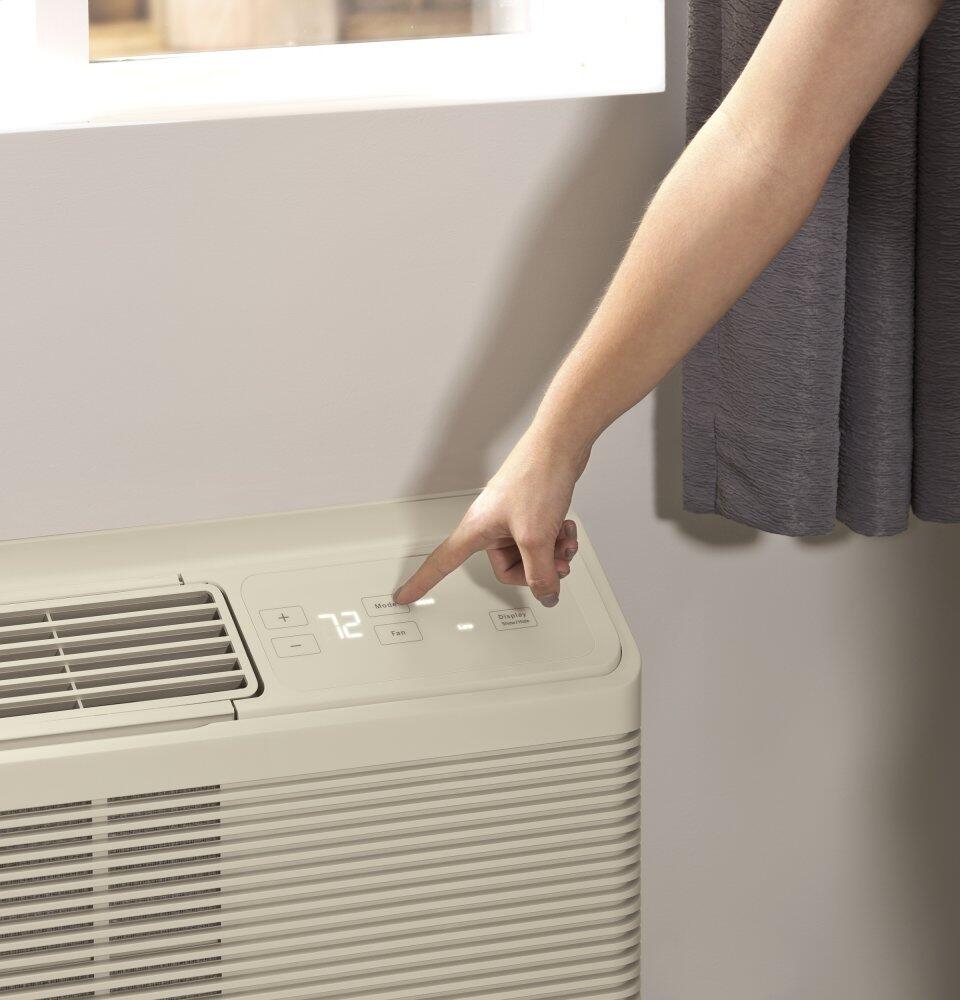

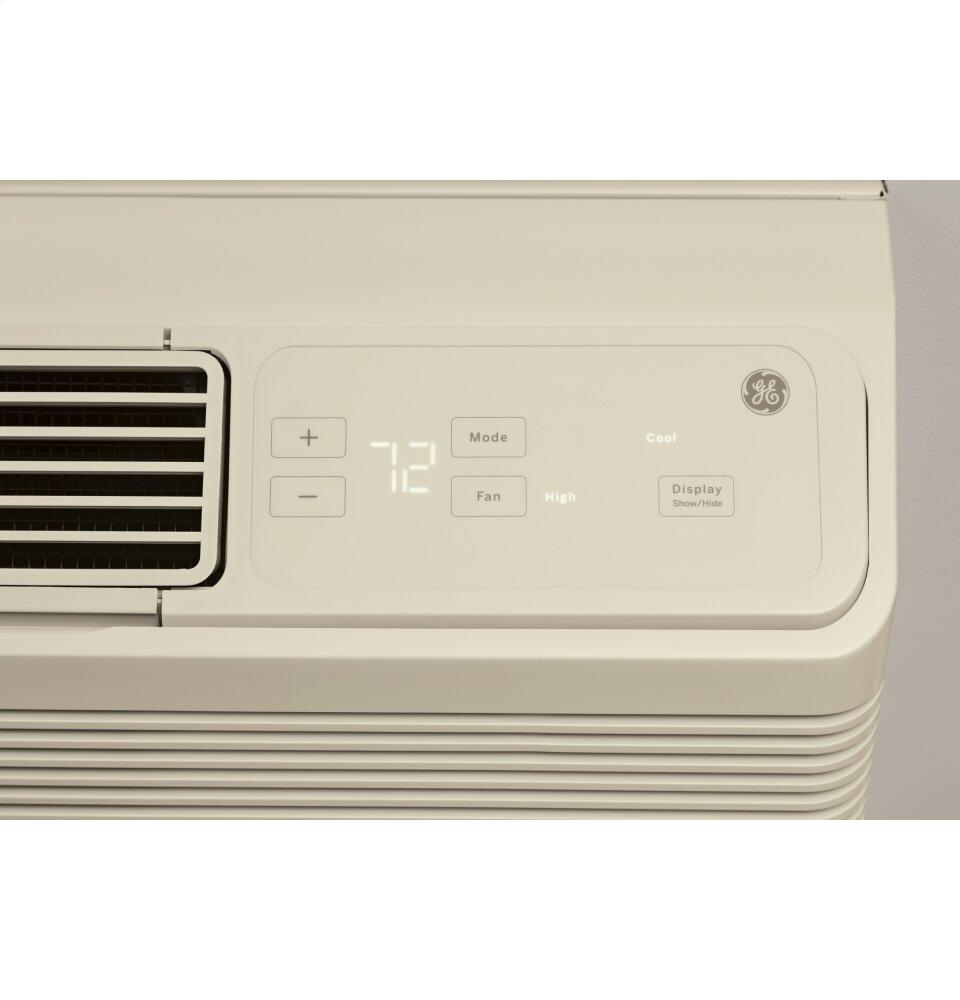

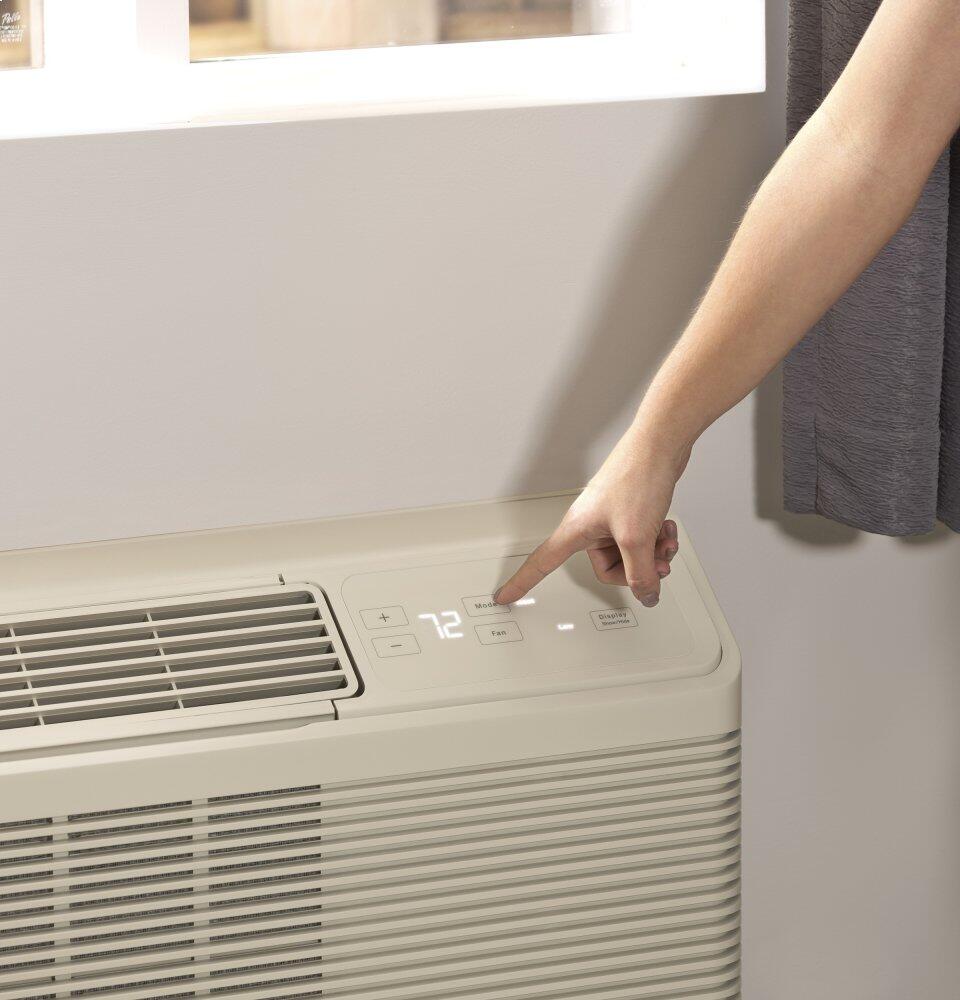

- Electronic touch controls with LED display
- R-410A refrigerant
- SMC base pan
- Simplified structure
- Easy to maintain and service
- Cooling capacity
- 7,100/7,000 BTU
- Energy efficiency
- 13.0/13.0 EER
- Dehumidification
- 1.6 pints/hour
- Reverse heat cycle
- 6,200/6,100 BTU
- Heat pump efficiency
- 4.0/4.0 COP
- Indoor fan CFM (high/low)
- 409/250
- Fresh air vent CFM (fully open high fan)
- 38
- Quiet operation
- Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
- Corrosion resistant
- Extends life of the unit in sea coast areas/corrosive environments
- Heat & Freeze Sentinels
- Keeps the room from overheating or freezing
- Boost heat option
- Provides supplemental resistance heat in heat pump mode
| CAPACITY | |
| Cooling BTUH (MIN) | 7000.0 Btu |
| Cooling BTUH (MAX) | 7100.0 Btu |
| Cooling EER (BTUH / Watt) | 13.0/13.0 |
| CFM Indoor Fan High | 360 |
| CFM Indoor Fan Low | 205 |
| Dehumidification (pts./hr.) | 1.6 |
| Heating - Reverse Cycle - BTUH | 6200/6100 |
| Vent CFM (high fan at zero ESP) | 38 |
| FEATURES | |

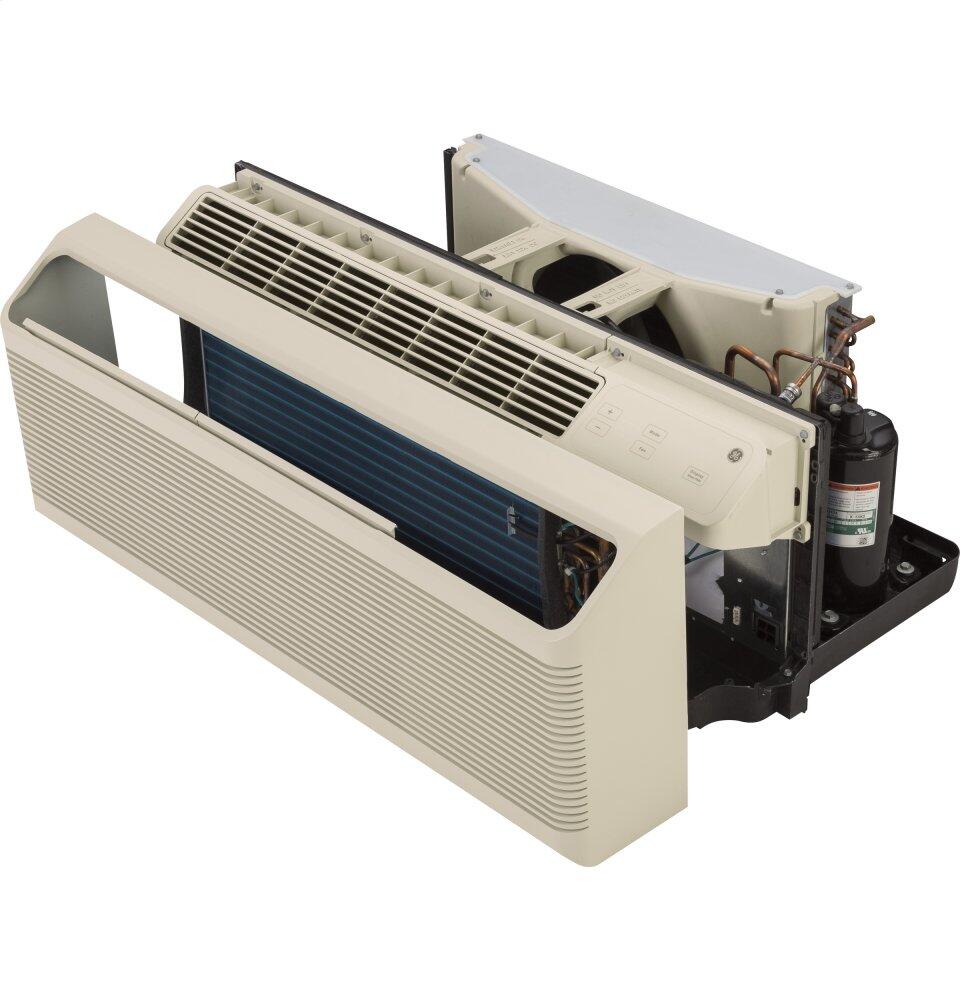

| Chassis Type | Slide-In |
| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Corrosion Treated | Yes |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |

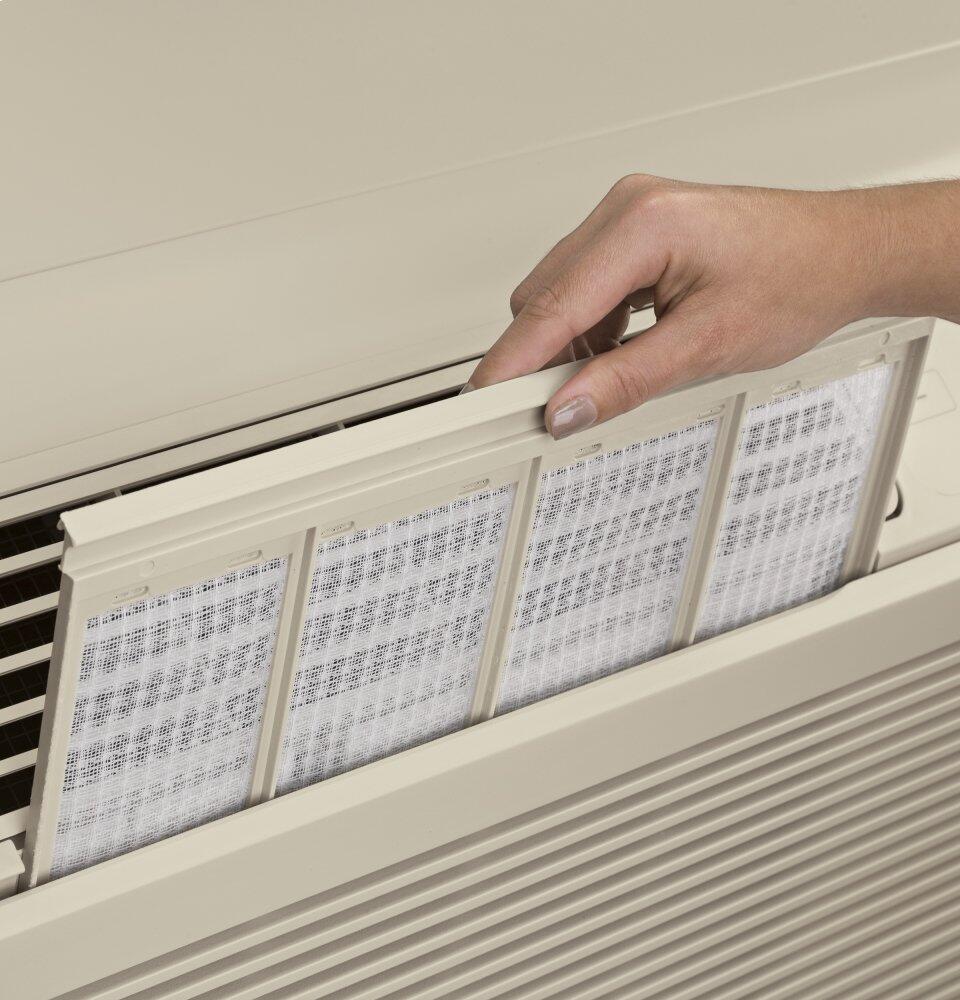

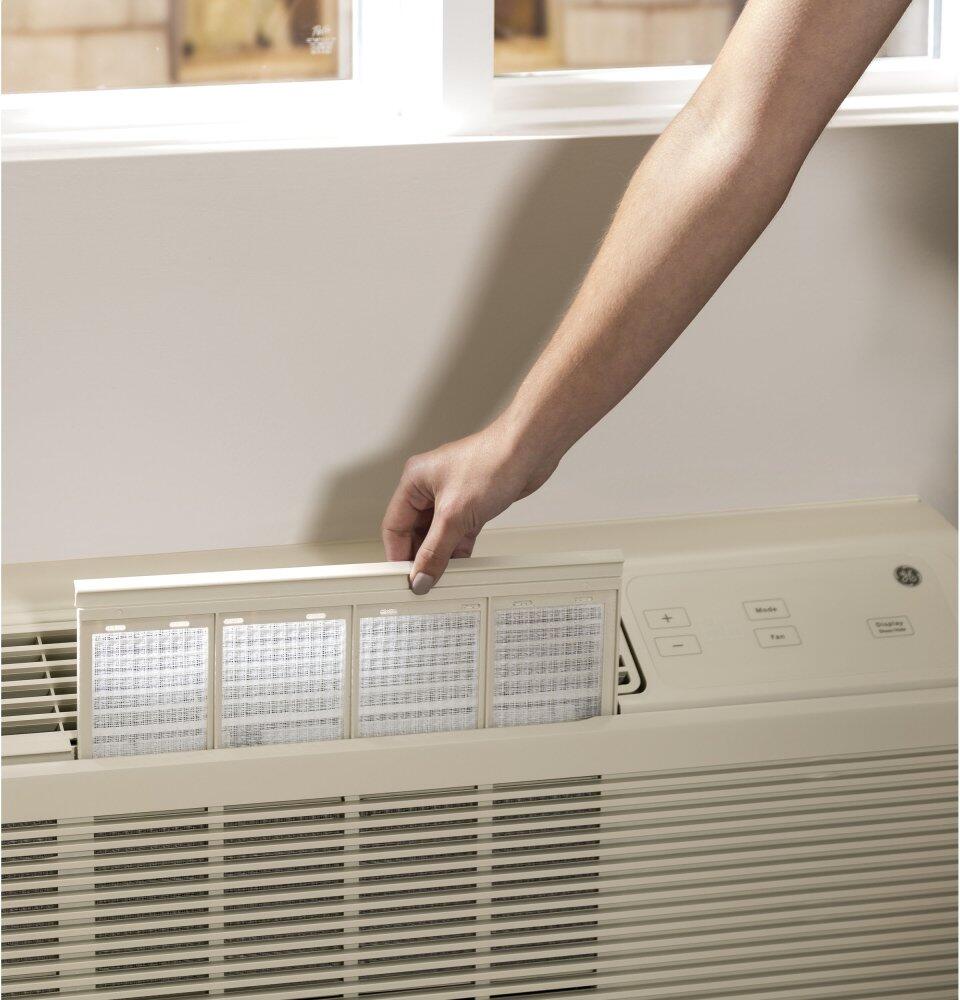

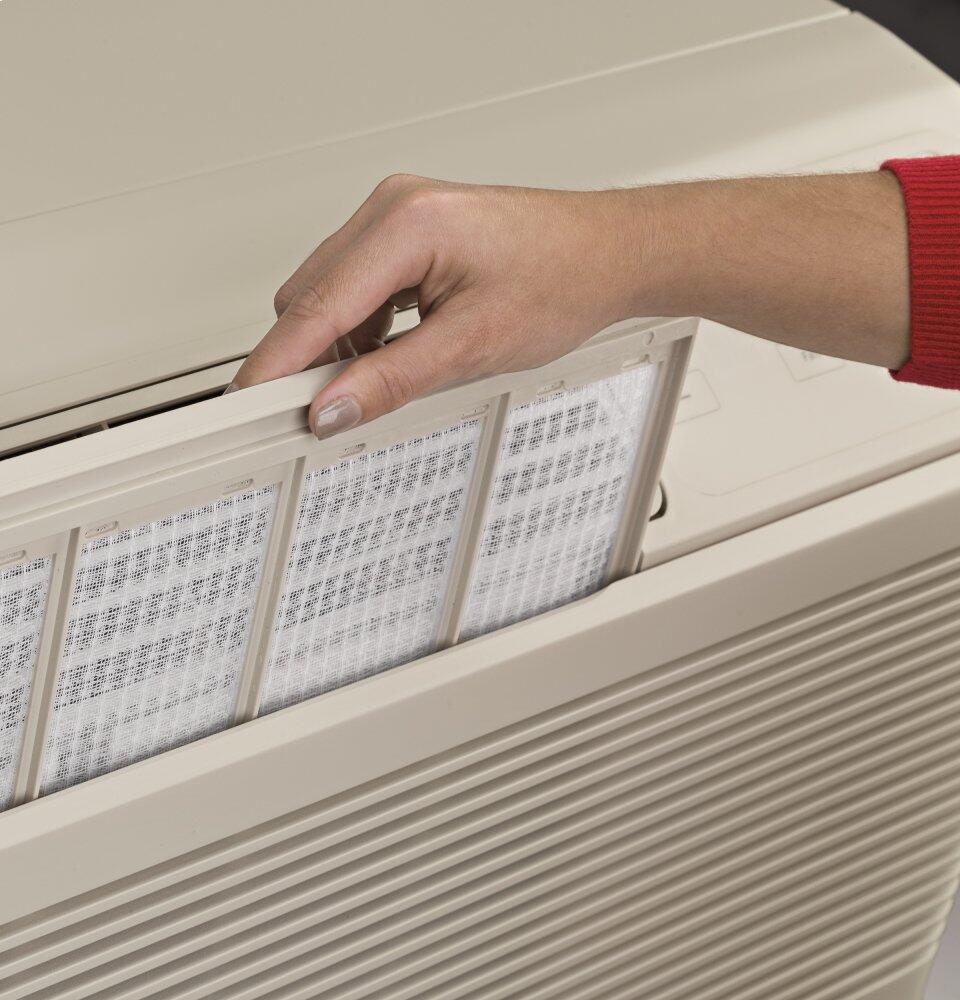

| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Zoneline Features | Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Quick Heat Recovery Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Reverse Cycle Defrost Universal Heaters Weather Protected Electrical Components 3-Stage Heating Design Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Heat Pump with Supplemental Resistance Heat |
| Heating System | Heat Pump |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 73% |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 2.5/2.7 |
| Cooling - Amperes; L.R. | 13.5 |
| Cooling - Watts | 545/535 |
| Heating - Reverse Cycle - Amps | 2.1/2.2 |
| Heating - Reverse Cycle - COP | 4.0/4.0 |
| Heating - Reverse Cycle - Watts | 450/445 |
| Power Factor | 96 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 110.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
Overview
Simplified structure
Easy to maintain and service
Energy efficiency
13.0/13.0 EER
Quiet operation
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Description
Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display R-410A Refrigerant Smc Base Pan Simplified StructureEasy To Maintain And Service Cooling Capacity7,100/7,000 Btu Energy Efficiency13.0/13.0 Eer Dehumidification1.6 Pints/Hour Reverse Heat Cycle6,200/6,100 Btu Heat Pump Efficiency4.0/4.0 Cop Indoor Fan Cfm (High/Low)409/250 Fresh Air Vent Cfm (Fully Open High Fan)38 Quiet OperationBaked-On Mastic Sound Barrier, Cross Flow Blower And Two Dc Fan Motors Create Less Noise To Ensure Comfort Corrosion ResistantExtends Life Of The Unit In Sea Coast Areas/Corrosive Environments Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Boost Heat OptionProvides Supplemental Resistance Heat In Heat Pump Mode
Features
- Electronic temperature limiting
- Electronic touch controls with LED display
- R-410A refrigerant
- SMC base pan
- Simplified structure
- Cooling capacity
- Energy efficiency
- Dehumidification
- Reverse heat cycle
- Heat pump efficiency
- Indoor fan CFM (high/low)
- Fresh air vent CFM (fully open high fan)
- Quiet operation
- Corrosion resistant
- Heat & Freeze Sentinels
- Boost heat option
Specifications
| CAPACITY | |
| Cooling BTUH (MIN) | 7000.0 Btu |
| Cooling BTUH (MAX) | 7100.0 Btu |
| Cooling EER (BTUH / Watt) | 13.0/13.0 |
| CFM Indoor Fan High | 360 |
| CFM Indoor Fan Low | 205 |
| Dehumidification (pts./hr.) | 1.6 |
| Heating - Reverse Cycle - BTUH | 6200/6100 |
| Vent CFM (high fan at zero ESP) | 38 |
| FEATURES | |
| Chassis Type | Slide-In |
| Control Type | Standard Microcomputer Tactile touch pad with LED Display |
| Corrosion Treated | Yes |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Zoneline Features | Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Quick Heat Recovery Random Twist/Length Segment Tangential Blower Remote Thermostat Compatibility Reverse Cycle Defrost Universal Heaters Weather Protected Electrical Components 3-Stage Heating Design Auto Power Recovery Automatic Emergency Heat Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Pump with Resistance Heat Backup Heat Pump with Supplemental Resistance Heat |
| Heating System | Heat Pump |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 73% |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 2.5/2.7 |
| Cooling - Amperes; L.R. | 13.5 |
| Cooling - Watts | 545/535 |
| Heating - Reverse Cycle - Amps | 2.1/2.2 |
| Heating - Reverse Cycle - COP | 4.0/4.0 |
| Heating - Reverse Cycle - Watts | 450/445 |
| Power Factor | 96 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 110.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
