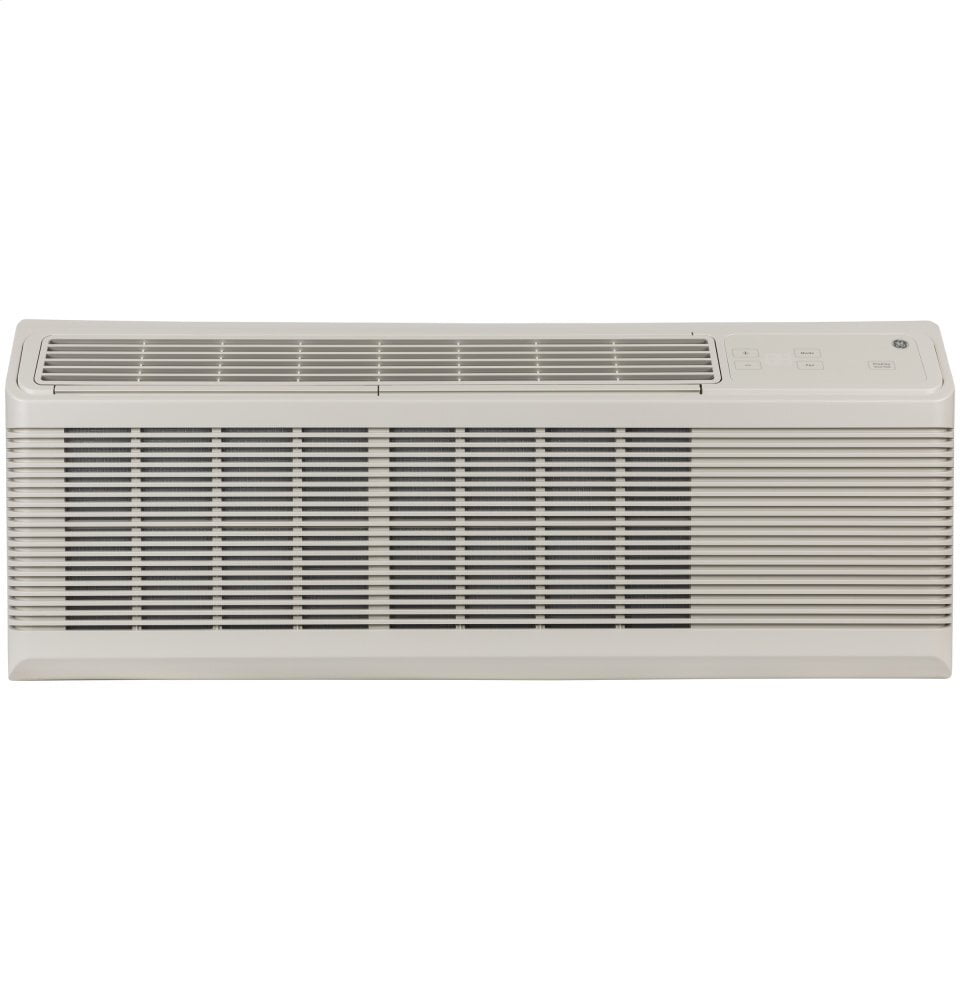

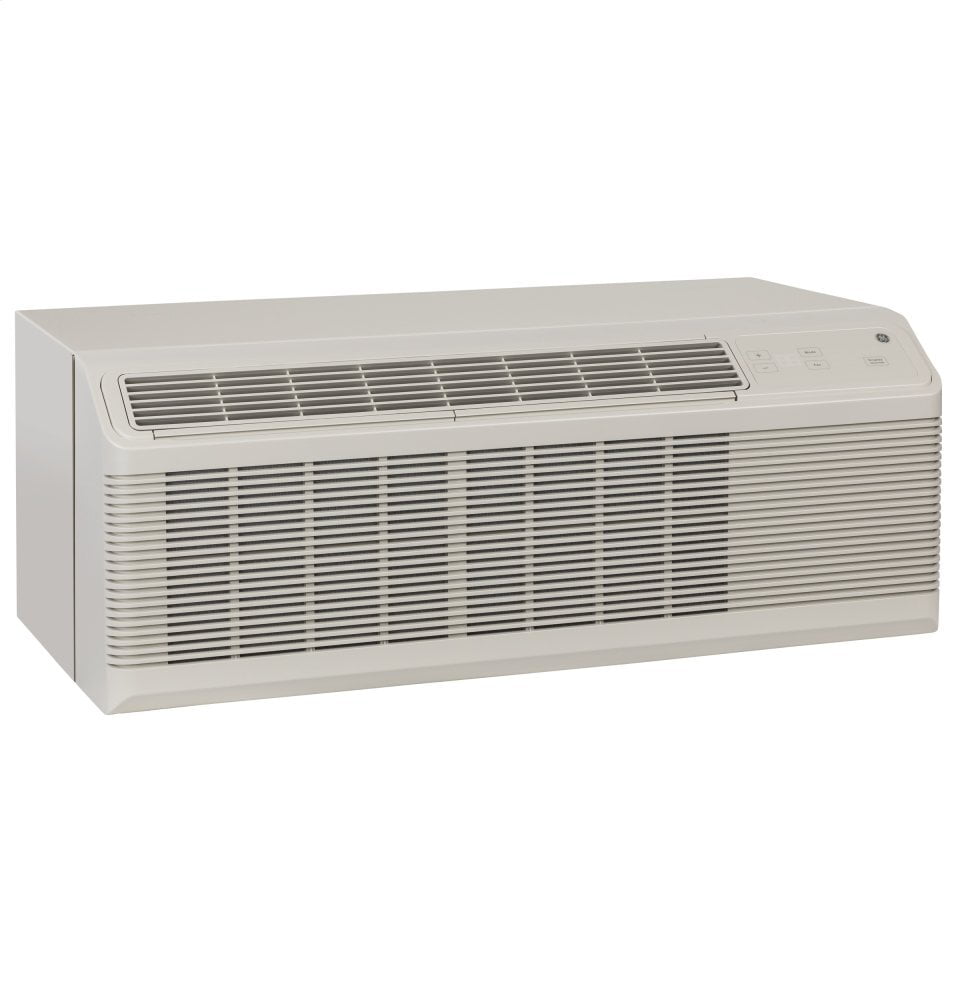

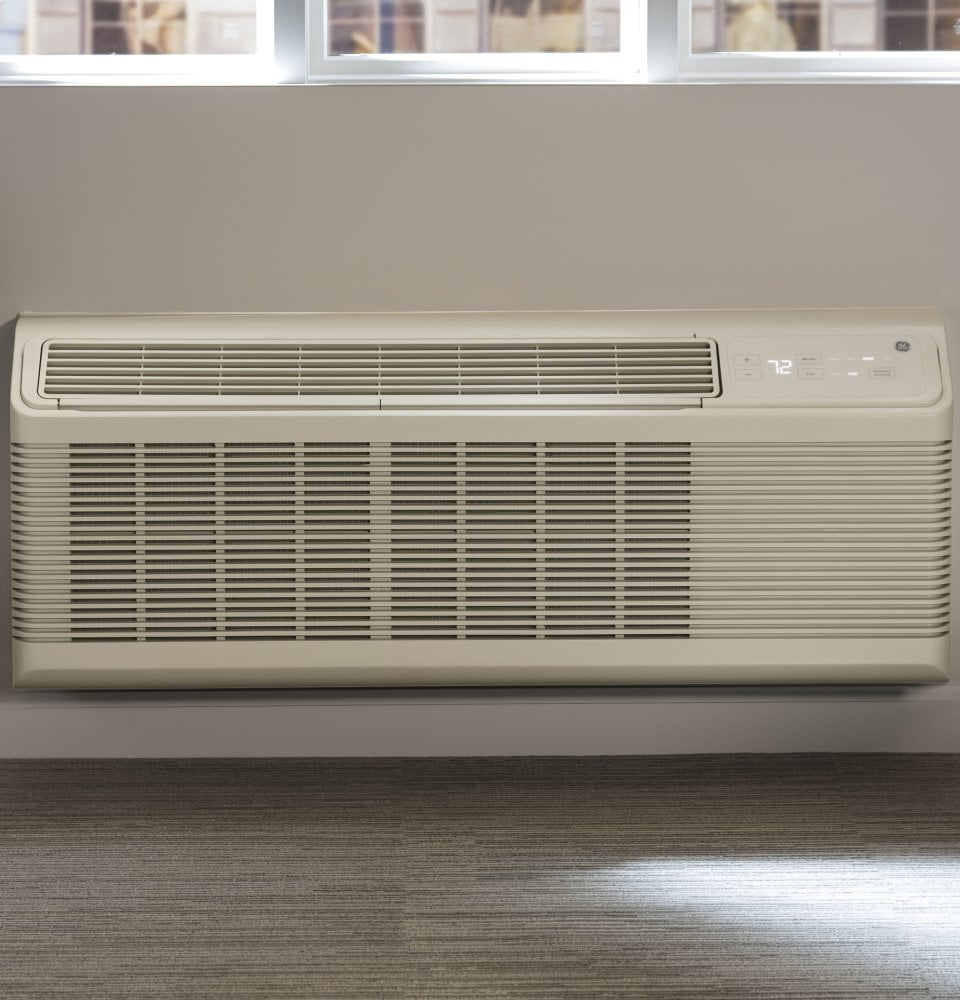

Ge Appliances AZ45E15DAC Ge Zoneline® Cooling And Electric Heat Unit With Corrosion Protection, 230/208 Volt

Ge Appliances AZ45E15DAC Ge Zoneline® Cooling And Electric Heat Unit With Corrosion Protection, 230/208 Volt

Smc Base Pan Simplified StructureEasy To Maintain And Service Cooling CapacityRead more...

When Will I Get My Order?

x

THIS ITEM QUALIFIES FOR FREE DELIVERY!

EXTENDED PROTECTION

3 year plan

$120.99

5 year plan

$228.99
Shipping calculated at checkout.

Availability : DISCONTINUED

View full details

When Will I Get My Order?

x

Ge Appliances AZ45E15DAC Ge Zoneline® Cooling And Electric Heat Unit With Corrosion Protection, 230/208 Volt
Ge Appliances AZ45E15DAC Ge Zoneline® Cooling And Electric Heat Unit With Corrosion Protection, 230/208 Volt

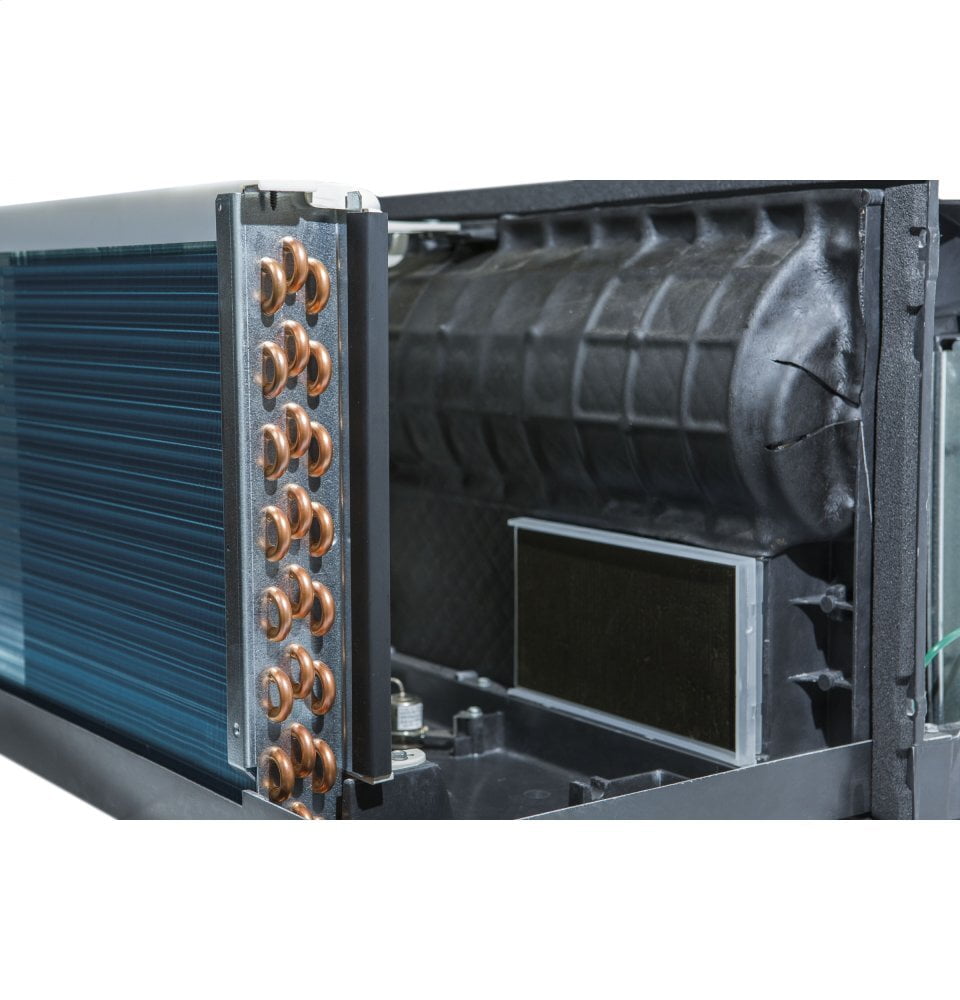

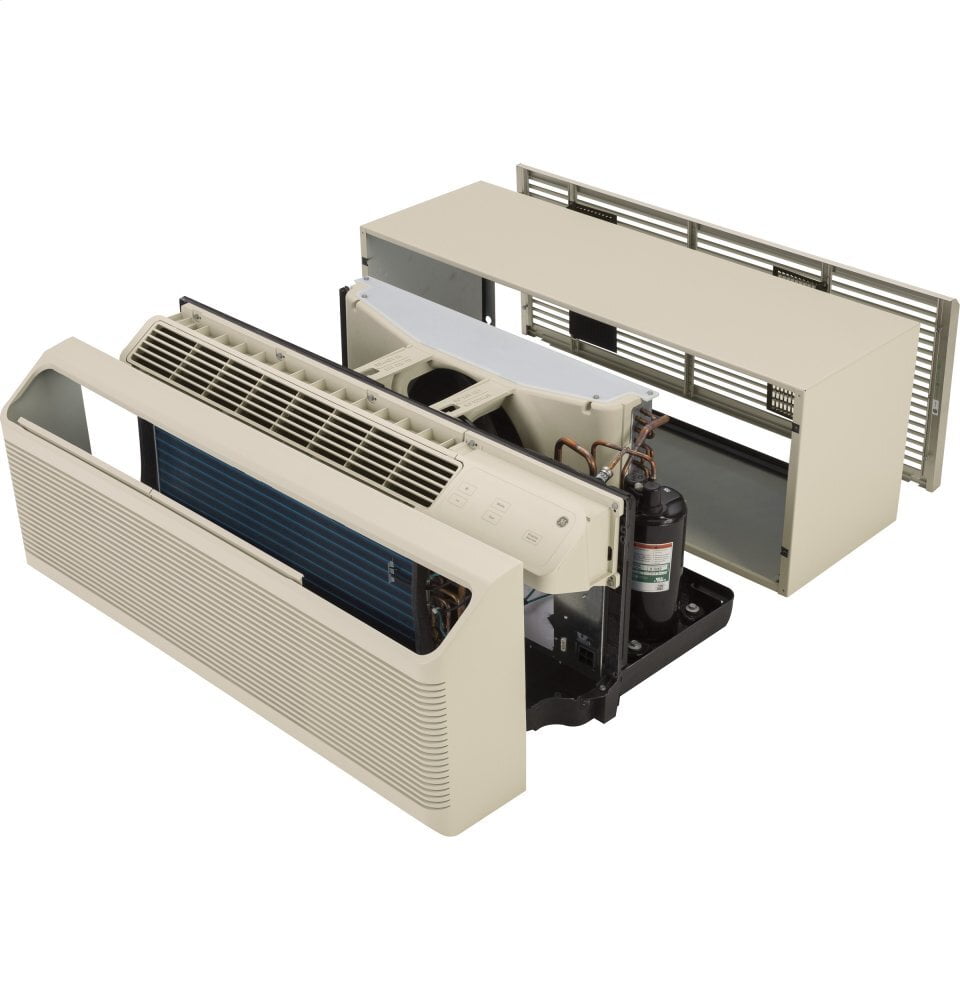

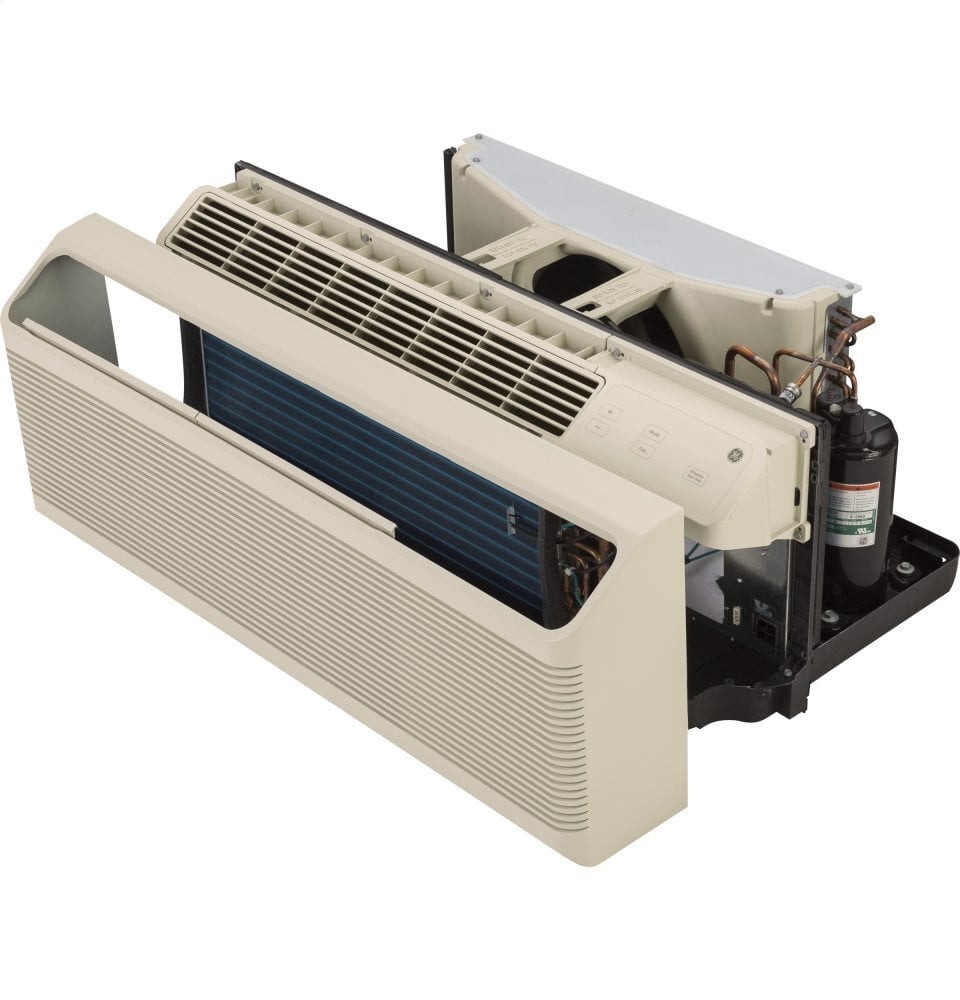

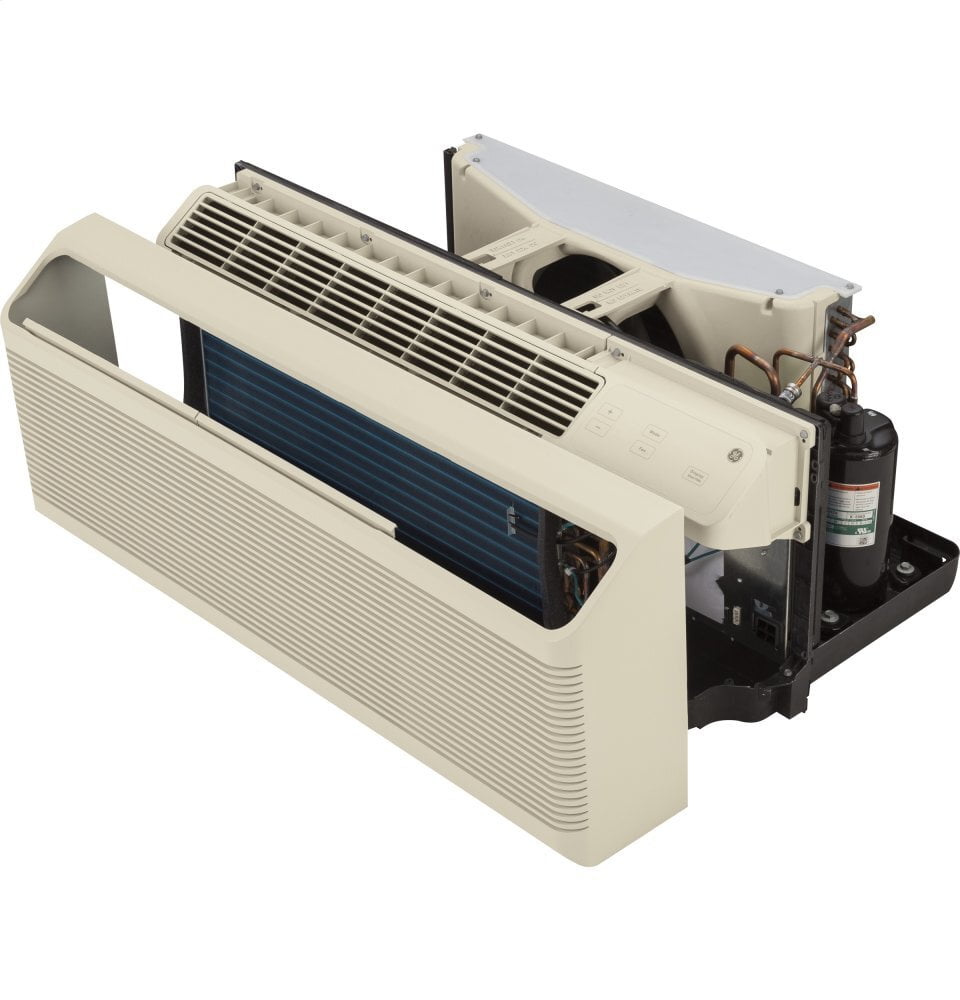

Simplified structure

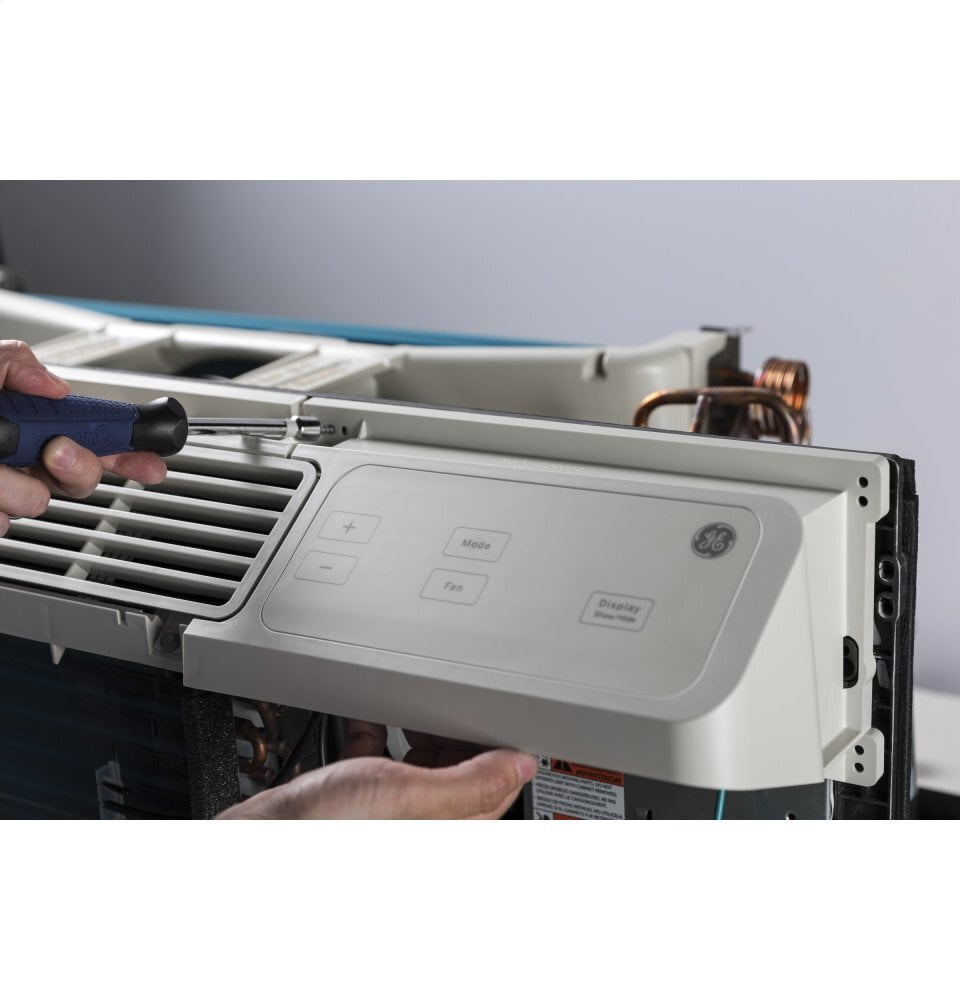

Easy to maintain and service

Energy efficiency

10.5/10.5 EER

Quiet operation

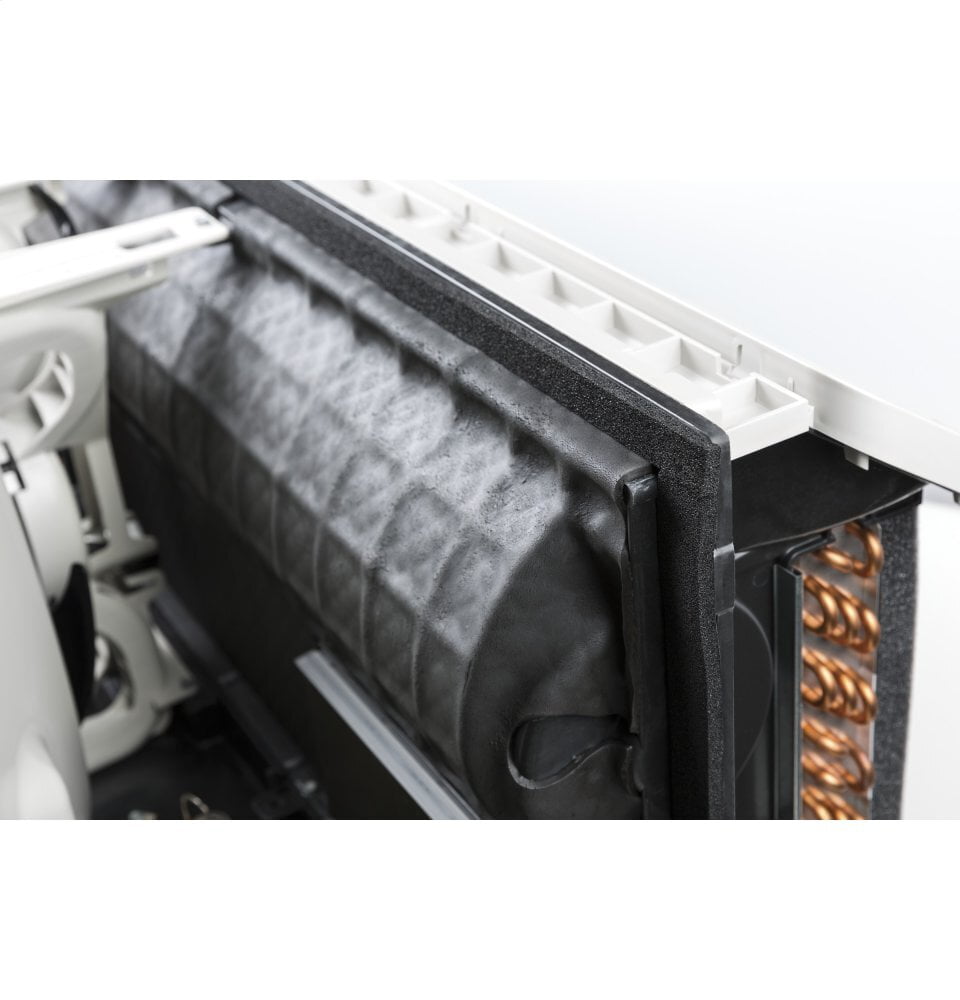

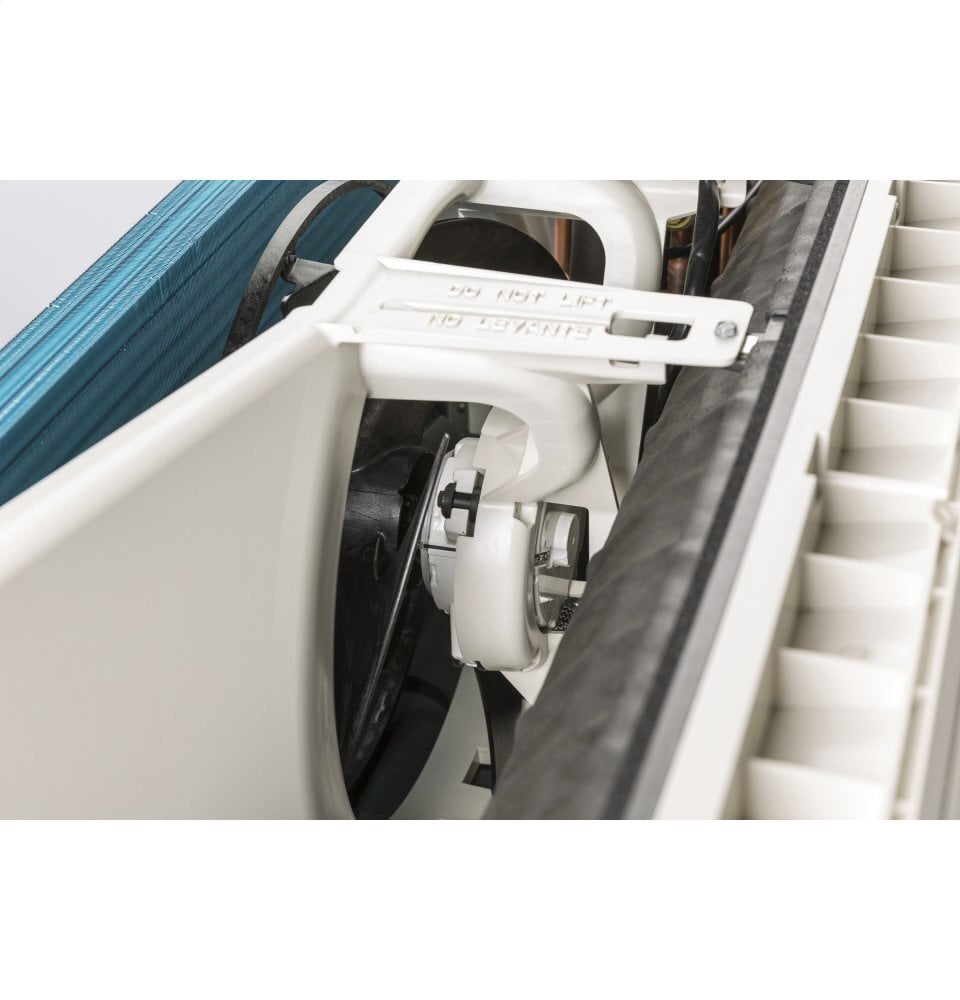

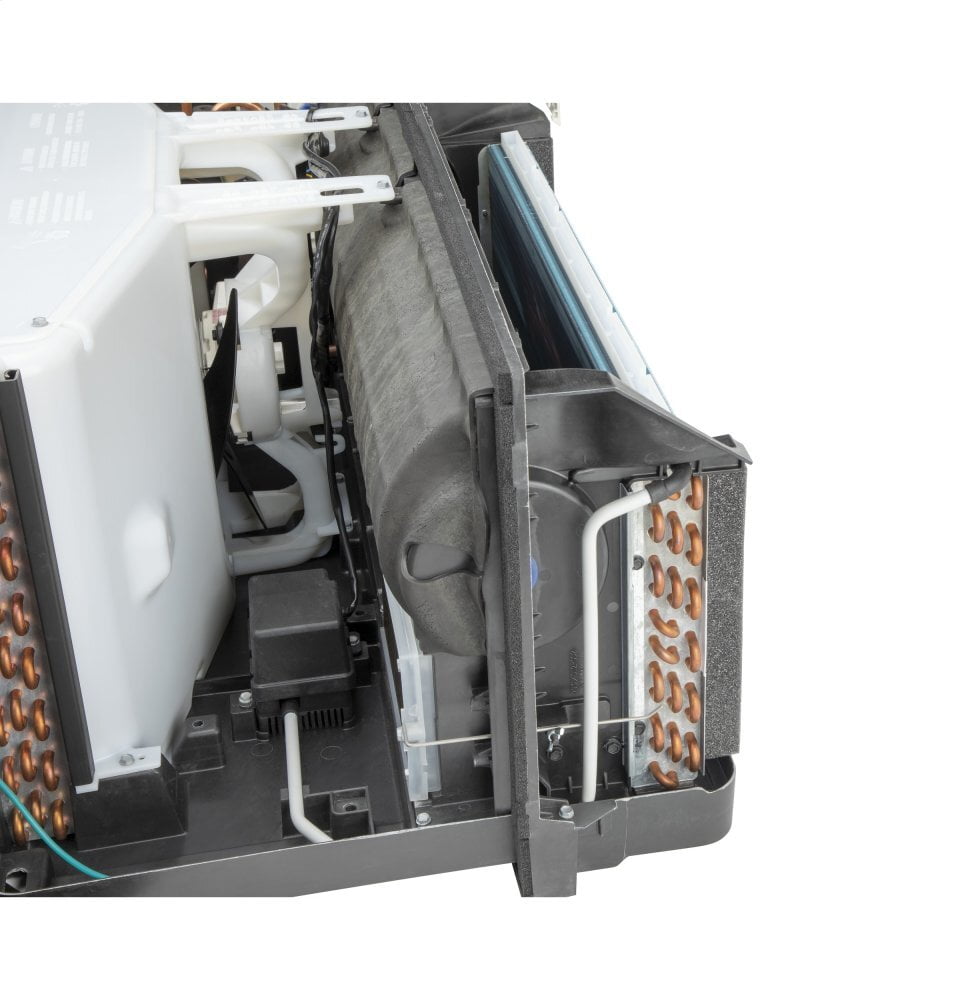

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort


Smc Base Pan Simplified StructureEasy To Maintain And Service Cooling Capacity14,600/14,500 Btu Energy Efficiency10.5/10.5 Eer Dehumidification4.6 Pints/Hour Indoor Fan Cfm (High/Low)449/300 Fresh Air Vent Cfm (Fully Open High Fan)47 Quiet OperationBaked-On Mastic Sound Barrier, Cross Flow Blower And Two Dc Fan Motors Create Less Noise To Ensure Comfort Corrosion ResistantExtends Life Of The Unit In Sea Coast Areas/Corrosive Environments Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display R-410A Refrigerant

  • SMC base pan
  • Simplified structure
  • Cooling capacity
  • Energy efficiency
  • Dehumidification
  • Indoor fan CFM (high/low)
  • Fresh air vent CFM (fully open high fan)
  • Quiet operation

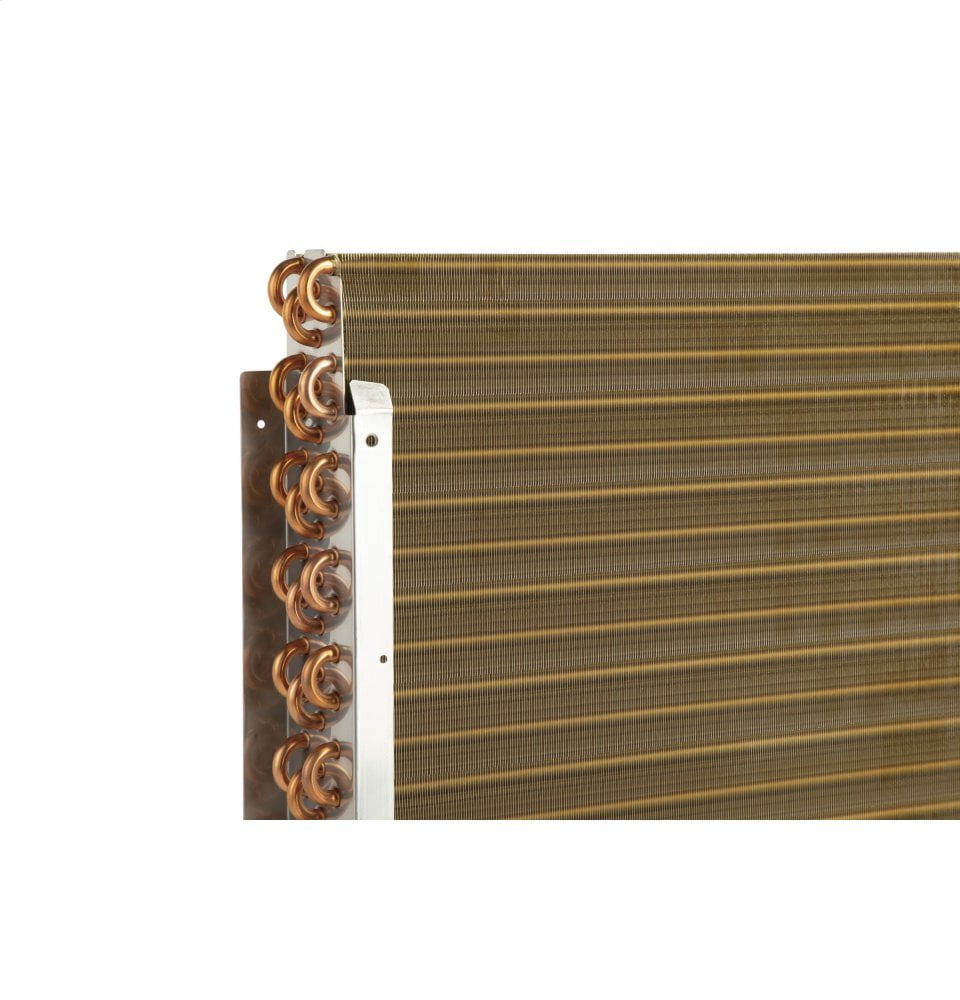

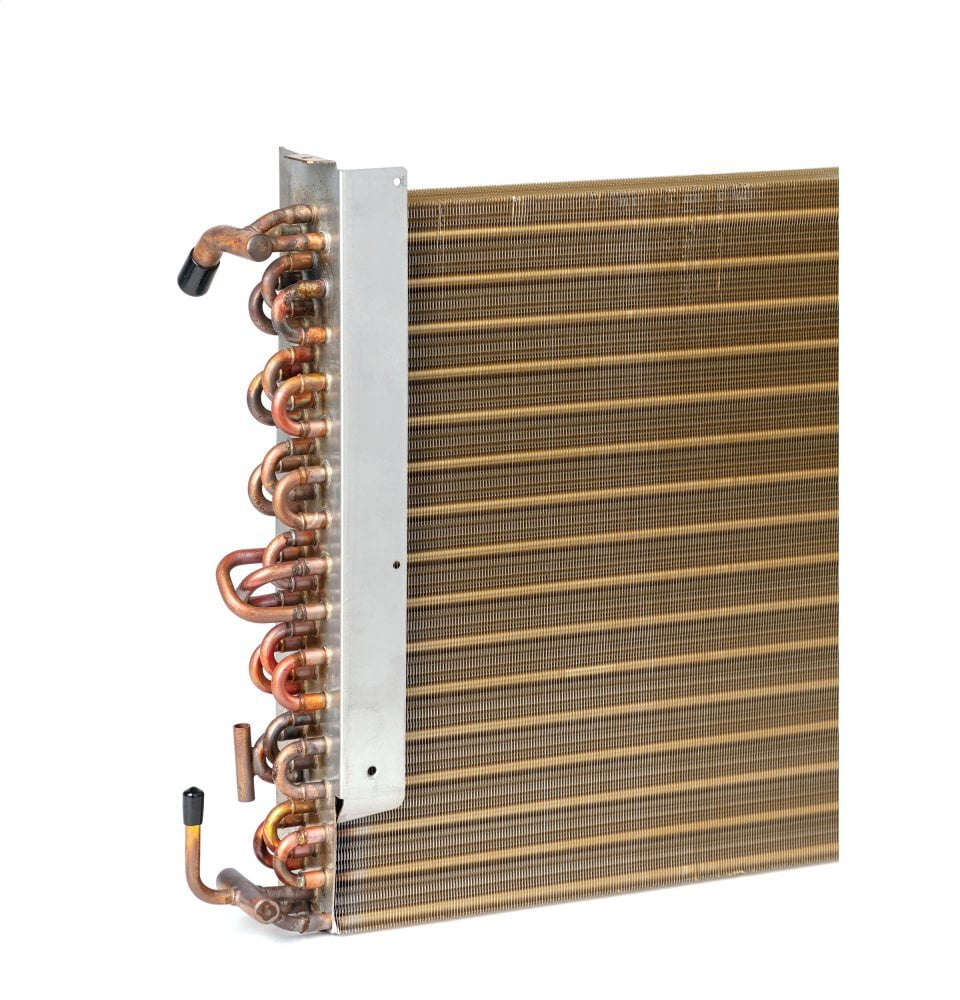

  • Corrosion resistant
  • Heat & Freeze Sentinels
  • Electronic temperature limiting
  • Electronic touch controls with LED display
  • R-410A refrigerant

CAPACITY
Cooling BTUH (MIN) 14500.0 Btu
Cooling BTUH (MAX) 14600.0 Btu
Cooling EER (BTUH / Watt) 10.5/10.5
CFM Indoor Fan High 436
CFM Indoor Fan Low 330
Dehumidification (pts./hr.) 4.6
Vent CFM (high fan at zero ESP) 47
FEATURES

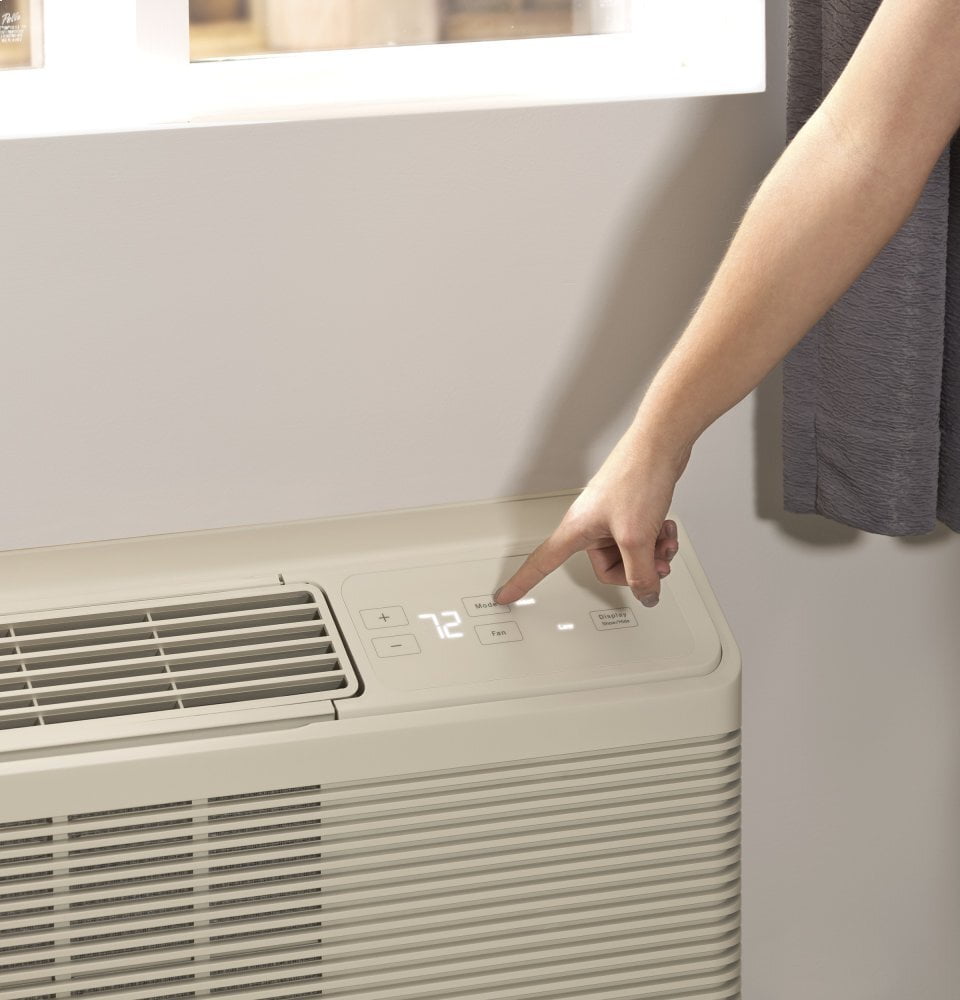

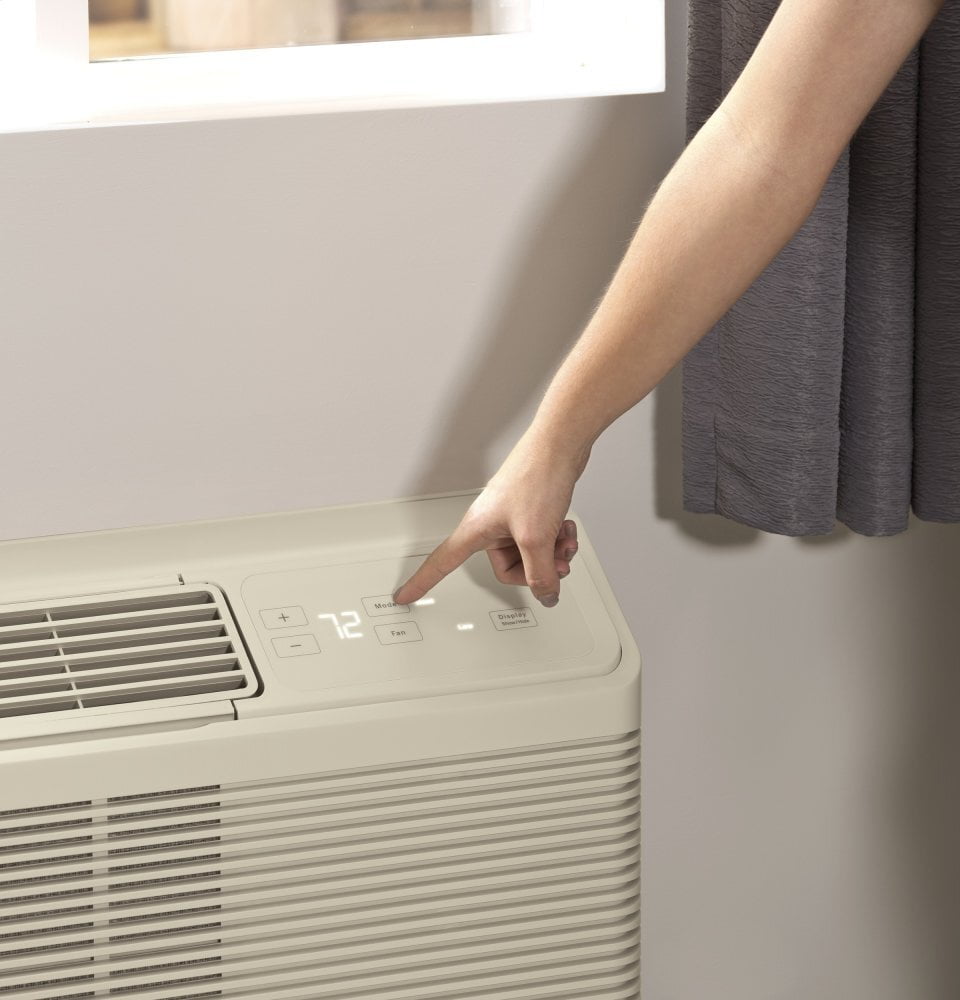

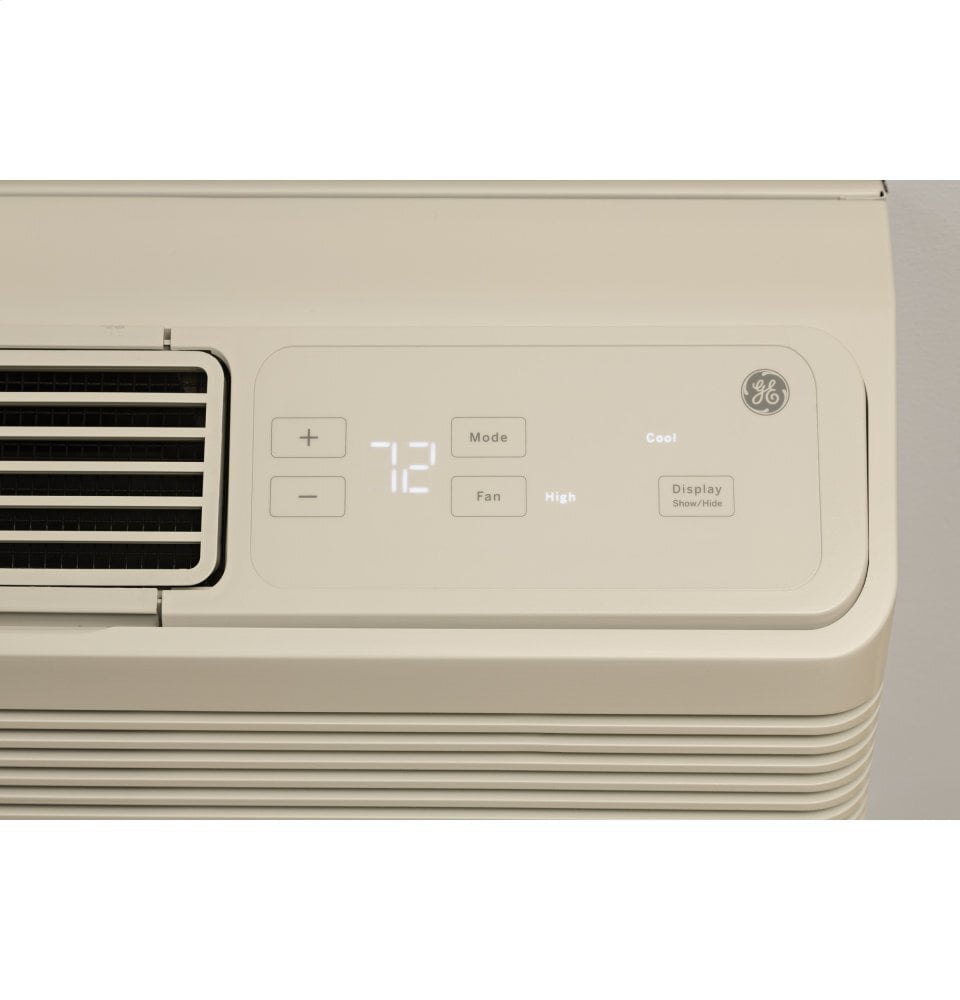

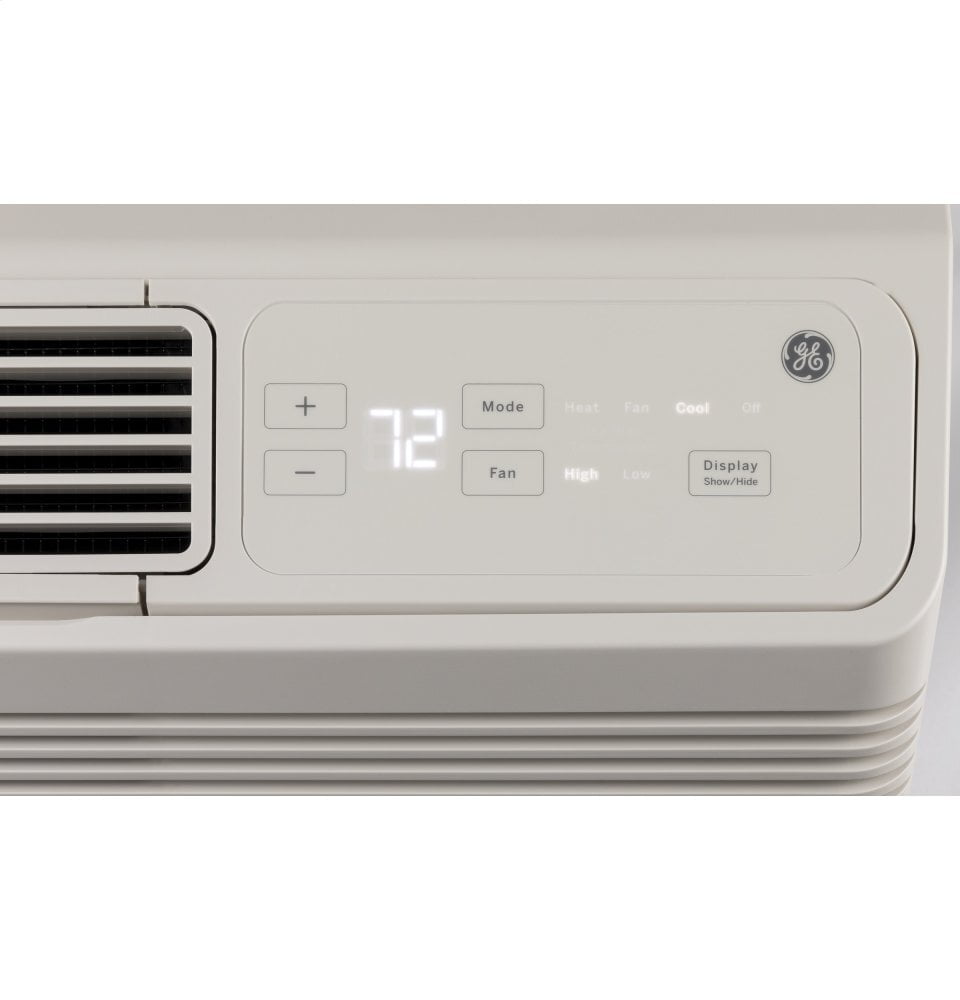

Control Type Coverless Backlit White LED Touch Controls
Corrosion Treated Yes
Discharge Grille 2-position
Electronic Micro Computer Control Yes
Fan Cycle Switch Yes
Fan Motor 2
Fan Speed Control Yes
Fan Speed Selections Hi/Low Cooling
Hi/Low Fan Only
Hi/Low Heating

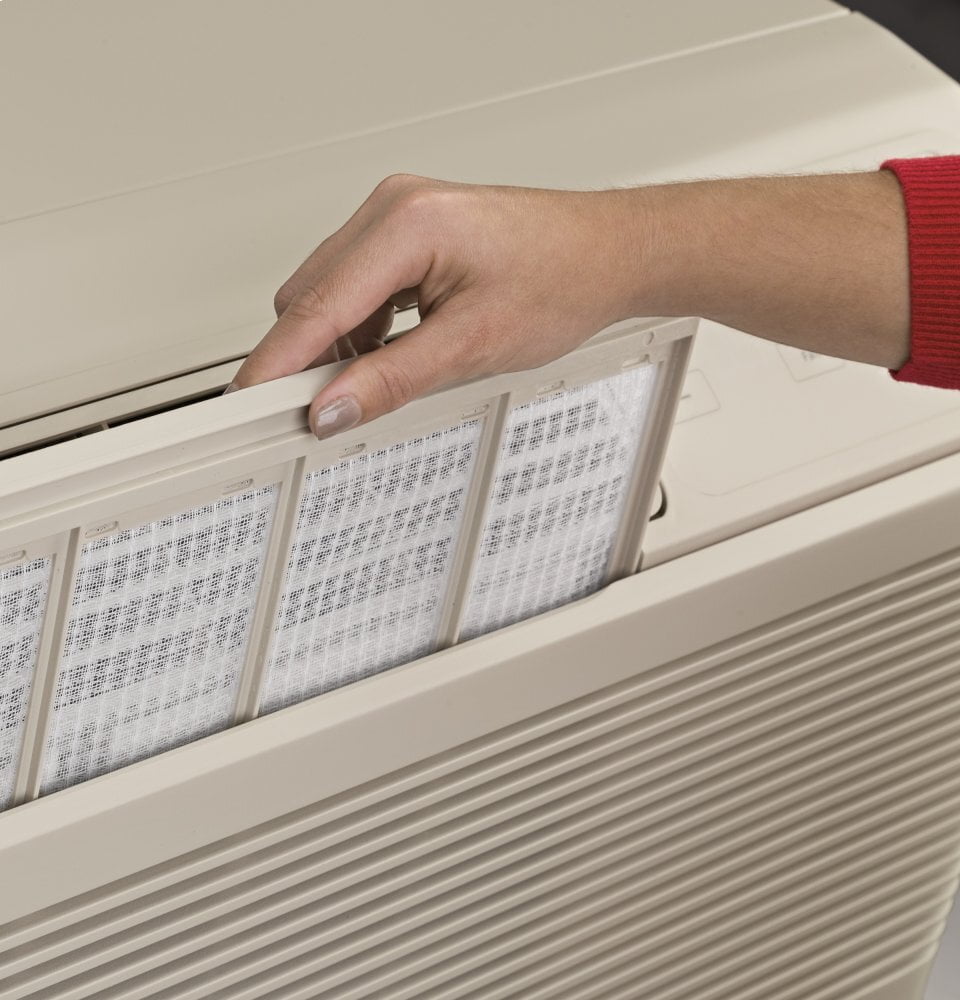

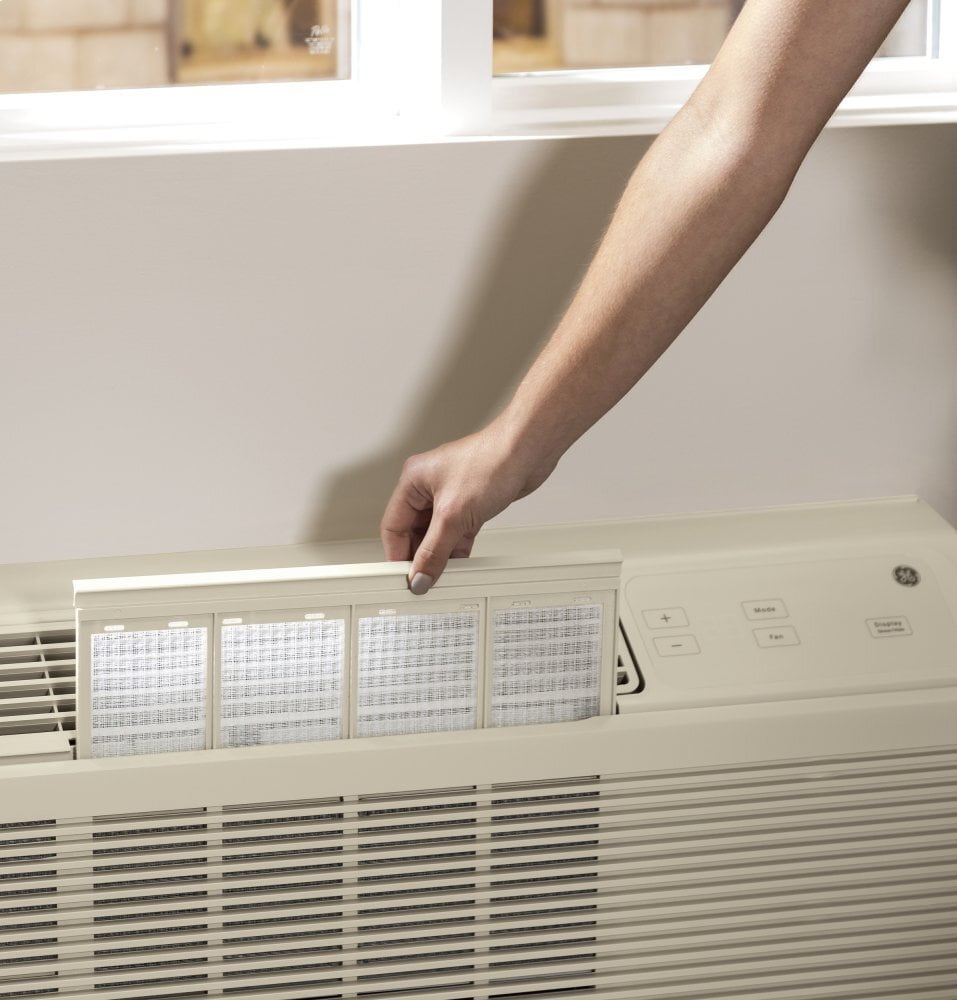

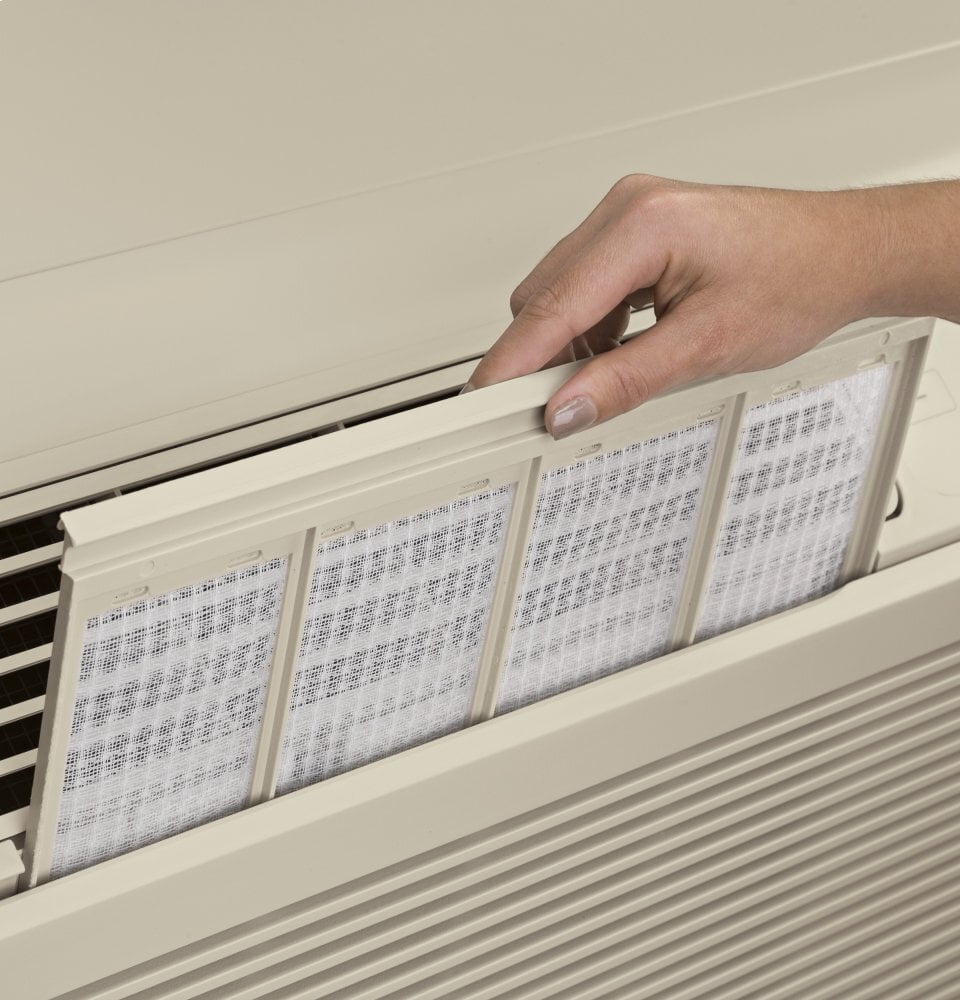

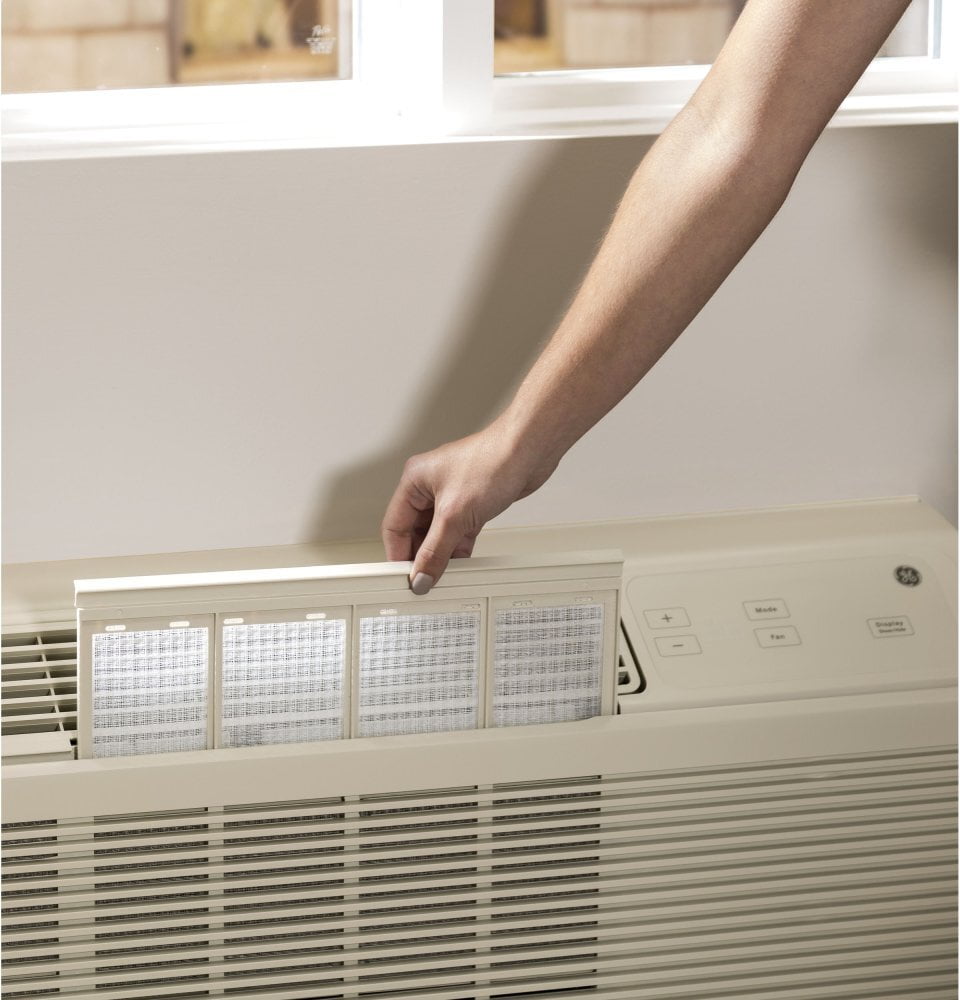

Filter Type Rigid Frame
Slide-Out
Heat - Cool Yes
Louver Style Reversible
Manual Vent Control Hidden

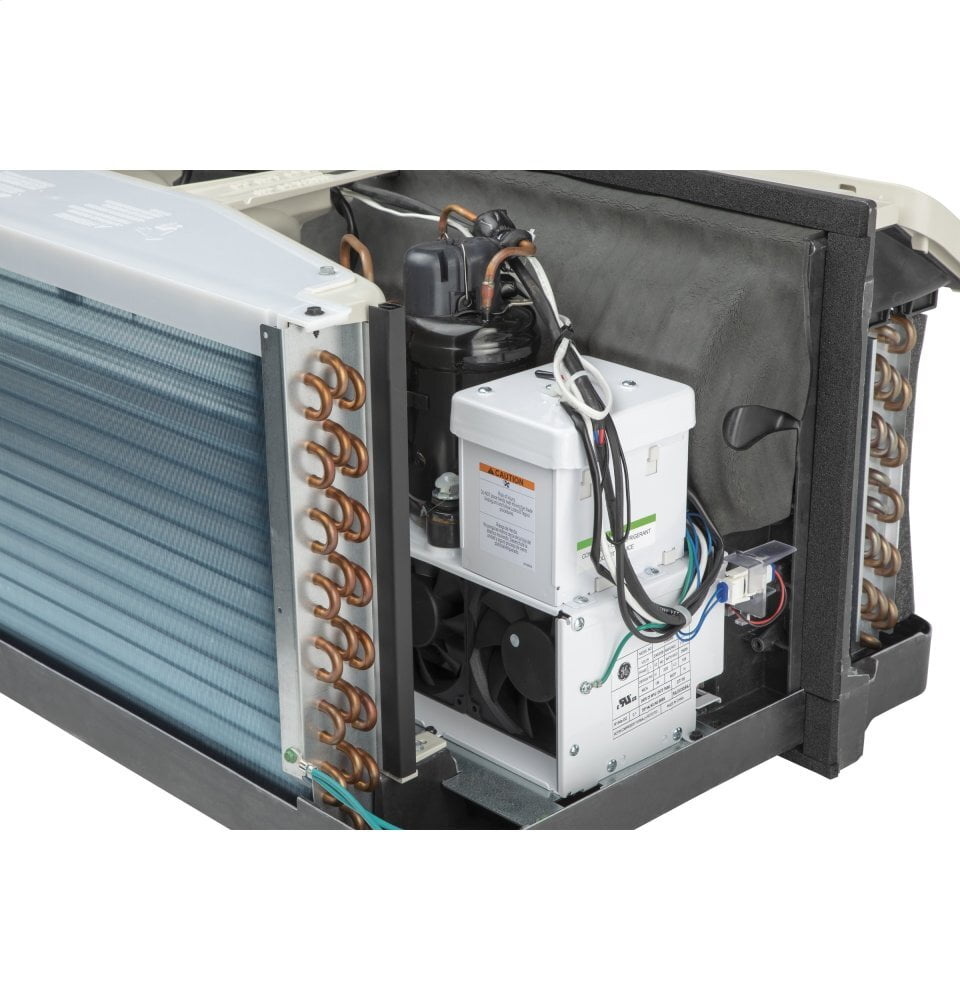

Rotary Compressor Yes
Temperature Limiting Electronic 7-Step
Vent Control 3-position
Venting Features Concealed Manual Vent Control
Outdoor Vent Control - 3 Positions
Vent Air Filter
Zoneline Features Remote Thermostat Compatibility
Universal Heaters

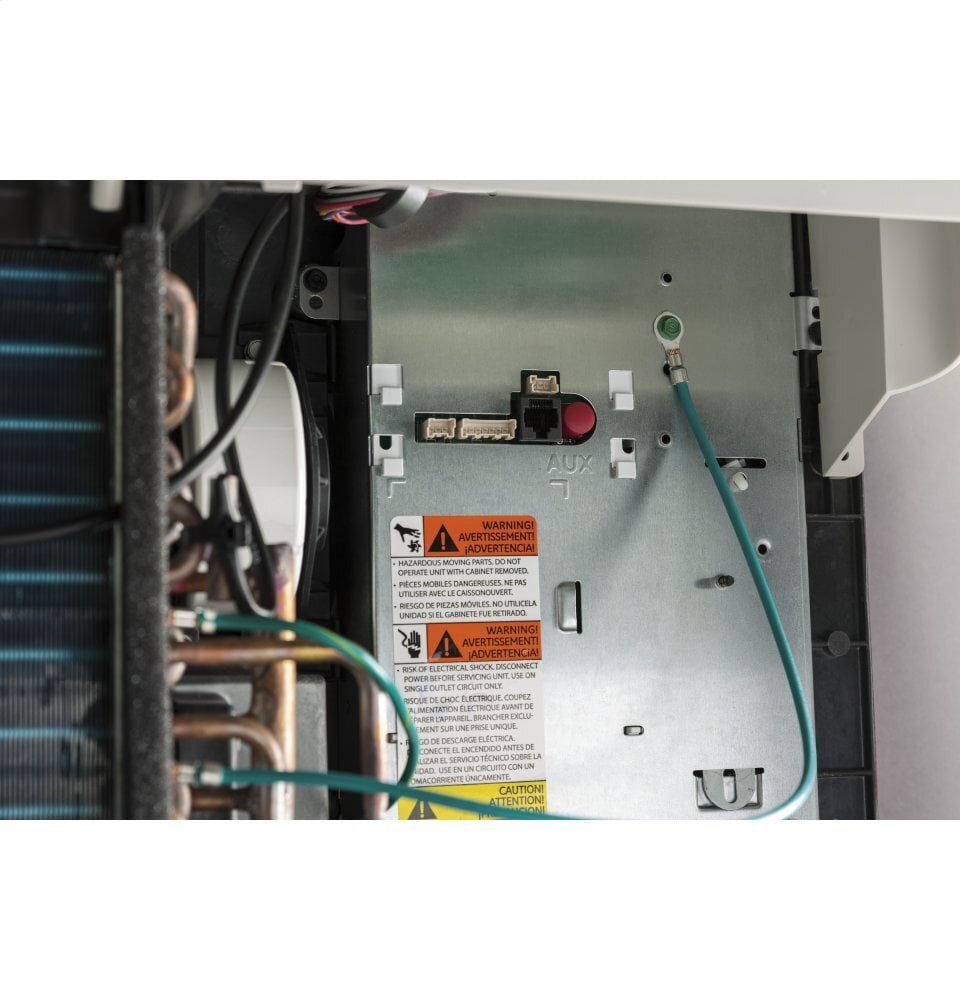

Weather Protected Electrical Components
Auto Power Recovery
Automatic Indoor Frost Control
Central Desk Control Compatibility
Freeze Sentinel
Heat Sentinel (85F)
Power Cord (LDCI) included
Proportional - Integral ID Airflow

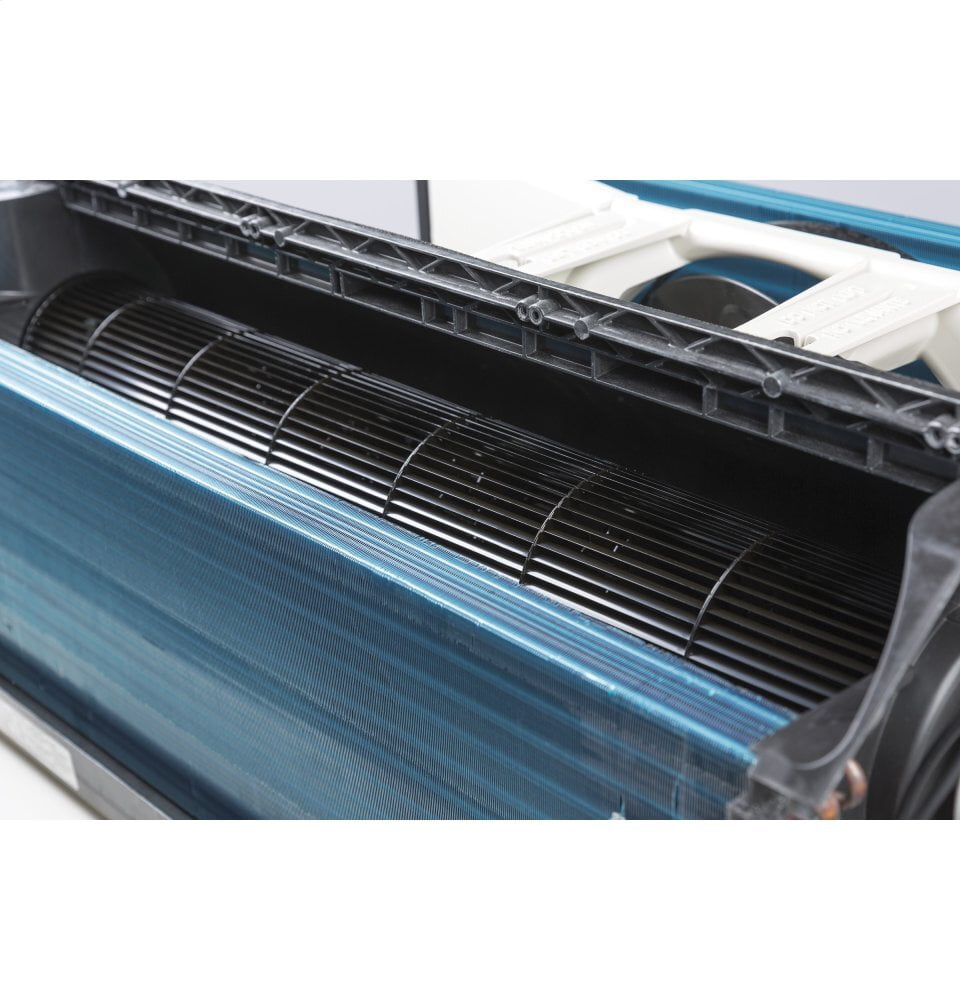

Random Twist/Length Segment Tangential Blower
Heating System Electric Resistance
Product Type Packaged Terminal Air Conditioners (PTAC)
Temperature Range 60 - 85 F
Sensible Heat Ratio 63%
Chassis Type Slide-In
POWER / RATINGS
Cooling - Amperes; F.L. - Cooling 6.3/6.7
Cooling - Amperes; L.R. 31.5
Cooling - Watts 1390/1380
Power Factor 97
Voltage (MIN) 208.0 V
Voltage (MAX) 230.0 V
WARRANTY
Parts Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Labor Warranty Limited 1-year entire appliance
Limited 5-year sealed refrigerating system
Warranty Notes See written warranty for full details
WEIGHTS & DIMENSIONS
Net Weight 110.0 lb
Overall Depth 20.8125 in
Overall Height 16.0 in
Overall Width 42.0 in
