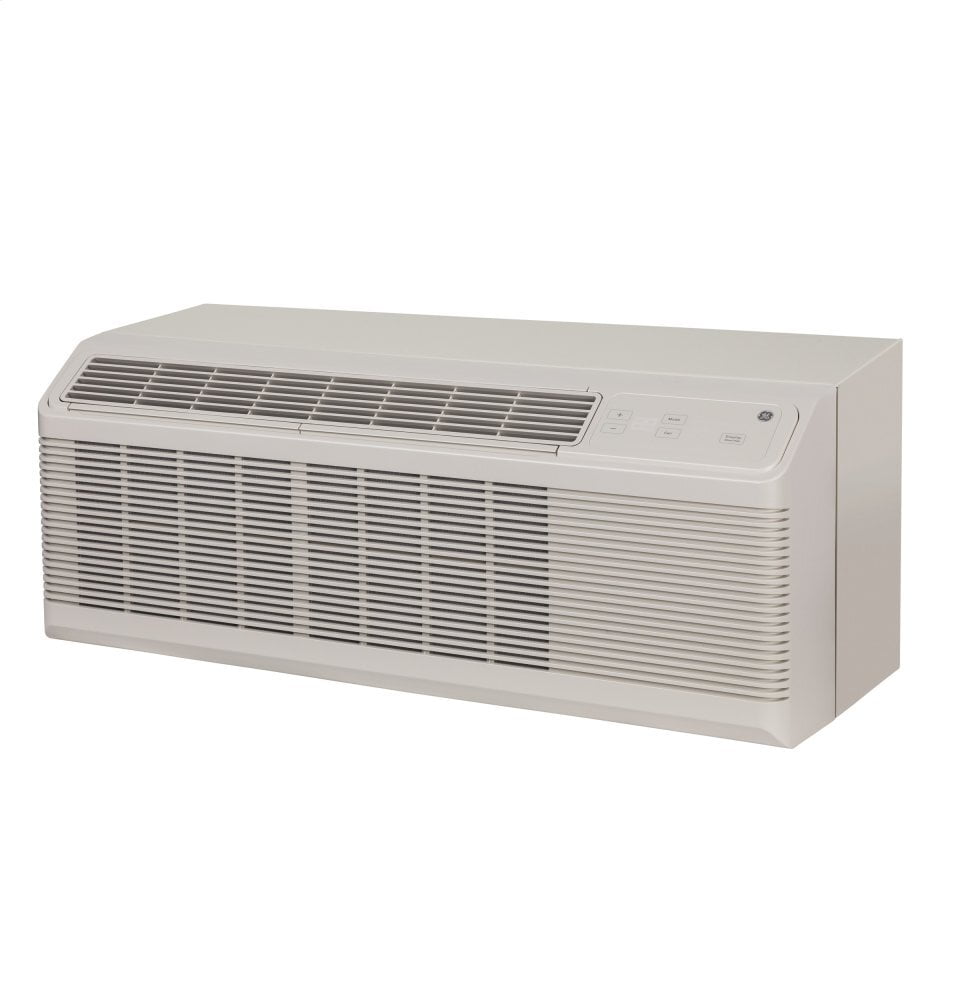

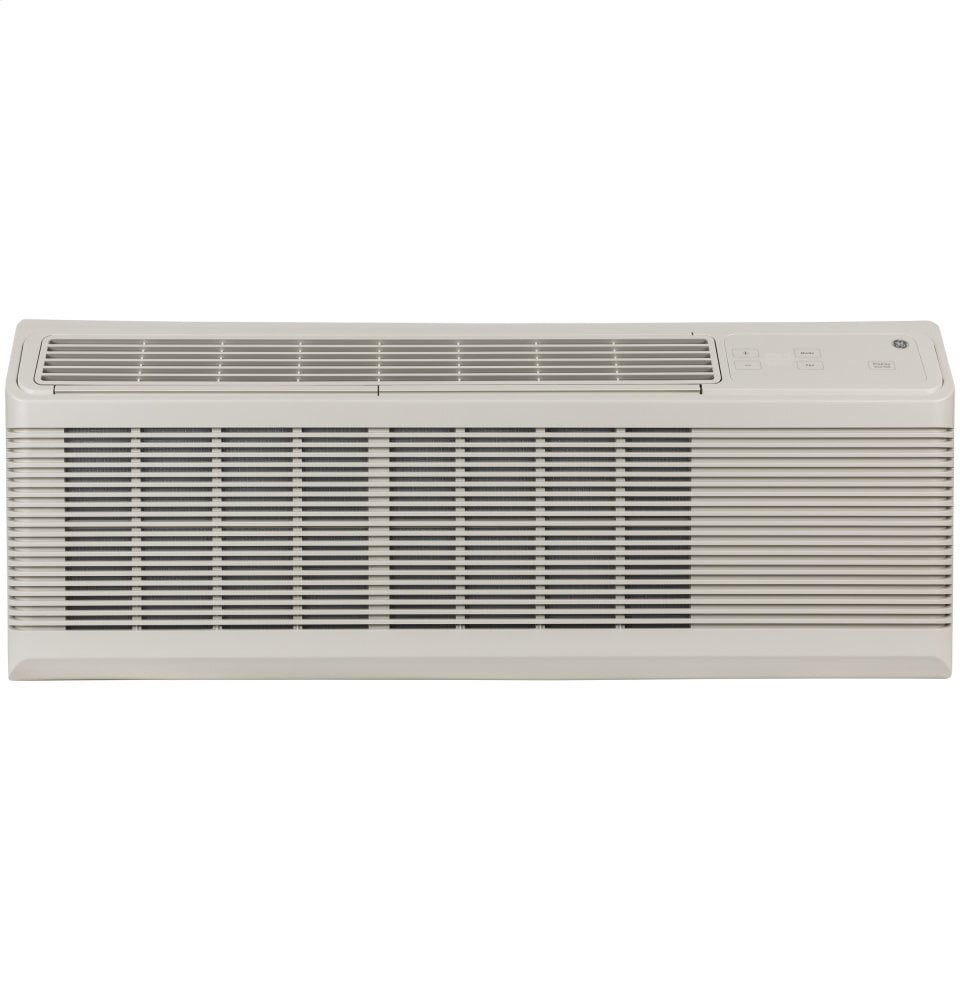

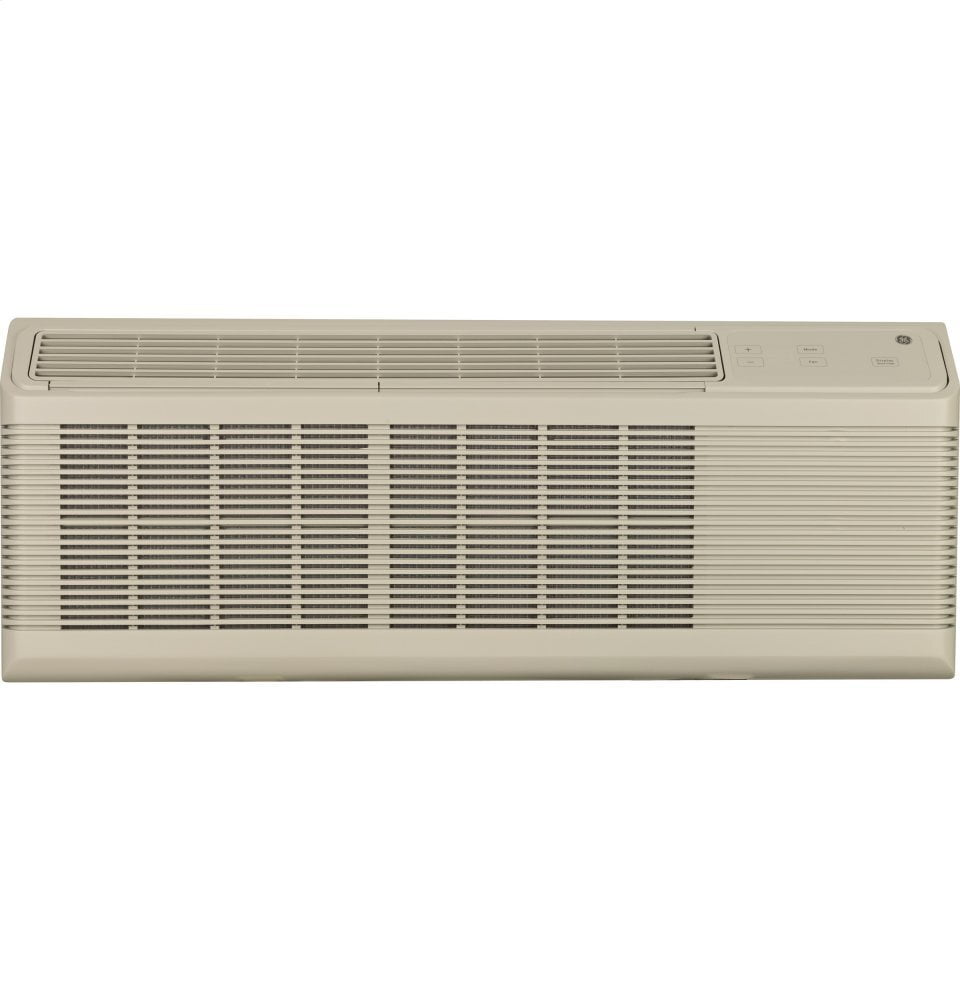

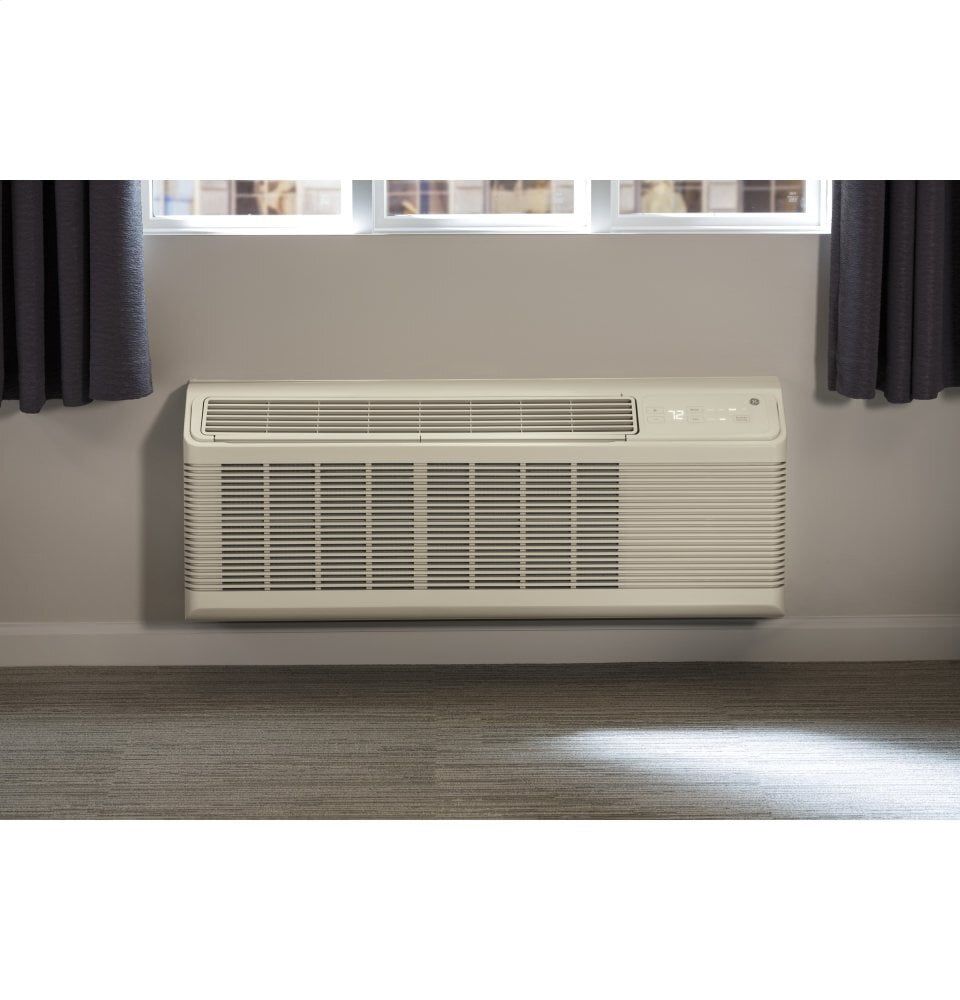

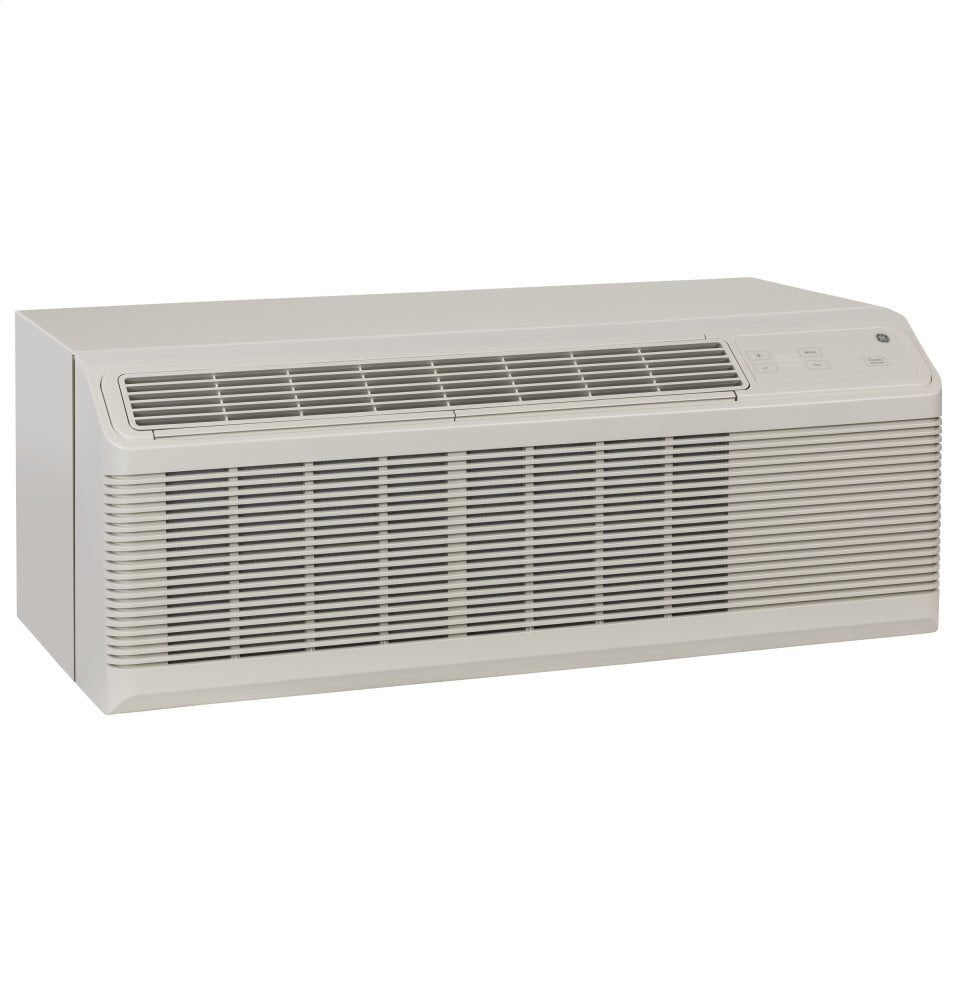

Ge Appliances AZ45E15DAB Ge Zoneline® Cooling And Electric Heat Unit, 230/208 Volt
Cooling Capacity14,900/14,800 Btu Simplified StructureEasy To Maintain And Service ... Read more...
SKU:AZ45E15DAB
UPC:084691815679
Cooling Capacity14,900/14,800 Btu Simplified StructureEasy To Maintain And Service Energy Efficiency10.5/10.5 Eer Dehumidification4.6 Pints/Hour Indoor Fan Cfm (High/Low)449/300 Fresh Air Vent Cfm (Fully Open High Fan)47 Quiet OperationBaked-On Mastic Sound Barrier, Cross Flow Blower And Two Dc Fan Motors Create Less Noise To Ensure Comfort Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display R-410A Refrigerant Smc Base Pan

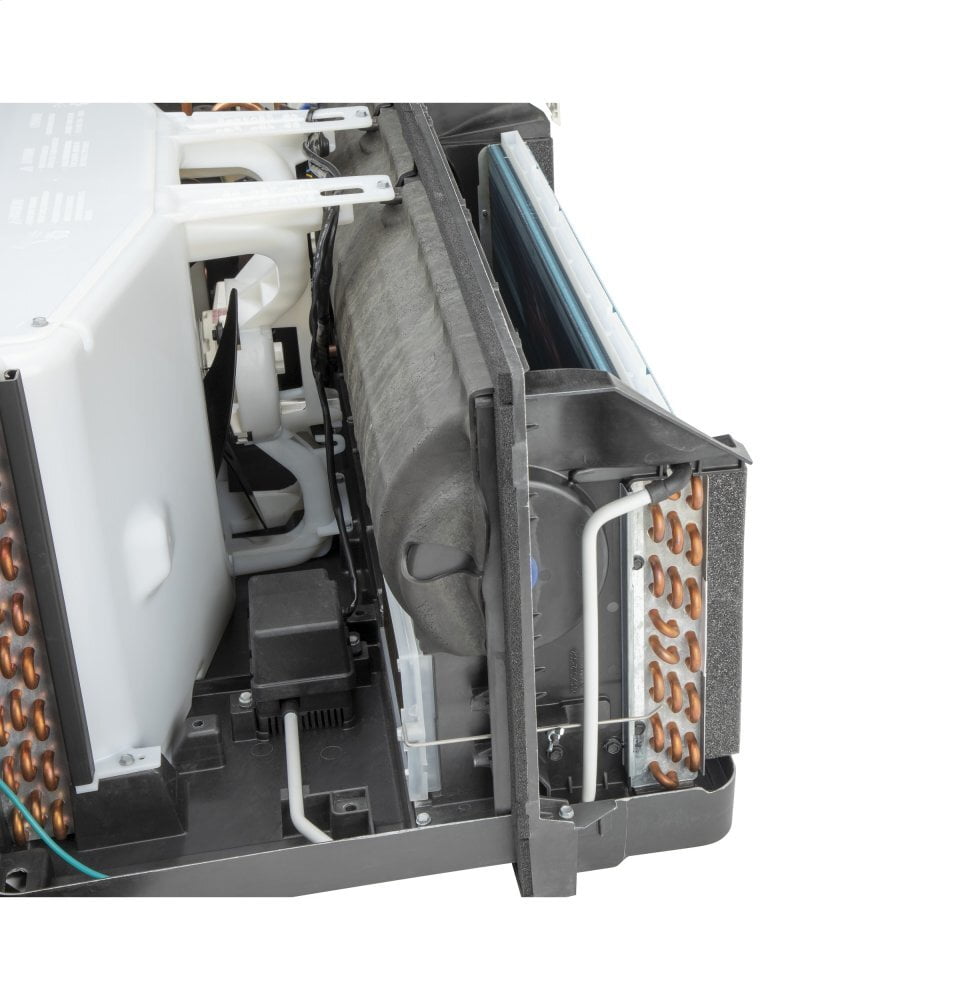

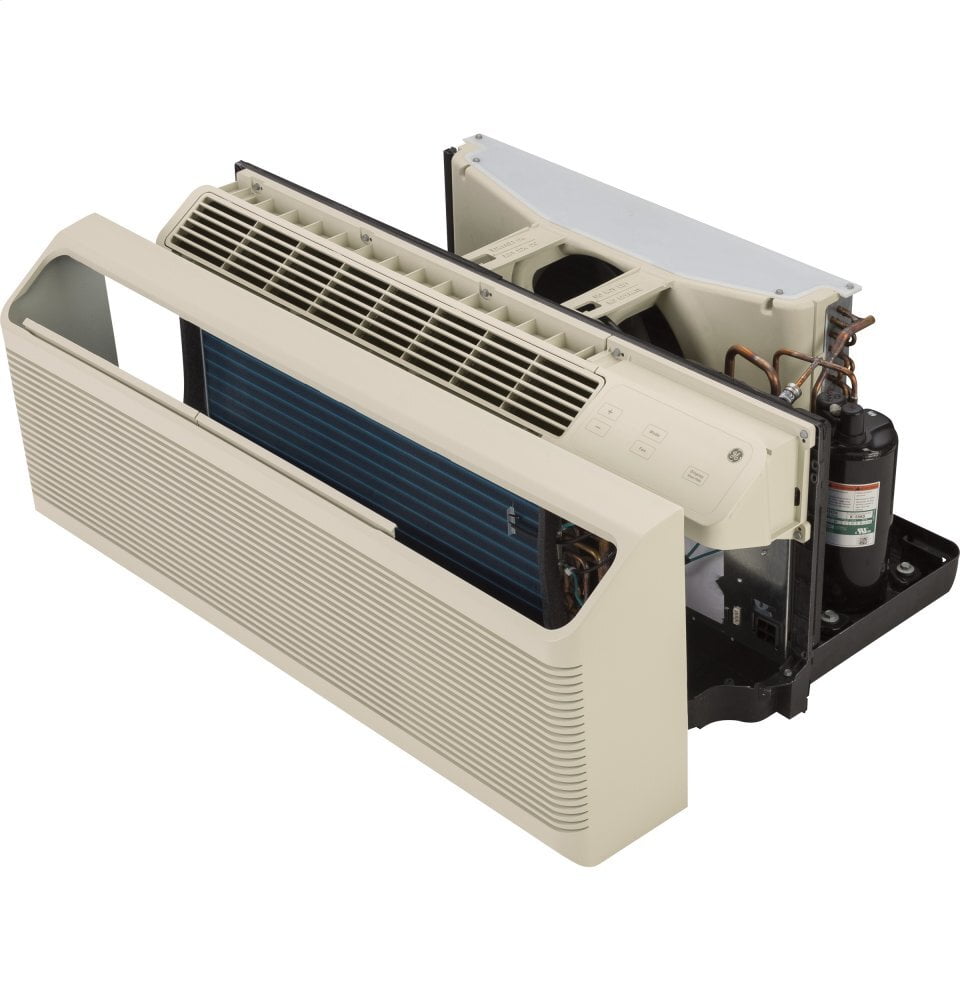

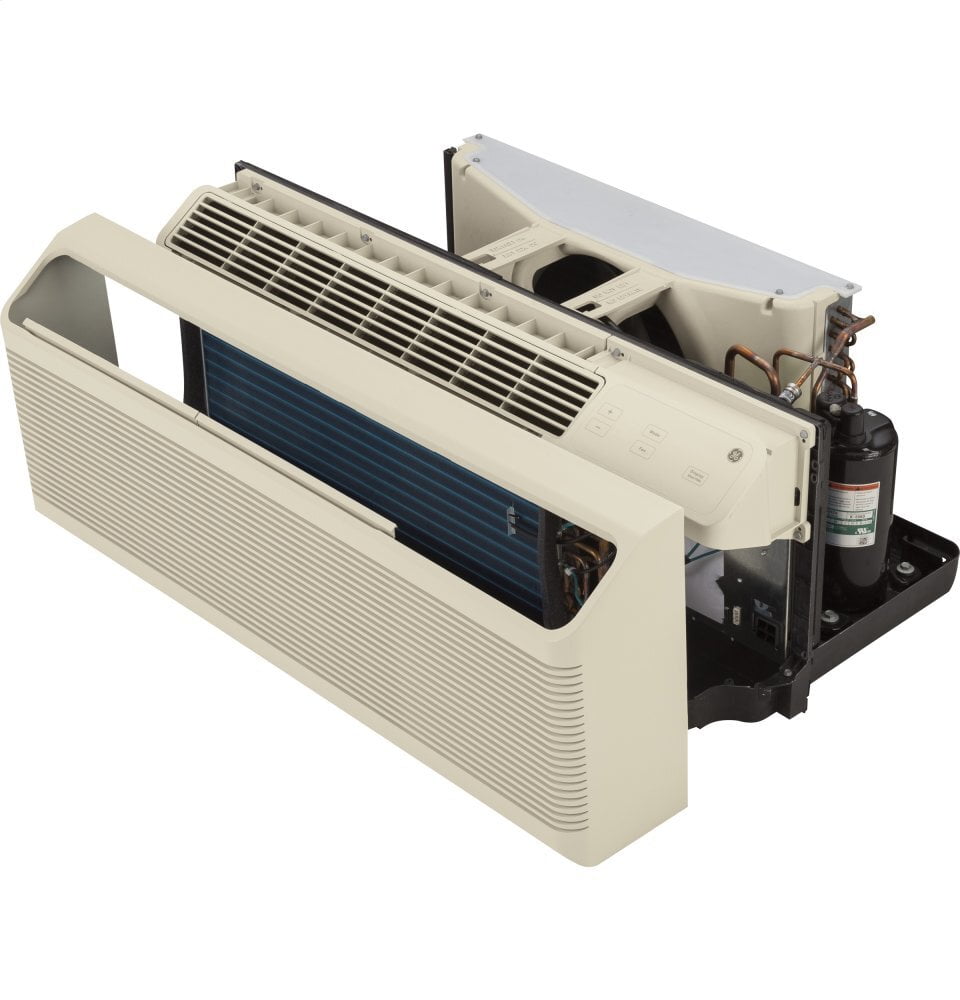

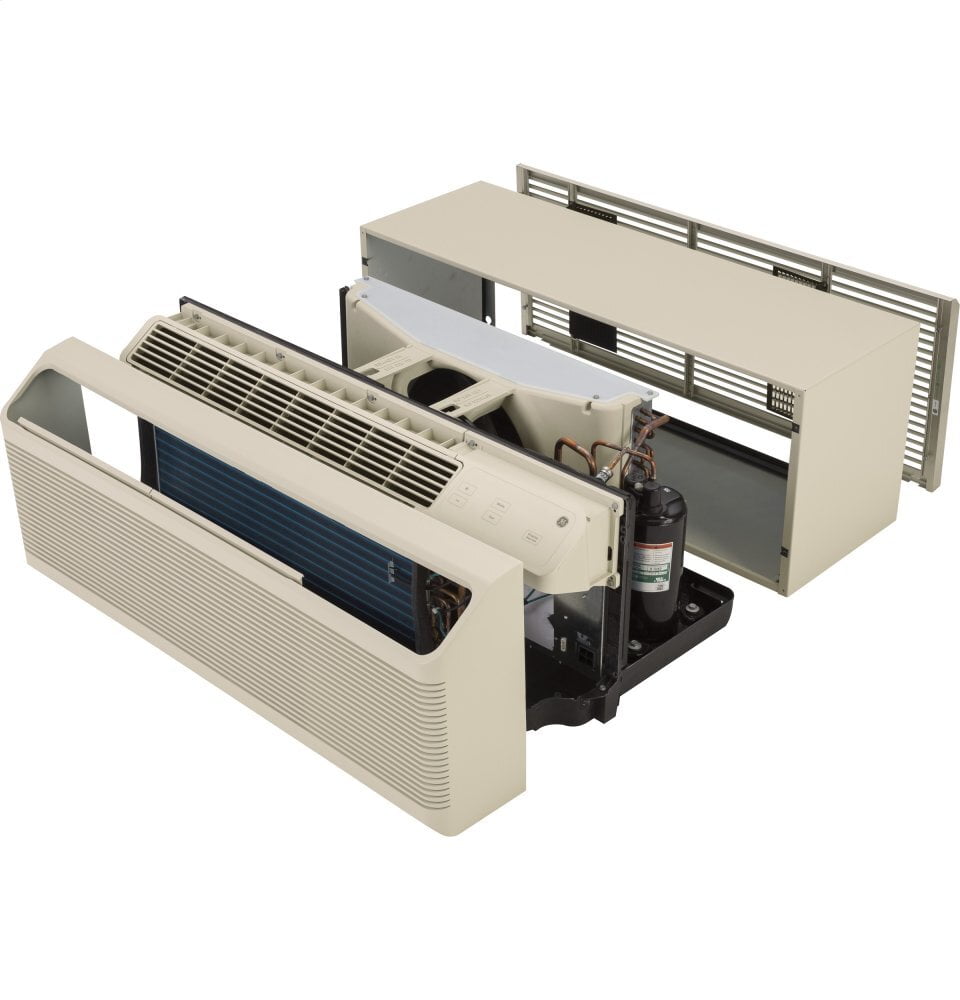

Simplified structure
Easy to maintain and service
Energy efficiency
10.5/10.5 EER
Quiet operation

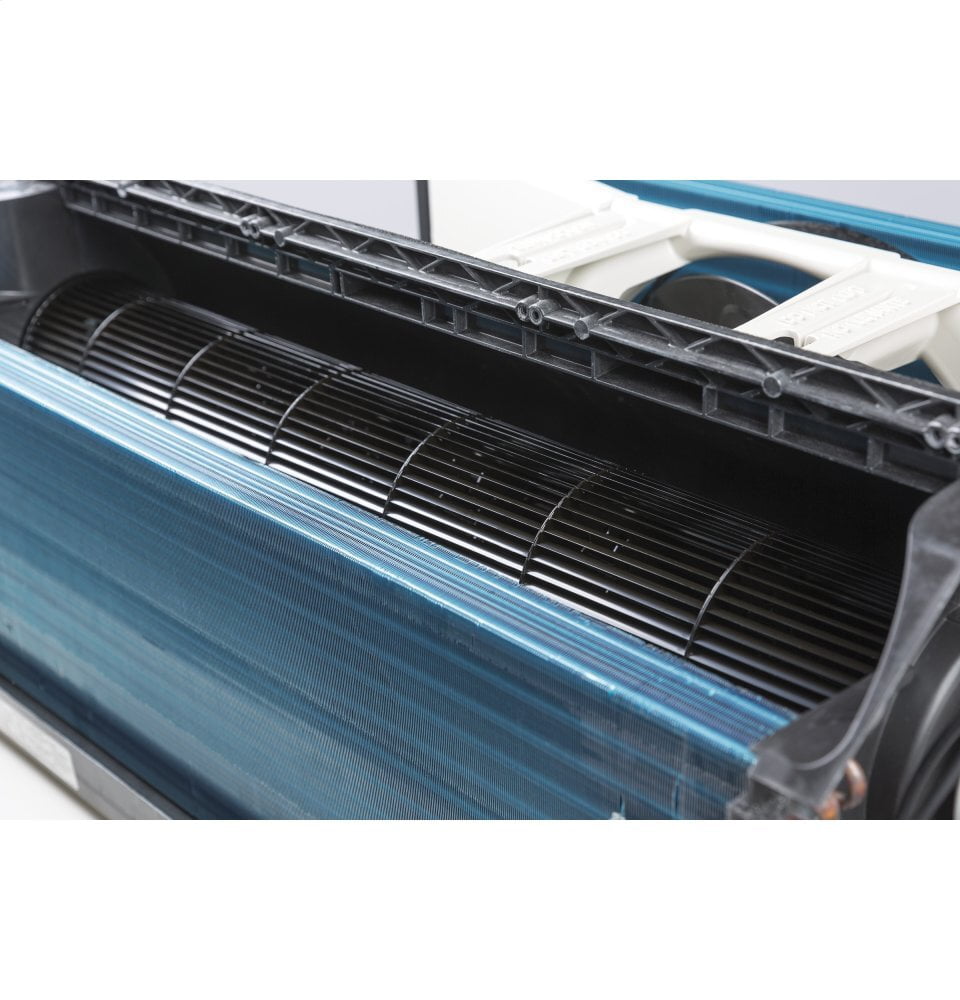

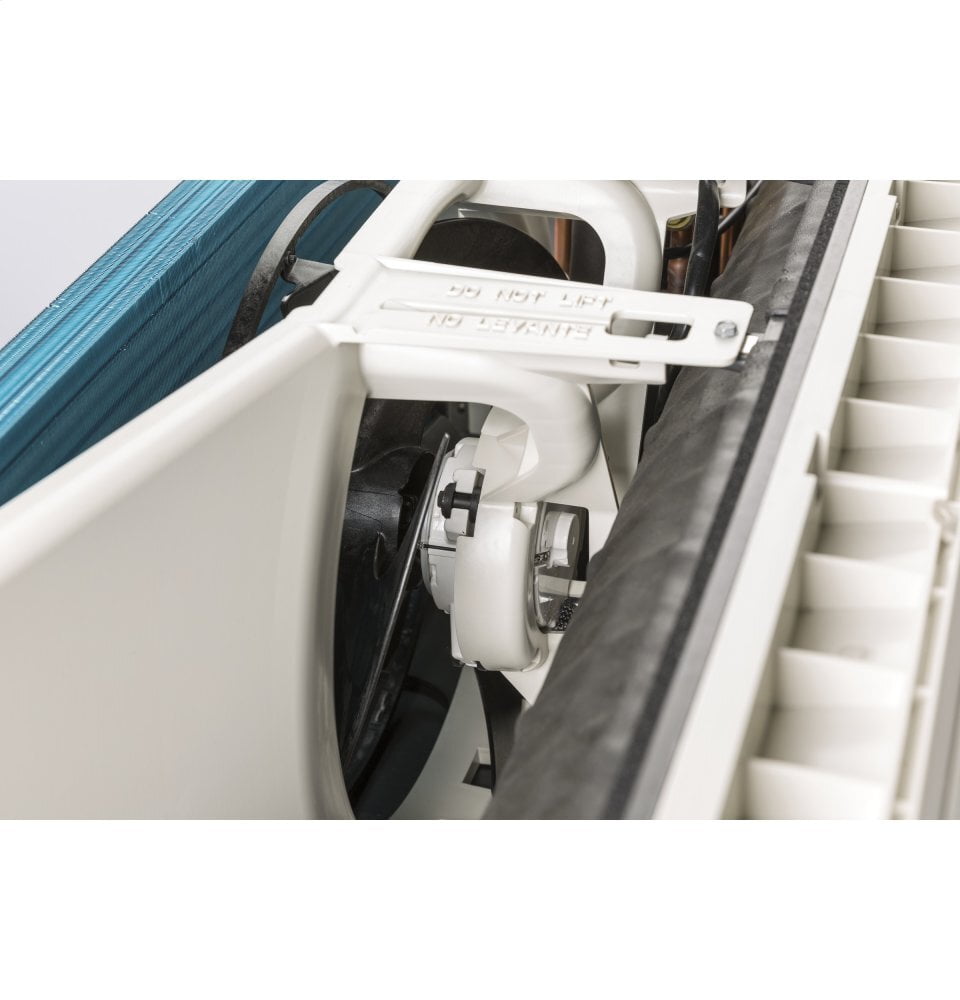

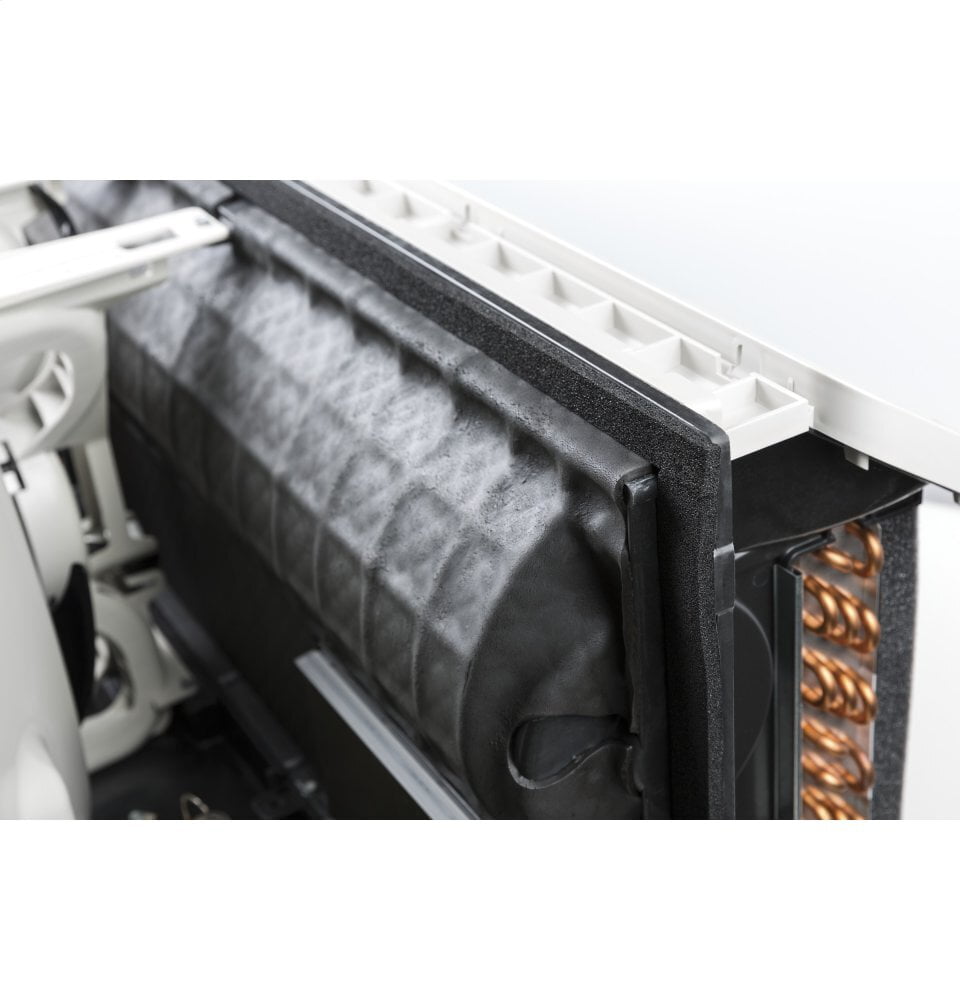

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
- Cooling capacity
- 14,900/14,800 BTU
- Simplified structure
- Easy to maintain and service
- Energy efficiency
- 10.5/10.5 EER
- Dehumidification
- 4.6 pints/hour
- Indoor fan CFM (high/low)
- 449/300
- Fresh air vent CFM (fully open high fan)
- 47
- Quiet operation
- Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
- Heat & Freeze Sentinels
- Keeps the room from overheating or freezing
- Electronic temperature limiting
- Prevents expensive over-cooling or over-heating of the room

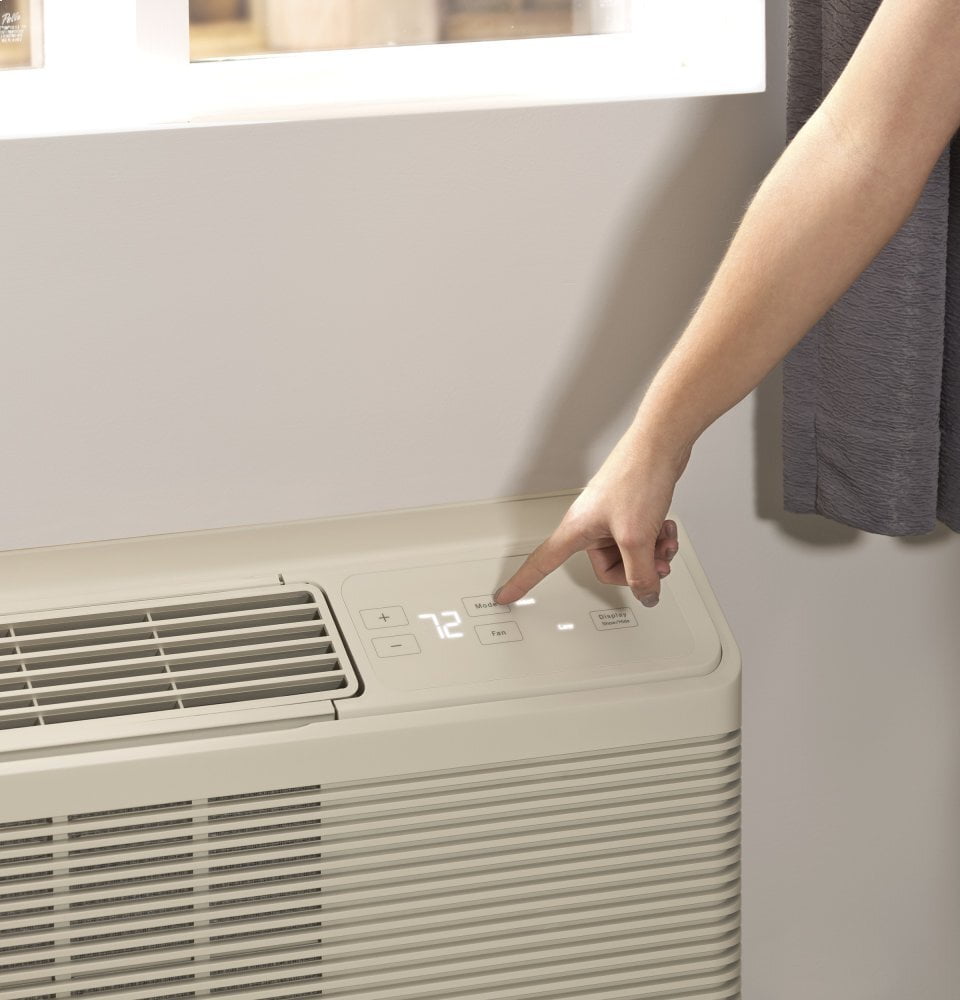

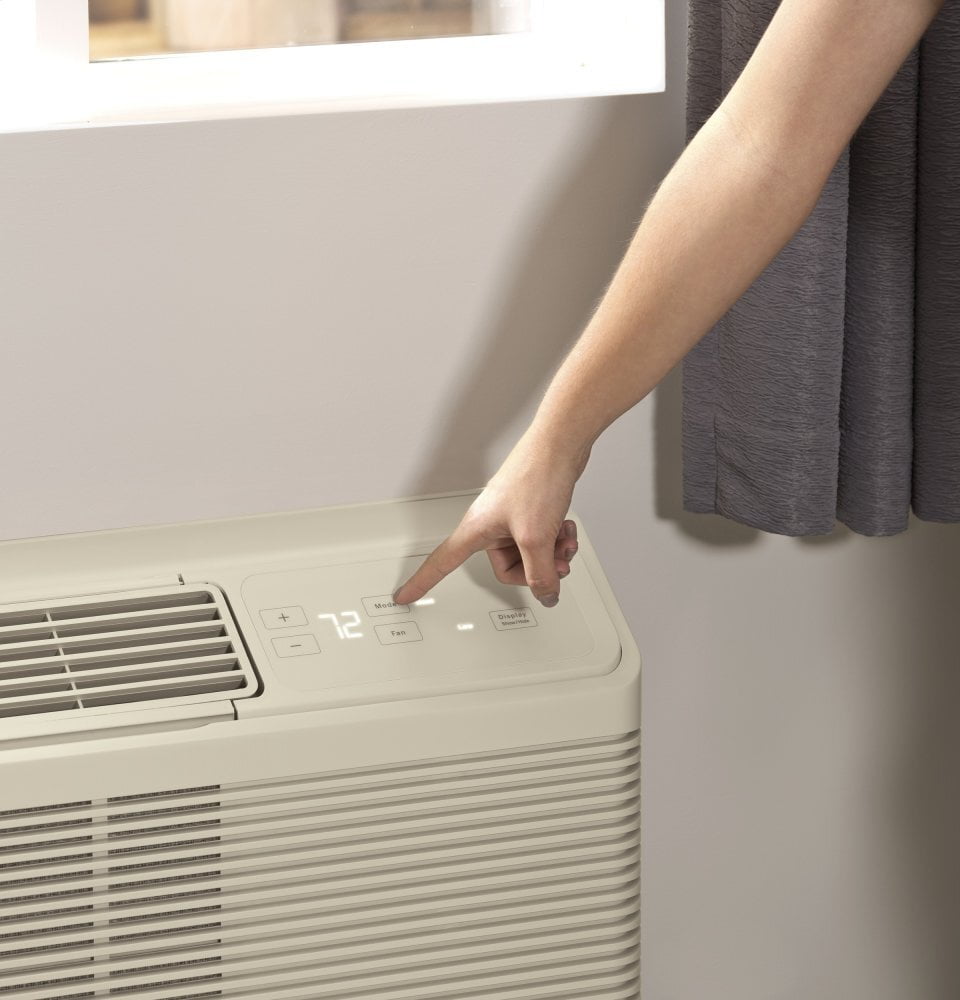

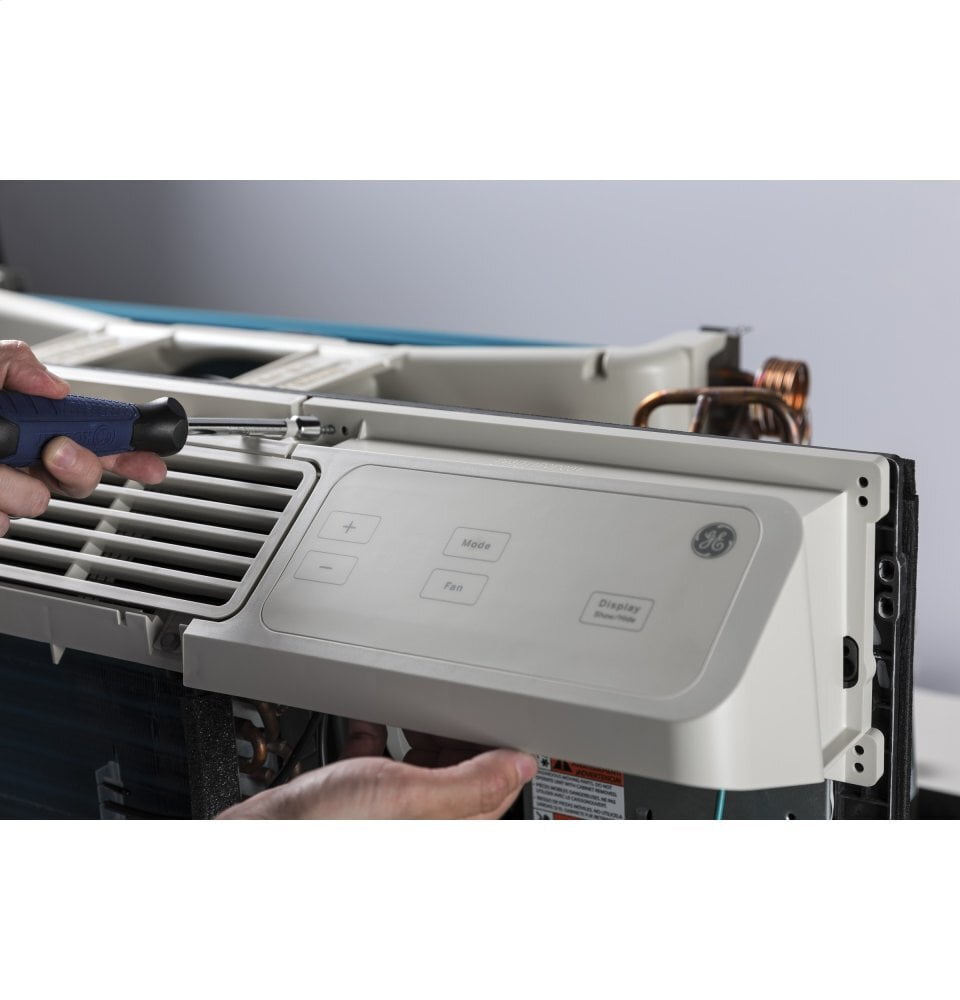

- Electronic touch controls with LED display
- R-410A refrigerant
- SMC base pan
| CAPACITY | |
| Cooling BTUH (MIN) | 14800.0 Btu |
| Cooling BTUH (MAX) | 14900.0 Btu |
| Cooling EER (BTUH / Watt) | 10.5/10.5 |
| CFM Indoor Fan High | 435 |
| CFM Indoor Fan Low | 330 |
| Dehumidification (pts./hr.) | 4.6 |
| Vent CFM (high fan at zero ESP) | 47 |
| FEATURES | |

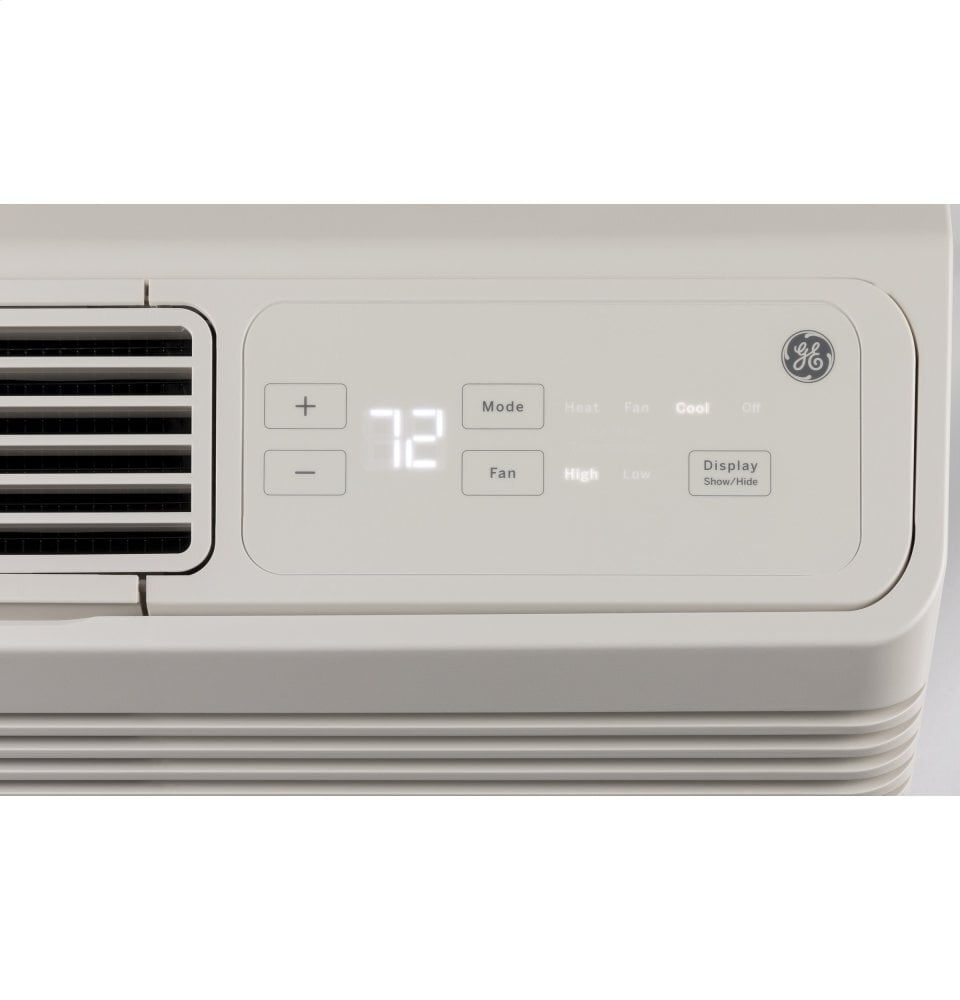

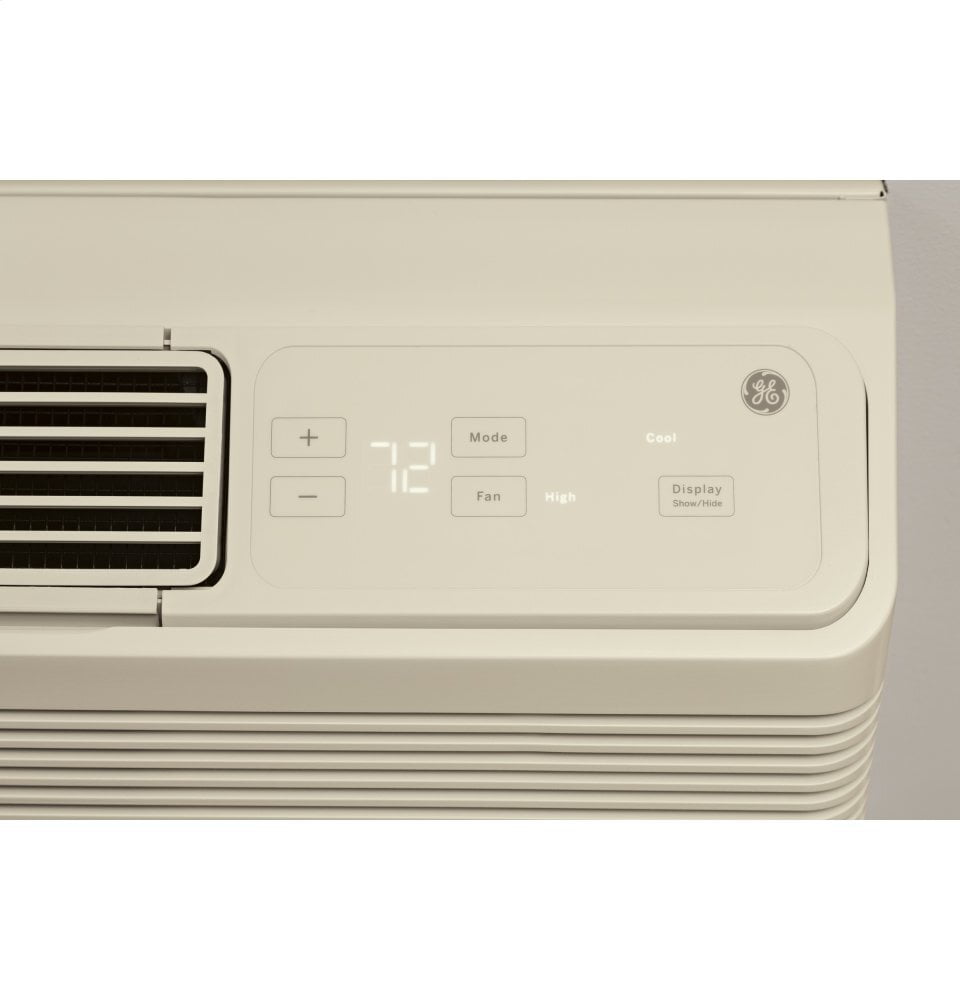

| Control Type | Coverless Backlit White LED Touch Controls |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |

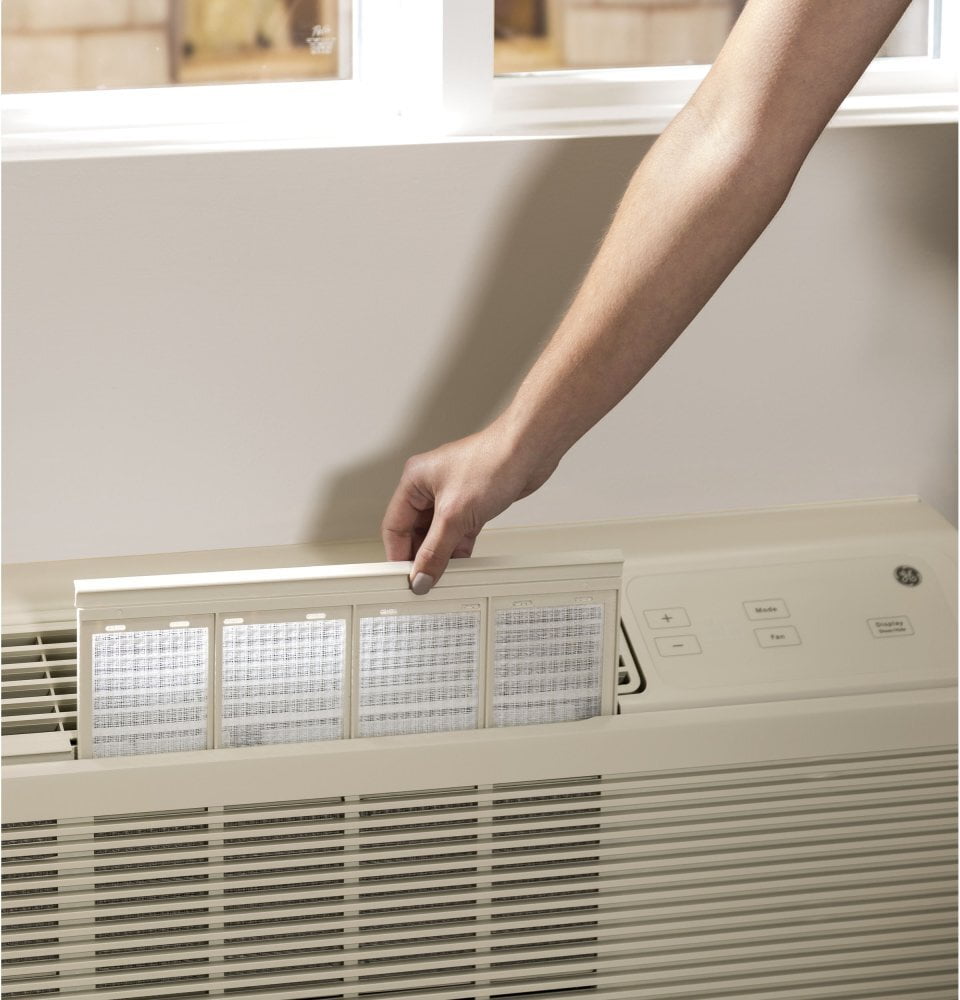

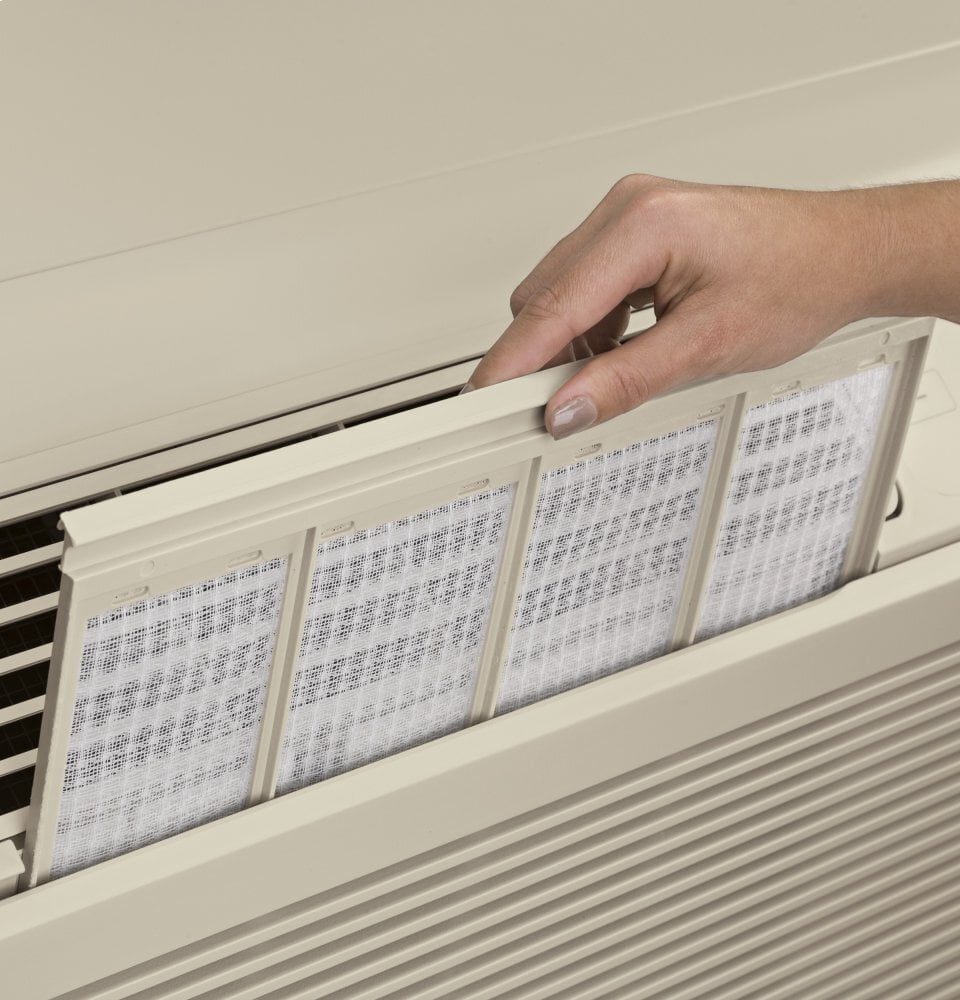

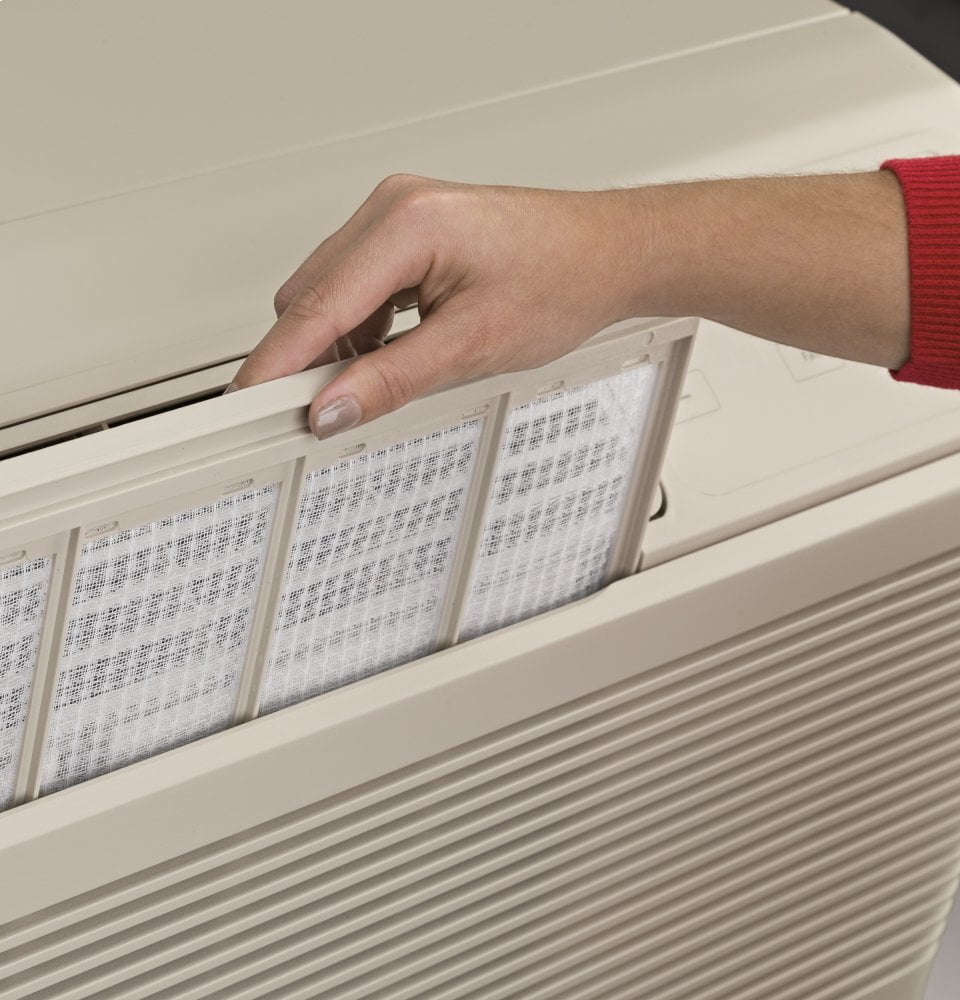

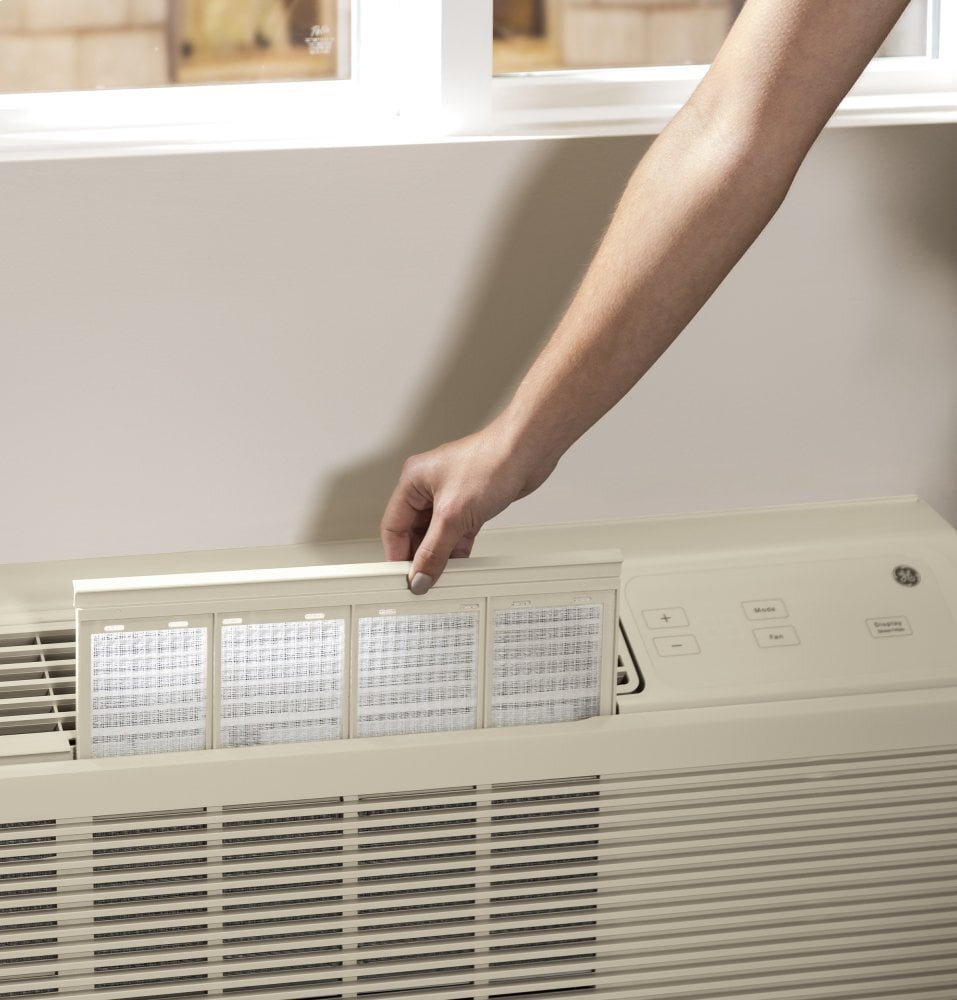

| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Zoneline Features | Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel (85F) Power Cord (LDCI) included Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower |
| Heating System | Electric Resistance |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 63% |
| Chassis Type | Slide-In |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 6.4/6.8 |
| Cooling - Amperes; L.R. | 31.5 |
| Cooling - Watts | 1415/1405 |
| Power Factor | 97 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 110.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
Overview
Simplified structure
Easy to maintain and service
Energy efficiency
10.5/10.5 EER
Quiet operation
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Description
Cooling Capacity14,900/14,800 Btu Simplified StructureEasy To Maintain And Service Energy Efficiency10.5/10.5 Eer Dehumidification4.6 Pints/Hour Indoor Fan Cfm (High/Low)449/300 Fresh Air Vent Cfm (Fully Open High Fan)47 Quiet OperationBaked-On Mastic Sound Barrier, Cross Flow Blower And Two Dc Fan Motors Create Less Noise To Ensure Comfort Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display R-410A Refrigerant Smc Base Pan
Features
- Cooling capacity
- Simplified structure
- Energy efficiency
- Dehumidification
- Indoor fan CFM (high/low)
- Fresh air vent CFM (fully open high fan)
- Quiet operation
- Heat & Freeze Sentinels
- Electronic temperature limiting
- Electronic touch controls with LED display
- R-410A refrigerant
- SMC base pan
Specifications
| CAPACITY | |
| Cooling BTUH (MIN) | 14800.0 Btu |
| Cooling BTUH (MAX) | 14900.0 Btu |
| Cooling EER (BTUH / Watt) | 10.5/10.5 |
| CFM Indoor Fan High | 435 |
| CFM Indoor Fan Low | 330 |
| Dehumidification (pts./hr.) | 4.6 |
| Vent CFM (high fan at zero ESP) | 47 |
| FEATURES | |
| Control Type | Coverless Backlit White LED Touch Controls |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Zoneline Features | Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel (85F) Power Cord (LDCI) included Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower |
| Heating System | Electric Resistance |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 63% |
| Chassis Type | Slide-In |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 6.4/6.8 |
| Cooling - Amperes; L.R. | 31.5 |
| Cooling - Watts | 1415/1405 |
| Power Factor | 97 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 110.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
