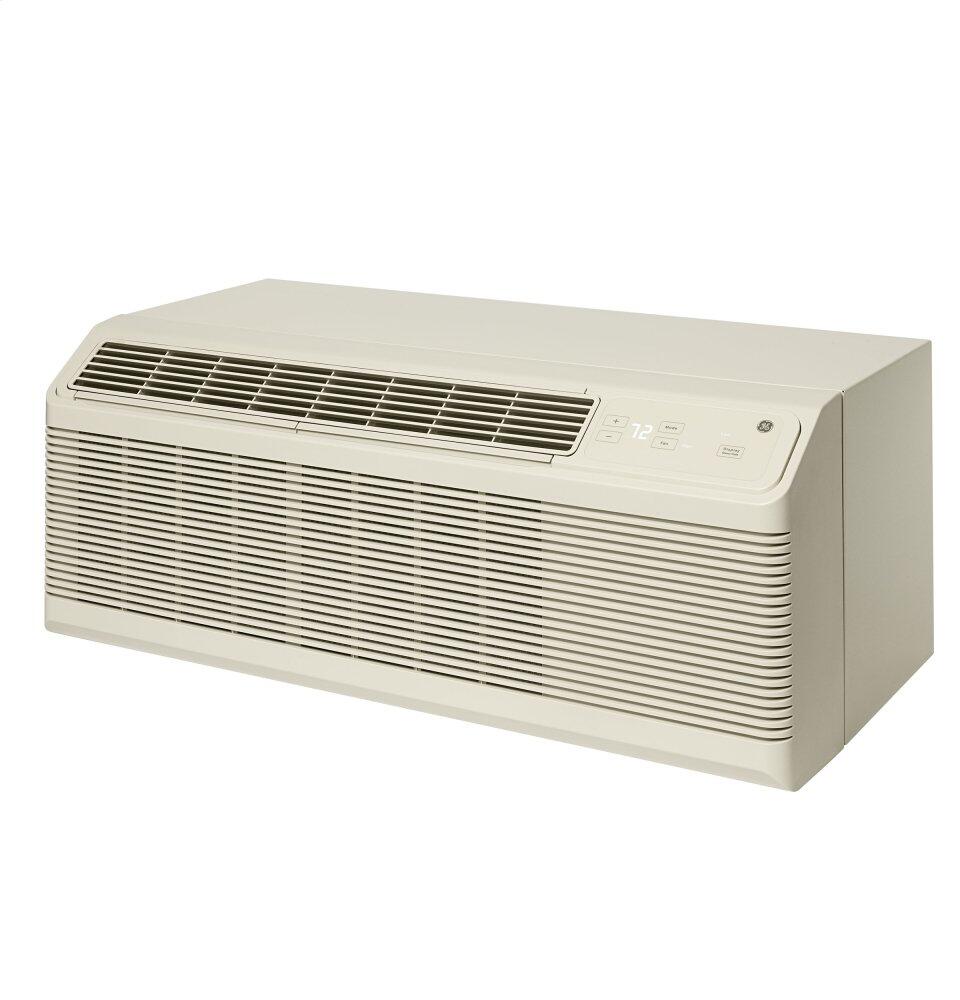

Home > Ge Appliances AZ45E12DBM Ge Zoneline® Cooling And Electric Heat Unit With Makeup Air, 230/208 Volt
  • Load image into Gallery viewer, Ge Appliances AZ45E12DBM Ge Zoneline® Cooling And Electric Heat Unit With Makeup Air, 230/208 Volt
  • Ge Appliances AZ45E12DBM Ge Zoneline® Cooling And Electric Heat Unit With Makeup Air, 230/208 Volt

    Smc Base Pan Simplified StructureEasy To Maintain And Service Product Built To O... Read moreRead more...

    This Item Qualifies for Free Delivery!
    Regular price
    Sale price
    List Price: $2,143.00
    You save: $220.30 (10%)
    Our Price: $1,922.70
    Regular price
    Unit price
    per

    Availability : Temporarily Out Of Stock
    Secure your place in line for this item. As it becomes available it will be fulfilled on a first come first serve basis. We are doing everything we can to expedite orders.

    - +
    Extended protection

    5 year plan

    $359.99

    3 year plan

    $188.99

    Extended Protection

    Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.

    This Protection Plan includes:

    - Full parts and labor coverage during the whole period of the extension plan.
    - Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
    - Food loss protection (click here for details)
    - 24/7 toll-free number for support (1-877-879-6395)

    Installation and Removal
  • Where will services be needed?

    When Will I Get My Order?
    Smc Base Pan Simplified StructureEasy To Maintain And Service Product Built To Order, Lead Times May Vary Makeup AirDelivers 25-50 Cfm Of Continuous Makeup Air Whenever The Room Is Occupied Energy EfficiencyWhen Paired With Occupancy Sensing Hardware, Ventilation Can Be Halted During Vacancy DehumidificationDehumidifies At A Rate Of 5-6 Pints Per 24 Hours (Based On Cfm Level) Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display May Reduce The Need For Individually Ducted Rooftop Systems Because Makeup Air Increases Room Btu Load Requirements And Requires Additional Ptac Cooling Or Heating, The Building'S Electrical Needs May Be Impacted Makeup Air Models Are Not Recommended For Installation Within Two Miles Of Coastal Areas It Is Strongly Recommended To Install Makeup Air With Wall Thermostats

    Simplified structure

    Easy to maintain and service

    Makeup air

    Delivers 25-50 CFM of continuous makeup air whenever the room is occupied

    • SMC base pan
    • Simplified structure
    • Easy to maintain and service
    • Product built to order, lead times may vary
    • Makeup air
    • Delivers 25-50 CFM of continuous makeup air whenever the room is occupied
    • Energy efficiency
    • When paired with occupancy sensing hardware, ventilation can be halted during vacancy
    • Dehumidification
    • Dehumidifies at a rate of 5-6 pints per 24 hours (based on CFM level)
    • Heat & Freeze Sentinels
    • Keeps the room from overheating or freezing
    • Electronic temperature limiting
    • Prevents expensive over-cooling or over-heating of the room
    • Electronic touch controls with LED display
    • May reduce the need for individually ducted rooftop systems
    • Because makeup air increases room BTU load requirements and requires additional PTAC cooling or heating, the building's electrical needs may be impacted
    • Makeup air models are not recommended for installation within two miles of coastal areas
    • It is strongly recommended to install makeup air with wall thermostats
    CAPACITY
    Cooling BTUH (MIN) 11600.0 Btu
    Cooling BTUH (MAX) 11700.0 Btu
    Cooling EER (BTUH / Watt) 11.7/11.7
    CFM Indoor Fan High 449
    CFM Indoor Fan Low 270
    Dehumidification (pts./hr.) 3.9
    Vent CFM (high fan at zero ESP) 25-50
    FEATURES
    Control Type Coverless Backlit White LED Touch Controls
    Discharge Grille 2-position
    Electronic Micro Computer Control Yes
    Fan Cycle Switch Yes
    Fan Motor 2
    Fan Speed Control Yes
    Fan Speed Selections Hi/Low Cooling
    Hi/Low Fan Only
    Hi/Low Heating
    Filter Type Rigid Frame
    Slide-Out
    Heat - Cool Yes
    Louver Style Reversible
    Rotary Compressor Yes
    Temperature Limiting Electronic 7-Step
    Zoneline Features Remote Thermostat Compatibility
    Universal Heaters
    Weather Protected Electrical Components
    Auto Power Recovery
    Automatic Indoor Frost Control
    Central Desk Control Compatibility
    Freeze Sentinel
    Heat Sentinel
    Power Cord (LDCI) included
    Proportional - Integral ID Airflow
    Random Twist/Length Segment Tangential Blower
    Heating System Electric Resistance
    Product Type Makeup Air Conditioners
    Temperature Range 60 - 85 F
    Sensible Heat Ratio 66%
    Chassis Type Slide-In
    POWER / RATINGS
    Cooling - Amperes; F.L. - Cooling 5.7/6.0
    Cooling - Amperes; L.R. 29.5
    Cooling - Watts 1000/990
    Power Factor 98
    Voltage (MIN) 208.0 V
    Voltage (MAX) 230.0 V
    WARRANTY
    Parts Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Labor Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Warranty Notes See written warranty for full details
    WEIGHTS & DIMENSIONS
    Net Weight 135.0 lb
    Overall Depth 20.8125 in
    Overall Height 16.0 in
    Overall Width 42.0 in

    Overview

    Simplified structure

    Easy to maintain and service

    Makeup air

    Delivers 25-50 CFM of continuous makeup air whenever the room is occupied

    Description

    Smc Base Pan Simplified StructureEasy To Maintain And Service Product Built To Order, Lead Times May Vary Makeup AirDelivers 25-50 Cfm Of Continuous Makeup Air Whenever The Room Is Occupied Energy EfficiencyWhen Paired With Occupancy Sensing Hardware, Ventilation Can Be Halted During Vacancy DehumidificationDehumidifies At A Rate Of 5-6 Pints Per 24 Hours (Based On Cfm Level) Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display May Reduce The Need For Individually Ducted Rooftop Systems Because Makeup Air Increases Room Btu Load Requirements And Requires Additional Ptac Cooling Or Heating, The Building'S Electrical Needs May Be Impacted Makeup Air Models Are Not Recommended For Installation Within Two Miles Of Coastal Areas It Is Strongly Recommended To Install Makeup Air With Wall Thermostats

    Features

    • SMC base pan
    • Simplified structure
    • Product built to order, lead times may vary
    • Makeup air
    • Energy efficiency
    • Dehumidification
    • Heat & Freeze Sentinels
    • Electronic temperature limiting
    • Electronic touch controls with LED display
    • May reduce the need for individually ducted rooftop systems
    • Because makeup air increases room BTU load requirements and requires additional PTAC cooling or heating, the building's electrical needs may be impacted
    • Makeup air models are not recommended for installation within two miles of coastal areas
    • It is strongly recommended to install makeup air with wall thermostats

    Specifications

    CAPACITY
    Cooling BTUH (MIN) 11600.0 Btu
    Cooling BTUH (MAX) 11700.0 Btu
    Cooling EER (BTUH / Watt) 11.7/11.7
    CFM Indoor Fan High 449
    CFM Indoor Fan Low 270
    Dehumidification (pts./hr.) 3.9
    Vent CFM (high fan at zero ESP) 25-50
    FEATURES
    Control Type Coverless Backlit White LED Touch Controls
    Discharge Grille 2-position
    Electronic Micro Computer Control Yes
    Fan Cycle Switch Yes
    Fan Motor 2
    Fan Speed Control Yes
    Fan Speed Selections Hi/Low Cooling
    Hi/Low Fan Only
    Hi/Low Heating
    Filter Type Rigid Frame
    Slide-Out
    Heat - Cool Yes
    Louver Style Reversible
    Rotary Compressor Yes
    Temperature Limiting Electronic 7-Step
    Zoneline Features Remote Thermostat Compatibility
    Universal Heaters
    Weather Protected Electrical Components
    Auto Power Recovery
    Automatic Indoor Frost Control
    Central Desk Control Compatibility
    Freeze Sentinel
    Heat Sentinel
    Power Cord (LDCI) included
    Proportional - Integral ID Airflow
    Random Twist/Length Segment Tangential Blower
    Heating System Electric Resistance
    Product Type Makeup Air Conditioners
    Temperature Range 60 - 85 F
    Sensible Heat Ratio 66%
    Chassis Type Slide-In
    POWER / RATINGS
    Cooling - Amperes; F.L. - Cooling 5.7/6.0
    Cooling - Amperes; L.R. 29.5
    Cooling - Watts 1000/990
    Power Factor 98
    Voltage (MIN) 208.0 V
    Voltage (MAX) 230.0 V
    WARRANTY
    Parts Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Labor Warranty Limited 1-year entire appliance
    Limited 5-year sealed refrigerating system
    Warranty Notes See written warranty for full details
    WEIGHTS & DIMENSIONS
    Net Weight 135.0 lb
    Overall Depth 20.8125 in
    Overall Height 16.0 in
    Overall Width 42.0 in
