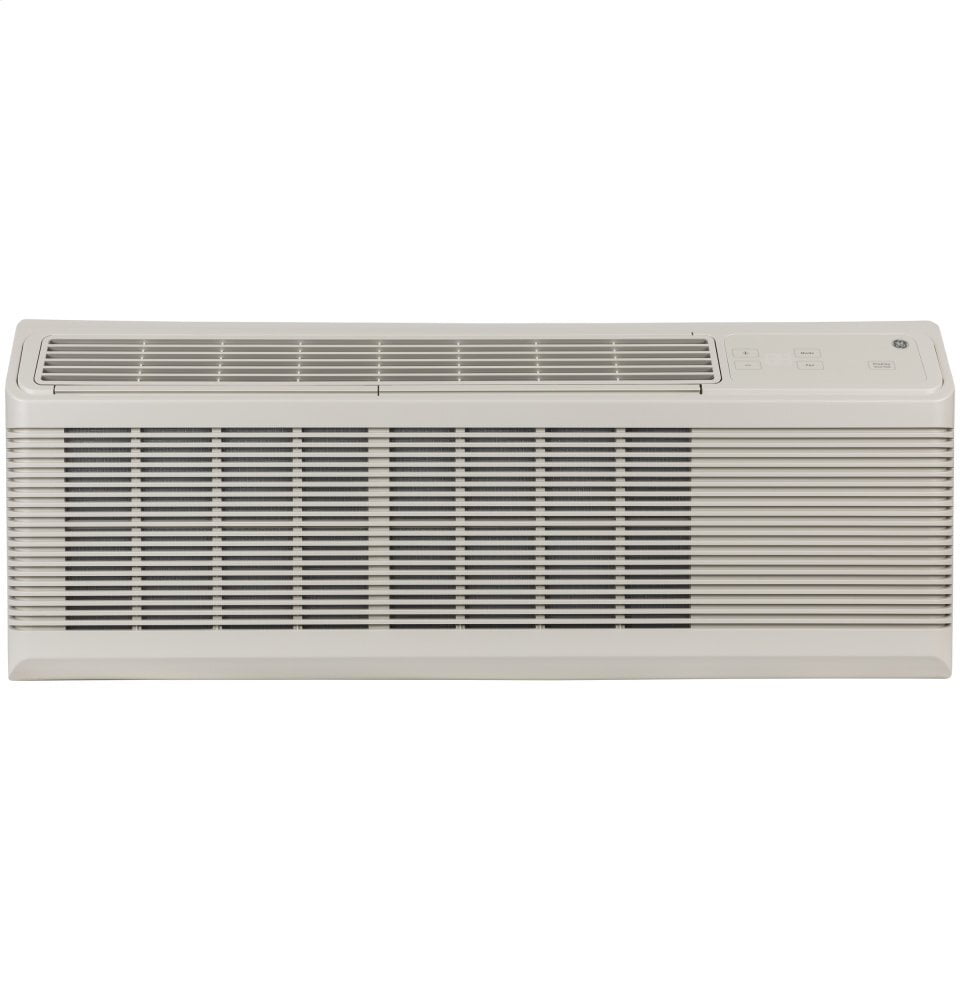

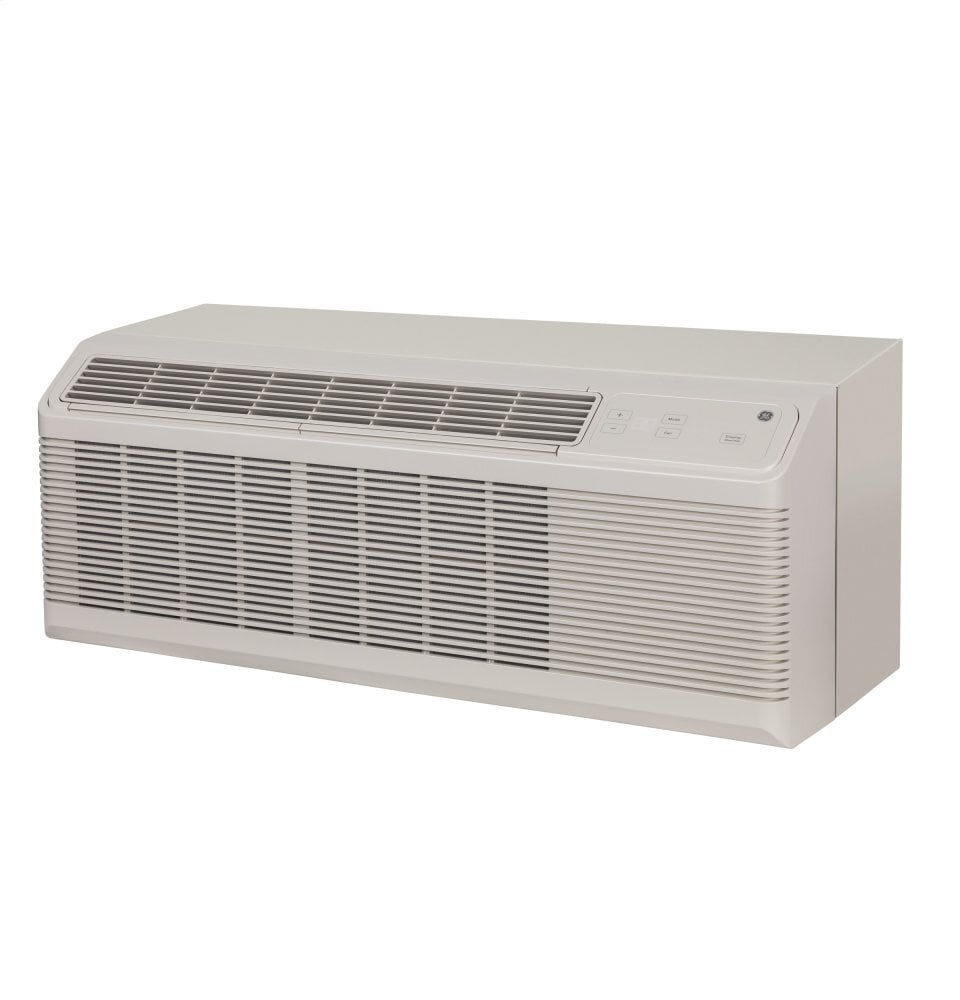

Ge Appliances AZ45E09DAC Ge Zoneline® Cooling And Electric Heat Unit With Corrosion Protection, 230/208 Volt
Ge Appliances AZ45E09DAC Ge Zoneline® Cooling And Electric Heat Unit With Corrosion Protection, 230/208 Volt
SKU: AZ45E09DAC
UPC: 84691815525
THIS ITEM QUALIFIES FOR FREE DELIVERY!
Call us at (800) 288-1647 for expert assistance in finding the perfect alternative.
Couldn't load pickup availability
When Will I Get My Order?
x
Ge Appliances AZ45E09DAC Ge Zoneline® Cooling And Electric Heat Unit With Corrosion Protection, 230/208 Volt

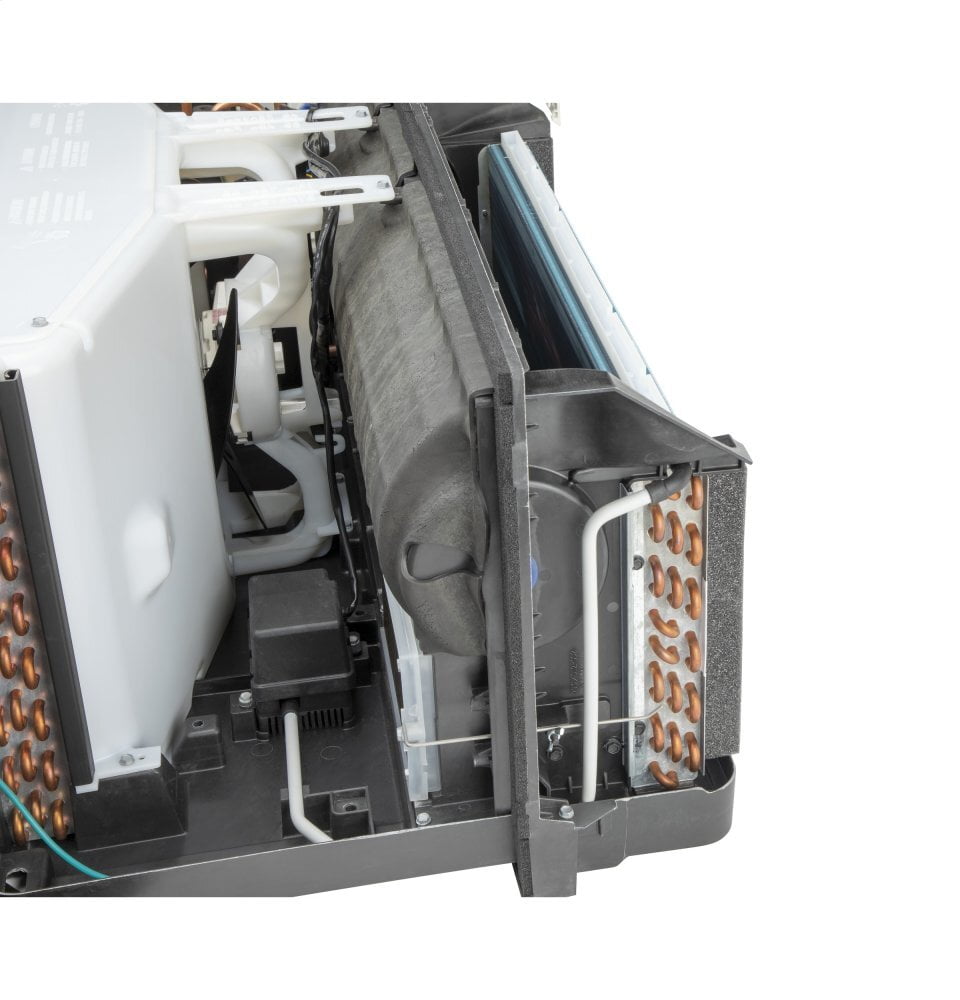

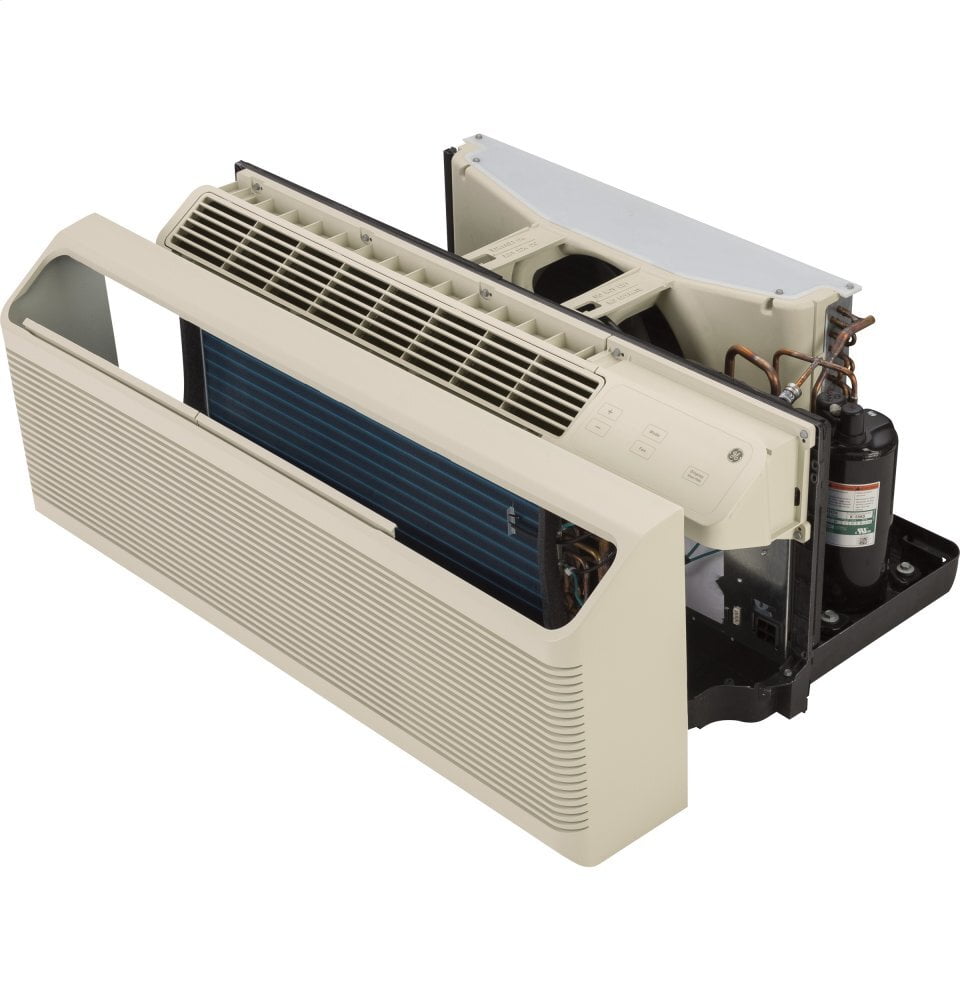

Simplified structure

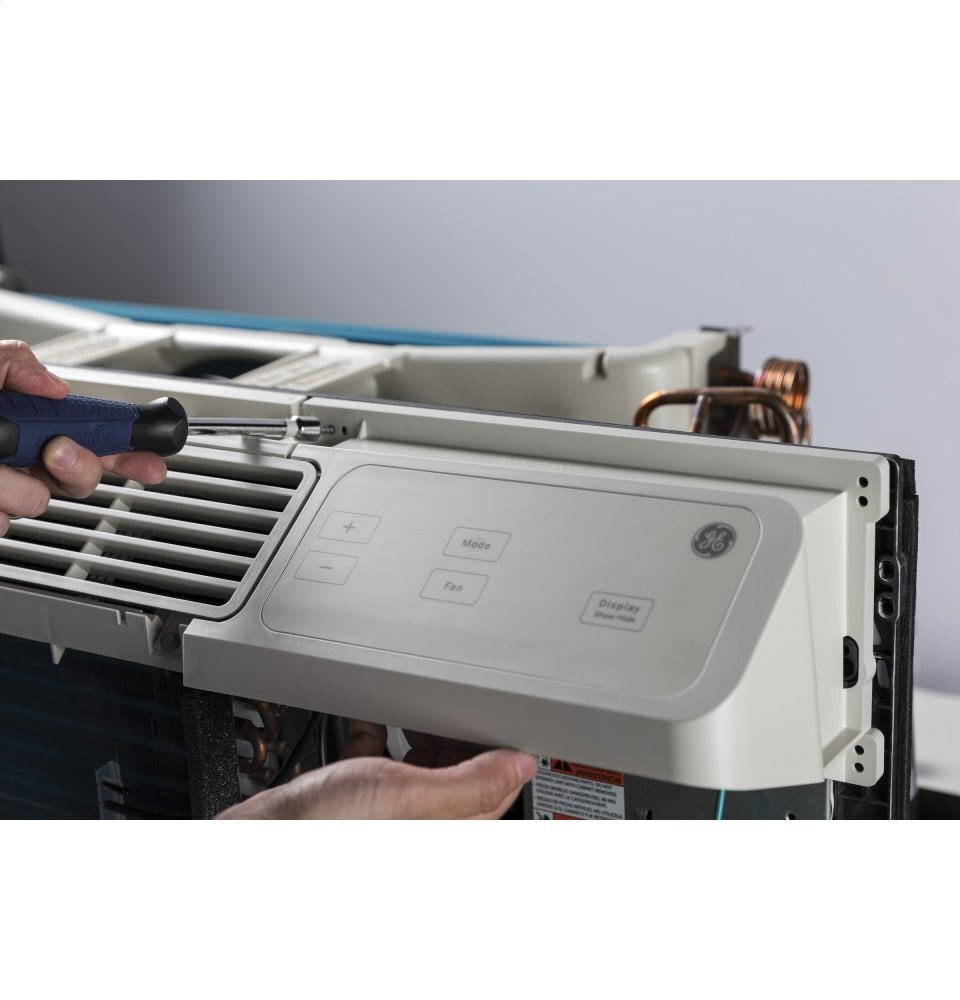

Easy to maintain and service
Energy efficiency
11.8/11.8 EER
Quiet operation

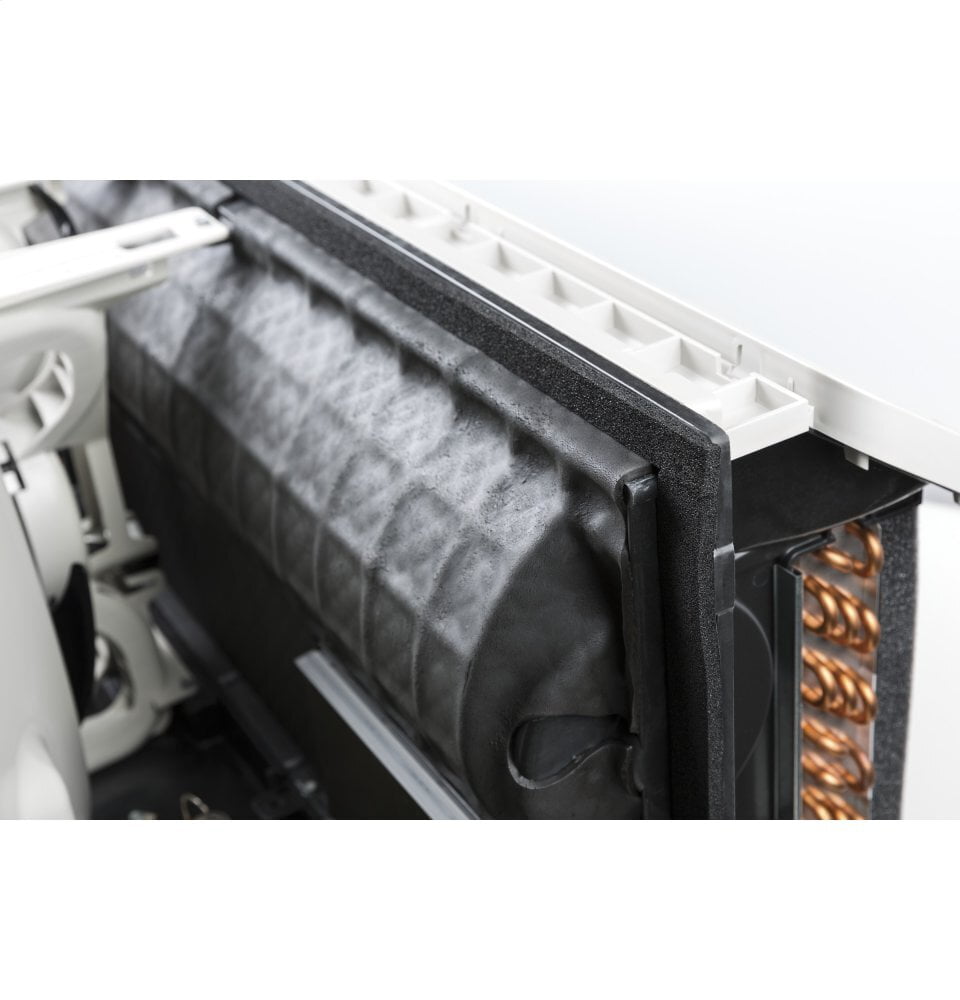

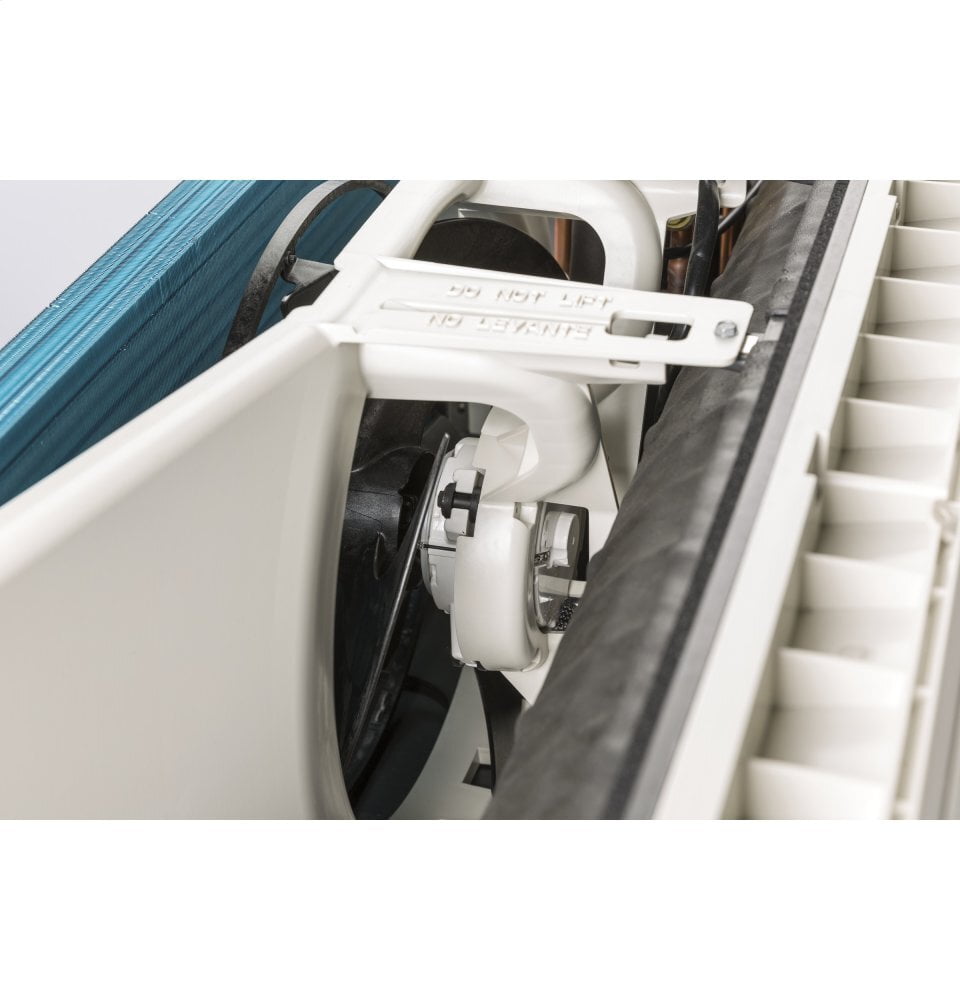

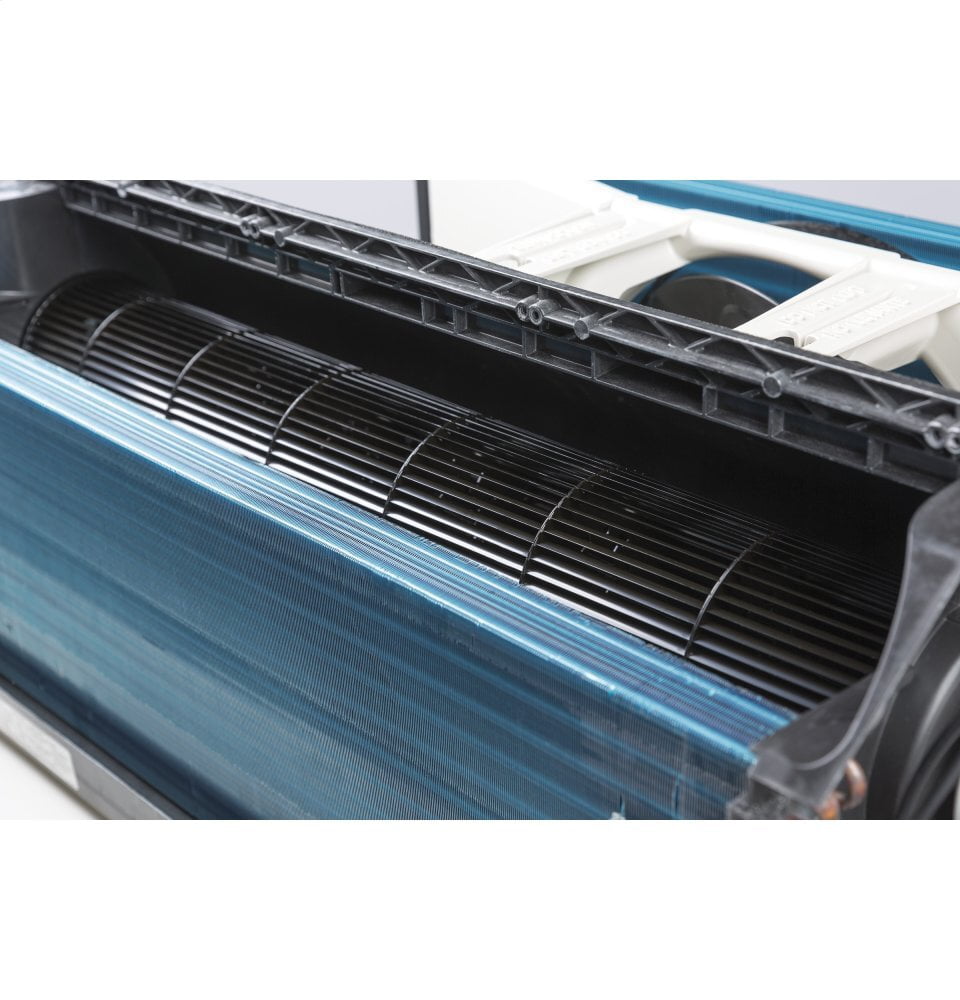

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Smc Base Pan Simplified StructureEasy To Maintain And Service Cooling Capacity9,400/9,300 Btu Energy Efficiency11.8/11.8 Eer Dehumidification2.7 Pints/Hour Indoor Fan Cfm (High/Low)409/280 Fresh Air Vent Cfm (Fully Open High Fan)38 Quiet OperationBaked-On Mastic Sound Barrier, Cross Flow Blower And Two Dc Fan Motors Create Less Noise To Ensure Comfort Corrosion ResistantExtends Life Of The Unit In Sea Coast Areas/Corrosive Environments Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display R-410A Refrigerant
- SMC base pan
- Simplified structure
- Cooling capacity
- Energy efficiency
- Dehumidification
- Indoor fan CFM (high/low)
- Fresh air vent CFM (fully open high fan)
- Quiet operation

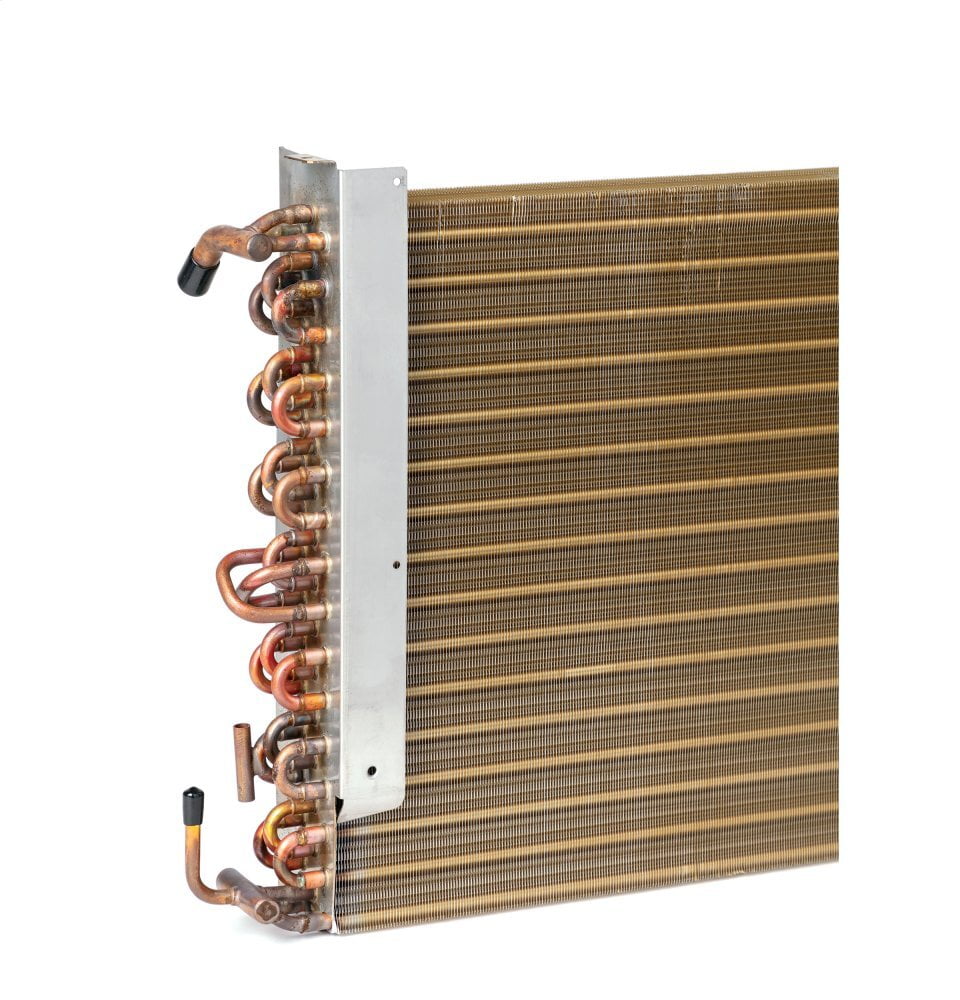

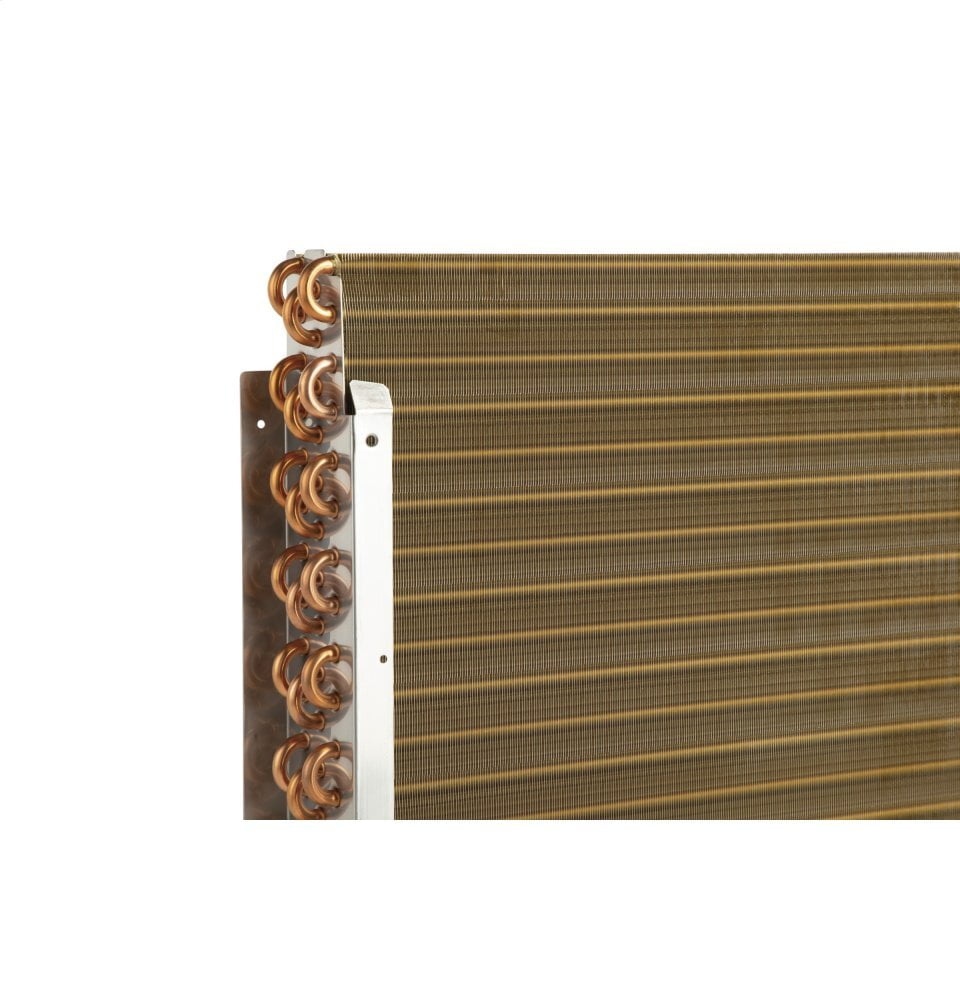

- Corrosion resistant
- Heat & Freeze Sentinels
- Electronic temperature limiting

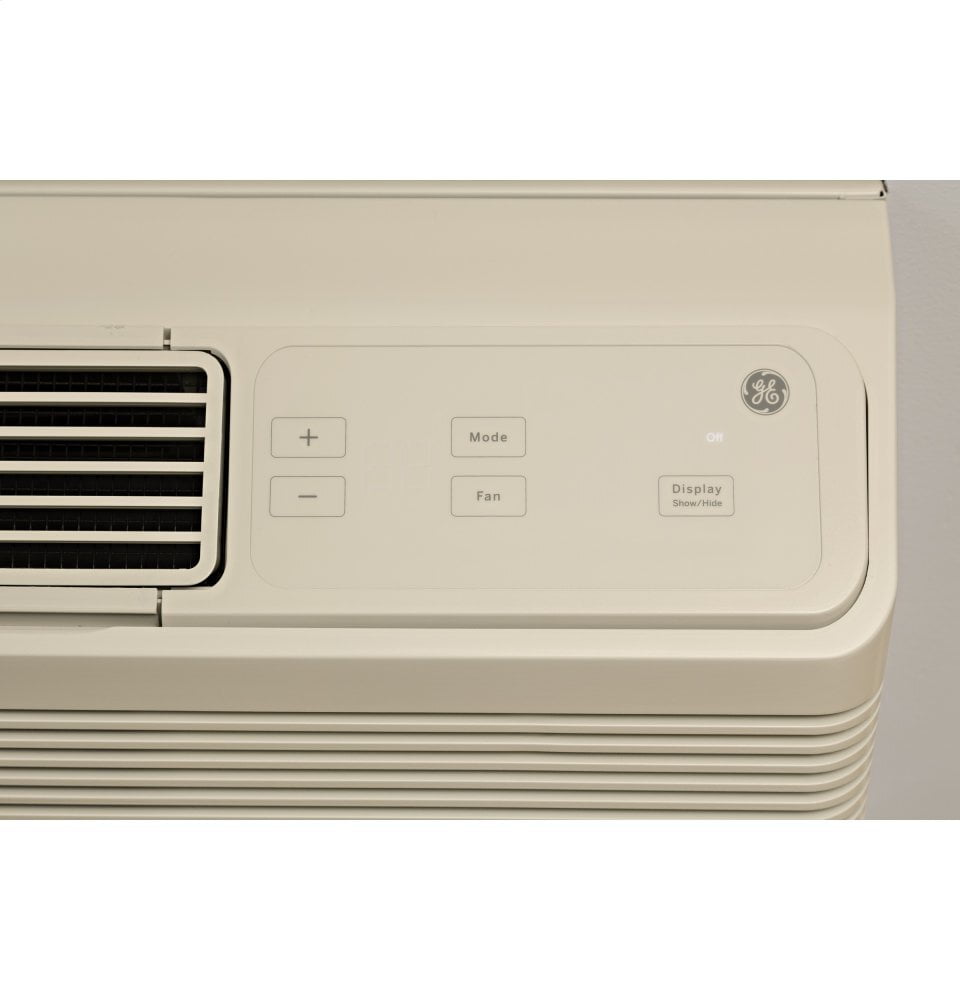

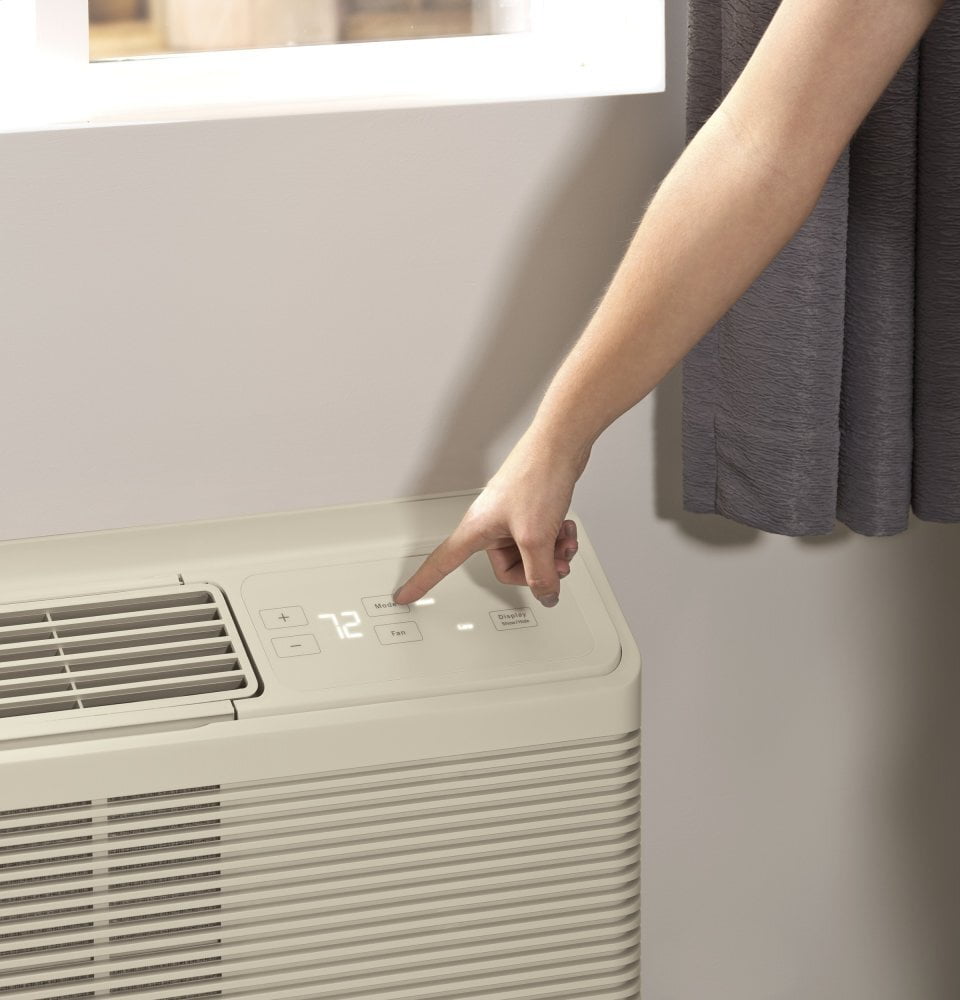

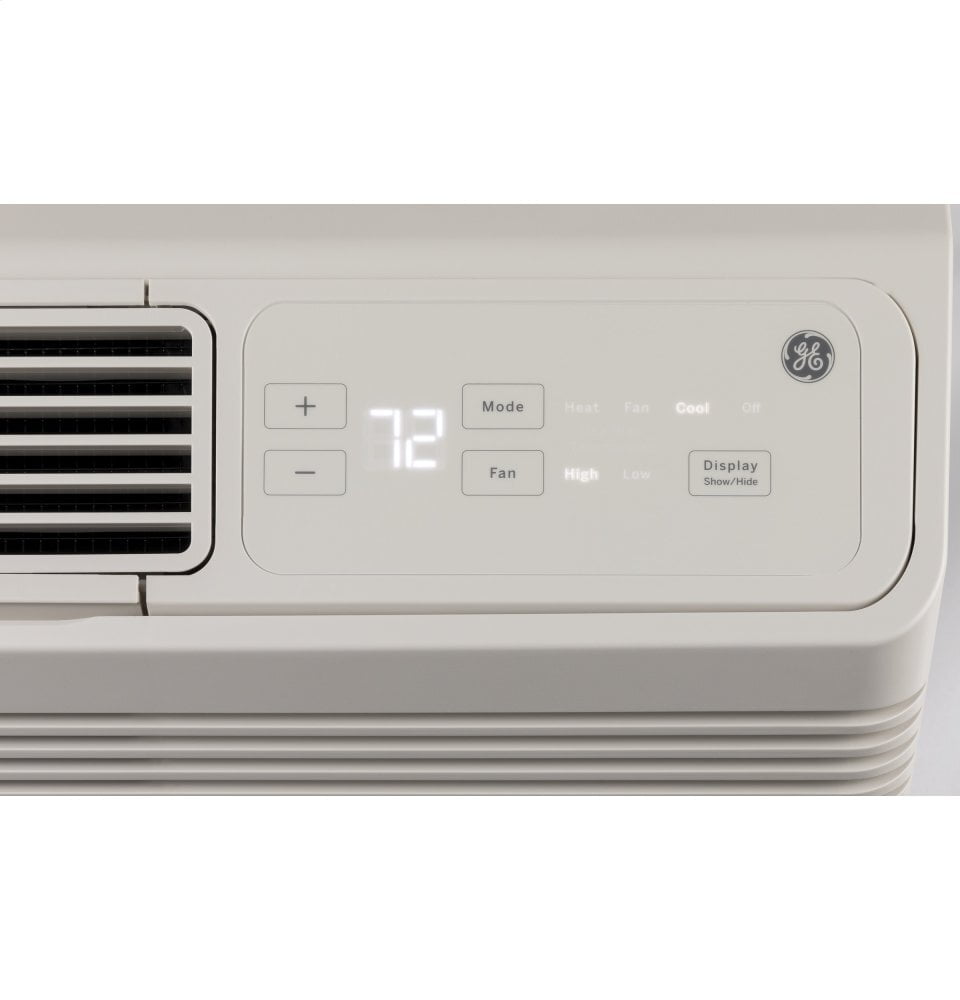

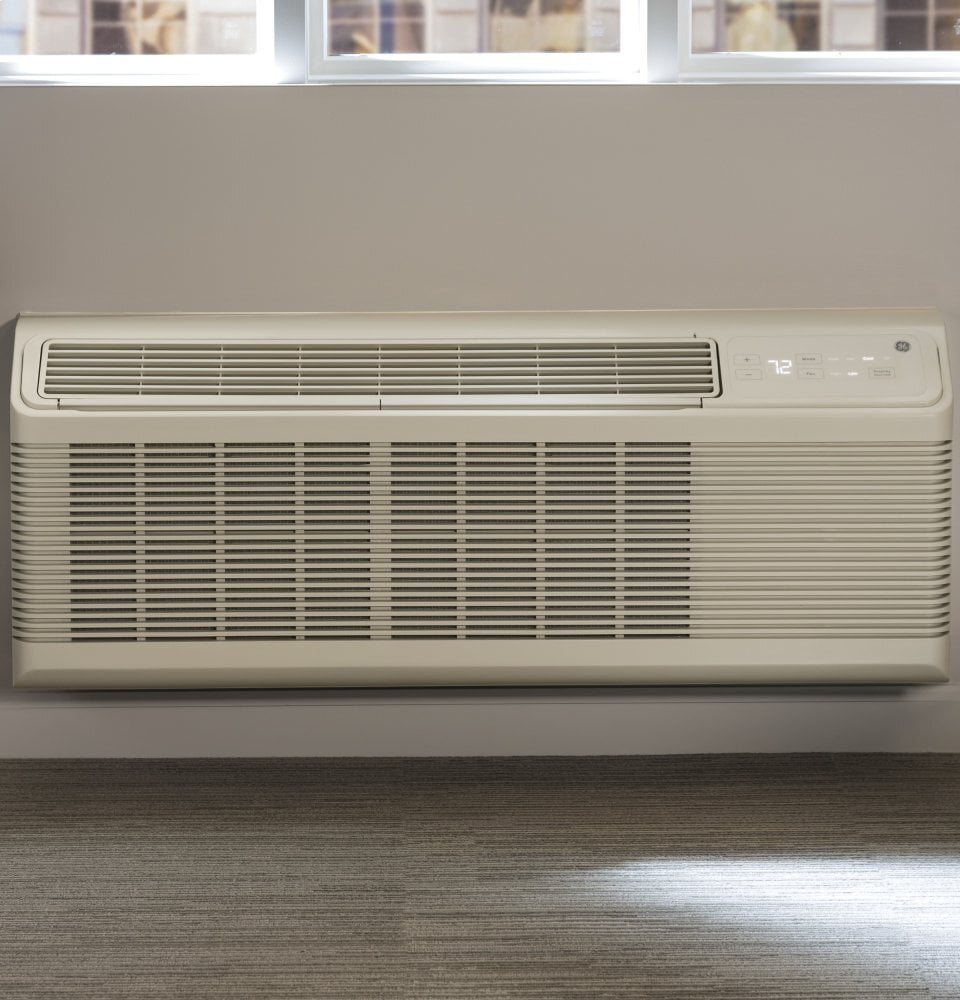

- Electronic touch controls with LED display
- R-410A refrigerant
| CAPACITY | |
| Cooling BTUH (MIN) | 9300.0 Btu |
| Cooling BTUH (MAX) | 9400.0 Btu |
| Cooling EER (BTUH / Watt) | 11.8/11.8 |
| CFM Indoor Fan High | 343 |
| CFM Indoor Fan Low | 260 |
| Dehumidification (pts./hr.) | 2.7 |
| Vent CFM (high fan at zero ESP) | 38 |
| FEATURES | |

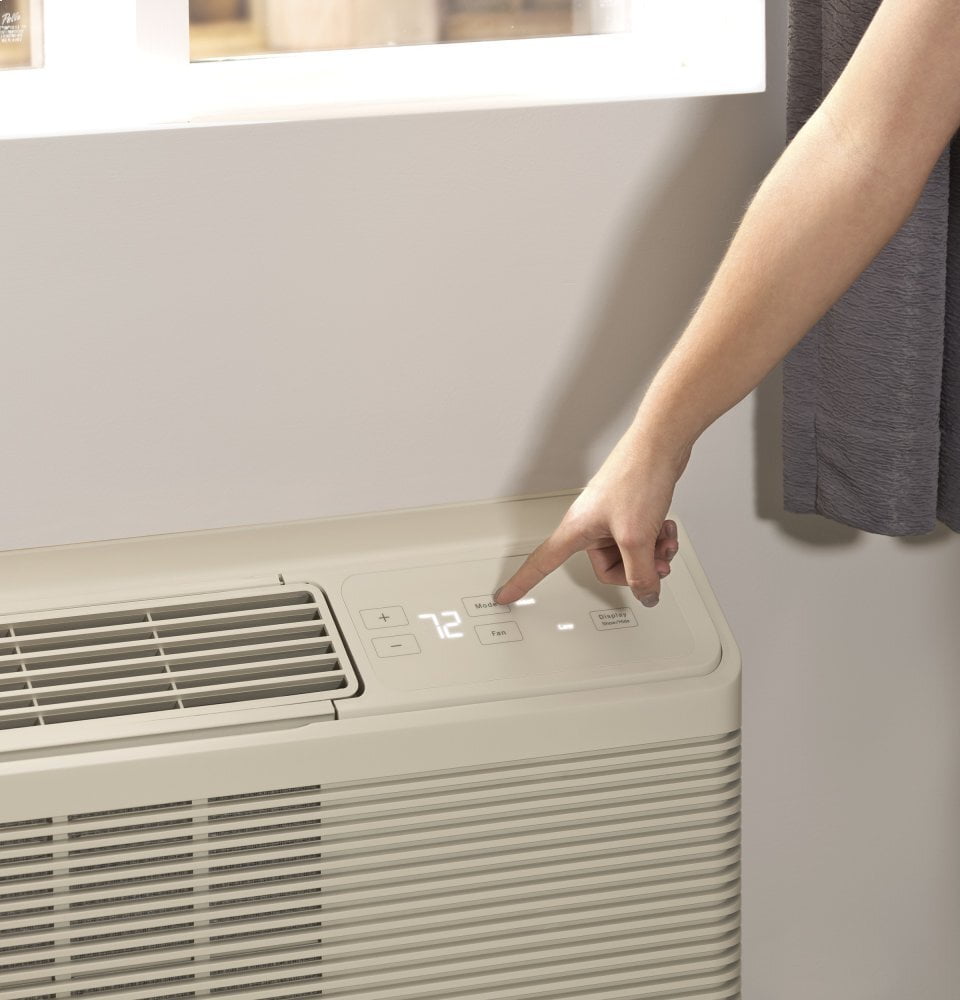

| Control Type | Coverless Backlit White LED Touch Controls |
| Corrosion Treated | Yes |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |

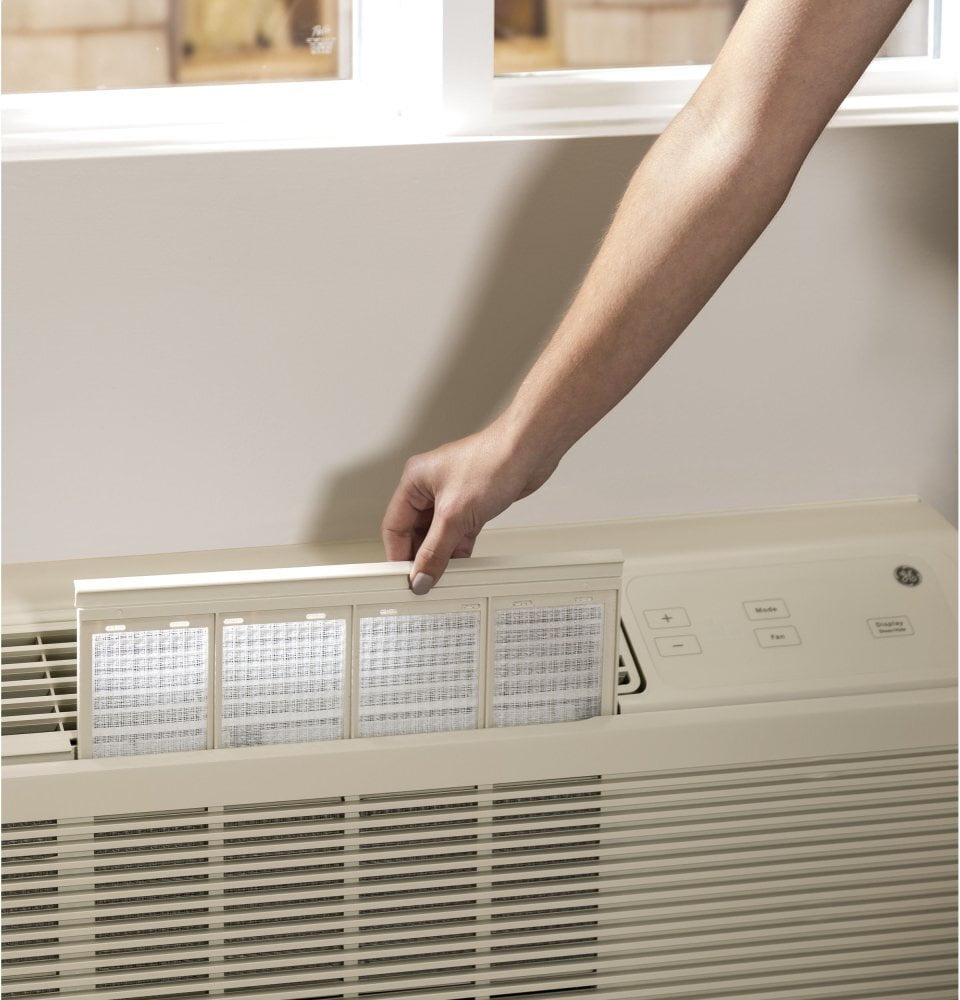

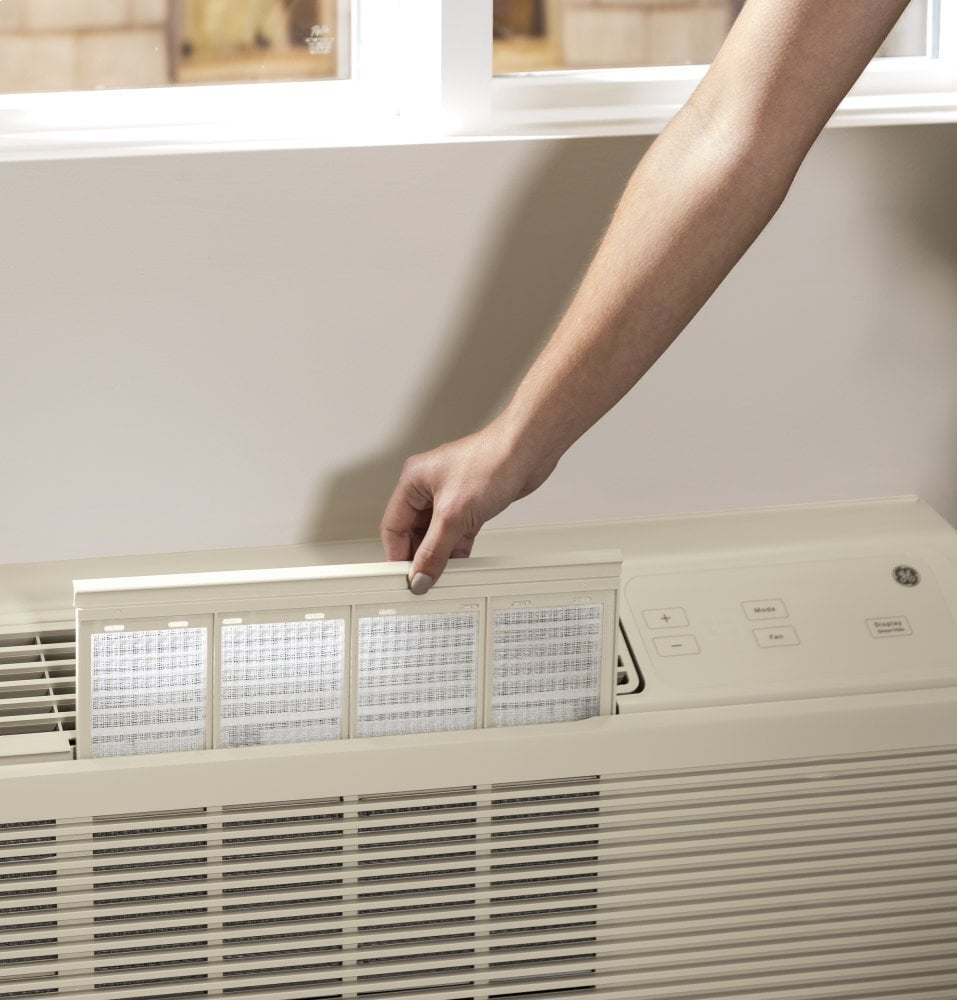

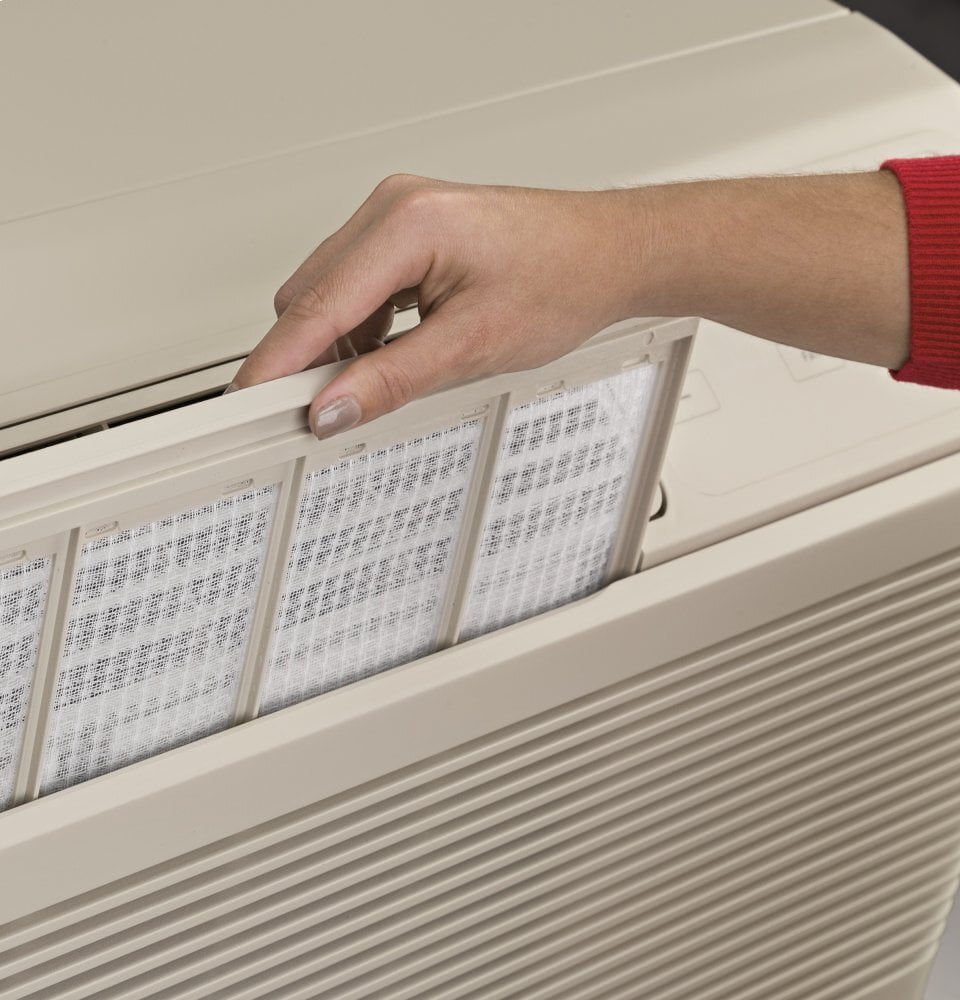

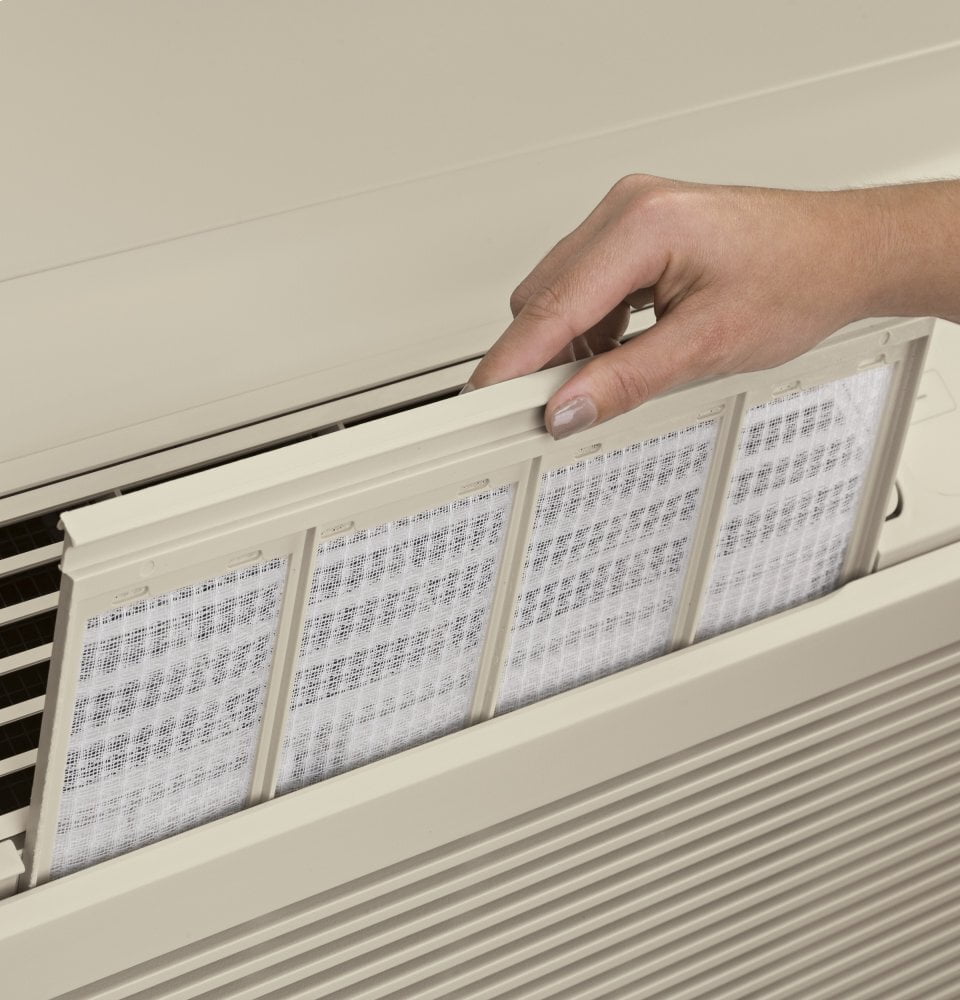

| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Vent Control | 3-position |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Zoneline Features | Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower |
| Heating System | Electric Resistance |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 64% |
| Chassis Type | Slide-In |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 3.5/3.9 |
| Cooling - Amperes; L.R. | 21.0 |
| Cooling - Watts | 795/790 |
| Power Factor | 98 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 110.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
