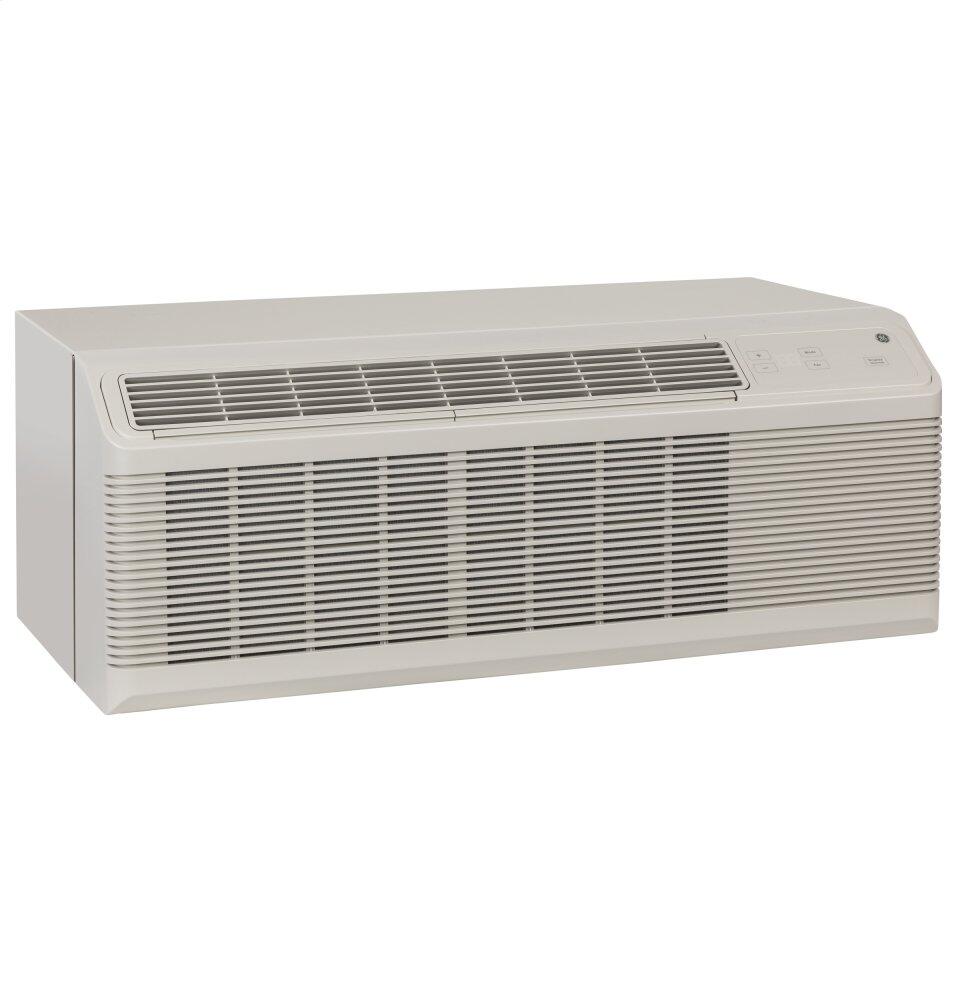

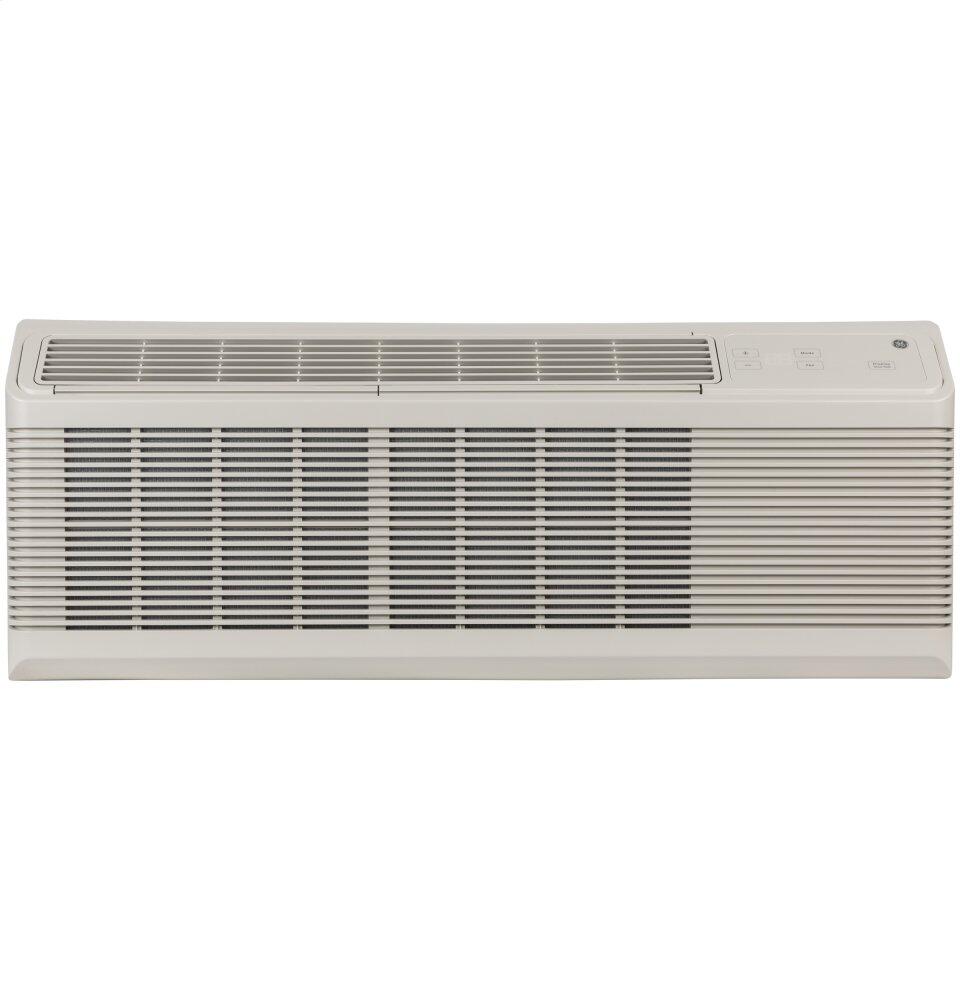

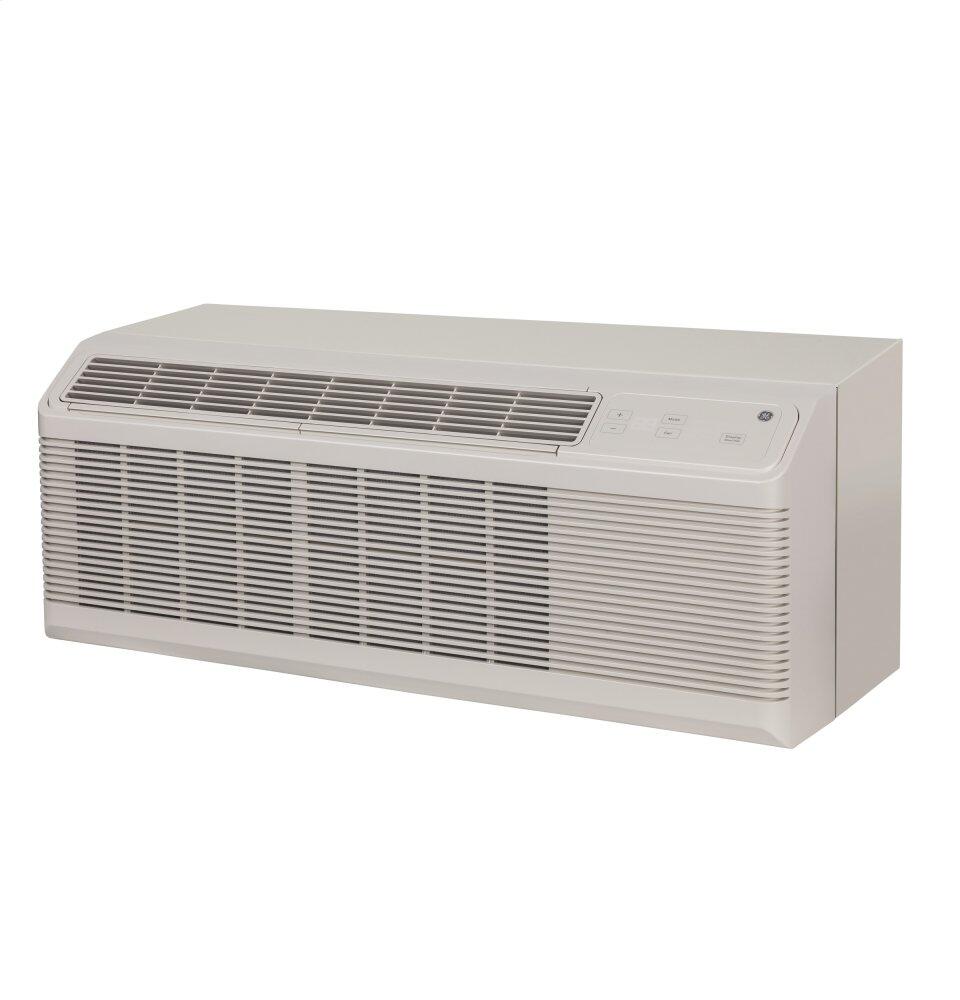

Ge Appliances AZ45E07DAP Ge Zoneline® Dry Air 25 Cooling And Electric Heat Unit With Corrosion Protection, 230/208 Volt
R-410A Refrigerant Smc Base Pan Simplified StructureEasy To Maintain And Ser... Read more...
SKU:AZ45E07DAP
UPC:084691815792
This Item Qualifies for Free Delivery!
- Regular price
- Sale price
-
List Price: $1,499.00
See Lower Price in Cart
?As retailers we are entitled to the right for setting our own price. However, some manufacturers place restrictions on pricing. Our price on this item is lower than the manufacturer's minimum advertised price. To see our price, simply, place the item in your cart or proceed with the checkout process. This enables us to provide the lowest possible prices for a vast selection of appliances.Our Price: $1,343.10
- Regular price
- Unit price
- per
Extended protection
3 year plan
$120.995 year plan
$228.99Extended Protection
Purchase an Extended Protection plan that extends the terms of your appliance manufacturer’s warranty for an additional period after the original warranty expires.
This Protection Plan includes:
- Full parts and labor coverage during the whole period of the extension plan.
- Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty (click here for details)
- Food loss protection (click here for details)
- 24/7 toll-free number for support (1-877-879-6395)
Installation and Removal
Where will services be needed?
When Will I Get My Order?
R-410A Refrigerant Smc Base Pan Simplified StructureEasy To Maintain And Service Perfect For High Humidity ClimatesRemoves 20%-35% More Moisture From The Air Than Standard Zoneline Air Conditioners* (*Varies When Comparing Dehumidification Rates Of The 7,000/9,000/12,000 Btu Base Models To Their Dry Air Model Counterparts) Cooling Capacity6,900/6,800 Btu Energy Efficiency12.8/12.8 Eer Dehumidification2.3 Pints/Hour Indoor Fan Cfm (High/Low)320/230 Fresh Air Vent Cfm (Fully Open High Fan)47 Quiet OperationBaked-On Mastic Sound Barrier, Cross Flow Blower And Two Dc Fan Motors Create Less Noise To Ensure Comfort Corrosion ResistantExtends Life Of The Unit In Sea Coast Areas/Corrosive Environments Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display

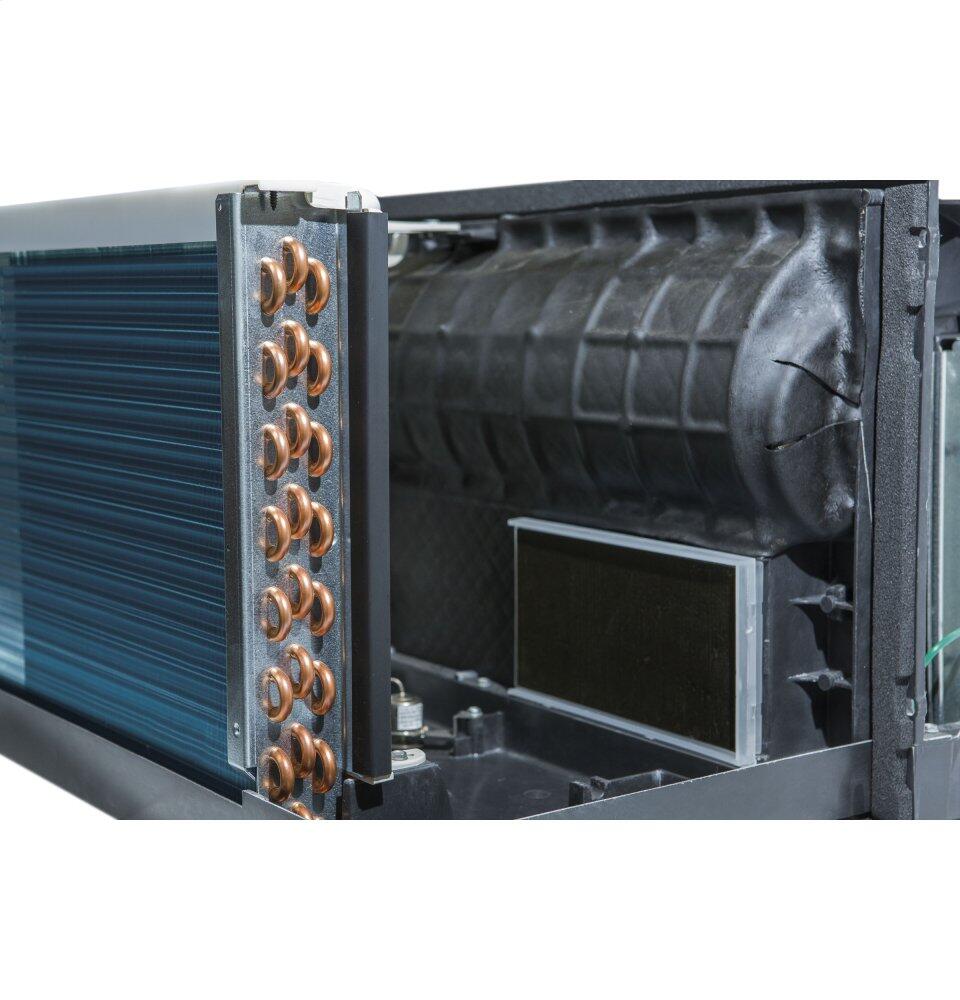

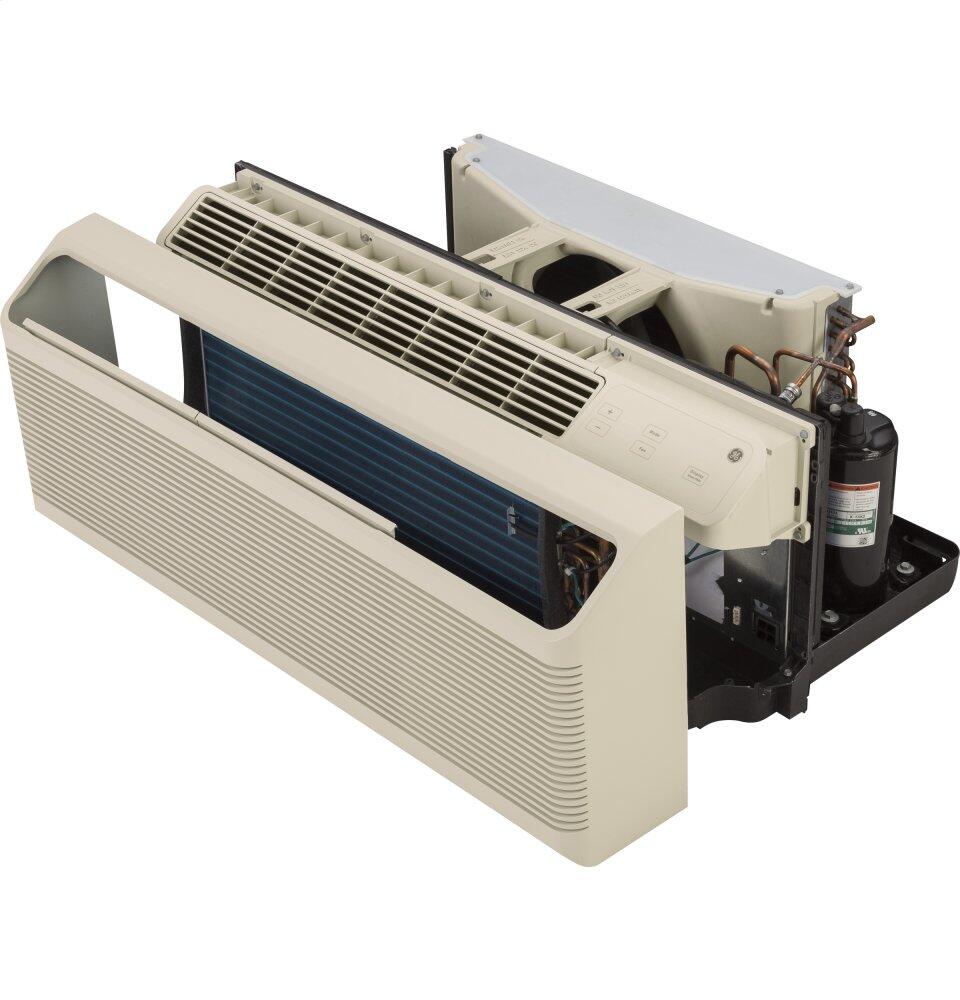

Simplified structure

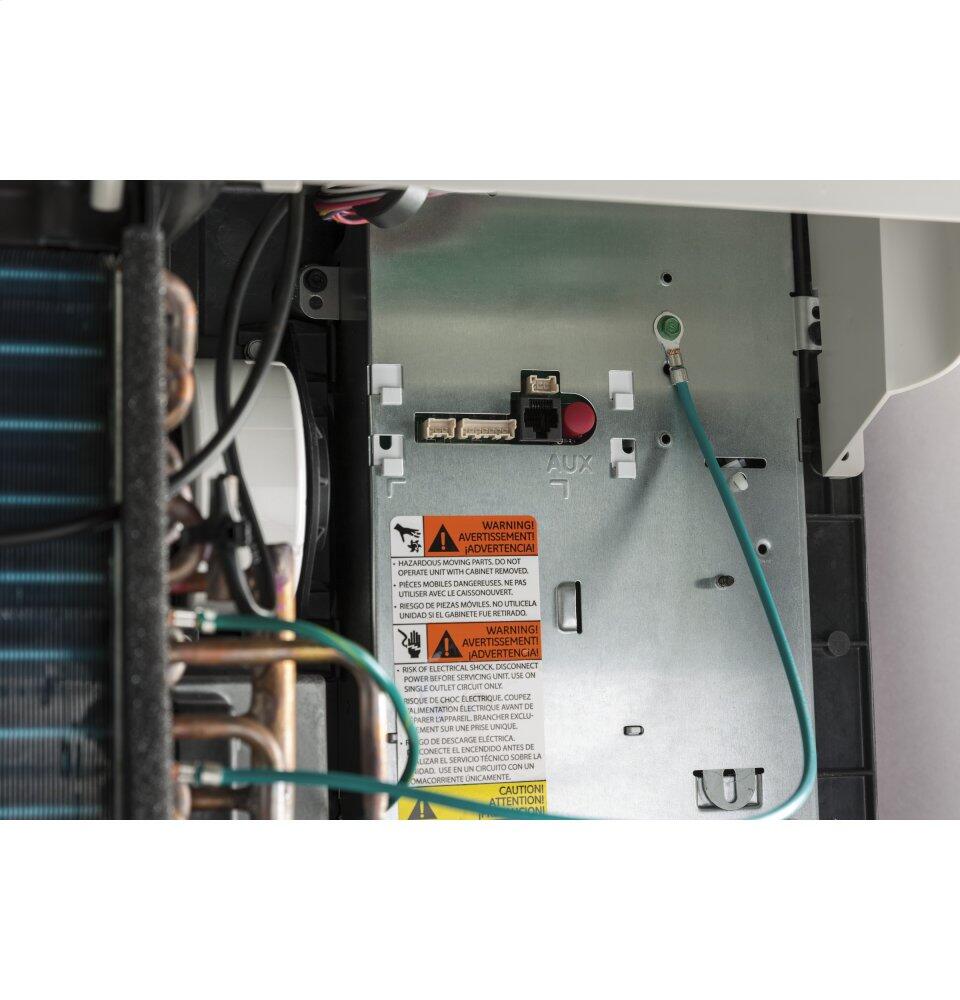

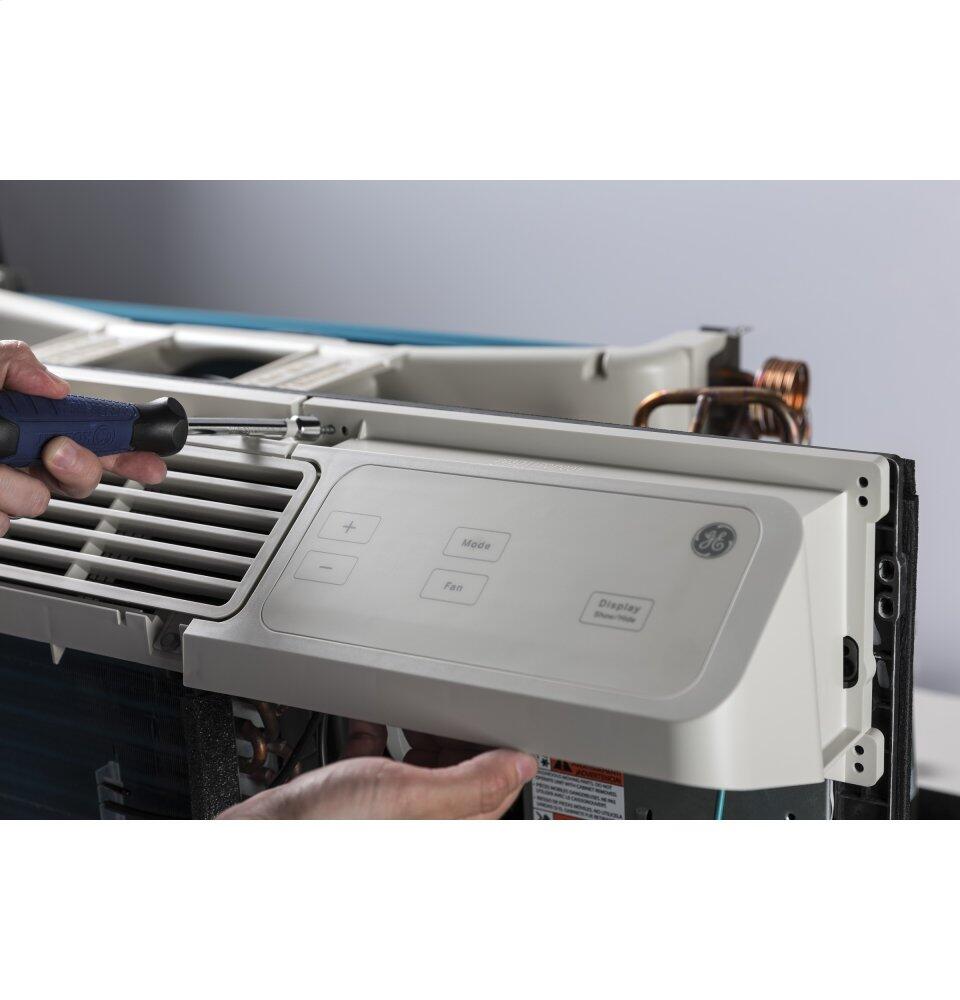

Easy to maintain and service
Energy efficiency
12.8/12.8 EER
Quiet operation

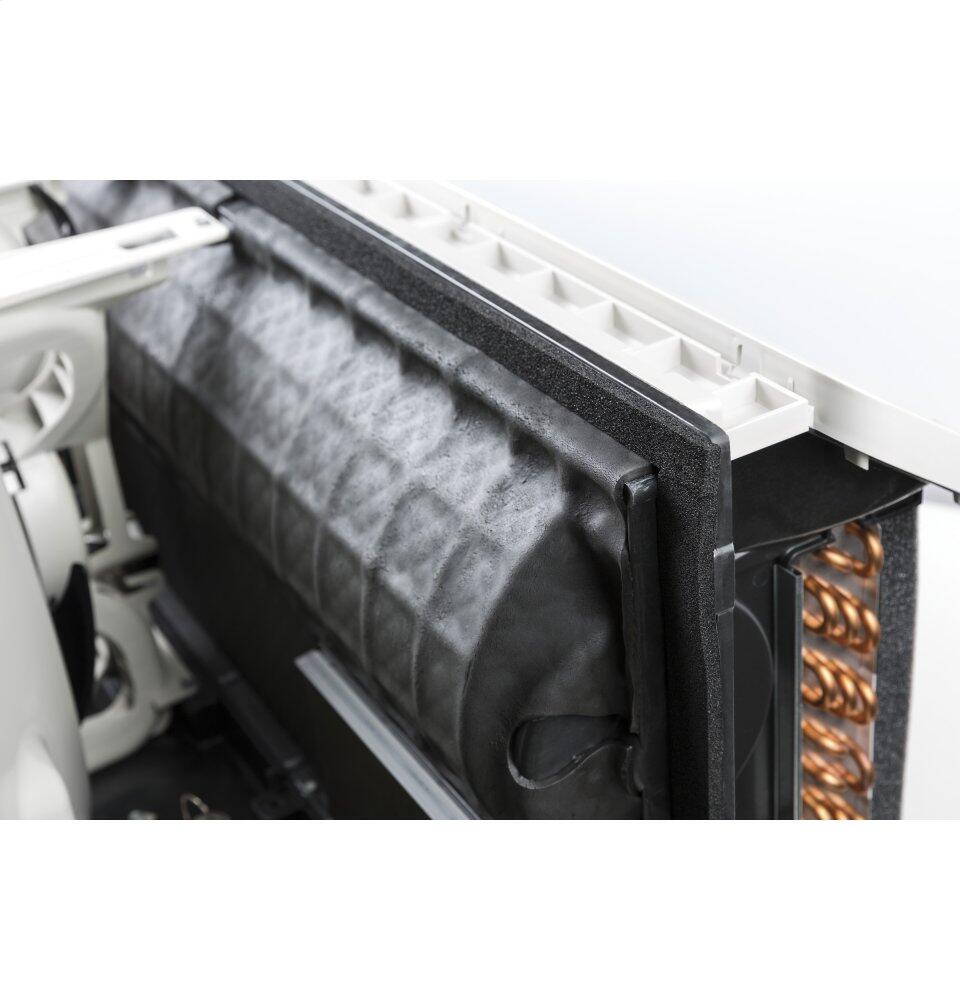

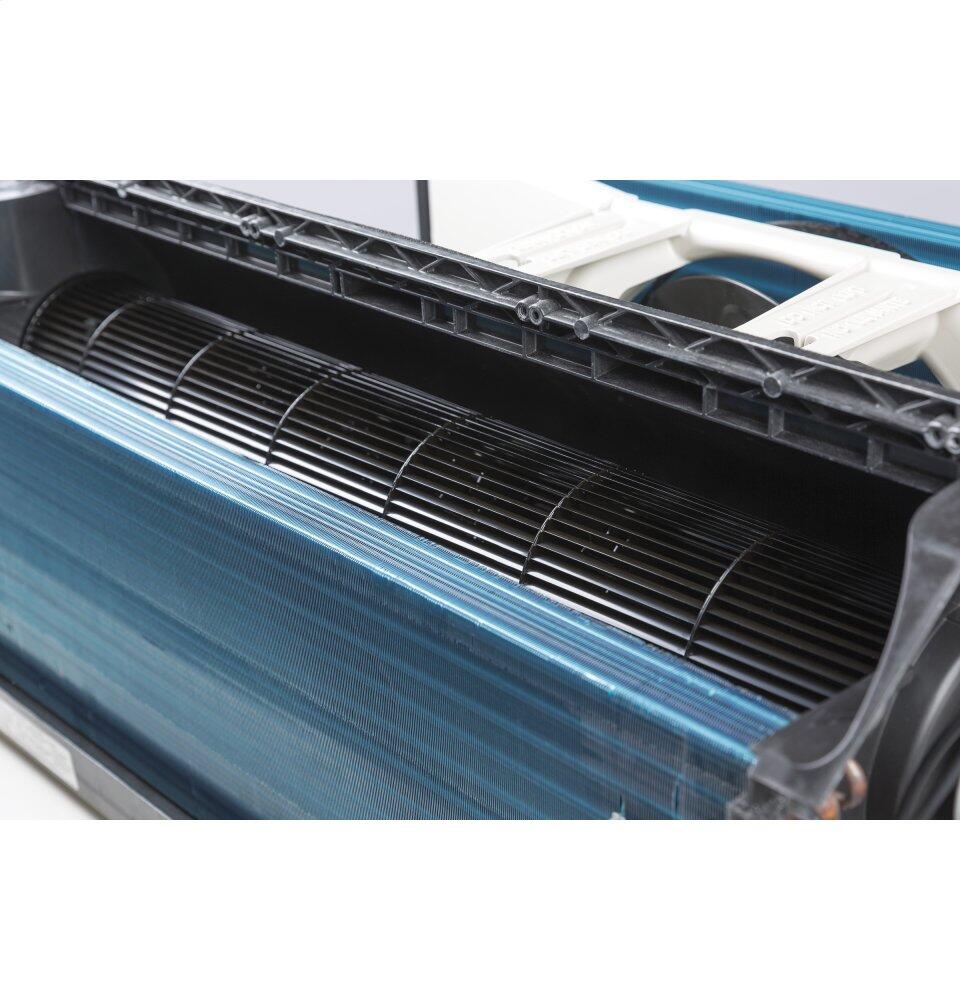

Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
- R-410A refrigerant
- SMC base pan
- Simplified structure
- Easy to maintain and service
- Perfect for high humidity climates
- Removes 20%-35% more moisture from the air than standard Zoneline air conditioners* (*Varies when comparing dehumidification rates of the 7,000/9,000/12,000 BTU base models to their dry air model counterparts)
- Cooling capacity
- 6,900/6,800 BTU
- Energy efficiency
- 12.8/12.8 EER
- Dehumidification
- 2.3 pints/hour
- Indoor fan CFM (high/low)
- 320/230
- Fresh air vent CFM (fully open high fan)
- 47
- Quiet operation
- Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort

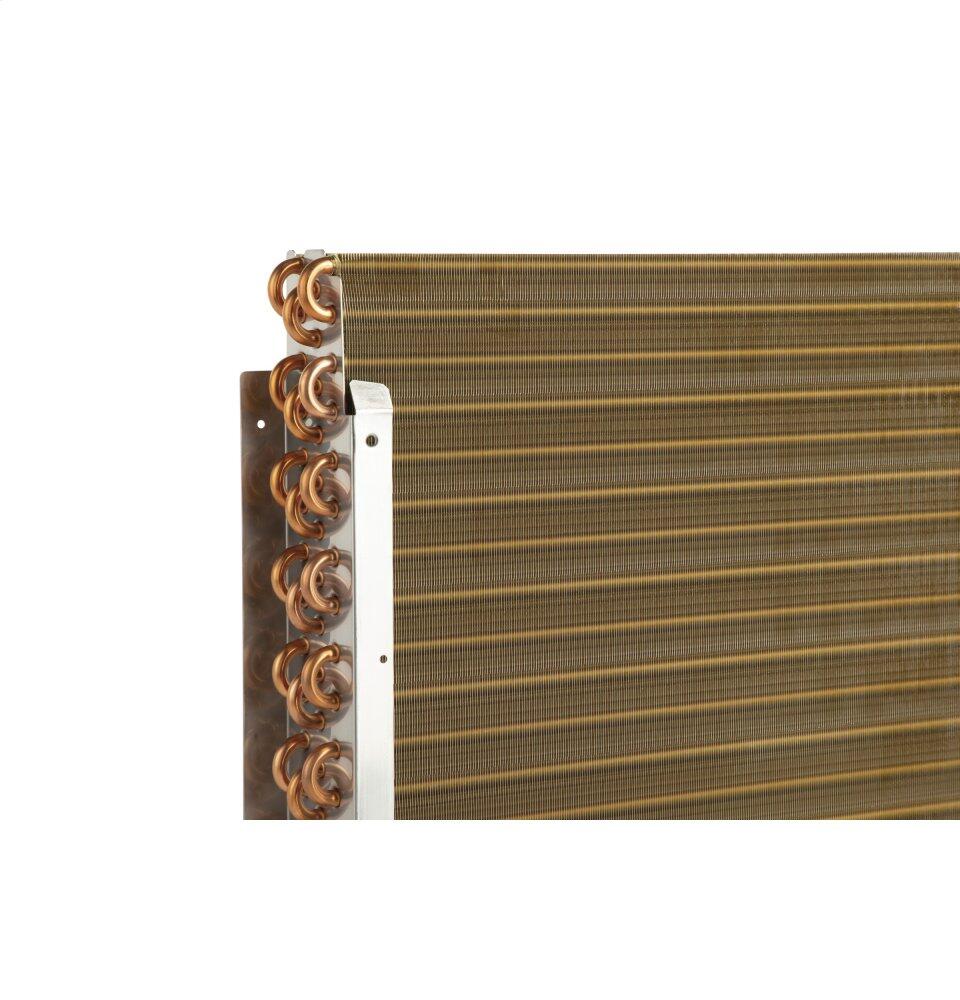

- Corrosion resistant
- Extends life of the unit in sea coast areas/corrosive environments
- Heat & Freeze Sentinels
- Keeps the room from overheating or freezing
- Electronic temperature limiting
- Prevents expensive over-cooling or over-heating of the room

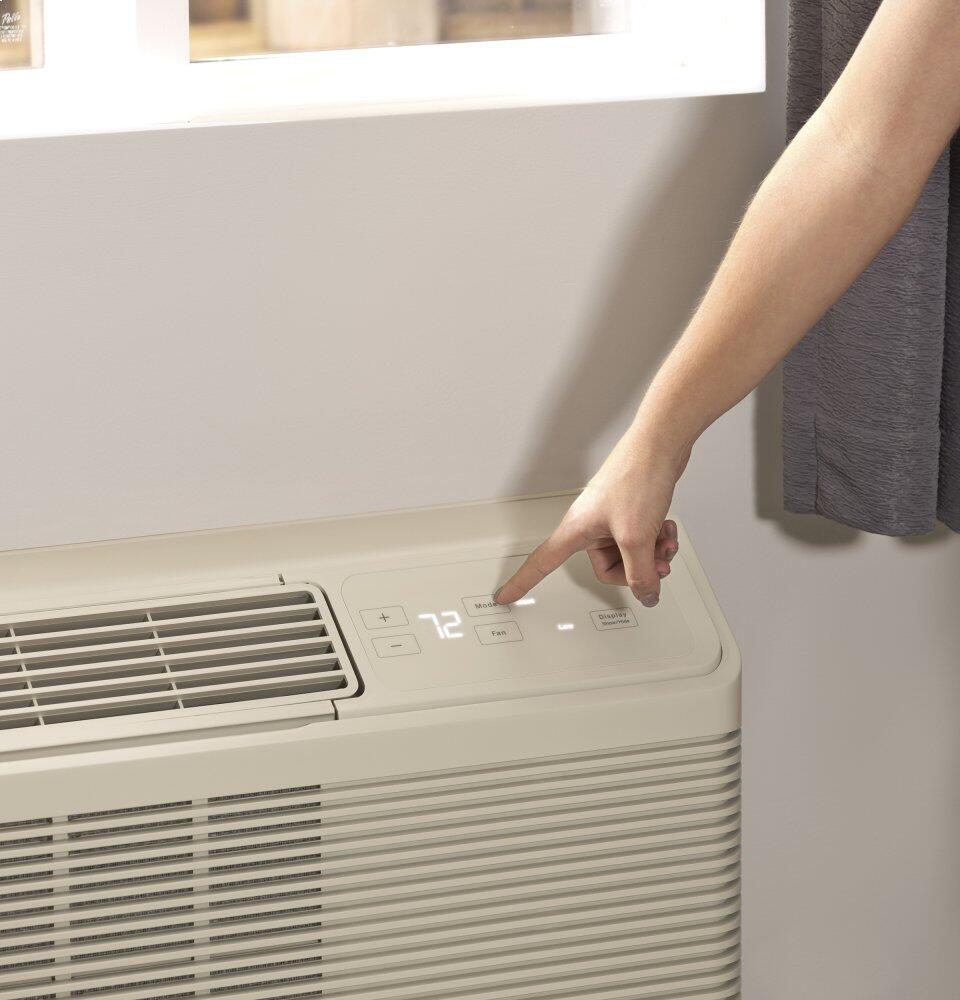

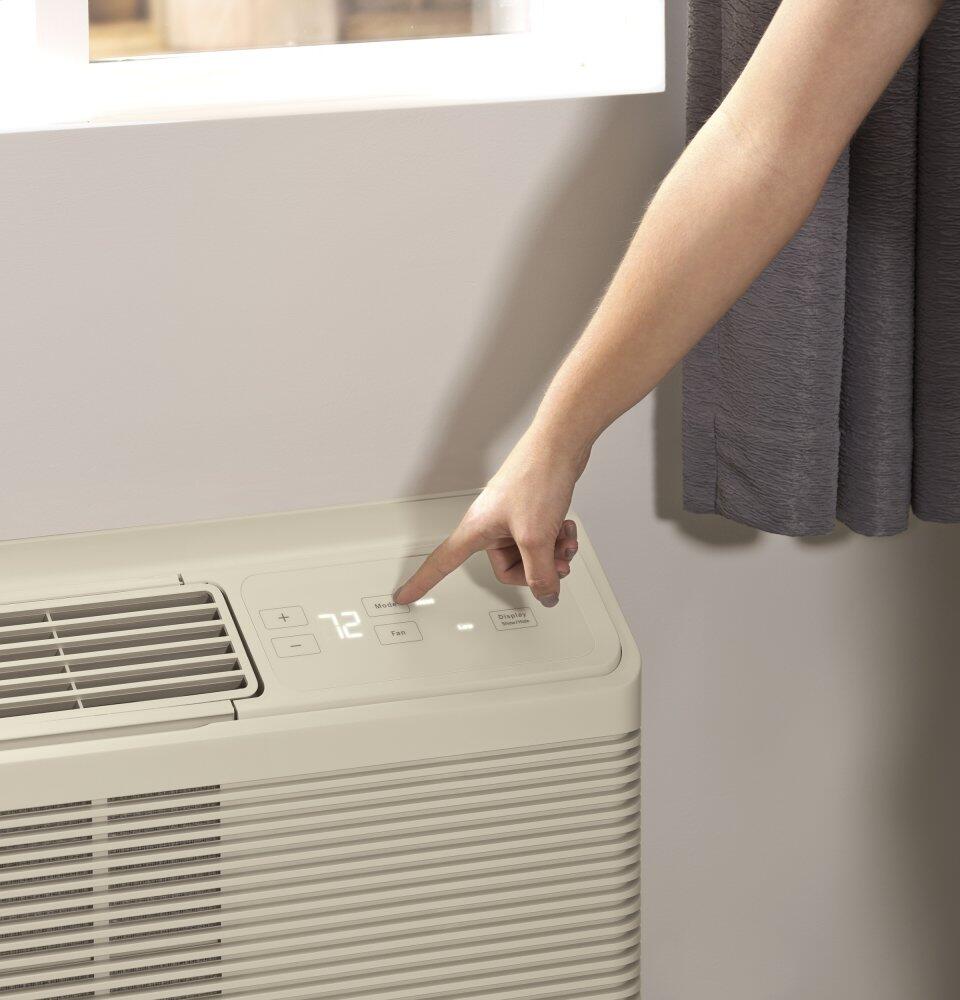

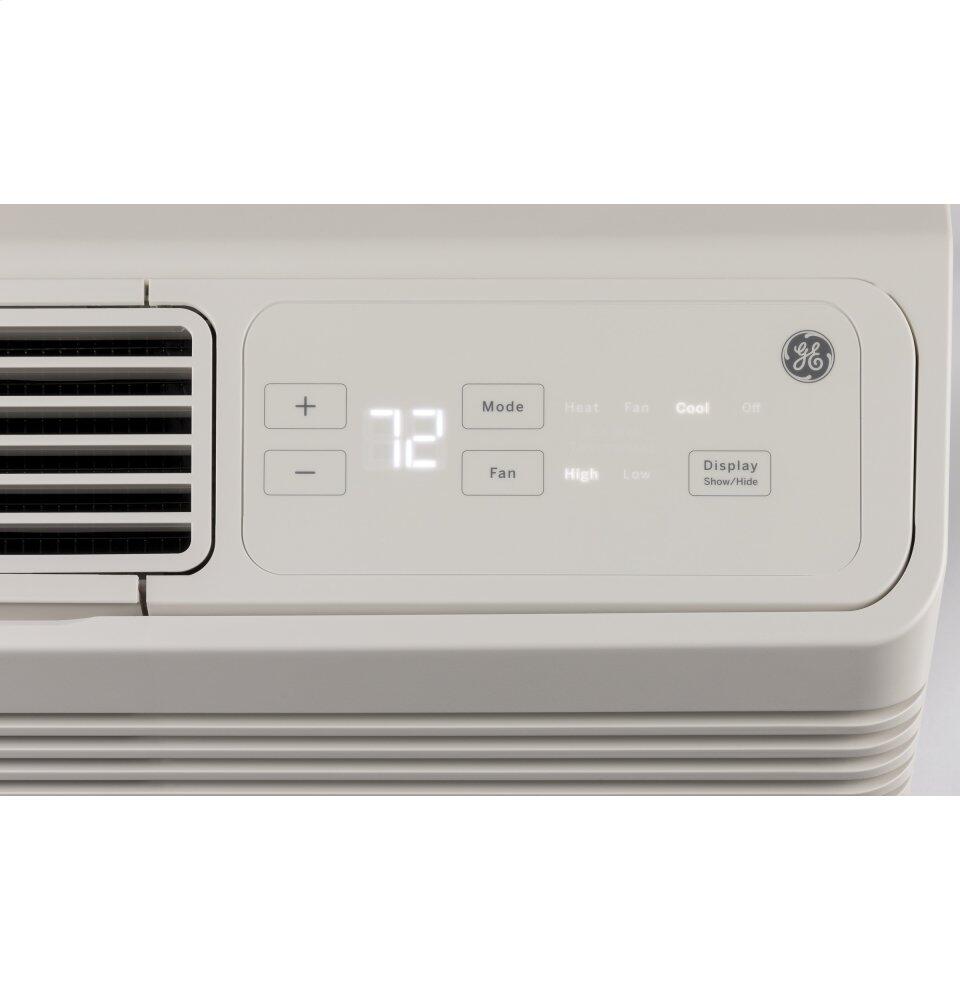

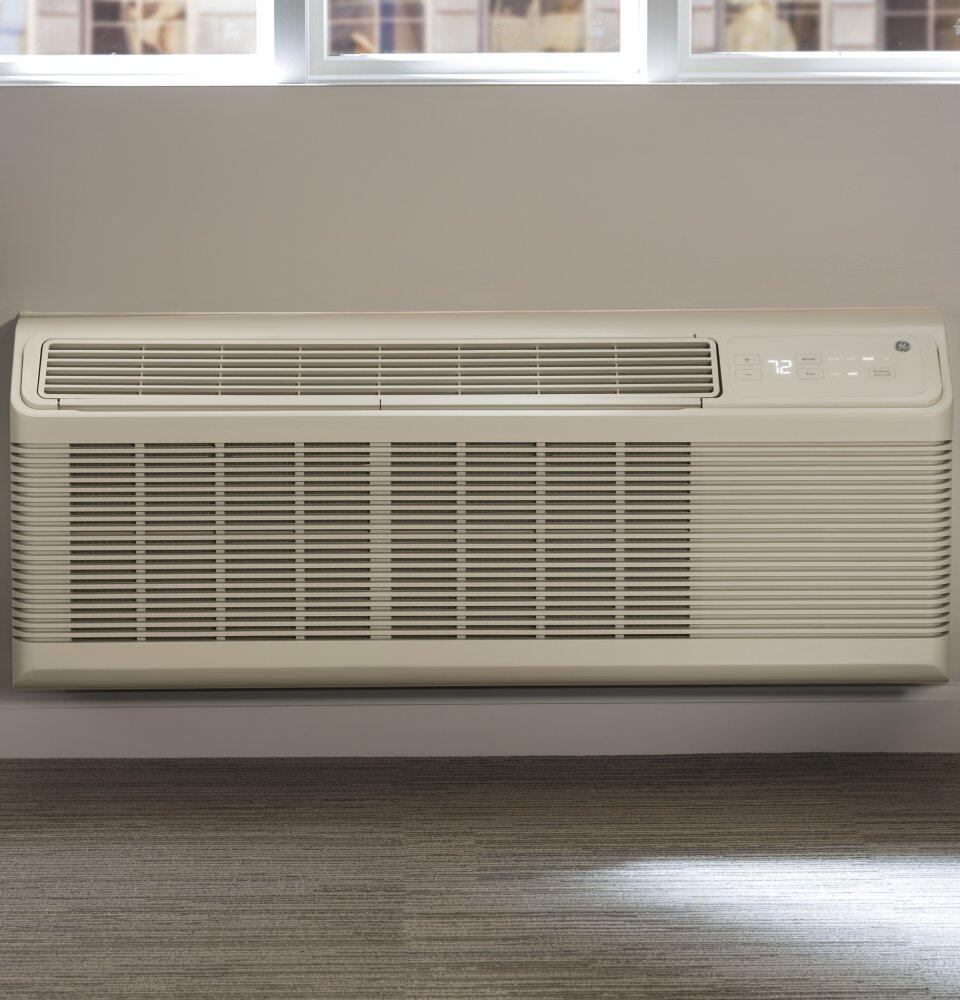

- Electronic touch controls with LED display
| CAPACITY | |
| Cooling BTUH (MIN) | 6800.0 Btu |
| Cooling BTUH (MAX) | 6900.0 Btu |
| Cooling EER (BTUH / Watt) | 12.8/12.8 |
| CFM Indoor Fan High | 348 |
| CFM Indoor Fan Low | 233 |
| Dehumidification (pts./hr.) | 2.3 |
| Vent CFM (high fan at zero ESP) | 40 |
| FEATURES | |

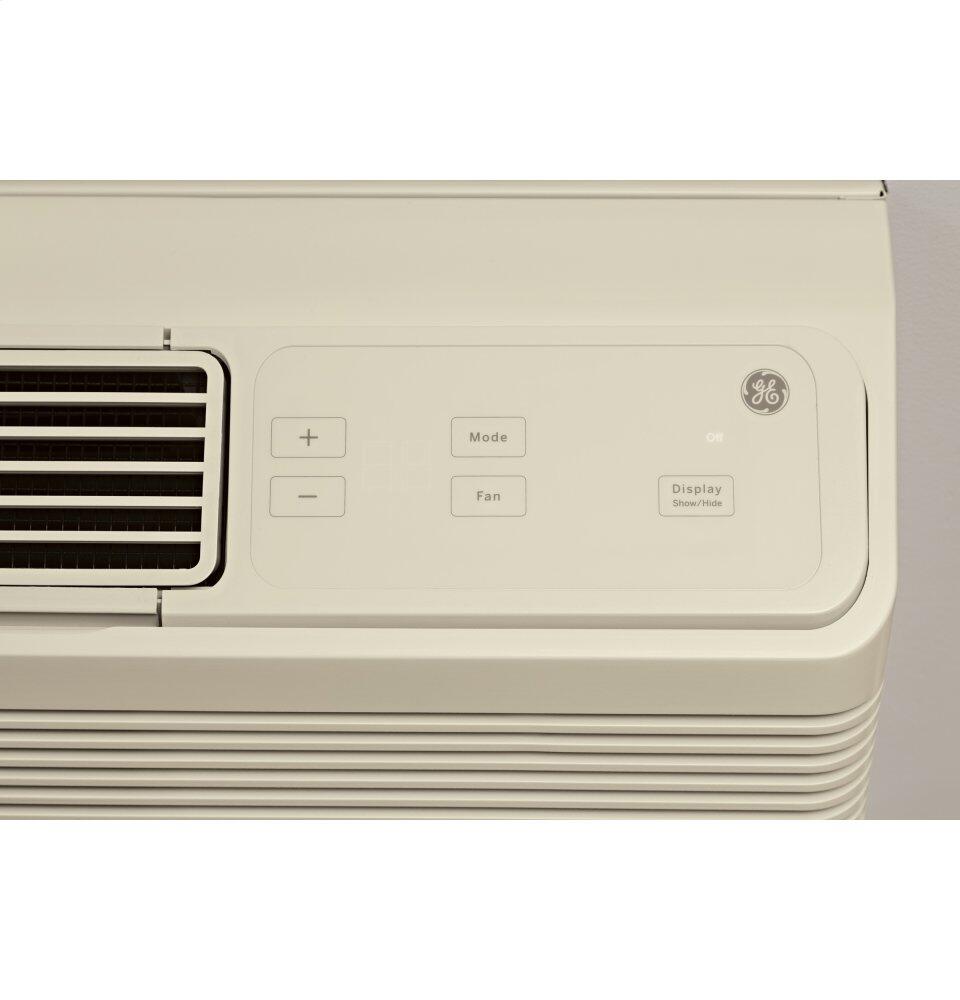

| Control Type | Coverless Backlit White LED Touch Controls |
| Corrosion Treated | Yes |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |

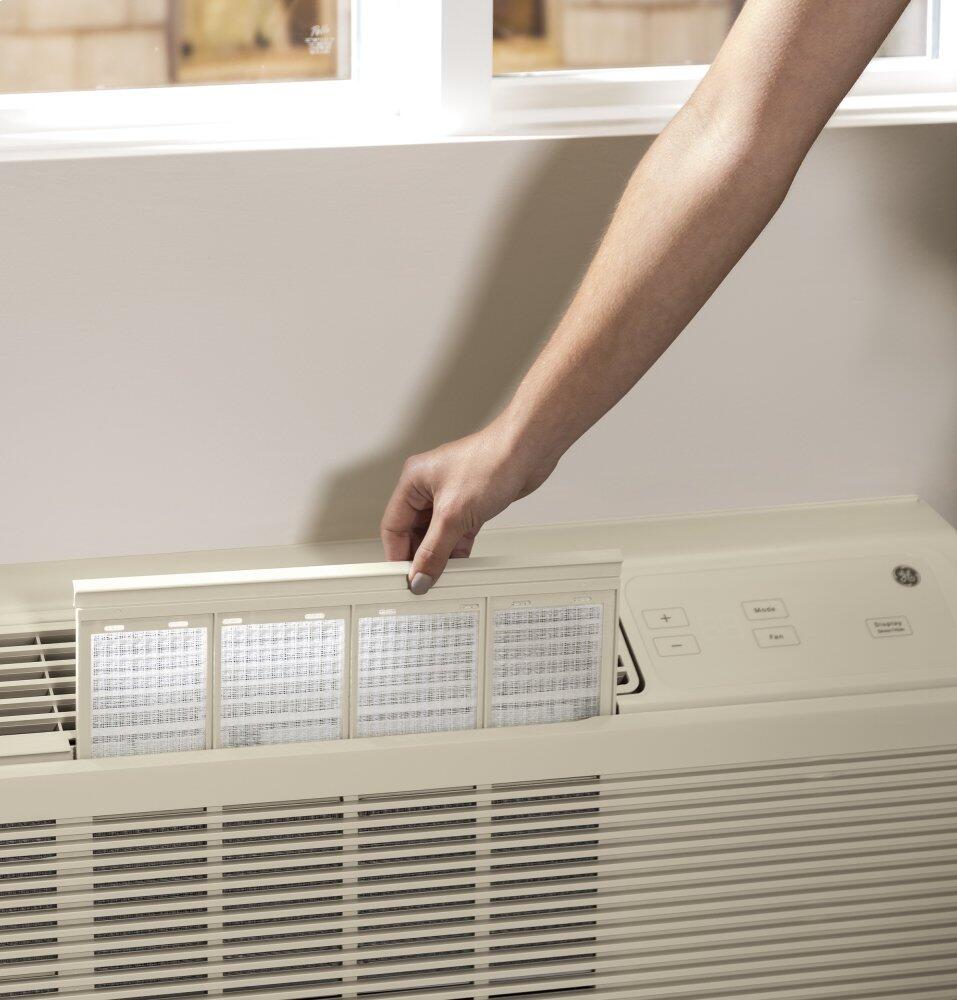

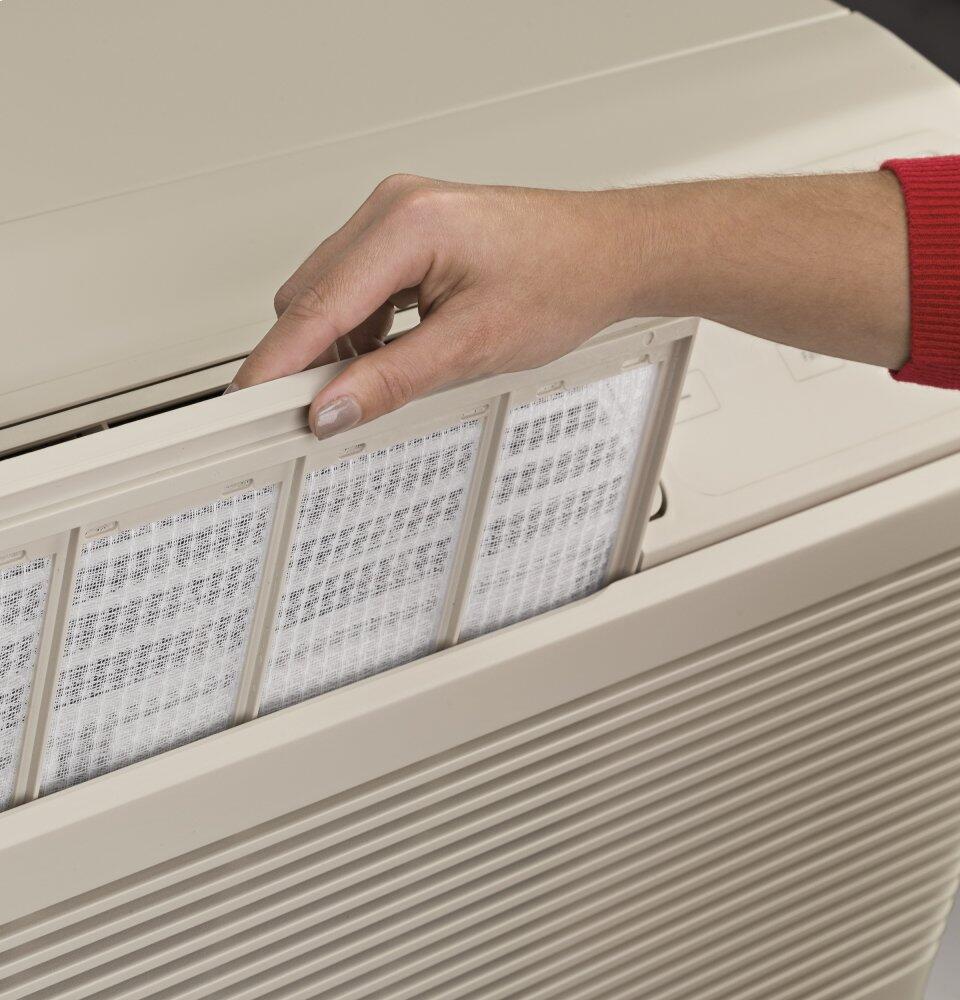

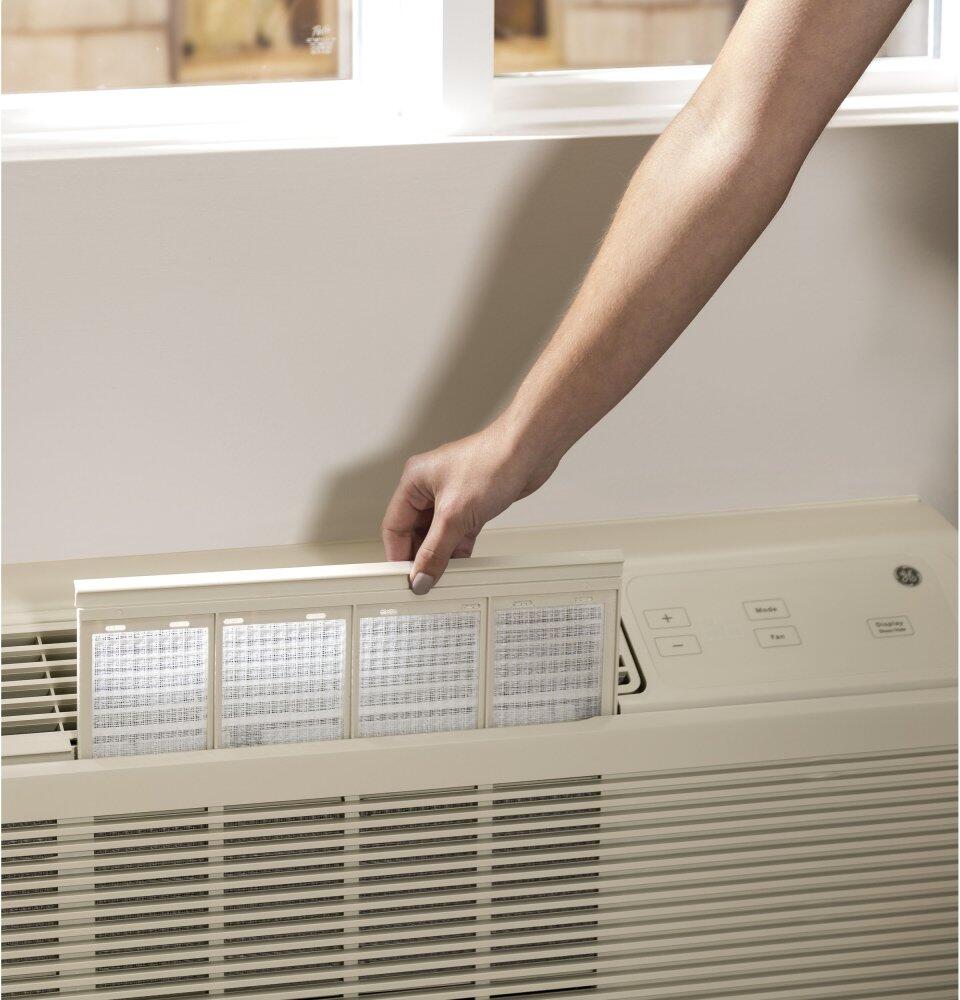

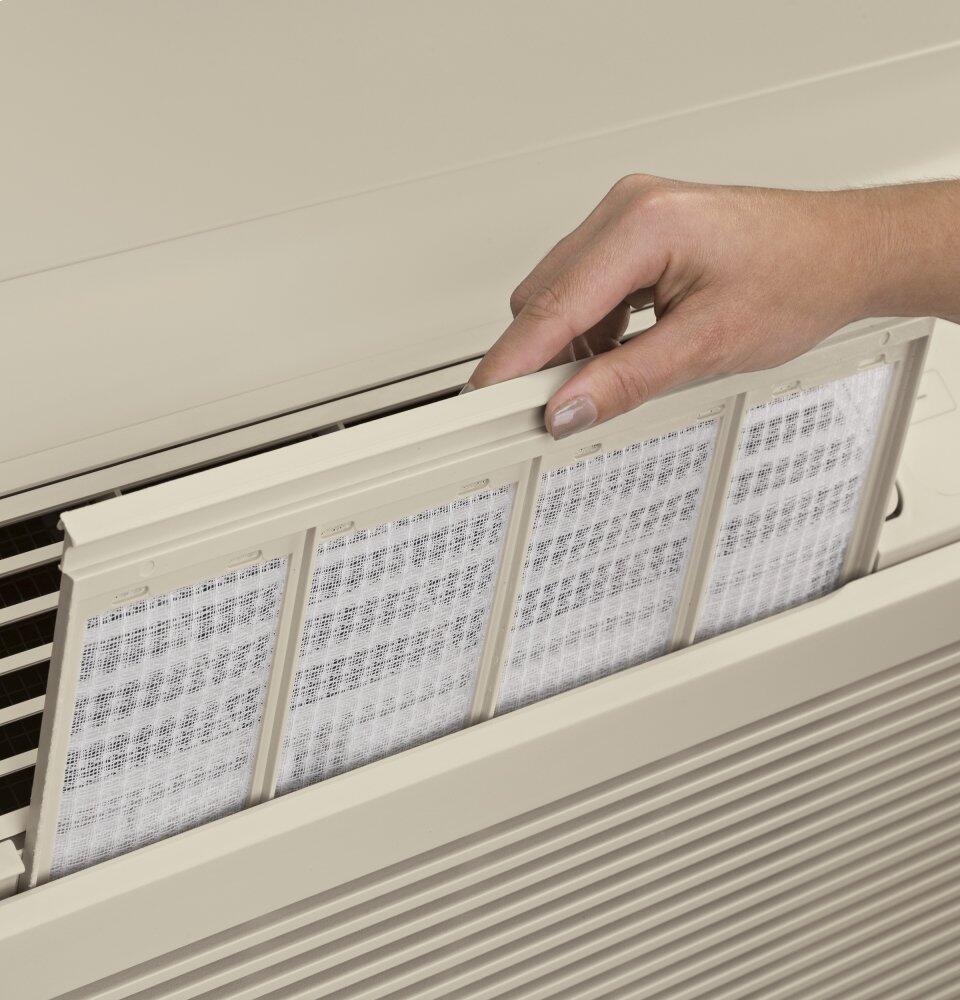

| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Vent Control | 3-position |
| Dry Air | Yes |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Zoneline Features | Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower |
| Heating System | Electric Resistance |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 61% |
| Chassis Type | Slide-In |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 2.5/2.7 |
| Cooling - Amperes; L.R. | 13.5 |
| Cooling - Watts | 535/530 |
| Power Factor | 96 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 110.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
Overview
Simplified structure
Easy to maintain and service
Energy efficiency
12.8/12.8 EER
Quiet operation
Baked-on mastic sound barrier, cross flow blower and two DC fan motors create less noise to ensure comfort
Description
R-410A Refrigerant Smc Base Pan Simplified StructureEasy To Maintain And Service Perfect For High Humidity ClimatesRemoves 20%-35% More Moisture From The Air Than Standard Zoneline Air Conditioners* (*Varies When Comparing Dehumidification Rates Of The 7,000/9,000/12,000 Btu Base Models To Their Dry Air Model Counterparts) Cooling Capacity6,900/6,800 Btu Energy Efficiency12.8/12.8 Eer Dehumidification2.3 Pints/Hour Indoor Fan Cfm (High/Low)320/230 Fresh Air Vent Cfm (Fully Open High Fan)47 Quiet OperationBaked-On Mastic Sound Barrier, Cross Flow Blower And Two Dc Fan Motors Create Less Noise To Ensure Comfort Corrosion ResistantExtends Life Of The Unit In Sea Coast Areas/Corrosive Environments Heat & Freeze SentinelsKeeps The Room From Overheating Or Freezing Electronic Temperature LimitingPrevents Expensive Over-Cooling Or Over-Heating Of The Room Electronic Touch Controls With Led Display
Features
- R-410A refrigerant
- SMC base pan
- Simplified structure
- Perfect for high humidity climates
- Cooling capacity
- Energy efficiency
- Dehumidification
- Indoor fan CFM (high/low)
- Fresh air vent CFM (fully open high fan)
- Quiet operation
- Corrosion resistant
- Heat & Freeze Sentinels
- Electronic temperature limiting
- Electronic touch controls with LED display
Specifications
| CAPACITY | |
| Cooling BTUH (MIN) | 6800.0 Btu |
| Cooling BTUH (MAX) | 6900.0 Btu |
| Cooling EER (BTUH / Watt) | 12.8/12.8 |
| CFM Indoor Fan High | 348 |
| CFM Indoor Fan Low | 233 |
| Dehumidification (pts./hr.) | 2.3 |
| Vent CFM (high fan at zero ESP) | 40 |
| FEATURES | |
| Control Type | Coverless Backlit White LED Touch Controls |
| Corrosion Treated | Yes |
| Discharge Grille | 2-position |
| Electronic Micro Computer Control | Yes |
| Fan Cycle Switch | Yes |
| Fan Motor | 2 |
| Fan Speed Control | Yes |
| Fan Speed Selections | Hi/Low Cooling Hi/Low Fan Only Hi/Low Heating |
| Filter Type | Rigid Frame Slide-Out |
| Heat - Cool | Yes |
| Louver Style | Reversible |
| Manual Vent Control | Hidden |
| Rotary Compressor | Yes |
| Temperature Limiting | Electronic 7-Step |
| Vent Control | 3-position |
| Dry Air | Yes |
| Venting Features | Concealed Manual Vent Control Outdoor Vent Control - 3 Positions Vent Air Filter |
| Zoneline Features | Remote Thermostat Compatibility Universal Heaters Weather Protected Electrical Components Auto Power Recovery Automatic Indoor Frost Control Central Desk Control Compatibility Freeze Sentinel Heat Sentinel Power Cord (LDCI) included Proportional - Integral ID Airflow Random Twist/Length Segment Tangential Blower |
| Heating System | Electric Resistance |
| Product Type | Packaged Terminal Air Conditioners (PTAC) |
| Temperature Range | 60 - 85 F |
| Sensible Heat Ratio | 61% |
| Chassis Type | Slide-In |
| POWER / RATINGS | |
| Cooling - Amperes; F.L. - Cooling | 2.5/2.7 |
| Cooling - Amperes; L.R. | 13.5 |
| Cooling - Watts | 535/530 |
| Power Factor | 96 |
| Voltage (MIN) | 208.0 V |
| Voltage (MAX) | 230.0 V |
| WARRANTY | |
| Parts Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Labor Warranty | Limited 1-year entire appliance Limited 5-year sealed refrigerating system |
| Warranty Notes | See written warranty for full details |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 110.0 lb |
| Overall Depth | 20.8125 in |
| Overall Height | 16.0 in |
| Overall Width | 42.0 in |
