The Frigidaire Professional 36" Dual Fuel Range features dual fan convection that effectively circulates hot air throughout the oven cavity, giving you perfectly baked muffins, proteins and more. Plus, the six burner cooktop offers ultimate flexibility with Dual Power Burners that quickly go from boil to simmer - designed to handle all of your cooking needs. Dual Fuel technology offers an efficient, superior cooking experience with the power of a gas cooktop and precision of an electric oven. This range also features backlit LED knobs and our Smudge-Proof® Stainless Steel finish that resists finger prints, making cleanup easy. Delicious results, every time with Dual Fan Convection Get faster, more even multi-rack baking with powerful dual convection fans that circulate hot air throughout the oven cavity. Flexible six burner cooktop Six burner cooktop provides ultimate cooking flexibility with dual power burners that quickly go from boil to simmer. Take the guesswork out of cooking with the Temperature Probe The Temperature Probe monitors and alerts when the desired finished cooking temperature has been reached. Dual Power Burners Dual burners deliver a powerful boil at 18000 BTU's to a delicate simmer at 750 BTU's to meet all your cooking needs. Backlit LED Knobs Backlit LED knobs light up when the cooktop is in use. Best of both worlds with Dual Fuel Technology Features the power of a gas cooktop and the precision of an electric oven for baking, so you get maximum versatility and delicious results. Convenient one hour Steam Clean Keep your oven looking and operating at its best with the fast Steam Clean cycle that's chemical and odor-free. Better access to your meals with the Glide Rack Our extending Glide Rack makes it easier to monitor and lift your food out of the oven. Soft-close oven door Soft-close hinges gently guide the oven door to a closed position Clean-up is easier with Hidden Bake Keeping the bottom of your oven clean is easier with a hidden heating element. Easily move cookware with Continuous Grates Move even your heaviest pots and pans without the need to lift them. Smudge-Proof® Stainless Steel Resists fingerprints and cleans easily. ADA Compliant Product complies with the Americans with Disabilities Act. * When properly installed, meets the appliance standards in the Americans with Disabilities Act and the Architectural Barriers Act Accessibility Guidelines as published by the United States Access Board on June 23, 2004, as amended August 5, 2005. Sabbath Mode (Star-K® Certified) Dimensions & Capacity Width: 35.93"
Height: 36.56"
Depth: 25.87"
First Oven Size: 4.4 cu. ft.

• Delicious results, every time with Dual Fan Convection

Get faster, more even multi-rack baking with powerful dual convection fans that circulate hot air throughout the oven cavity.

• Flexible six burner cooktop

Six burner cooktop provides ultimate cooking flexibility with dual power burners that quickly go from boil to simmer.

• Take the guesswork out of cooking with the Temperature Probe

The Temperature Probe monitors and alerts when the desired finished cooking temperature has been reached.

• Dual Power Burners

Dual burners deliver a powerful boil at 18000 BTU's to a delicate simmer at 750 BTU's to meet all your cooking needs.

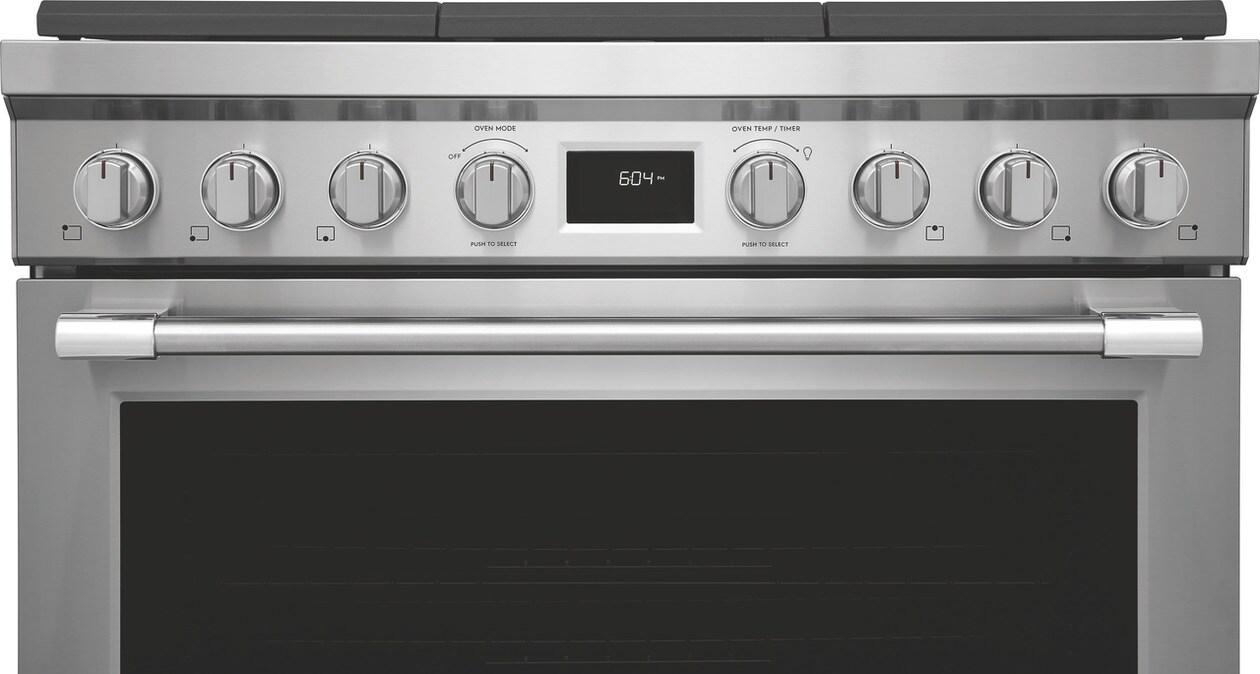

• Backlit LED Knobs

Backlit LED knobs light up when the cooktop is in use.

• Best of both worlds with Dual Fuel Technology

Features the power of a gas cooktop and the precision of an electric oven for baking, so you get maximum versatility and delicious results.

• Convenient one hour Steam Clean

Keep your oven looking and operating at its best with the fast Steam Clean cycle that's chemical and odor-free.

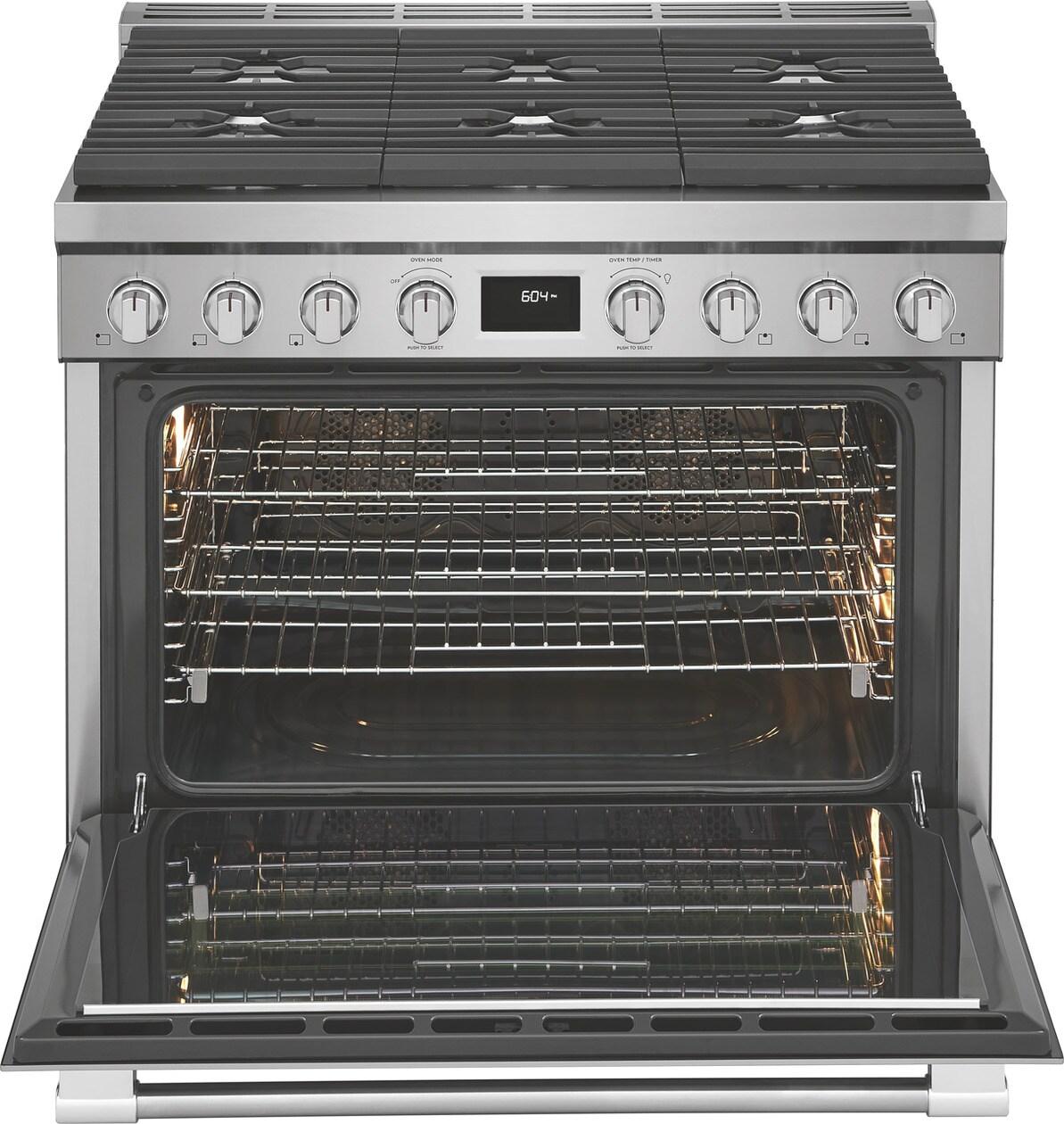

• Better access to your meals with the Glide Rack

Our extending Glide Rack makes it easier to monitor and lift your food out of the oven.

• Soft-close oven door

Soft-close hinges gently guide the oven door to a closed position

• Clean-up is easier with Hidden Bake

Keeping the bottom of your oven clean is easier with a hidden heating element.

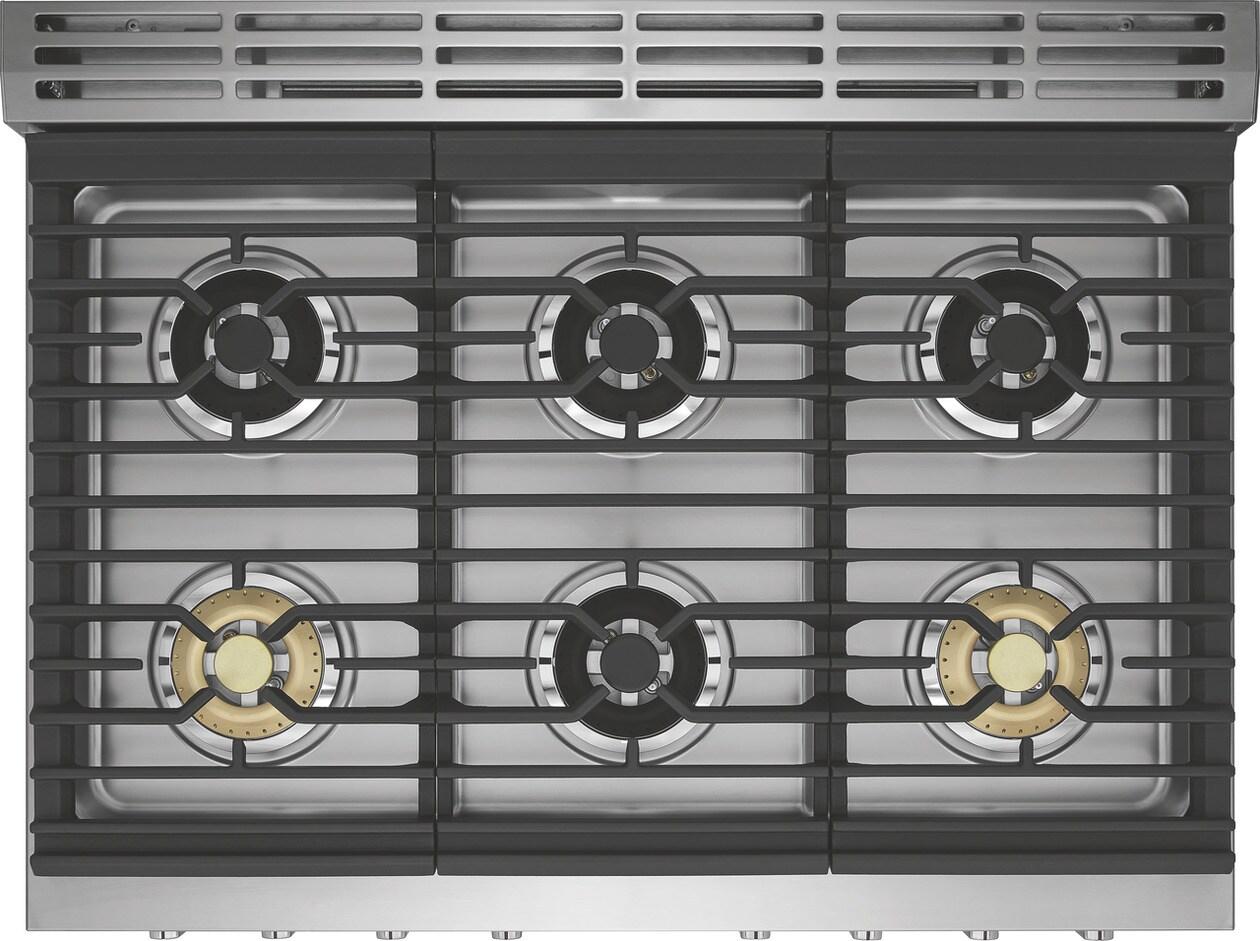

• Easily move cookware with Continuous Grates

Move even your heaviest pots and pans without the need to lift them.

• Smudge-Proof® Stainless Steel

Resists fingerprints and cleans easily.

• ADA Compliant

Product complies with the Americans with Disabilities Act. * When properly installed, meets the appliance standards in the Americans with Disabilities Act and the Architectural Barriers Act Accessibility Guidelines as published by the United States Access Board on June 23, 2004, as amended August 5, 2005.

• Sabbath Mode (Star-K® Certified)

Product Line	Dual Fuel Range
Installation Type	Free-Standing
Factory	Sourced
Color	Stainless Steel
Installation
Adjustable Leveling Legs	Yes
LP Conversion Kit Included	Yes
Plinth	Yes
Power Cord Included	Yes
Included Power Cord Type	4-Prong Plug
Electrical Specifications
Minimum Circuit Required	30 Amps
Voltage Rating	240 V
Cooking Controls
Bake	Yes
Bread Proof	Yes
Broil	Yes
Child Lock	Yes
Convection Bake	Yes
Convection Roast	Yes
Cook Time	Yes
Delay Start	Yes
Keep Warm	Yes
Kitchen Timer	Yes
Probe	Yes
Steam Clean	Yes
Temperature Display	Yes
Oven
Bake Element	3,300 Watts
Bake Element Type	Hidden
Broil Element	3,300 Watts
Convection Element	3,380 Watts
Convection Type	True Dual
Number of Convection Fans	2
Number of Rack Positions	5
Oven Interior Color	Gray
Oven Light Quantity	2
Oven Light Type	Halogen
Oven Light Watts	40 Watts
Rack Position Type	Ladder
Rack Type 1	Flat
Rack Type 1 Quantity	2
Rack Type 2	Glide
Rack Type 2 Quantity	1
Window Type	Extra Large Visual
Cooktop
Cooking Surface Type	Gas
Grate Material	Cast Iron
Grate Quantity	3
Grate Style	Continuous
Sealed Burners	Yes
Dimensions and Volume
Minimum Height	35 563/1000'
Maximum Height	36 563/1000'
Width	35 469/500'
Depth	25 7/8'
Depth With Door 90° Open	43 47/50'
Oven Interior Height	14 1/2'
Oven Interior Width	28 1/4'
Oven Interior Depth	16 1/2'
Oven Capacity	4.4 Cu. Ft.
Safety Certifications and Approvals
CSA Listed	Yes
RoHS	Yes
Controls
Sabbath Mode	Yes
General Specifications
Product Weight	276 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
Exterior
Backlit Knobs	Yes
Exterior Finish	Smudge-Proof® Stainless Steel
Cooktop Performance
Right Front Element Burner	18,000 / 750 BTU Dual
Right Rear Element Burner	12,000 / 750 BTU Dual
Left Front Element Burner	18,000 / 750 BTU Dual
Left Rear Element Burner	12,000 / 750 BTU Dual
Center Front Element Burner	12,000 / 750 BTU Dual
Center Rear Element Burner	12,000 / 750 BTU Dual
Display
Control Location	Front
Display Light Color	White
Display Type	LED
