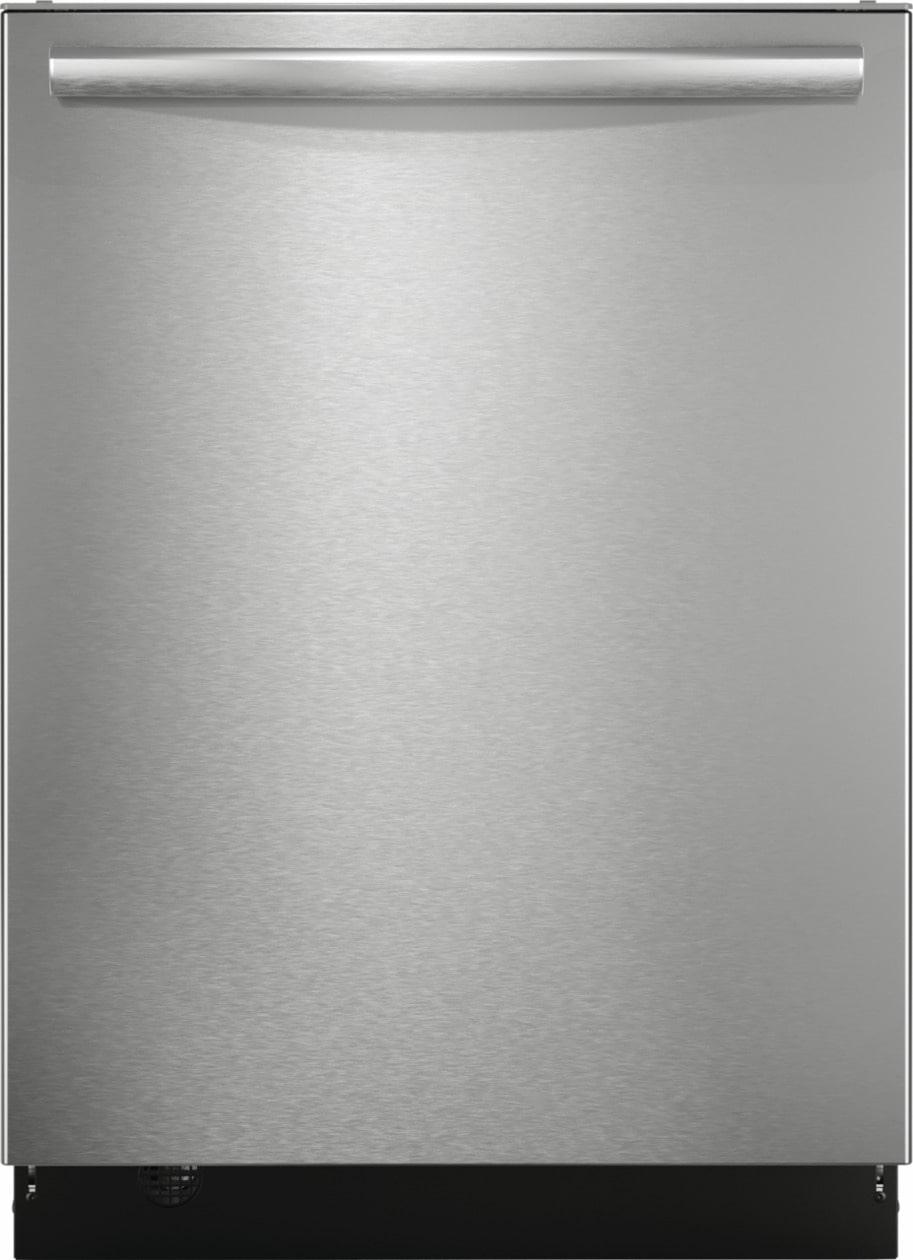

Frigidaire GDSH4715AF Frigidaire Gallery 24" Stainless Steel Tub Built-In Dishwasher With Cleanboost™
Rebates &
Promotions

DishSense® Sensor Technology
Skip pre-rinsing with our DishSense® sensor technology that adjusts cleaning performance based on the soil level of your dishes.

Protecting Floors Against Leaks
In the event of a leak a sensor is triggered stopping the cycle and containing overflowed water in a tray at the bottom of the dishwasher.

Cleans Hard-to-Reach Spots
Clean hard-to-reach spots with our Target Spray Zones that target tough spots for the ultimate clean.

Keep your Kitchen Quiet with 47 dBA
Keep your kitchen quiet and the noise inside your dishwasher where it belongs with extra, quality insulation.

Powerful 30-Minute Fast Wash
Get a powerful clean in just 30 minutes.
Amplify your Clean With CleanBoost™ Remove tough baked-on foods and boost the cleaning power of any detergent with our patented CleanBoost™ premix technology
Dimensions & Capacity Width: 24"
Height: 33.75"
Depth: 26.69"
- Get better cleaning results with CleanBoost™ technology
- Sanitize Option
- Enhanced drying results with MaxBoost Dry™
- Saves over 4000 gallons of water every year
- DishSense® Sensor Technology
- Cleans Hard-to-Reach Spots
- Complete clean from every angle with OrbitClean®
- Powerful 30-Minute Clean
- ENERGY STAR® Certified
- Keep your kitchen quiet with 47 dBA
- Premium Capacitive Touch User Interface

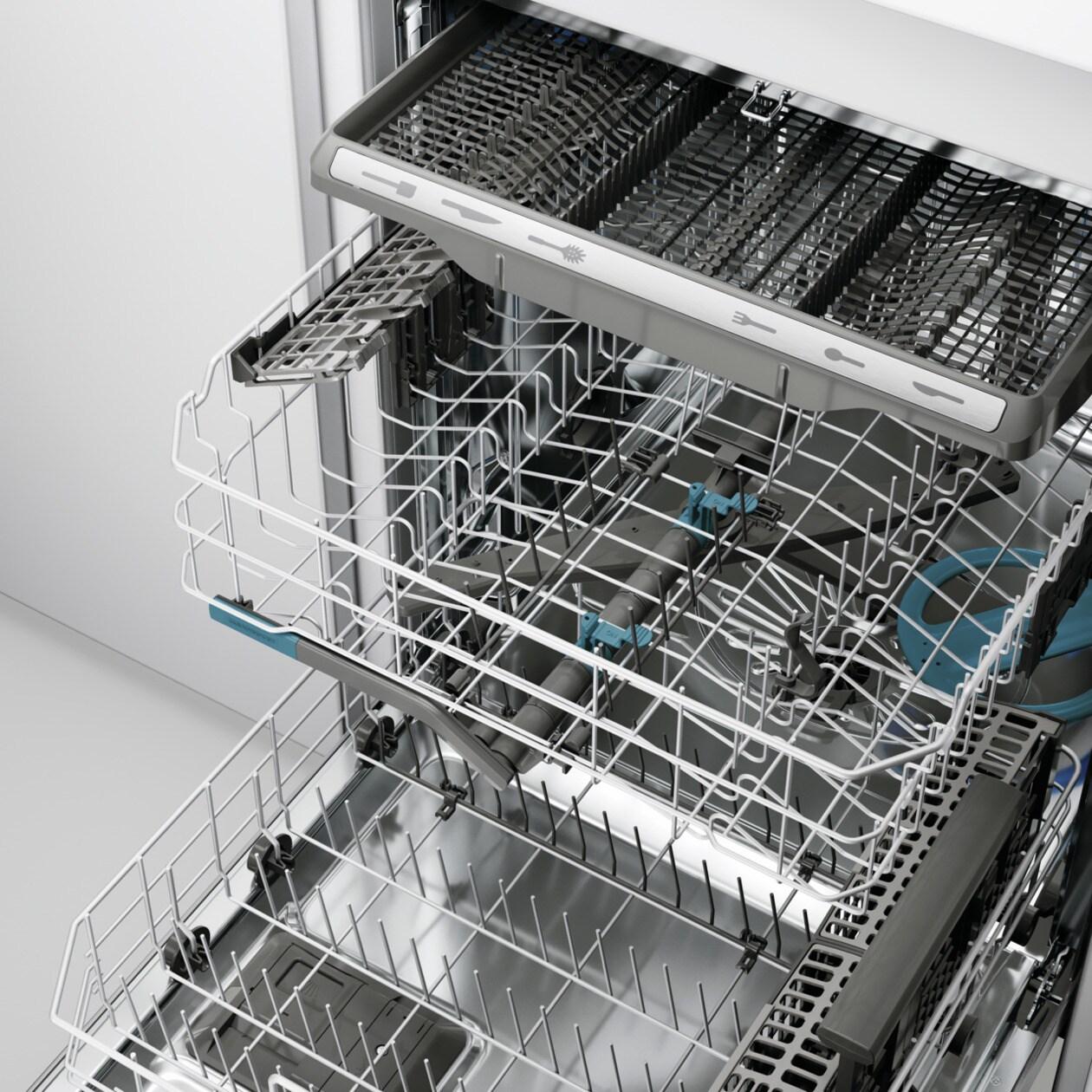

- Third Level Rack
- Easily fits dishes of all sizes with an adjustable rack
- Convenient status indicator floor light
- Smudge-Proof™ Stainless Steel
- Protecting your floors against water leaks
Product Line | Dishwasher |
Power Type | Electric 120v |
Size | 24' |
Installation Type | Built-In |
Factory | Solaro |
Color | Stainless Steel |
Dishwasher | |
Automatic Temperature Control | No |
Detergent Dispenser | Yes |
Filter Material | Stainless Steel |
Filter Trap | Removable |
Filtered Water | 100 % |
Hard Food Disposer or Filtration | Yes |
Interior Light | No |
Leak Detection System | Yes |
Motor Speeds | Multi-Speed |
Place Setting Capacity | 14 |
Rinse Aid Dispenser | Yes |
Smart Soil Sensor | Yes |
Lower Spray Arm | Orbit |
Middle Spray Arm | Bi-Beam |
Upper Spray Arm | Spray Arm |
Status Indicator Floor Beam | Yes |
Tub Color | Stainless Steel |
Tub Design | Tall Tub |
Tub Material | Stainless Steel |
Wash Levels | 5 |
Wash System | Direct Feed |
Dishwasher Cycles | |
China Crystal | Yes |
Energy Saver | Yes |
Favorite | Yes |
Heavy | Yes |
Normal | Yes |
Number of Cycles | 7 |
Quick | Yes |
Rinse Only | No |
Sanitize | Yes |
Dishwasher Options | |
Air Dry | Yes |
Dry - Air | Yes |
Dry - Heat | Yes |
Dry - Max | Yes |
Drying System | Even Dry |
Heated Dry | Yes |
High Temperature | No |
Start/Cancel | Yes |
Lower Rack | |
Fold-Down | Yes |
Maximum Height Clearance | 13 1/4' |
Minimum Height Clearance | 11 1/4' |
Number of Silverware Basket | 1 |
Number of Silverware Basket Lids | 2 |
Rack Coating | Nylon |
Rack Type | Adjustable |
Upper Rack | |
Cup Shelf | Yes |
Fold-Down | Yes |
Maximum Height Clearance | 10 3/8' |
Minimum Height Clearance | 8 1/2' |
Rack Coating | Nylon |
Rack Handles | No |
Rack Type | Adjustable |
Stemware Holder | Yes |
Targeted Wash Zone | Yes |
Third Level Rack | |
Third Level Rack | Yes |
Rack Coating | Nylon |
General Specifications | |
Sound Level | 47 dBA |
Annual Energy | 240 kWh |
Product Weight | 85 lbs |
Prop 65 Label | No |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Controls | |
Control Color | Black |
Control Location | Top |
Delay Start Hours | 1-12 Hours |
Digital Display | Yes |
Control Lock | Yes |
Rinse Aid Indicator | Yes |
Exterior | |
Door and Handle Design | Handle |
Door Latch | Pull |
Door Type | StayPut |
Exterior Finish | Smudge-Proof® Stainless Steel |
Dimensions and Volume | |
Minimum Height | 33 3/4' |
Maximum Height | 35 3/4' |
Width | 24' |
Depth | 24 1/4' |
Depth With Door Open | 50 1/4' |
Depth With Handle | 26 69/100' |
Electrical Specifications | |
Amps @ 120 Volts | 15 Amps |
Voltage Rating | 120 V |
Installation | |
Connection Location | Right Bottom |
Number of Leveling Legs | 3 |
Water Inlet Location | Left Bottom Front |
Performance Certifications and Approvals | |
CEE Tier | Tier 1 |
ENERGY STAR Certified | Yes |
UL Listed | Yes |
cUL Listed | Yes |
ETL Listed | Yes |
Meets ASSE 1006 Requirements | Yes |
NSF Certified | Yes |
